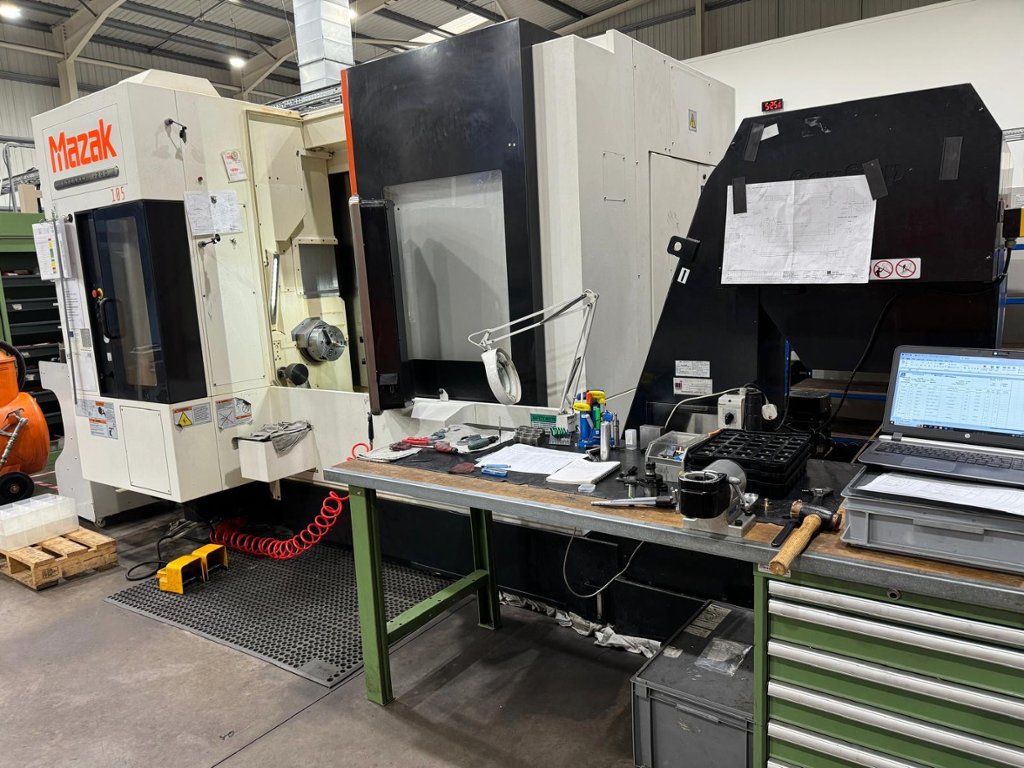

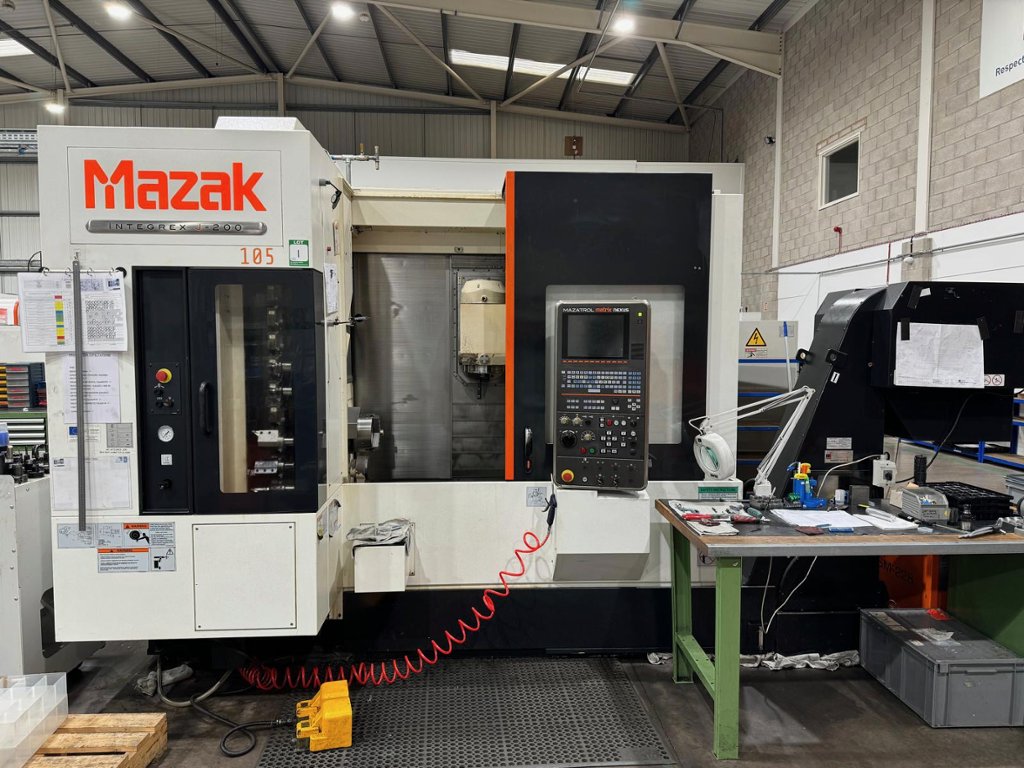

MAZAK INTEGREX J-200 Multi-tasking CNC Lathe (2010)

Width: 3790mm
Depth: 2560mm
Height: 2400mm
Weight: 7400kg
Other Transport Details: Loaded to suitable Transport : £500

Lot 1 - MAZAK INTEGREX J-200 Multi-tasking CNC Lathe (2010)

Description:

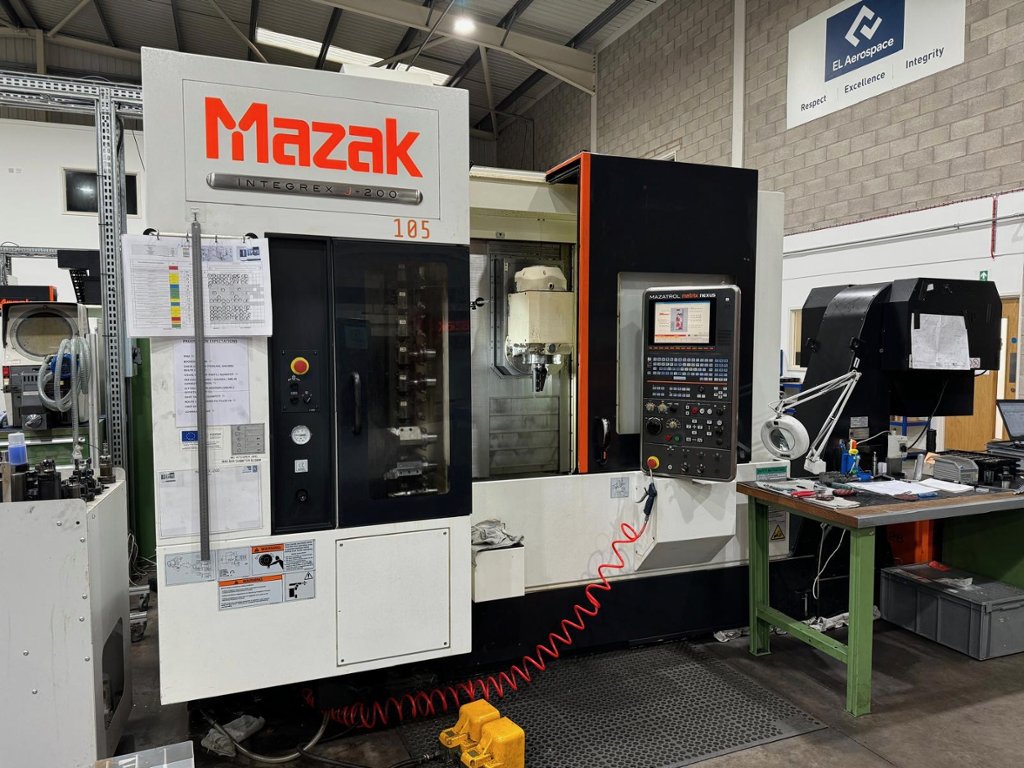

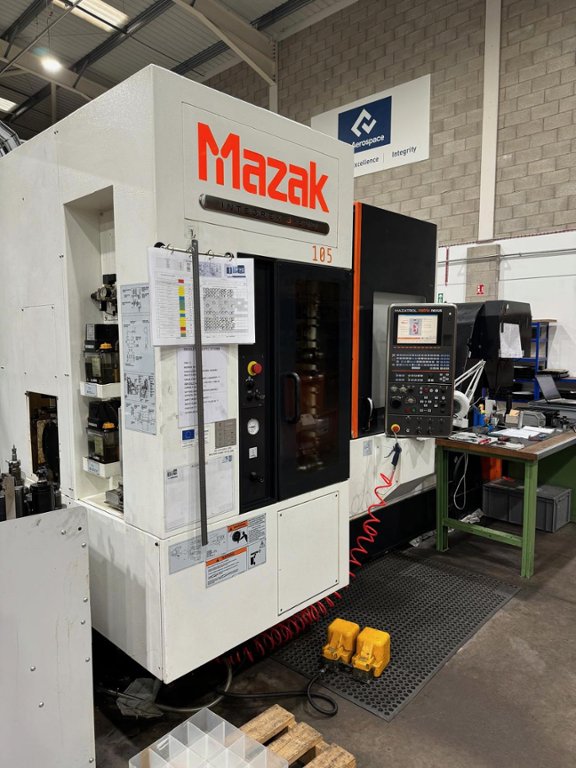

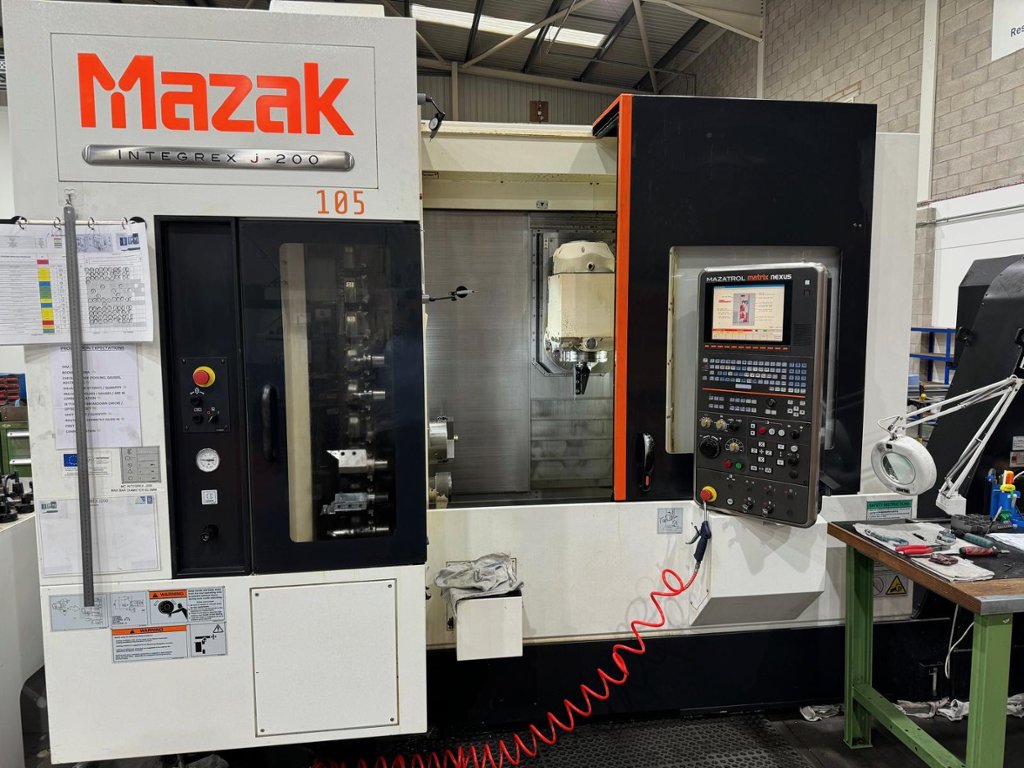

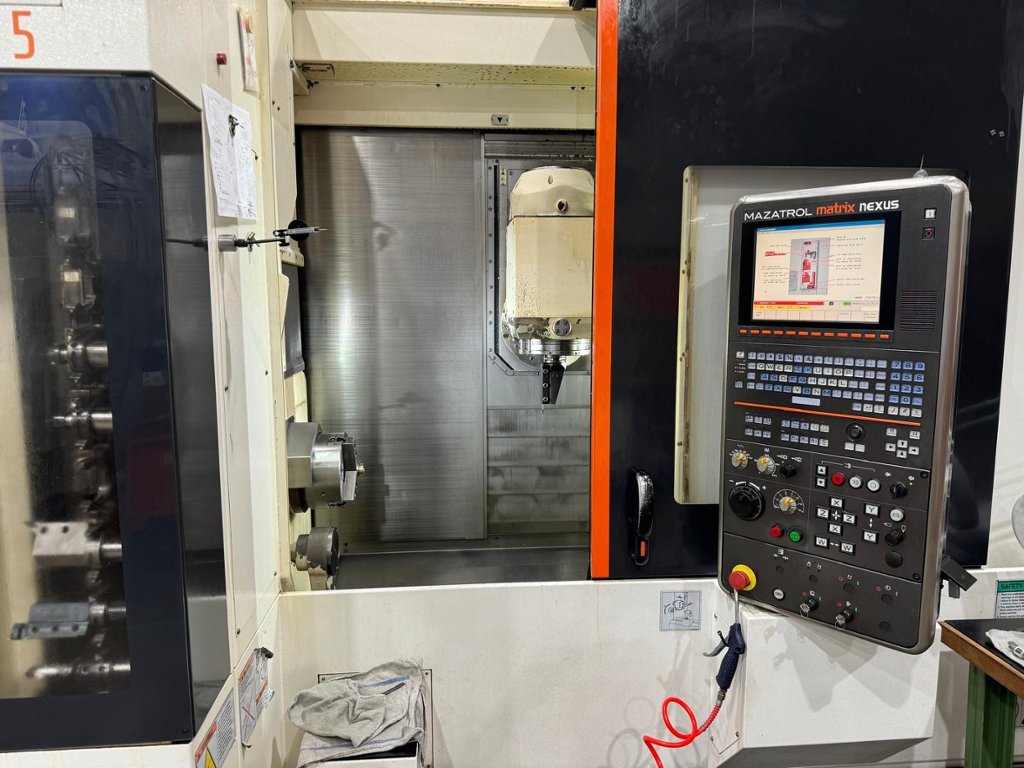

MAZAK INTEGREX J-200 Multi-tasking CNC Lathe
Year 2010

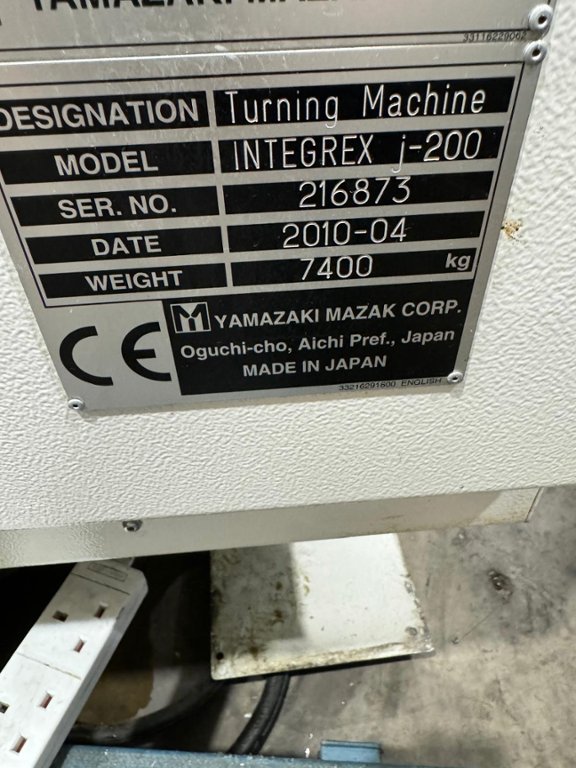

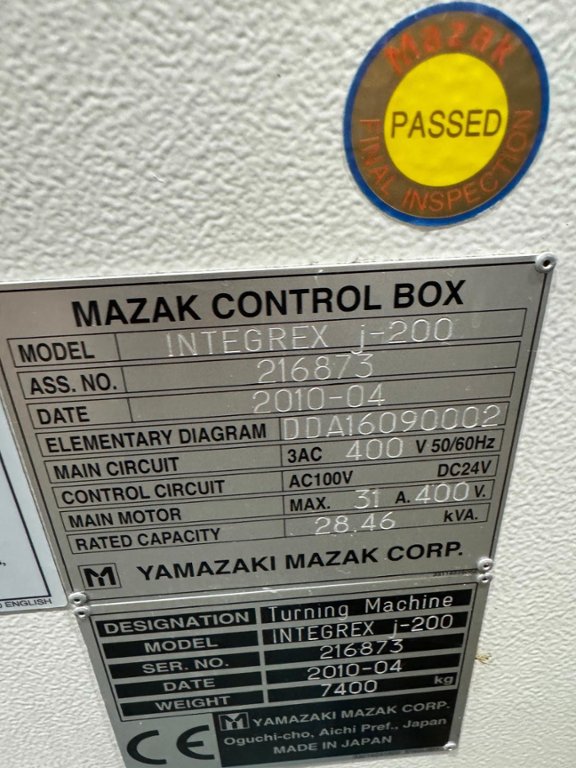

Serial Number 216873

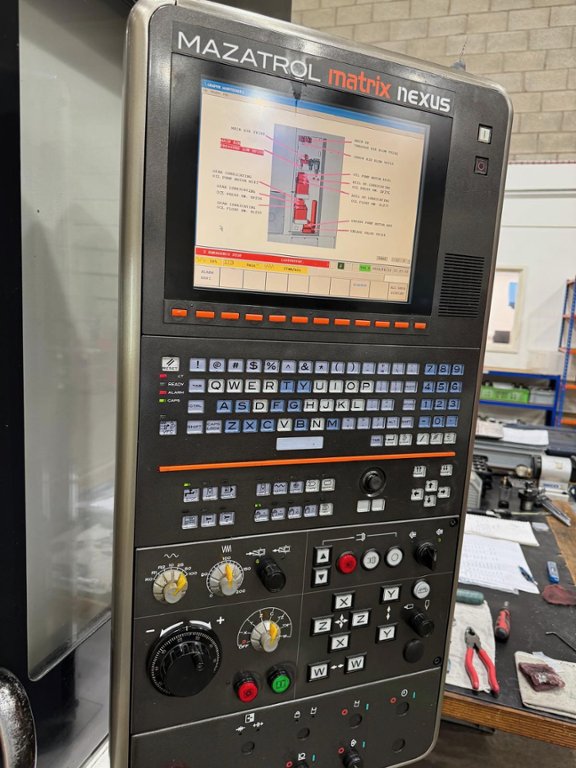

Mazatrol Matrix Nexus Control
Swing 530mm
Bar capacity 65mm
Maximum Machining Diameter 500mm
Maximum Cutting Length 500mm
Y Axis travel +/-100mm
Milling power 7.5kW
Milling speed 12000rpm
Spindle power 11kW
Spindle speed 5000rpm

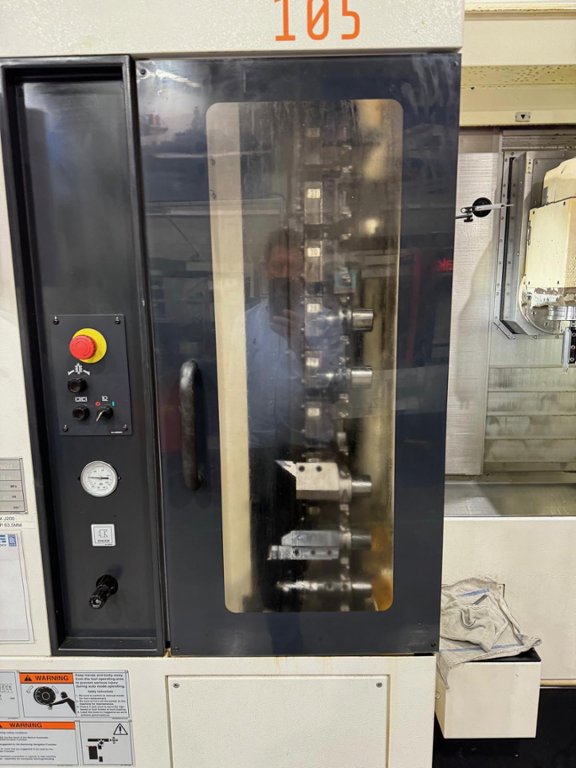

36 Station ATC

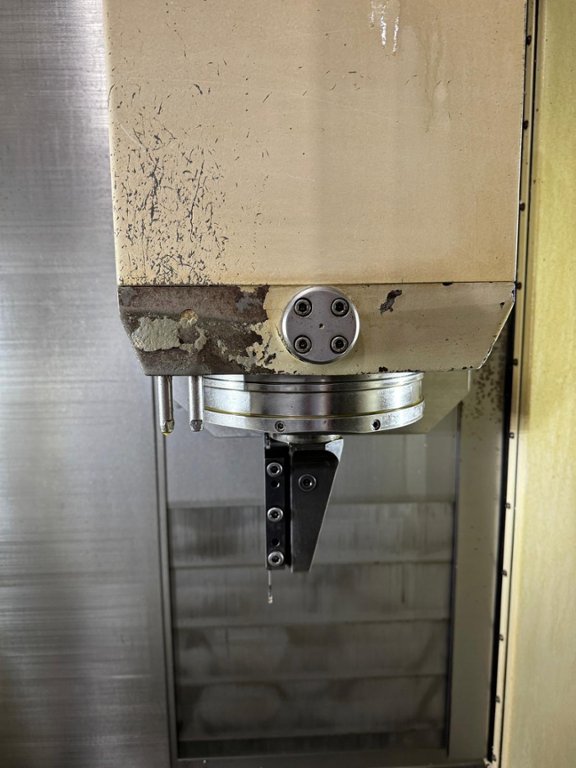

CAPTO C6 Spindle

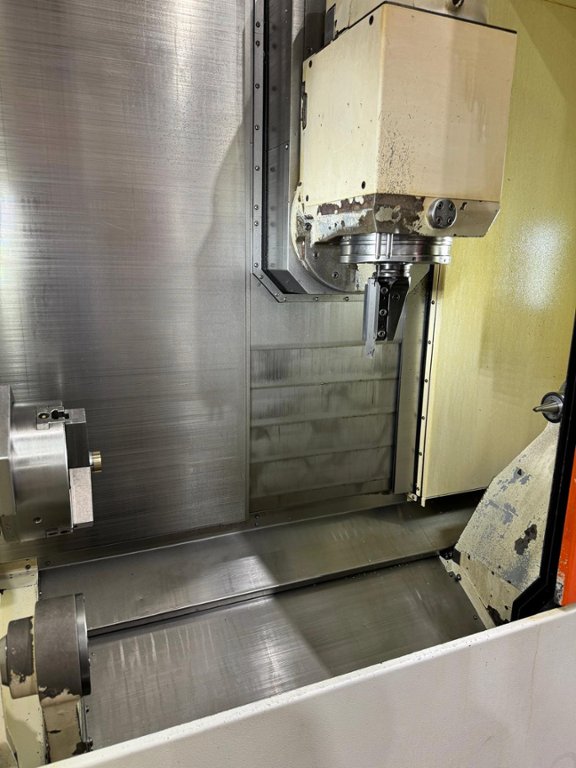

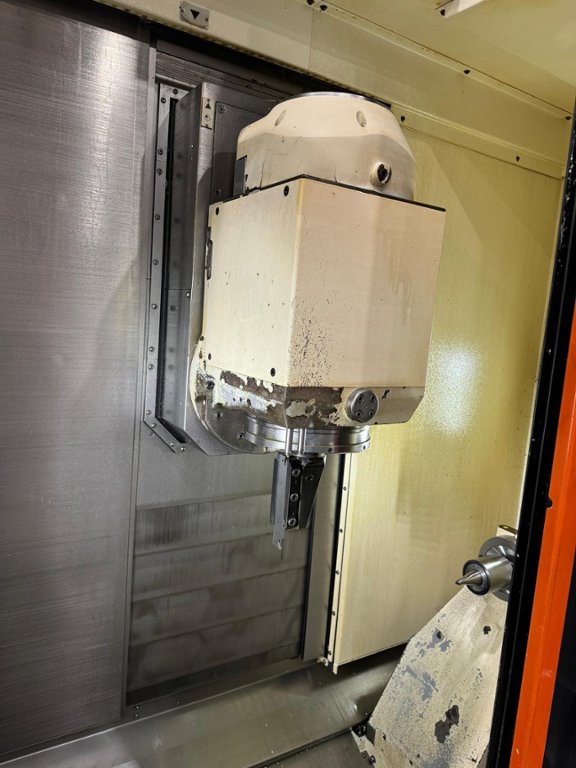

B axis -30 ~ +190 degrees (0.001 degree Increments)
C axis 0.0001 degrees

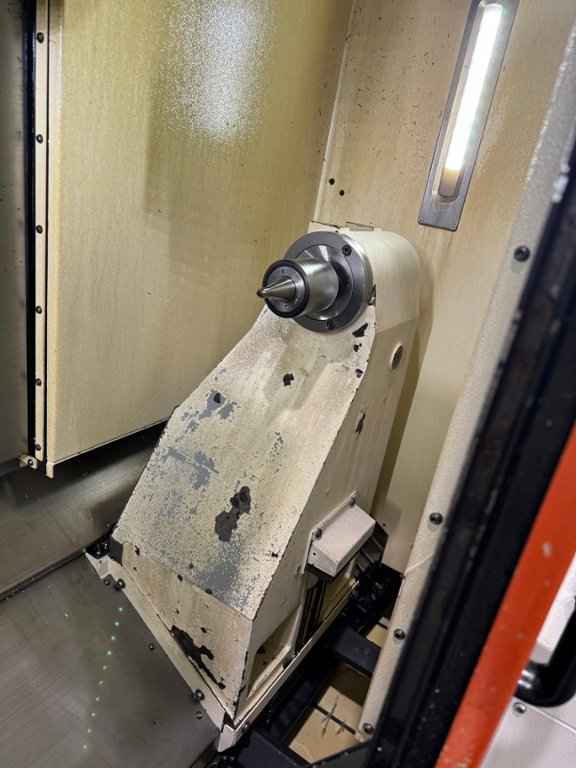

Tailstock Taper MT #5

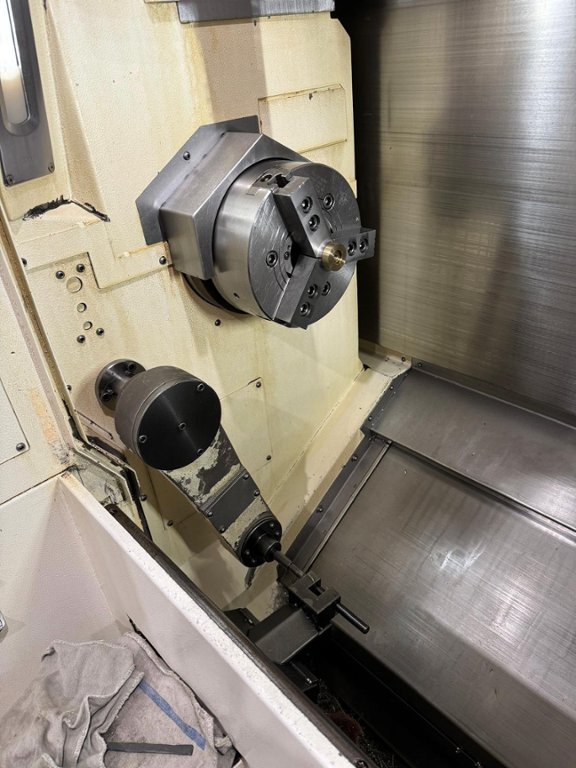

8” 3 jaw chuck
Flood Coolant
Through spindle coolant
Tool Setter
Parts Catcher

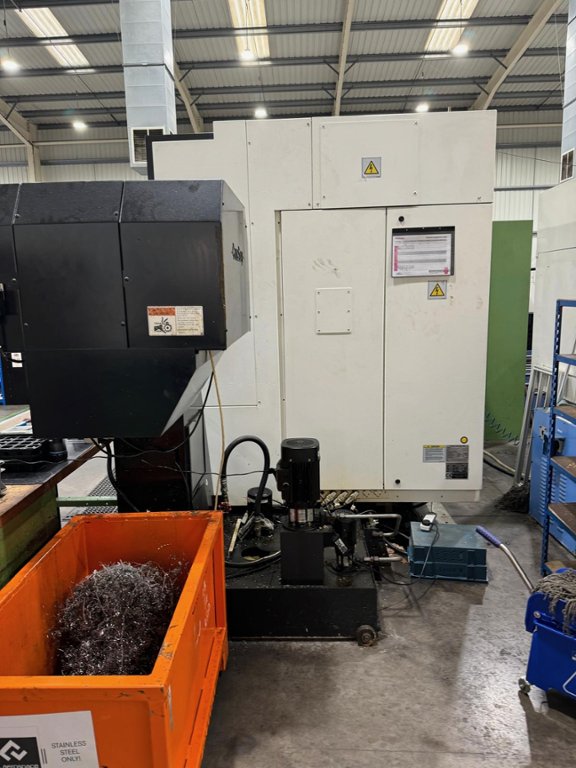

Swarf conveyor

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
