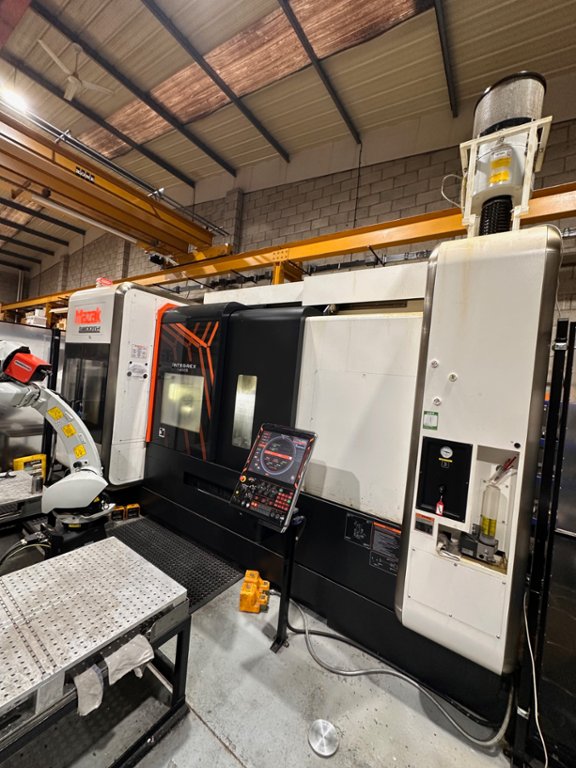

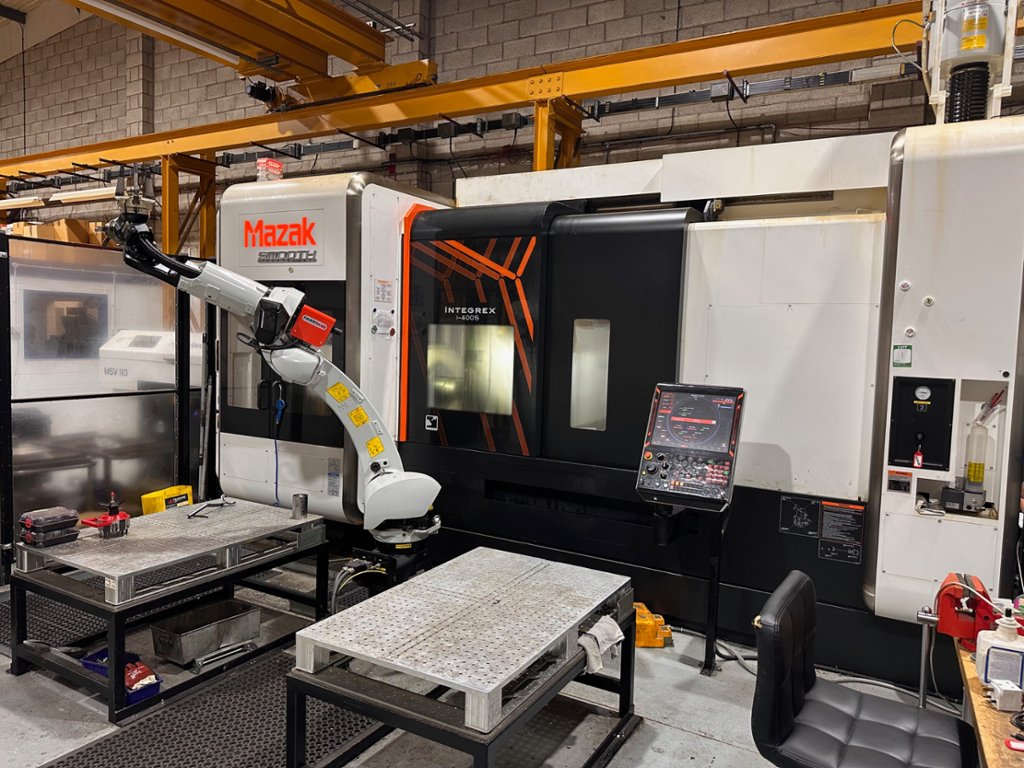

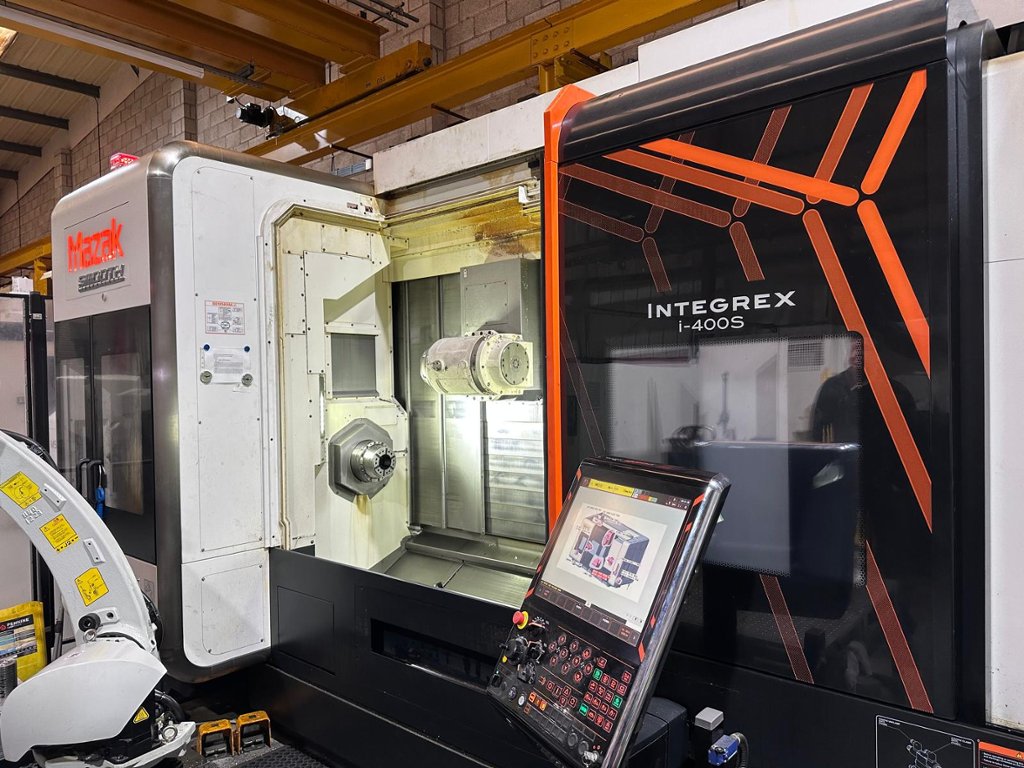

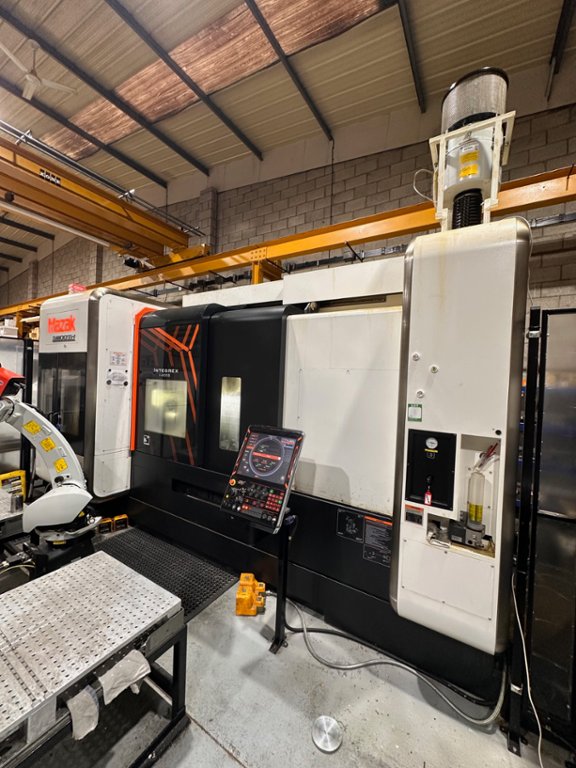

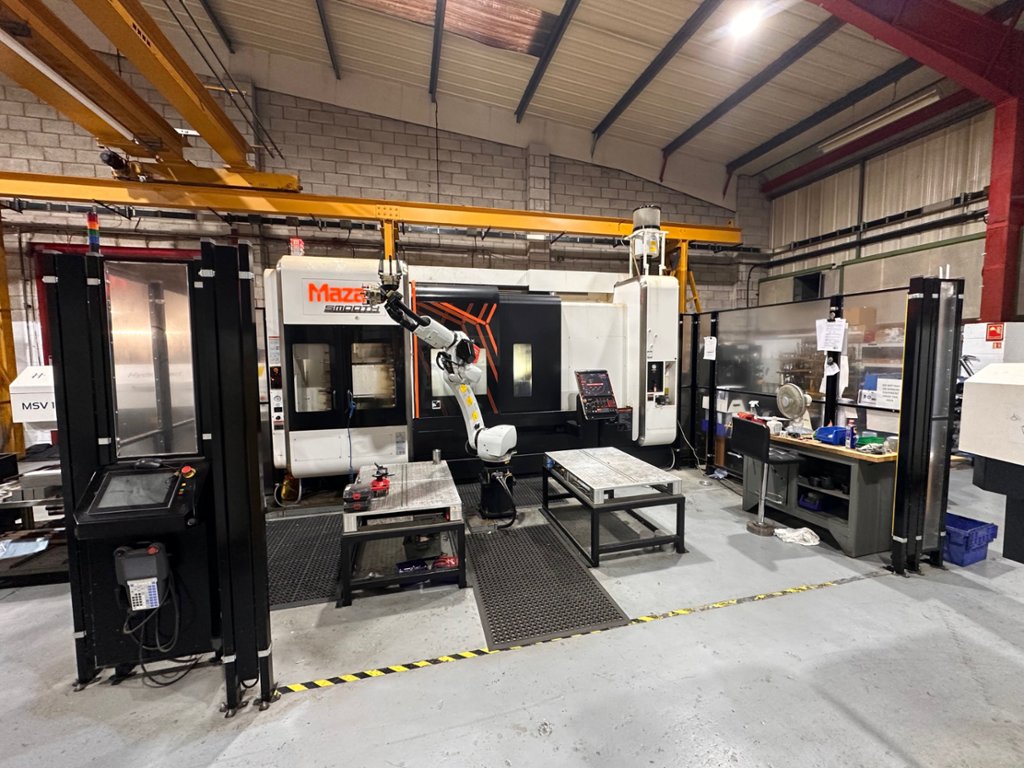

Lot 1 - Mazak Intergrex i-400s 5 Axis Multi-Tasking CNC Machine (2021)
Description:

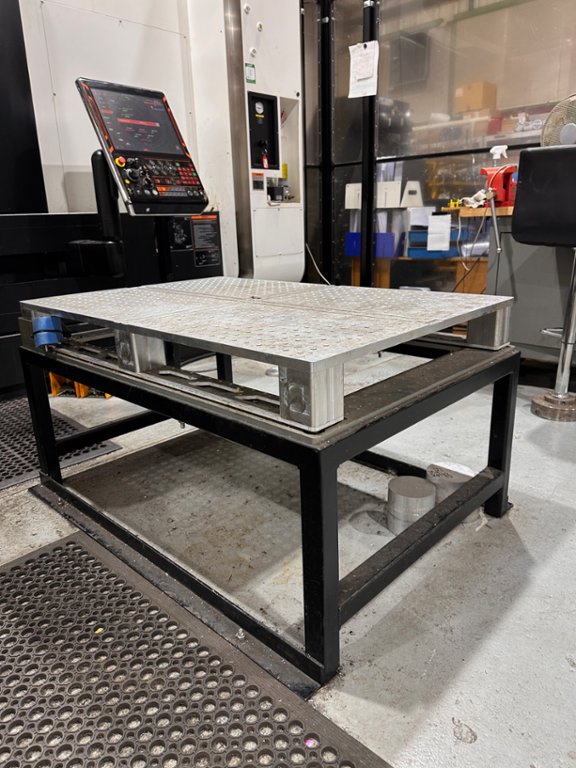

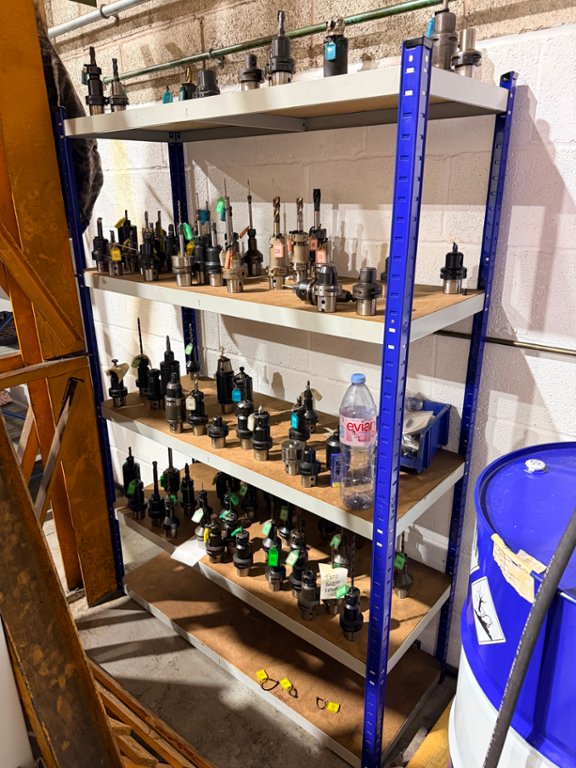

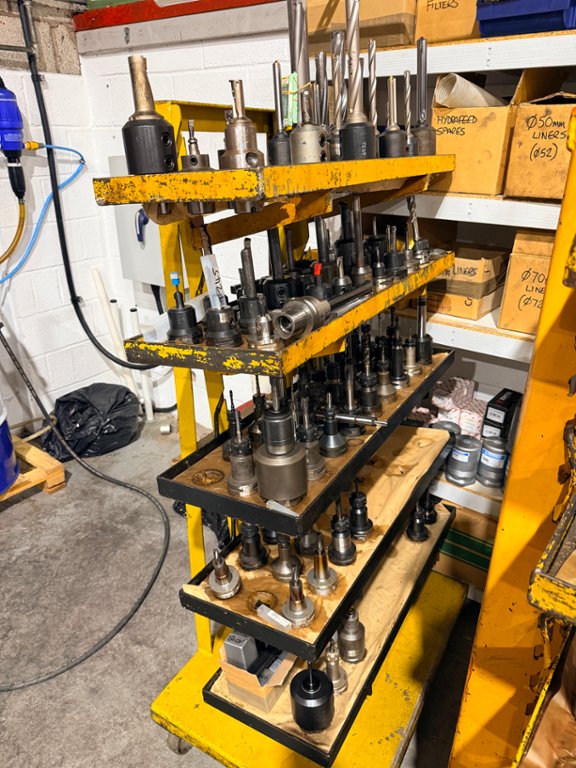

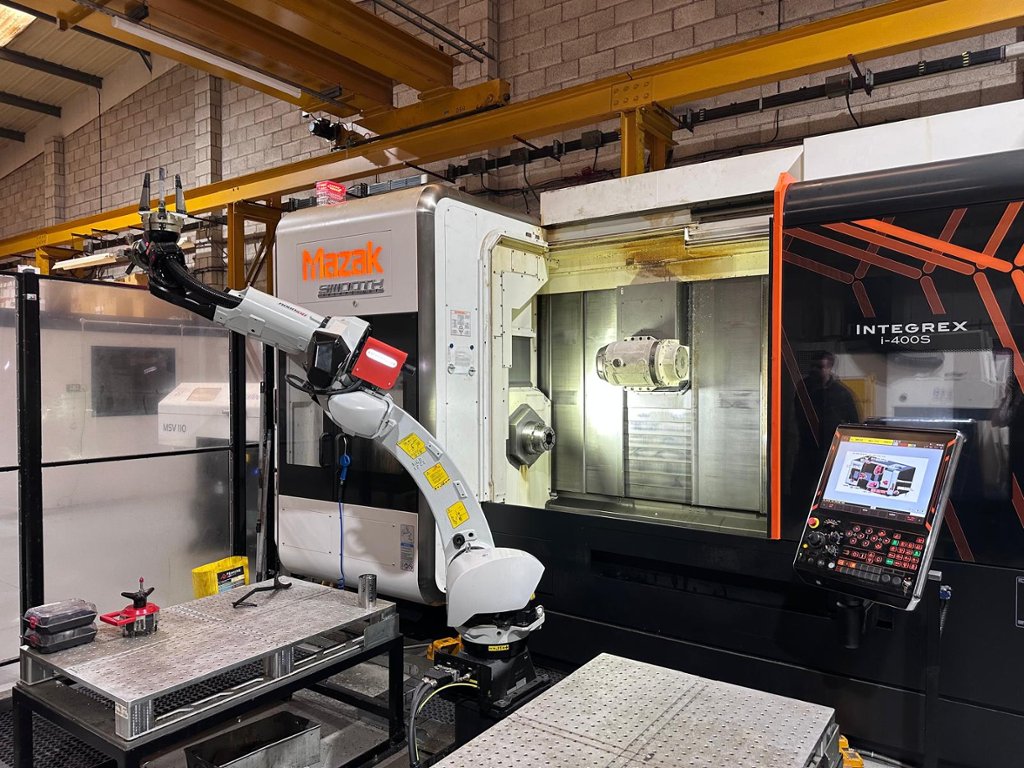

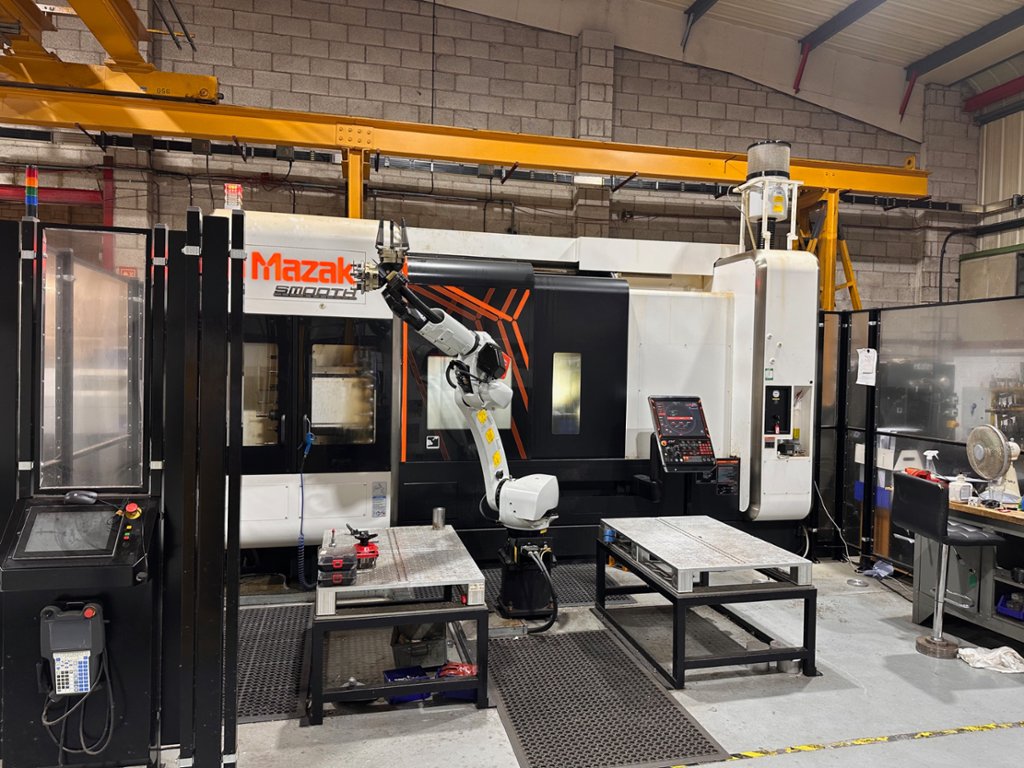

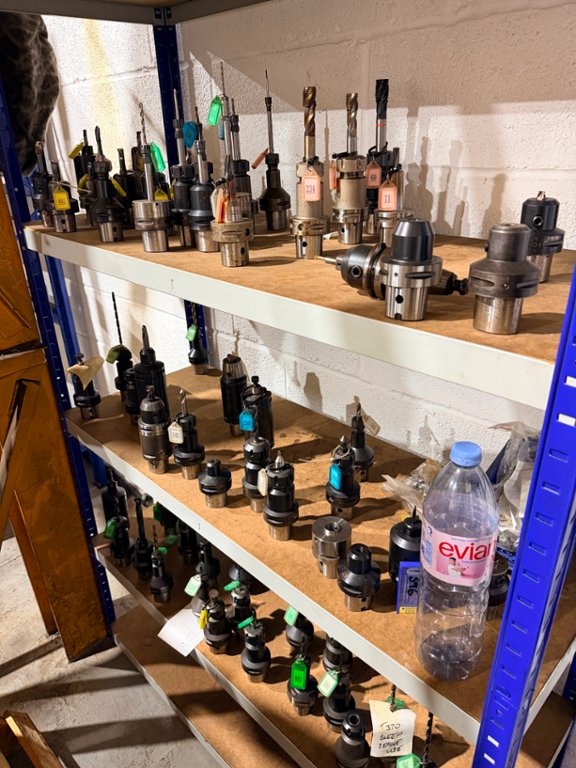

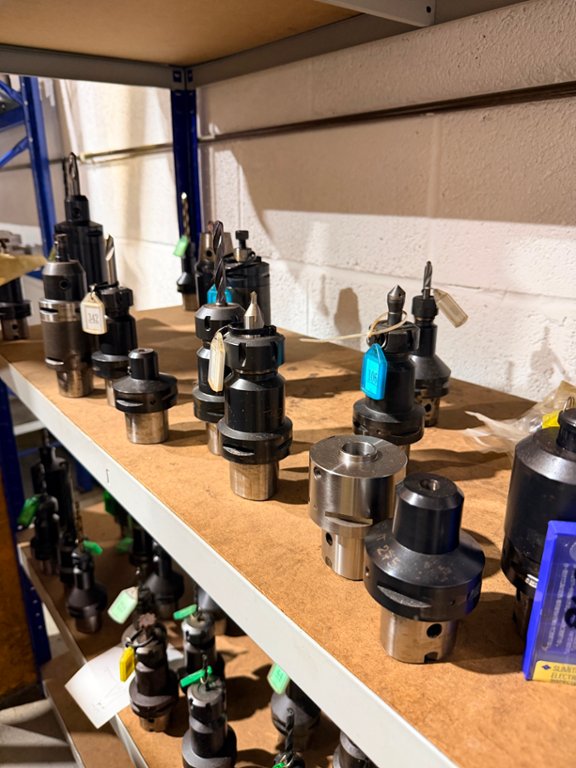

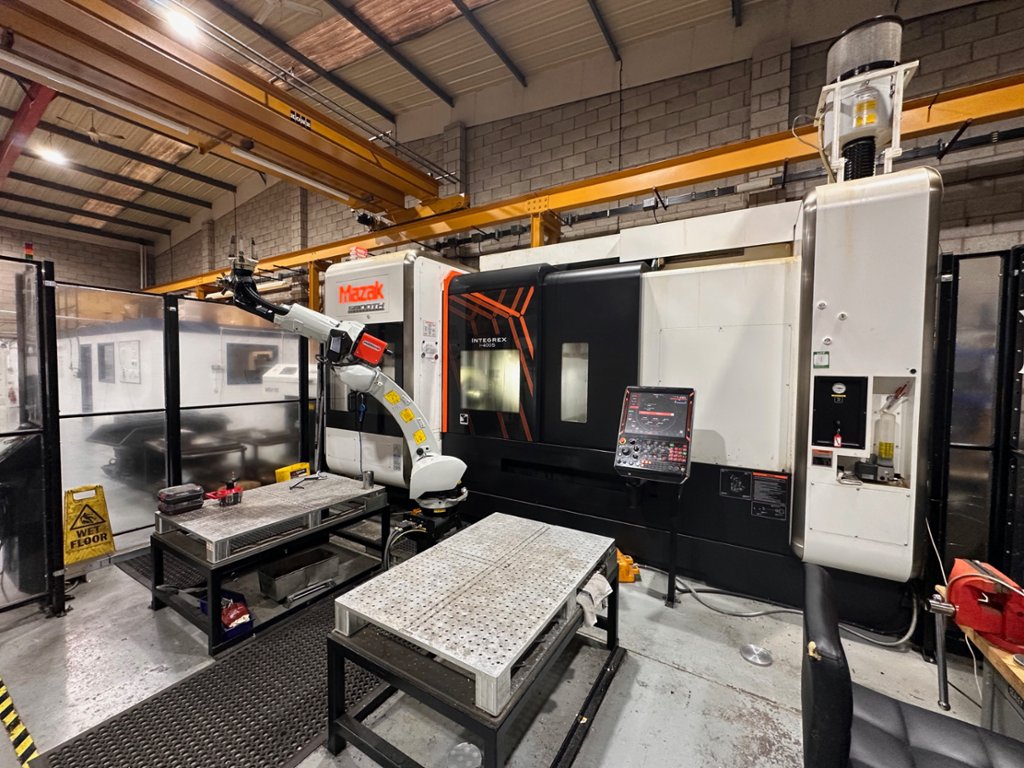

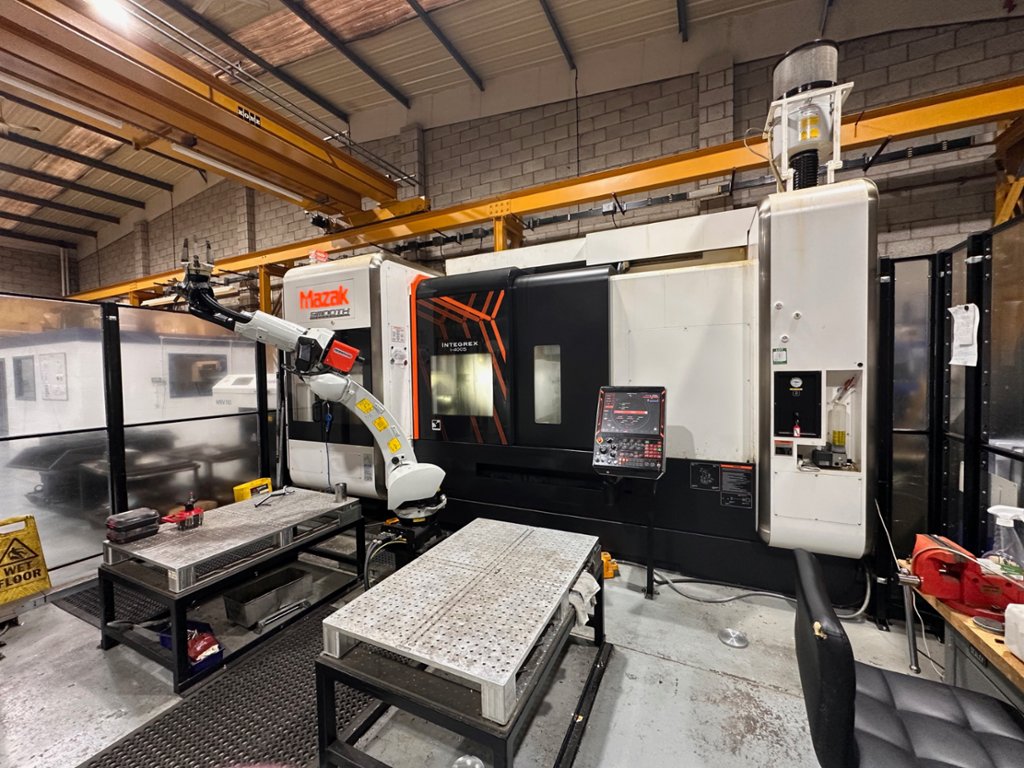

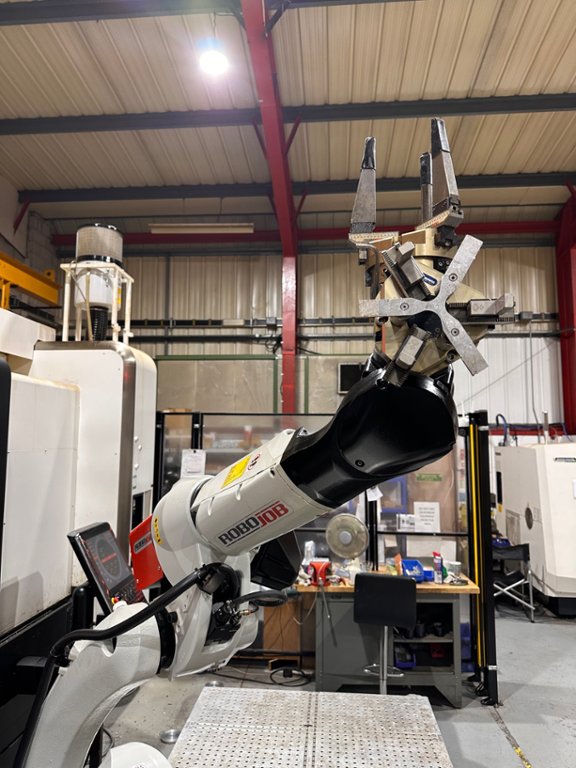

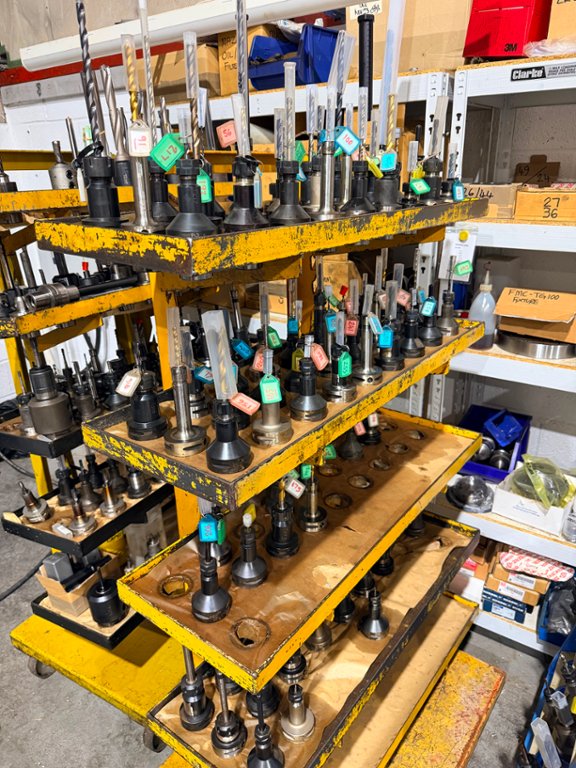

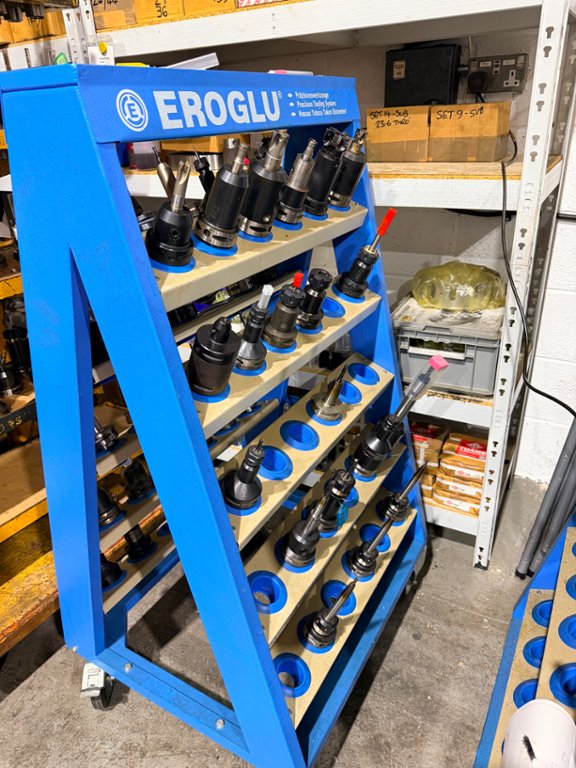

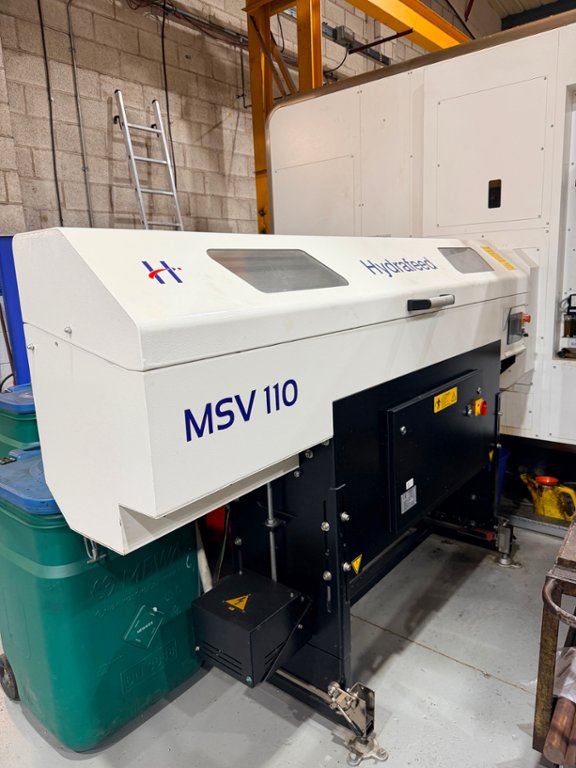

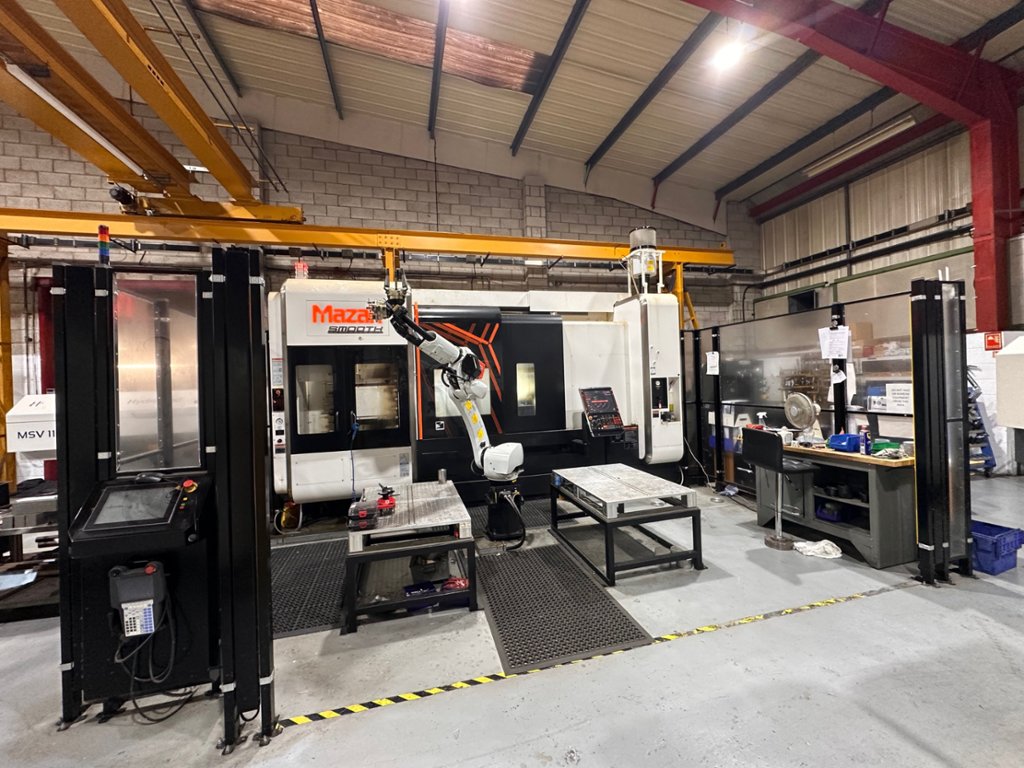

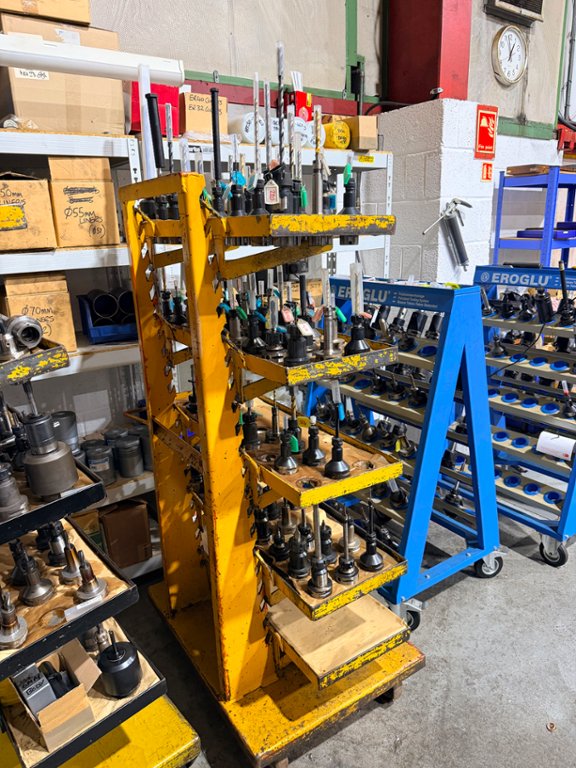

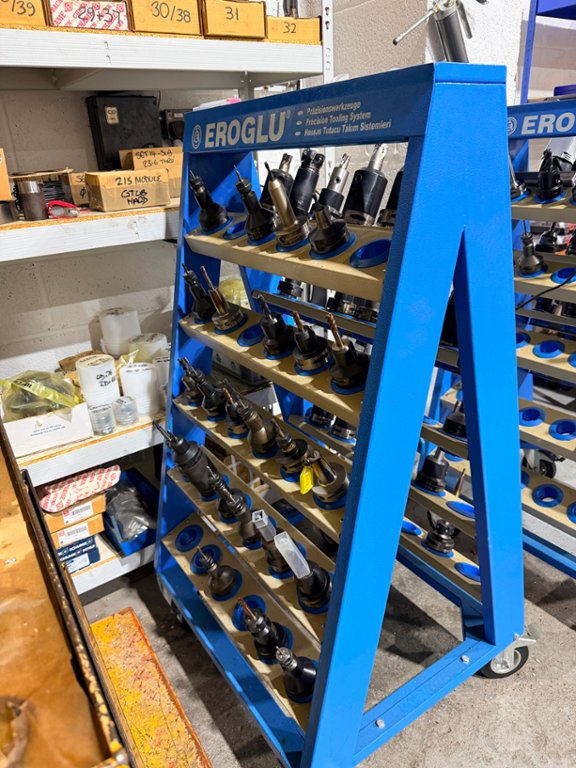

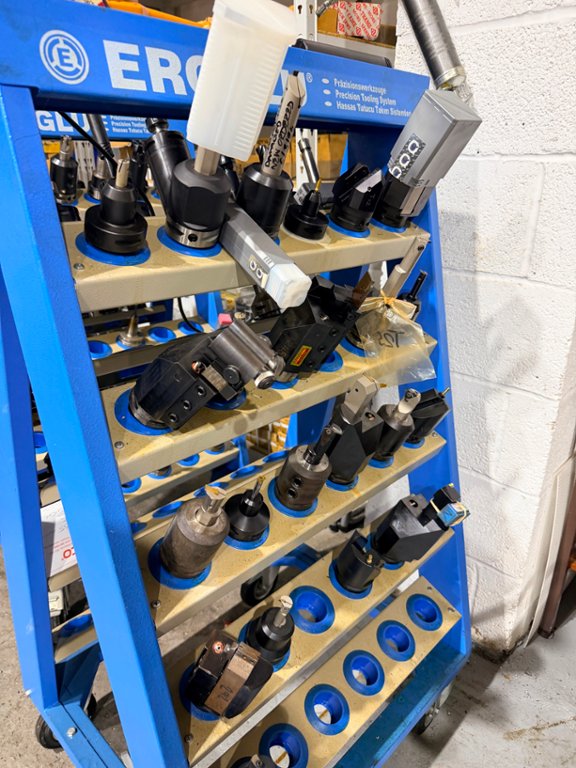

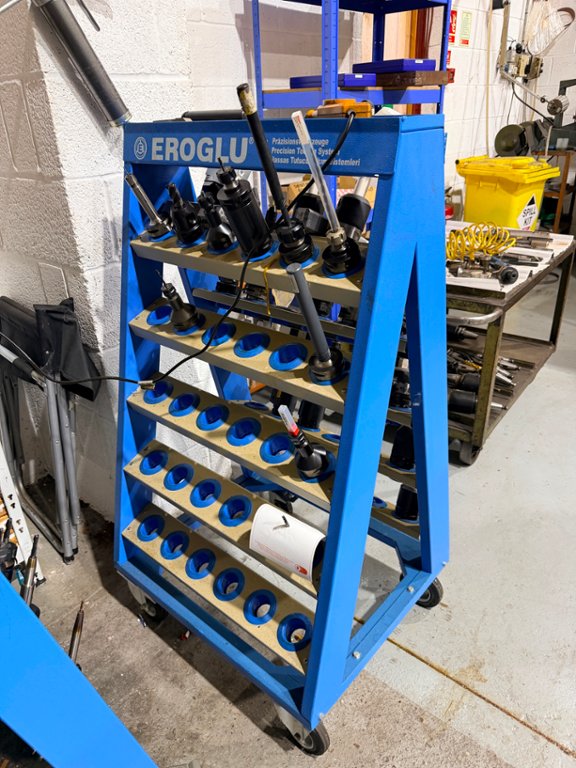

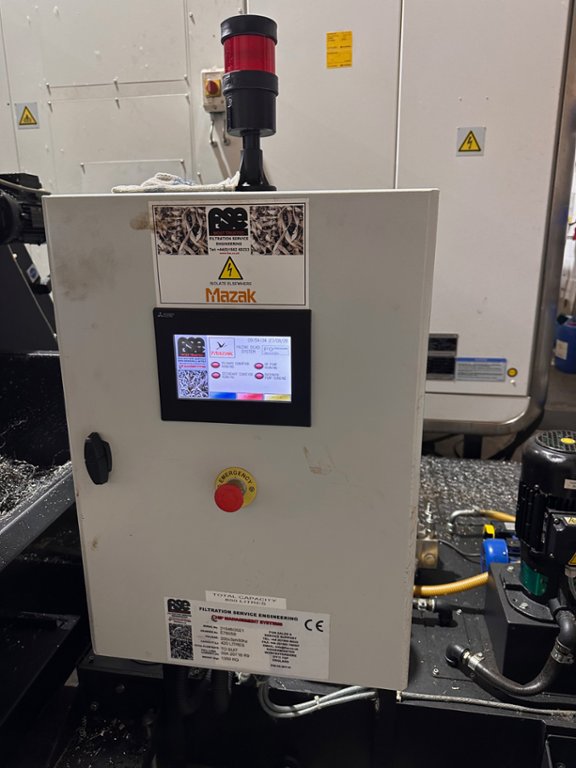

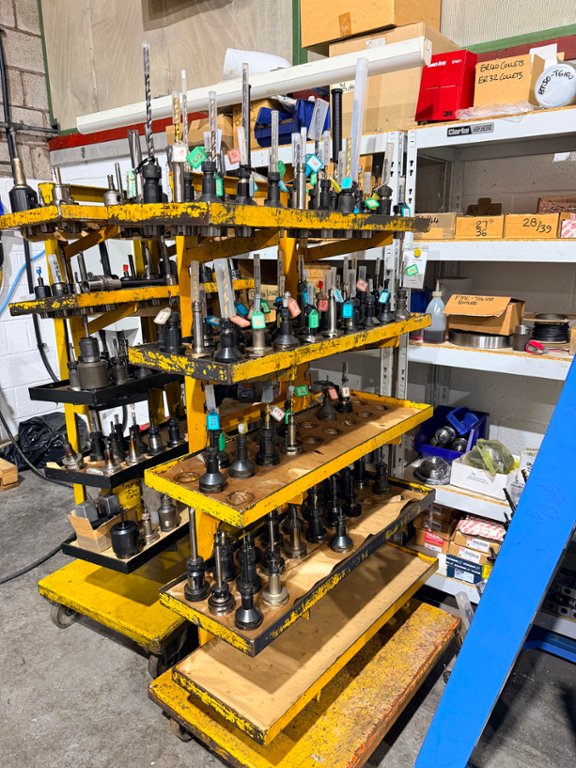

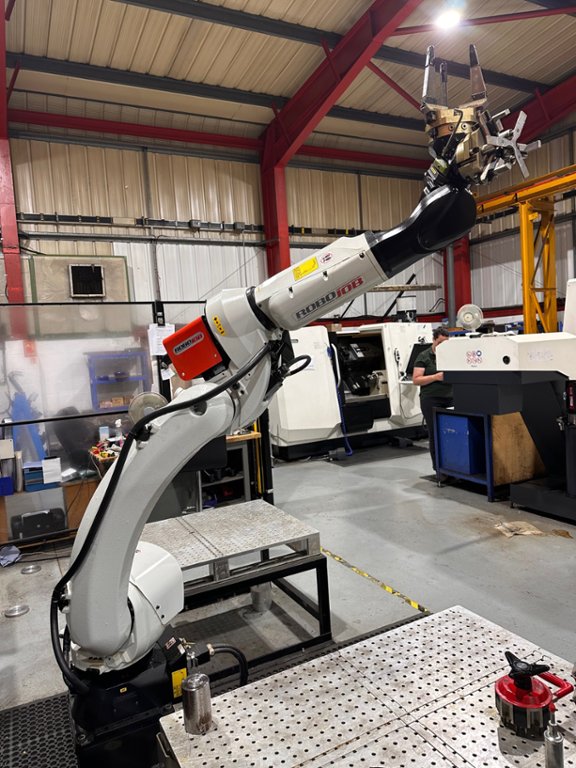

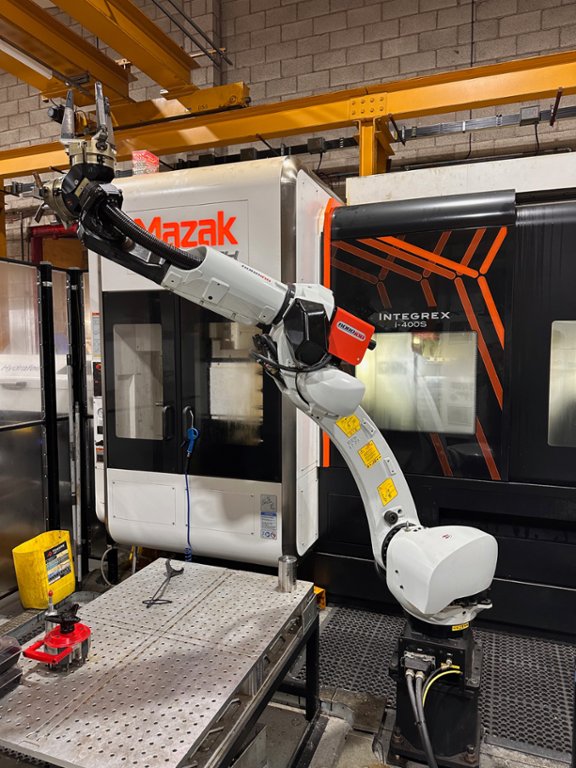

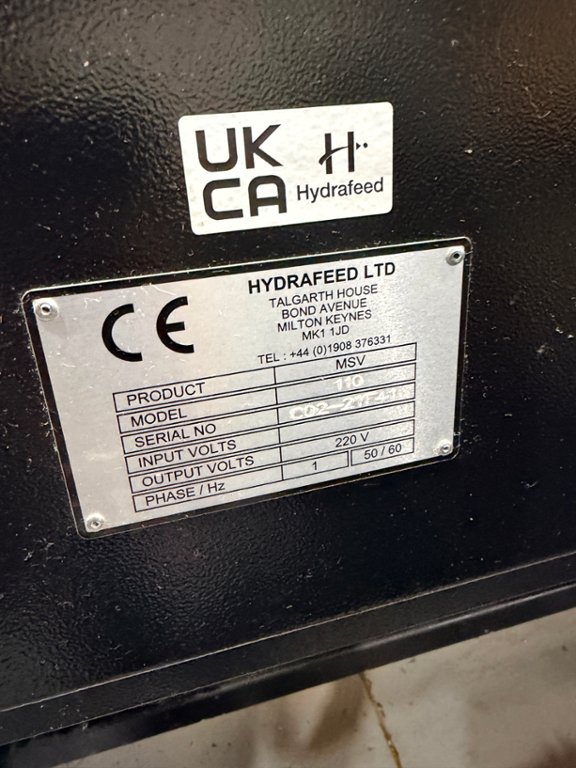

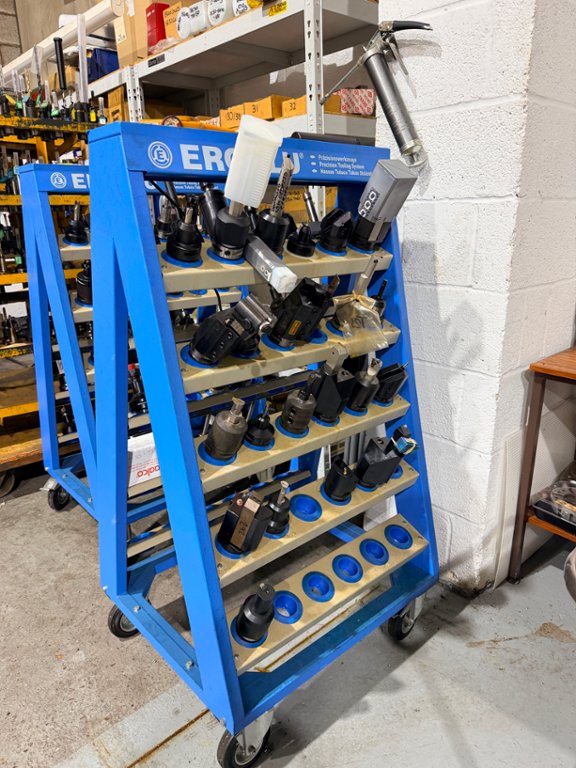

Comes with a Robojob Robotic Arm and 2 Robotic Co-ordinate Tables (1200mm x 800mm), Filtermist, Safety Enclosure, Hydrofeed NSB110 Barfeed and a Large Selection of Tooling
CAPACITY
Chuck size main spindle - 12 ", Chuck size secondary spindle - 10 ", Maximum swing - 658 mm, Swing over cross slide - 658 mm, Swing during Y-Axis process - 658 mm, Maximum machining diameter - 658 mm, Bar work capability main spindle (dependent on chuck system) - 102 mm, Bar capacity is dependant on the chucking system, Bar work capability secondary spindle - 80 mm, Maximum machining length - 1,519 mm, Maximum support weight main spindle chuck work - 650 kg, Maximum support weight main spindle shaft work - 1,000 kg, Maximum support weight secondary spindle chuck work - 400 kg

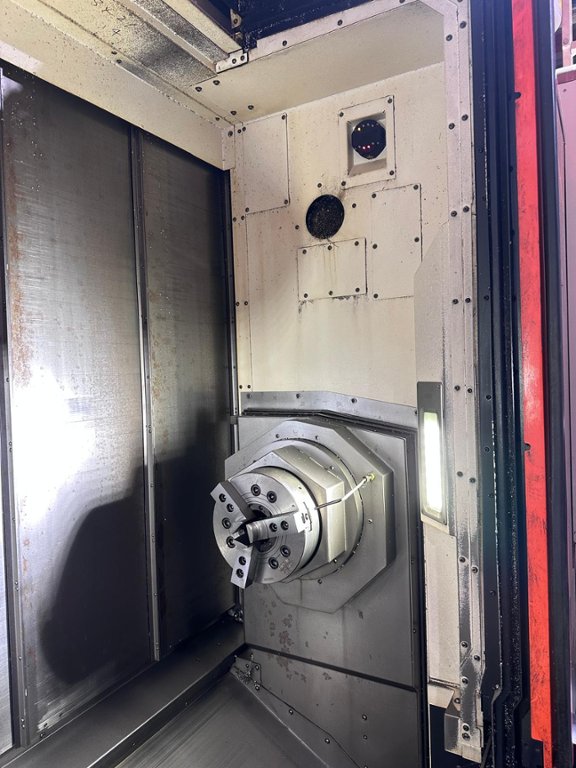

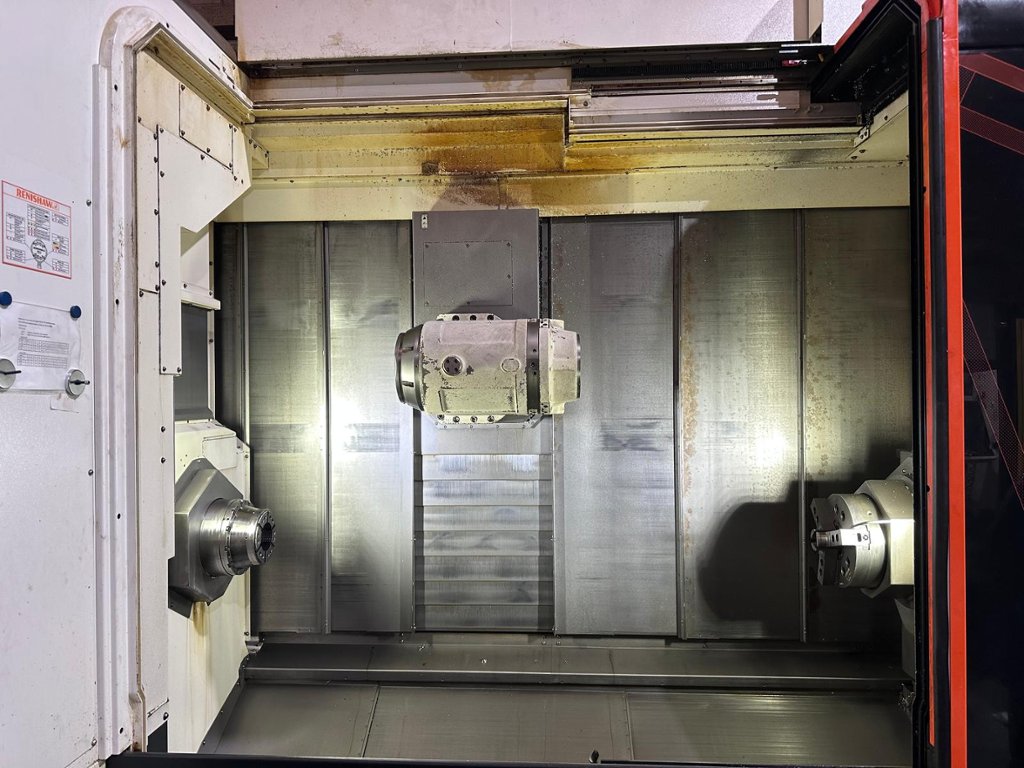

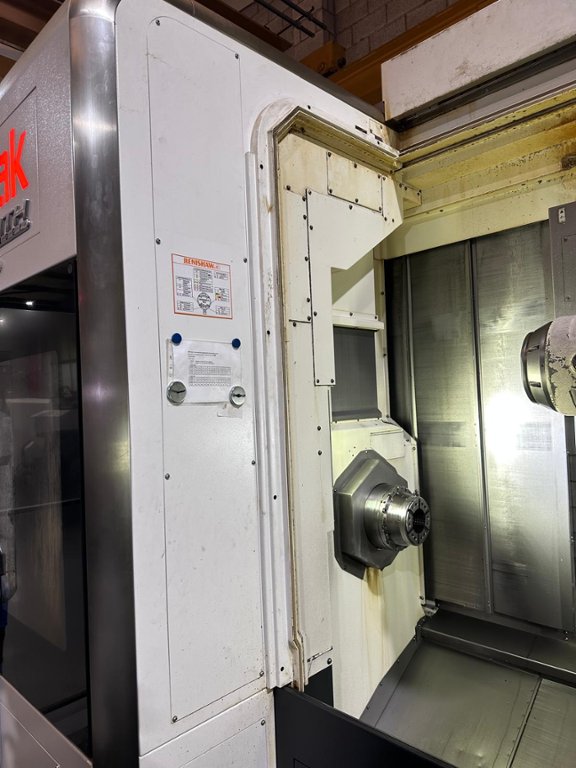

MAIN SPINDLE
Rotating speed maximum - 3,300 min-1, Rotating speed minimum - 35 min-1, Acceleration and deceleration time - 2.8 s, Through hole diameter - 112 mm, Motor output (40% ED rating) - 30.0 kW, Motor output (continious rating) - 22.0 kW, Maximum torque (25% ED rating) - 1,400 Nm, Maximum torque (40% ED rating) - 1,200 Nm, Maximum torque (Continious rating) - 800 Nm
SECONDARY SPINDLE
Rotating speed maximum - 4,000 min-1, Rotating speed minimum - 35 min-1, Motor output (40% ED rating) - 26.0 kW, Motor output continious rating - 22.0 kW, Maximum torque (40% ED rating) - 500 Nm, Maximum torque (Continious rating) - 341 Nm
MILLING HEAD
Type Single spindle with ATC unit, Tool shank type - KM63/CAPTO C6 /HSK T63, Tool size (OD turning) - 25 mm, Tool size (ID turning) - 40 mm, Tool size (milling tool max diameter) - 125 mm, Tool size (milling tool max length) - 400 mm, 90° indexing time - 0.5 s, Milling spindle speed maximum - 12,000 min-1, Milling spindle speed minimum - 35 min-1
FEED AXES
Rapid feed rate X - 50 m/min, Rapid feed rate Z - 50 m/min, Rapid feed rate Y - 40 m/min, Rapid feed rate W - 30 mm, Movement stroke X - 615 mm, Movement stroke Z - 1,585 mm, Movement stroke Y - 260 mm, Movement stroke W - 1,574 mm
OTHERS
Coolant tank capacity - 550 L, Power requirement (continious) - 93.33 kVA
Export Information
Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.
All invoices are issued on an Incoterms FCA basis.
Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
Bid information
Time remaining
17 Sep 2026 15:00:00 BST
Opening bid: £140000
Bids: 0

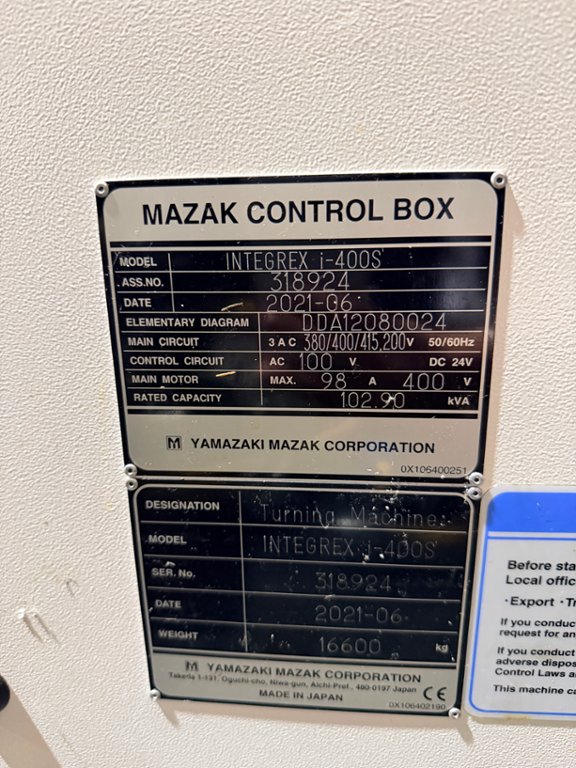

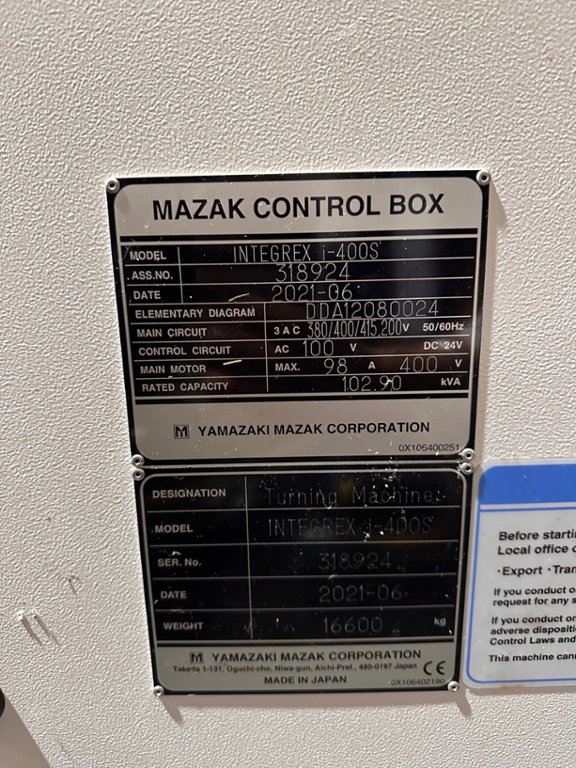

Serial Number: 318924
Location: Coventry
Transport information
- Width: 5200mm
- Depth: 2800mm
- Height: 2720mm
- Weight: 15800kg
- Other Transport Details: No loading facilities on site. Purchaser to arrange decommissioning and will have to supply RAMS.
