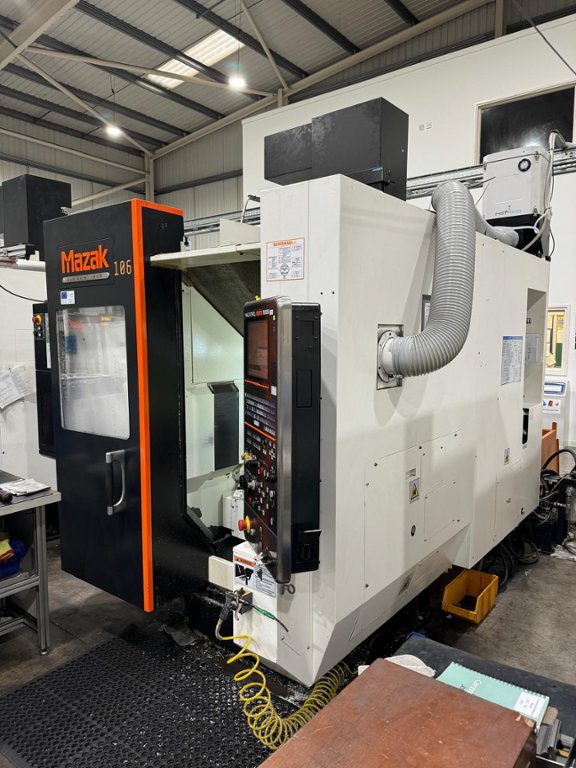

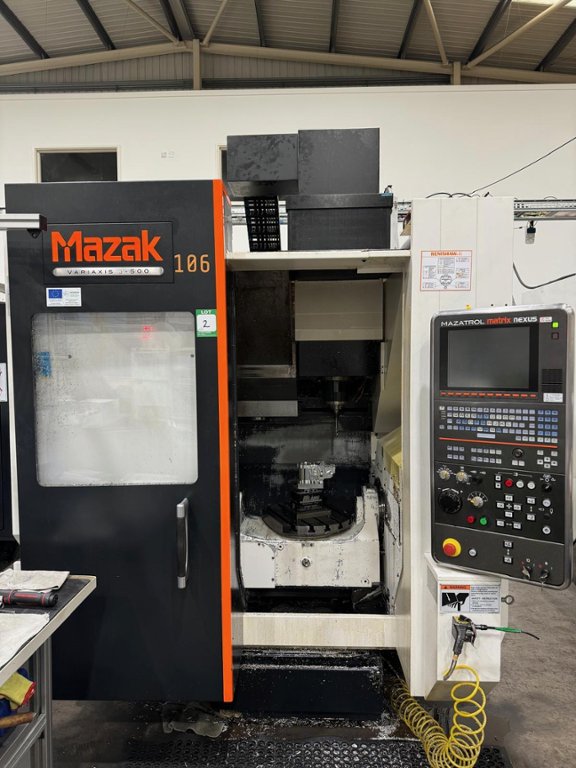

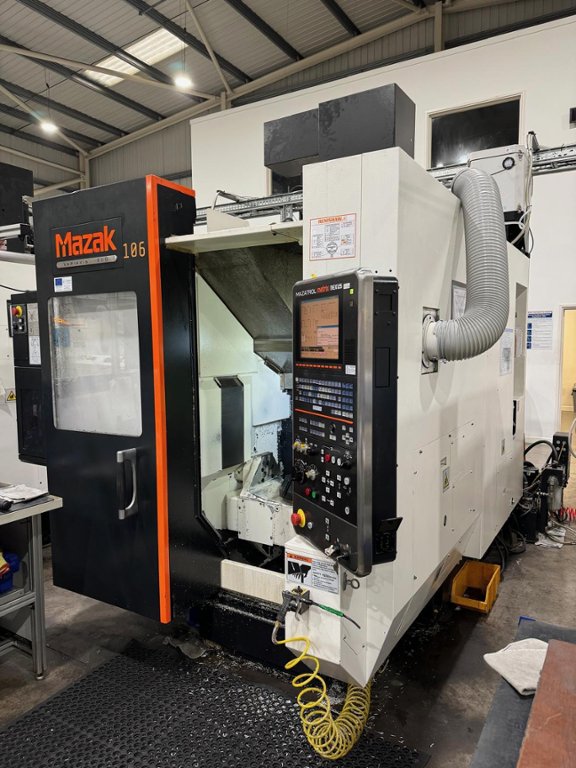

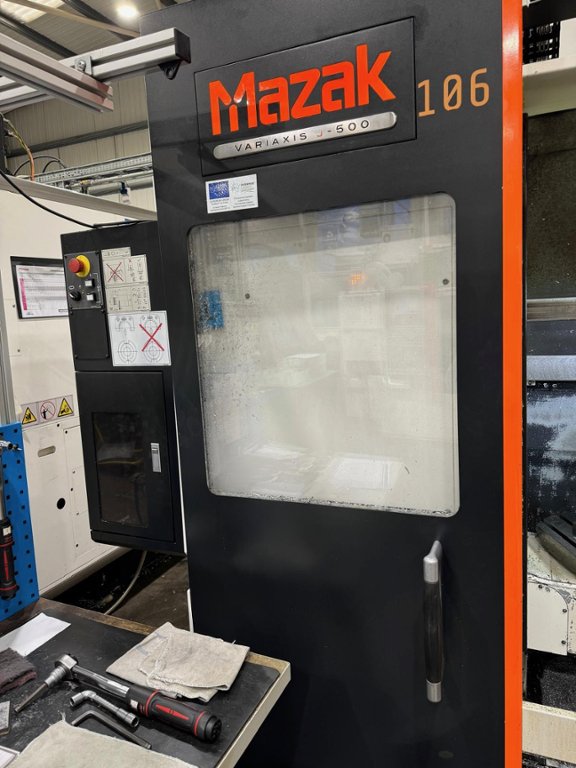

MAZAK VARIAXIS J-500 CNC 5 Axis Vertical Machining Centre (2012)

Width: 2805mm
Depth: 2950mm
Height: 2838mm
Weight: 6900kg
Other Transport Details: Loaded to suitable Transport : £500

Lot 2 - MAZAK VARIAXIS J-500 CNC 5 Axis Vertical Machining Centre (2012)

Description:

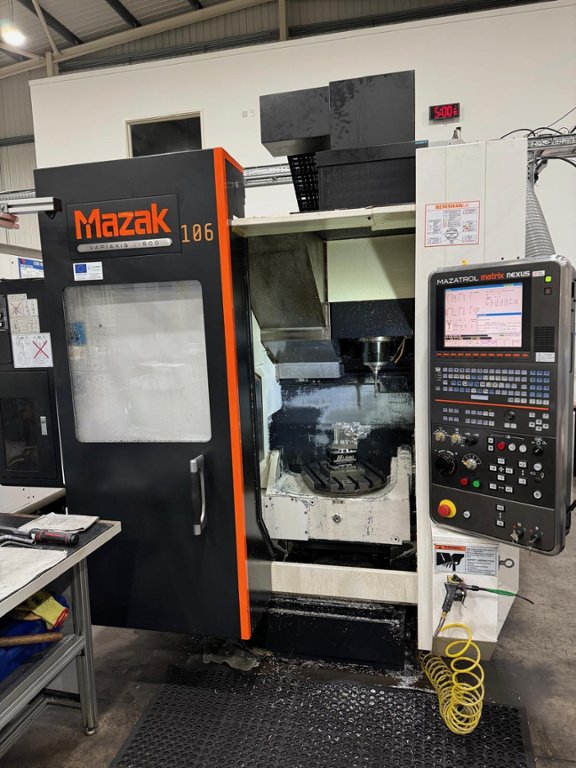

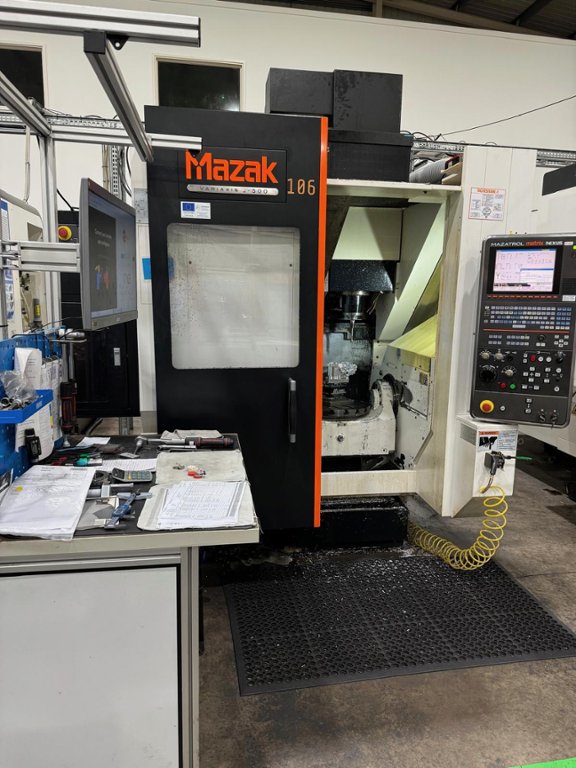

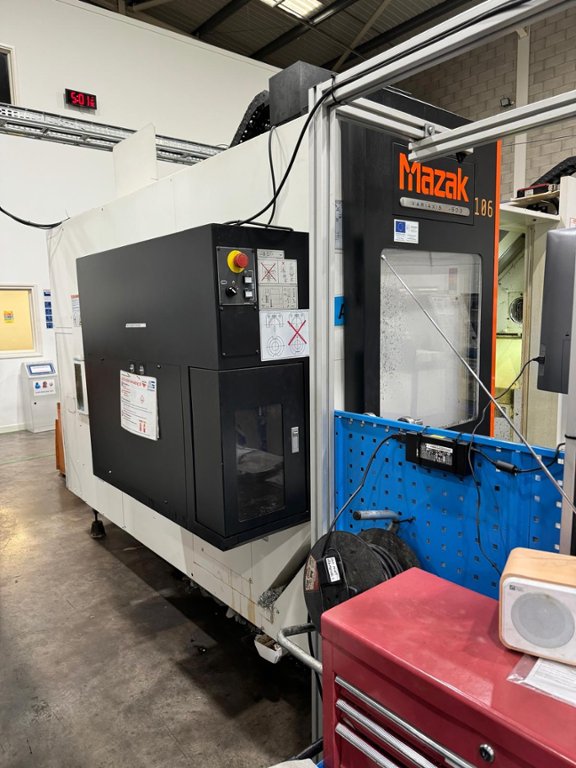

MAZAK VARIAXIS J-500 CNC 5 Axis Vertical Machining Centre
Year 2012

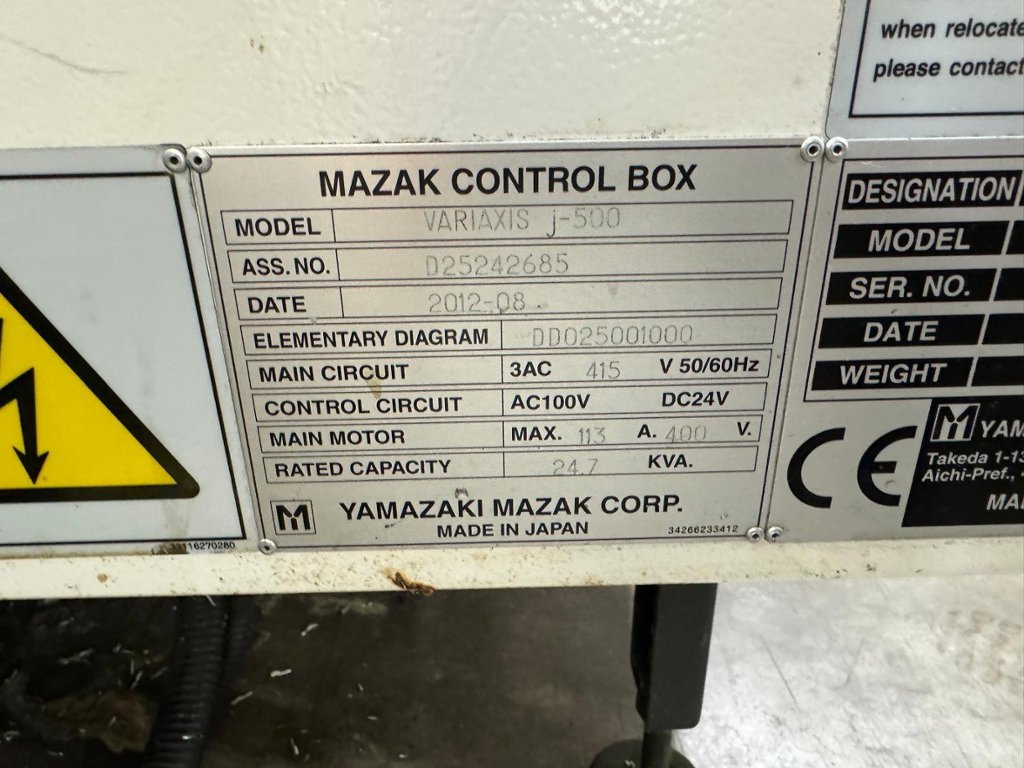

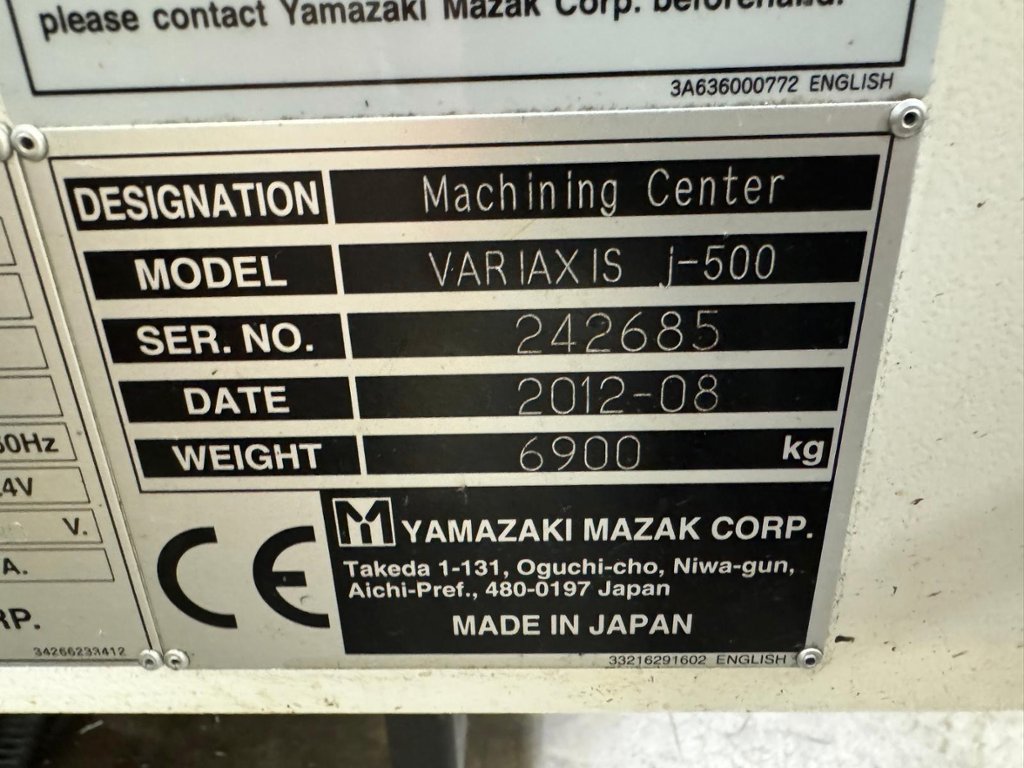

Serial Number 242685

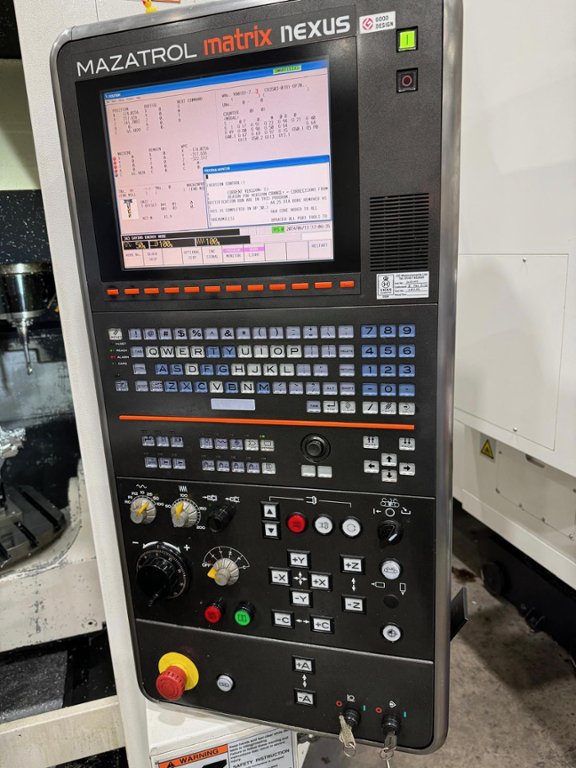

Mazatrol Matrix Nexus Control

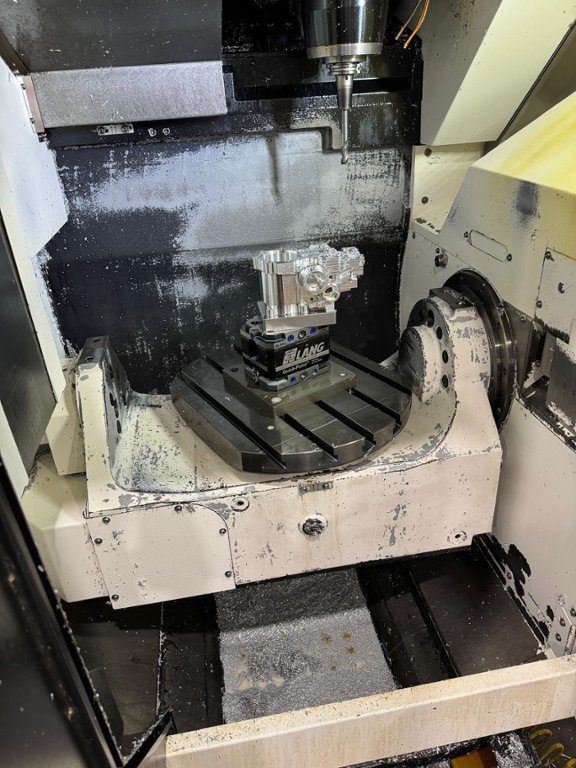

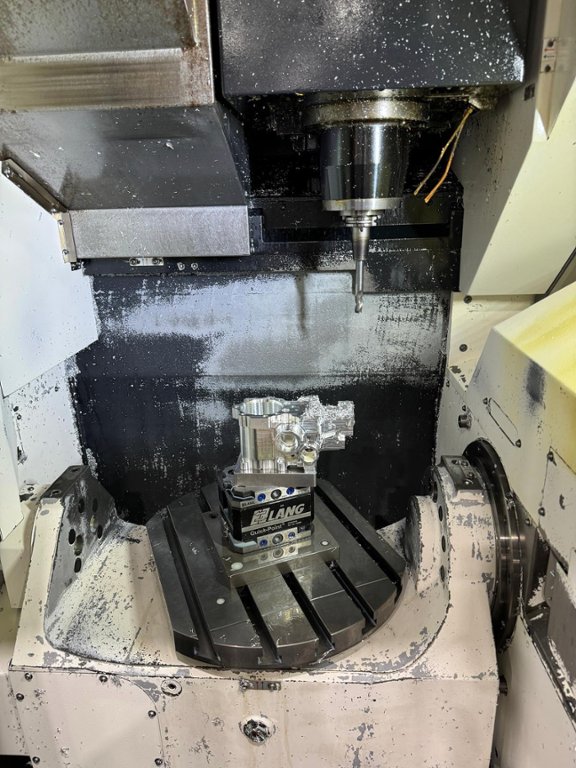

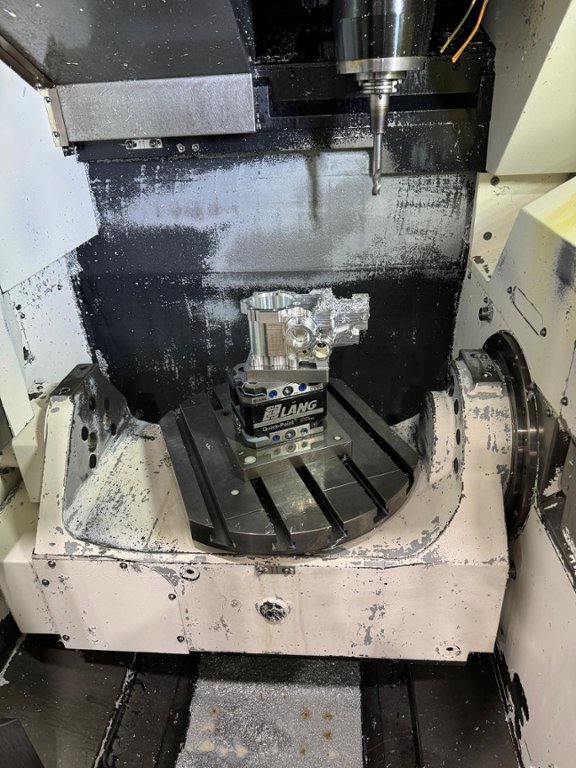

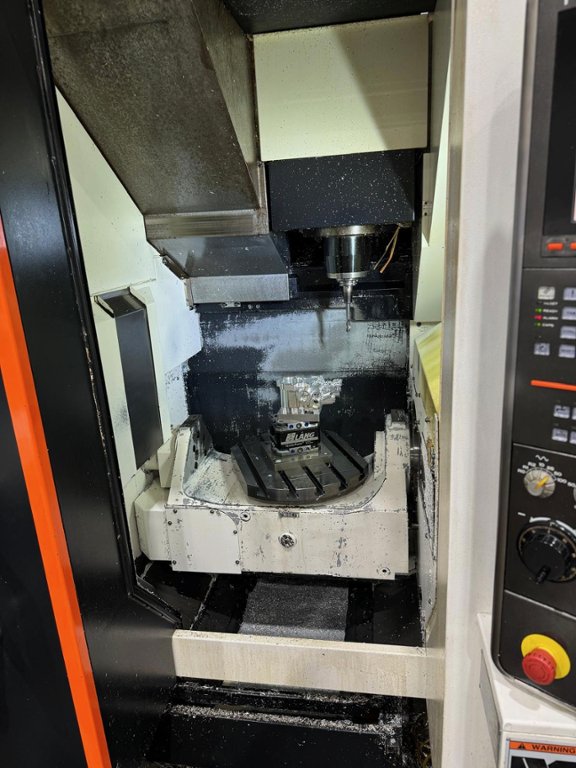

Table Size 500 X 400mm
Table Load 300 Kgs
Traverses X Y Z ; 350 X 550 X 510mm
Min-Max Distance Spindle To Table 50 -560mm
C Axis 0.0001 Degrees
A Axis -120 ~ +30 Degrees
Spindle Power 11kW
Spindle Speed 12,000 Rpm
30 Station ATC
Spindle Taper DIN 40
Coolant
Through Spindle Coolant

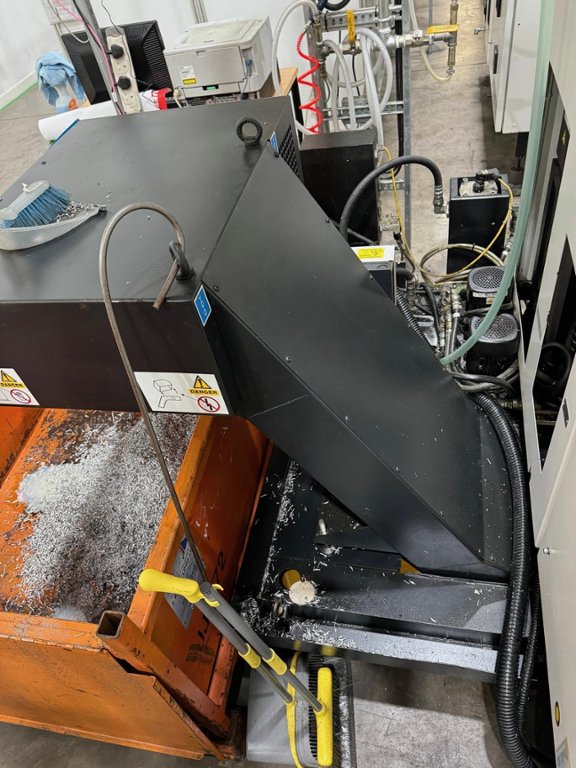

Swarf Conveyor

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
