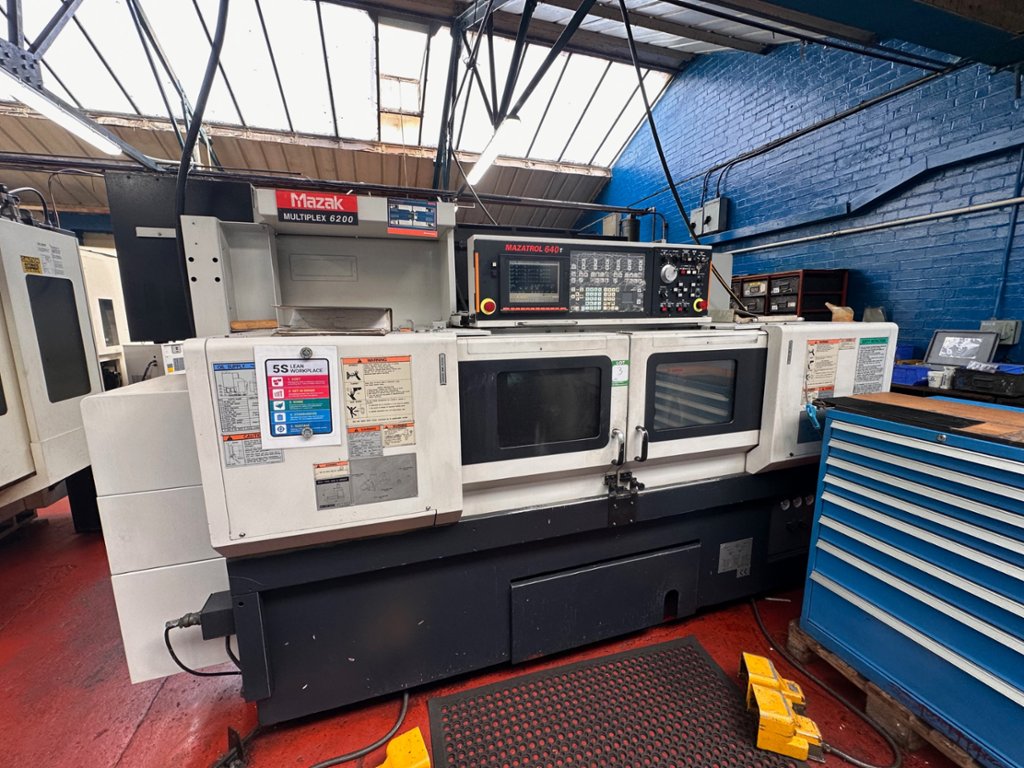

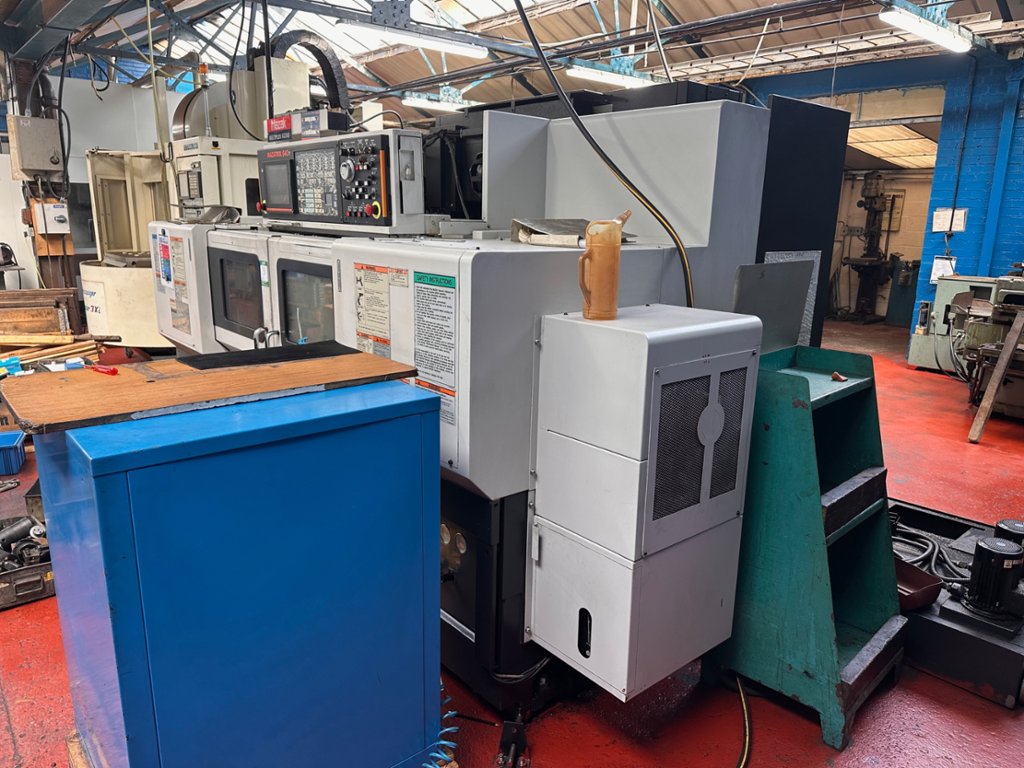

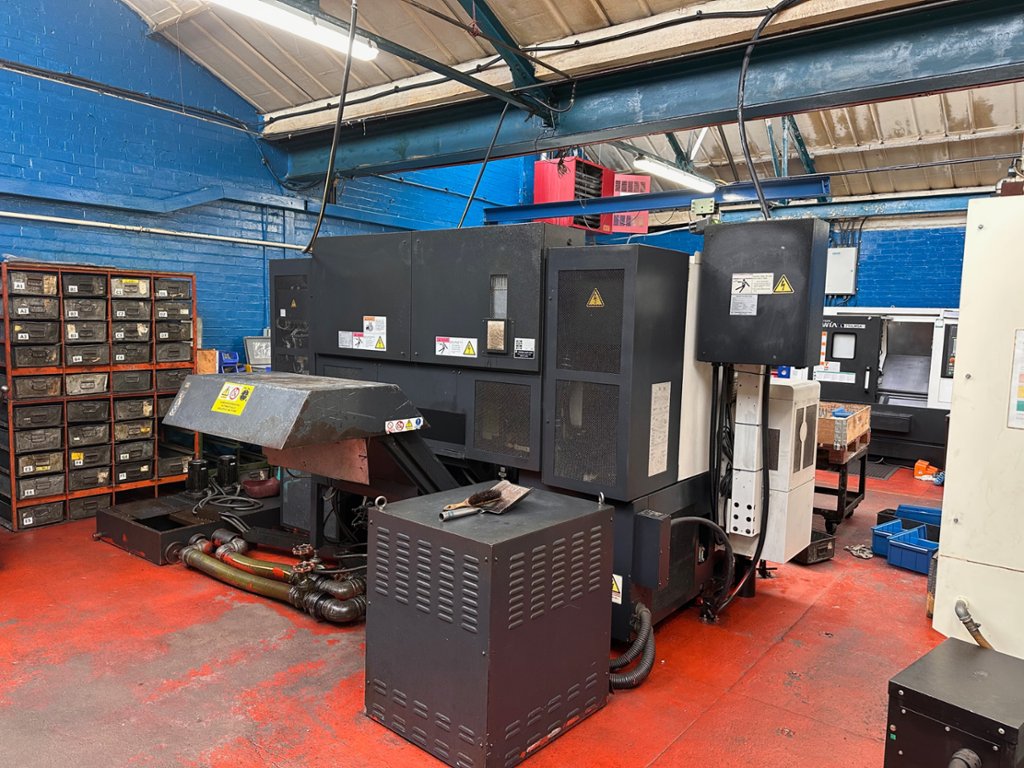

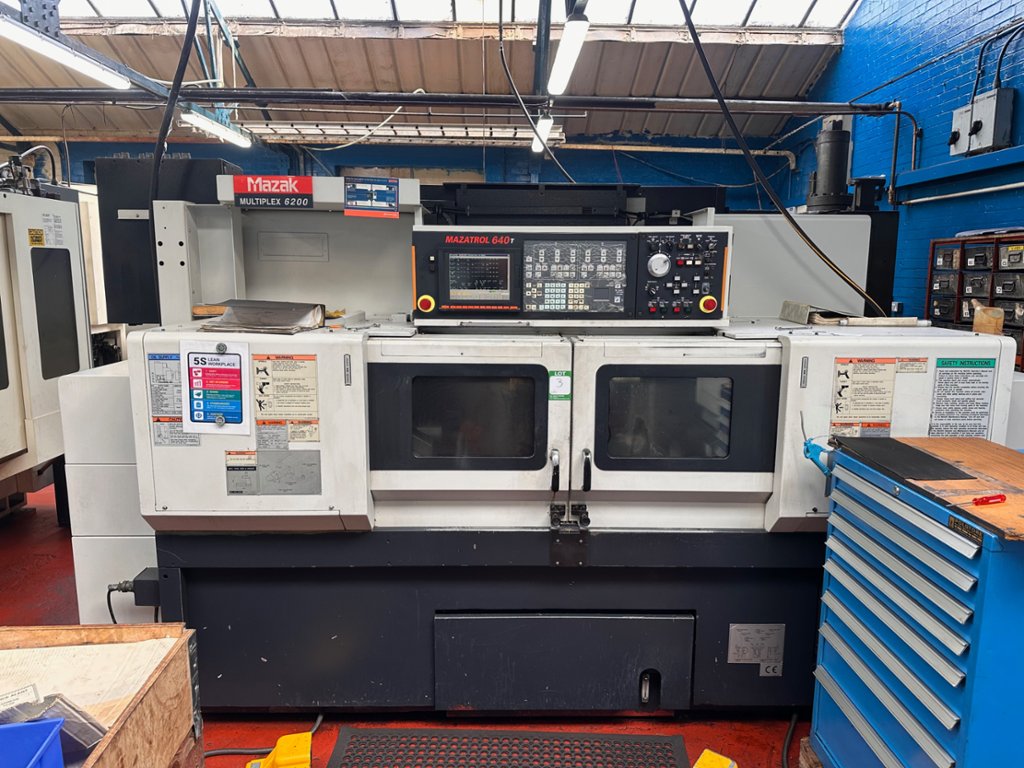

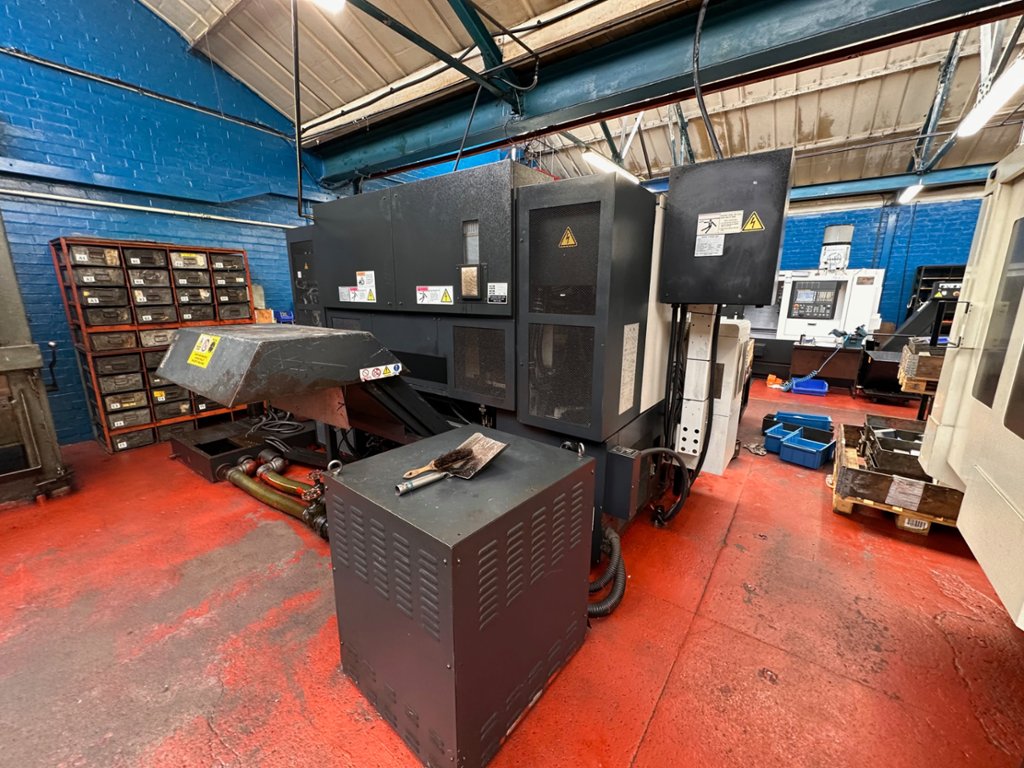

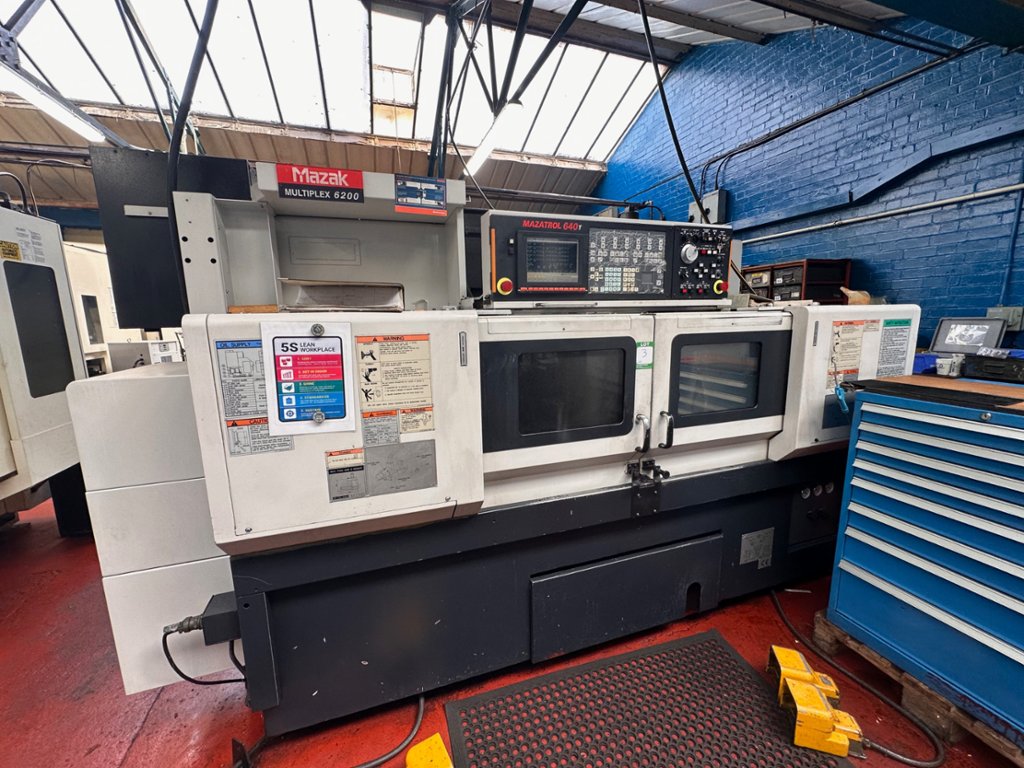

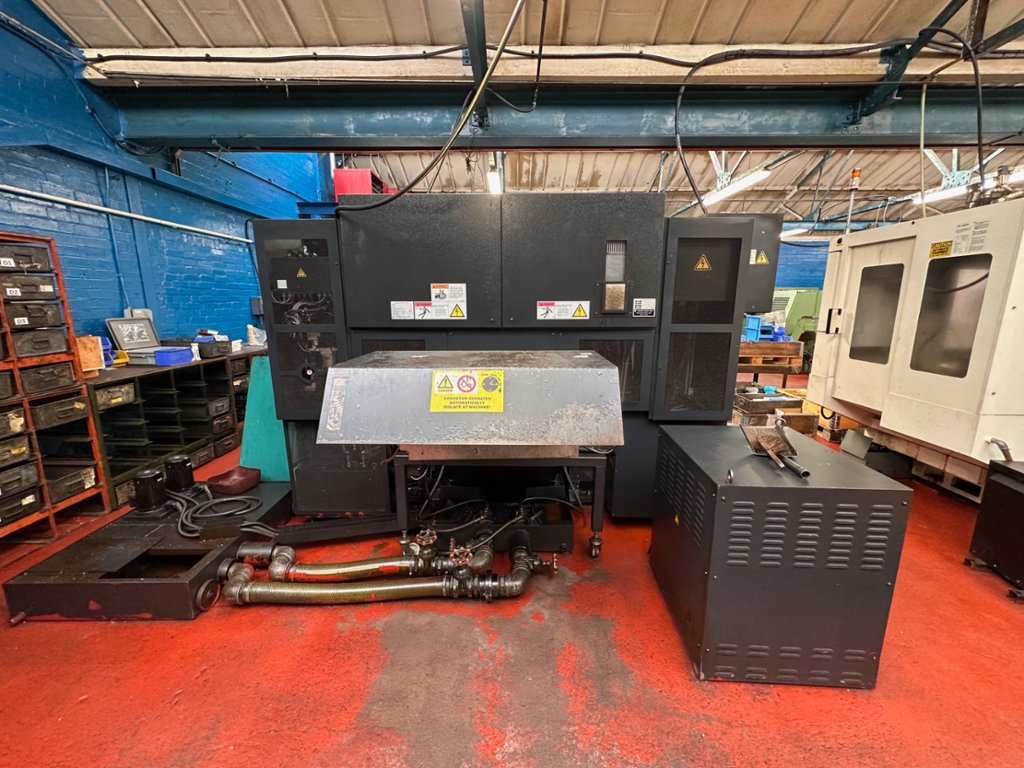

Mazak Multiplex 6200 CNC Turning Center (2004)

Lot 3 - Mazak Multiplex 6200 CNC Turning Center (2004)

Description:

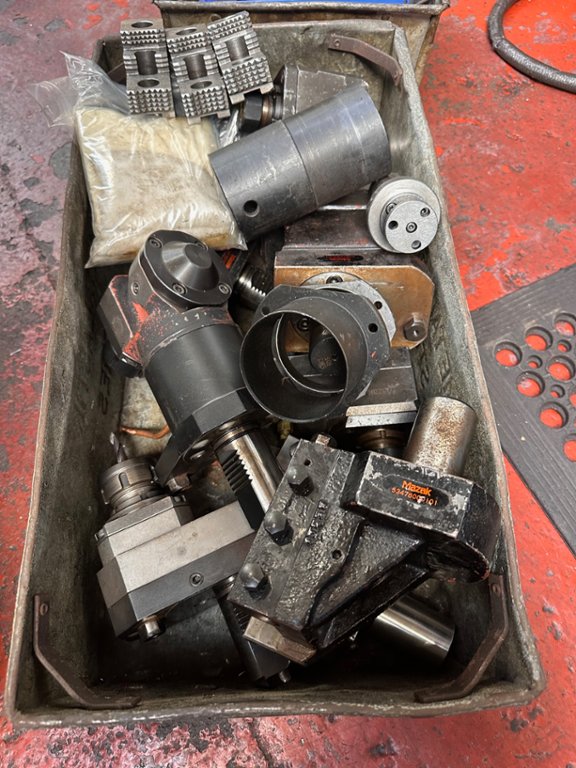

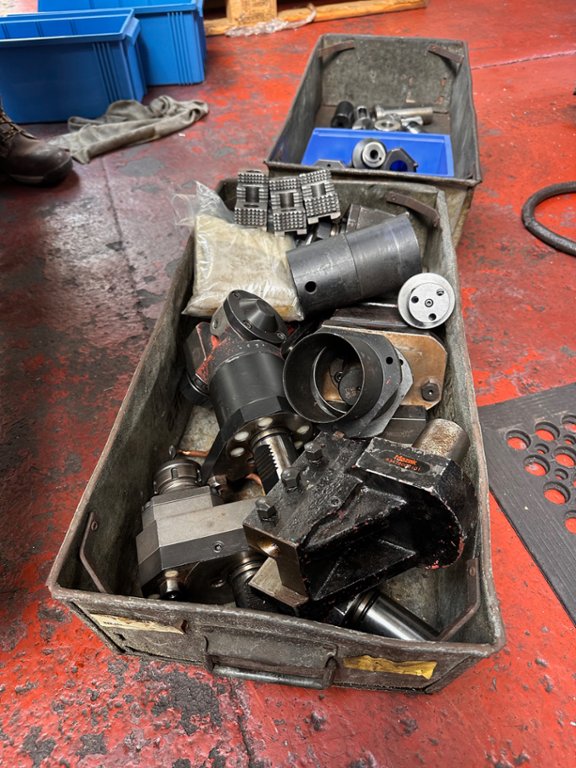

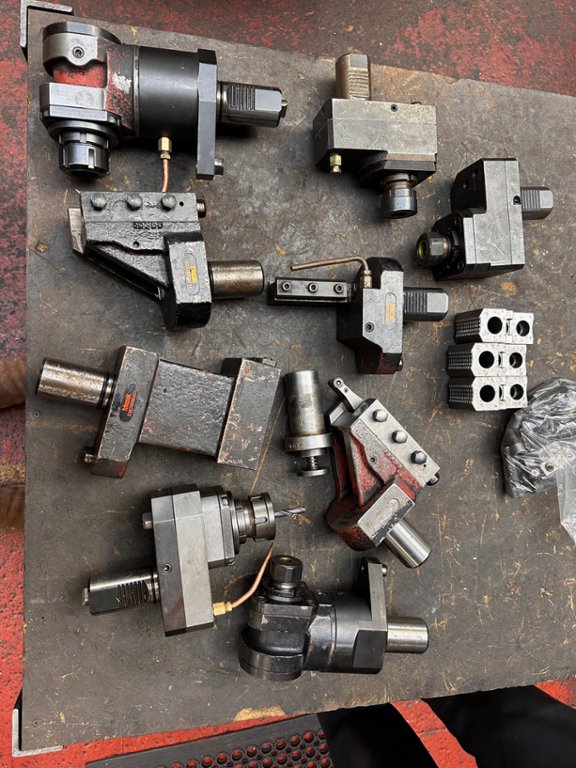

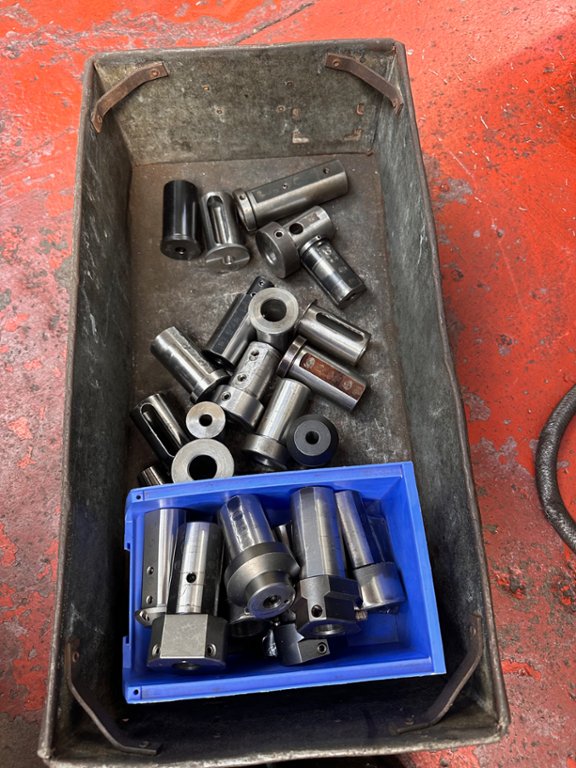

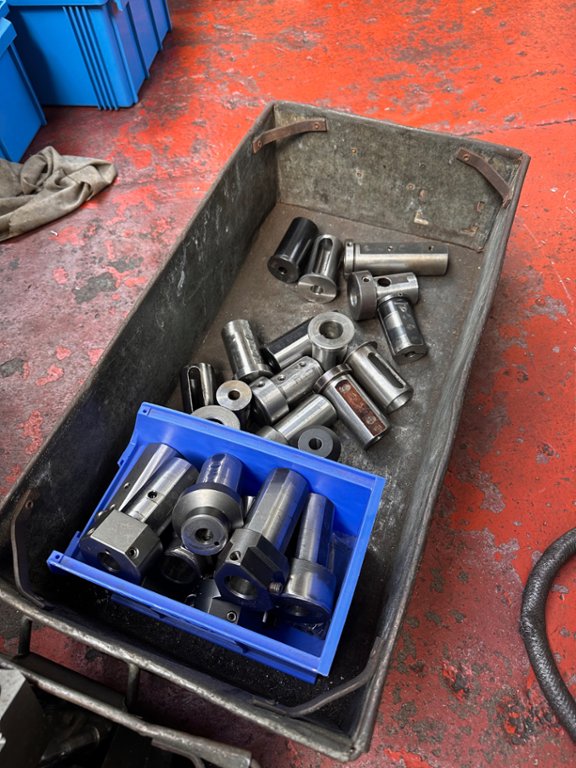

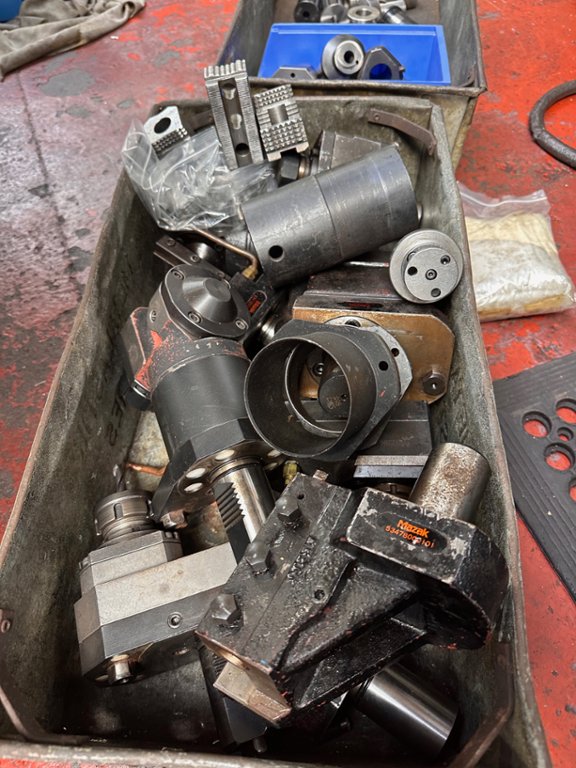

Comes with a selection of tooling

Capacity

Maximum swing - 320mm, Chuck size - 8", Edge to Edge distance between spindles - 1190mm, Standard machining diameter - 260mm, Maximum machining diameter - 320mm, Maximum machining length - Chuck workpiece - 180mm - Shaft workpiece - 530mm, Maximum bar material diameter - 51mm

Spindle

Edge shape - JIS A2-6", Throughhole diameter - 61mm, Spindle speed - 5000 RPM

Turret

Tool Size

OD Turning - 25mm, ID Turning - 40mm, Rotary drilling - 20mm, Rotary tapping - M12, Rotary end milling - 20mm

Indexing time - 0.2s, Milling spindle speed - 4500RPM, Milling spindle motor output - 3.7kW, Maximum milling spindle torque - 3.6 kgf.m

Feed Axes

X Axis - Movement stroke - 230mm, Rapid Feedrate - 30500 mm/min

Z Axis - Movement stroke - Z1 - 440mm - Z2 - 495mm, Rapid Feedrate - 33000 mm/min

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
