Lot 20 - Mazak QT 10N CNC - Spares or repair
Description:

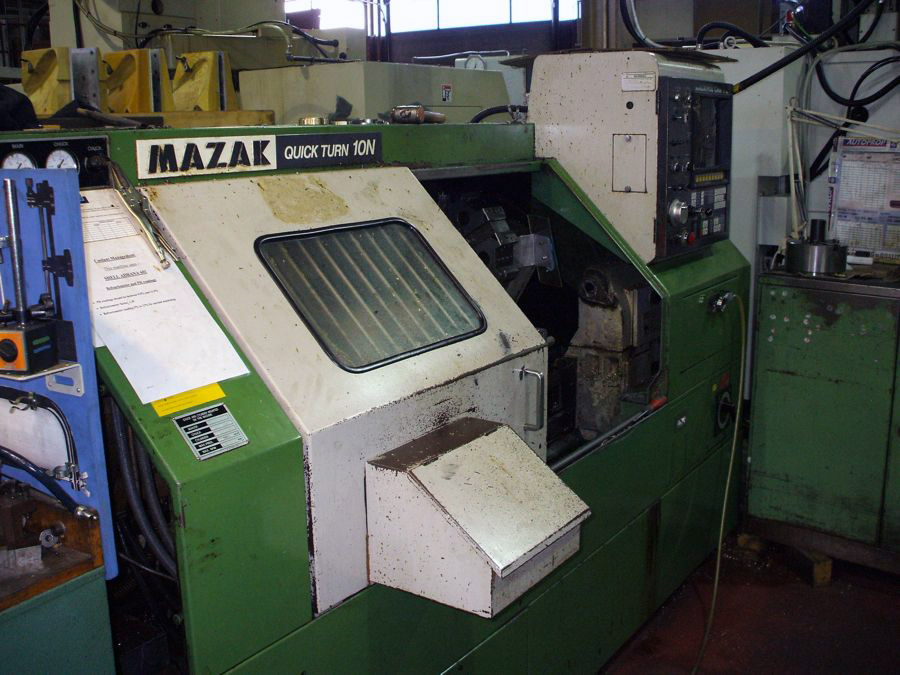

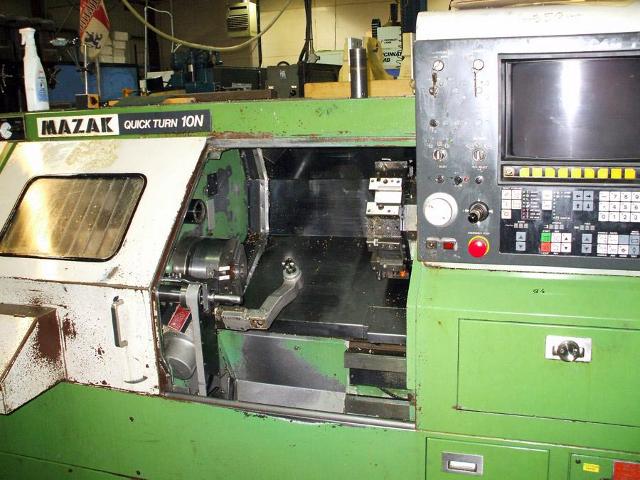

Mazak QT 10N CNC
No Reserve
Sold as Spare or repair.
New power supply pack installed in June cost £1712.00
Control Board has failed FR-SE-2-22K
Also Screen Dim
(Year 1985)
8" Chuck
Swing over bed: 440 mm
Swing over cross-slide: 150 mm
Distance centre tot centre: 500 mm
Max longitudinal travel Z-axis: 540 mm
Max cross travel X-axis: 155 mm
Spindle cone: A2-6
Dia of spindle bore: 56 mm
Power on the spindle: 15 kW
Number of speeds: 14 - 3600 rpm

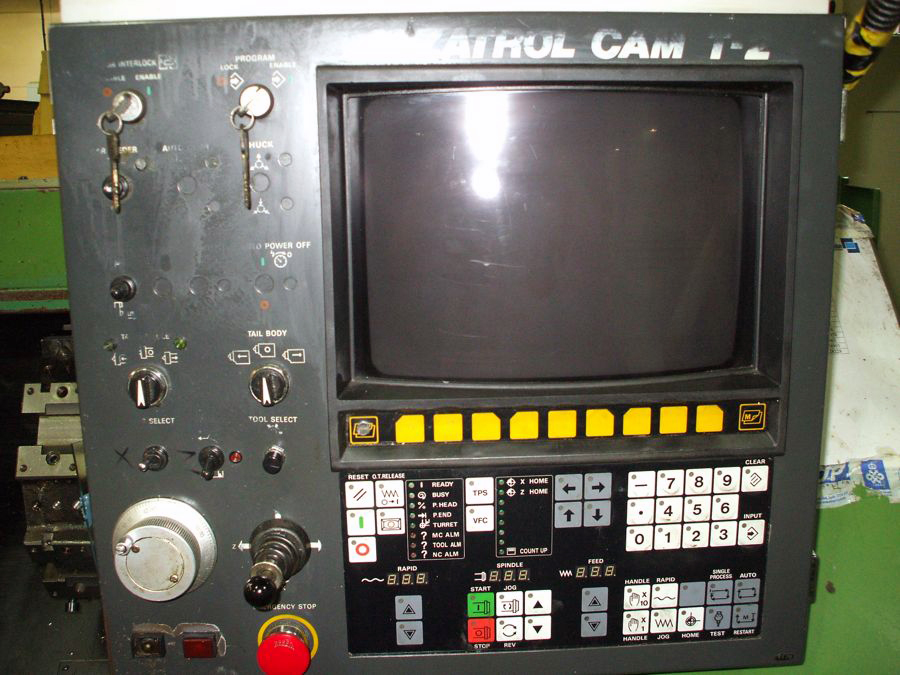

Command: Mazatrol Cam T2
Total power needed: 31 KVA
Length: 3680 mm
Width: 2460 mm
Height: 1740 mm
Weight: 2900 kg
Toolchanger: Yes

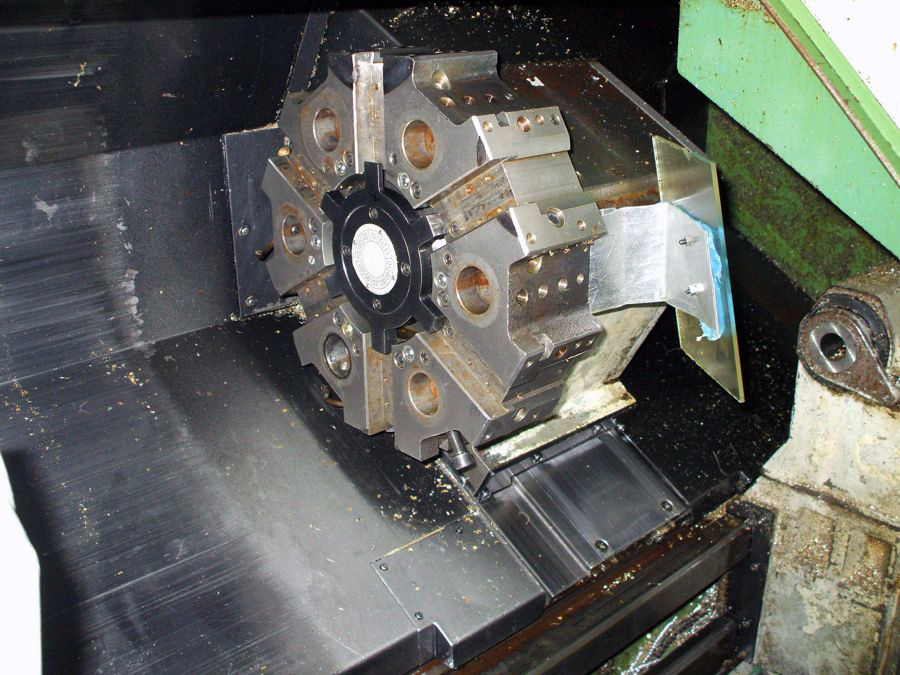

Number of tools: 12 Position
tailstock
Location: Clackton-on Sea, Essex
Export Information
Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.
All invoices are issued on an Incoterms FCA basis.
Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
