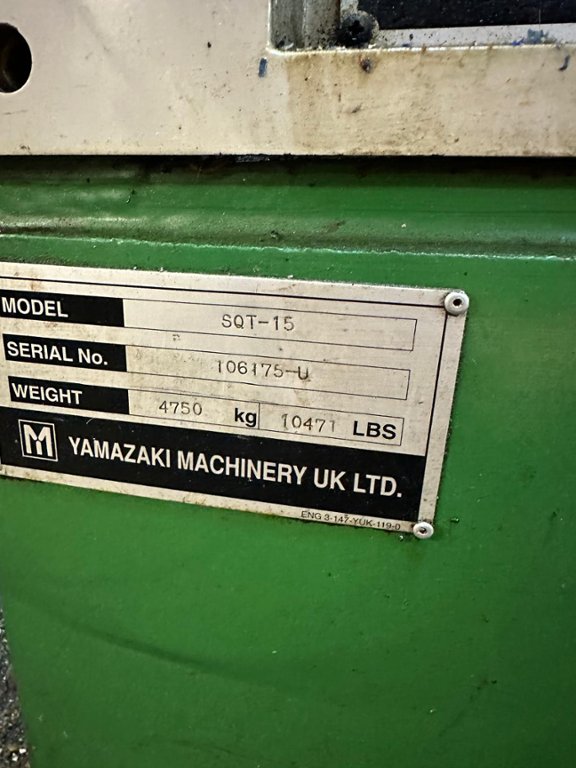

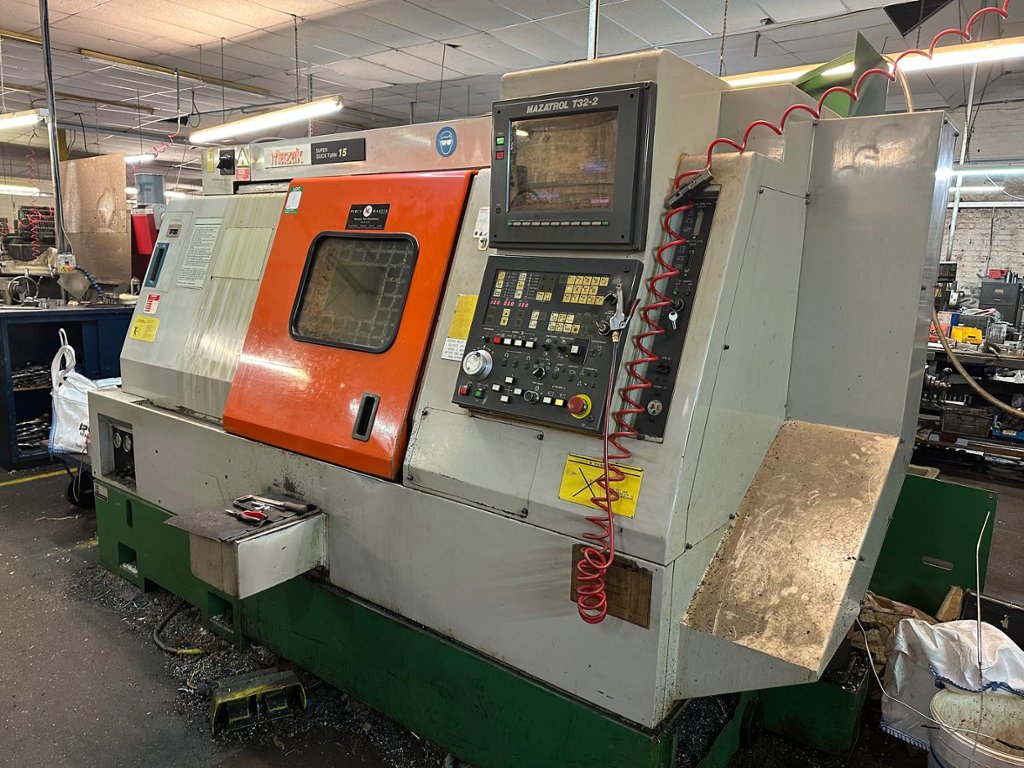

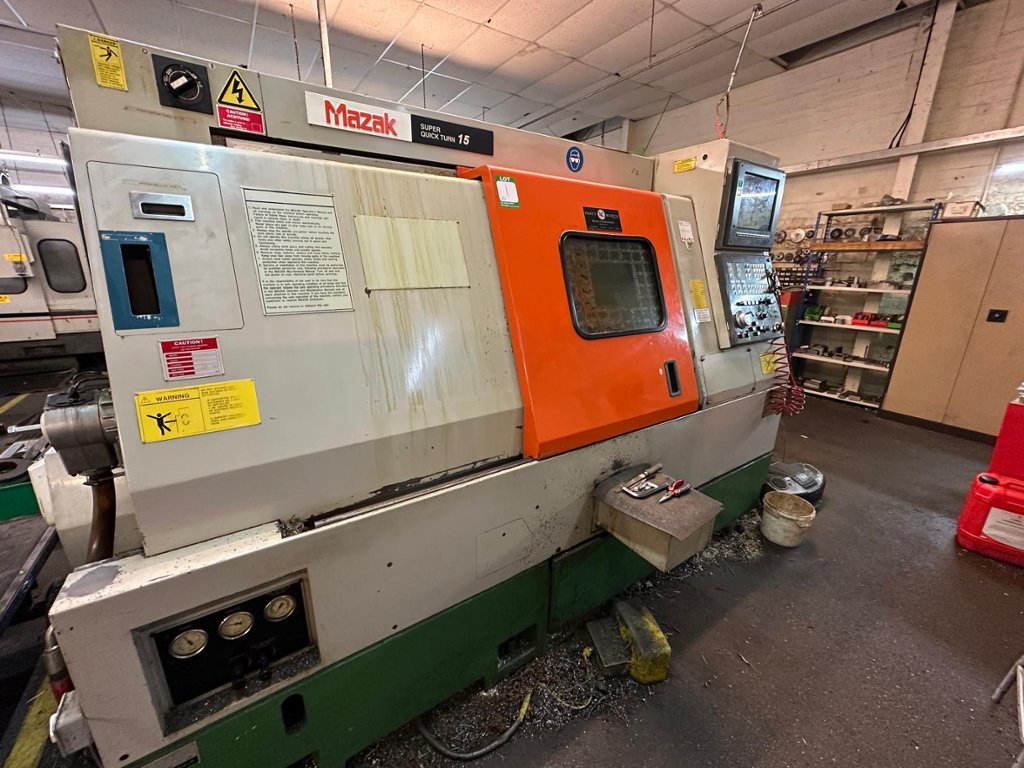

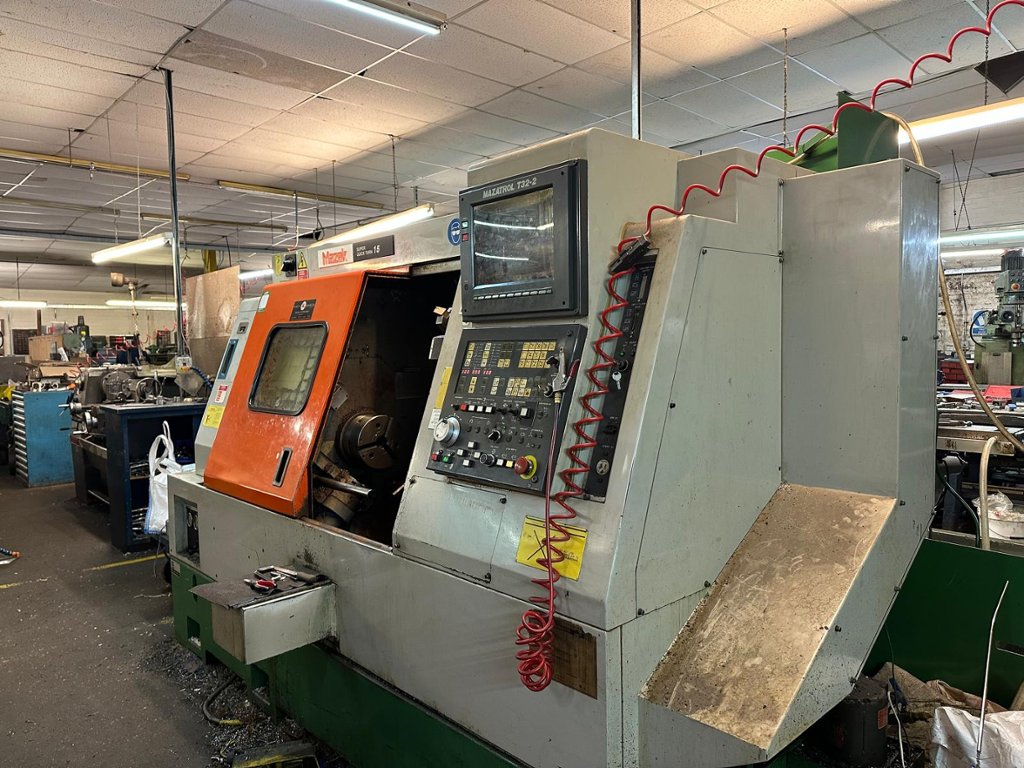

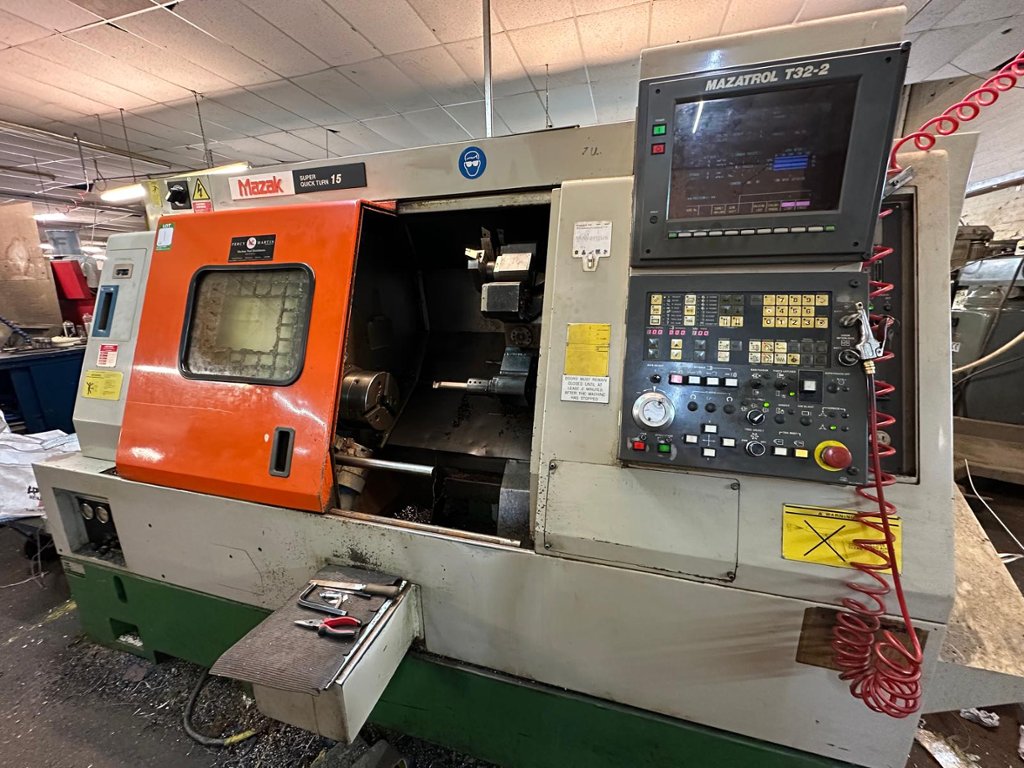

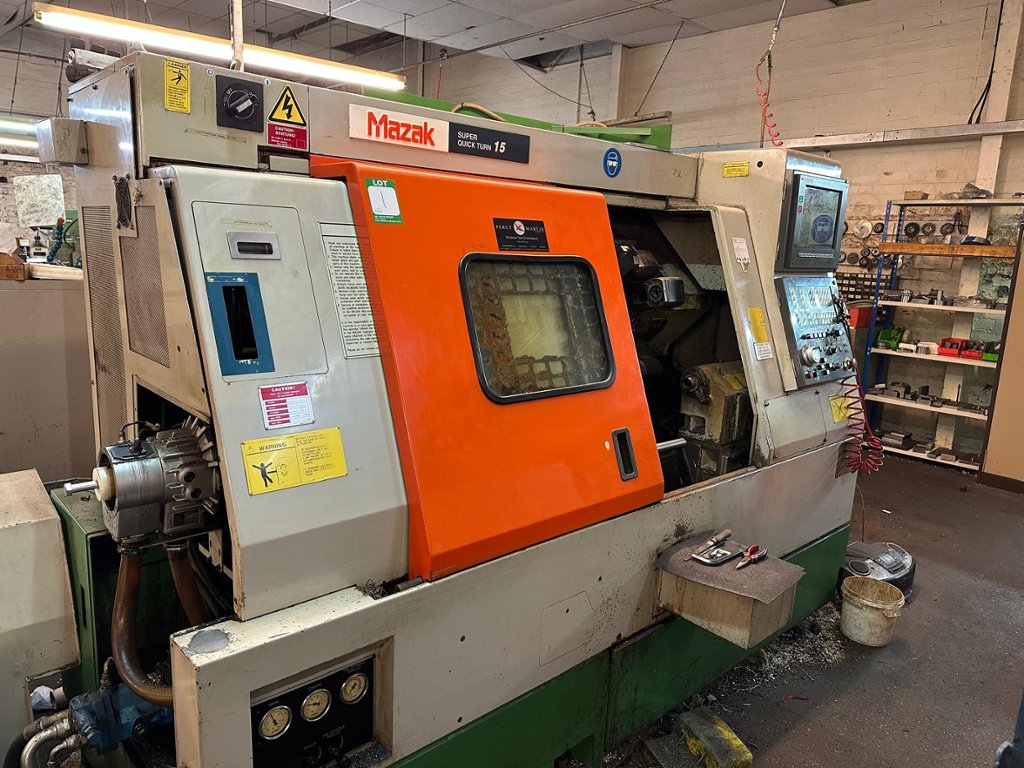

Lot 1 - Mazak SQT 15 CNC Lathe

Description:

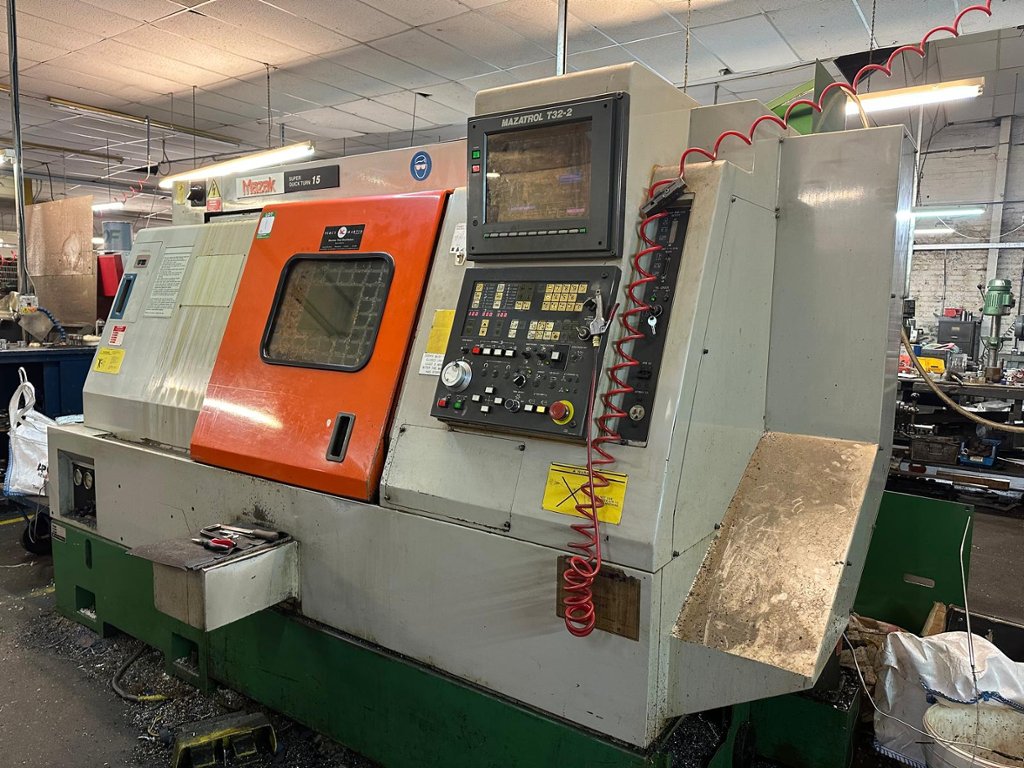

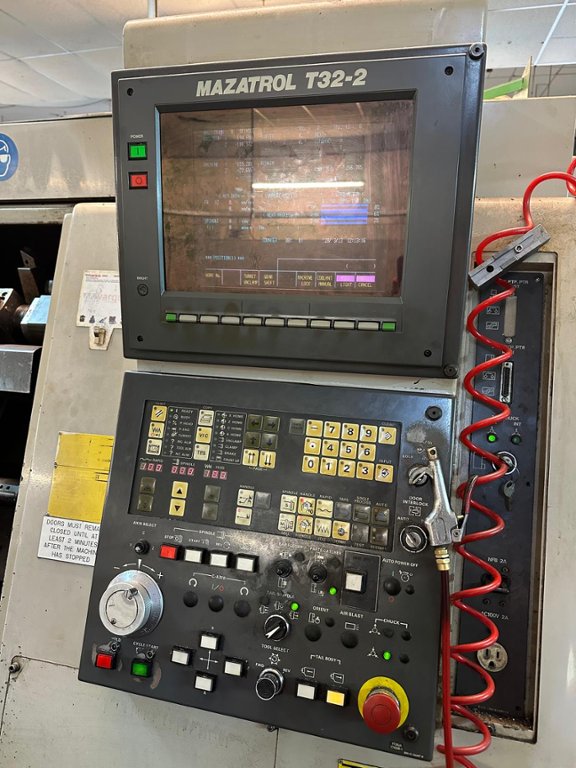

Mazatrol T32-2 Control

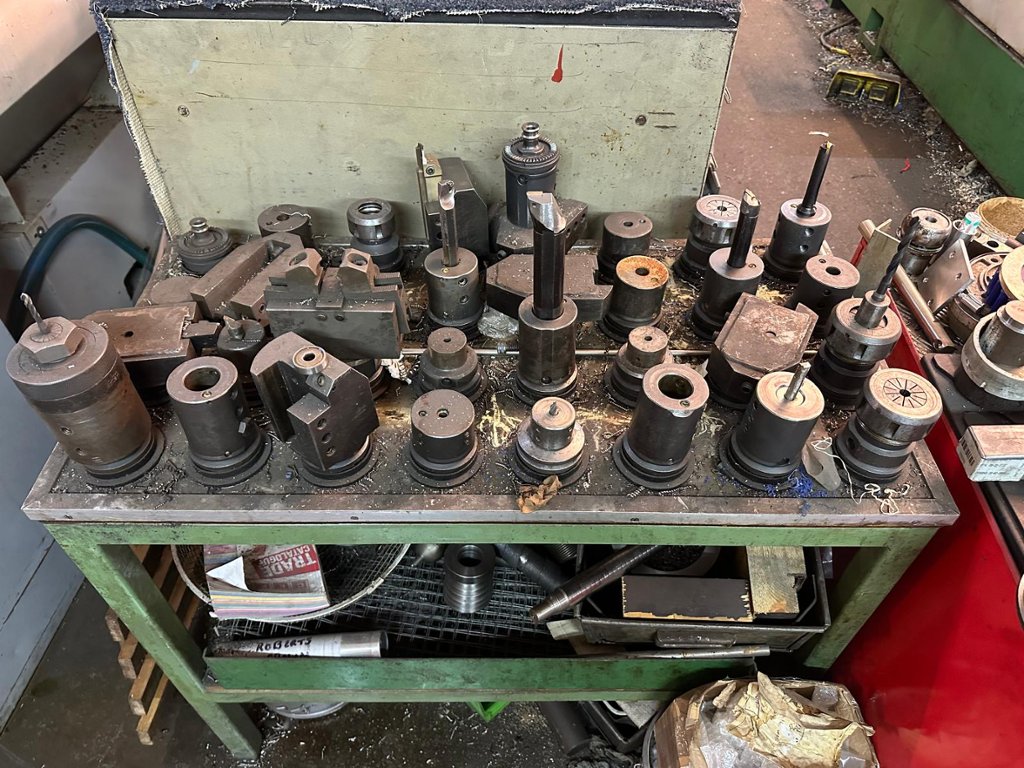

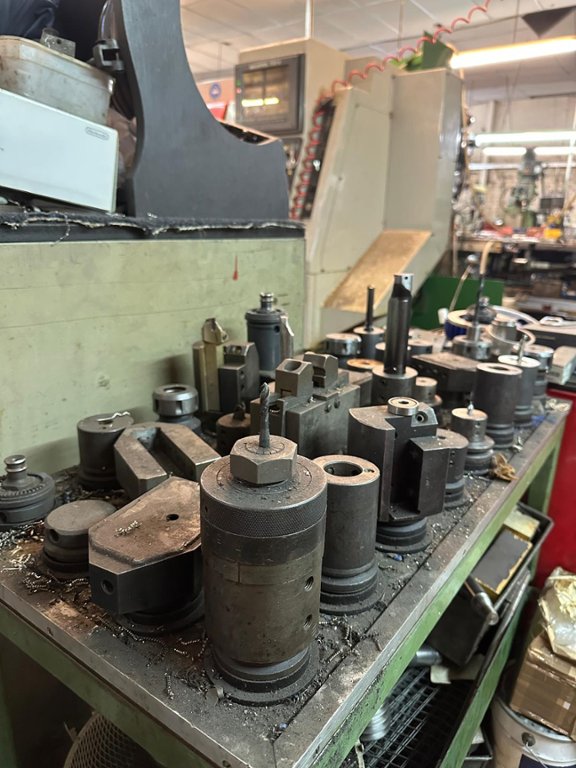

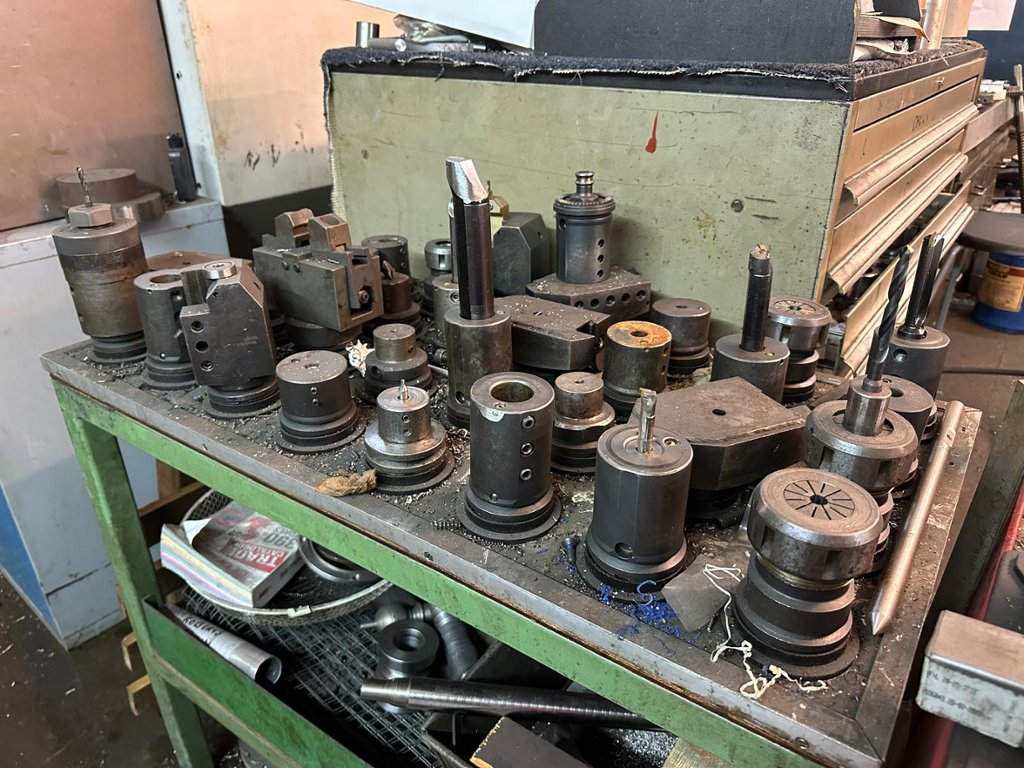

Tailstock & selection of tooling

feed rate in X/Z axis: 180/575 mm
maximum workpiece diameter: 300 mm
maximum workpiece length: 531 mm
bar diameter: 51 mm
X-axis positioning accuracy: ± 0.002 mm
Z-axis positioning accuracy: ± 7 s
C-axis positioning accuracy: ± 0.003 mm
tool clamping force: 42140 N
tool head indexing time: 1.4 s/full step
air pressure: 490 KPa
air consumption: 100 NL/min
coolant tank capacity: 200 l
hydraulic oil tank capacity: 45 l
lubricant tank capacity: 1.8 l
space requirement: 4,8 m2

Main spindle

main spindle rotational speed range: 35-5000 rpm
bore diameter: 61 mm
spindle nose: A2-6
distance between spindle nose and tool head face end: 125-700 mm
bearing diameter (front): 100 mm
bearing diameter (rear): 80 mm
torque: 294 Nm
main spindle power (30 min/constant operation): 18.5/15 kW
Sub-spindle

sub-spindle rotational speed range: 180-5000 rpm
bore diameter: 31 mm
spindle nose: A2-6
bearing diameter (front): 80 mm
bearing diameter (rear): 50 mm
torque: 49 Nm
sub-spindle power (10 min/constant operation): 7.5/10 kW

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
