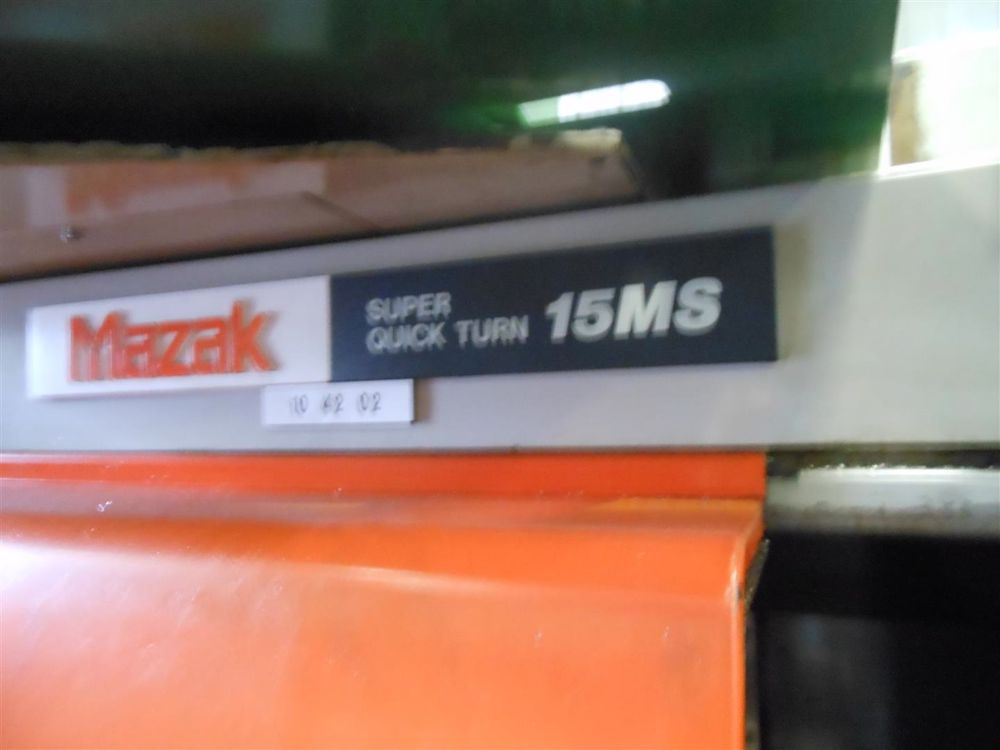

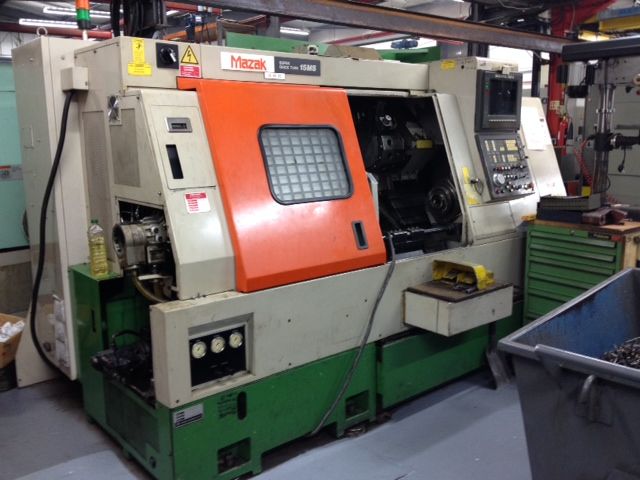

Mazak Super Turn 15MS CNC Lathe - With Sub Spindle and Driven Tools (1993)

Lot 4 - Mazak Super Turn 15MS CNC Lathe - With Sub Spindle and Driven Tools (1993)

Description:

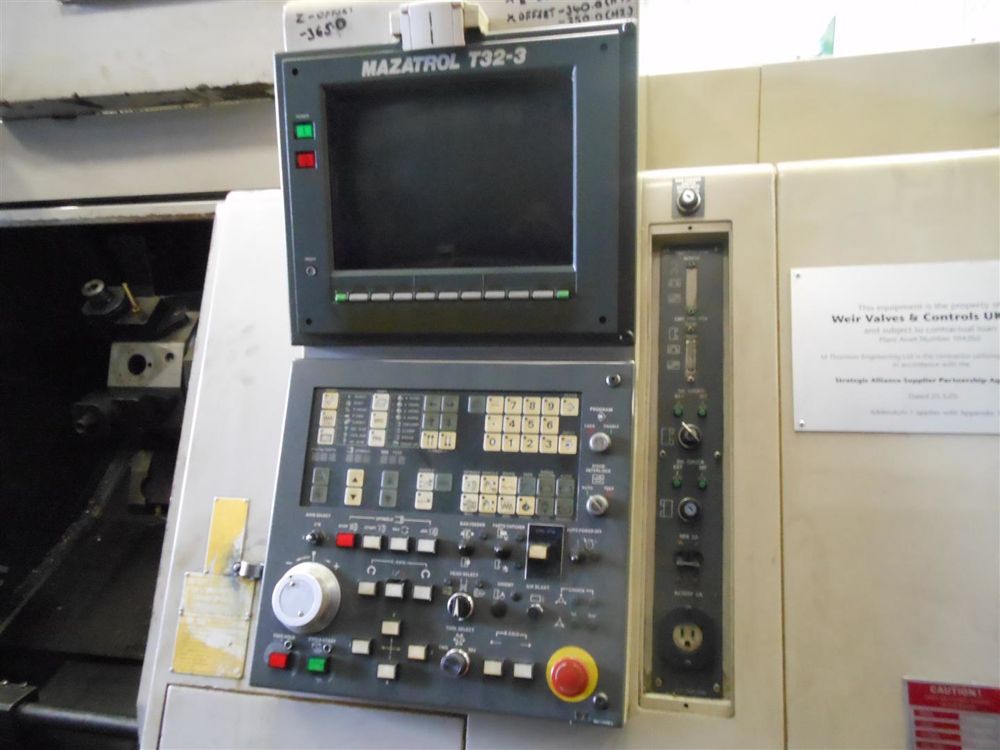

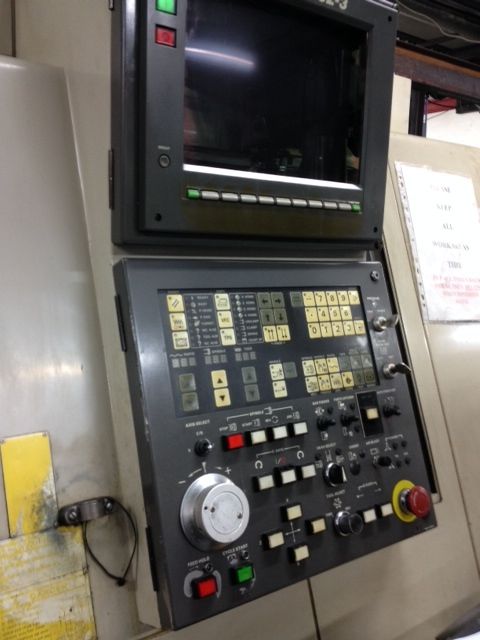

Control: Mazatrol T32-3
X Axis Travel: 180mm
Y Axis Travel: 575mm
Max Swing: 531mm
Distance Between Centres: 597mm
Max Cutting Diameter: 300mm
Standard Machining Diameter: 276mm
Max Cutting Length: 528mm
Max Bar Work Diameter: 51mm
Number iof Spindle Speed Ranges: Stepless
Max Spindle Speed: 35-4000rpm
Spindle Nose: A2-6
Spindle Bore: 76mm
Second Spindle Speed: 180-4000rpm
Second SpindleStroke (B Axis): 590mm
1st Spindle Motor 930mins/Continous): 25hp / 20hp
Second Spindle Motor: 10hp

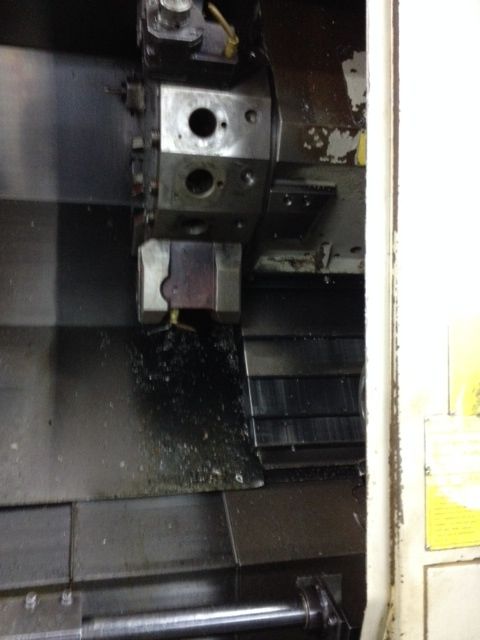

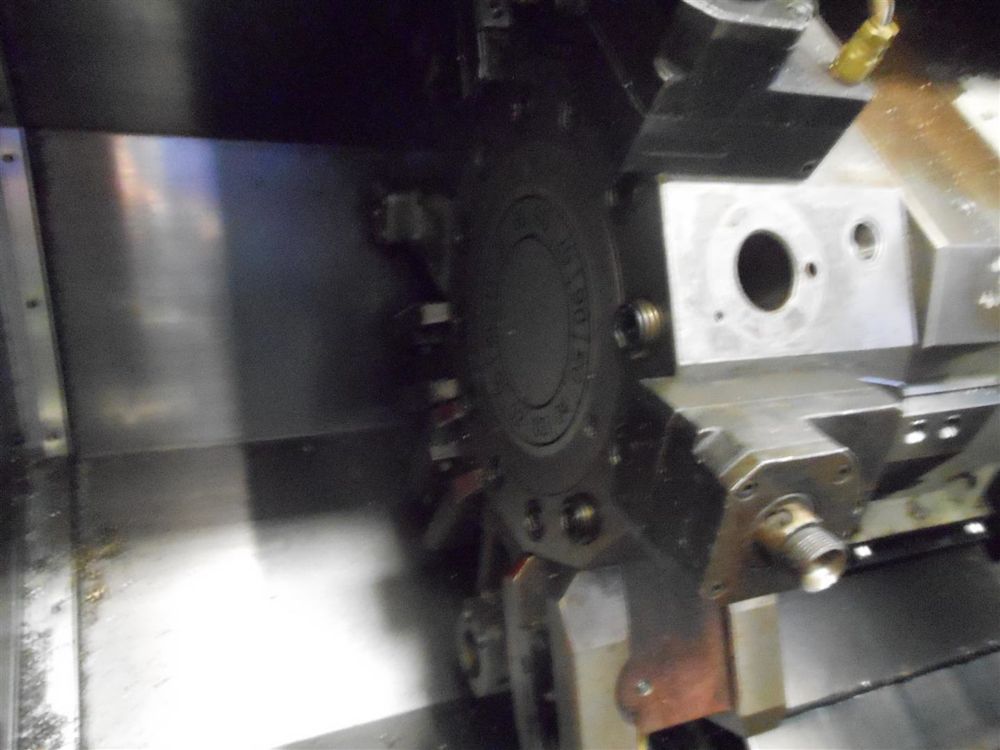

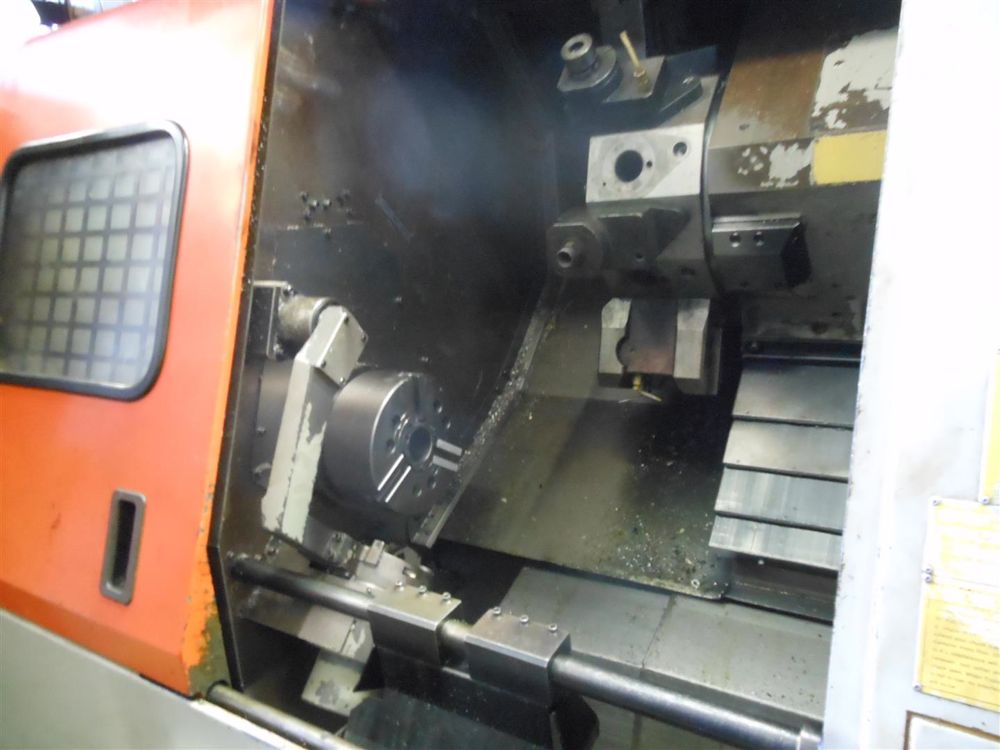

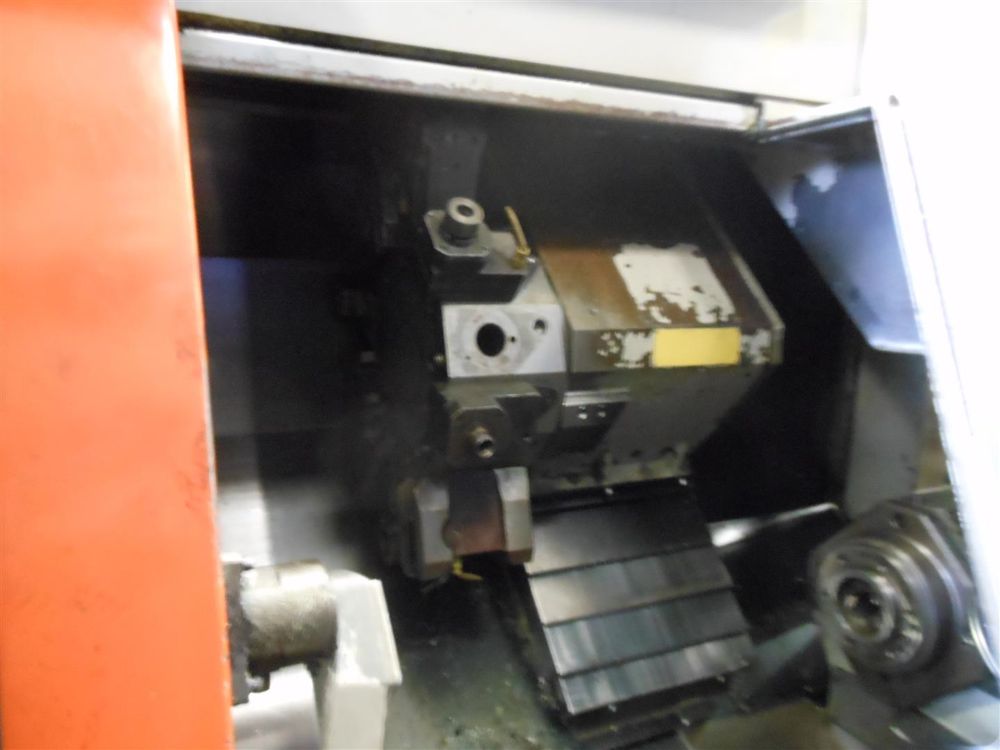

Turret type: Dodecagonal Drum Turret
Turret Tool Capacity: 12 Total (12 for first Process, 12 for second process, 12 for milling tool or 12 for turning tool)
Boring Bar Shank Diameter: 25mm
Turret Index Time (One step/full step): 0.5s/1.4s
Rotary Tool Speed Range: 120-3000 rpm
Power Requirements: 59.7 kVA
Air Supply: 71.17 PSI, 100L/Min
Collant Tank Capacity: 200 L
Floor Space Requirements: 3035mm x 1580mm
Height 190mm

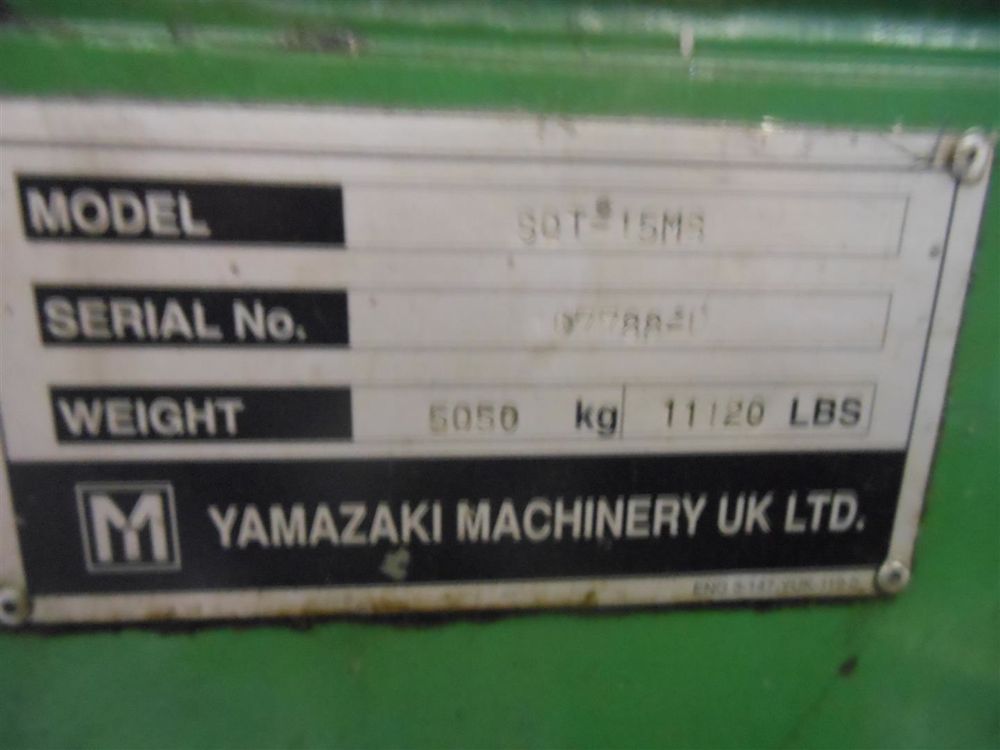

Weight: 5000kg

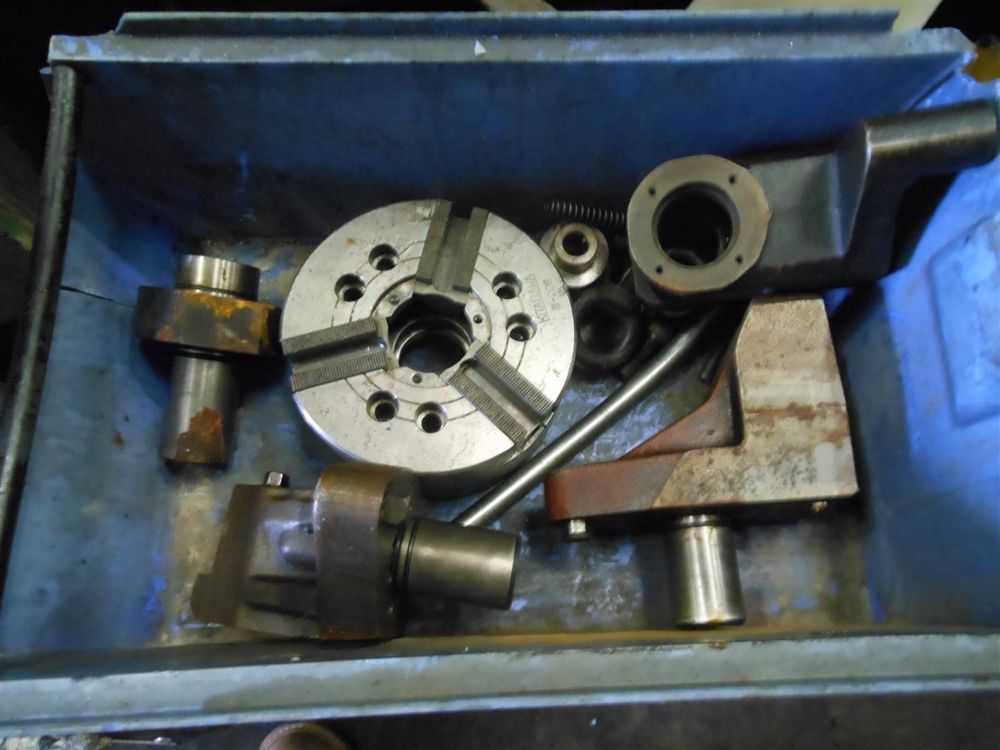

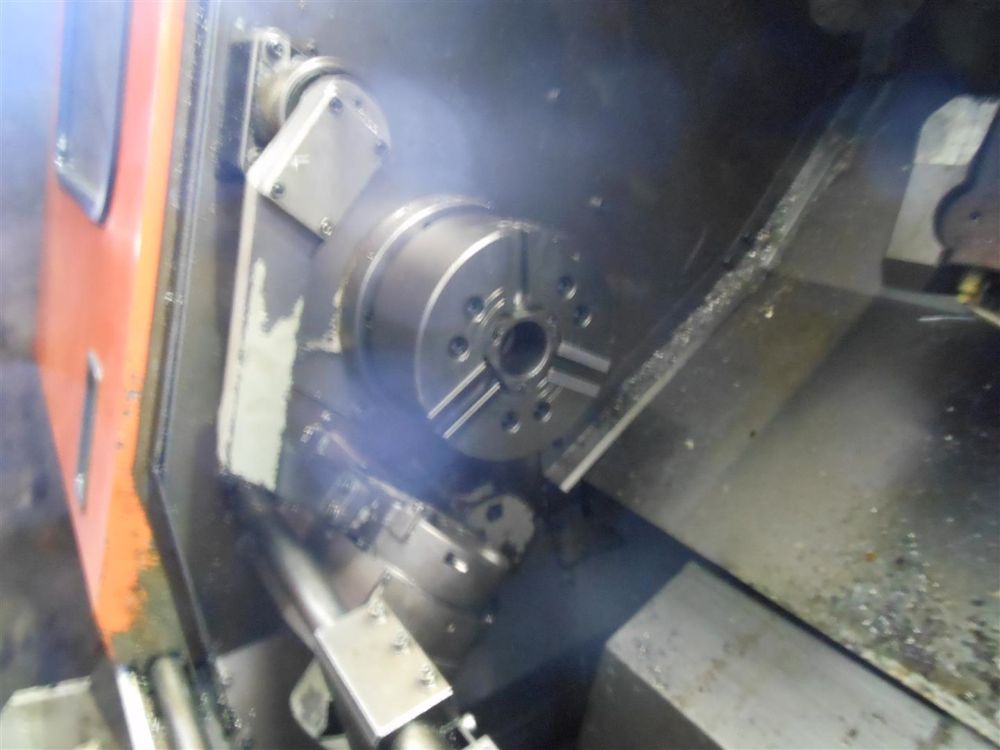

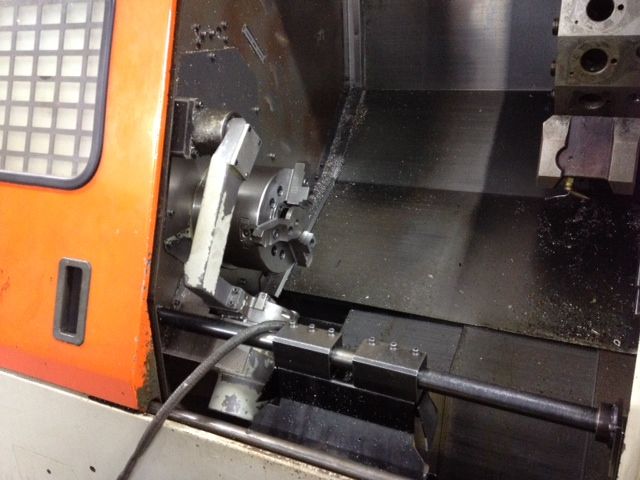

8" Through Hole Hydraulic 3 Jaw Chuck

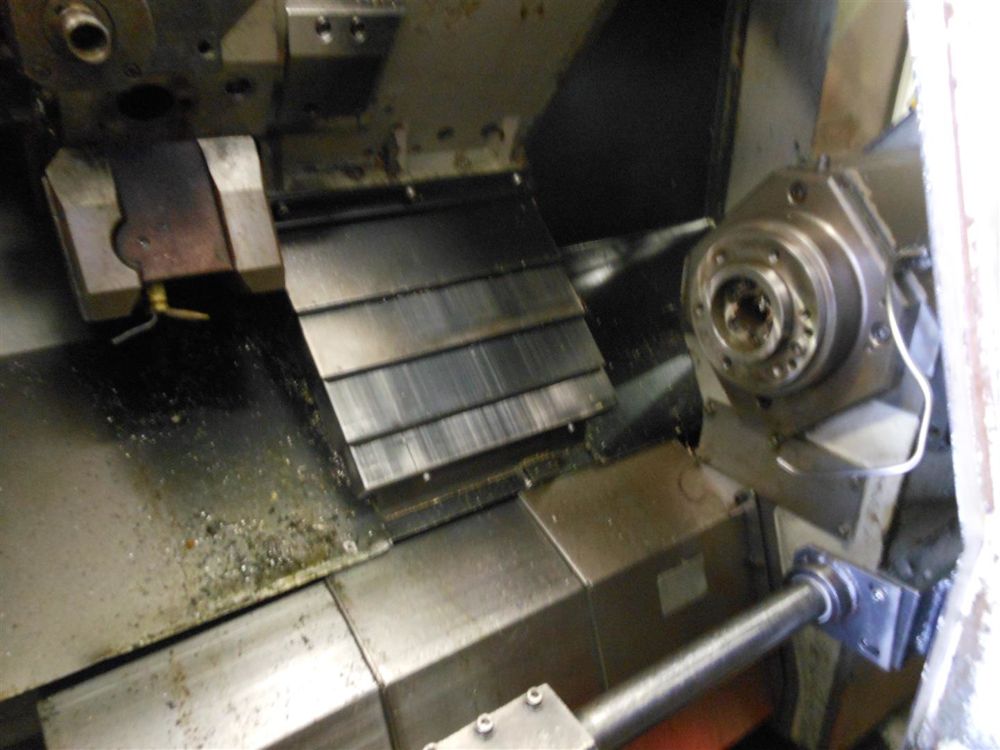

Second Spindle 6" Through Hole Hydraulic 3 Jaw Chuck
Coolant System
Adjusting Tool
Tool Eye
Tool Life Monitoring
Work Light

Manuals
Driven tools

Location: Leicester, can be loaded to flat truck for free

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
