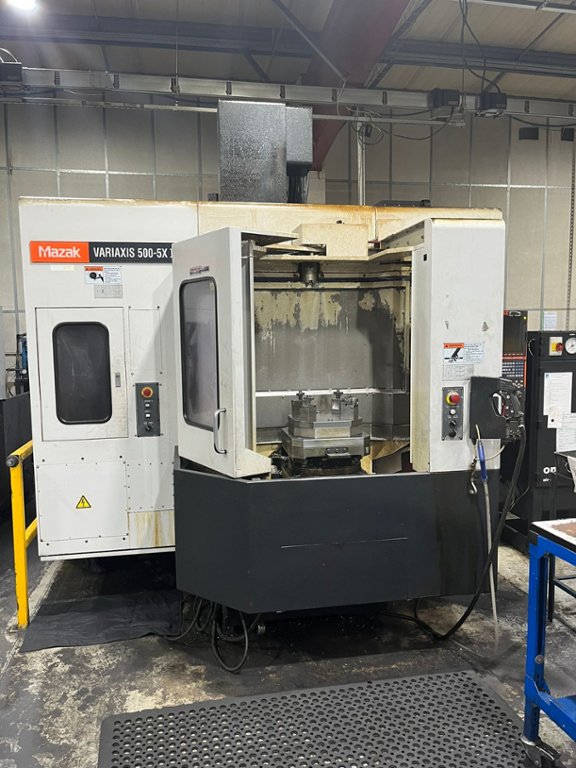

Mazak Variaxis 500-5X II CNC Vertical Machining Centre (2010)

Width: 2805mm
Depth: 2950mm
Height: 2838mm
Weight: 7500kg

Lot 1 - Mazak Variaxis 500-5X II CNC Vertical Machining Centre (2010)

Description:

CNC controller: MAZATROL MATRIX

X-axis travel mm: 510
Y-axis travel mm: 510
Z-axis travel mm: 460
C-axis degrees: 360º
A-axis degrees: -120º +30º
Rapid traverse m/min: X,Y: 40 ; Z: 30
Worktable
Table dimensions mm: 500×400
Max. workpiece weight kg: 300
Spindle
Spindle speed rpm: 12.000
Tool system
Tool holder: BT-40
Tool magazine slots: 60
Max. Tool Diameter
With free neighboring places mm: ø125
With occupied neighboring places mm: ø80
Max. Tool Length mm: 300
Max tool weight kg: 8

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
