Lot 14 - MECOF CS 10 Bed Type Travelling Column Milling Machine

Description:

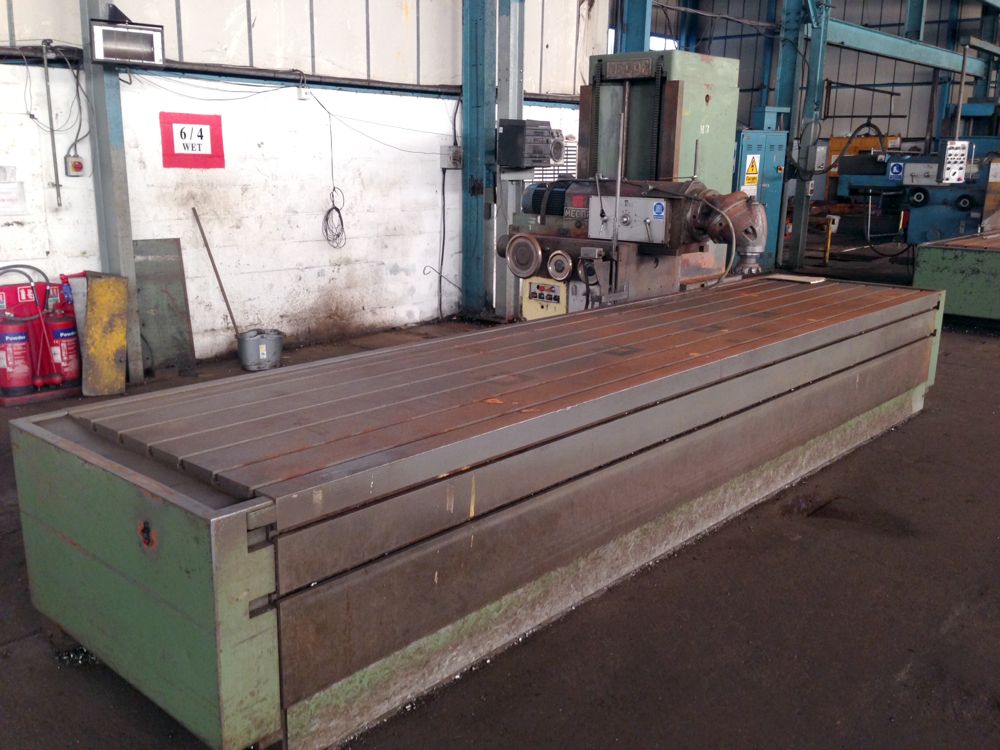

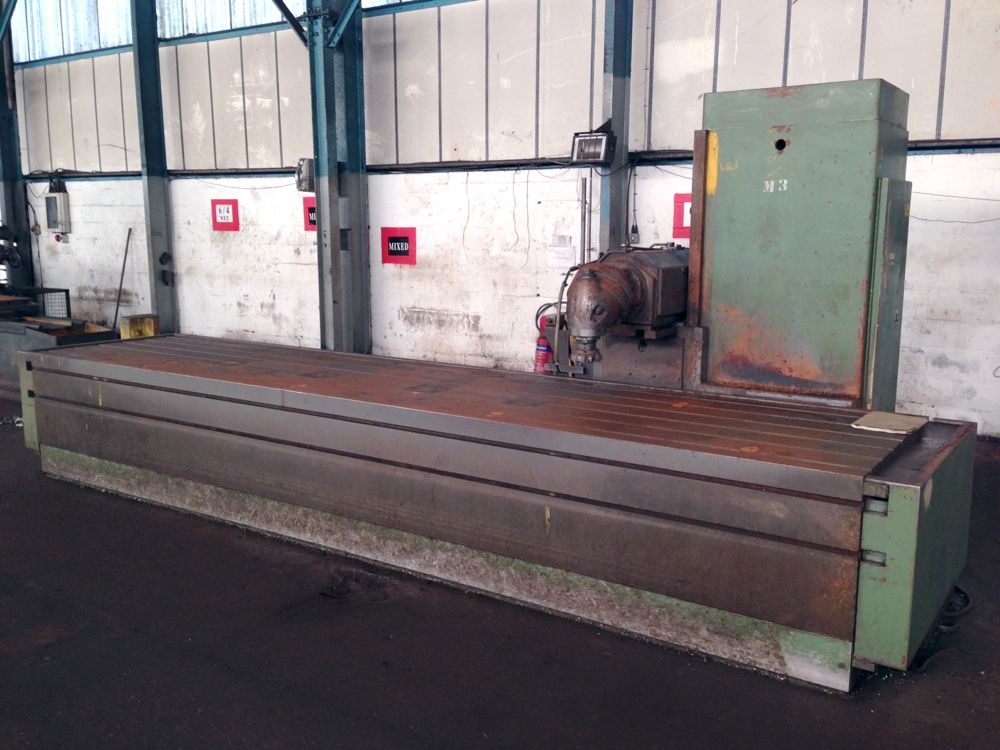

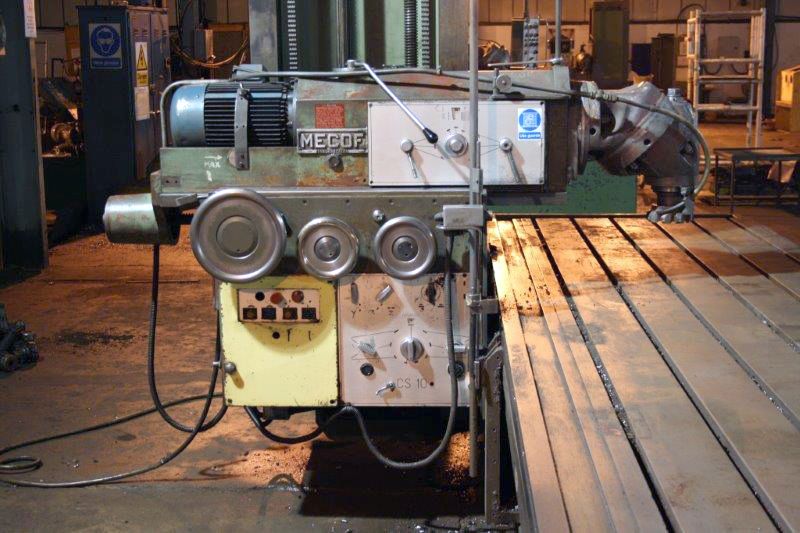

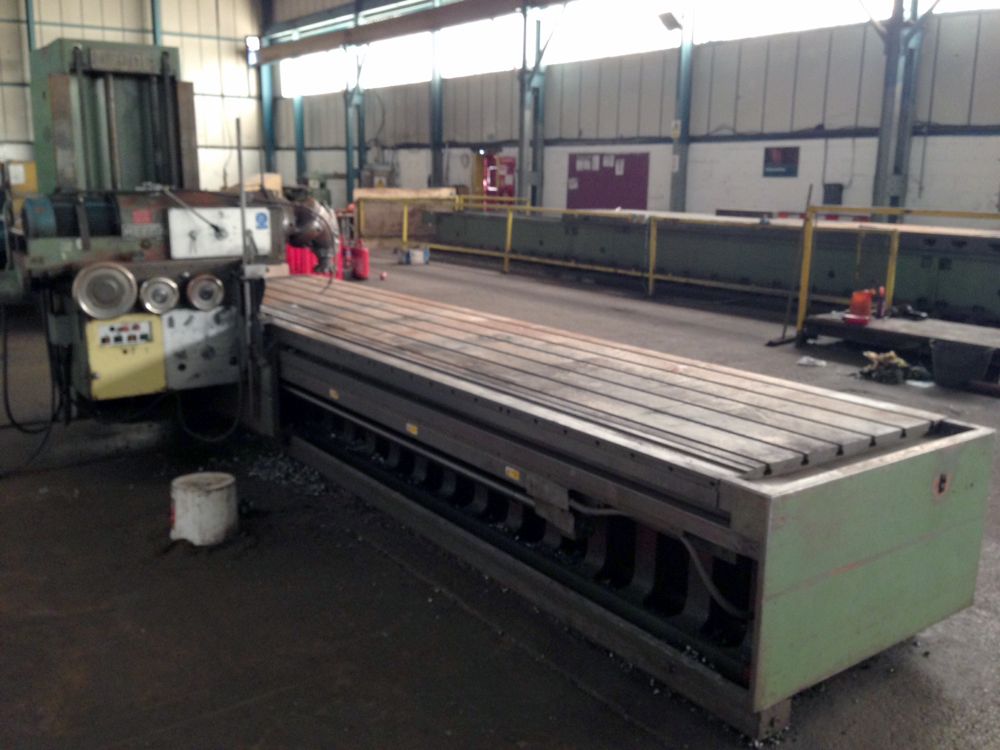

MECOF CS 10 Bed Type Travelling Column Milling Machine
YEAR: 1986

BED LENGTH: 5100mm
BED WIDTH: 1200mm
LONG TRAVERSE OF COLUMN: 3200mm
VERTICAL TRAVERSE OF HEAD: 1250mm
CROSS TRAVERSE OF HEAD: 810mm
SPINDLE SPEED: 30- 2080 rpm, 16 STEPS
POWER CONSUMPTION: 15 KW (peak load)
FEED RATE: 6.0 – 500mm/min
SPINDLE TAPER: IS0 50
MACHINE HEAD: KNUCKLE TYPE, DOUBLE SWIVEL UNIVERSAL

Approx: 14-15 Tons

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
