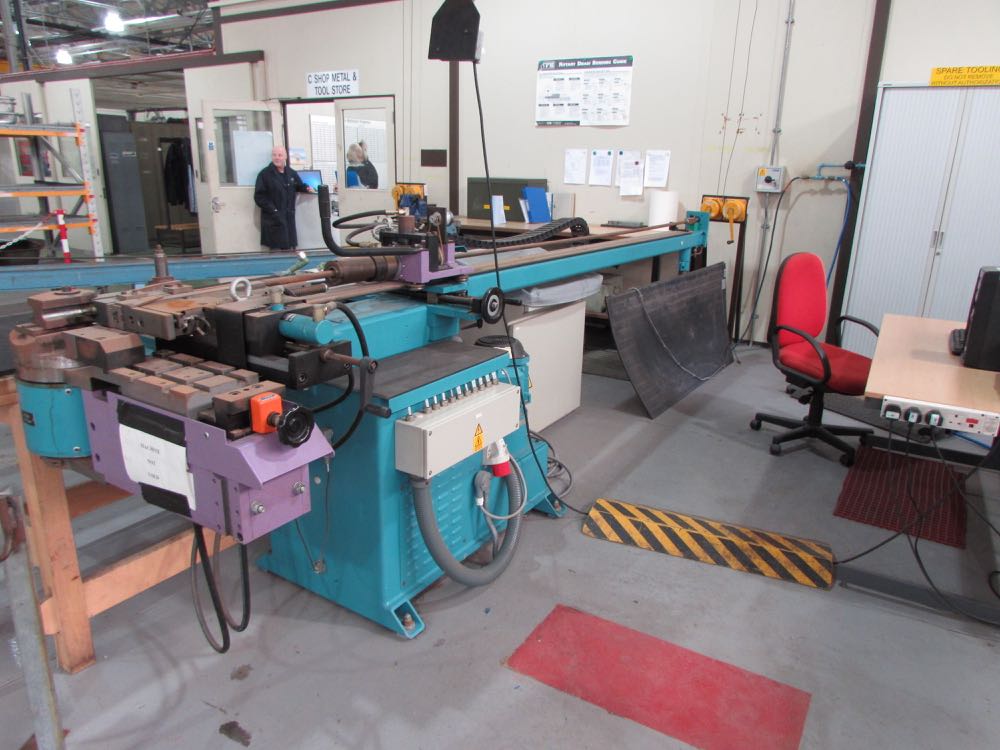

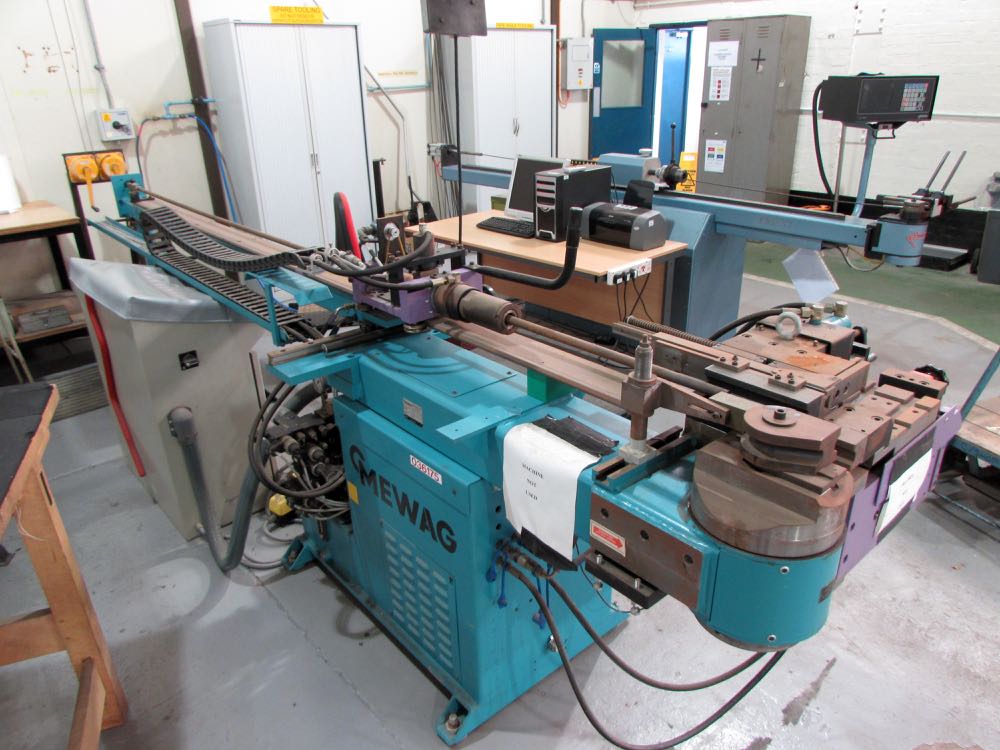

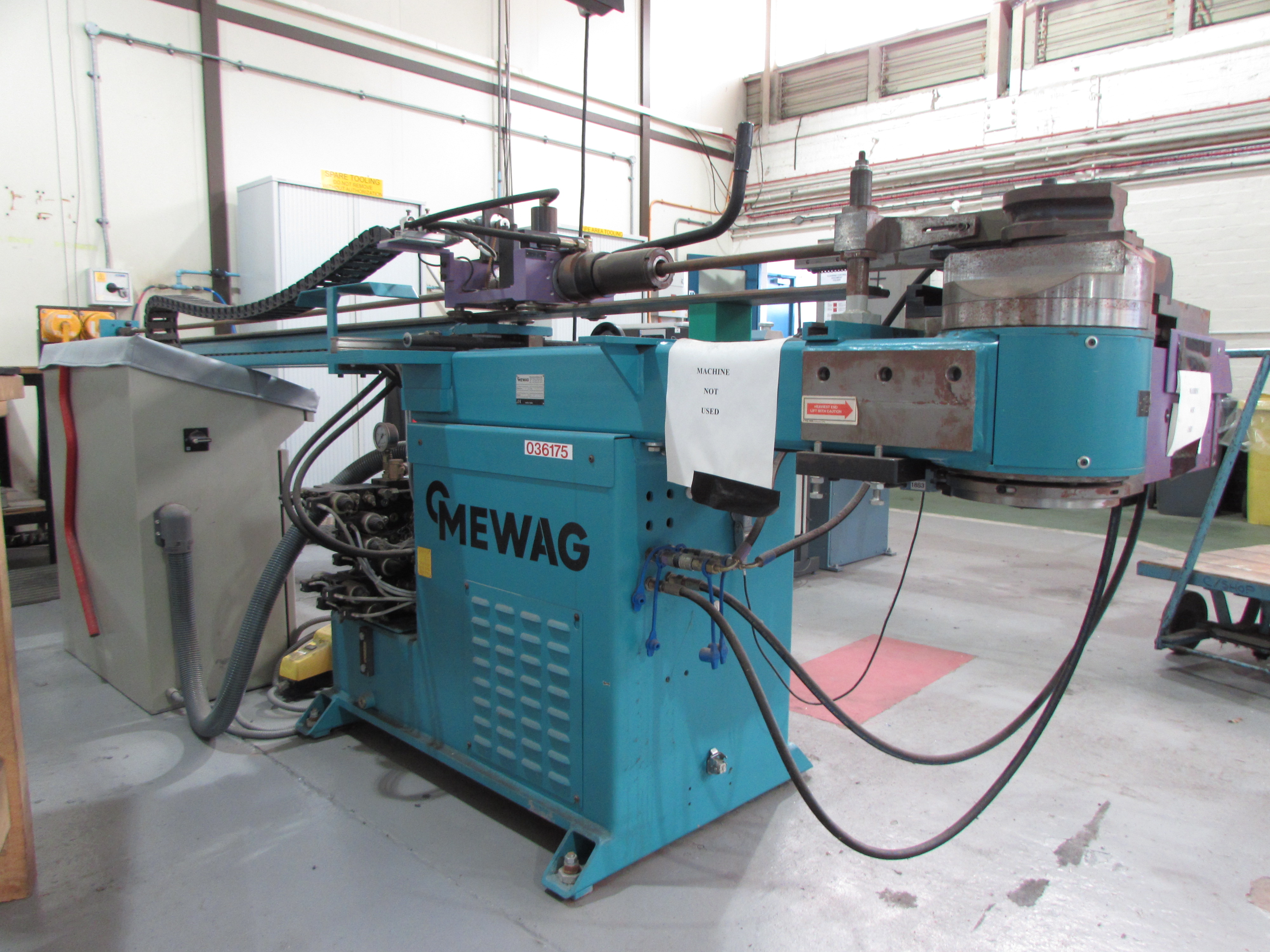

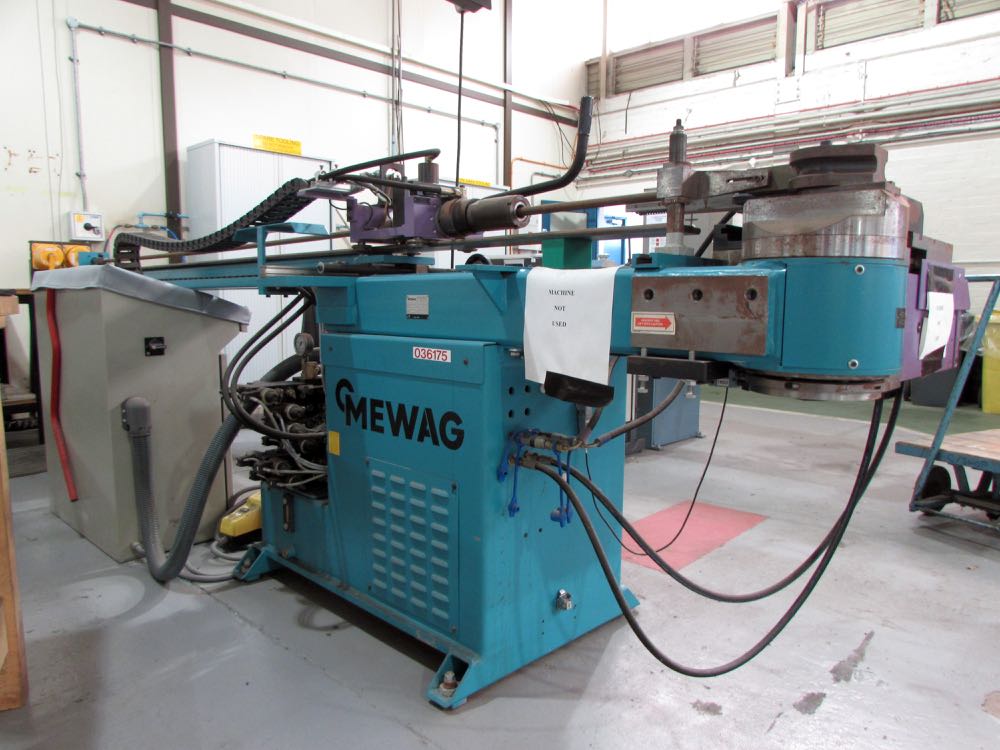

MEWAG MS3000 CNC Pipe Bender

Lot 36 - MEWAG MS3000 CNC Pipe Bender

Description:

MEWAG Ms3000 Pipe Bender

Technical Data
Bending Capacity - Steel 42x2mm

Range
With standard clamping device
Centre line radius maximal - CLR Max -210mm
Inner radius minimal - Ri min - 25mm

Tube length over the mandrel -Customer specific (2-6m)

Feeding ( X-Axis)
Range - Customer specific (2-6m)
Accuracy - +/- 0.1mm
Max Speed - 60 m/min

Bending Drive (Y-Axis)
Max. bending speed - 130/sec
(10 different speeds; speeds 9 100%)
Positioning accuracy +/- 0.1
Angle:
-With standard clamping device 190

Rotation (Z-Axis)
Range - 1/- 360
Accuracy - +/- 0.1
Max Rotating speed -270 /sec

Clamping Device
Pressure adjustable
Maximal Clamping Pressure (if 250bar) - 40kN

Mandrel Retraction
Retraction Speed Adjustable
Retraction Point Adjustable (Anticipated mandrel retraction)

Noise < 70 dB

Adjustable hydraulic pressure, max. 200 bar

Working Height - Approx. 1000mm

Dimensions Of Machine (tube length over mandrel 3000mm)
Length - 3400mm
Width - 900mm
Height - 1300mm

Weight Of Machine - ca. 700 kg

Electrical Connection
Voltage - 400 V AC
Frequency - 50 Hz
Fuse Protection - 16 A

Location: Hampshire

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
