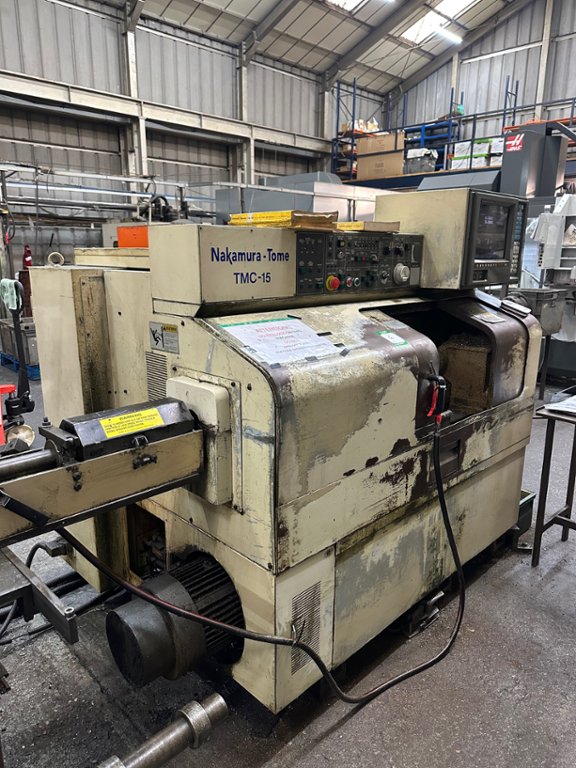

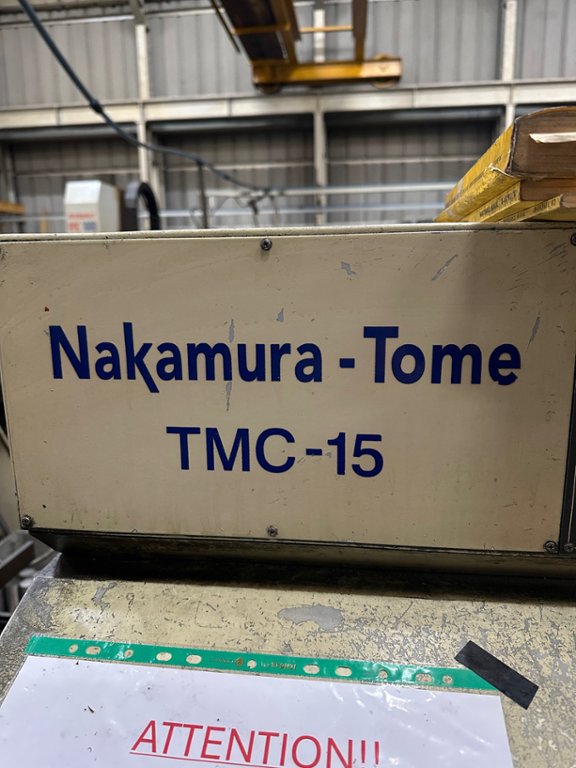

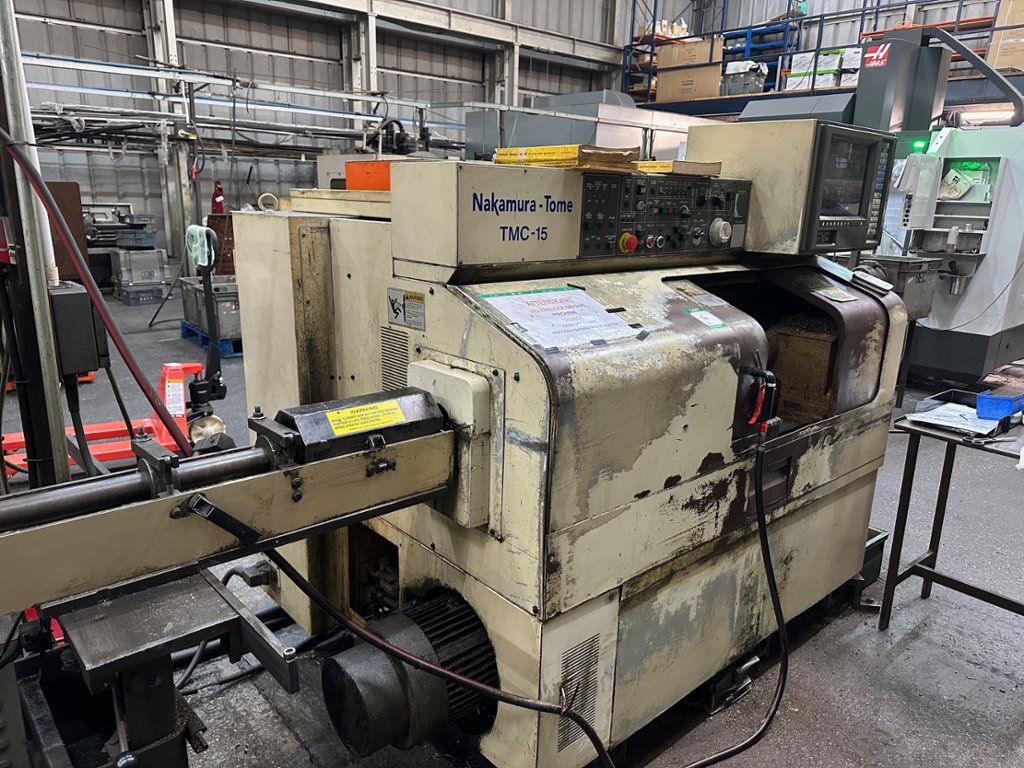

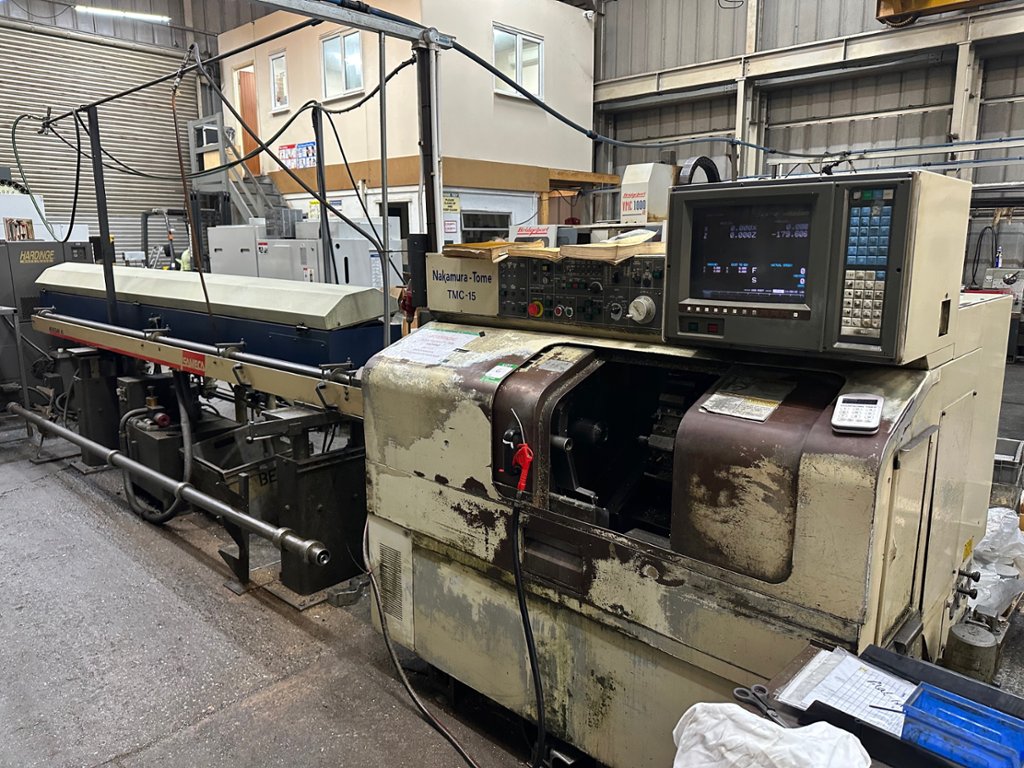

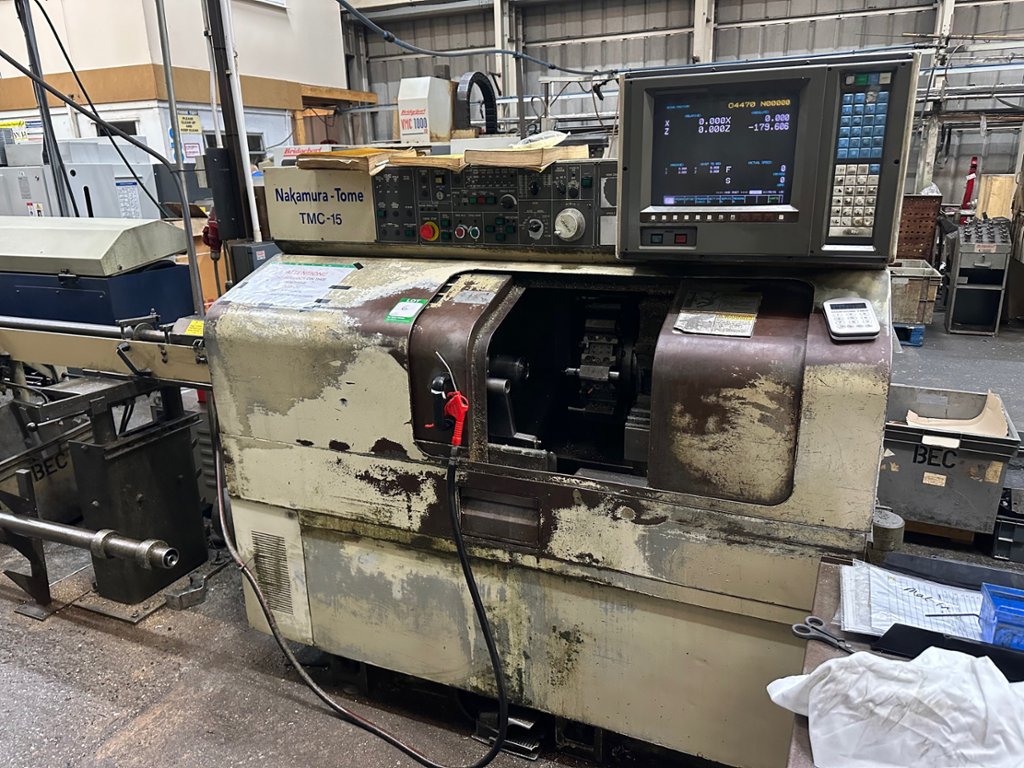

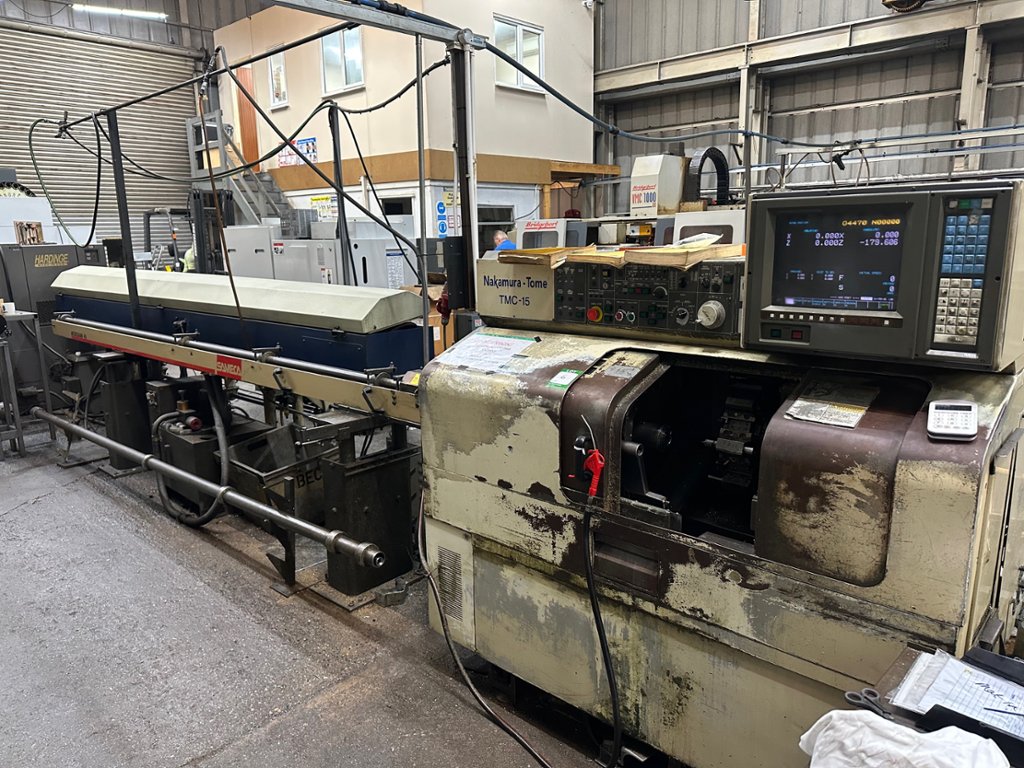

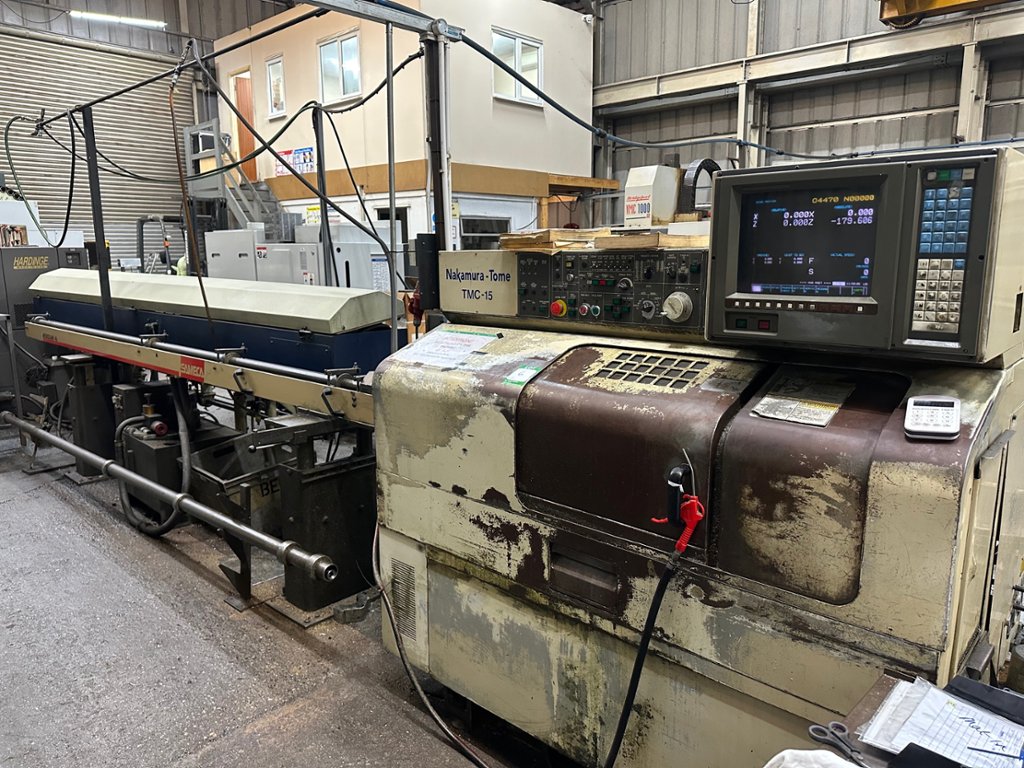

Nakamura Tome-TMC 15 CNC Lathe

Lot 6 - Nakamura Tome-TMC 15 CNC Lathe

Description:

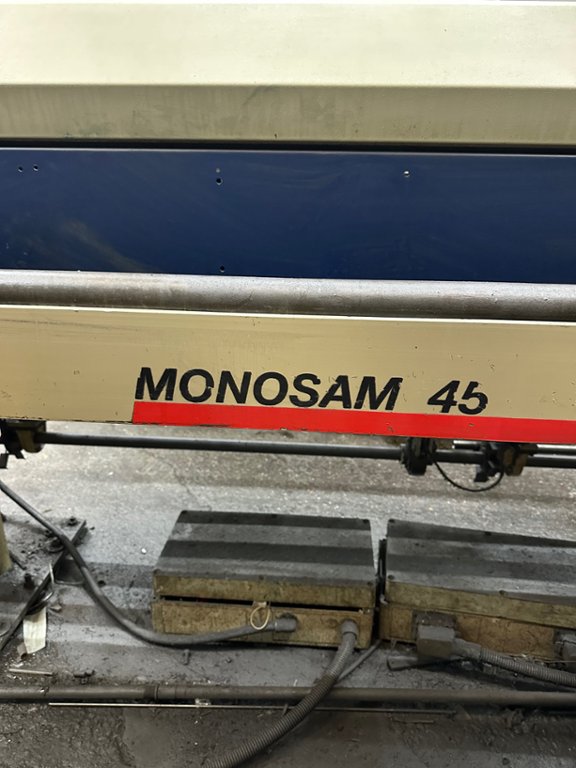

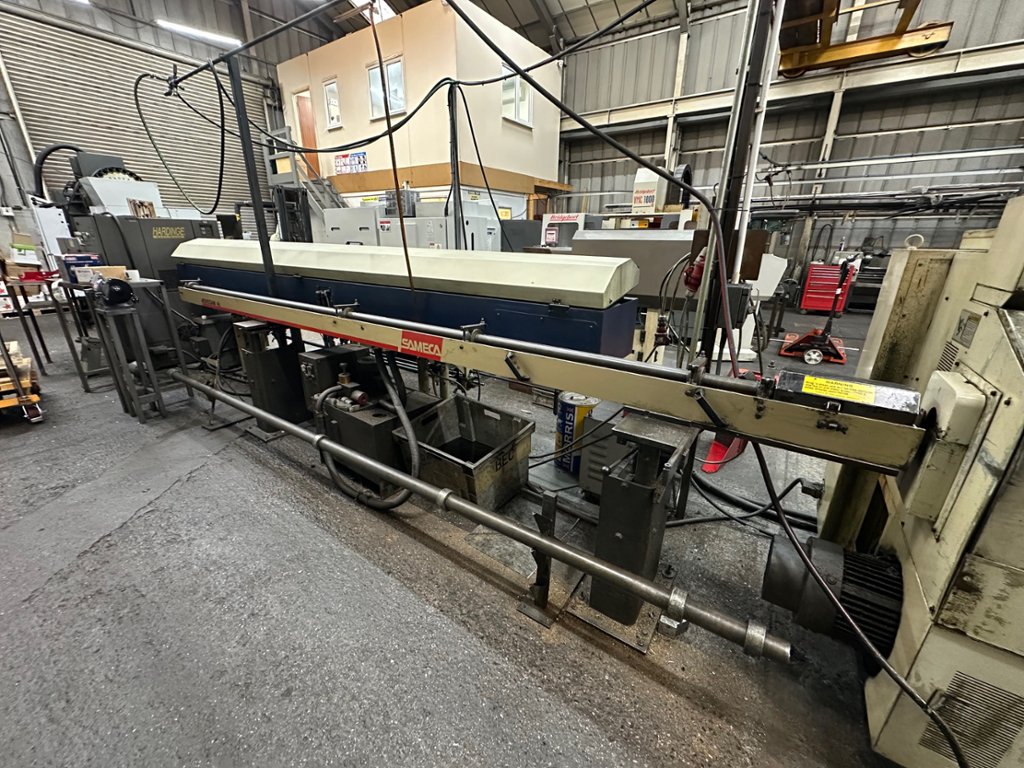

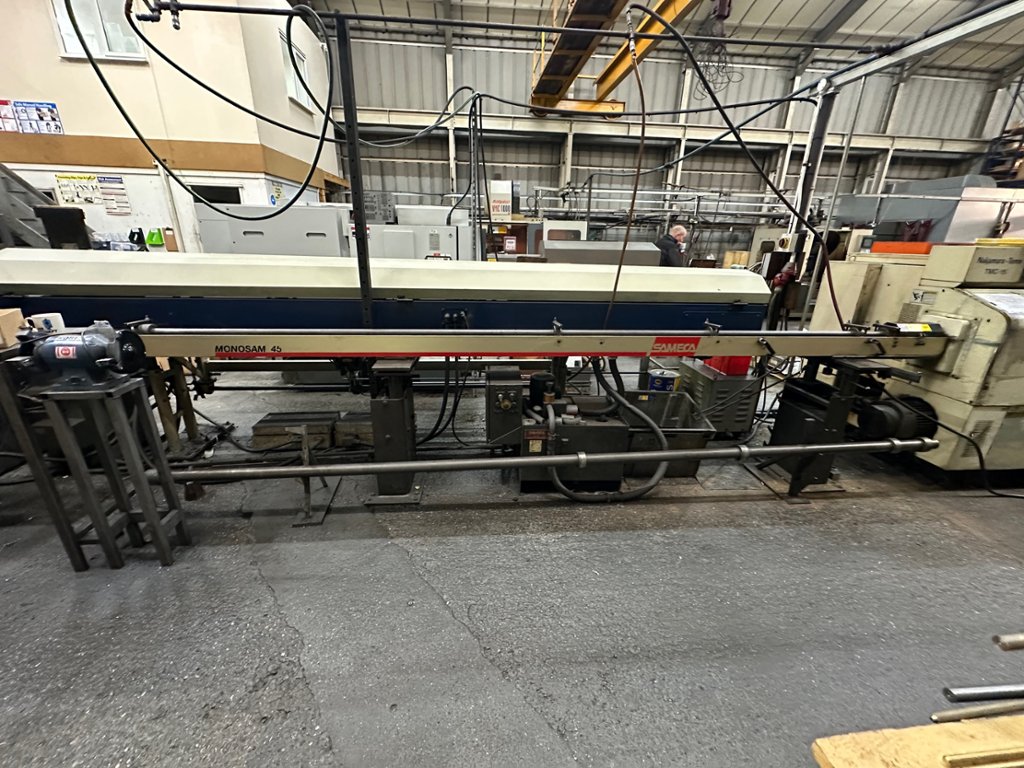

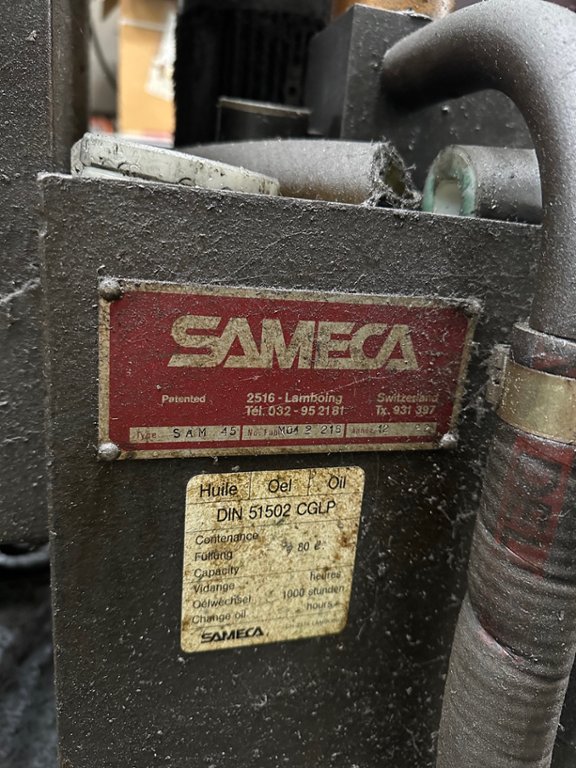

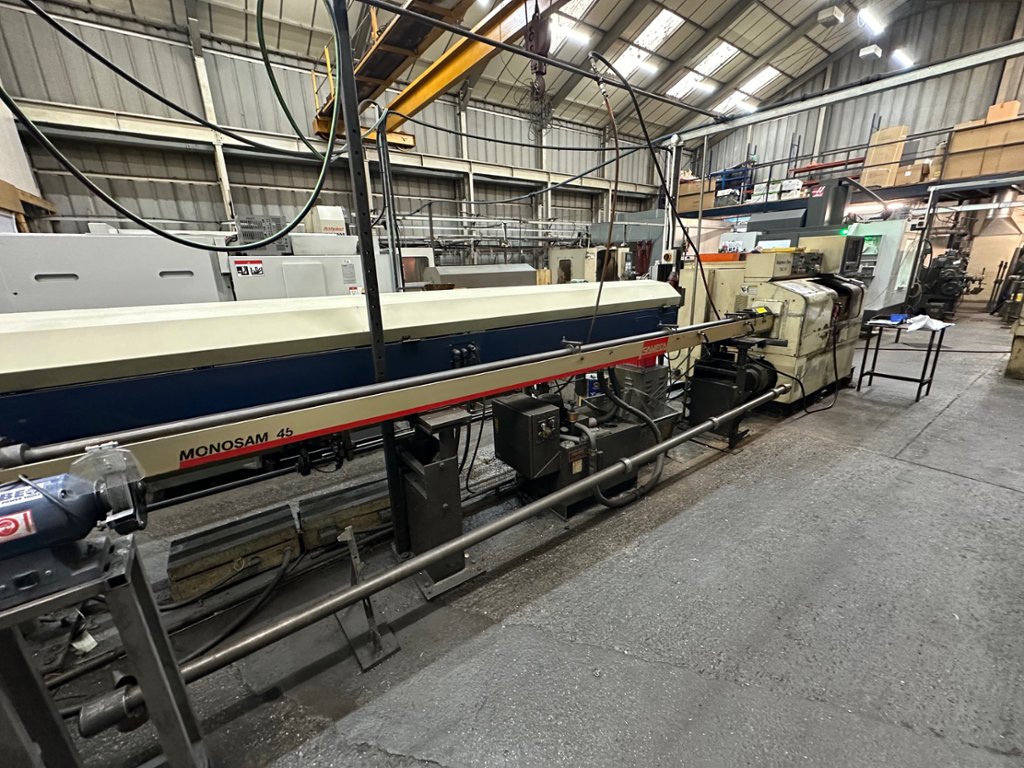

With Sameca Monosam 45 Barfeed - 4790mm Long

Capacity

Round Collet Capacity - 34mm, Chuck Diameter - 165mm, Swing Over Bed - 300mm, Swing over saddle - 170mm, Max Turning diameter- 180mm, Max turning Length - 250mm, Distance between main spindle nose & turret face - Max 410mm min 140mm

Main Spindle

Speed Range - 135 - 4500RPM, Spindle nose - A2-5, Hole through Spindle - 47mm, Hole through draw tube - 35mm, Front bearing inner diameter - 80mm, Max torque at spindle continuous - 5.4kg, Centre height from floor - 1000mm, Access to spindle centre from machine guards - 300mm

Saddle

Feed Motors - X Axis - AC 0.55kW Z Axis - AC 0.9kW, Thrust - X Axis - 200kg Z Axis - 400kg, Effective slide travel - X Axis - 110mm Z Axis - 270mm, Rapid Traverse - X Axis - 12m/min Z Axis - 24m/min

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
