Lot 4 - ORT Model Heavy Duty High Speed Two Roll Hydraulic Thread Rolling Machine
Description:

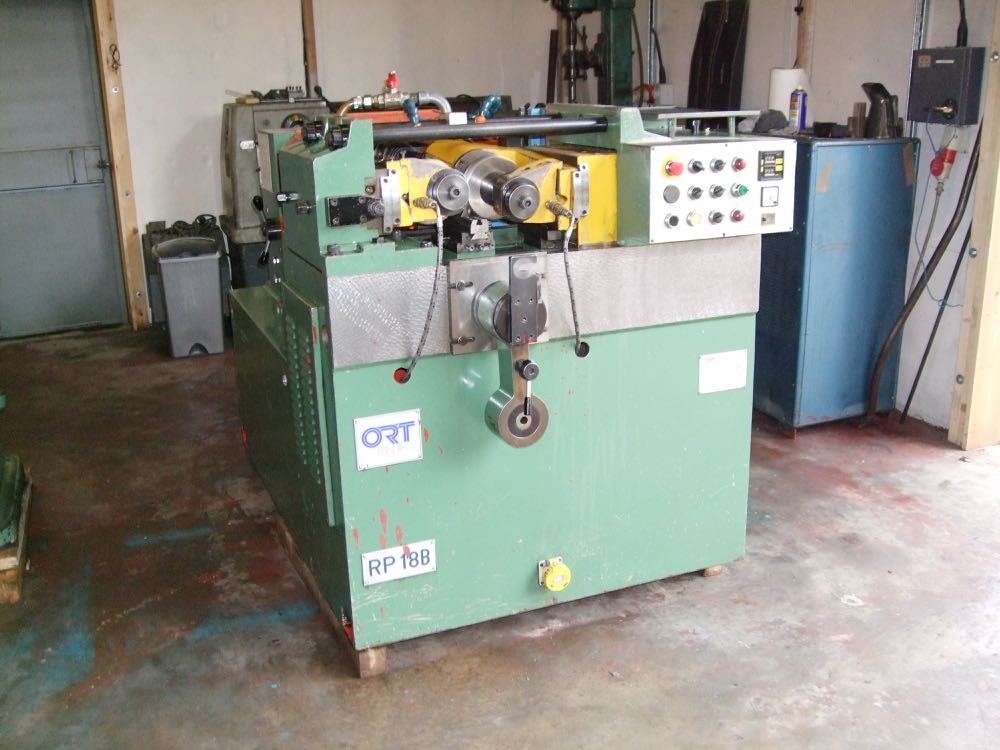

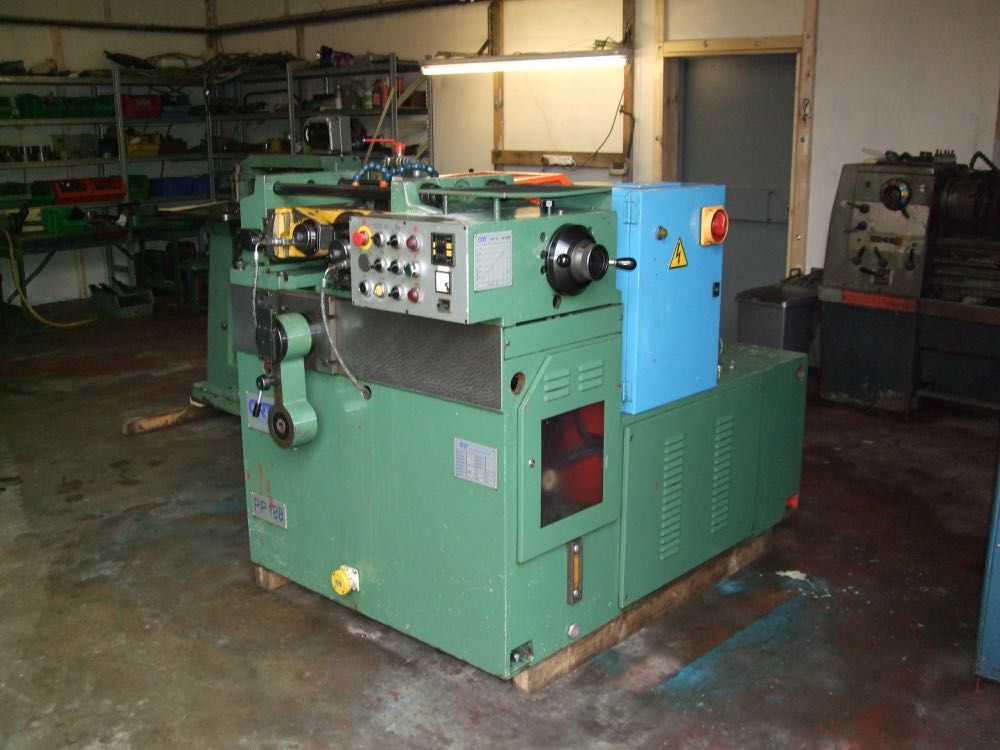

ORT Model RP18B Heavy Duty High Speed Two Roll Hydraulic Thread Rolling Machine
with swivelling spindles for plunge or thru-feed rolling
Maximum rolling pressure 18 tons
Maximum threaded diameter 50 mm
Minimum threaded diameter 2 mm
Maximum length to be plunge rolled 150 mm
Diameter of rolling spindles 54 mm Rolling
spindle power 7.5 KW
Minimum roll diameter 140 mm
Maximum roll diameter 185 mm
Nett weight 2800 kgs
Motorised 415 volts 3 phase 50 cycles supply and complete with:
17 pairs of thread rolls including:
Thru-feed : 2.5mm, 3.00mm, 3.5mm, 4.00mm and 4.5mm pitch, 11UNC and 8UN
High Speed Thru-feed: M10 x 1.5mm pitch, M12 x 1.75mm pitch and M16 x 2mm pitch
Plunge feed: M24 x2mm pitch x 150mm o.d. x 120mm wide , M20 x 2.5mm pitch x 165mmo.d. x 60mm wide
Coolant equipment
Work rest blade holder
Swivel front component support.
All the above thread rolls are suitable for regrinding to sizes of choice
Price of new machine £56,000
Location: Derby
Export Information
Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.
All invoices are issued on an Incoterms FCA basis.
Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
