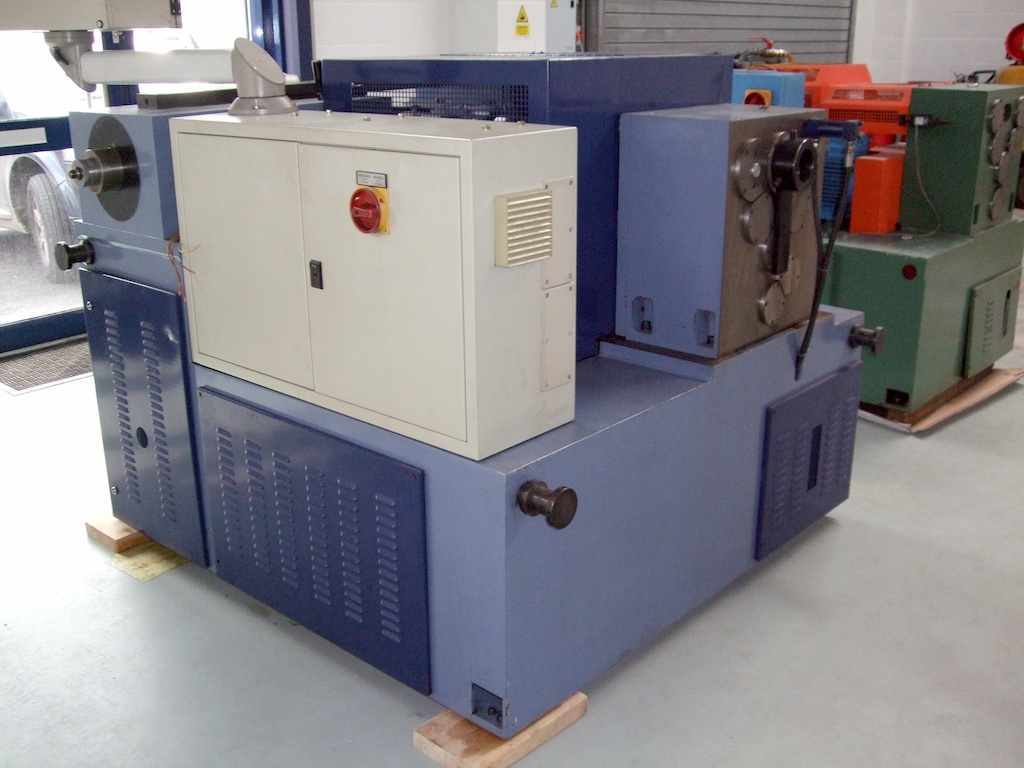

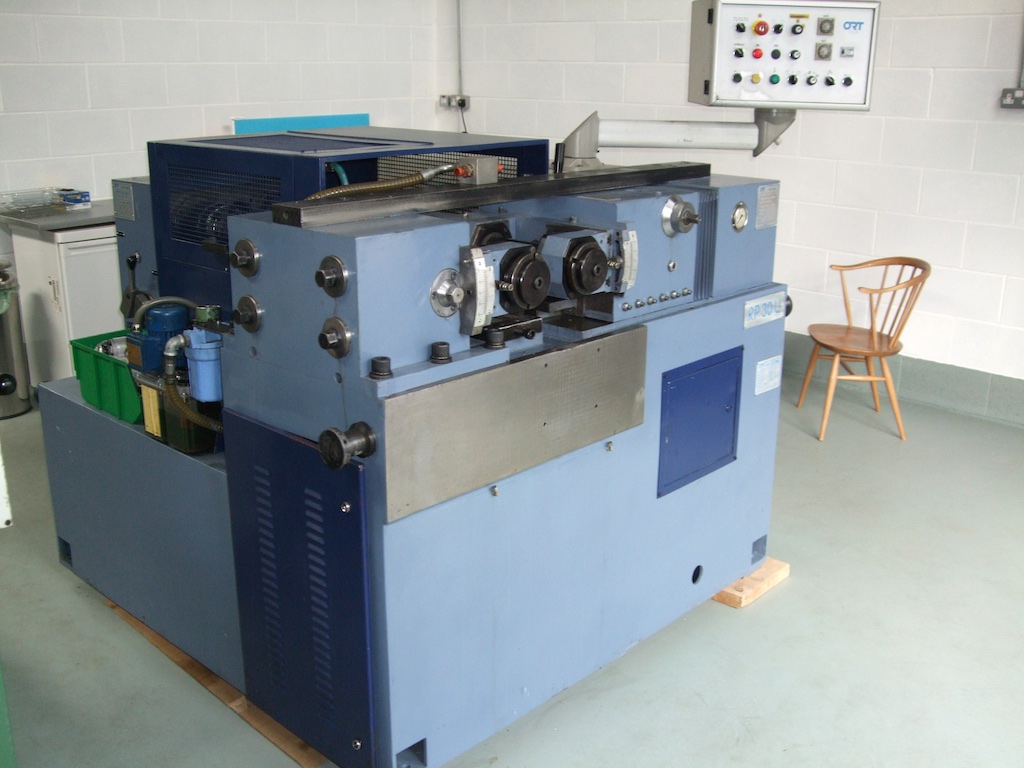

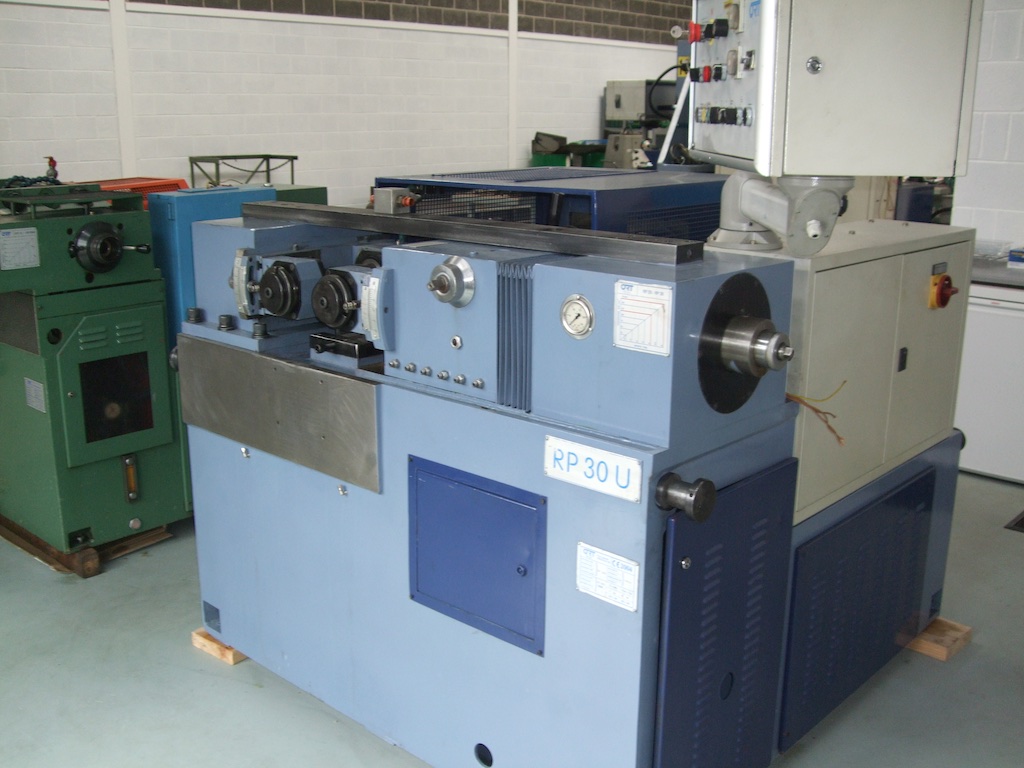

Lot 3 - ORT Model RP30/U Type A Two Roll Hydraulic Thread Rolling Machine
Description:
ORT Model RP30/U Type A Two Roll Hydraulic Thread Rolling Machine with swivelling spindles for plunge and through feed rolling.
Year of manufacture: 2004
Maximum rolling pressure: 33 tons
Maximum threaded diameter: 90 mm
Minimum threaded diameter: 3 mm
Maximum length to be plunge rolled: 200 mm
Maximum pitch: 10 mm
Diameter of rolling spindles: 80 mm
Rolling spindle power: 15 KW
Minimum roll diameter: 150 mm
Maximum roll diameter: 200 mm
Nett weight: 3800 kgs
Motorised 380/415 volts 3 phase 50 cycles supply and complete with:
Coolant equipment
Work rest blade holder
Swivel front component support
8 pairs of annular thru-feed thread rolls as follows:
13 tpi , 11 tpi , 10 tpi, 9 tpi, 8 tpi, 7 tpi, 6 tpi and 4.5 tpi UNC
2 pairs of plunge thread rolls , sizes:
M 8 x 1.25mm pitch x 60mm wide
M36 x 4.00mm pitch x 100mm wide
All the above thread rolls are suitable for regrinding to other thread sizes
Location: Derbyshire
Loading Facilities not available for this machine.
Export Information
Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.
All invoices are issued on an Incoterms FCA basis.
Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
