Lot 4 - Doosan Puma 600 (2001)

Description:

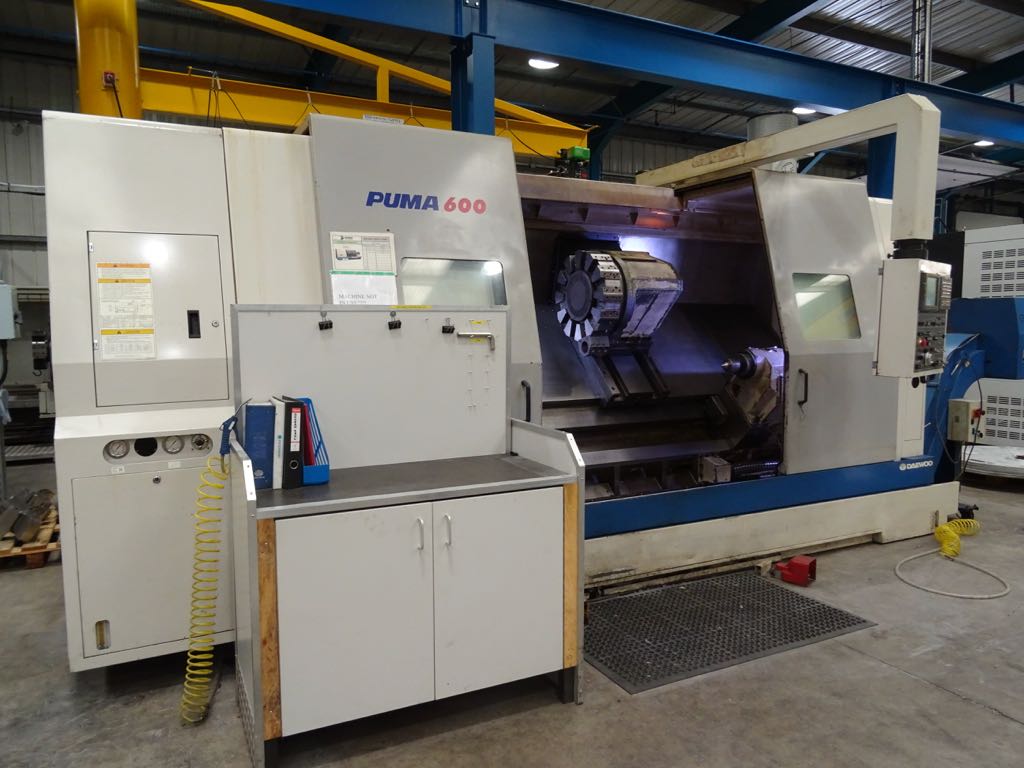

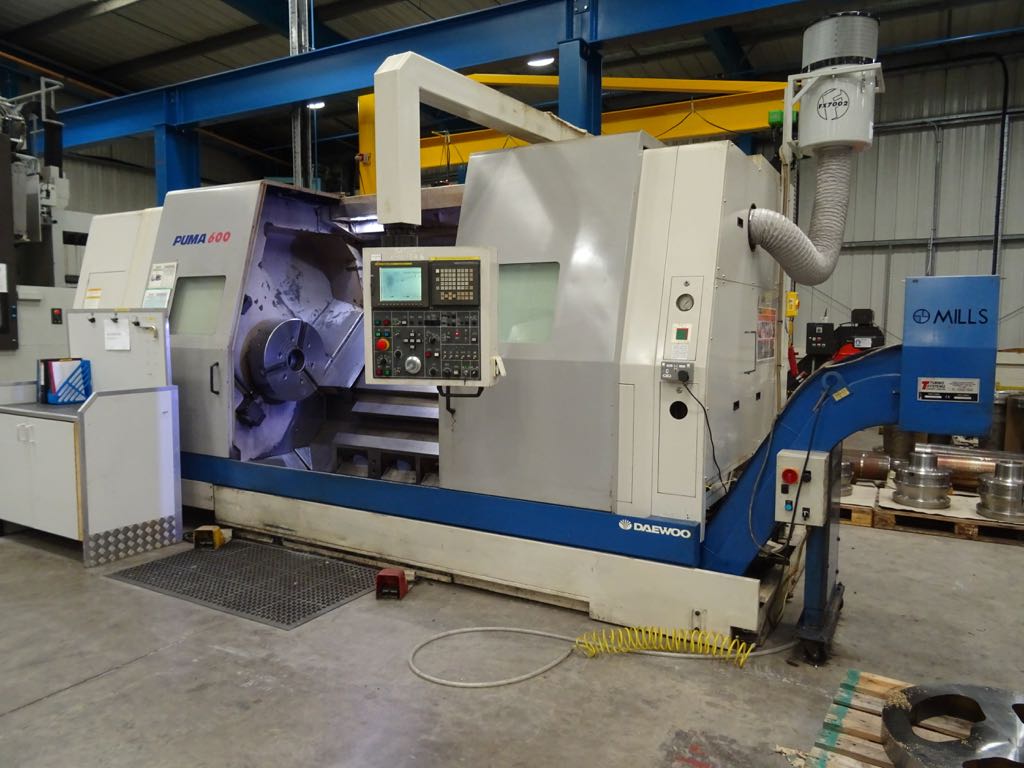

Doosan Puma 600 (2001)

Capacity:-

Maximum swing over bed - 1,030mm

Maximum swing over saddle - 800mm

Maximum turning diameter - 900mm

Maximum turning length Std./long - 1,600 (3200)mm

Bar capacity - 117mm

Travel:-

X-Axis - 470 (450+20)mm

Z-Axis Std./long - 1600mm

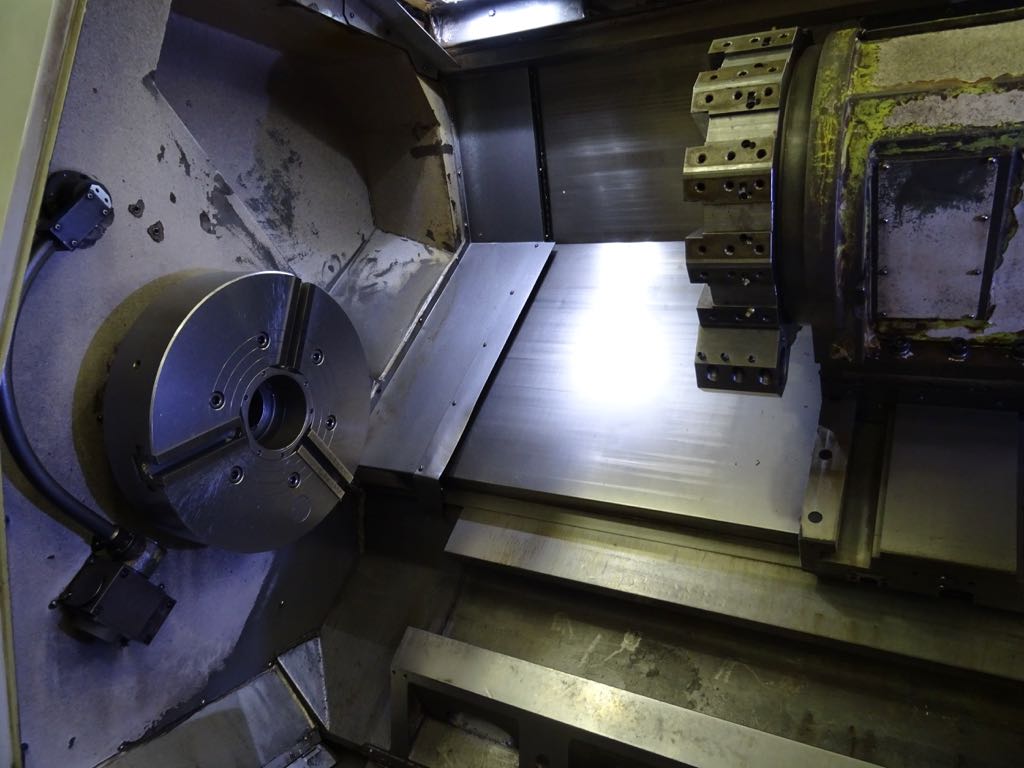

Spindle:-

Spindle speed range - 3-1,800 rpm

Number of speed range - 2

Spindle bore diameter - 152mm

Spindle nose - A2#15 ASA

Front bearing diameter - 200mm

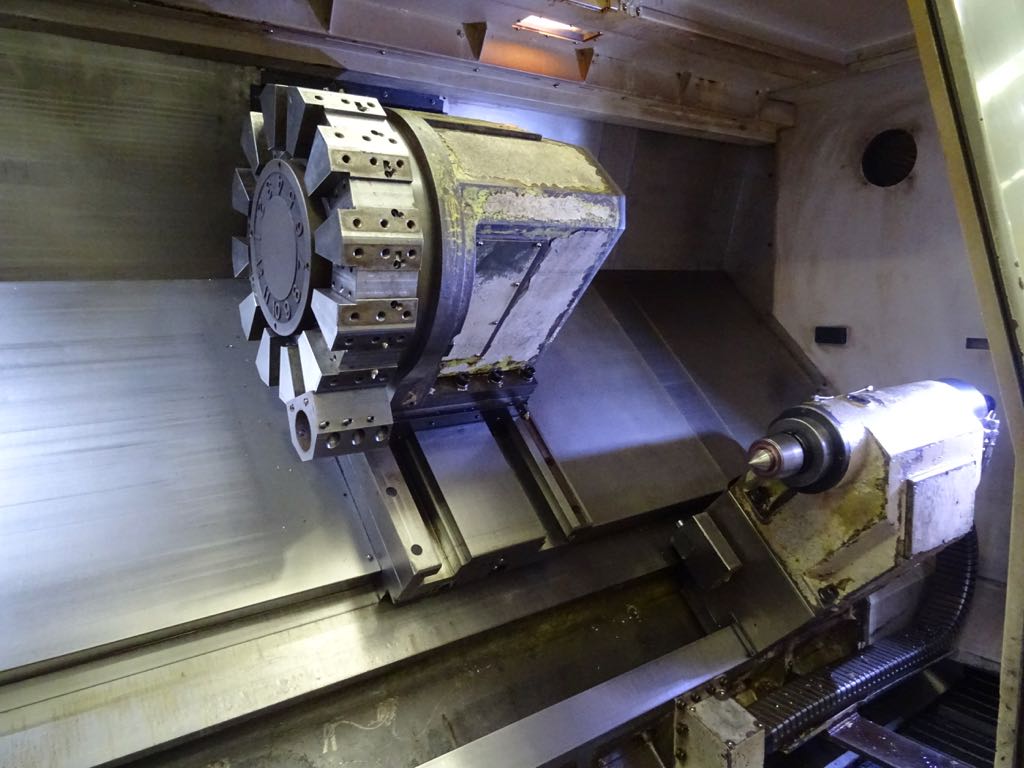

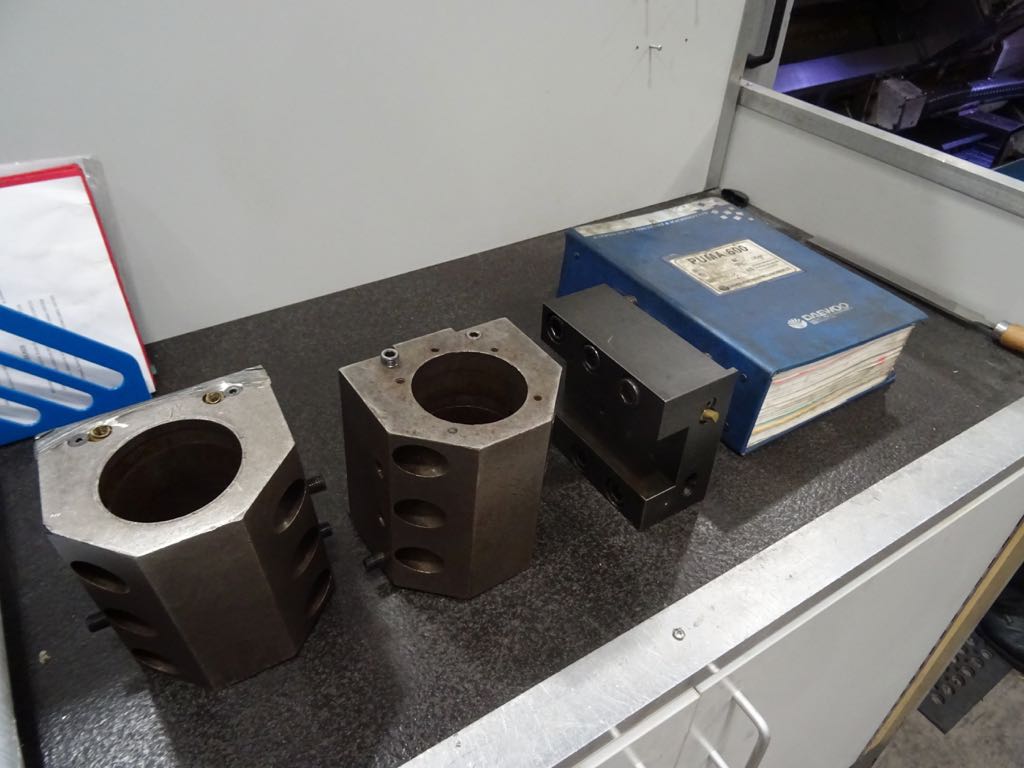

Tool Post:-

O.D tool height - 32mm

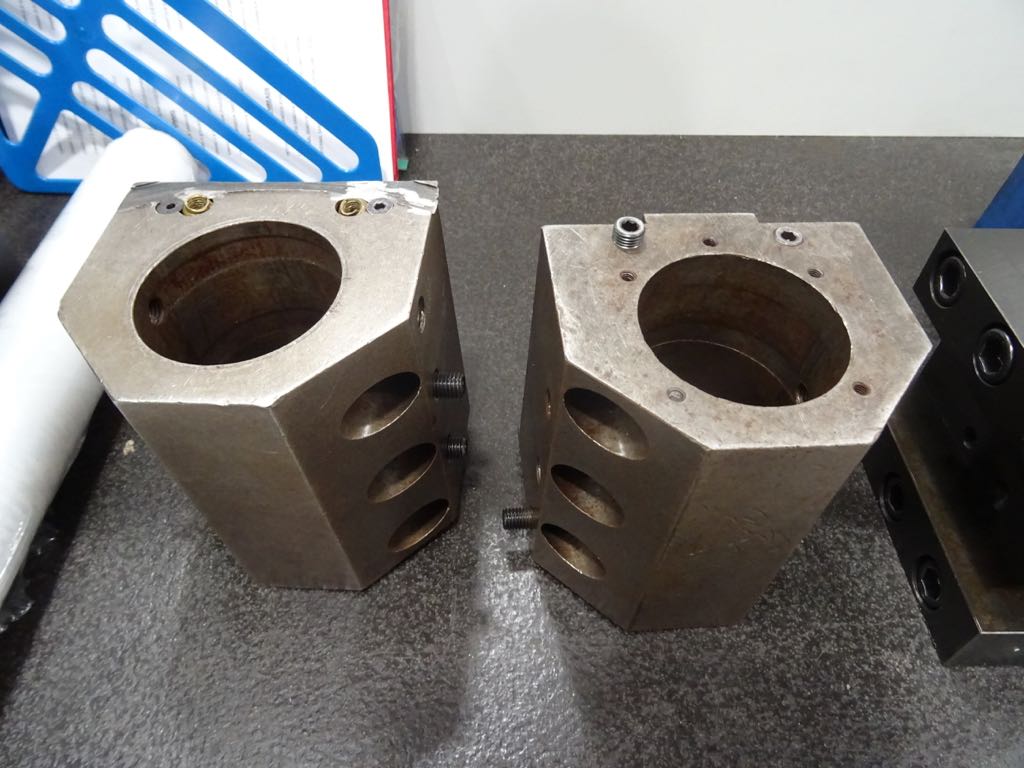

Boring bar diameter - 60 (80)mm

Turret index time (1 station swivel) - 0.25 sec

Feedrate:-

Rapid traverse X/Z - 12/16 (12/10) mpm

Cutting feedrate X.Z - 500 mm/rev

Tailstock :-

Quill diameter - 160mm

Quill bore taper - MT6 (built in)

Quill travel - 150mm

Motors:-

Spindle motor power (30 min) - 45(a40) KW

Spindle max torque - 553 kgf.m

Feed motor - X Axis - 3 (a22/1,500) kw

Feed motor - Z Axis - 7. (A40/2,000 with fan) kw

Others:-

Slant angle - 45 deg

Machine height - 2780 (2590)mm

Floor space - length - 5760(7360)mm

Floor space - width - 3145(2770)mm

Machine weight - 13,500(20,000) kgf

Collant tank capacity - 410(570)liter

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
