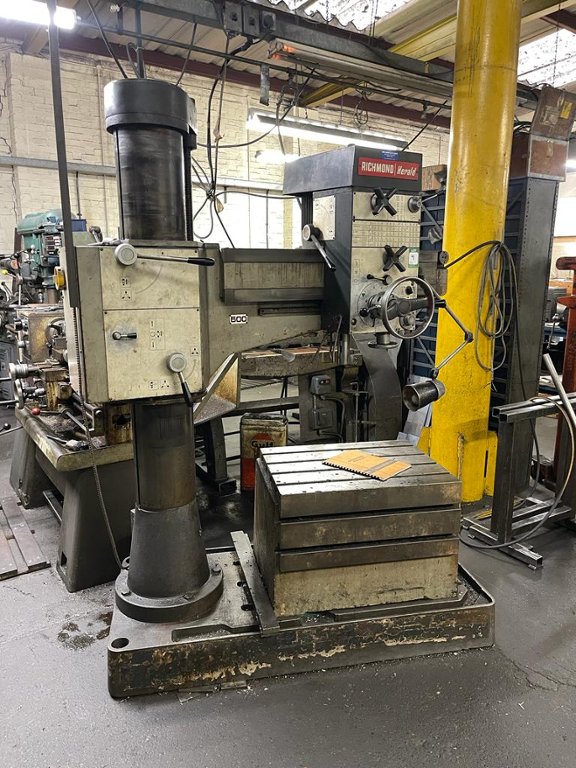

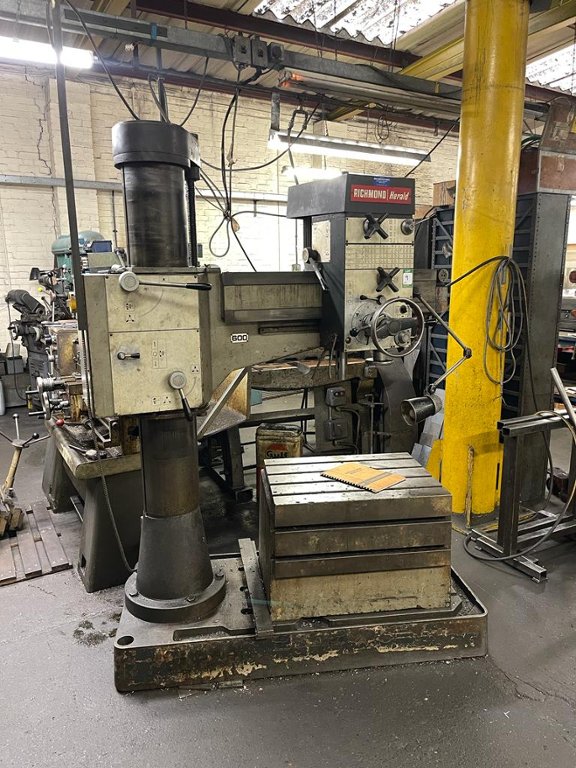

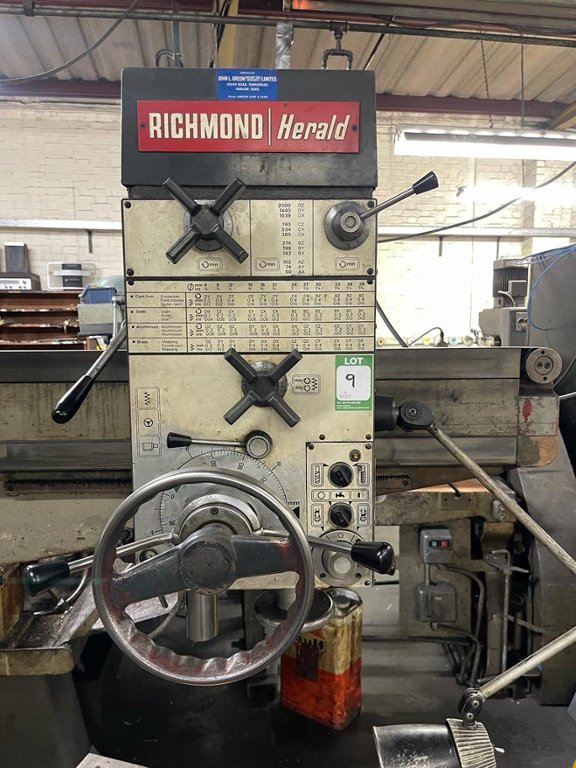

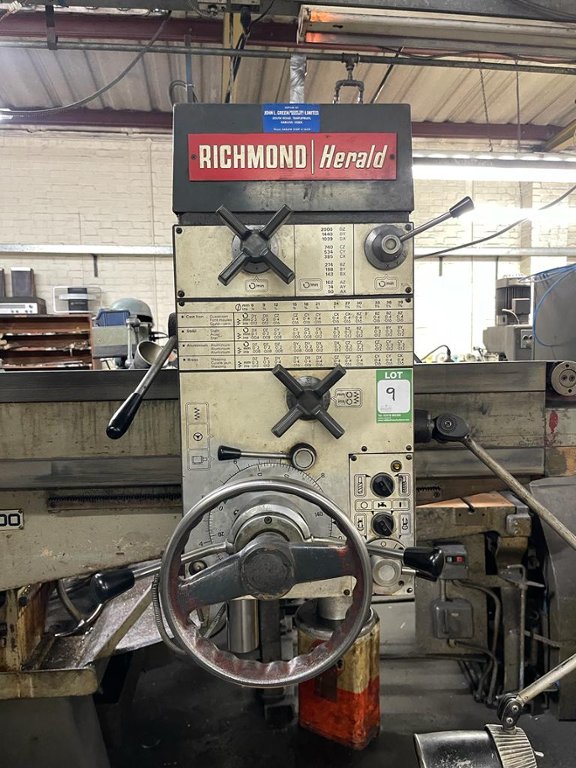

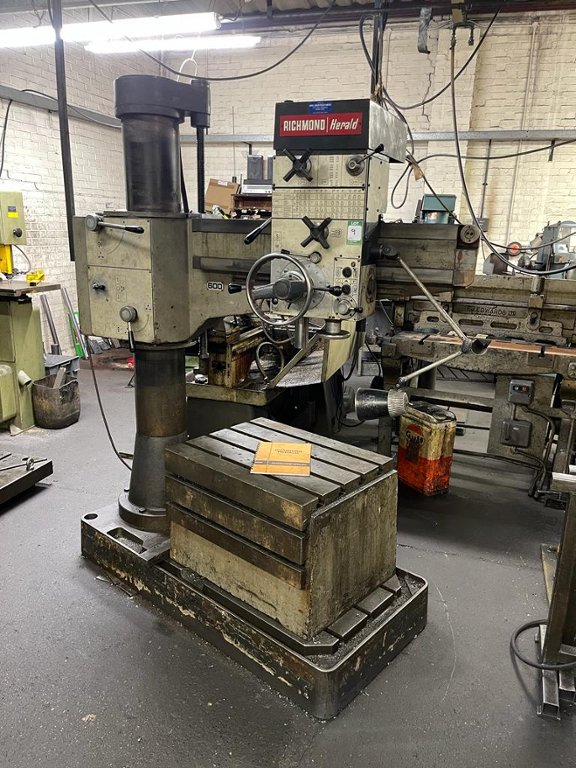

Richmond Herald Radial Drill

Lot 9 - Richmond Herald Radial Drill

Description:

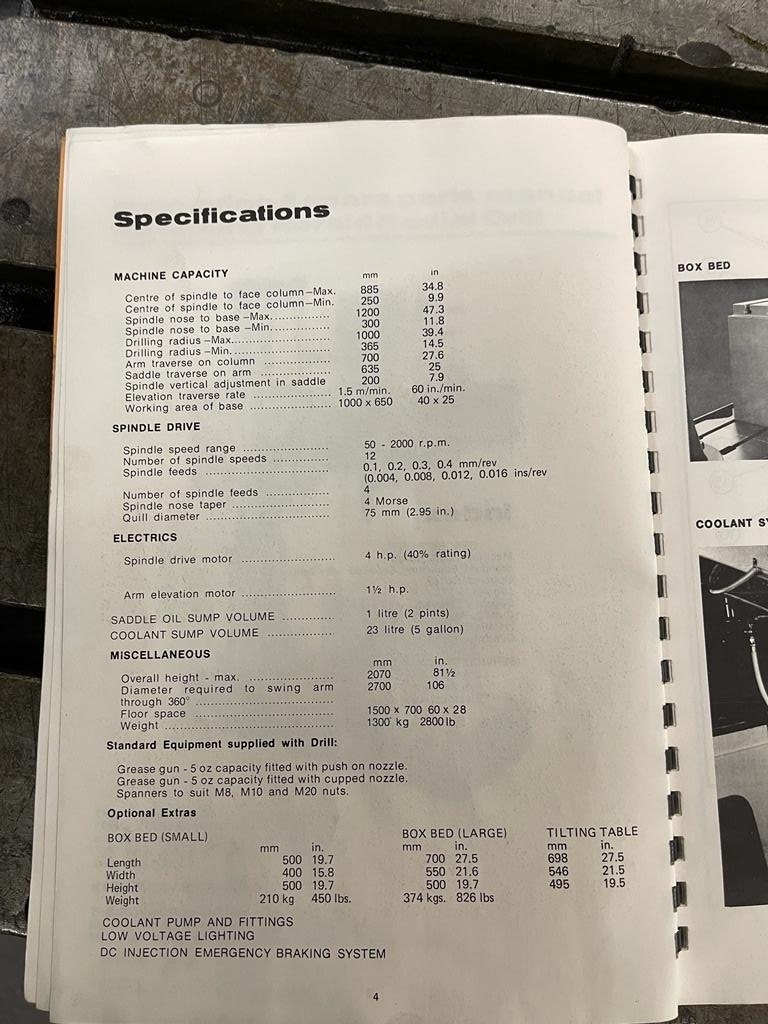

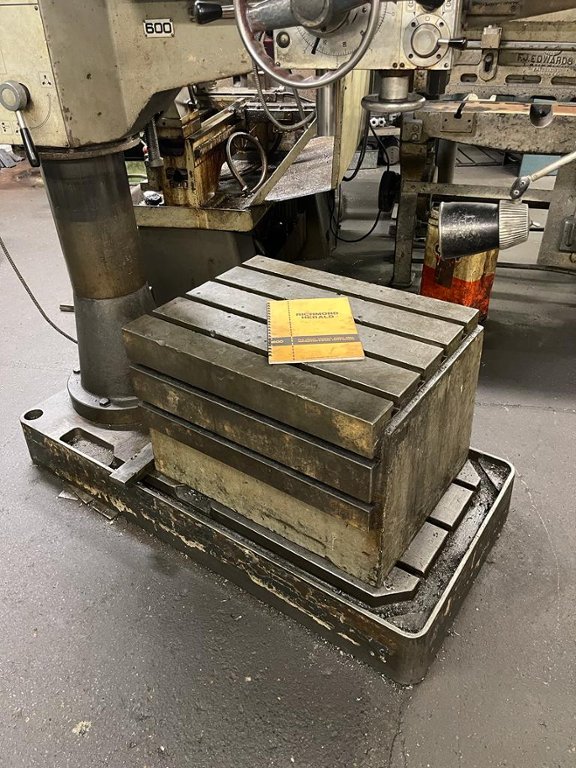

Centre of Spindle to Face Column - max - 885mm, Centre of Spindle to Face Column - min - 250mm, Spindle Nose to Base - max - 1200mm, Spindle Nose to Base - min - 300mm, Drilling Radius - max - 1000mm, Drilling Radius - min - 365mm, Arm Traverse on Column - 700mm, Saddle Traverse on Arm - 635mm, Spindle Vertical Adjustment in Saddle - 200mm, Elevation Traverse Rate - 1.5m/min, Working Area of Base - 1000x650mm

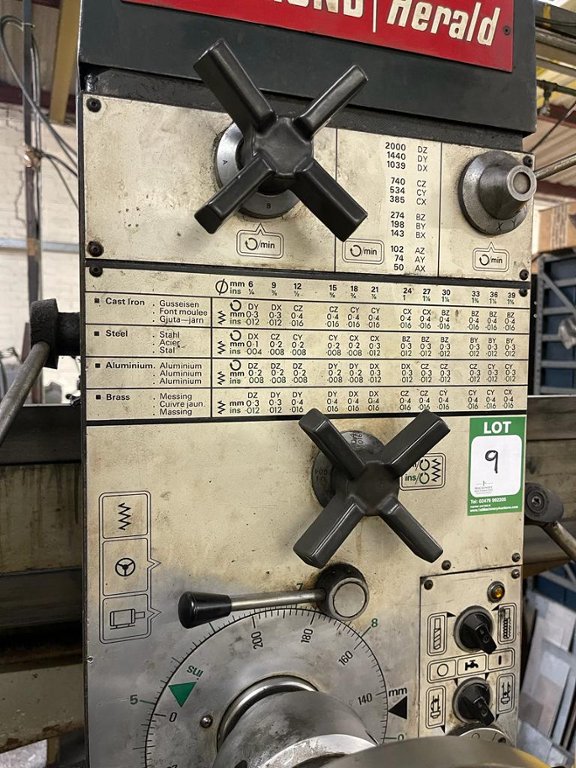

Spindle Speed Range - 50-2000 RPM, Number of Spindle Speed - 12, Spindle Feeds - 0.1, 0.2, 0.3, 0.4 mm/rev, Number of Spindle Feeds - 4, Spindle Nose Taper - 4 morse, Quill Diameter - 75mm

Spindle Drive Motor - 4 HP, Arm Elevation Motor - 1 1/2HP, Saddle Oil Sump Volume - 1 Litre, Coolant Sump Volume - 23 Litres

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
