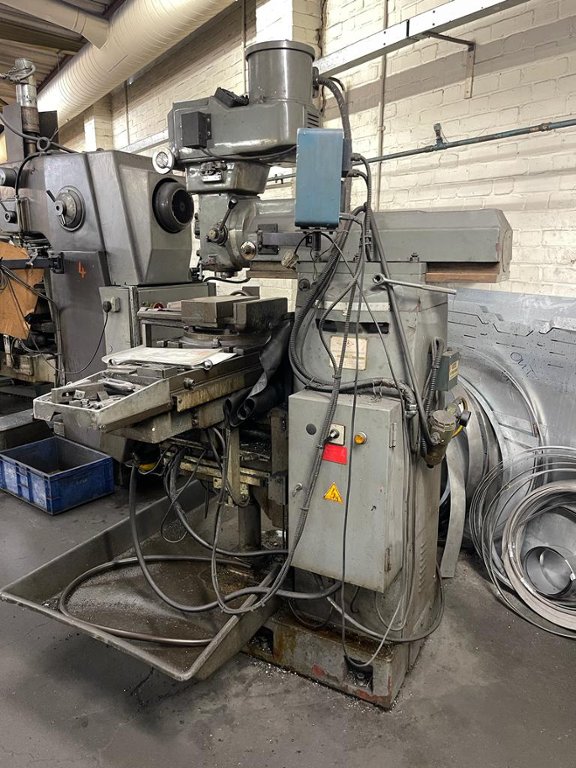

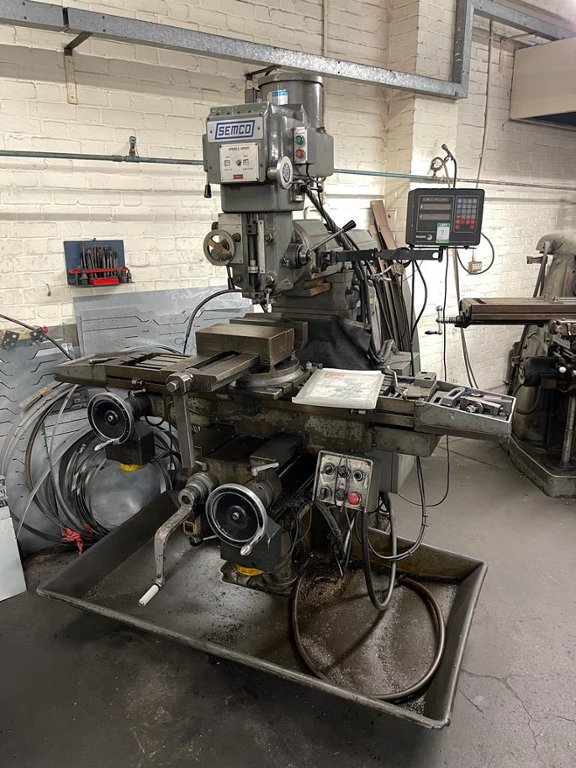

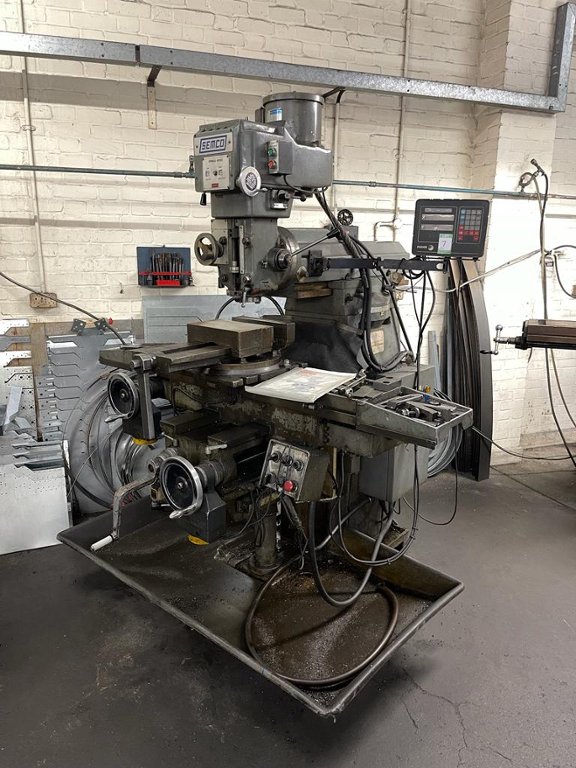

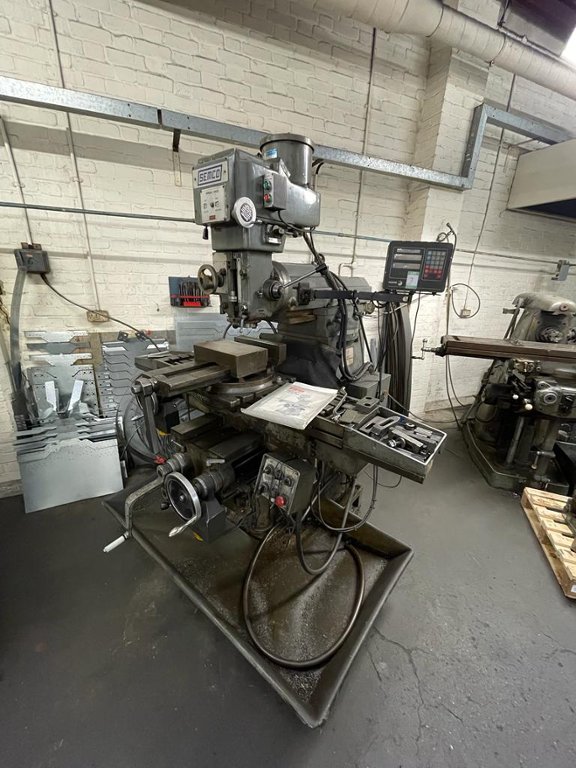

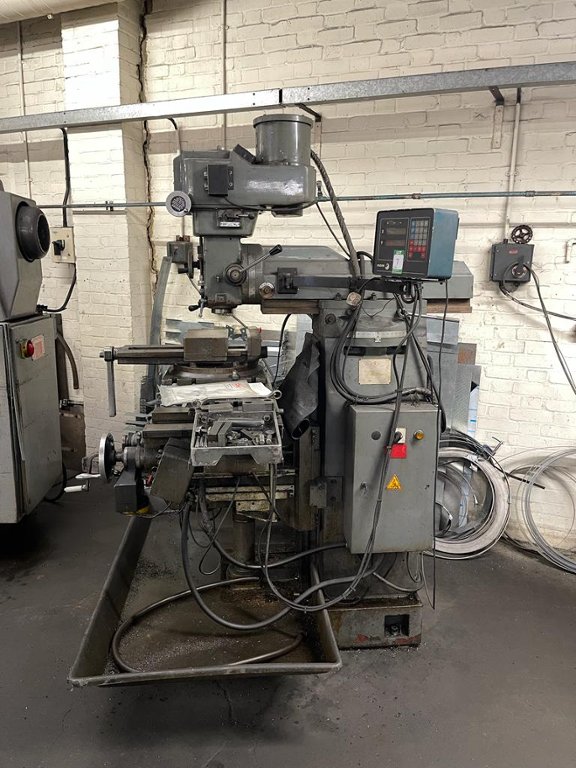

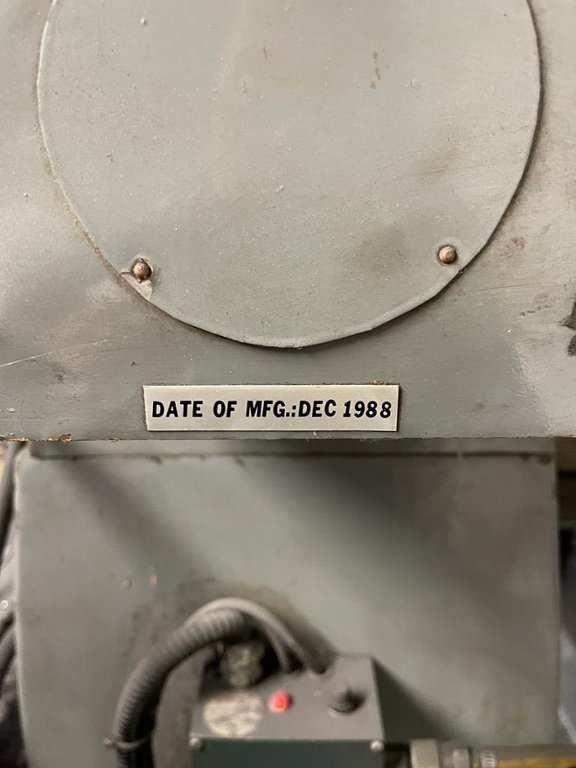

Semco LC 165VS Turret Milling Machine (1988)

Lot 7 - Semco LC 165VS Turret Milling Machine (1988)

Description:

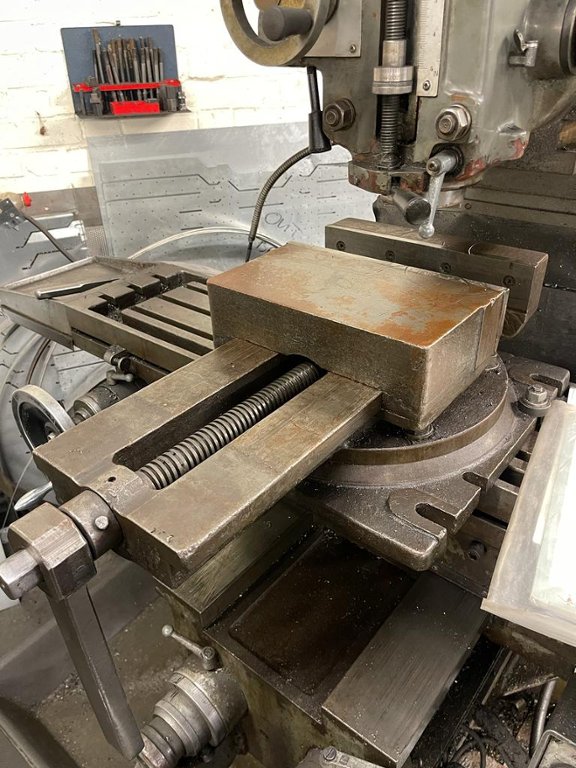

Comes with 12" vice

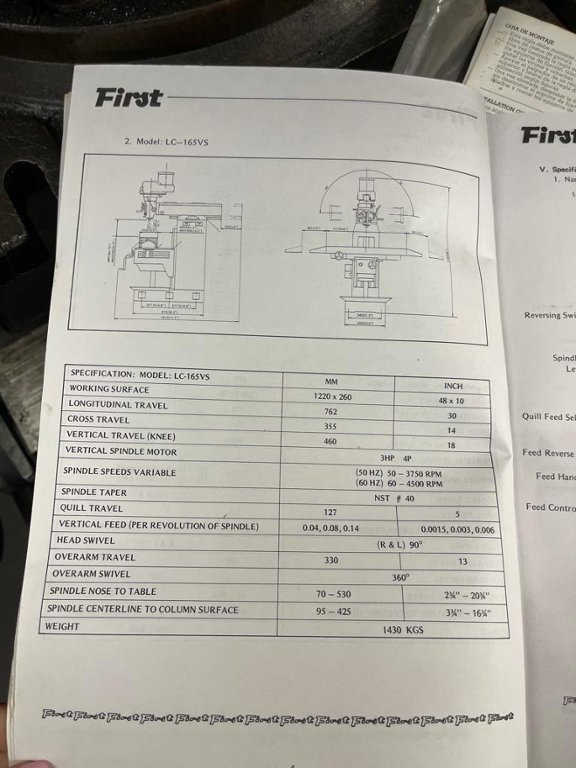

Working Surface - 1220x260mm

Longitudinal Travel - 762mm

Cross Travel - 355mm

Vertical Travel (Knee) - 460mm

Vertical Spindle Motor - 3HP 4P

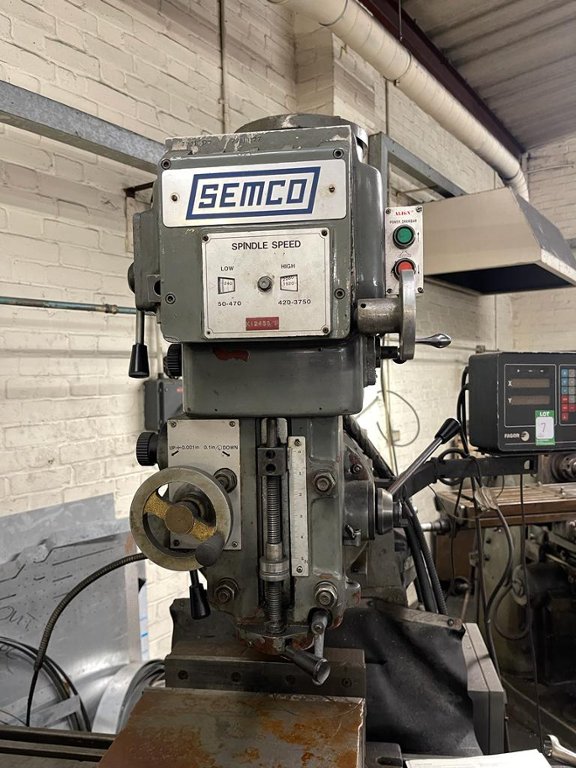

Spindle Speeds Variable - 50Hz - 50-3750 RPM 60 Hz - 60-450 RPM

Spindle Taper - NST #40

Quill Travel - 127mm

Vertical Feed (Per Revolution of Spindle) - 0.04, 0.08, 0.14mm

Head Swivel - (R&L) 90deg

Overarm Travel - 330mm

Overarm Swivel - 360deg

Spindle Nose to Table - 70-530mm

Spindle Centreline to Column Surface - 95-425mm

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
