Lot 9 - Seny D50H Plunge & Thru-feed Hyd. Thread Roller with 60 pairs of thread rolls
Description:

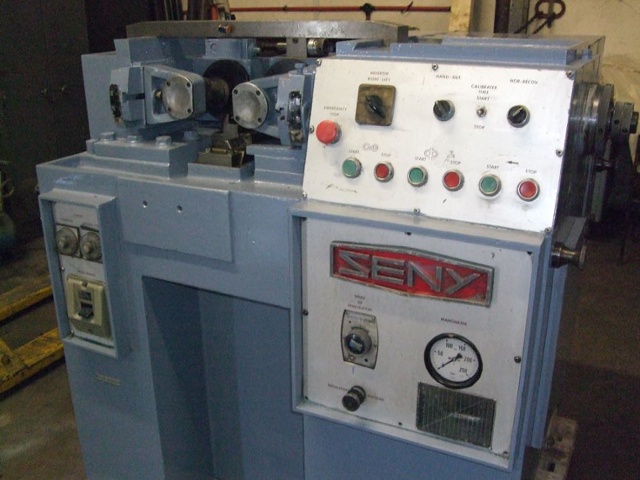

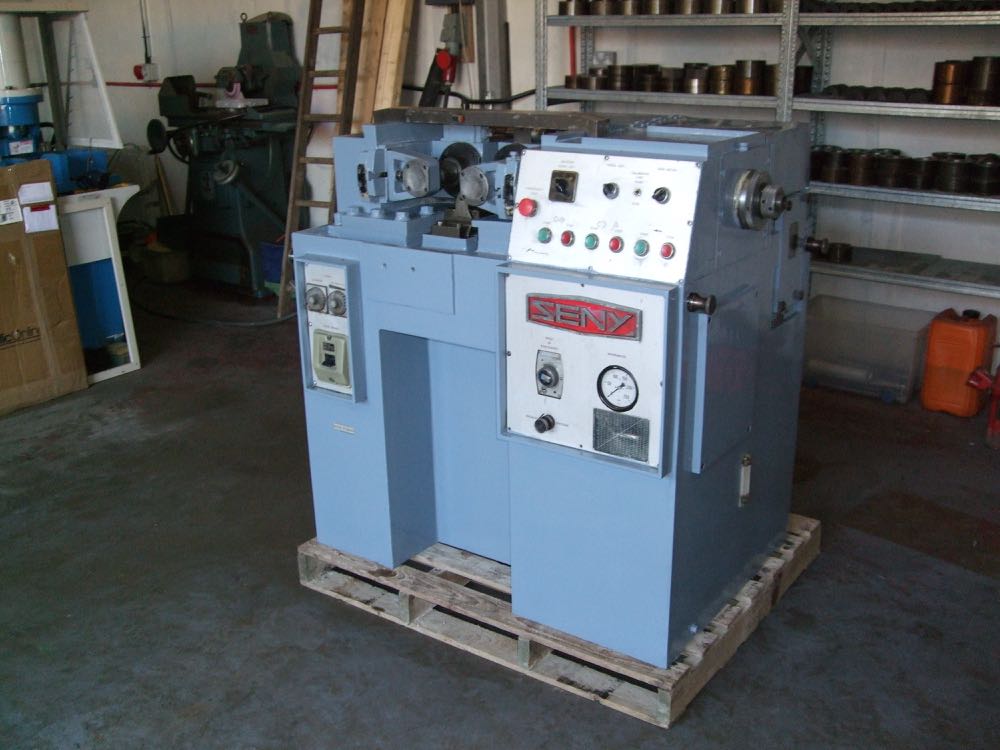

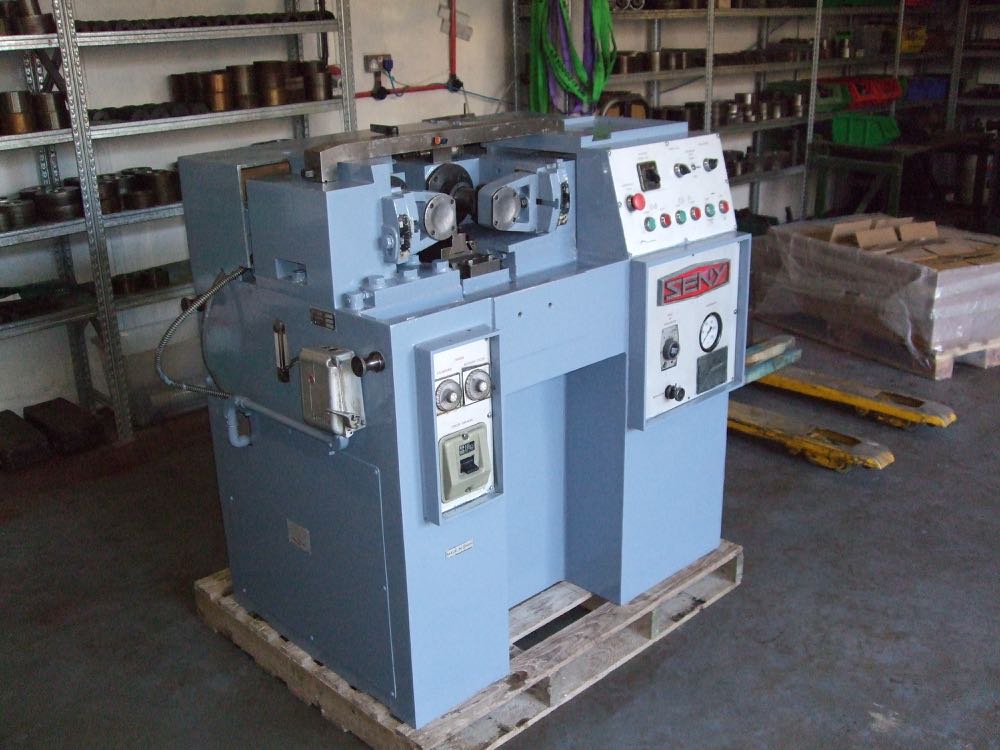

Seny Model D50 H Two Roll Hydraulic Thread Rolling Machine
Seny Model D50 H – 12 ton Two Roll Hydraulic Thread Rolling Machine with swiveling spindles suitable for plunge feed rolling, plunge & run rolling and thru-feed rolling.
Year of manufacture: Mid 1990’s
Maximum rolling pressure 12 tons
Maximum rolling diameter 50 mm
Minimum rolling diameter 3 mm
Maximum length to be plunge rolled 100 mm
Spindle diameter: 54 mm
Max diameter of thread rolls: 170 mm
Min. diameter of thread rolls: 135 mm
HP of main drive motor: 7.5HP
Approx weight: 1500 kgs
Motorised 415 volts
3 phase 50 cycles supply and complete with:- Coolant equipment.
Work rest blade holder 60-pairs of thread rolls- plunge & thru-feed annular, metric and imperial sizes made from D2 & M2 (HSS) steel – suitable for regrinding to other sizes if required.

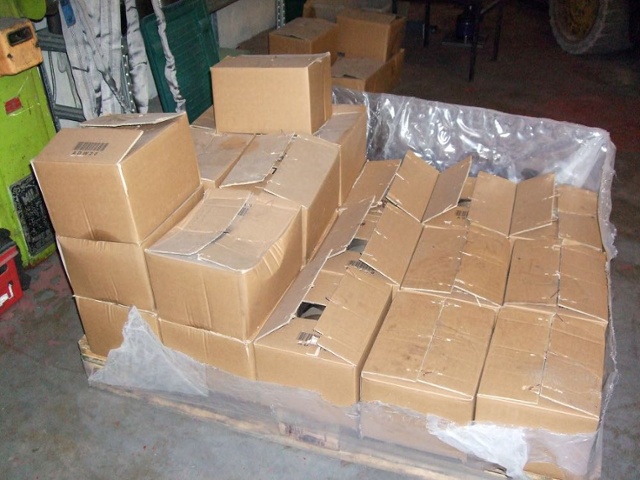

Includes 60 pairs of thread rolls.
Sets of two 54mm bore thread rolls
Please note that needs need, At this stagethe list may not be 100% accurate,
due to the large quantity so it will need to be verified.
----------------------------------------------
Metric plunge type
-------------------------
M 8 x 1.25mm pitch x155mm o.d. x 45mm wide (3 sets)
M12 x 1.75mm pitch x 160mm o.d. x 50mm wide (3 sets)
M12 x 1.75mm pitch x 160mm o.d. x 50mm wide ( LH)
M20 x 2.50mm pitch x 145mm o.d. x 50mm wide (2 sets)
Metric annular thru-feed type
---------------------------------------
0.80mm pitch x 160mm o.d. x 20mm wide
1.00mm pitch x 160mm o.d. x 30mm wide
1.50mm pitch x 160mm o.d. x 45mm wide
1.75mm pitch x 160mm o.d. x 60mm wide
2.00mm pitch x 155mm o.d. x 50mm wide
2.50mm pitch x 140mm o.d. x 45mm wide
3.00mm pitch x 155mm o.d. x 60mm wide
3.50mm pitch x 160mm o.d. x 60mm wide
Imperial plunge type
---------------------------
¼” UNC x 160mm o.d. x 30mm wide
5/16” UNC x 150mm o.d. x 60mm wide
3/8” UNF x 160mm o.d. x 30mm wide
3/8” UNC x 150mm o.d. x 55mm wide
7/16” UNF x 140mm o.d. x 50mm wide
7/16” UNC x 155mm o.d. x 55mm wide
½” UNC x 150mm o.d. x 50mm wide (2 sets)
½” UNC x 160mm o.d. x 50mm wide
9/16” UNC x 150mm o.d. x 60mm wide
5/8” BSF x 155mm o.d. x 60mm wide
5/8” UNF x 150mm o.d. x 50mm wide
5/8” UNC x 145mm x 45mm wide
5/8” UNC x 150mm o.d. x 50mm wide
5/8” UNC x 135mm o.d. x 70mm wide
¾” BSF x 145mm o.d. x 45mm wide
¾” UNF x 160mm o.d. x 45mm wide (2 sets)
¾” UNC x 150mm o.d x 50mm wide
¾” UNC x 165mm o.d. x 50mm wide
7/8” UNF x 145mm o.d. x 60mm wide
7/8” UNC x 150mm o.d. x 75mm wide
1” UNF x 150mm o.d. x 65mm wide
1” UNC x 140mm o.d. x 60mm wide
Imperial annular thru-feed
------------------------------------
20 UN x 160mm o.d. x 30mm wide
18 UN x 155mm o.d. x 60mm wide
16 UN x 160mm o.d. x 30mm wide
14 UN x 150mm o.d. x 60mm wide
13 UN x 150mm o.d. x 40mm wide
13 UN x 150mm o.d. x 60mm wide
12 UN x 150mm o.d. x 60mm wide
12 BSW x 165mm o.d. x 50mm wide
11 BSF x 145mm o.d. x 75mm wide
11 UN x 160mm o.d. x 60mm wide (2 sets)
10 UN x 145mm o.d. x 60mm wide
10 UN x 155mm o.d. x 45mm wide
10 UN x 160mm o.d. x 40mm wide
9 UN x 155mm o.d. x 45mm wide
8 UN x 145mm o.d. x 60mm wide (2 sets)
8 UN x 160mm o.d. x 60mm wide (2 sets)
Location: Pinxton, Notts.
Export Information
Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.
All invoices are issued on an Incoterms FCA basis.
Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
