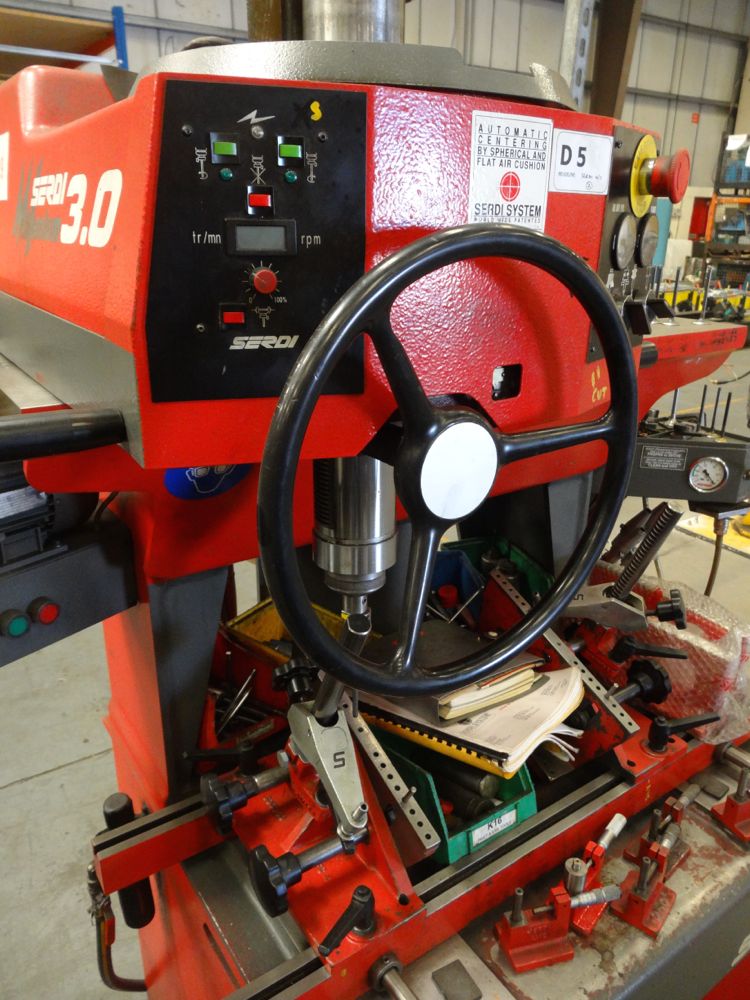

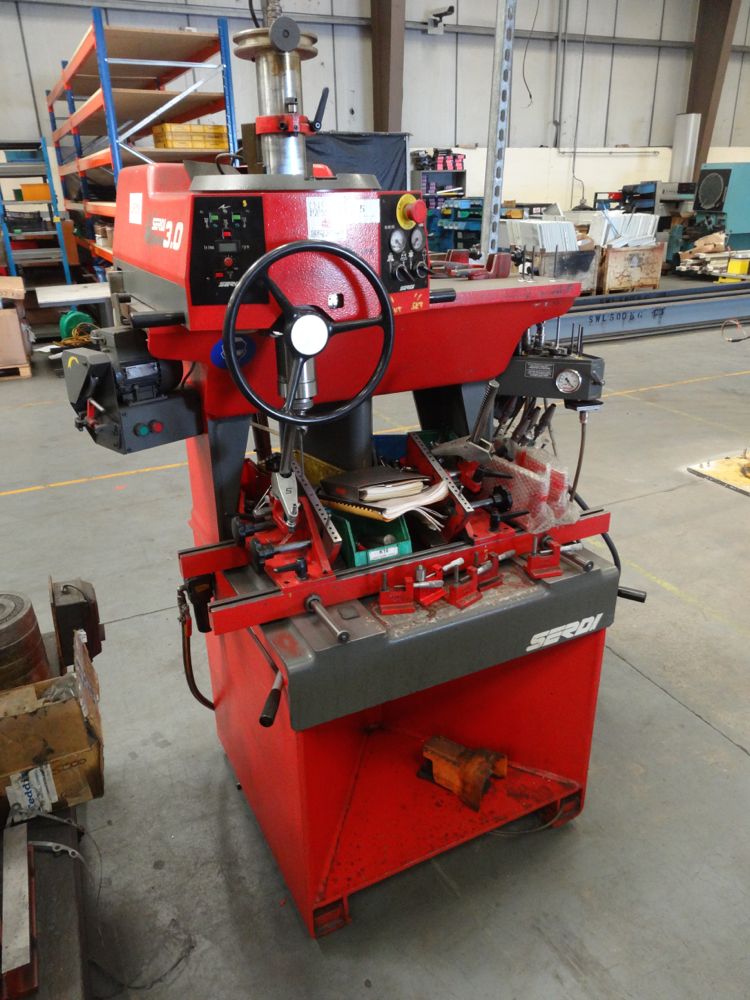

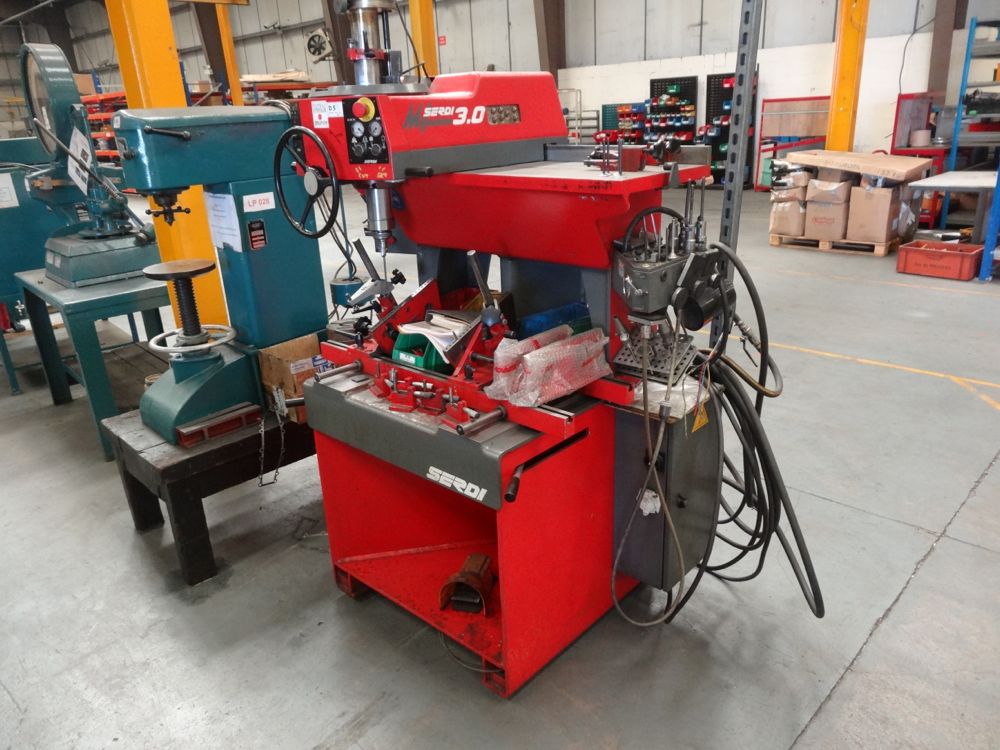

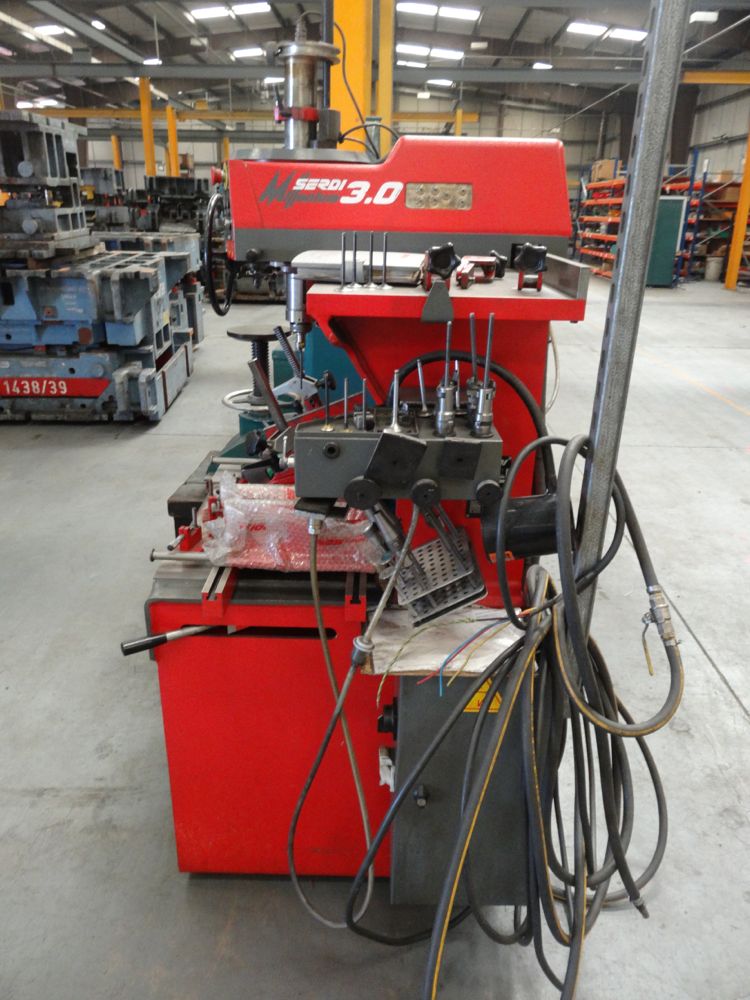

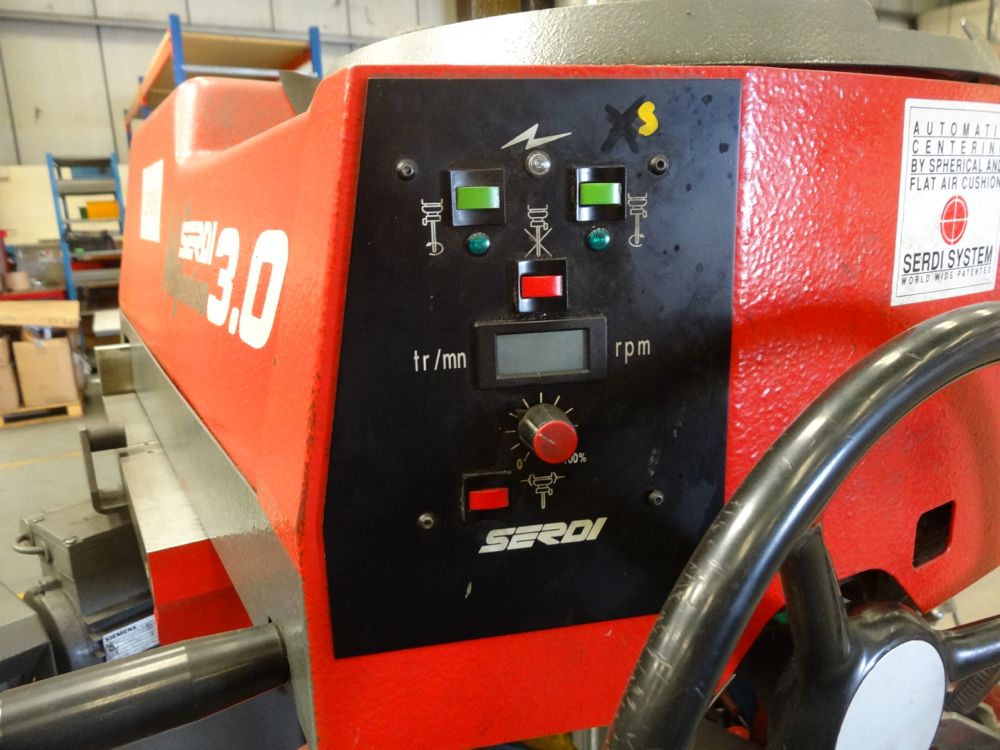

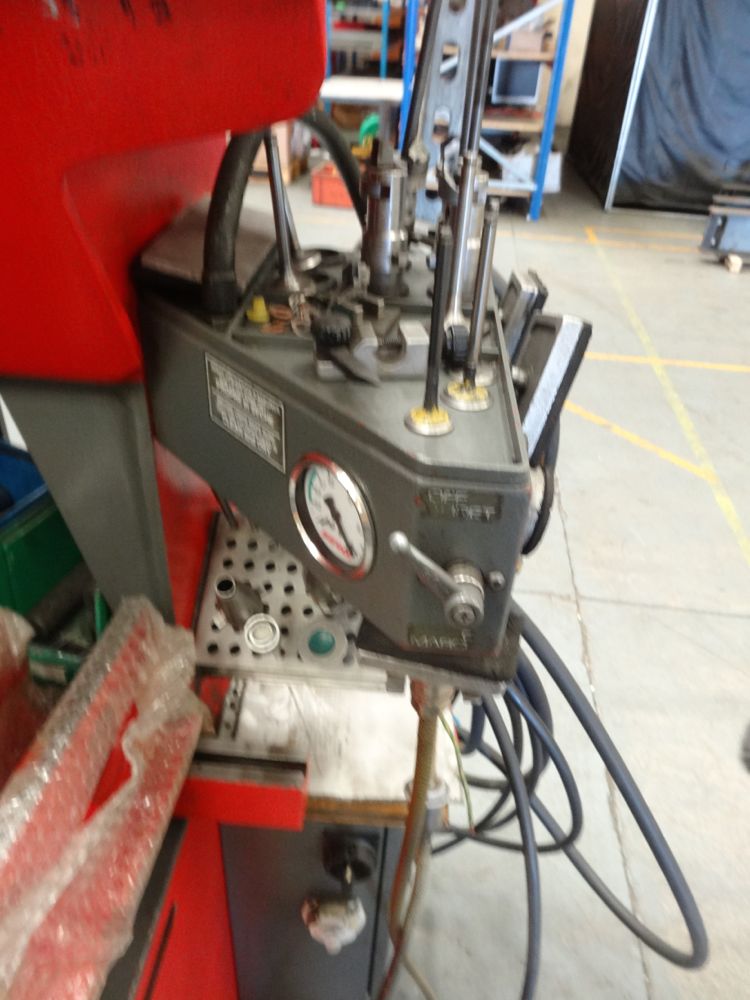

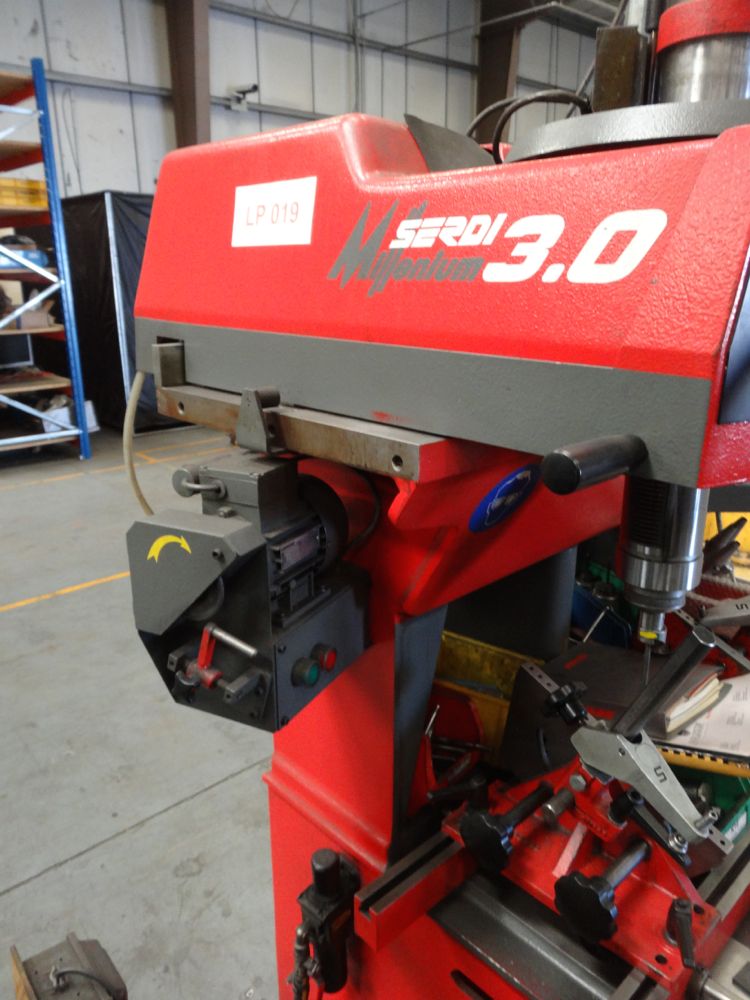

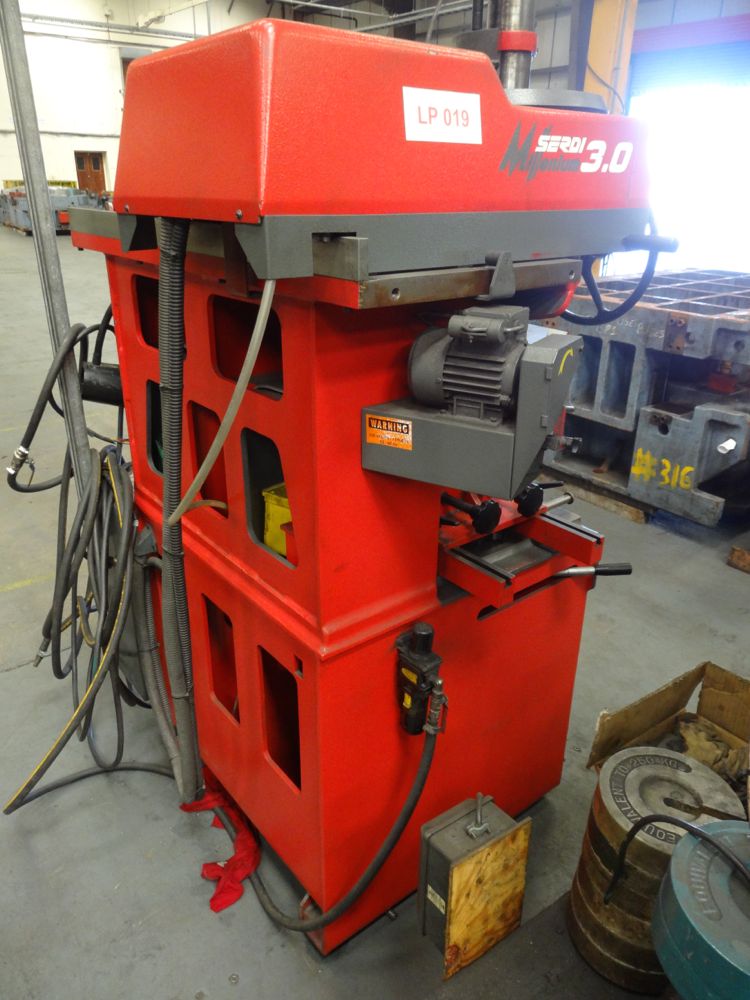

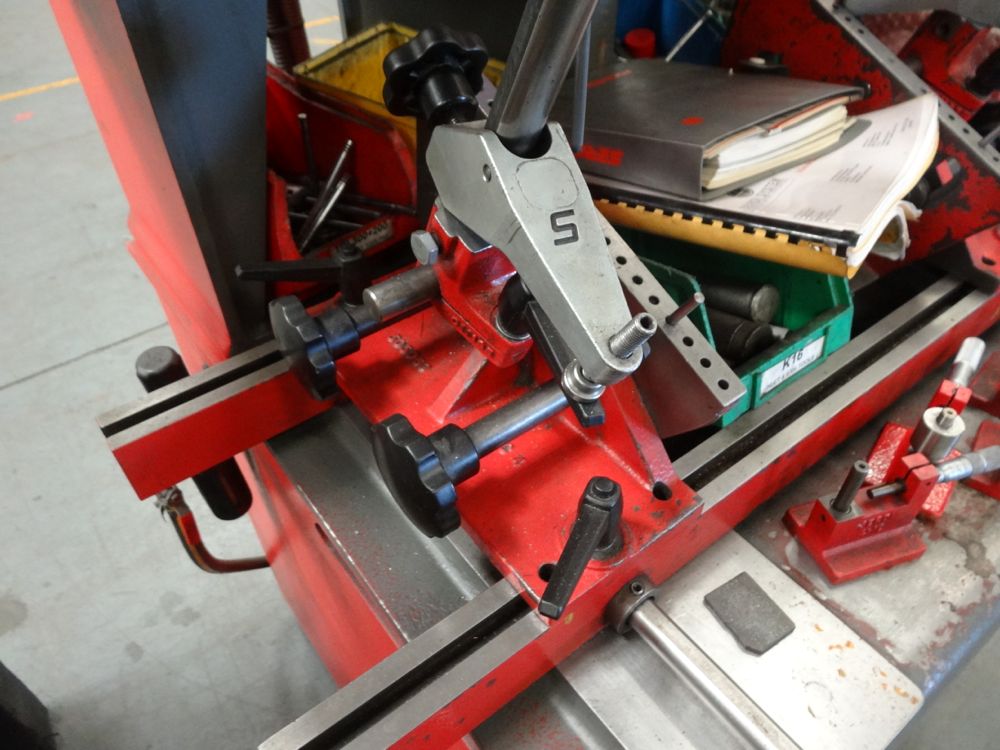

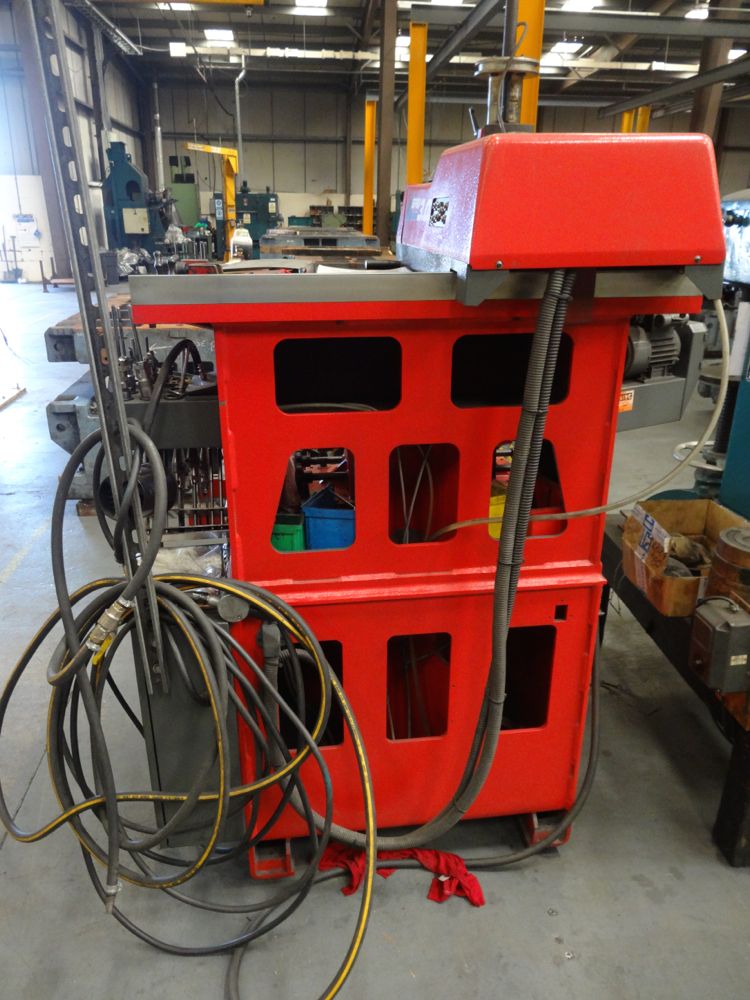

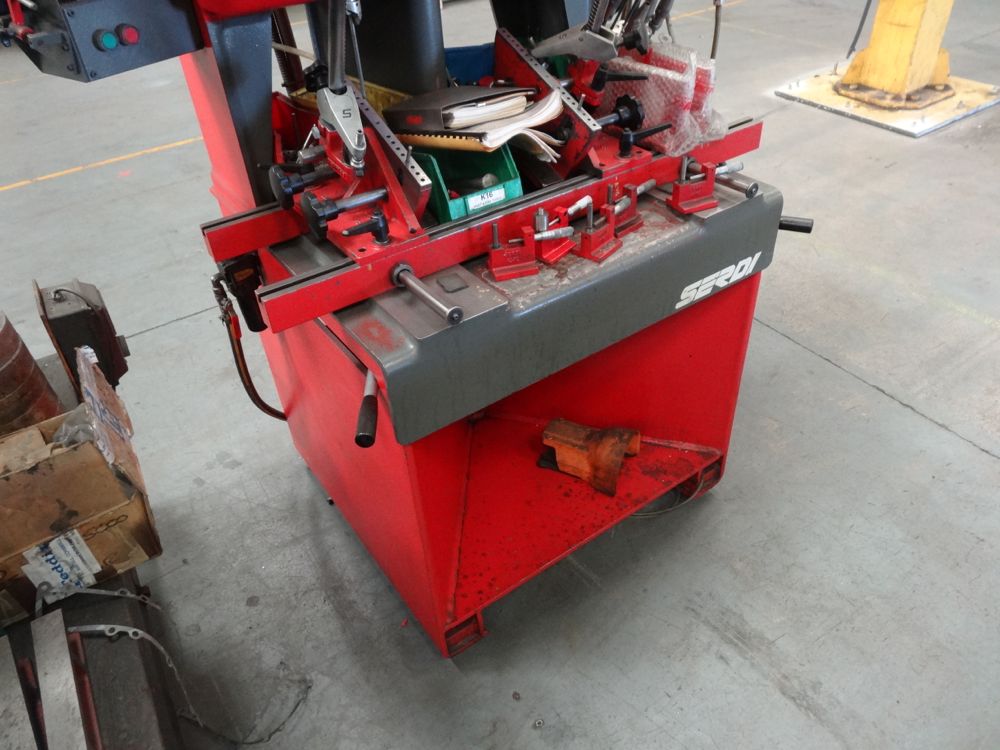

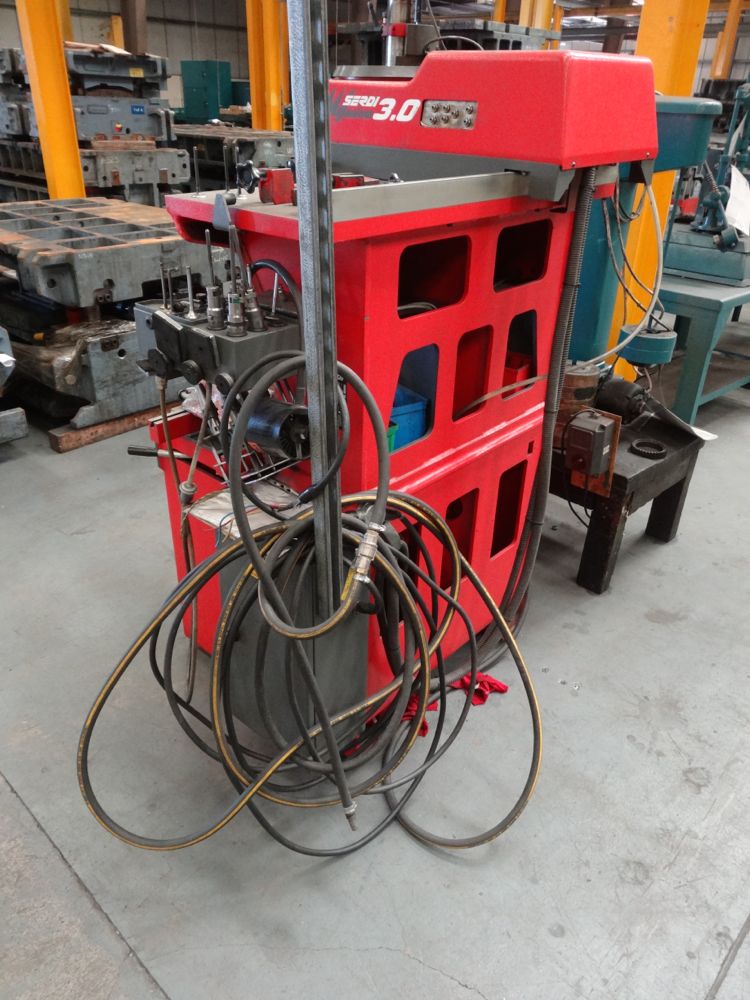

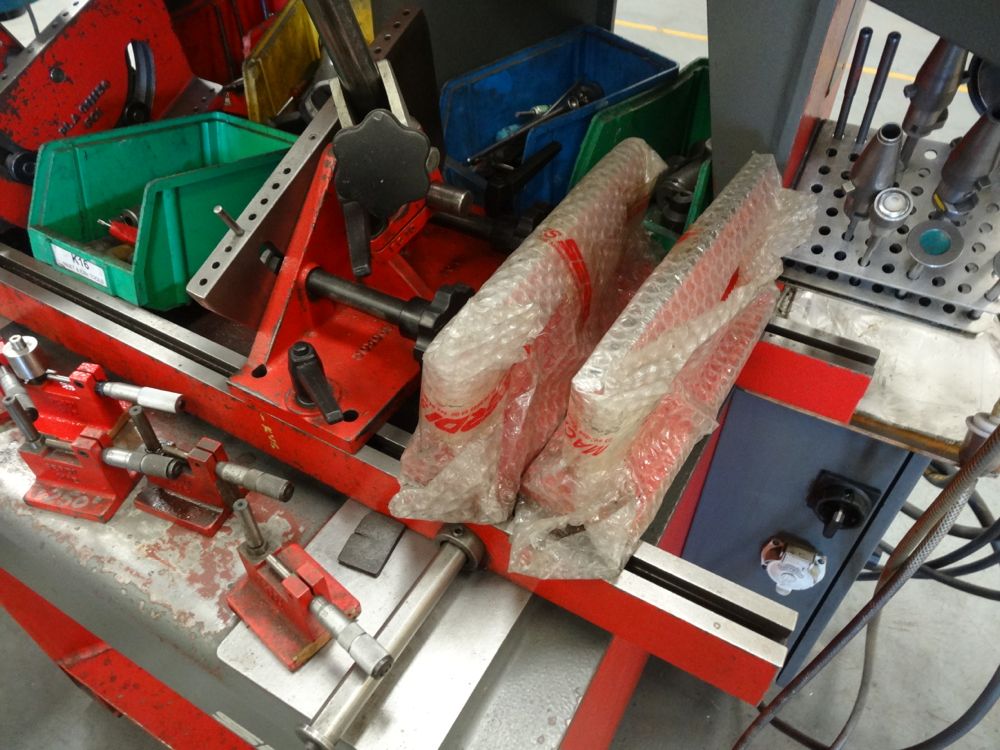

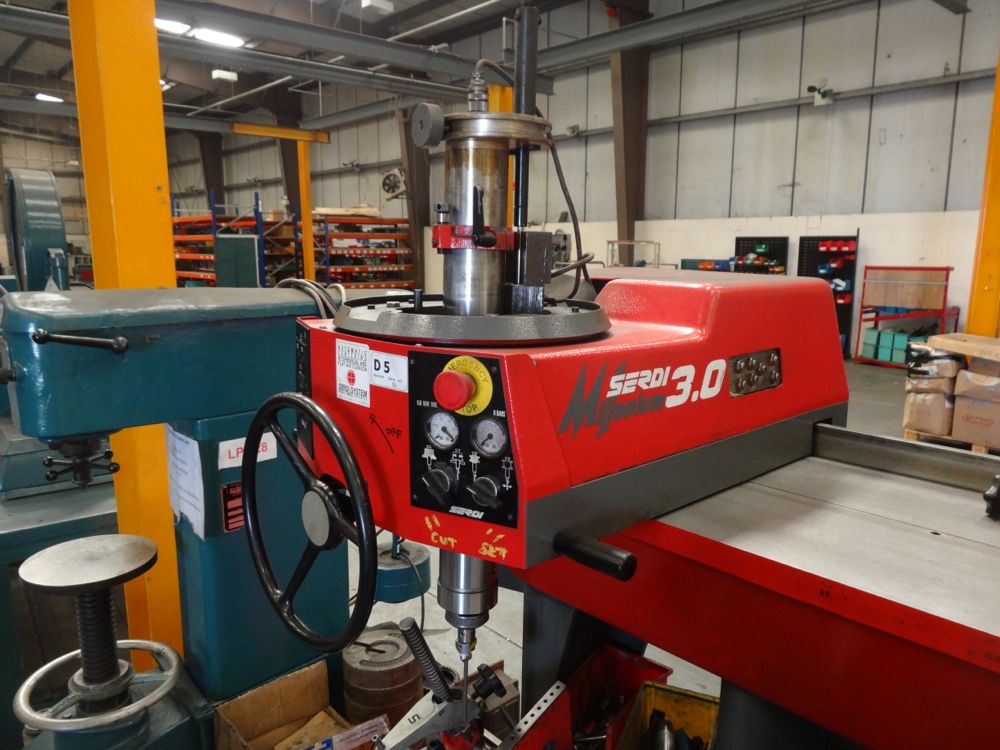

Lot 1 - Serdi Millenium 3 Valve Seat and Guide Cutting Machine
Description:
Serdi Millenium 3 Honing Machine
L x W x H: 1220mm x 1050mm x 2170mm
Weight (approx.): 1050Kg
Max cyclinder head dimensions: 1200mm
Width: 500mm
Height: 450mm
Crosswise work piece tilting: +42 to -15 degrees
Machining capacity min - max.: 16 - 70mm
Workhead travel:
Lenghwise: 990mm
Crosswise: 40mm
Sphere-cylinder travel:9/0.4mm
Spindle:
Max. spindle inclination: 5 degrees
Spindle travel: 200mm
Spindle motor power: 1200W
Spindle rotation speed: 100 - 1200 rpm
Connections:
Power supply: 4kVA-230VAC-1Ph-50/60Hz
Air pressure supply: 86 psi (6 bar)
Max. air flow: 11 CFM (300 l/min)
Noise level at 400rpm: 72 Dba
Noise level at 1200prm: 82 Dba
Location: Dudley
