SIP 7A Jig Borer with Tooling

Lot 3 - SIP 7A Jig Borer with Tooling

Description:

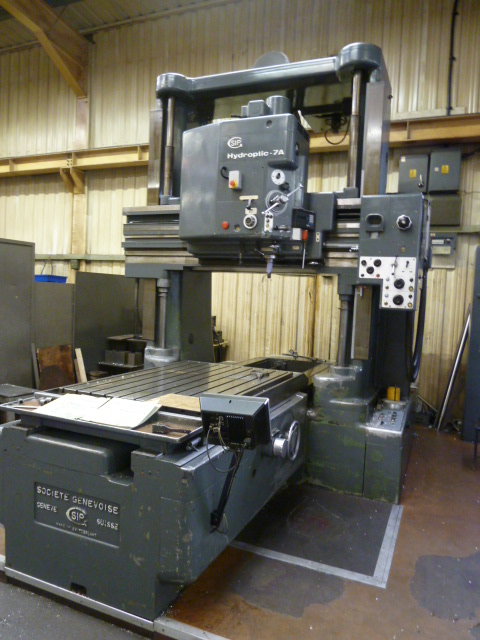

SIP MODEL 7A JIG BORING & MILLING MACHINE WITH HIGH COLUMNS

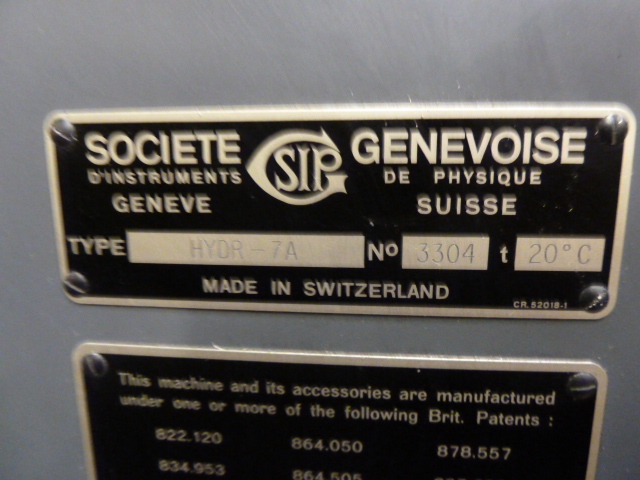

Machine Serial No.3304

Nominal table travel 55” 1400mm
Nominal spindle head travel 40” 1000mm
Vertical quill travel 12” 300mm
Table length 61.75” 1570mm
Table width 40.5” 1024mm
Maximum distance spindle nose to table 71” 1805mm
Minimum distance spindle nose (quill retracted) to table 14.375” 365mm
Distance between columns 63” 1600mm
Quill diameter 5.31” 135mm
Maximum table loading 4,400lbs 2,000kgs
Vertical Travel of cross rail 56.75” 1440mm
Maximum free space under cross rail 69.25” 1760mm
Spindle speeds (18) 40-2000 rpm
Quill feeds inch/revolution (6) 0.0016”- 0.014” 0.04-0.35mm
Spindle head rapid traverse per minute 60” 1500mm
Power Milling Feeds (4) inch/revolution 1.125”-7.25” 30mm-180mm
Table hydraulic feeds for milling, up to 20”/min 500mm/min
Hydraulic rapid traverse feeds 100”/min 2500mm/min
Internal clamping taper 4 MT
External clamping taper SIP 4E
Drilling capacity from solid 2.375” 60mm
Boring capacity 12” 300mm

Spindle drive motor (2 speed) 8hp
Approximate machine weight 36,000lbs 16,300kgs

Equipment

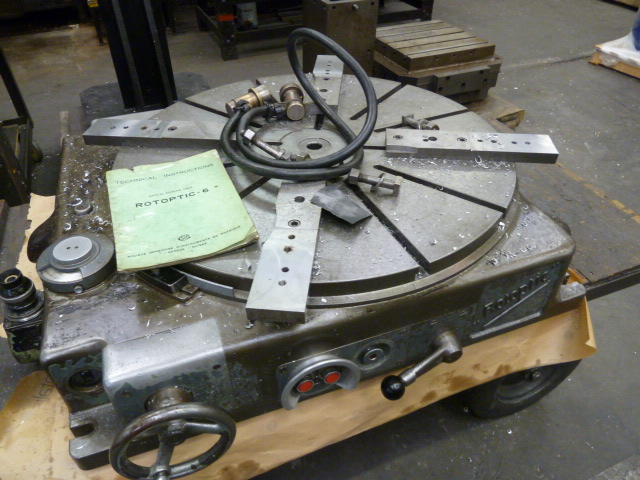

SIP Rotoptic 6 - 31.5” (800mm) dia rotary table
SIP PI 5 - 17.75” (450mm) dia tilting rotary table
Tooling Cabinets with various spindle tooling
Newall Topaz DRO
Spindle Brake

Tooling

Location: Oldham

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
