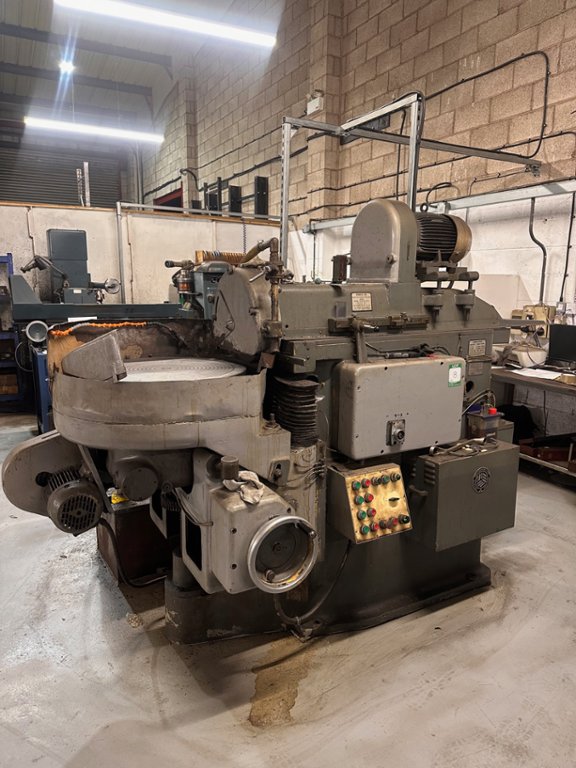

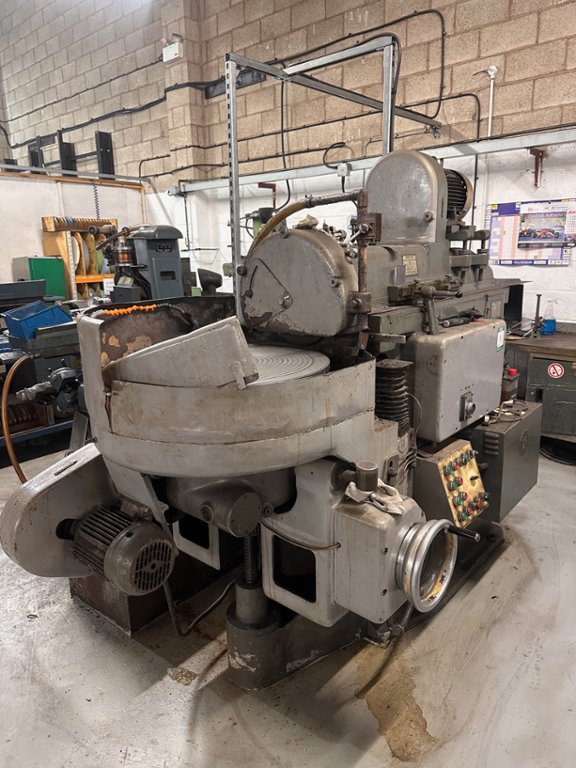

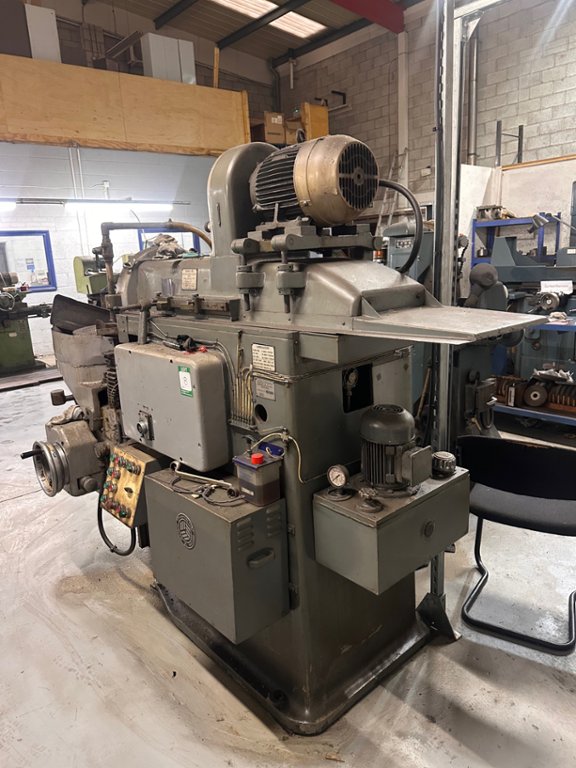

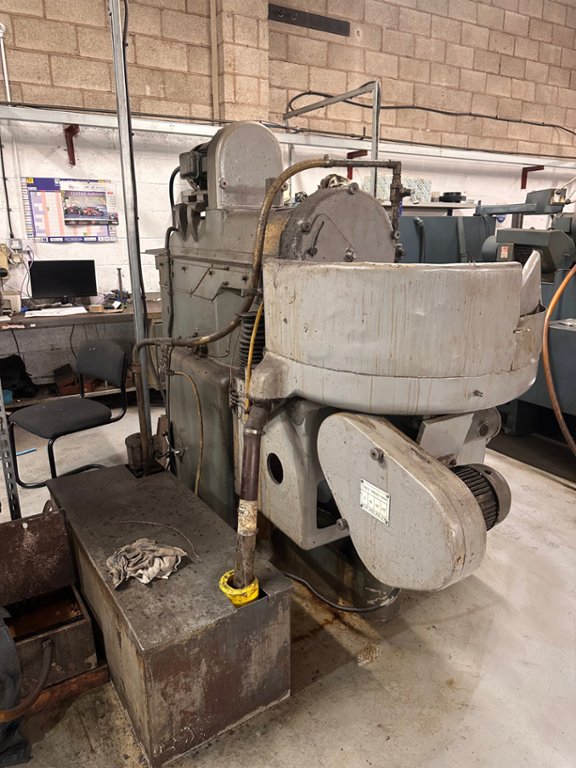

Snow HR13 Horizontal Rotary Surface Grinder

Lot 8 - Snow HR13 Horizontal Rotary Surface Grinder

Description:

Table & Capacities

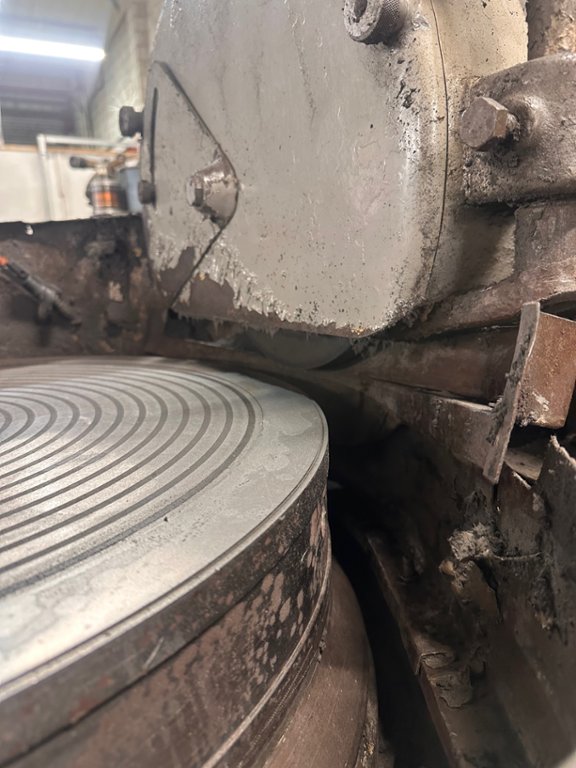

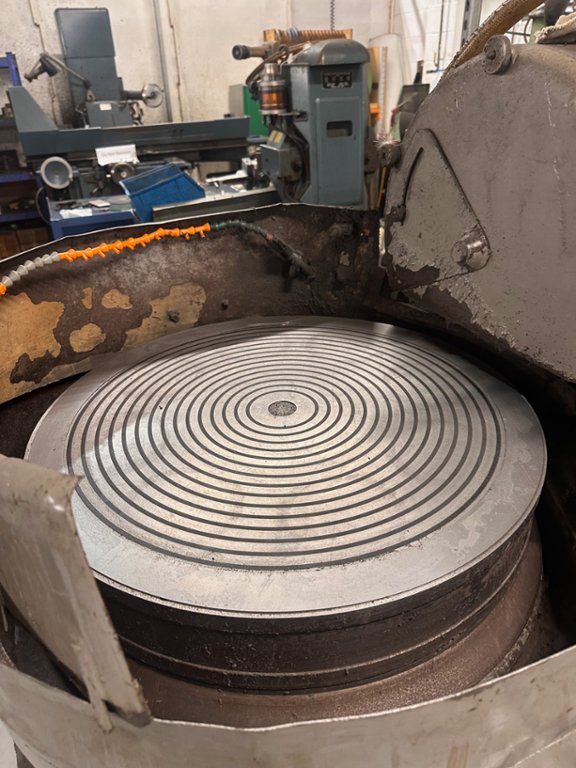

Rotary Table / Magnetic Chuck Diameter: 13" (approx. 330 mm), Maximum Height (Chuck to Spindle Centre): 14" (356 mm), Table Vertical Adjustment (Z-Axis): Up to 10" (254 mm), Table Swivel / Tilting Capability: Can rotate or tilt 7.5° to either side relative to the horizontal plane. This allows the machine to grind concave or convex surfaces (such as circular saws or tapered spacer rings)

Grinding Wheel & Head

Standard Grinding Wheel Size: 12" Diameter × 1" Width × 5" Bore (305 mm × 25 mm × 127 mm), Spindle Operating Speeds: Features two selectable pulley speeds—1,720 RPM and 2,150 RPM, Wheelhead Movement (Horizontal Traverse): 9" (229 mm) stroke driven by a dedicated 1 HP feed motor, Traverse Rates: Four selectable mechanical movement speeds—530, 720, 1,140, and 1,800 mm/min

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
