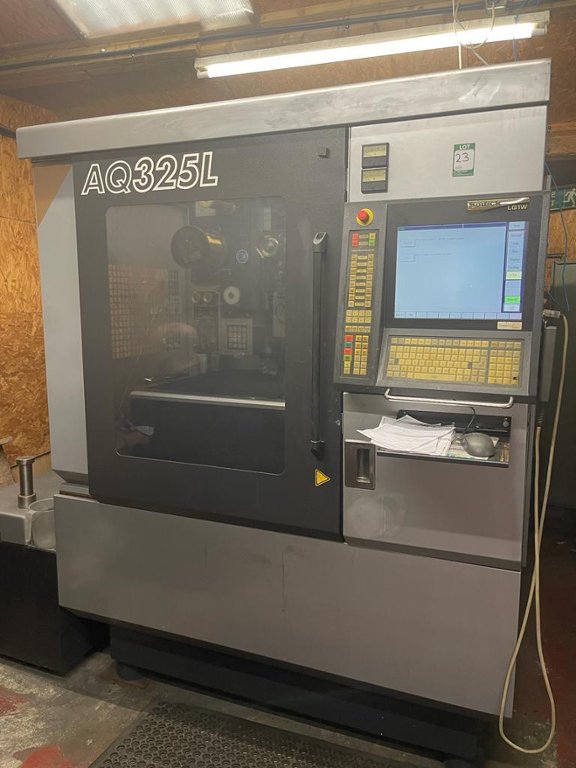

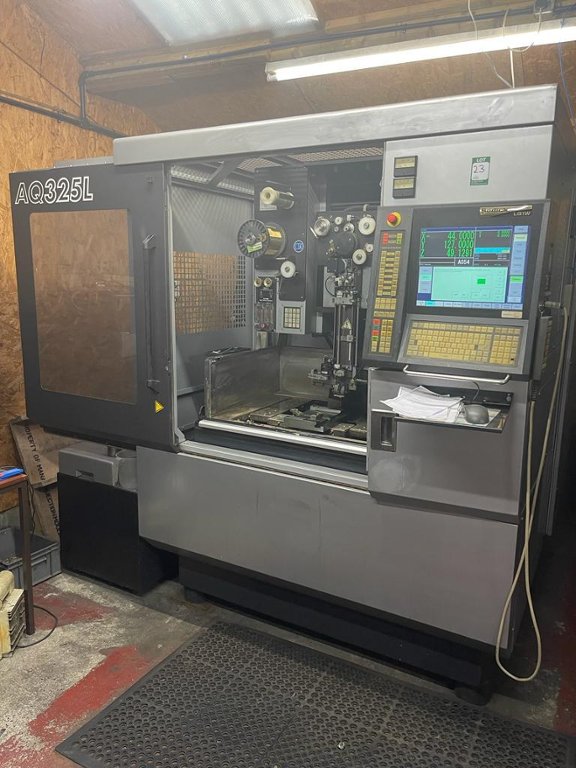

Sodick AQ325L Wire Cutting EDM Machine (2004)

Width: 2250 mm
Depth: 2200 mm
Weight: 2800 kg

Lot 23 - Sodick AQ325L Wire Cutting EDM Machine (2004)

Description:

Table Travel ( X & Y axis) - 350mm x 250mm, Z axis travel - 220mm, Auxillary table travel (U & V axis) - 80 mm x 80mm, Work table size (w x d) - 600 mm x 400 mm, Work tank dimensions (w x d) - 895 mm x 650 mm, Maximum height of work piece - 220 mm, Maximum weight of work piece - 450 kg, Distance from floor to table top - 965 mm, Taper angle - 20/80mm, Wire tension - 300g to 2300g, Wire feed speed (max) - 250mm, Wire diameter - 0.15 to 0.3, Wire spool volume (max) - 6kg, Machine tool dimension (w x d x h) - 1650 mm x 1900 mm x 2040 mm

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
