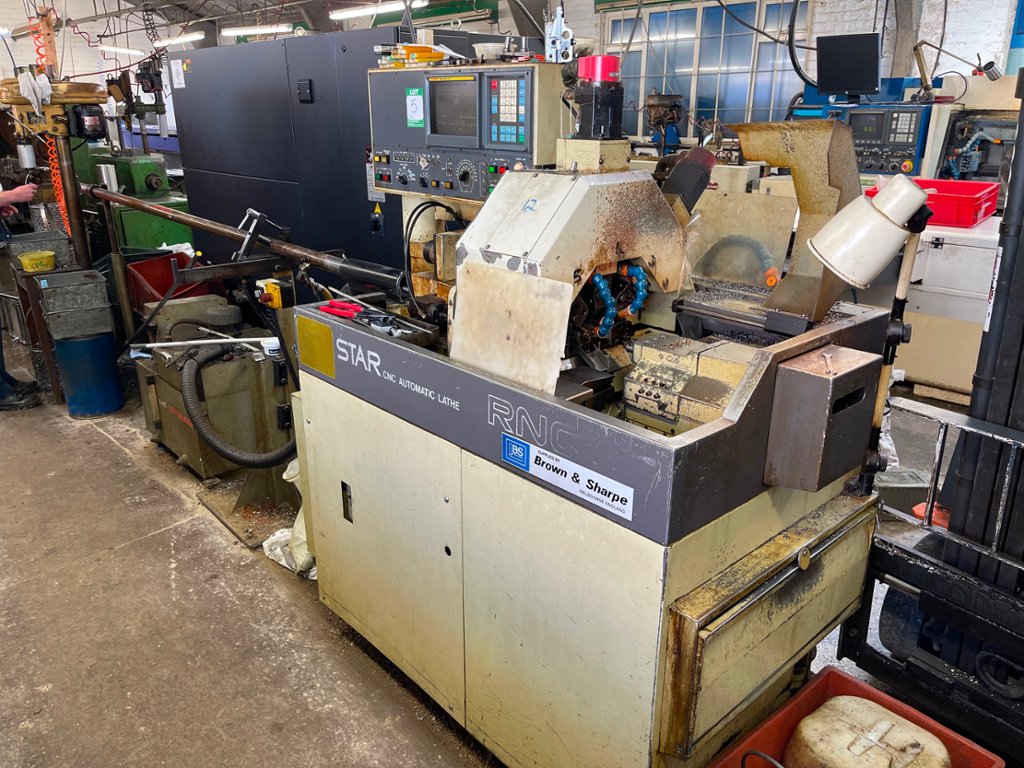

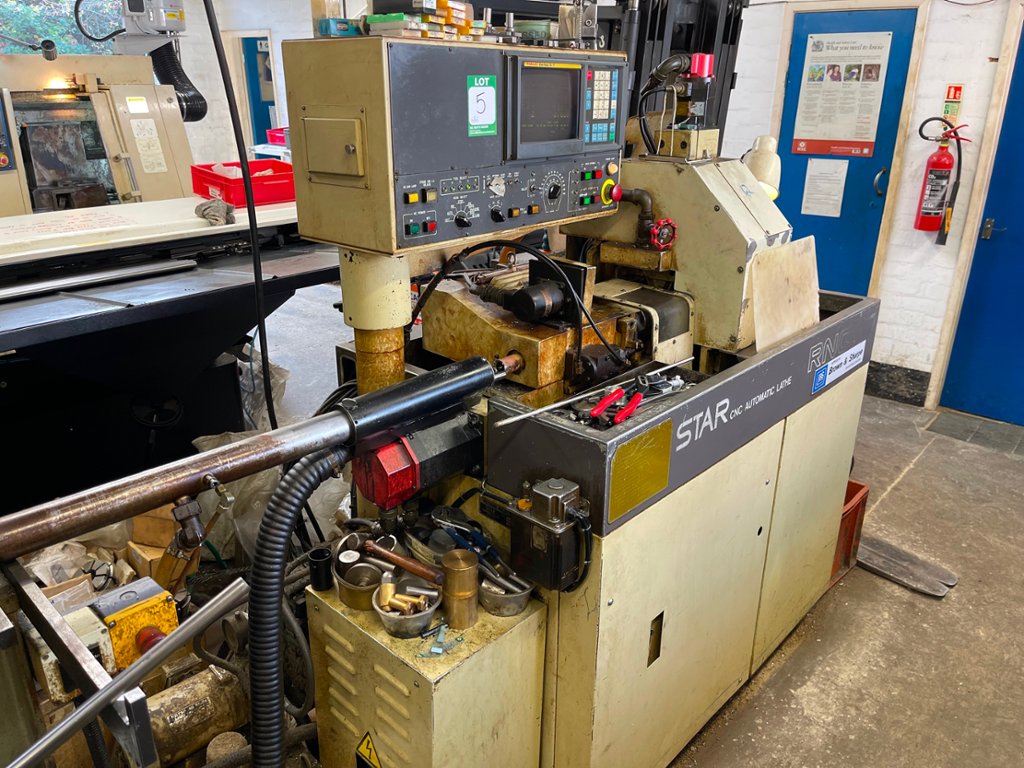

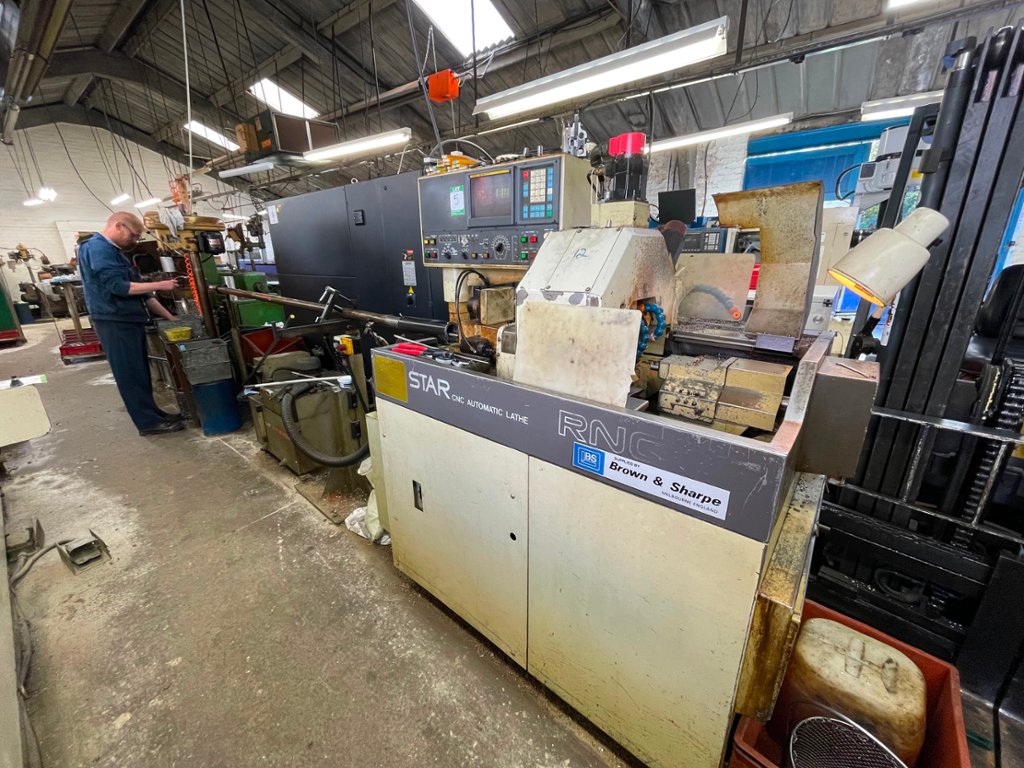

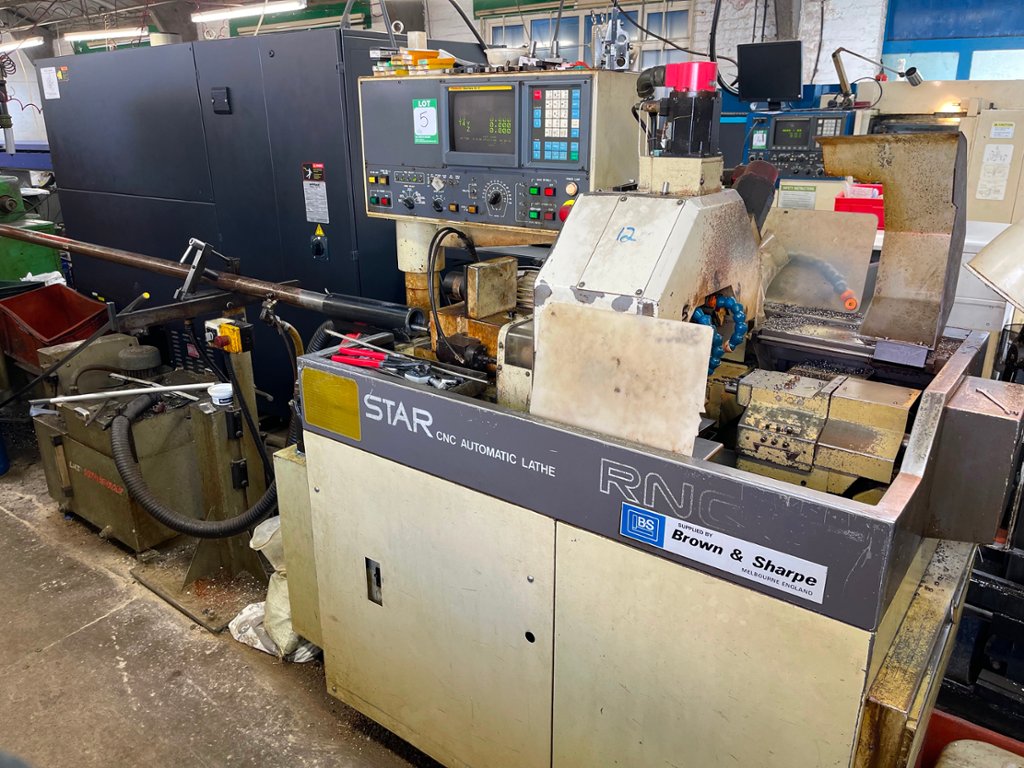

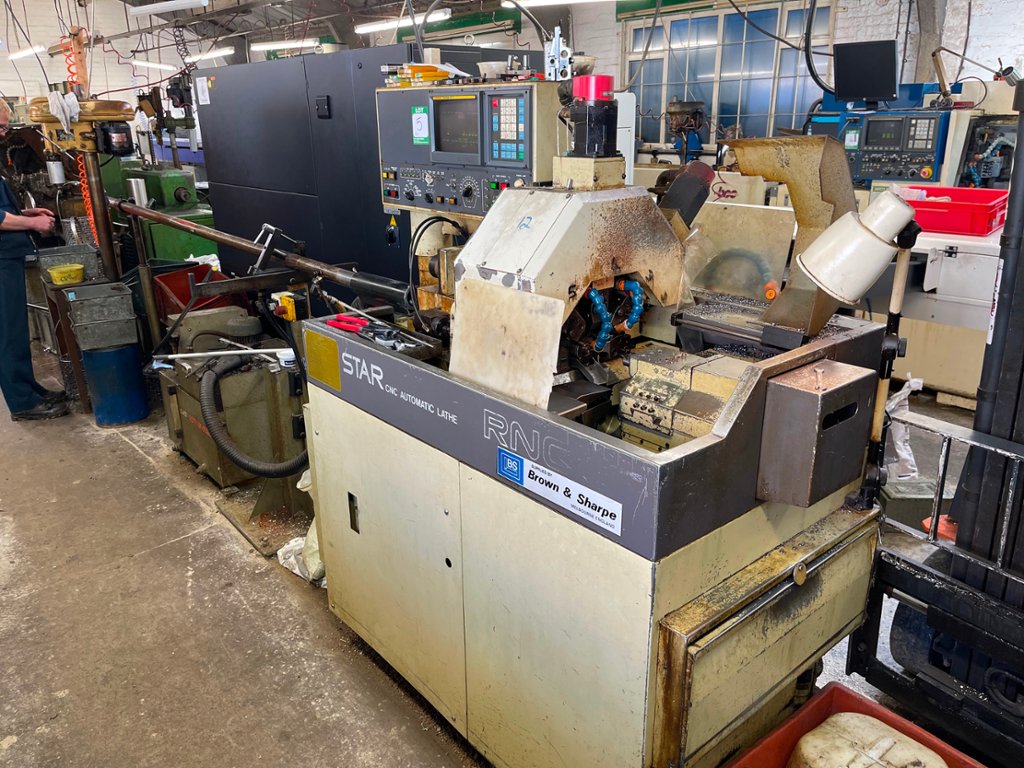

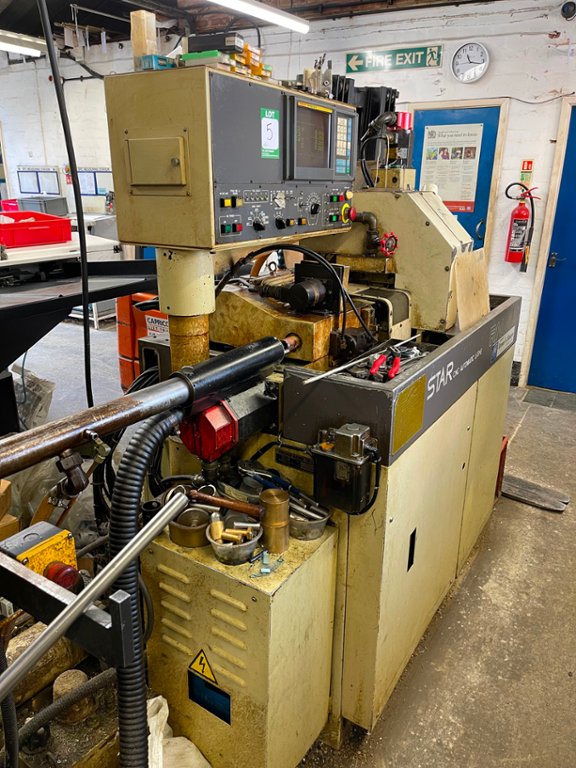

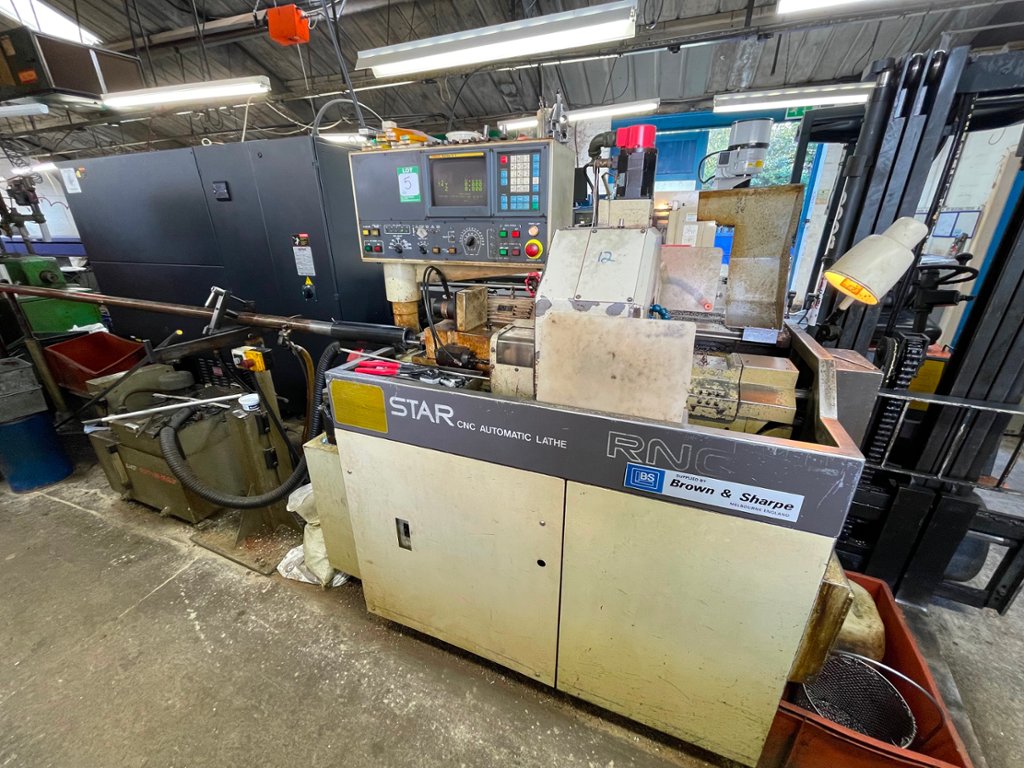

Star RNC 16 CNC Automatic Lathe

Lot 5 - Star RNC 16 CNC Automatic Lathe

Description:

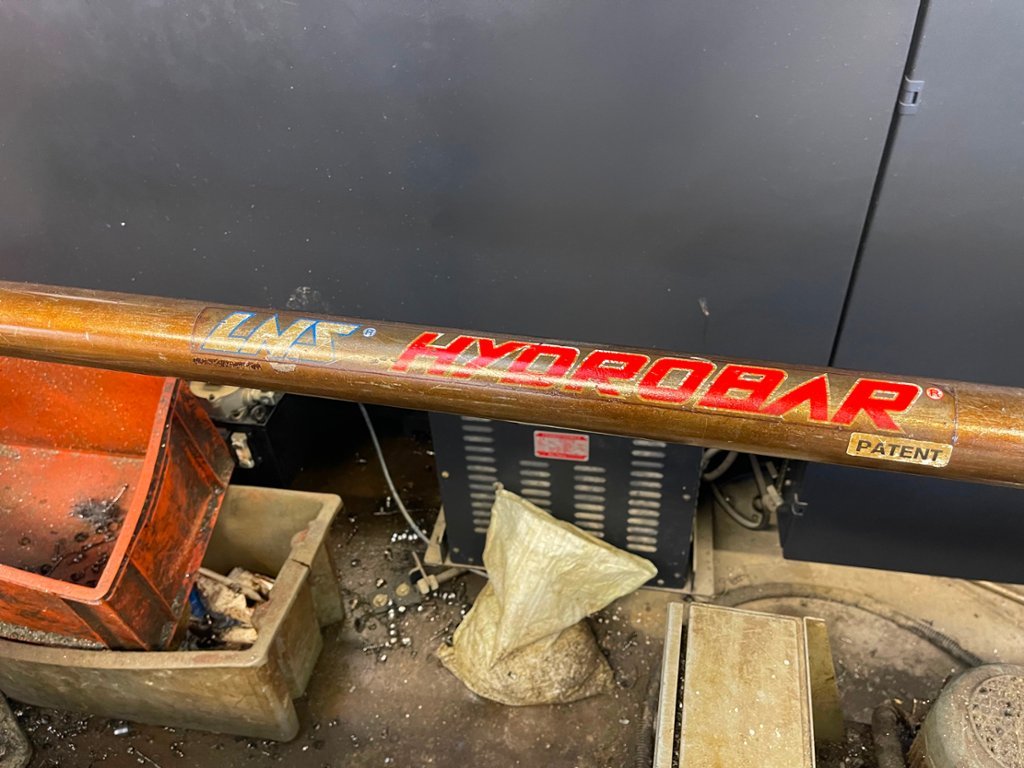

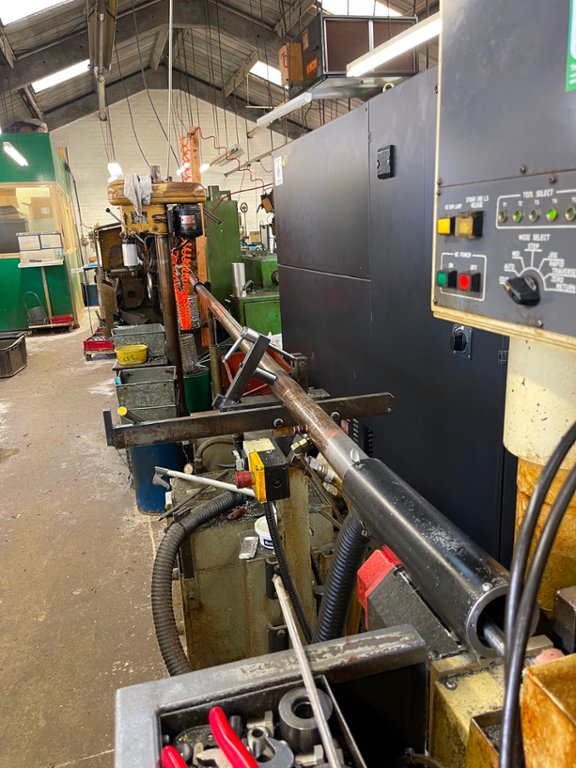

With Hydrobar Barfeed 457mm Long

Maximum Machining Diameter - 16mm
Stroke of Head Stock - 1.60mm (Fixed Bushing) 95mm (Synchronised Rotary Bushing)
Spindle RPM - 375-7500RPM
Spindle RPM Change - 3-speed change by S-code commands. Each Speed can be set at the required RPM with dials.

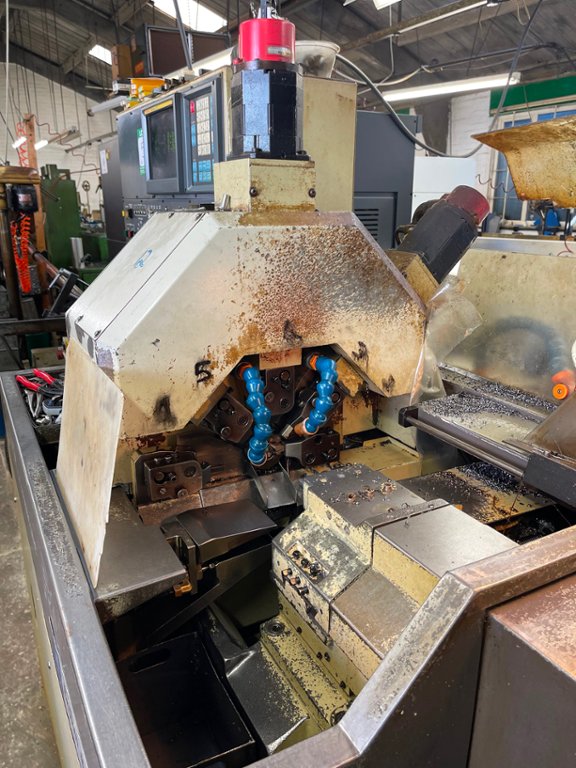

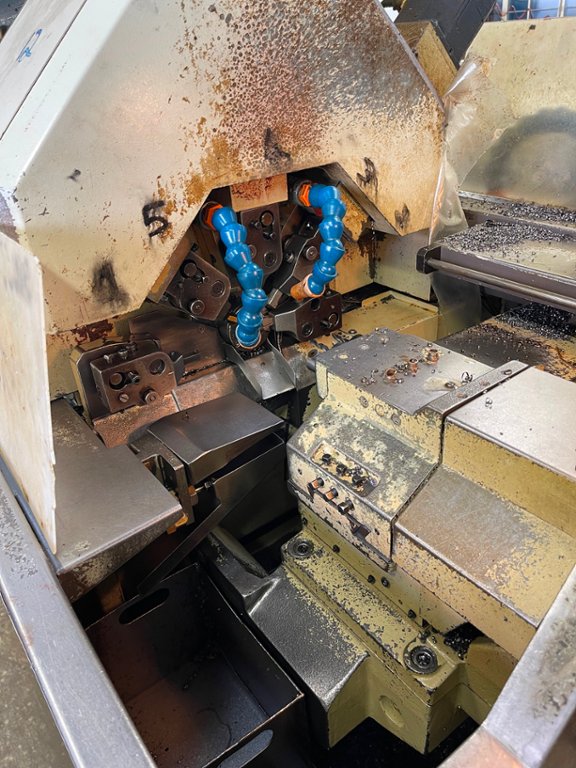

No of Tools - 6 (3 on each of opposed tool posts) (Shifting by 10mm possible for 1 each)

Motors

Spindle Motor - 2.2kW, 4P
Hydraulic Motor - 0.4kW, 4P
Coolant Motor - 0.18kW, 2P
Central Lubrication Motor - 0.003kW
X-Axis Motor - 0.4kW (Model OM)
Z-Axis Motor - 0.4kW (Model OM)
Spindle Center Height - 1000mm

3-Spindle Endworking Attachment

Drilling Capability 8mm
Thread Cutting capability M8 x P1.25

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
