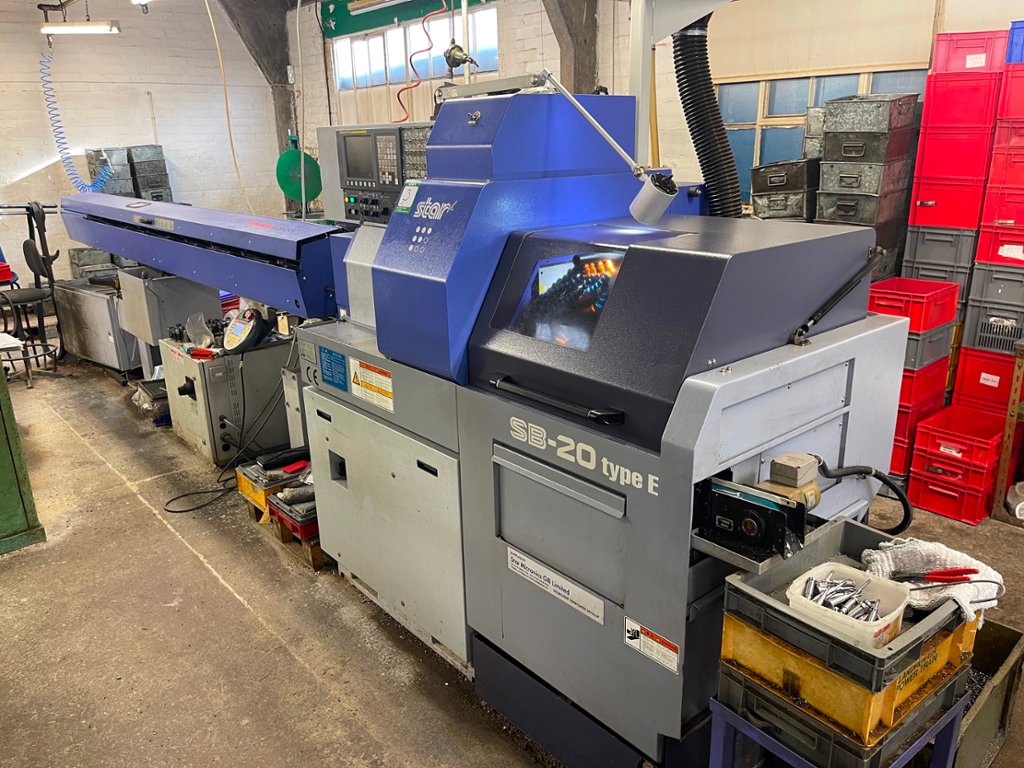

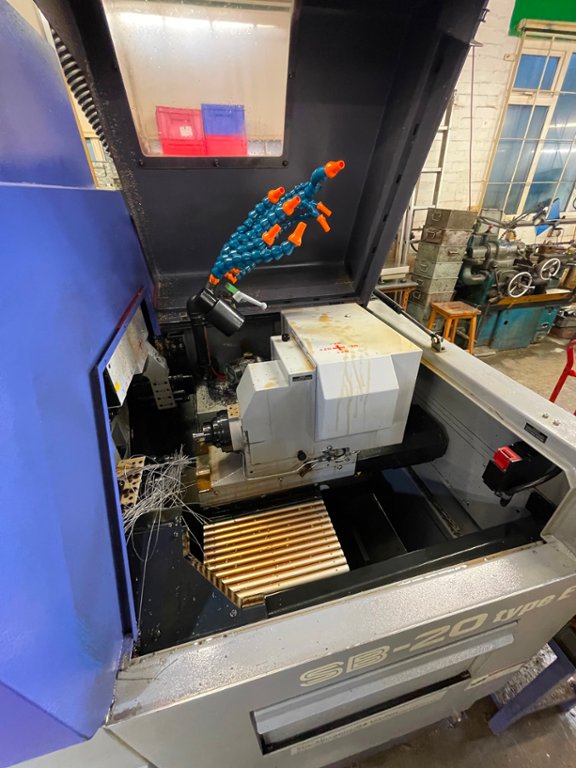

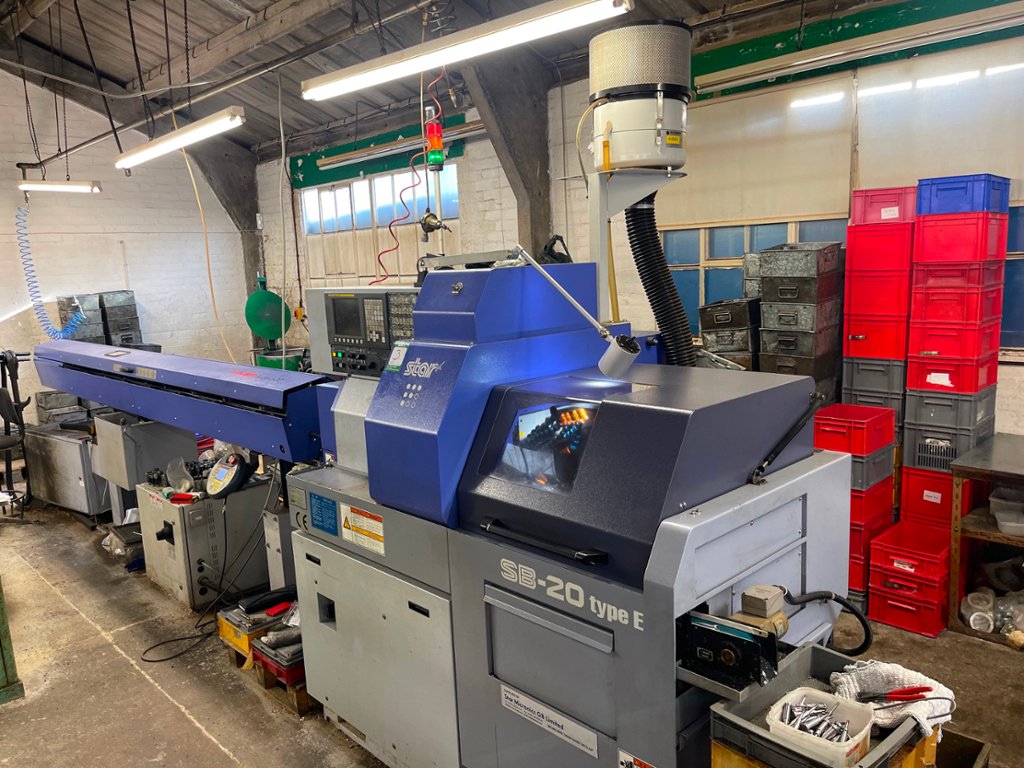

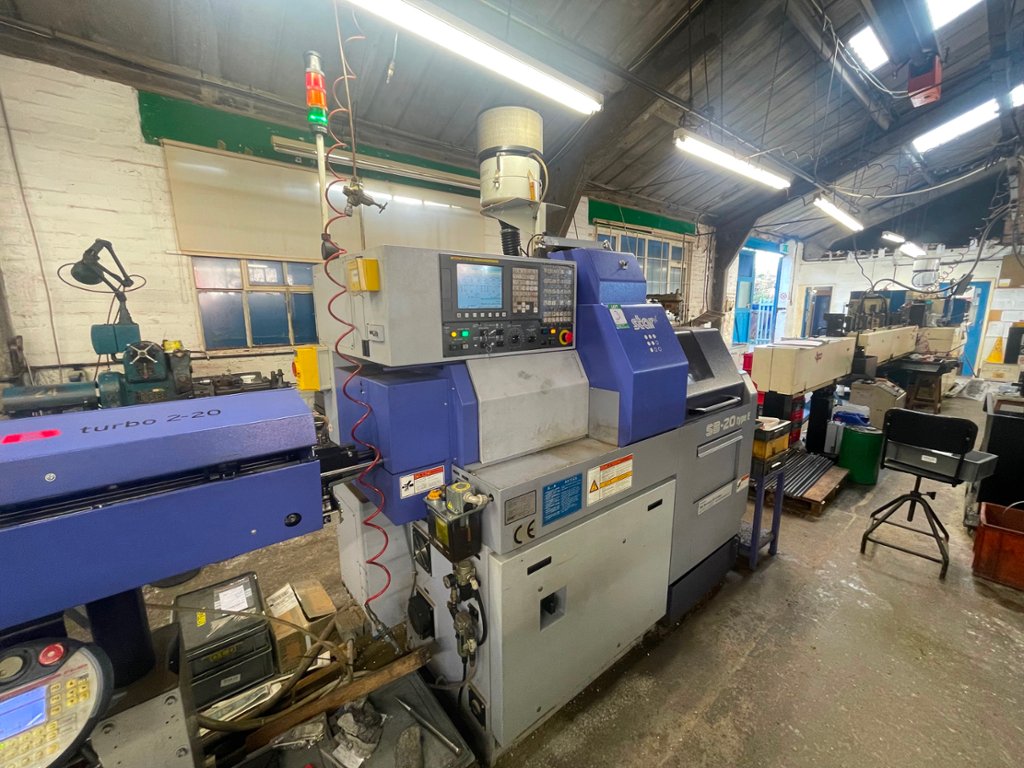

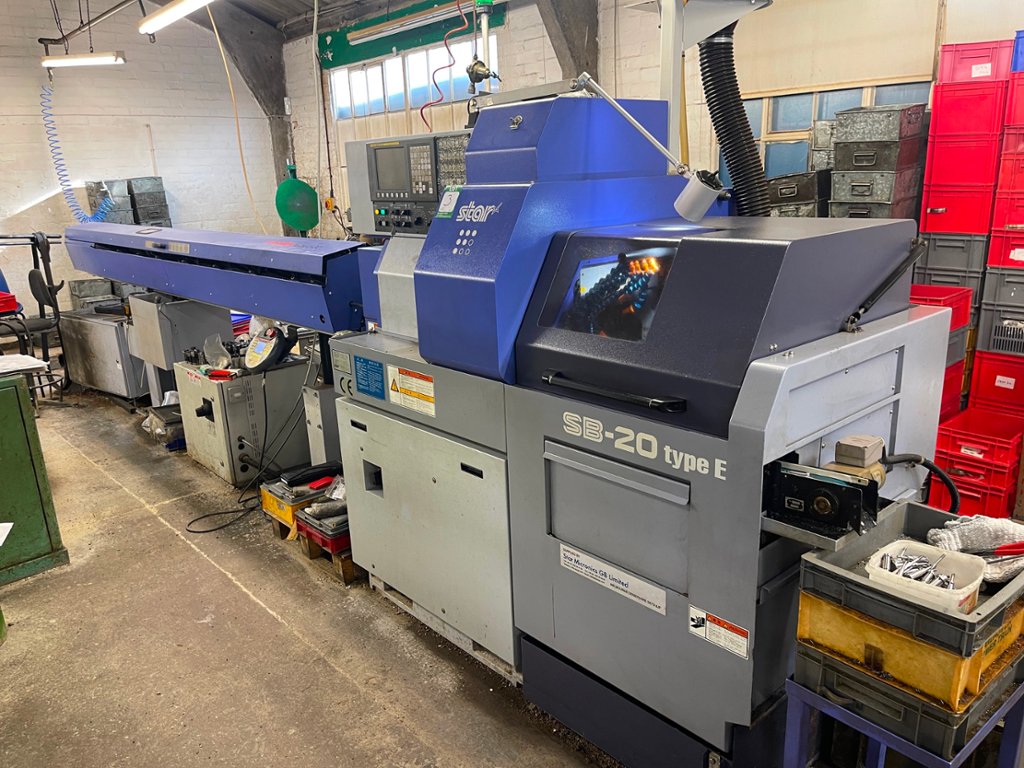

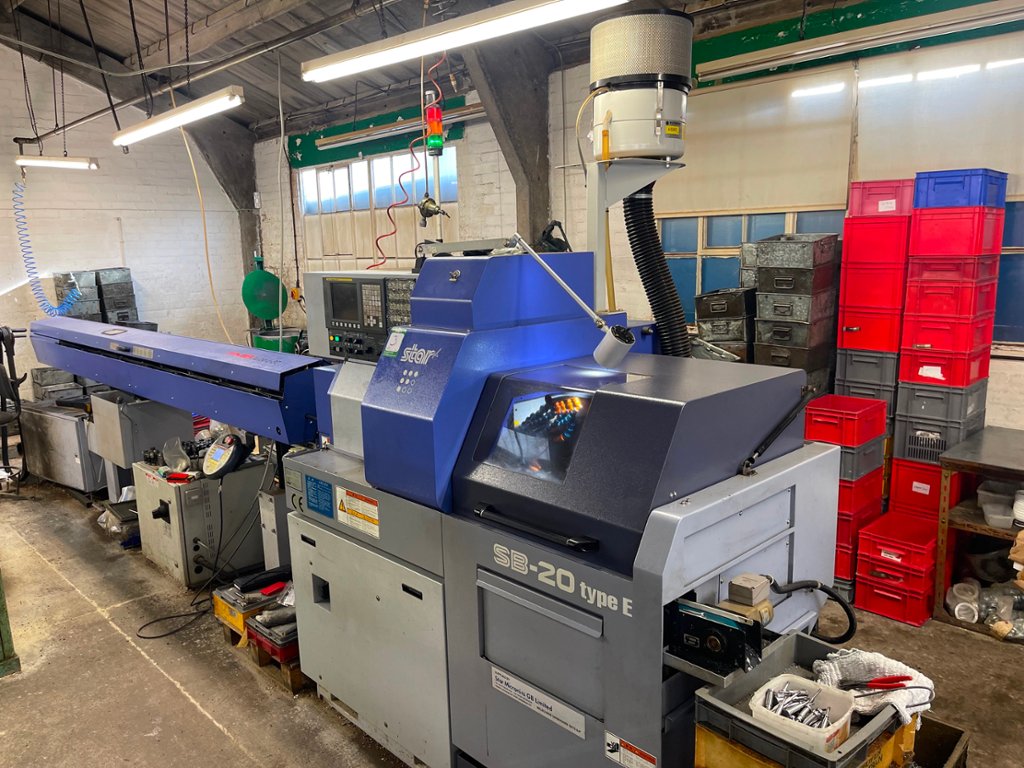

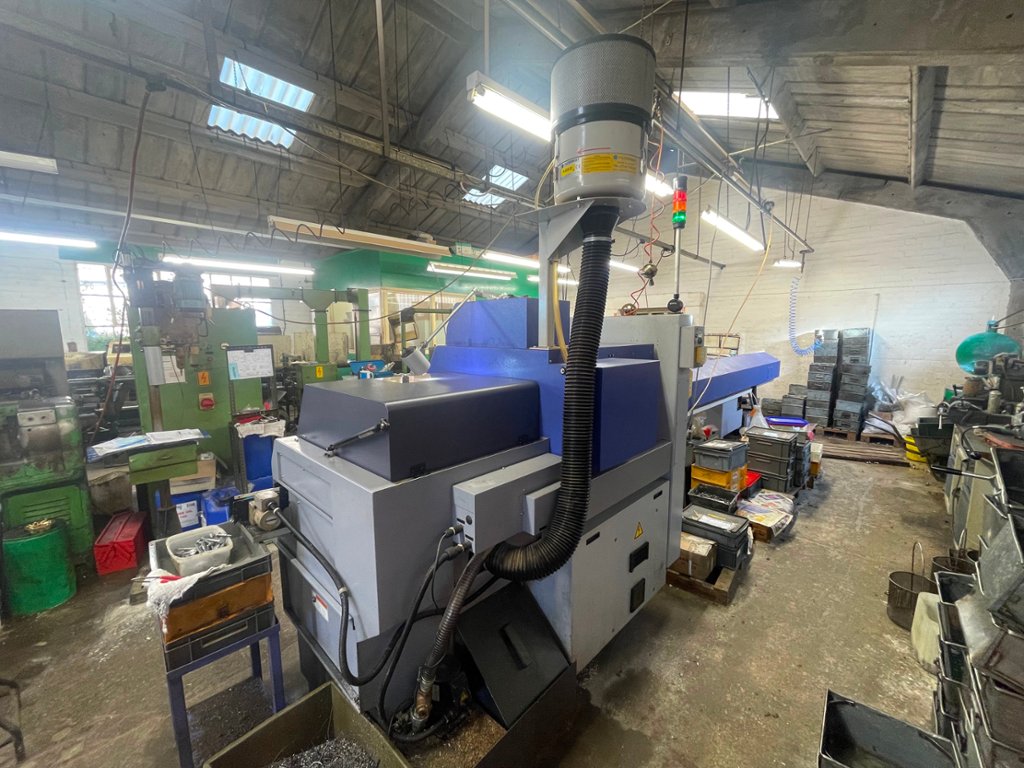

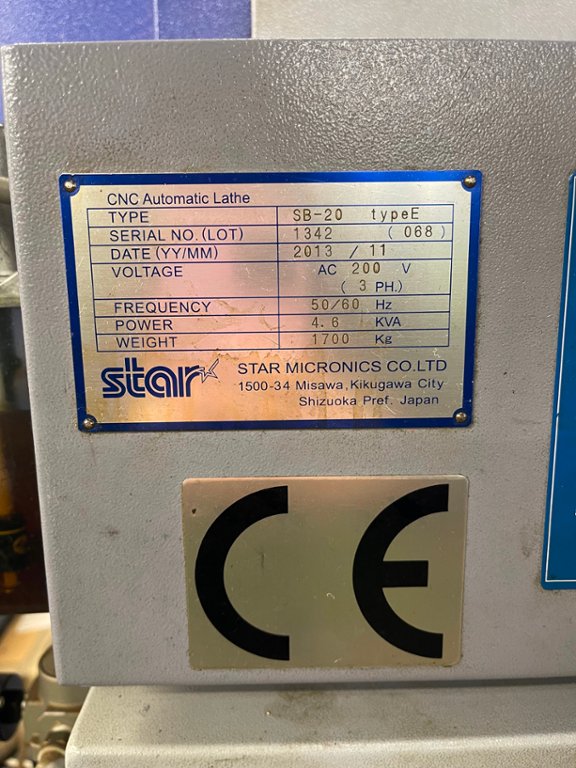

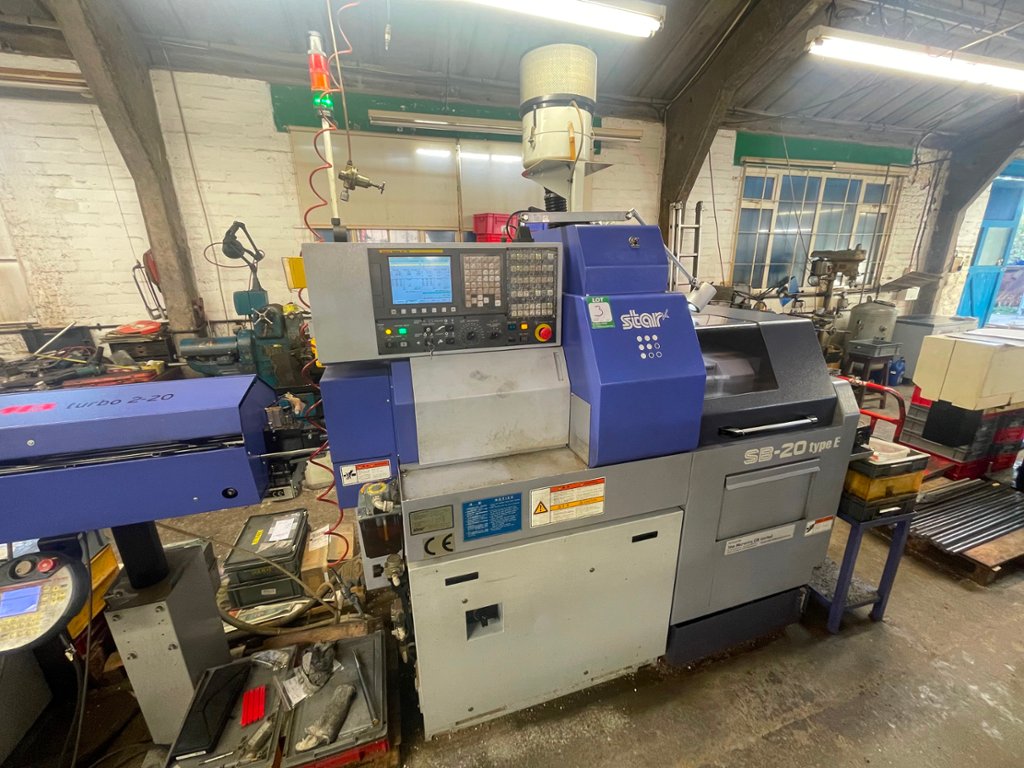

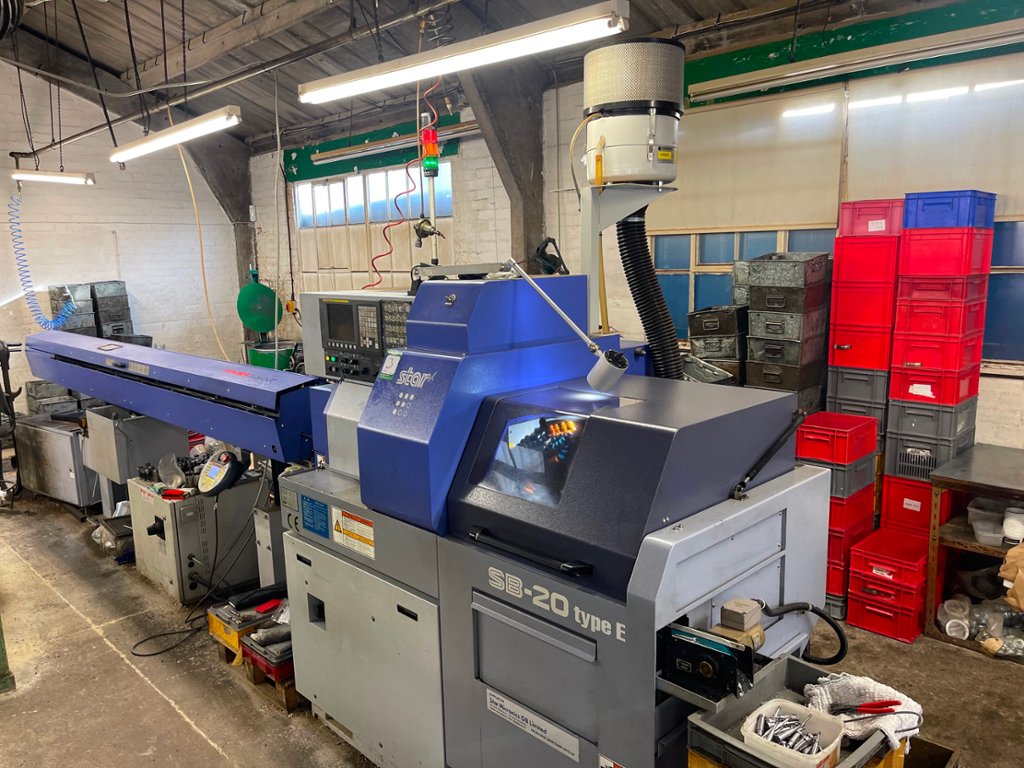

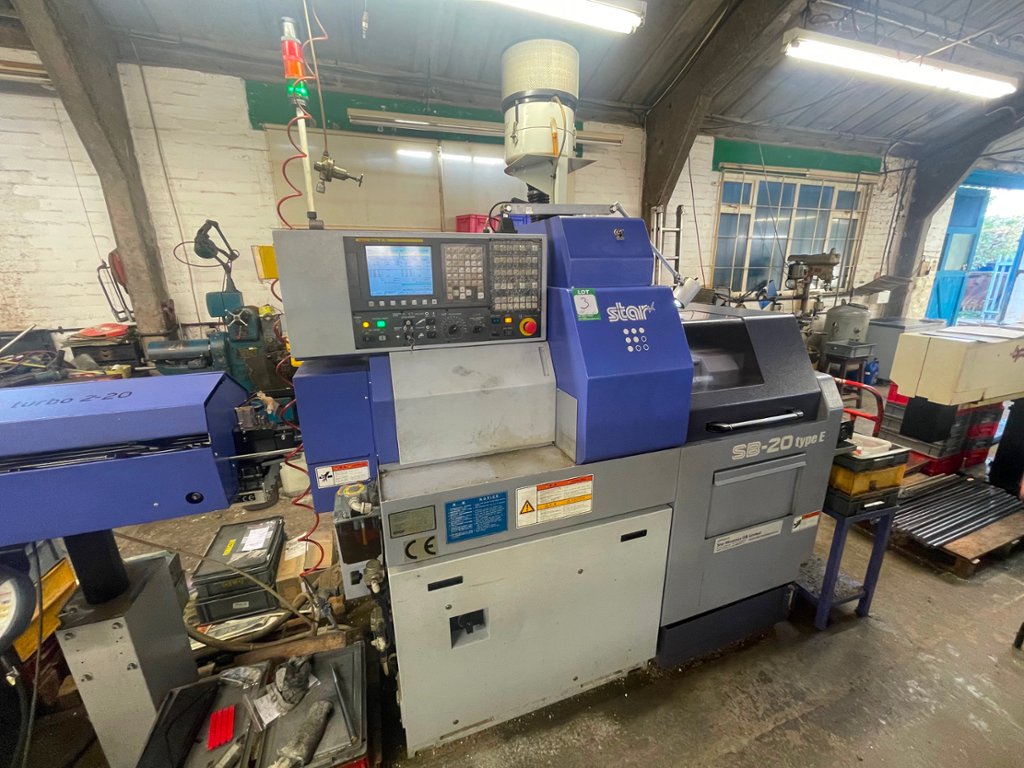

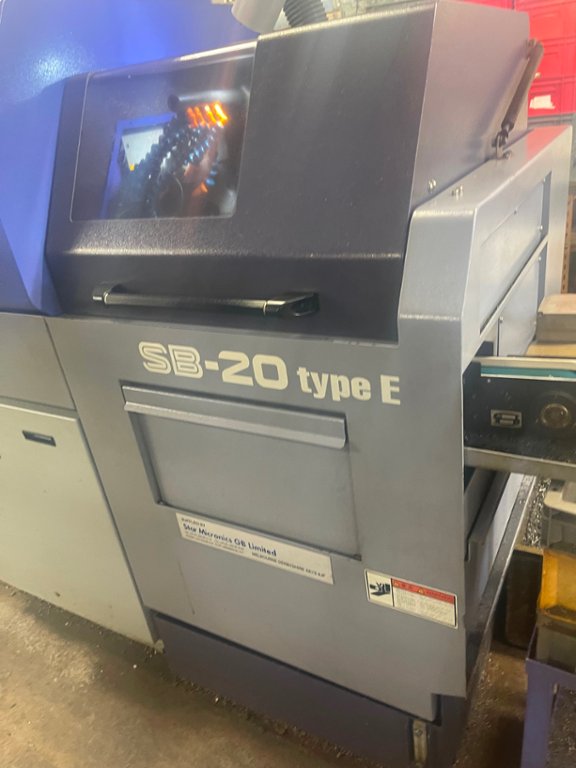

Star SB-20 Type E CNC Sliding Head Lathe (2013)

Lot 3 - Star SB-20 Type E CNC Sliding Head Lathe (2013)

Description:

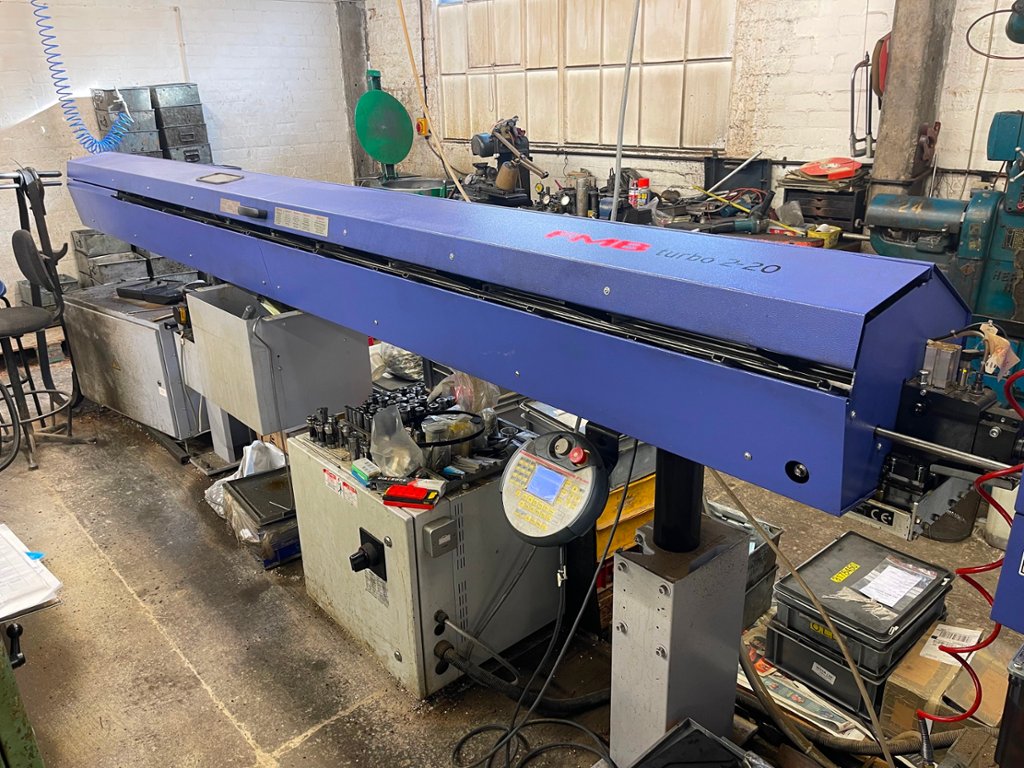

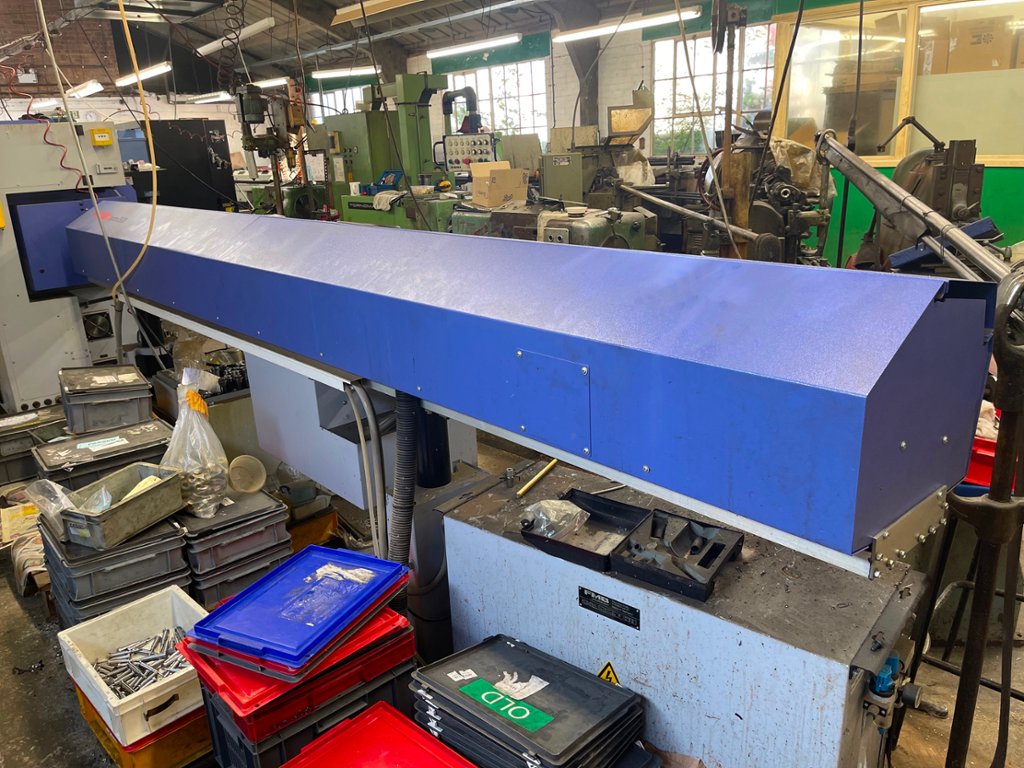

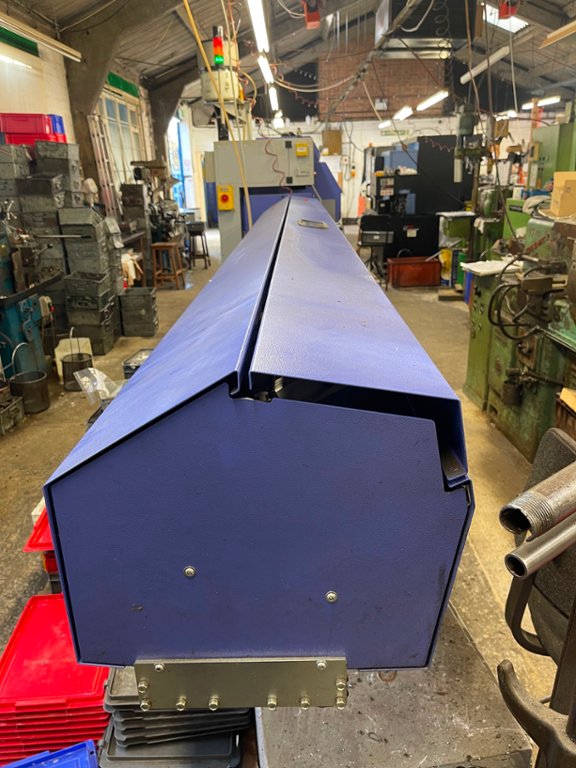

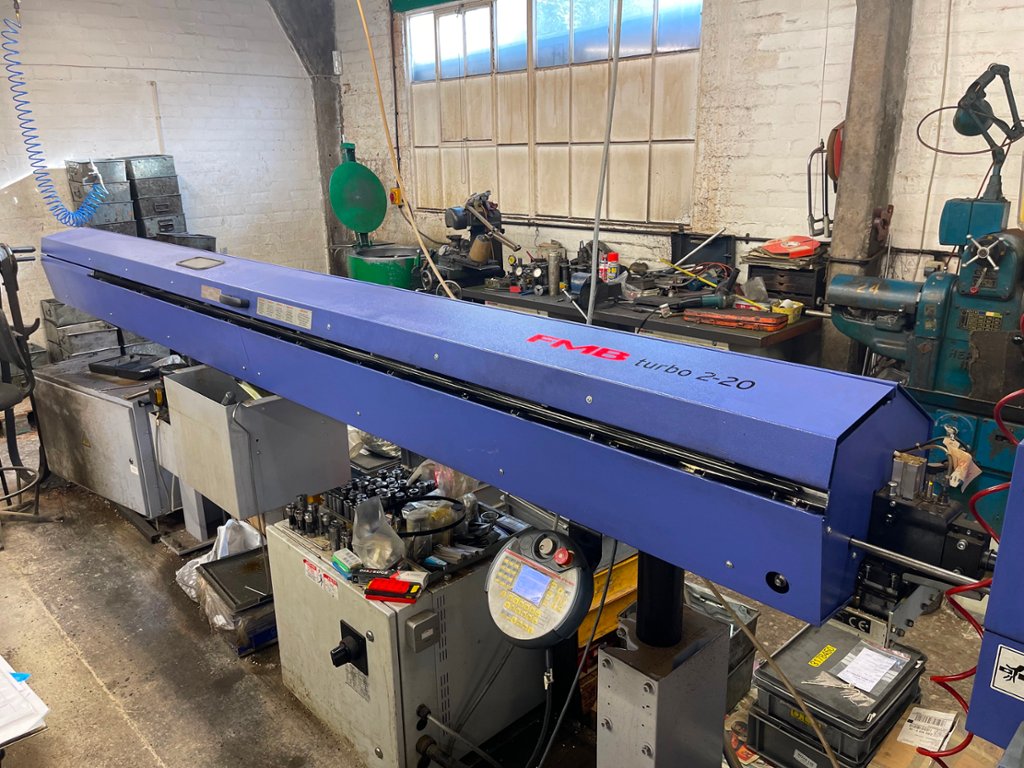

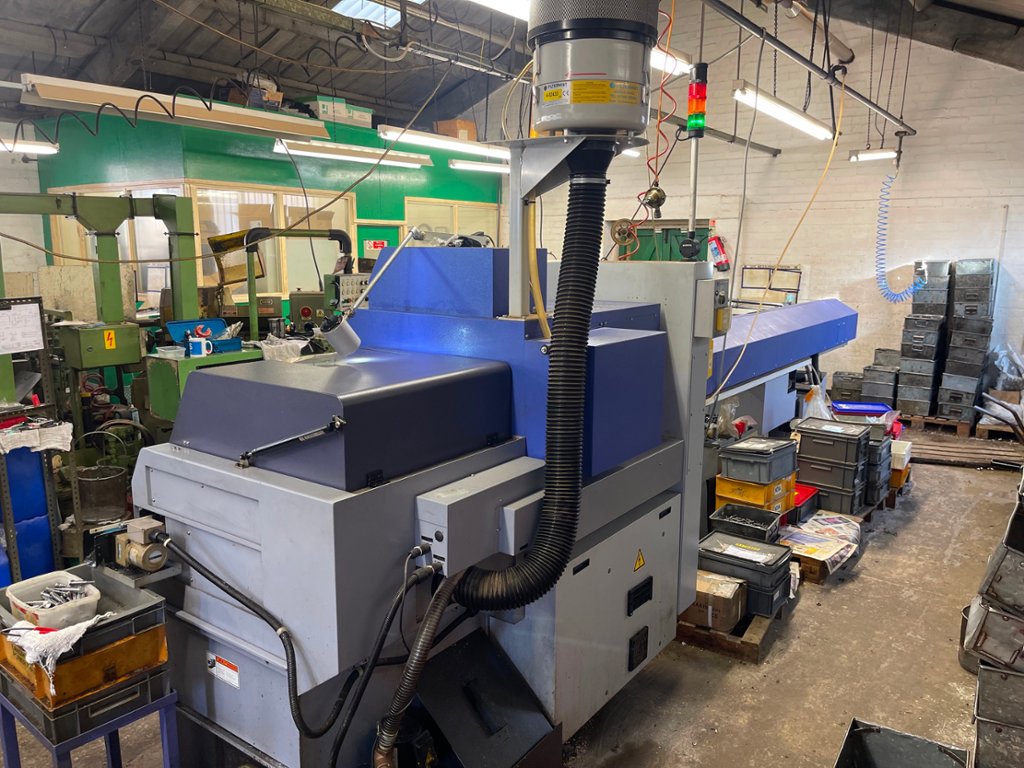

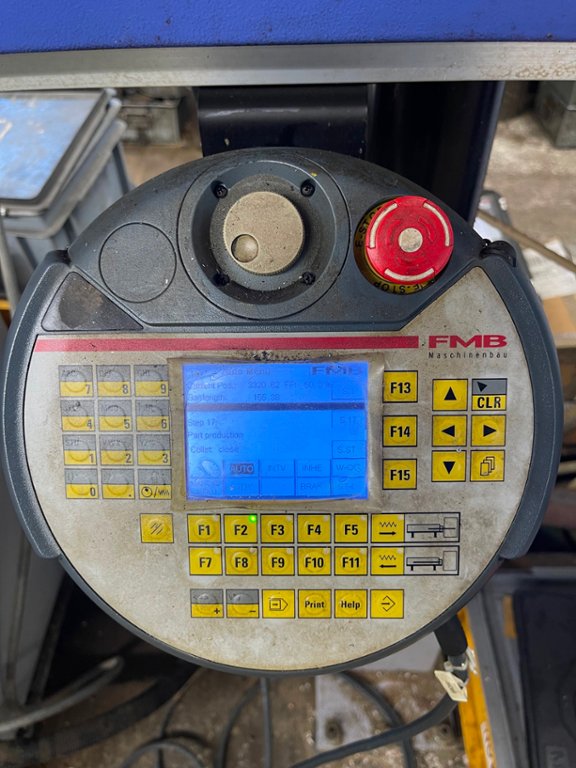

With FMB Turbo 2-20 Barfeed 423mm Long

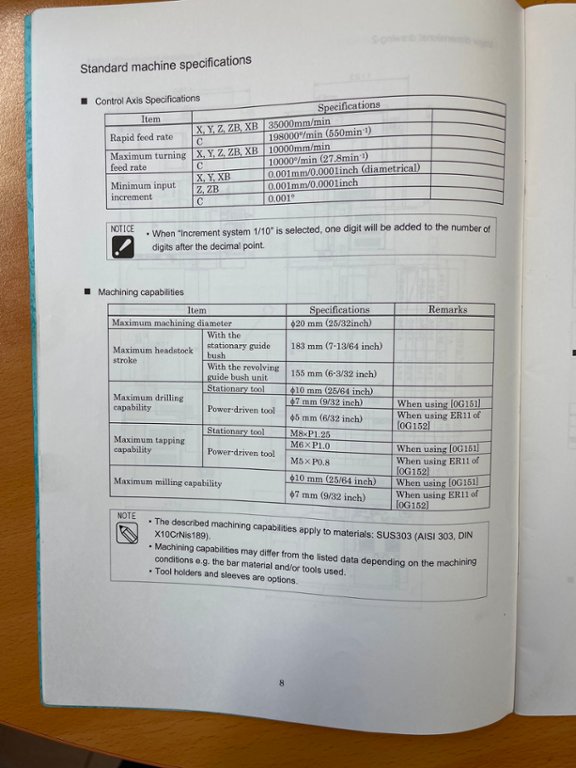

Rapid feed rate - X, Y, Z, ZB, XB - 35000mm/min C - 198000deg/min
Maximum turning feed rate - X, Y, Z, ZB, XB - 10000mm/min C - 10000deg/min
Minimum input increment - X, Y, XB - 0.001mm/0.0001inch (Diametrical) Z, ZB - 0.001mm/0.0001inch C - 0.001deg

Maximum machining diameter - 20mm

Maximum Headstock Stroke

With the stationary guide bush - 183mm
With the revolving guide bush unit - 155mm

Maximum Drilling Capability

Stationary tool - 10mm
Power-driven tool - 5mm

Maximum Tapping Capability

Stationary tool - M8 x P1.25
Power-driven tool - M5 x P0.8

Maximum Milling Capability - 10mm or 7mm

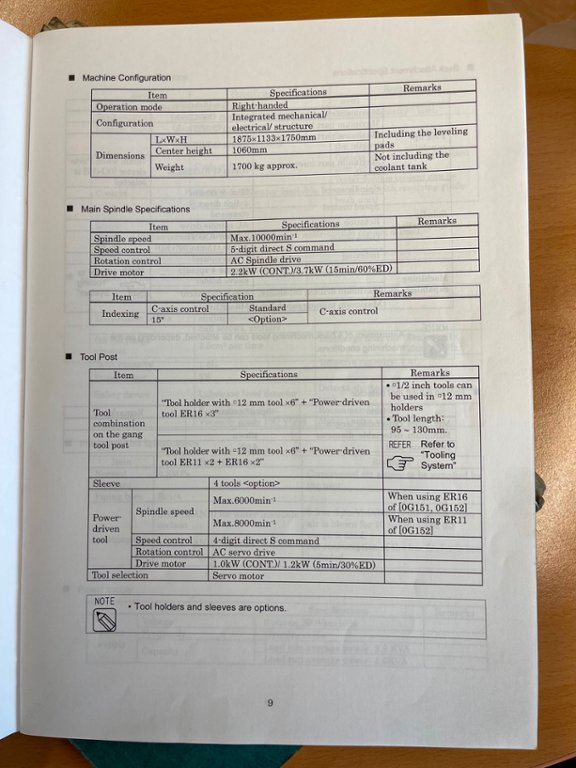

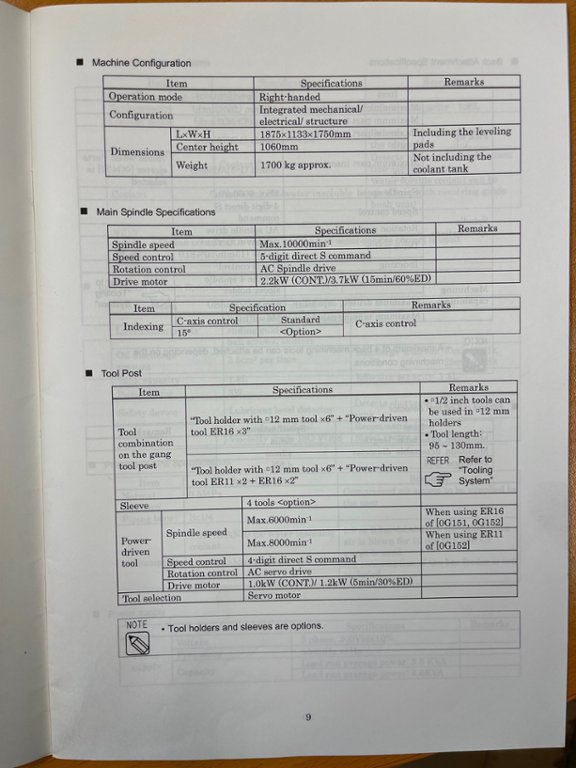

Spindle Speed - Max 10000min
Speed Control - 5-digit direct S command
Rotation Control - AC Spindle Drive
Drive Motor - 2.2kW (CONT)/2.7kW (15min/60%ED)

Indexing - C axis control - 15deg

Power driven tool

Spindle speed - Max 6000min - When using ER16. Max 8000min - When using ER11
Speed control - 4 digit direct S command
Rotation control - AC servo drive
Drive motor - 1.0kW (CONT)/1.2kW (5min/30%ED)
Tool Selection - Servo Motor

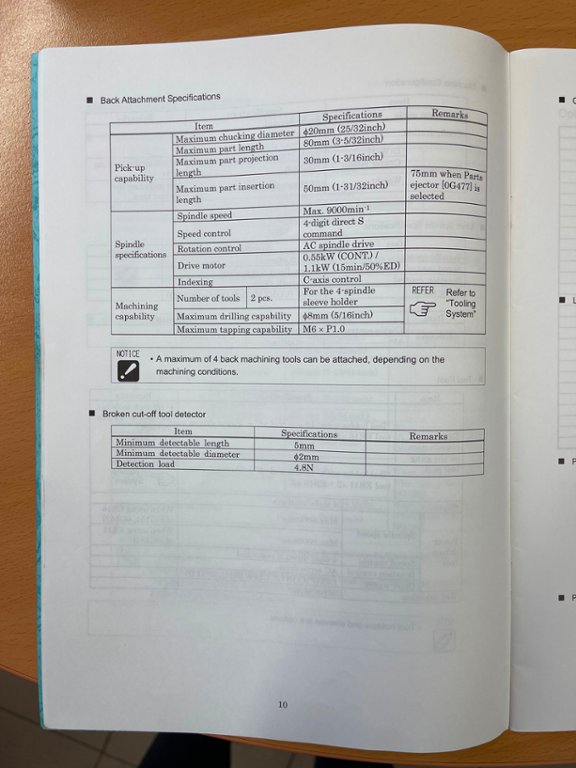

Maximum chucking diameter - 20mm
Maximum part length - 80mm
Maximum part projection length - 30mm
Maximum part insertion length - 50mm
Spindle speed - Max 9000min
Speed control - 4 digit direct S command
Rotation control - AC spindle drive
Drive motor - 0.55kW (CONT)/1.1kW (15min/50%ED)
Indexing - C-axis control

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
