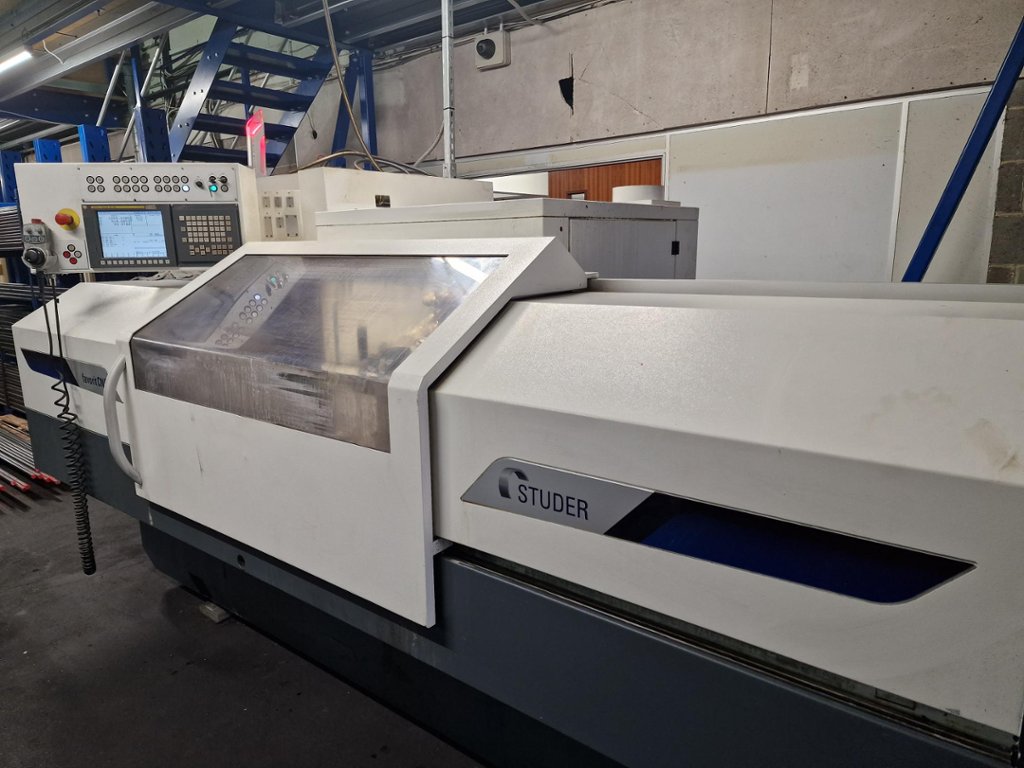

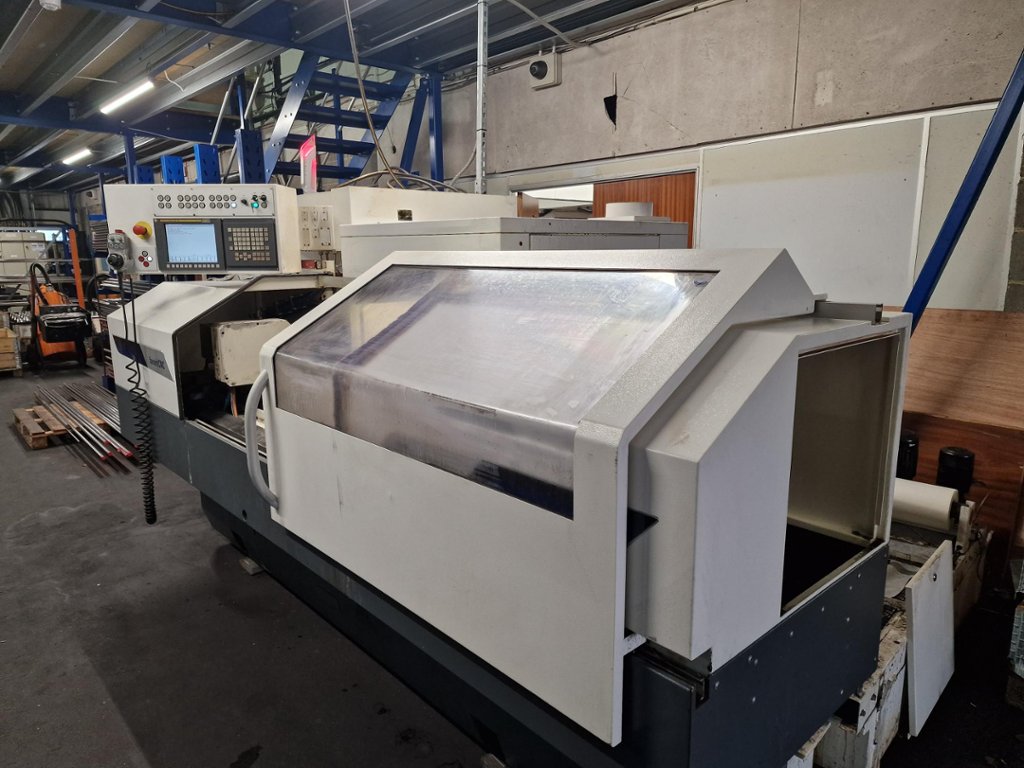

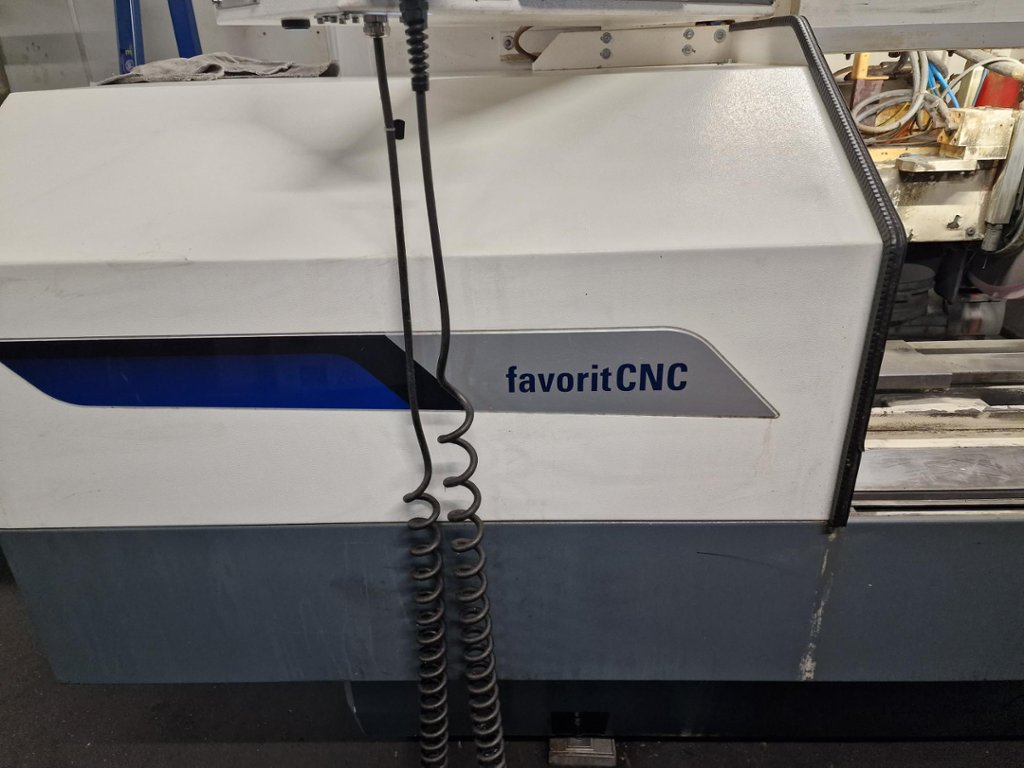

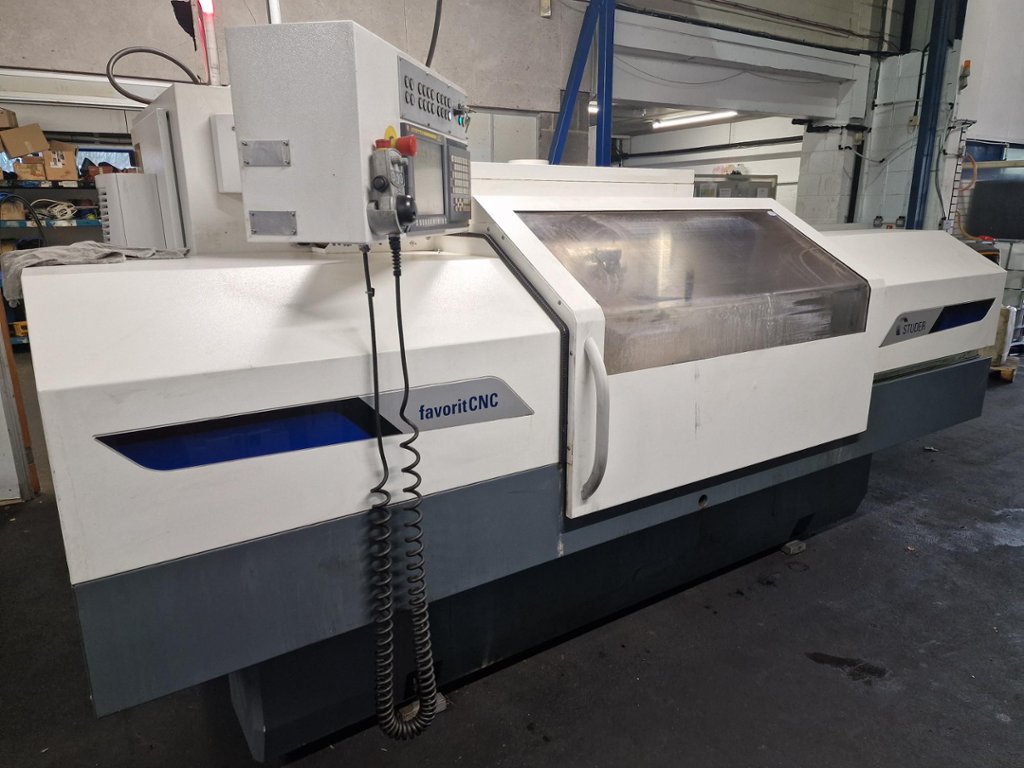

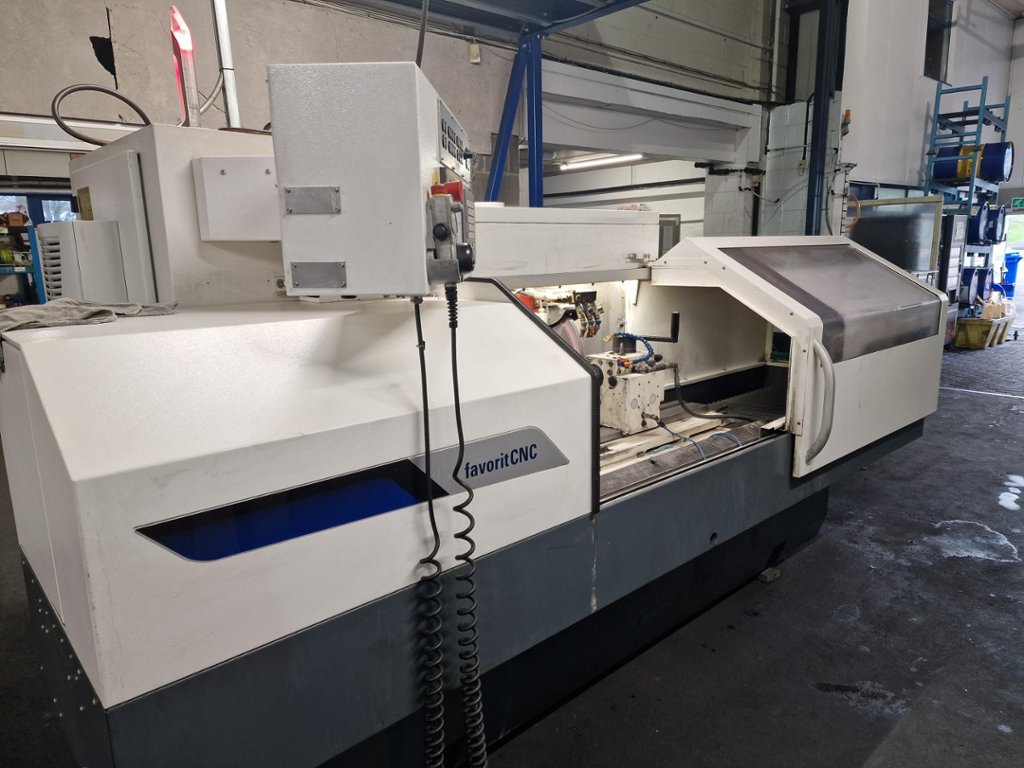

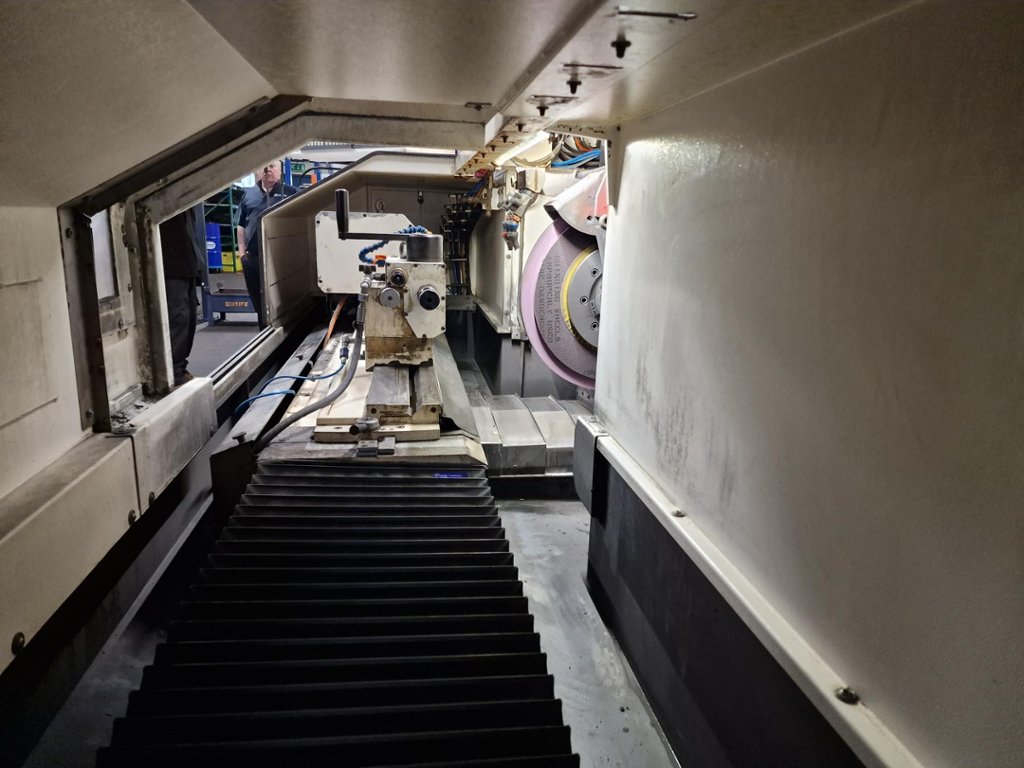

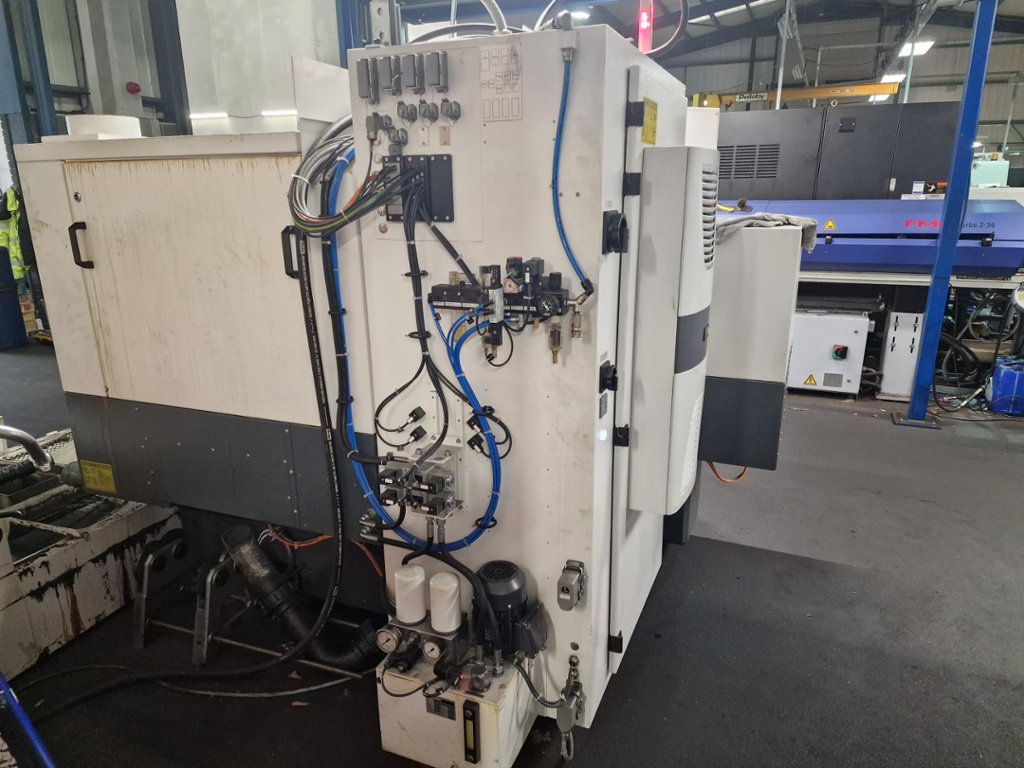

Studer Favorit 1000 CNC Universal External Cylindrical Grinder

Lot 1 - Studer Favorit 1000 CNC Universal External Cylindrical Grinder

Description:

Linear Axes
Max. Travel X285 mm
Max. Travel Speed X10'000 mm/min
Max. Travel Z1'150 mm
Max. Travel Speed Z20'000 mm/min
Spindle drive
Max. Spindle Power9 kW
Max. Number Of Revolutions2'810 /min

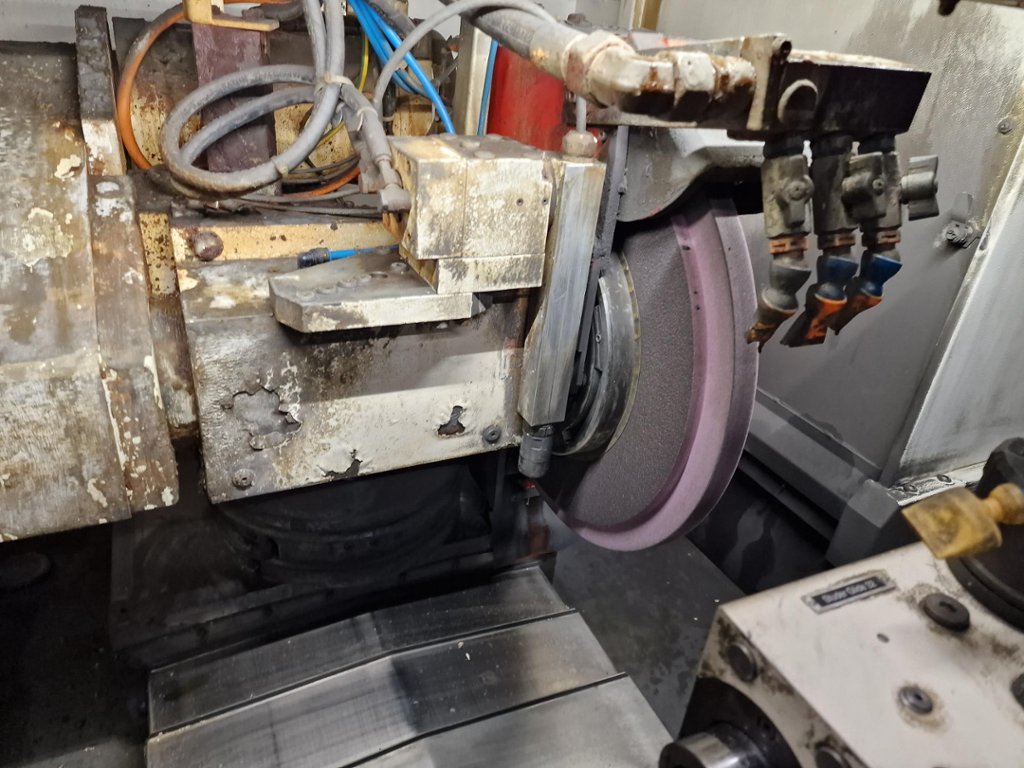

Max. Grinding Wheel Diameter508 mm
Max. Grinding Wheel Width80 mm
Swiveling Axes
Swiveling Range B210 °
Swiveling Range C∞ °

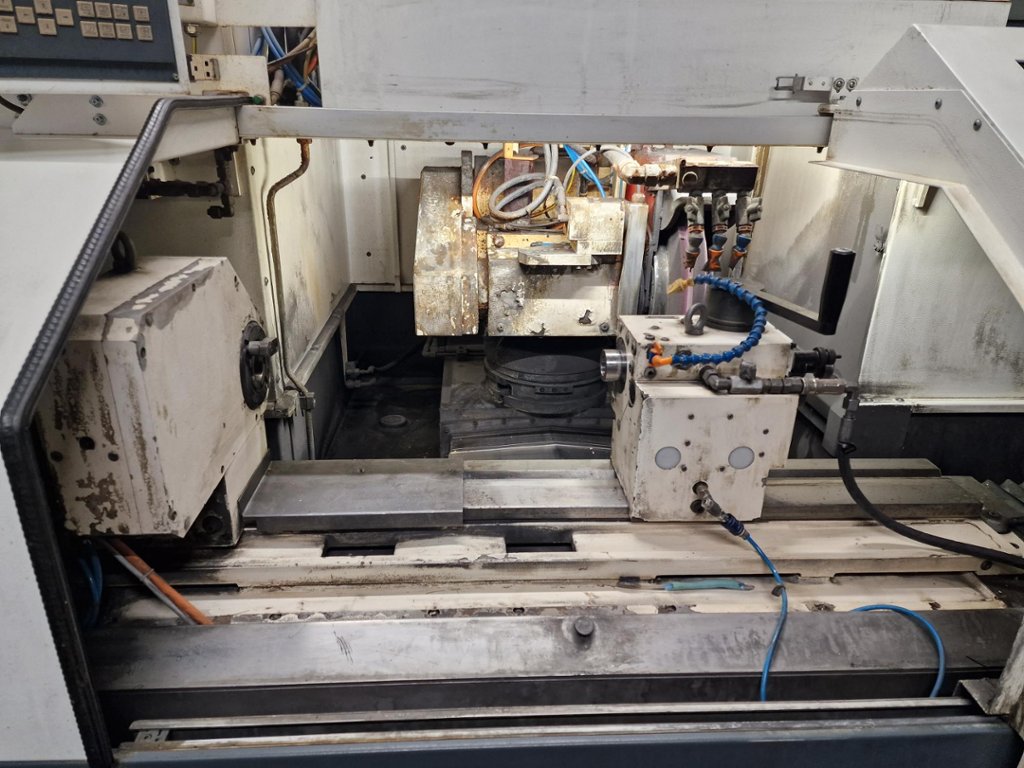

Workpiece Data
Workpiece Length1'030 mm
Workpiece Diameter349 mm
Max. Workpiece Weight120 kg
Distance Between Centers1'000 mm
Center Height175 mm

Manuals included

* Can be seen running

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
