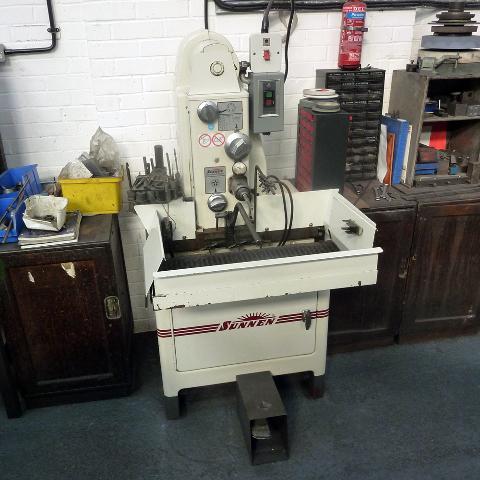

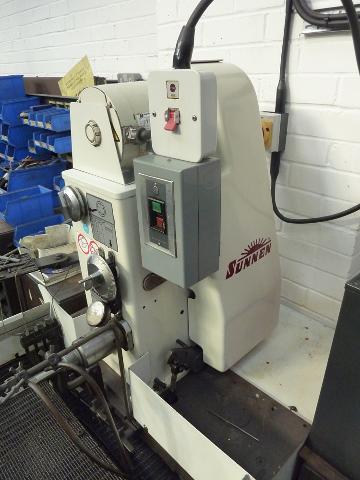

SUNNEN MBB-1660 Honing Machine

Lot 26 - SUNNEN MBB-1660 Honing Machine

Description:

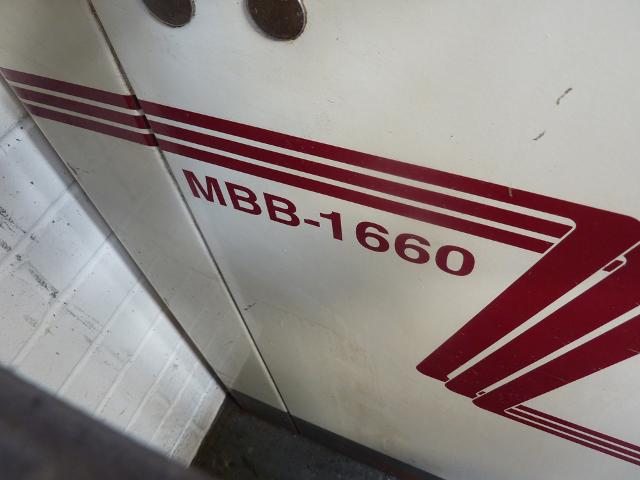

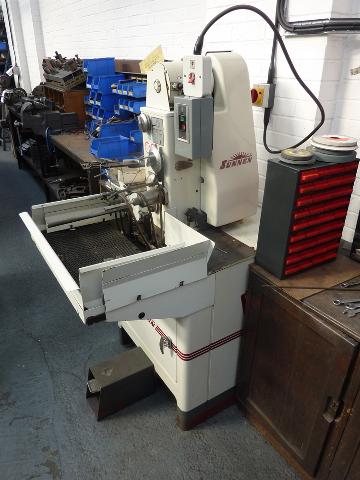

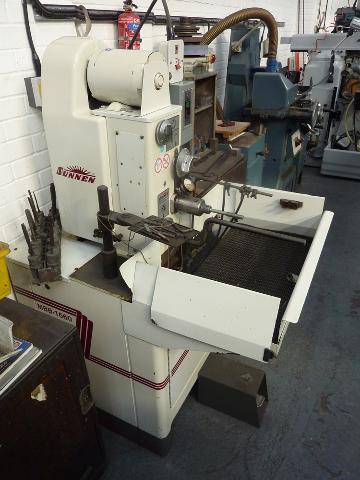

SUNNEN MBB-1660 Honing Machine

sn. 92677
Excellent condition, Hardly Used
Bought from new in 2000

Downlaod Brochure

Location: Birmingham

Features :

•

The Sunnen MBB-1660 hones bores of any configuration. 0.060” to 6.5” (1.5 to 165 mm) in diameter. 1/8” to 16” (3 to 400 mm) long.

•

Sunnen Honing clears up these bore errors with the latest possible stock removal. In many cases, this is the difference between scrapping or saving a run of expensive pieces.

•

Sunnen Honing cuts material fast and clean such as : Alnico, Aluminum, Carbide, Ceramics, Ferrite, Fiberglass, Gold, Graphite, Hasteloy, Invar, M2 Steel, Monel, Nylatron, Plexiglass, Porcelain, Quartz, Silicon, Stainless Steel, Tantalum, Zircaloy.

Specification
I.D. Range	.060” to 6.5” (1.5 mm to 165 mm)
Length Range	Hones bores up to 16” (400 mm) in length, depending on bore diameter

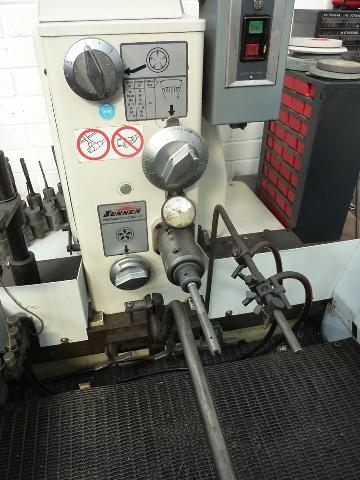

Spindle Speeds	200, 250, 320, 400, 500, 640, 800, 1000, 1270, 1600, 2000, 2500
Setup Time	10 minutes
Spindle Motor	½-horsepower
Spindel brake	Self-energizing band-type
Honing Oil Pump	Utilizes spindle drive motor

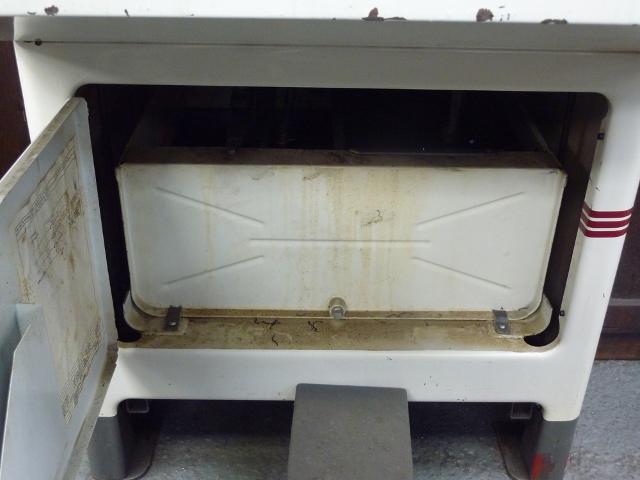

Honing Oil Capacity	16 gallons (60 liters)
Filter System	Optional PF-150 Filter available
Floor Space	30” (762mm) wide; 60” (1524mm); 63” (1600mm)
Electrical System	1-phase-115/230V,60Hz or 220V,50Hz
Options	3-phase-230/460V,60Hz or 220/380V,50Hz or 440V,50Hz (Can be supplied for any frequency or voltage for which motors are available)
Weight	630 pounds (287 kilograms)

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
