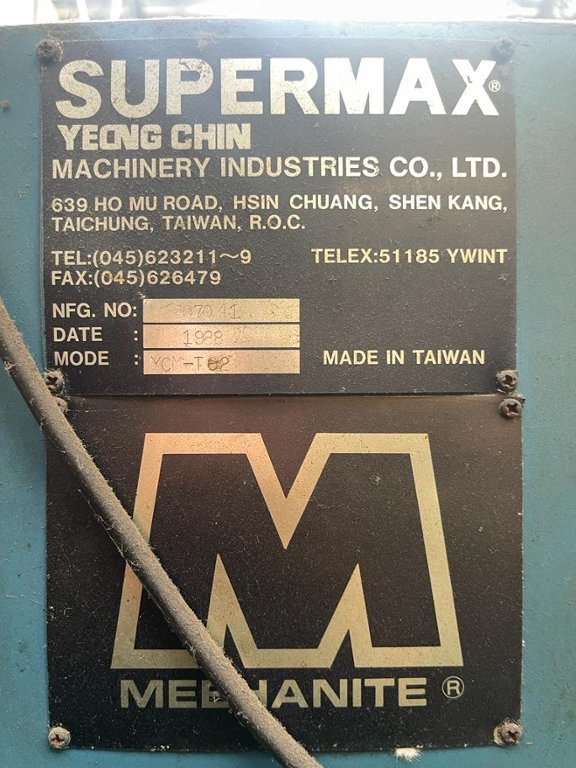

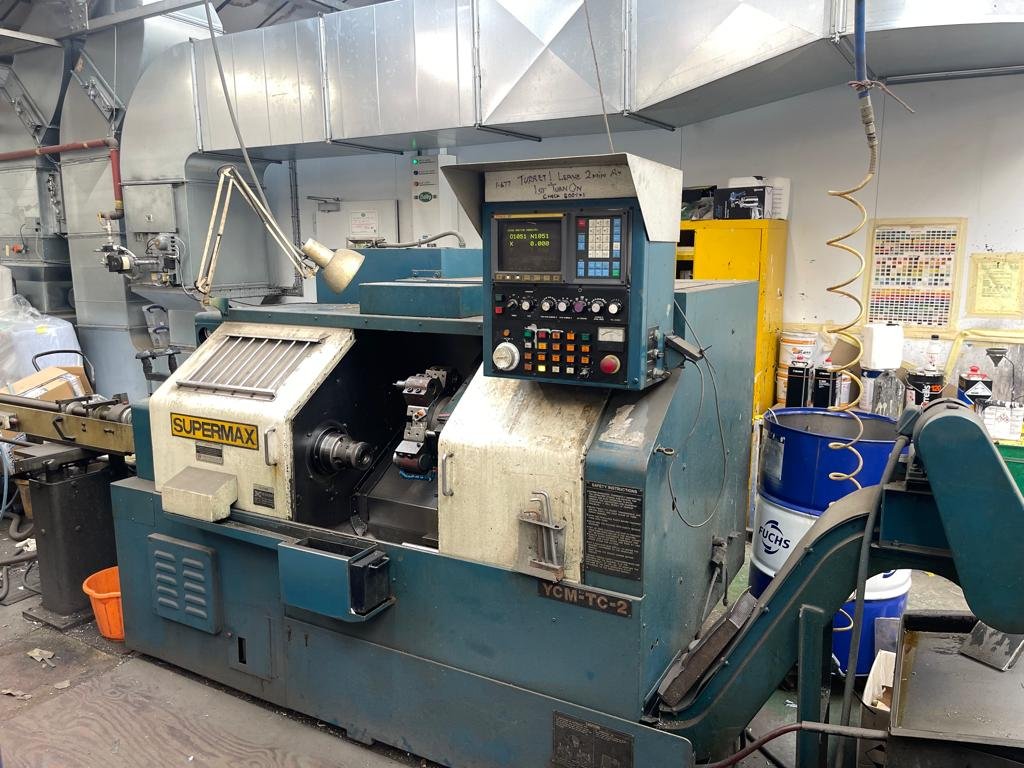

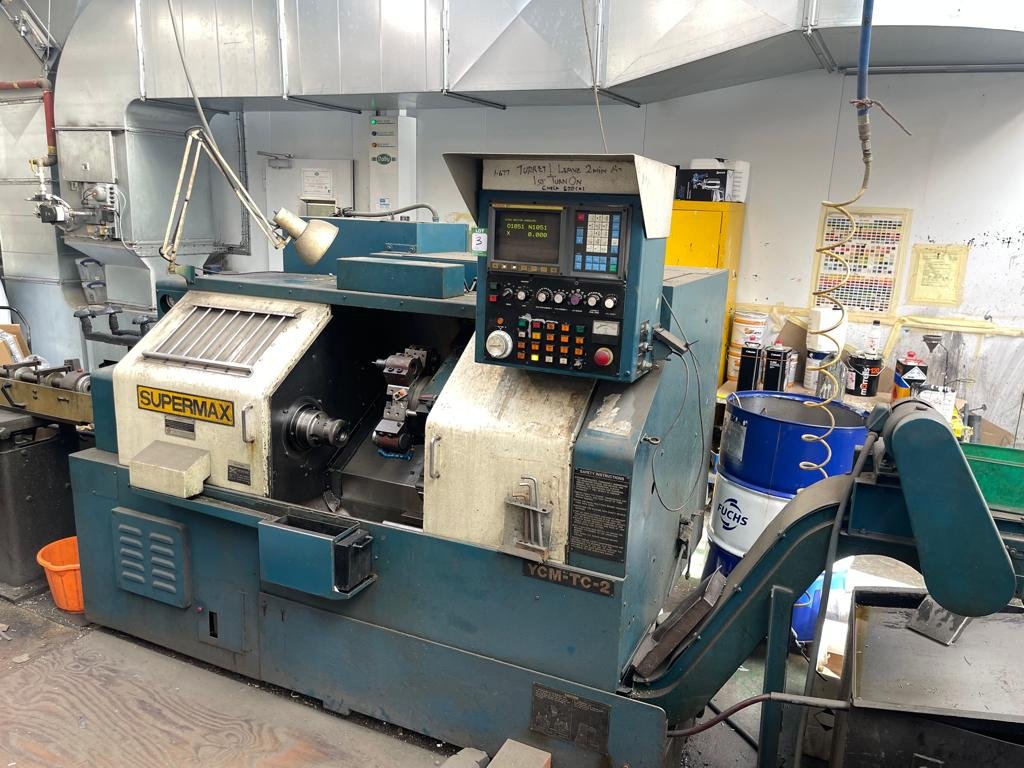

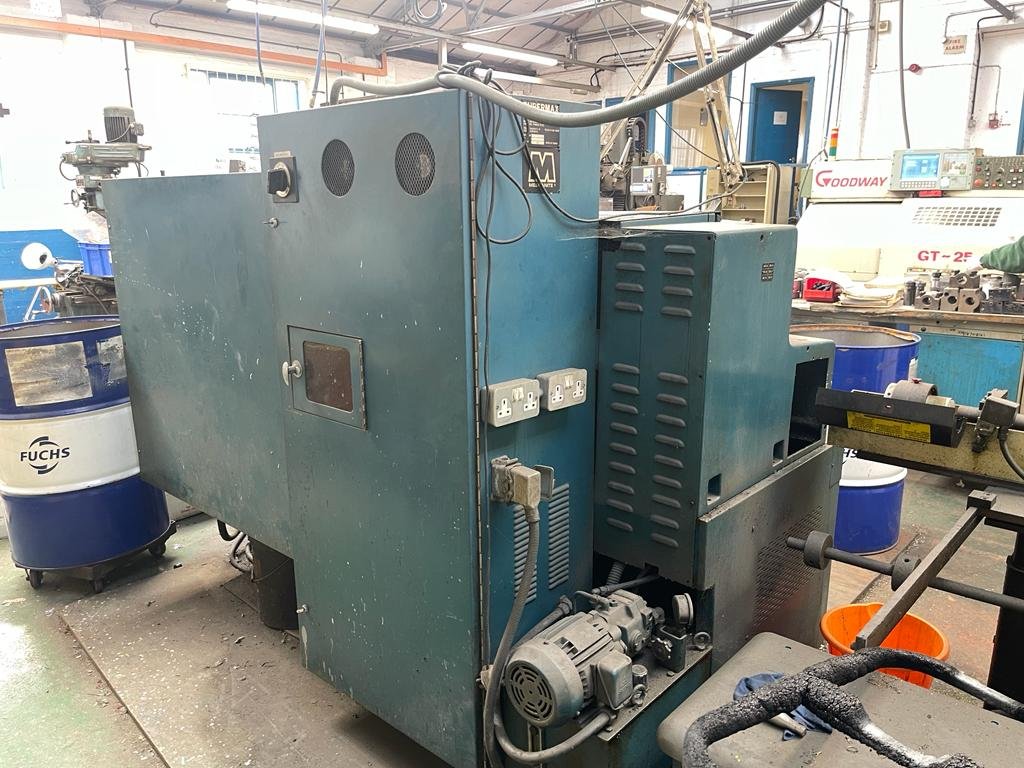

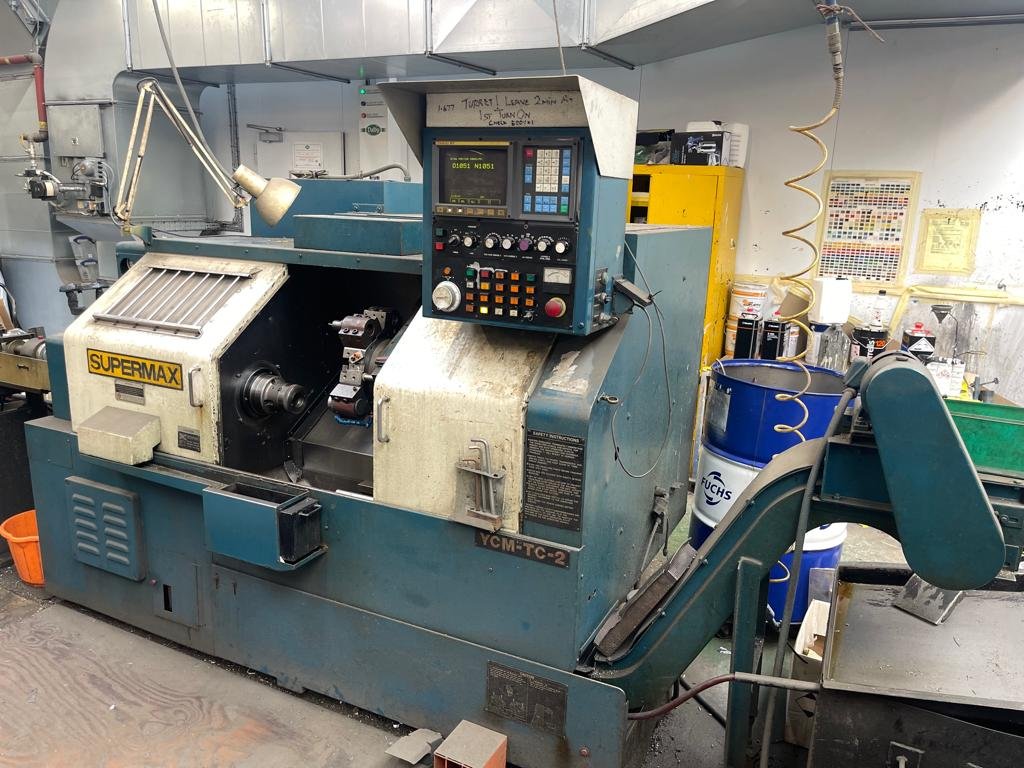

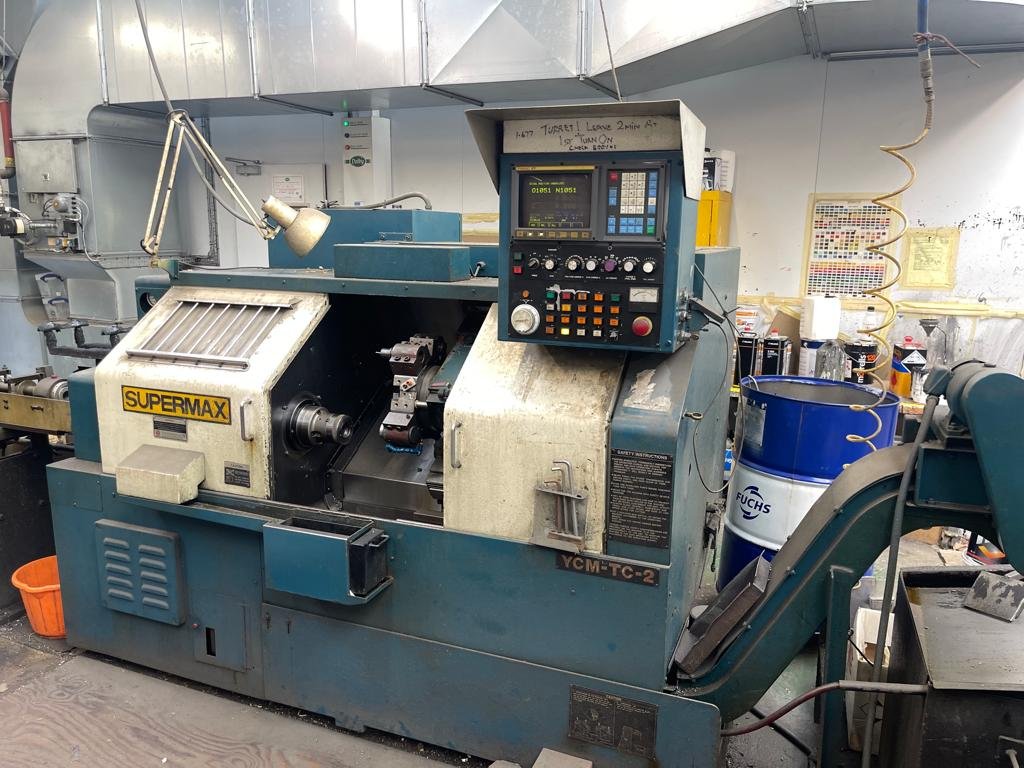

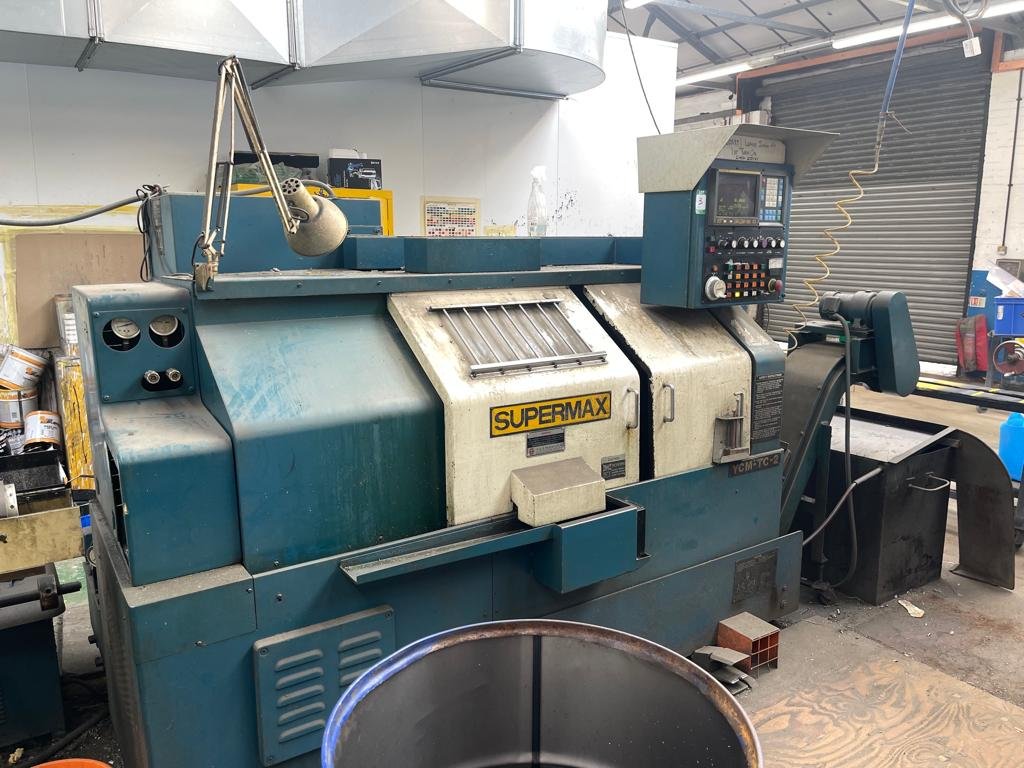

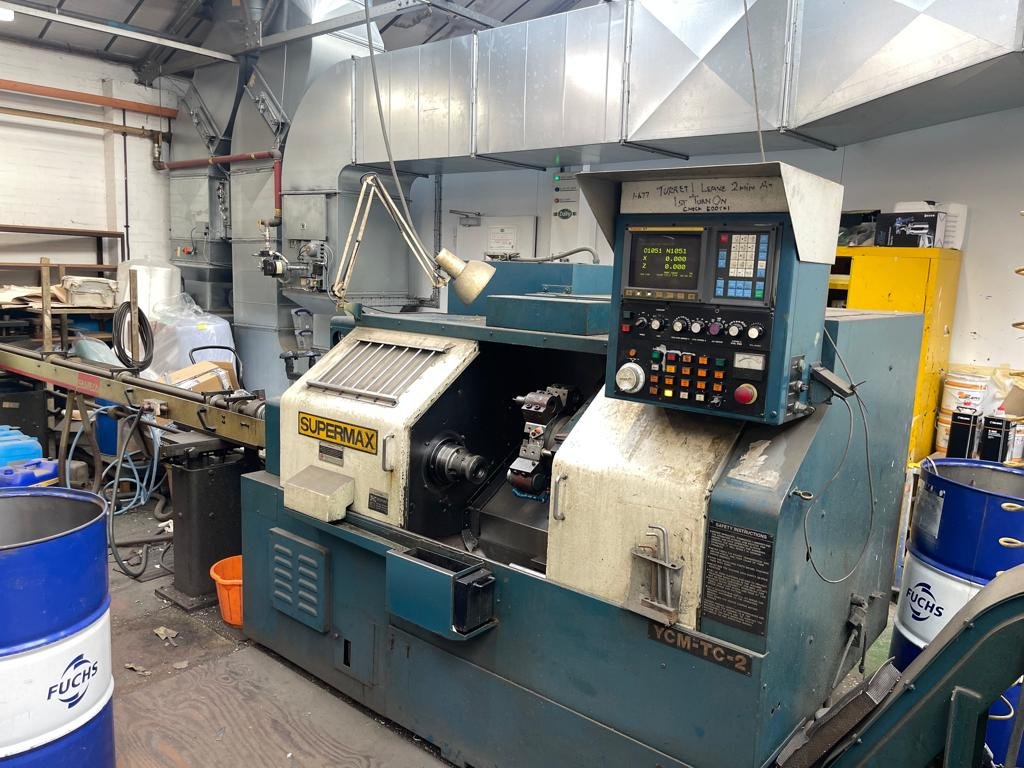

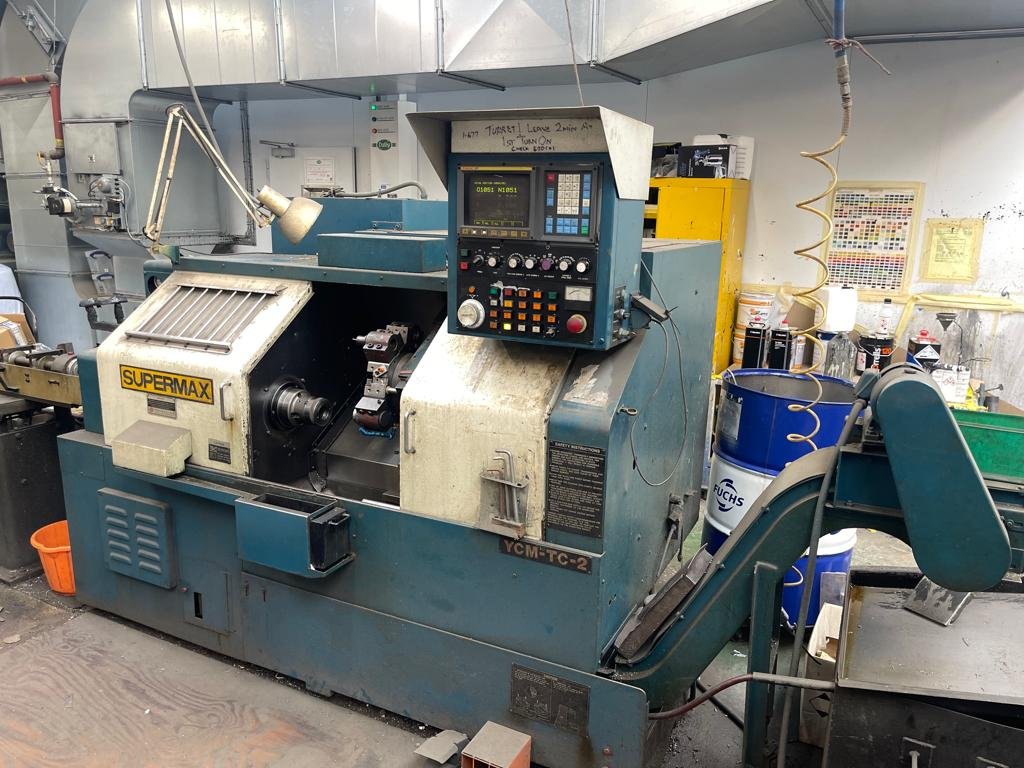

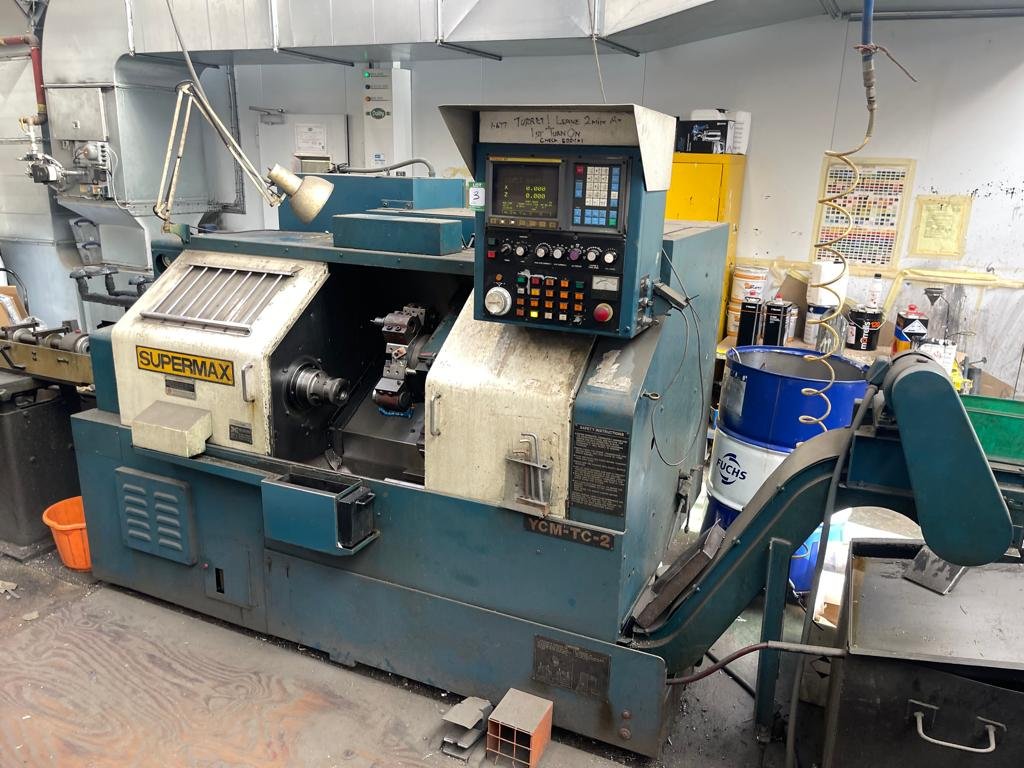

Supermax YCM-TC2 CNC Lathe (1988)

Lot 3 - Supermax YCM-TC2 CNC Lathe (1988)

Description:

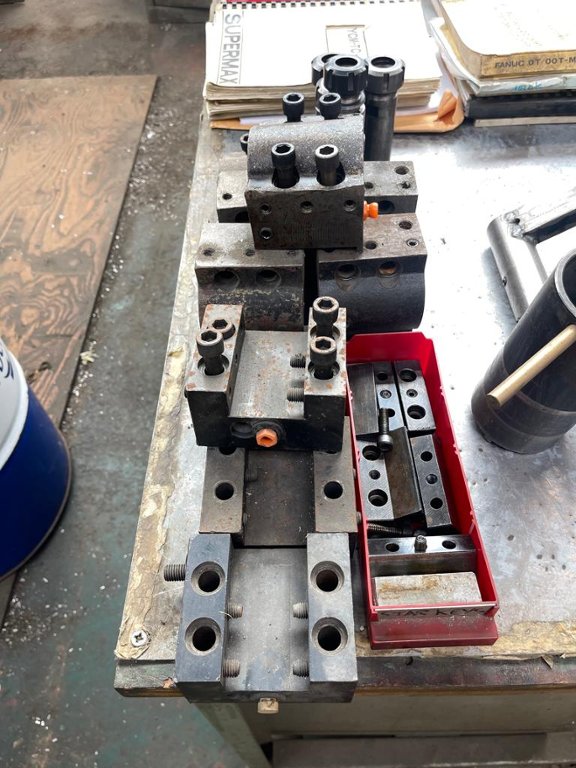

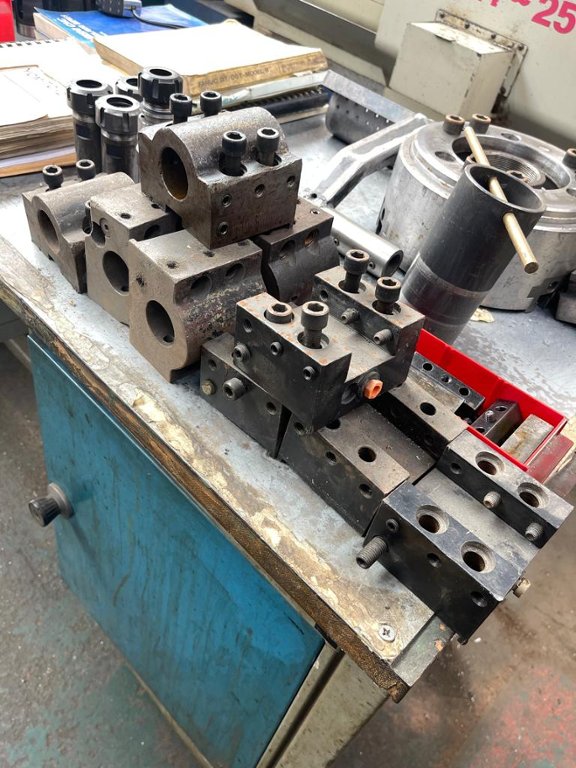

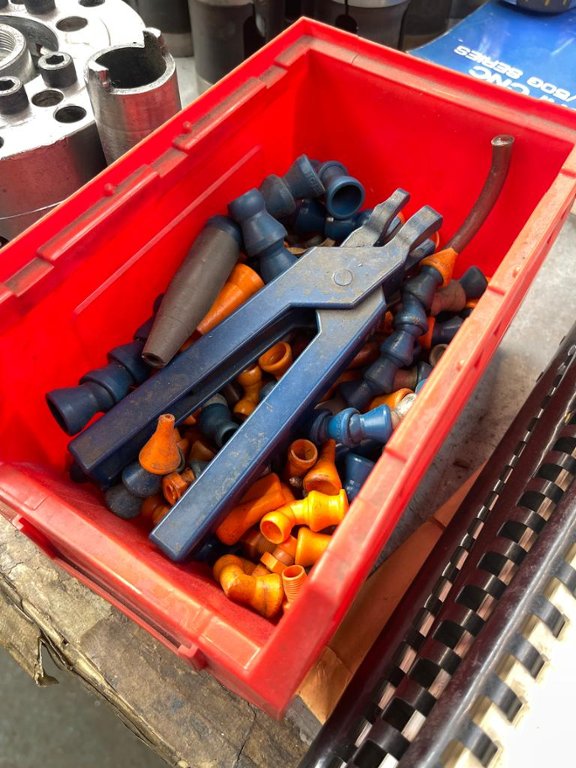

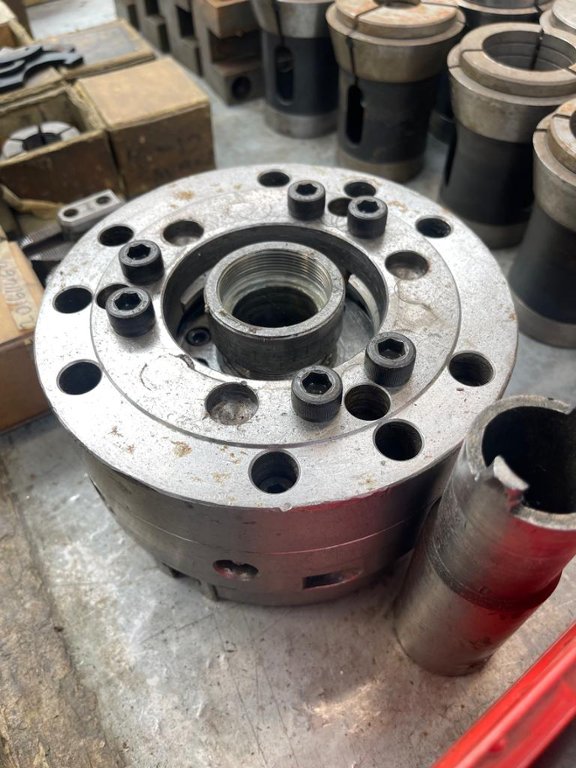

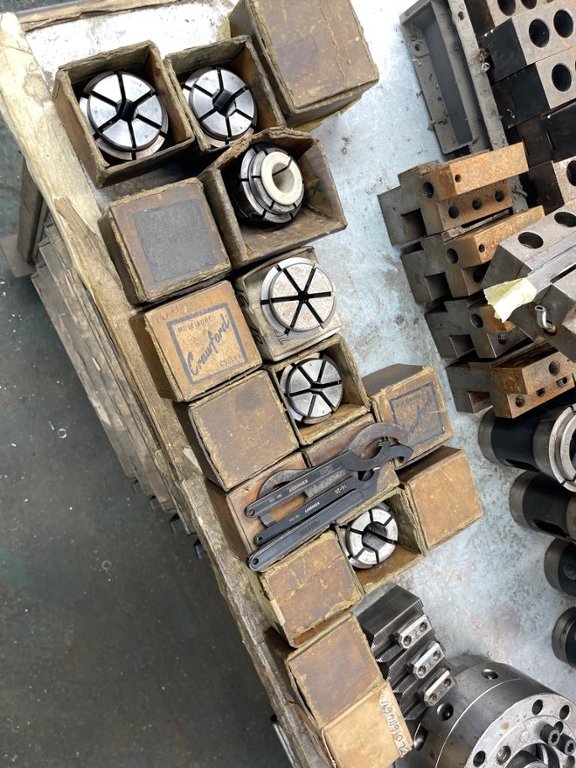

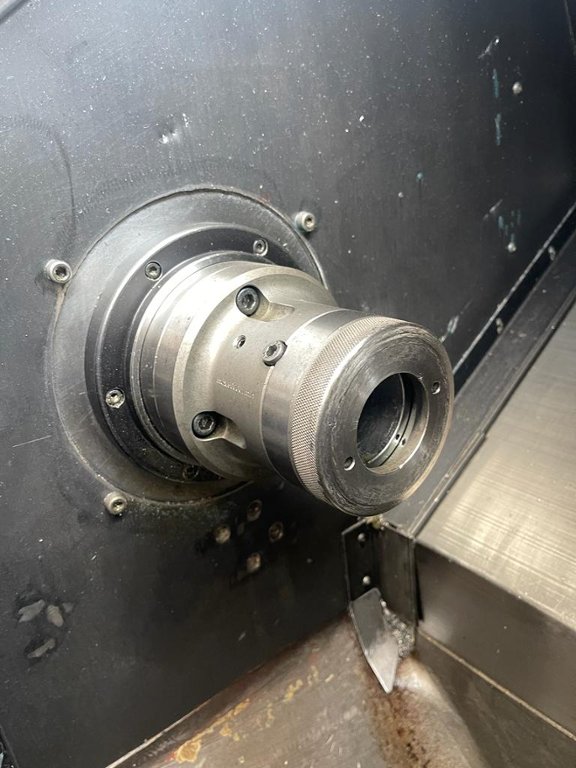

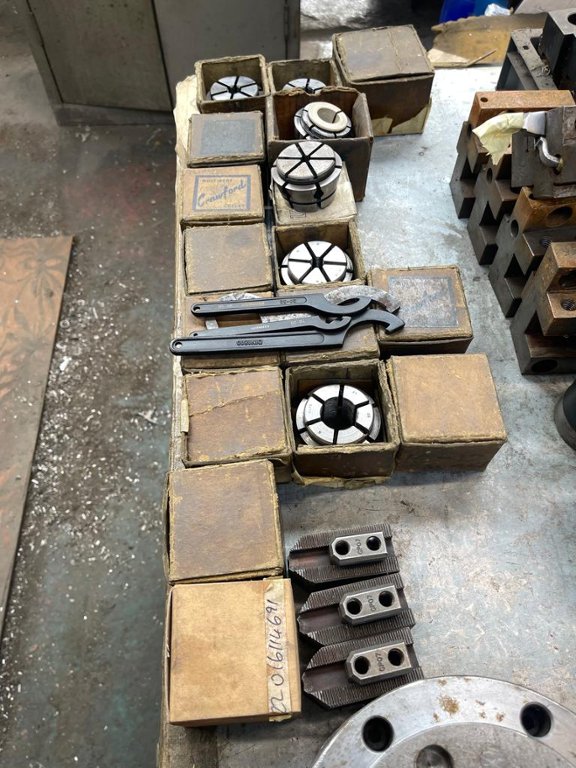

Comes with manuals, 1 7" chuck and selection of collets & tooling

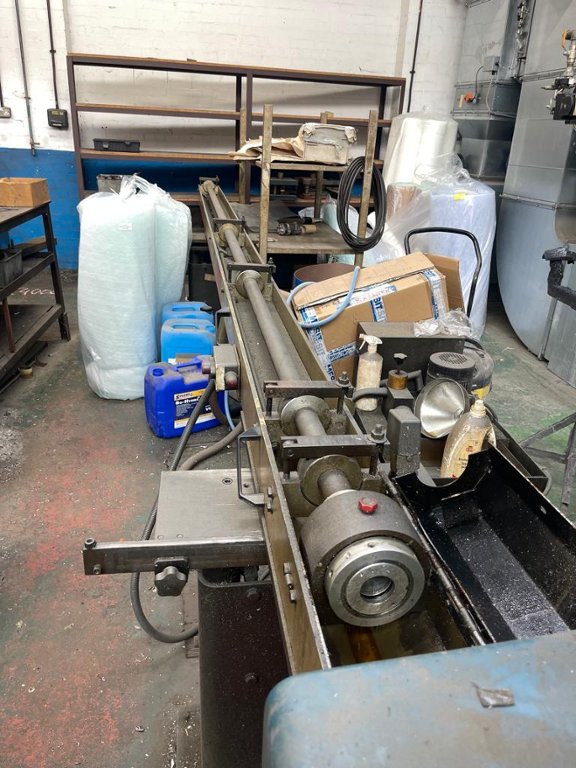

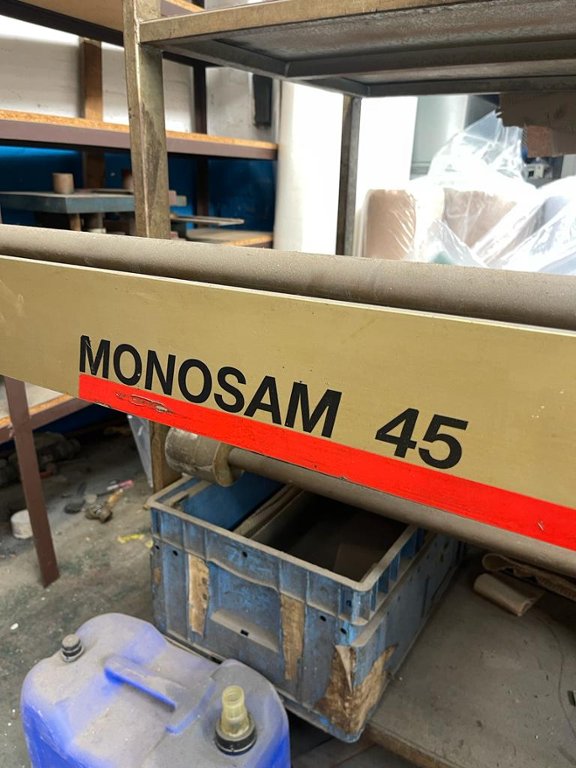

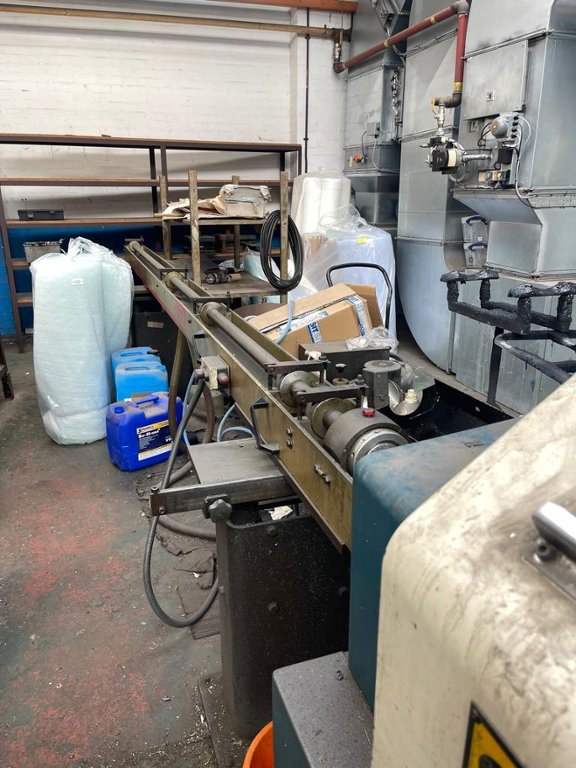

Barfeed - 15.5'

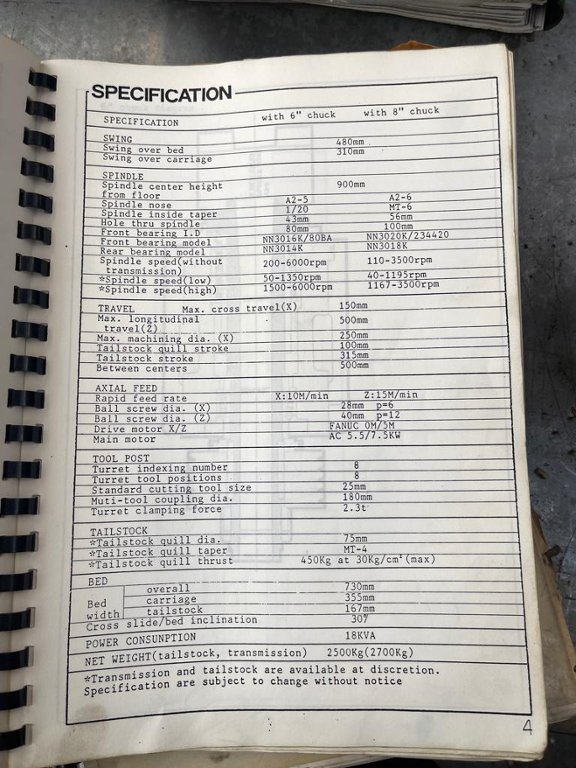

Swing over bed - 480mm, Swing over carriage - 310mm, Spindle center height from floor - 900mm.

With 6" Chuck

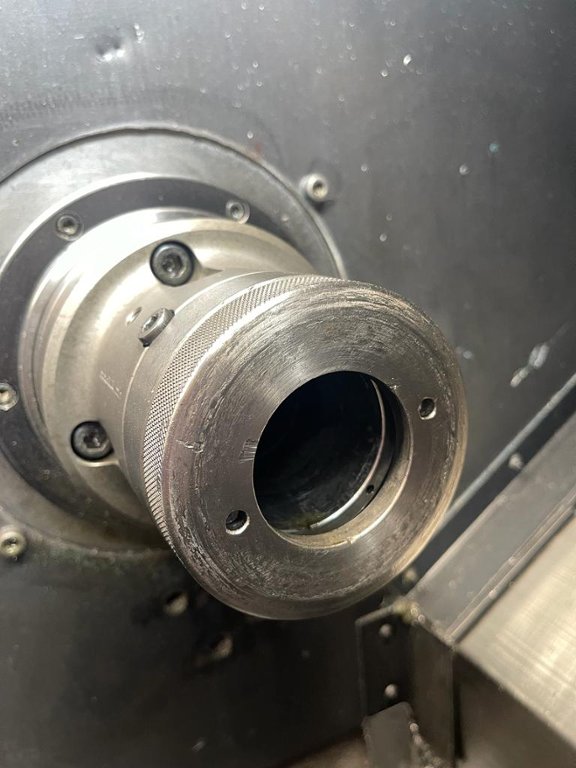

Spindle nose - A2-5, Spindle inside taper - 1/20, Hole thru spindle - 43mm, Front bearing I.D - 80mm, Front bearing model - NN3016K/80BA, Rear bearing model - NN3014K, Spindle speed (without transmission) - 200-6000rpm, Spindle speed (low) - 50-1350rpm, spindle speed(high) - 1500-6000rpm

With 8" Chuck

Spindle nose - A2-6, Spindle inside taper - MT-6, Hole thru spindle - 56mm, Front bearing I.D - 100mm, Front bearing model - NN3020K/234420, Rear bearing model - NN3018K, Spindle speed (without transmission) - 110-3500rpm, Spindle speed (low) - 40-1195rpm, spindle speed(high) - 1167-3500rpm

Travel

Max cross travel (X) - 150mm, Max longitudinal travel (Z) -500mm, Max machining dia (X) - 250mm, Tailstock quill stroke - 100mm, Tailstock stroke - 315mm, Between centres - 500mm

Axial Feed

Rapid feed rate - X - 10M/min - Z - 15M/min, Ball screw dia (X) - 28mm P=6, Ball screw dia (Z) - 40mm P=12, Drive motor X/Z - Fanuc 0M/5M, Main Motor - AC 5.5/7.5kw

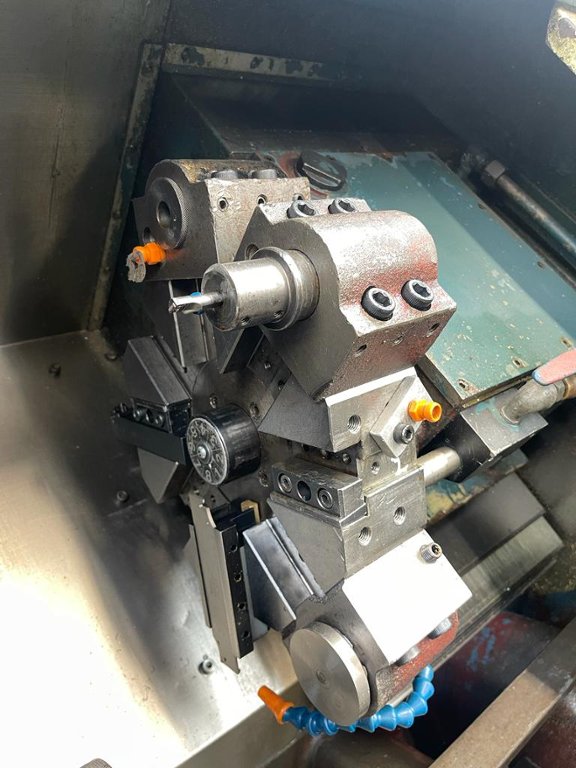

Tool Post

Turret indexing number - 8, Turret tool positions - 8, Standard cutting tool size - 25mm, Mulit-tool coupling dia - 180mm, Turret clamping force - 2.3T

Bed

Bed width overall - 730mm, Bed width carriage - 355mm, Bed width tailstock - 167mm

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
