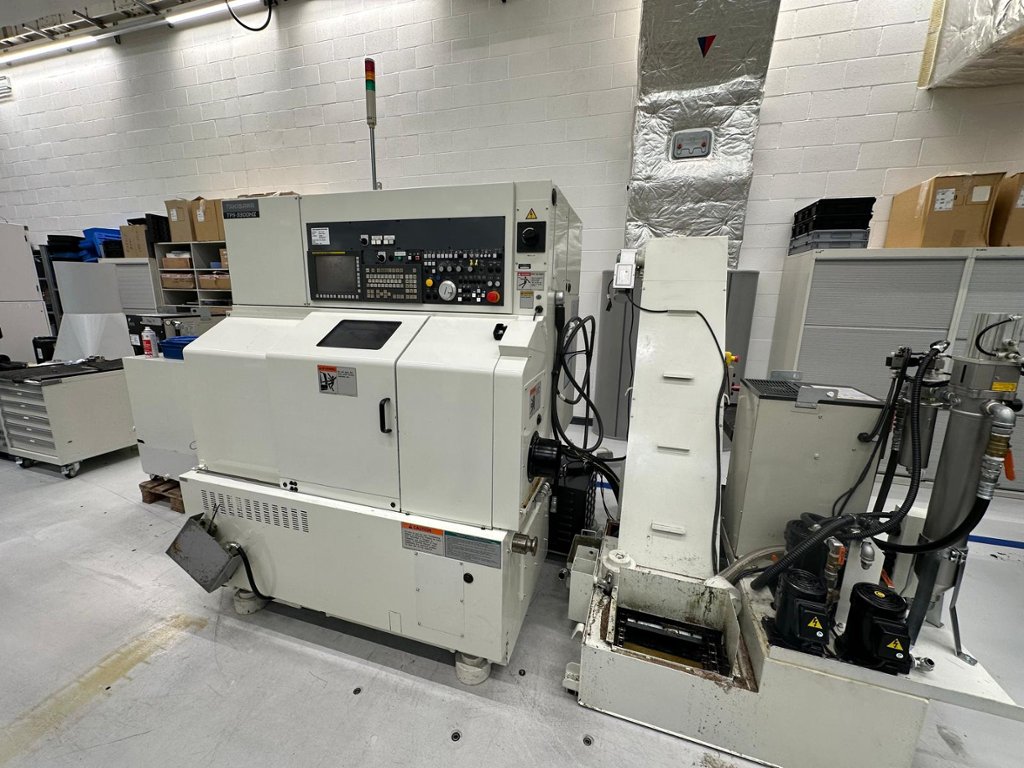

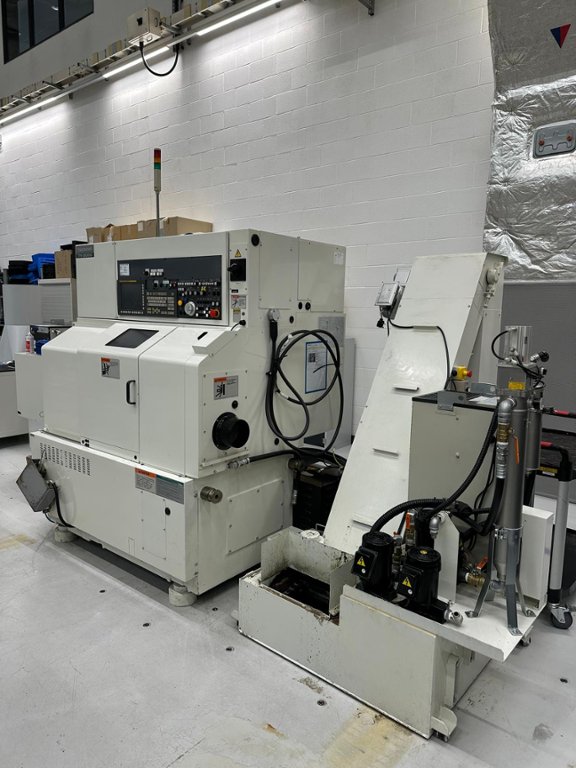

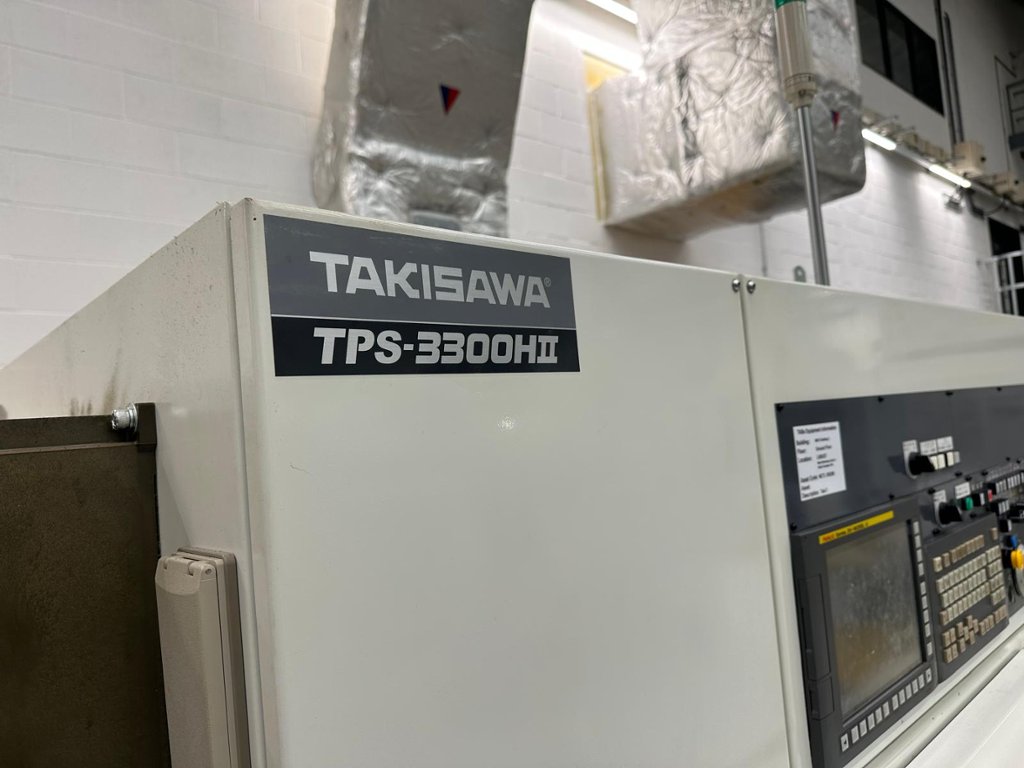

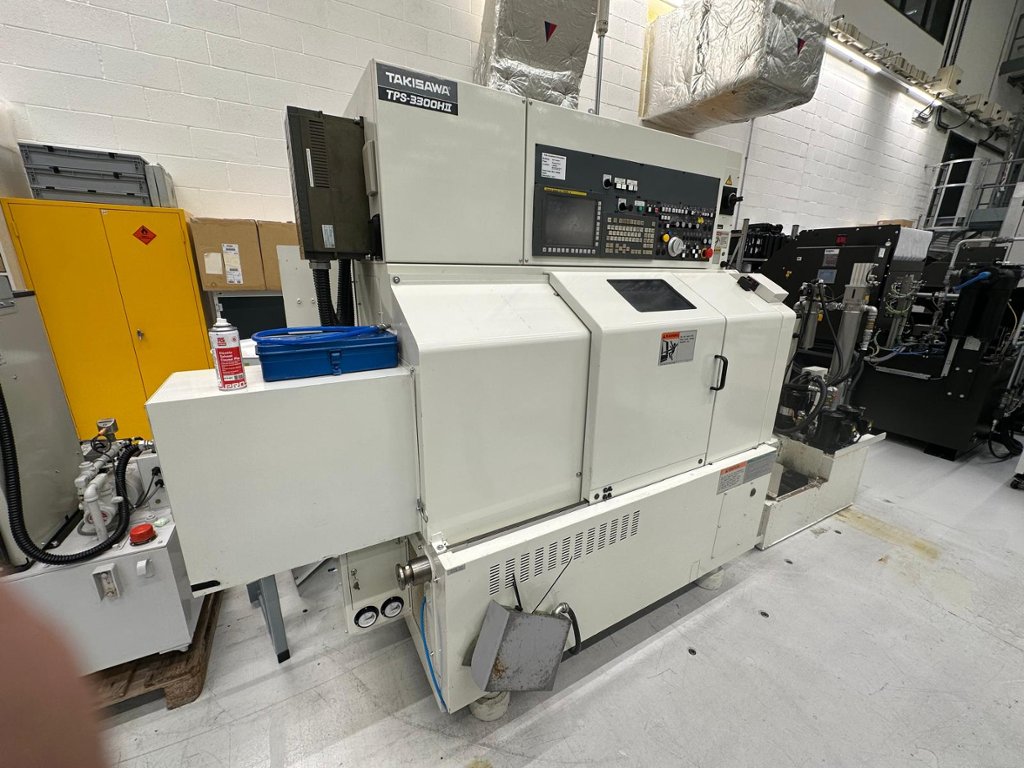

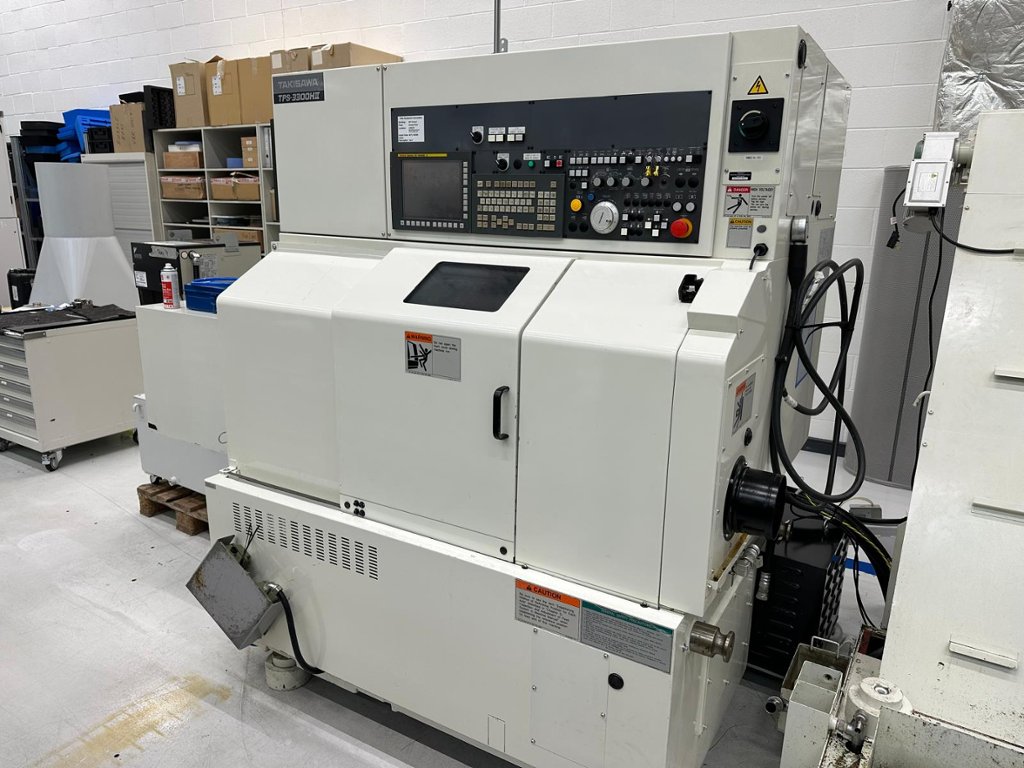

Takisawa TPS-3300HII CNC Lathe

Lot 2 - Takisawa TPS-3300HII CNC Lathe

Description:

The TAKISAWA TPS-3300HII is a dedicated 3D machining center for piston pin-holes, engineered for high-accuracy bell-shaped and oval internal profiles used in automotive pistons.

Overview
TAKISAWA's TPS-3300HII delivers a complete solution for piston pin-hole machining. It integrates dedicated interactive programming software (TPPF3) for simplified 3D program creation and combines CNC lathe functions with an ultra-high-speed rotating tool spindle to perform precise internal 3-dimensional machining and high-speed finishing. The machine's spiral scraping method and high-precision ceramic mechanism achieve mirror-like surface finishes and tight dimensional tolerances suitable for standard and high-performance applications.

Key capabilities
Purpose-built for piston pin-hole machining, supporting bell-shaped, oval and stepped internal profiles.
Built-in TAKISAWA piston machining programming software (TPPF3) for streamlined 3D program generation.
Combination of CNC lathe axes and ultra-high-speed rotating tool spindle for internal 3D machining and high-speed finishing.
Unique spiral scraping machining method enabling high-accuracy contouring and mirror-like surface finishes.
Enables new piston designs that support energy-saving and environmental objectives.

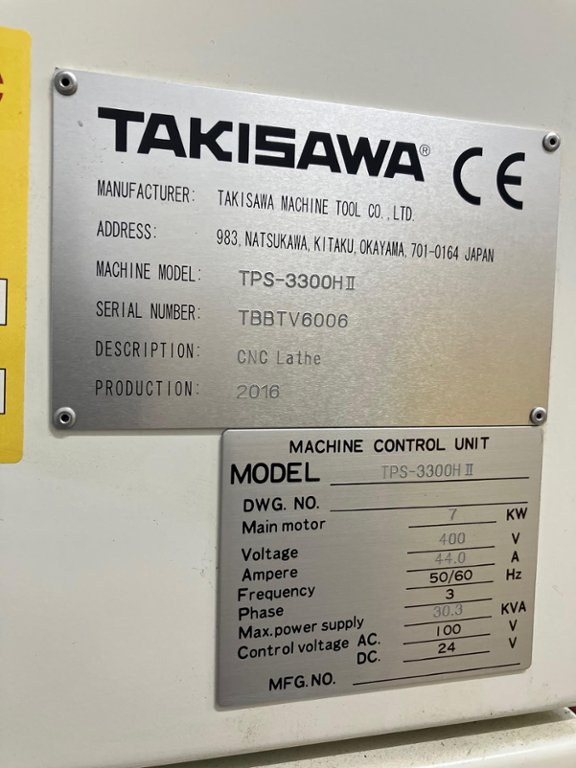

Technical specifications
Spindle Speed (min⁻¹): Left Spindle: 1000 / Rotating Tool: 42000
Type of Turret: Tool Spindle
Spindle Motor (kW): 7 / Rotating Tool: 15
Electric Power (kVA): 30.3
Air Pressure Source (MPa): 0.5

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
