Lot 22 - Talyrond 50 – Retrofitted with Logitrace v 2011.1 Windows software
Description:

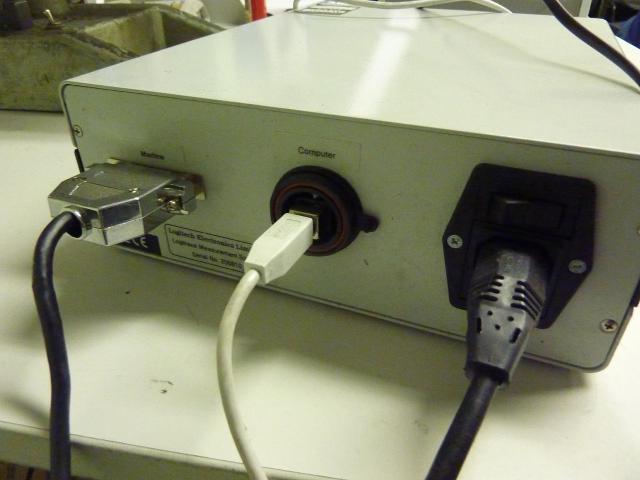

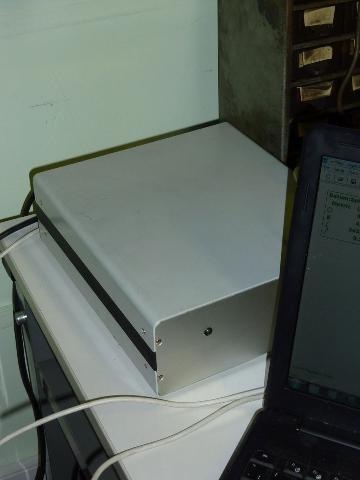

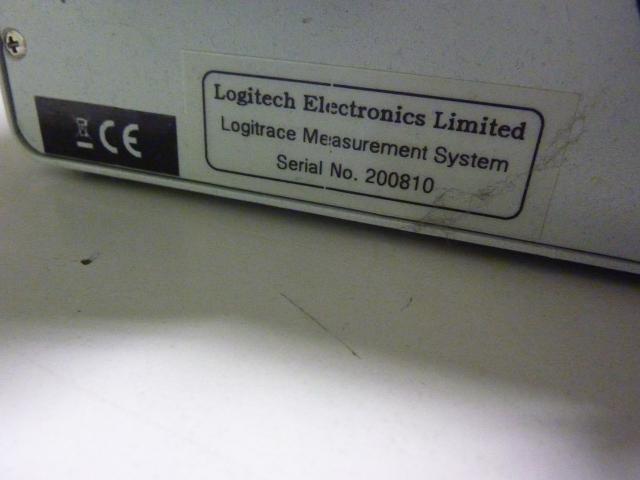

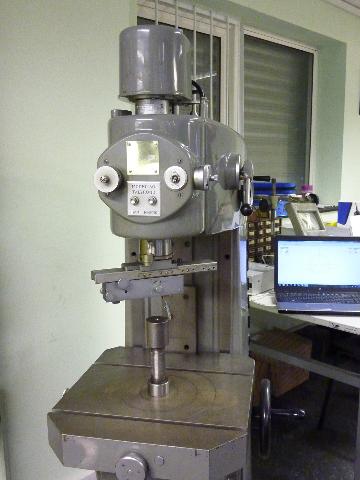

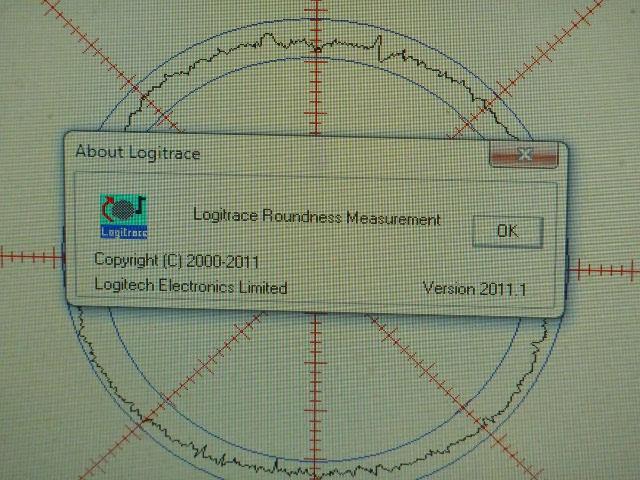

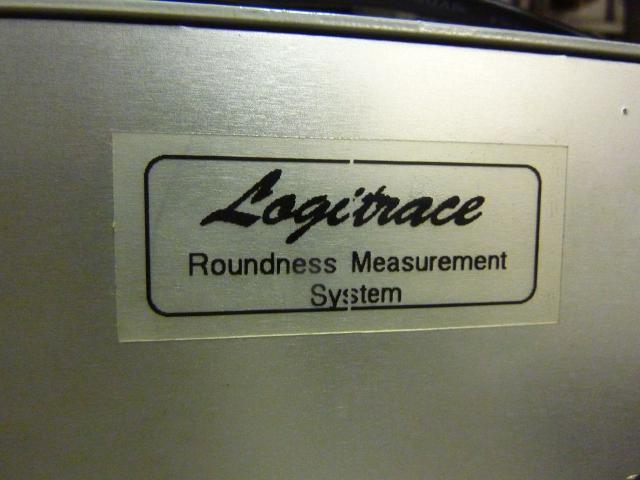

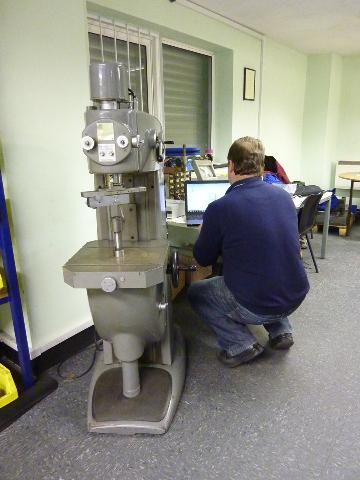

Talyrond 50 – Retrofitted with Logitrace v 2011.1 Windows software

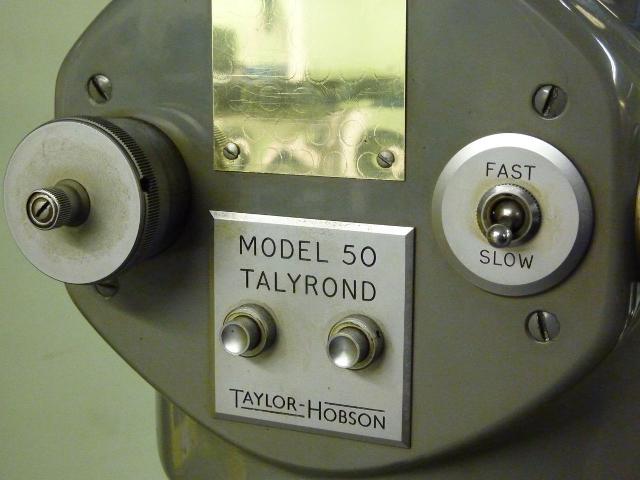

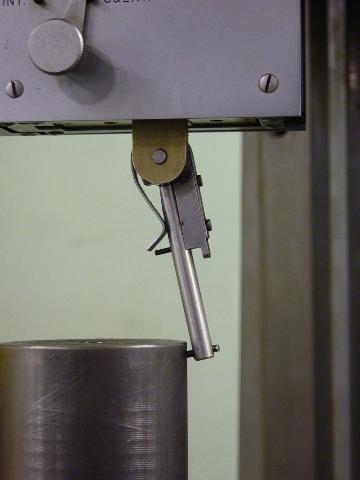

Self standing robust constructionRotating Spindle - easy centeringRotation speed: 3rpm Centering Coarse & Fine KnobsMax work piece diameter: 400 mmMax measurable diameter: 300mmStylus resolution: 0,01 - 0,05 μmStylus measuring range: 600 μm Polar filter: 1 - 15, 1- 50, 1- 150, 1 – 500, 15 – 150, 15- 500Harmonics: in 4 bandsParameters: Roundness, Concentricity, Eccentricity, Flatness, Squareness, Coaxiality, Run-out

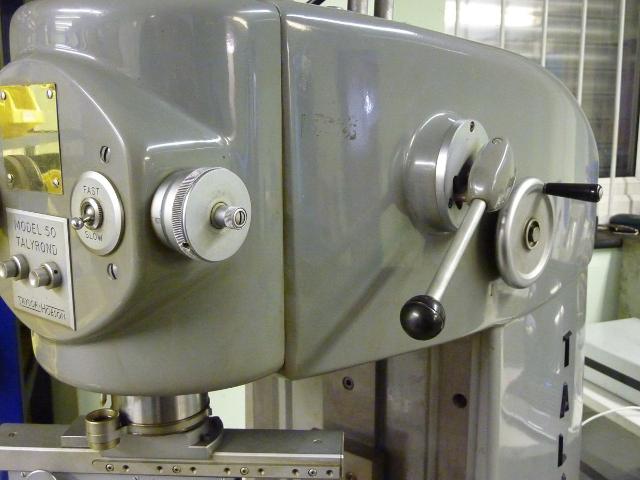

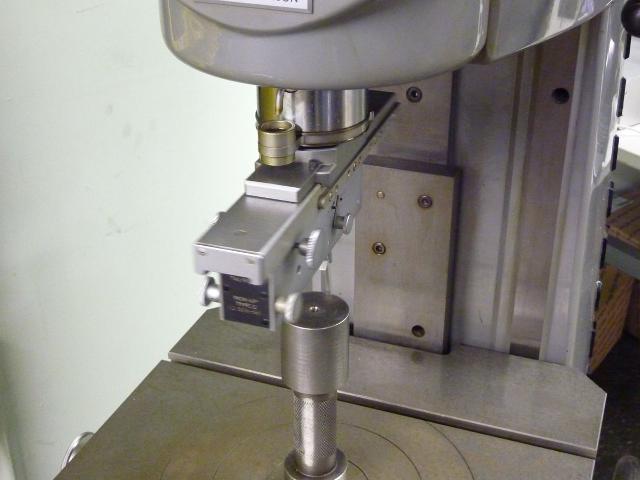

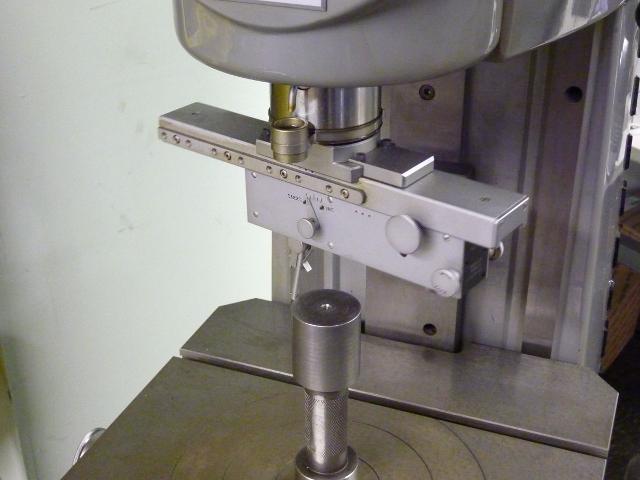

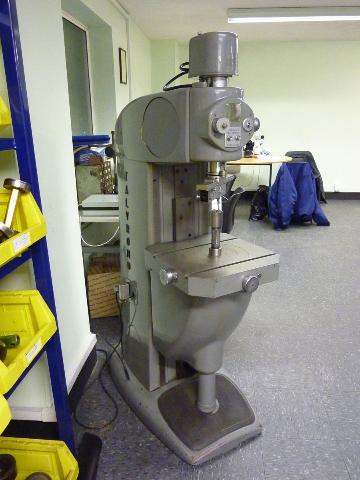

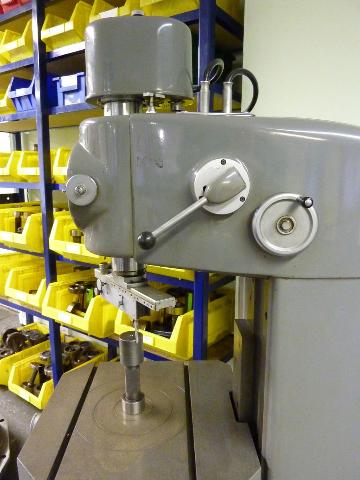

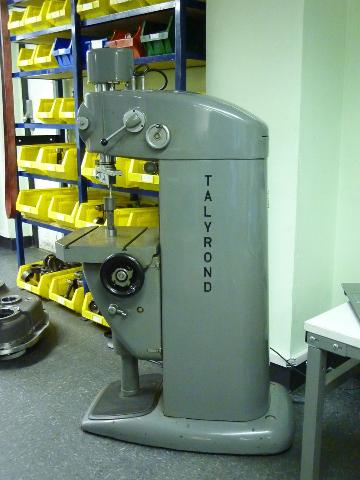

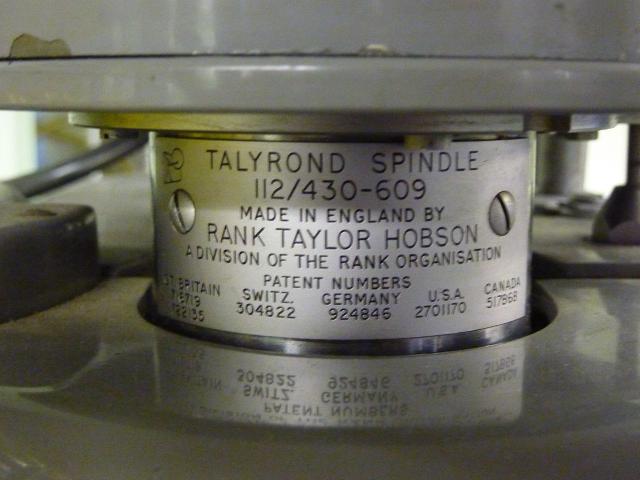

The Talyrond 50 instrument has a rotating spindle with an oil-hydrostatic bearing. Whilst the Talyrond 50 maintains a high level of measurement accuracy and performance reliability, it represents only a minimum of capital investment.
All Integrated to make one precise instrument to detect and assess the following results in Roundness, Concentricity, Eccentricity, Flatness (rotating 3D profile display), Squareness, Coaxiality and Run-out.

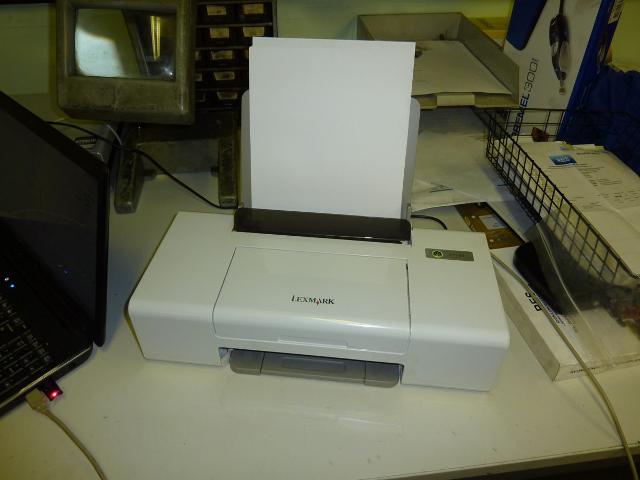

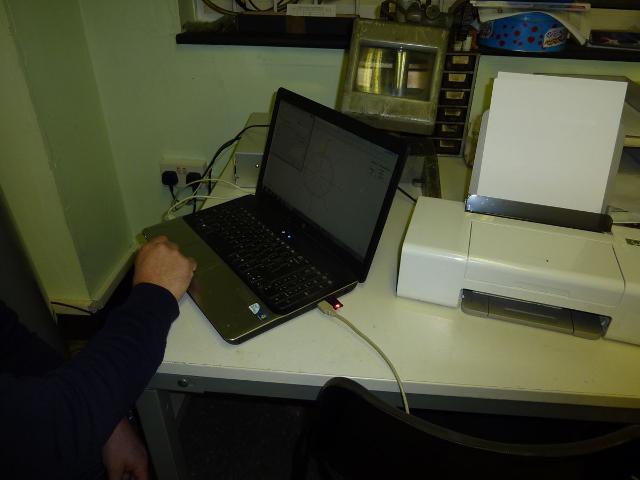

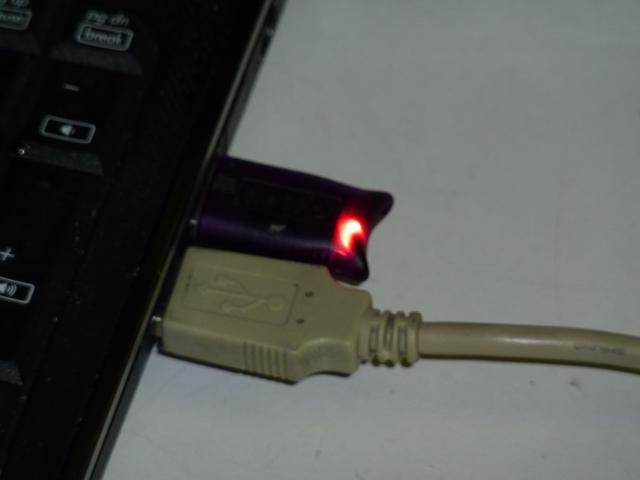

Please note: Laptop is not included, but a PC will be supplied with the software installed.
Location: Coventry
Export Information
Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.
All invoices are issued on an Incoterms FCA basis.
Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
