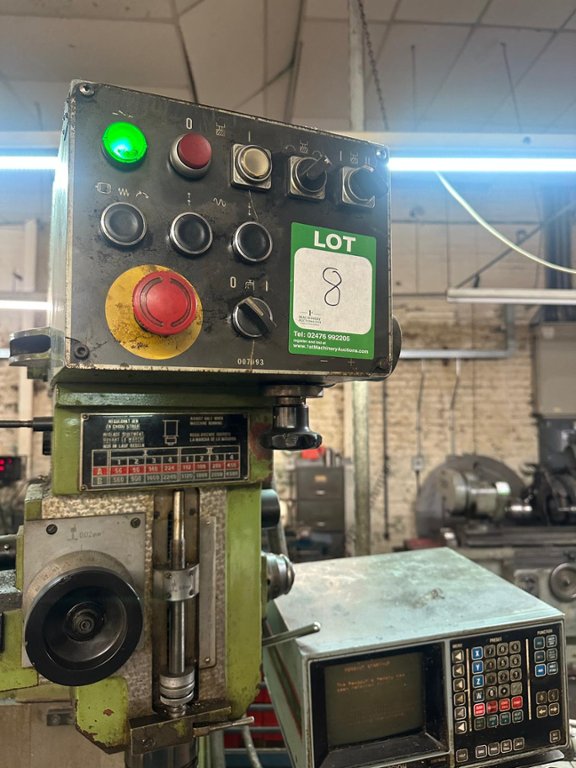

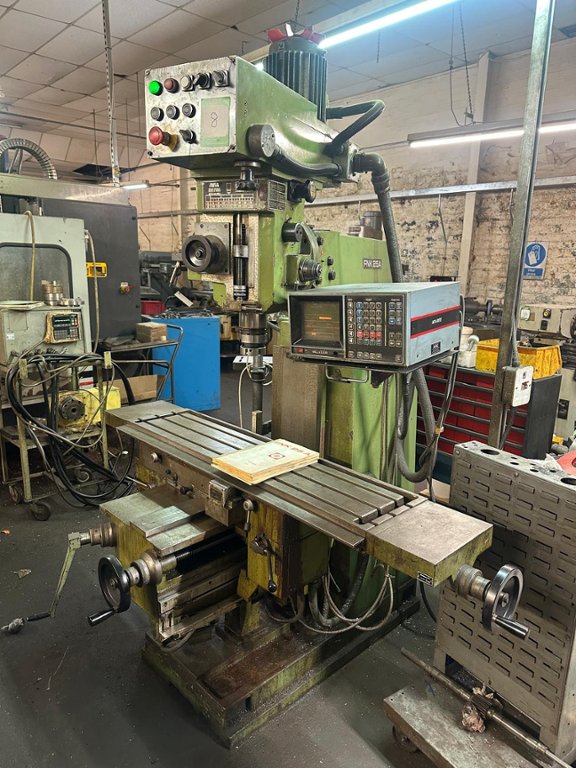

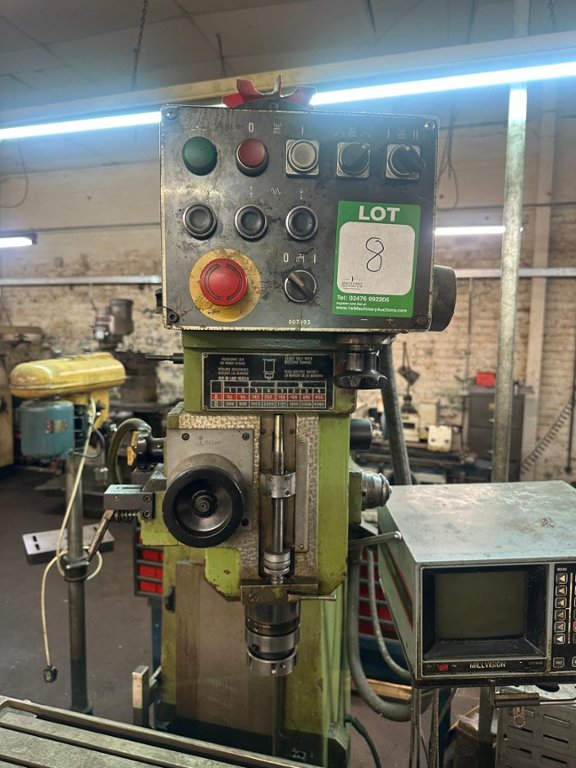

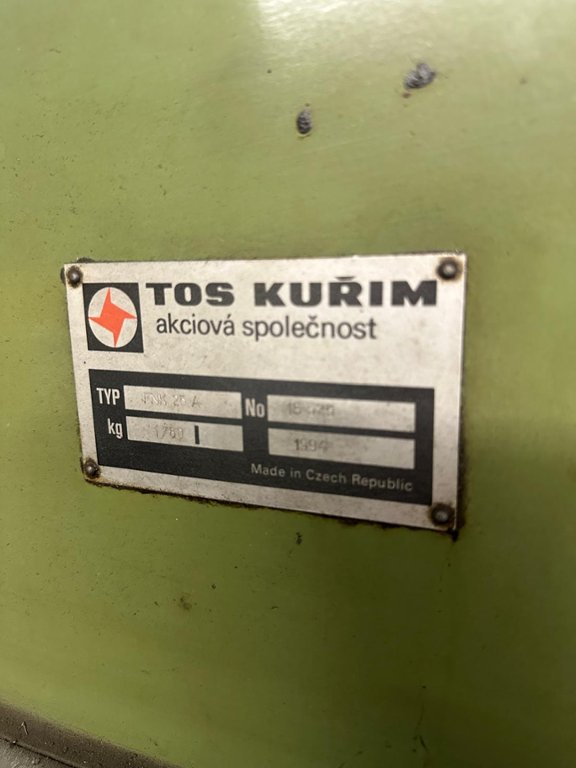

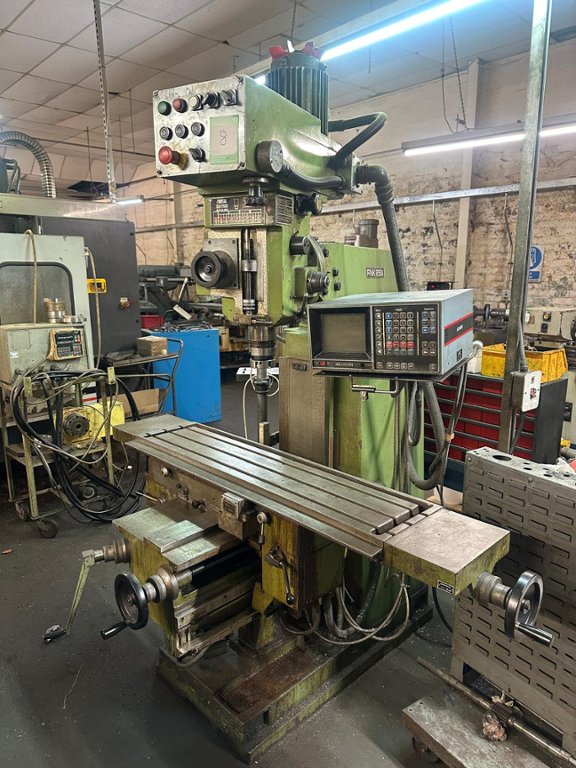

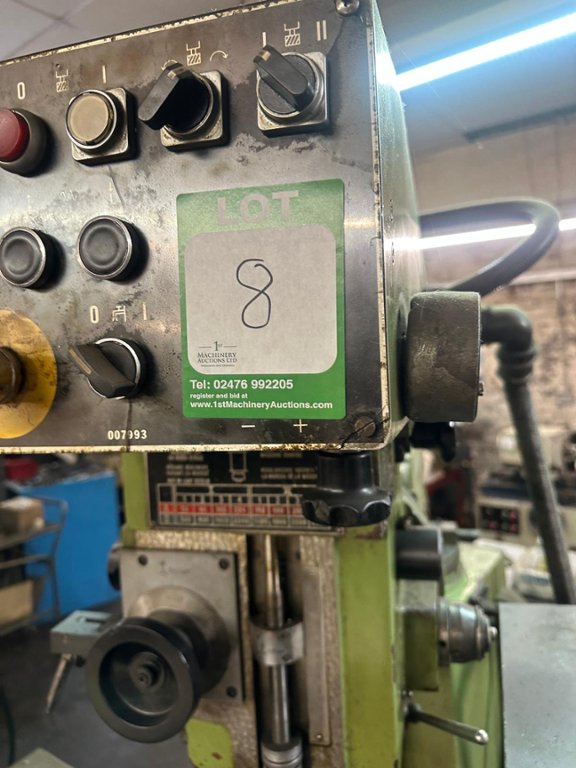

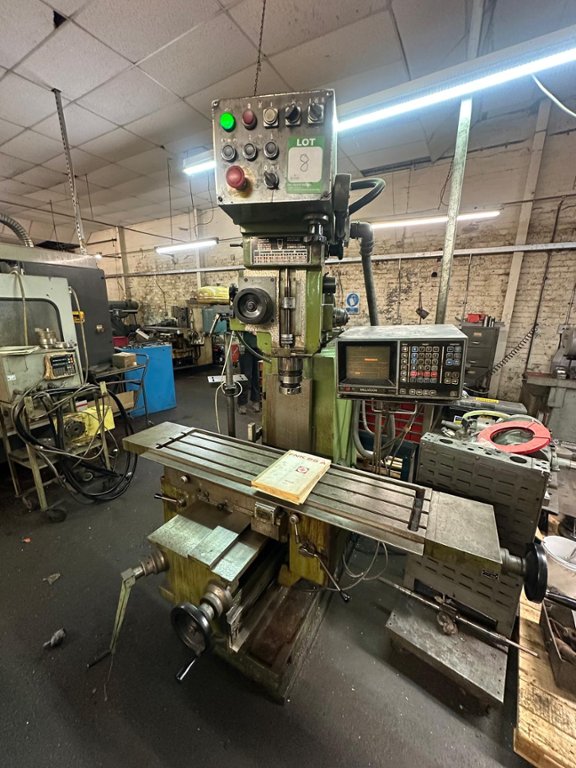

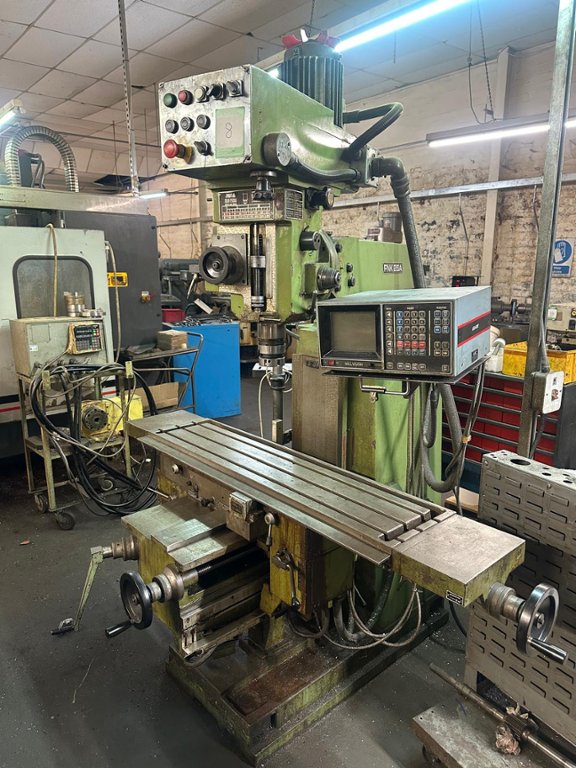

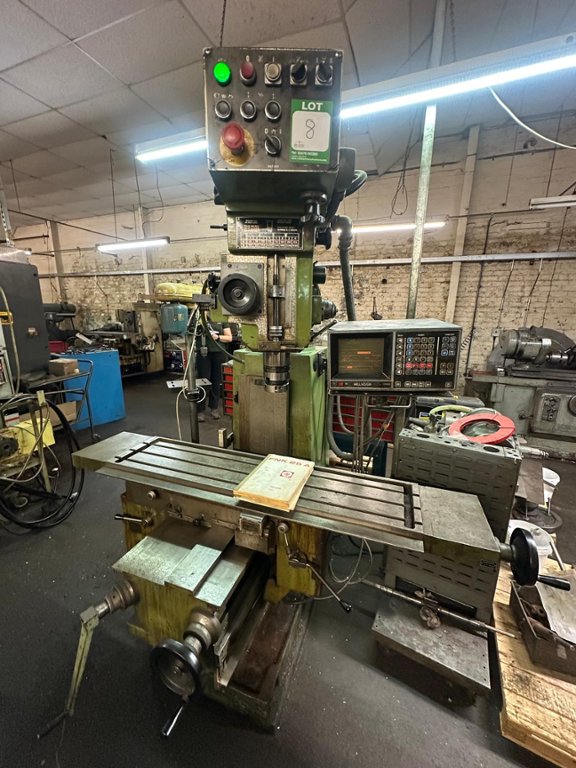

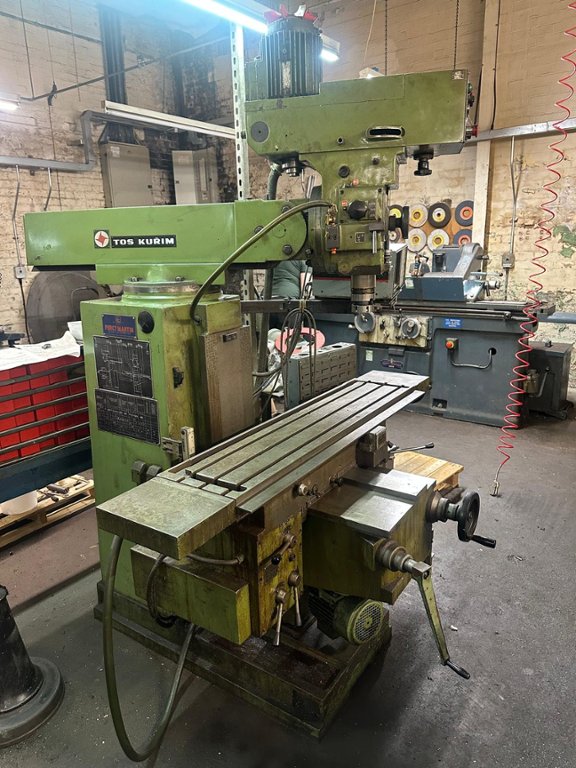

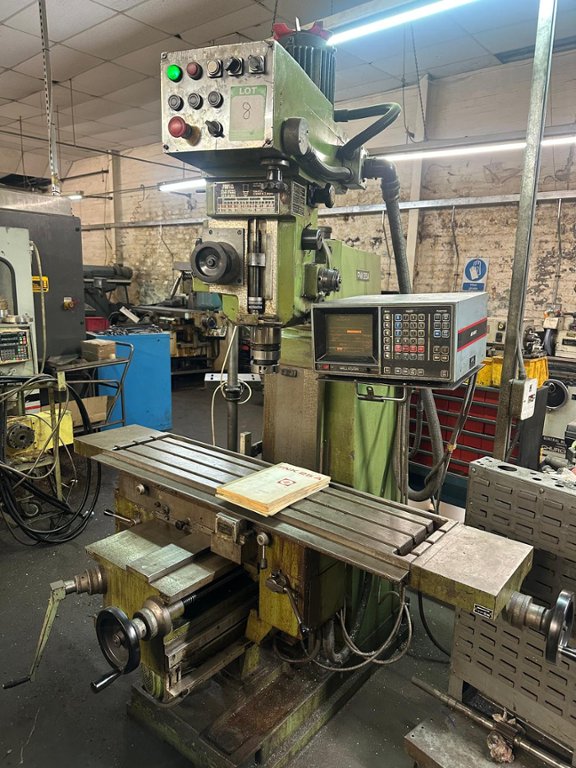

TOS Kurim FNK 25A Turret Mill (1994)

Lot 8 - TOS Kurim FNK 25A Turret Mill (1994)

Description:

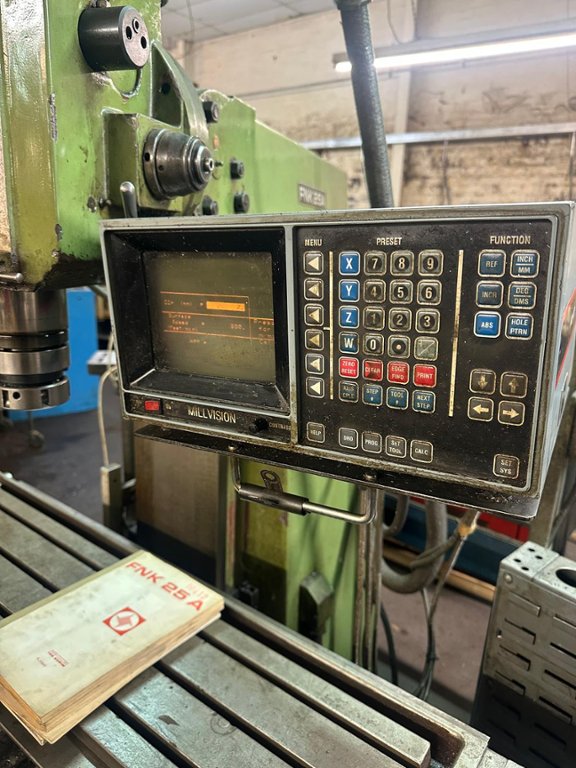

Acu-rite DRO

Overall surface of table - 290×1250mm, Clamping surface of table - 290×1250mm
Clamping slots: number - 3, width spacing - 14×80mm
Traverse of table longitudinal - 800mm - cross - 370mm - vertical - 450mm
Inside spindle taper:
standard - ISO

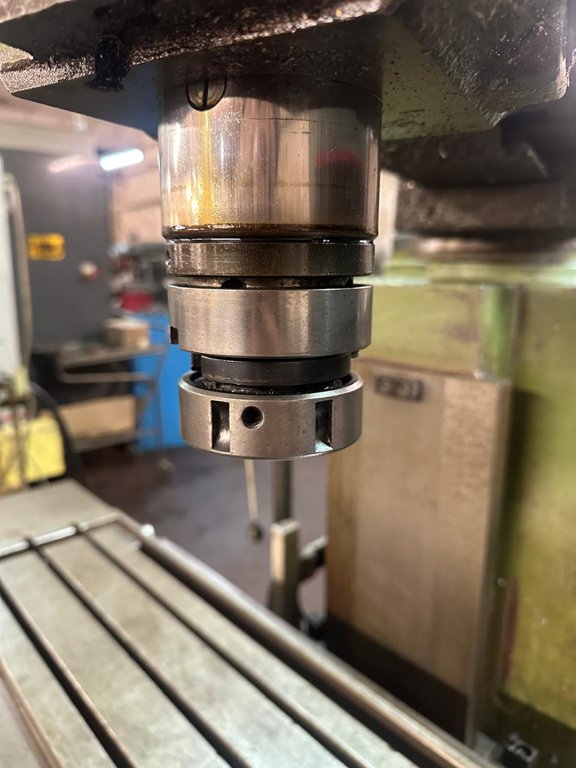

Diameter of spindle in front bearing - 45mm
Bore of spindle - 13mm
Two-sided lateral tilting of milling head - ±90°
Forward tilting of milling head - 45°
Pivoting of arm with milling head about vertical axis - 360°
Distance of spindle face from clamping surface of table (spindle sleeve inserted) min.—max. - 10-460mm
Distance of centre line of spindle from guide of column: min.—max - 200-750mm
Travel length of quill - 125mm

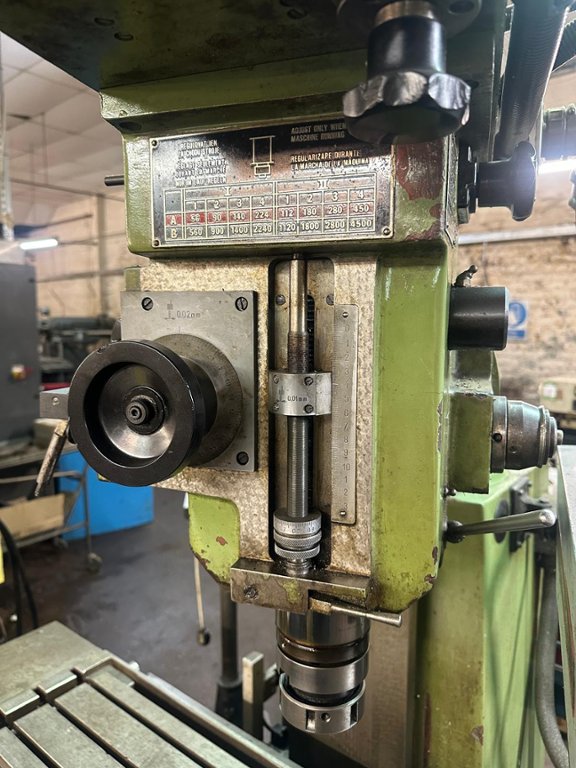

Spindle speed:
number of steps - 16
range - 56-4500 rpm
Feed of longitudinal table:
number of steps - 12
Range - 14-630 mm/min.
Rapid traverse of longitudinal table - 1500 mm/min.
Quill feed:
number of steps - 3
range - 0.035-0.07-0.14 mm/r

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
