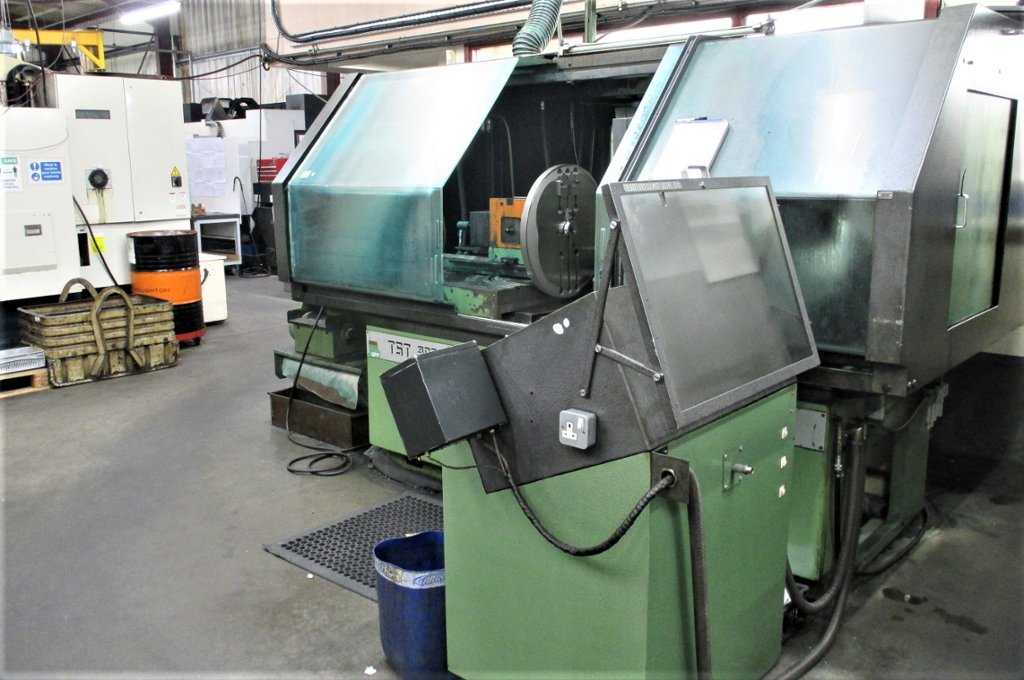

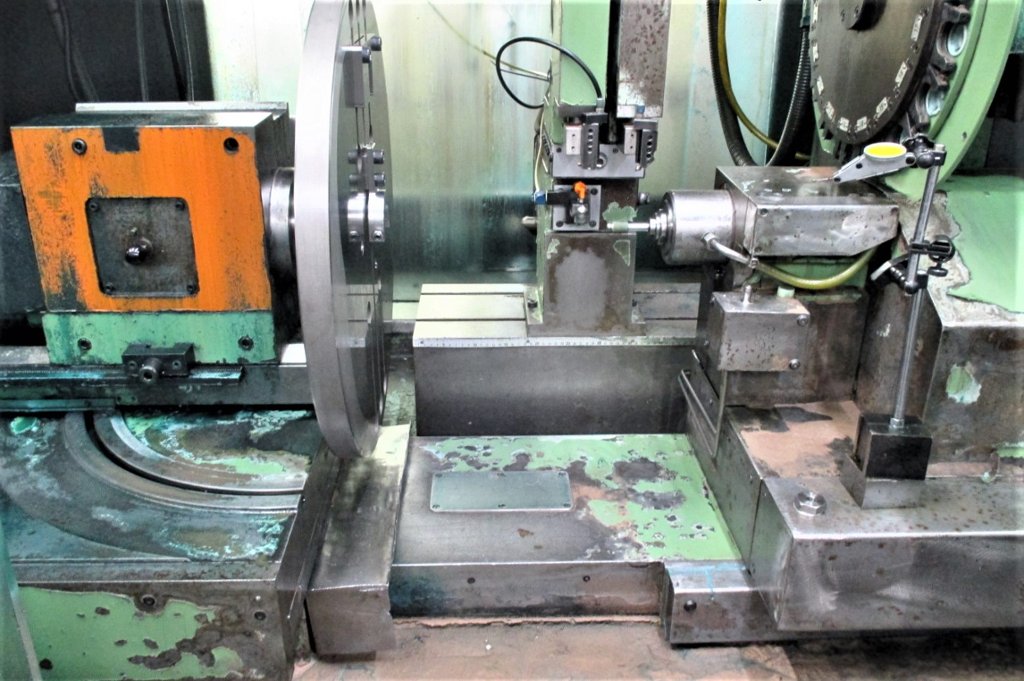

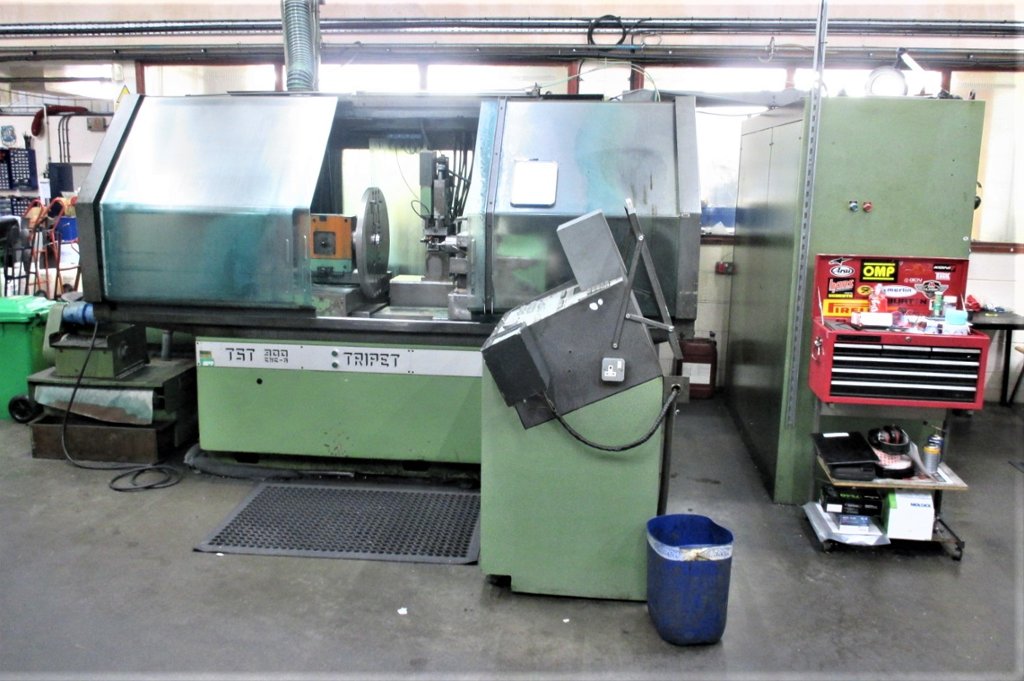

Tripet TST300 CNC Grinder

Width: 126"
Depth: 205"
Height: 84"
Weight: 5000kg

Lot 2 - Tripet TST300 CNC Grinder

Description:

Grinding diameter range (production) - 3 - 225 mm (.12" - 8.86)
(on request up io diameter 225 mm - 8.9")
Grinding length - 200 mm (7.9")
Centre height above table - 162 mm (6.3")
Max. table travel - 630 mm (24.8")
Workhead angular setting - +45" to -30o
Workhead spindle bore diameter - 40 mm (1.57")
Max. weight on spindle nose - approx. 50 kg (l l0 lbs)
(on request up to 100 kg - 220lbs)
Workspindle speed range, stepless - 75 - 1300 r.p.m.
Workhead fixed speed for setting - 75 r.p.m.
Wheelspindle speed range - 8000 - 150 000 r.p.m.

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
