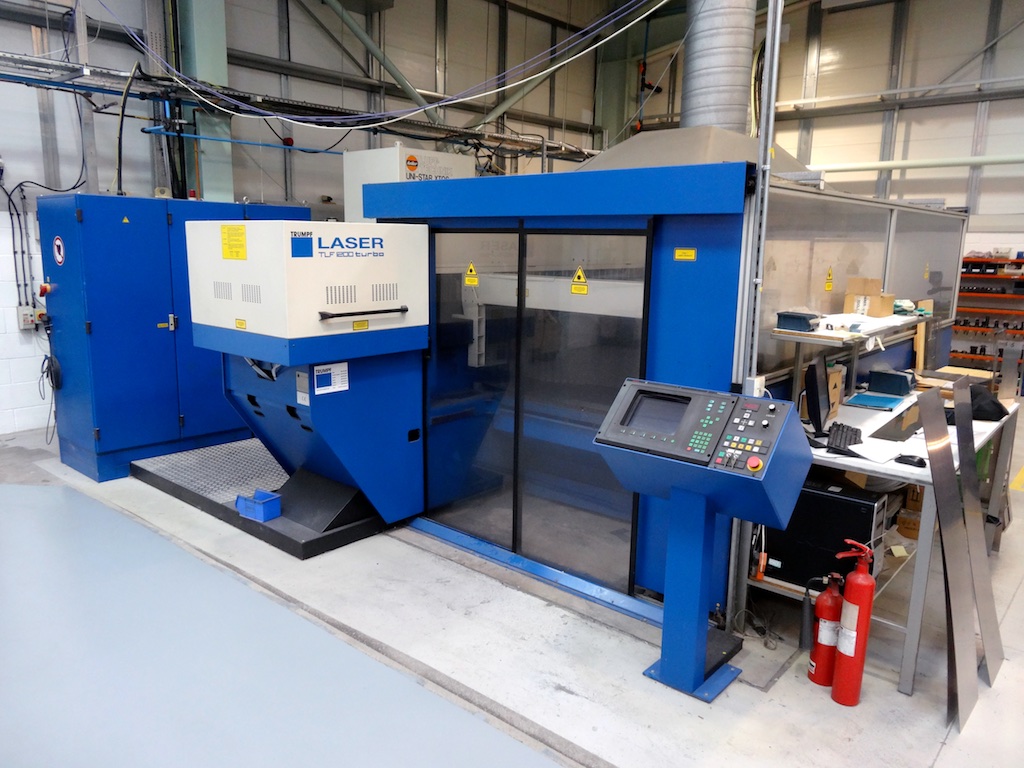

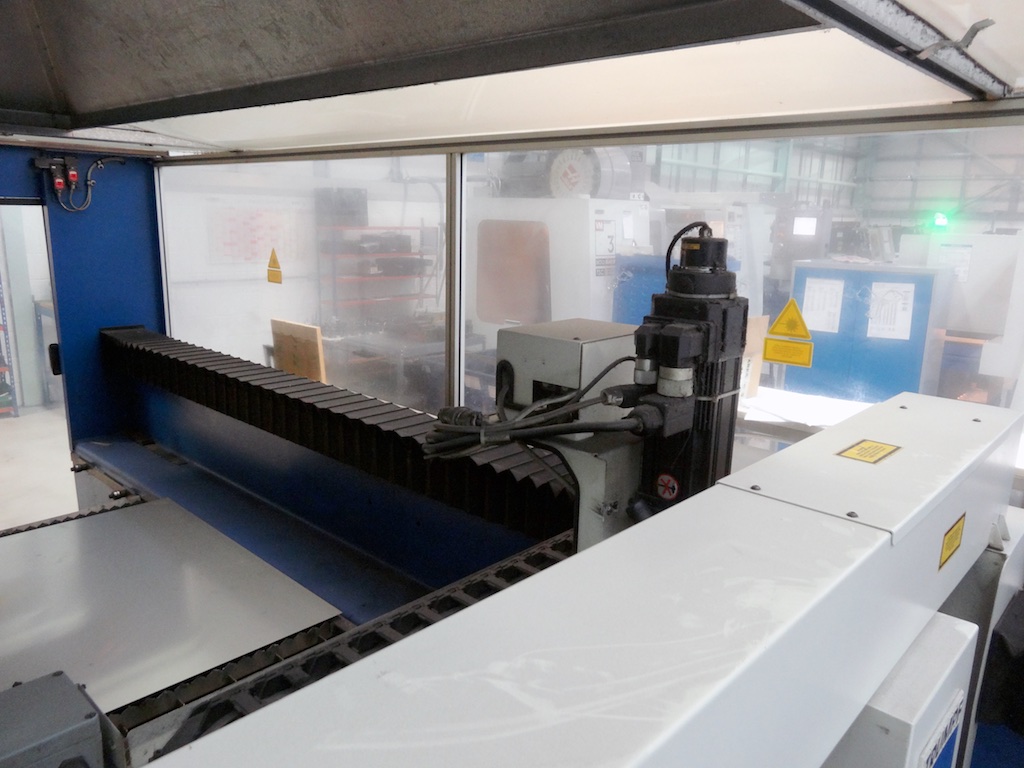

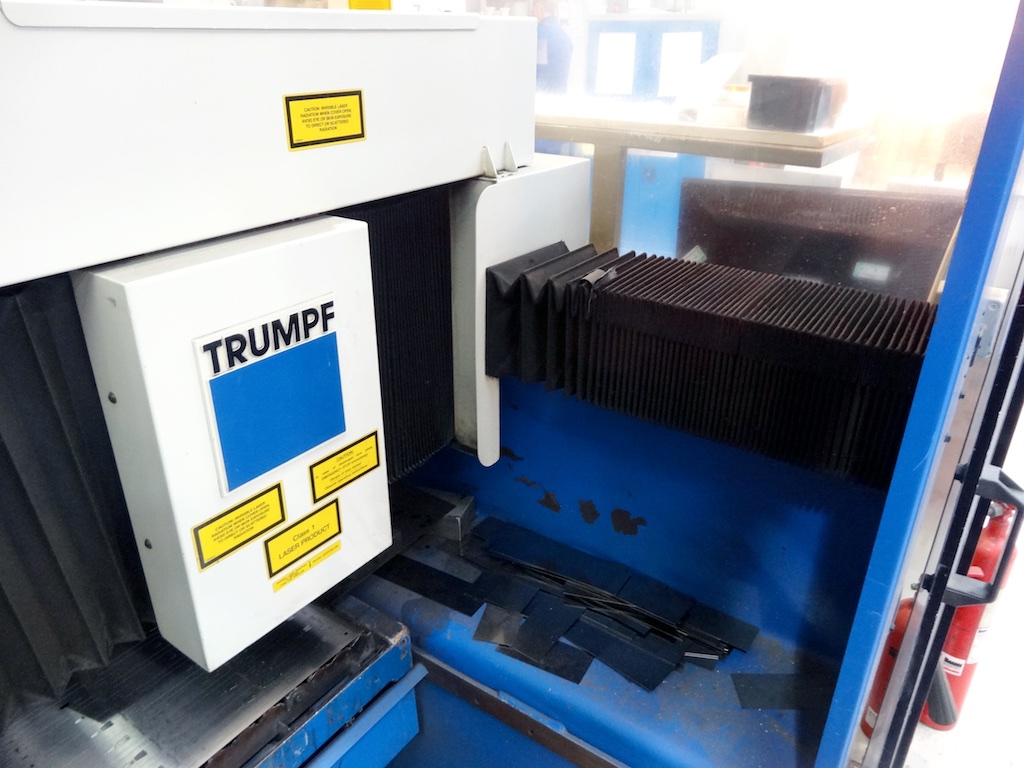

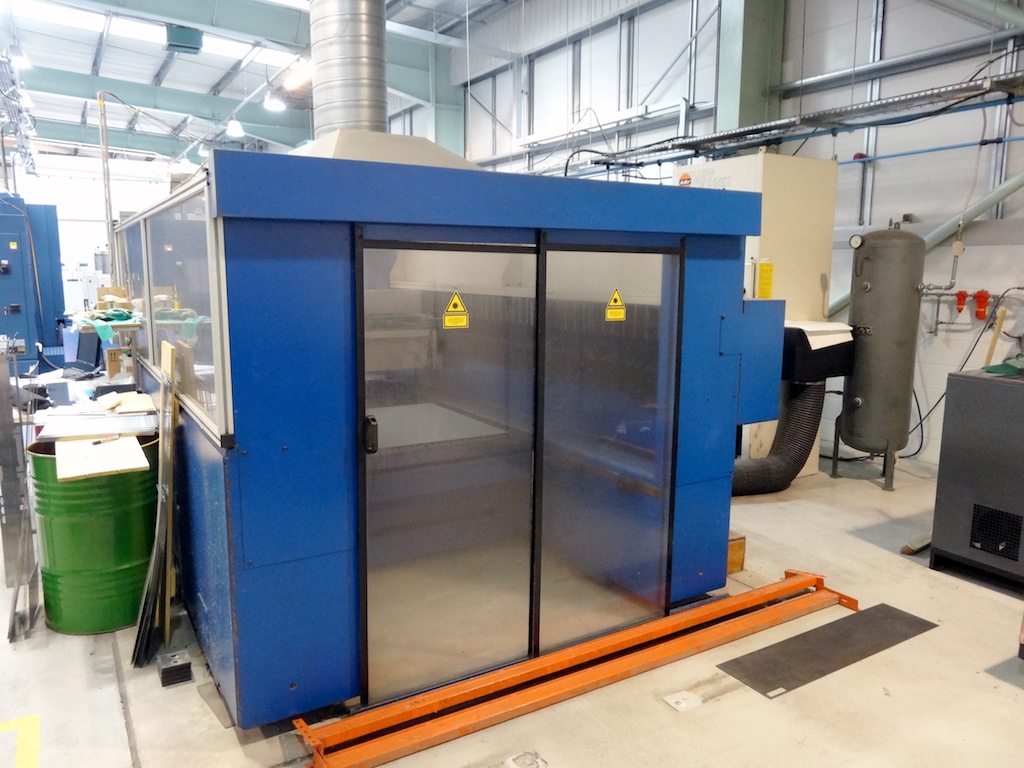

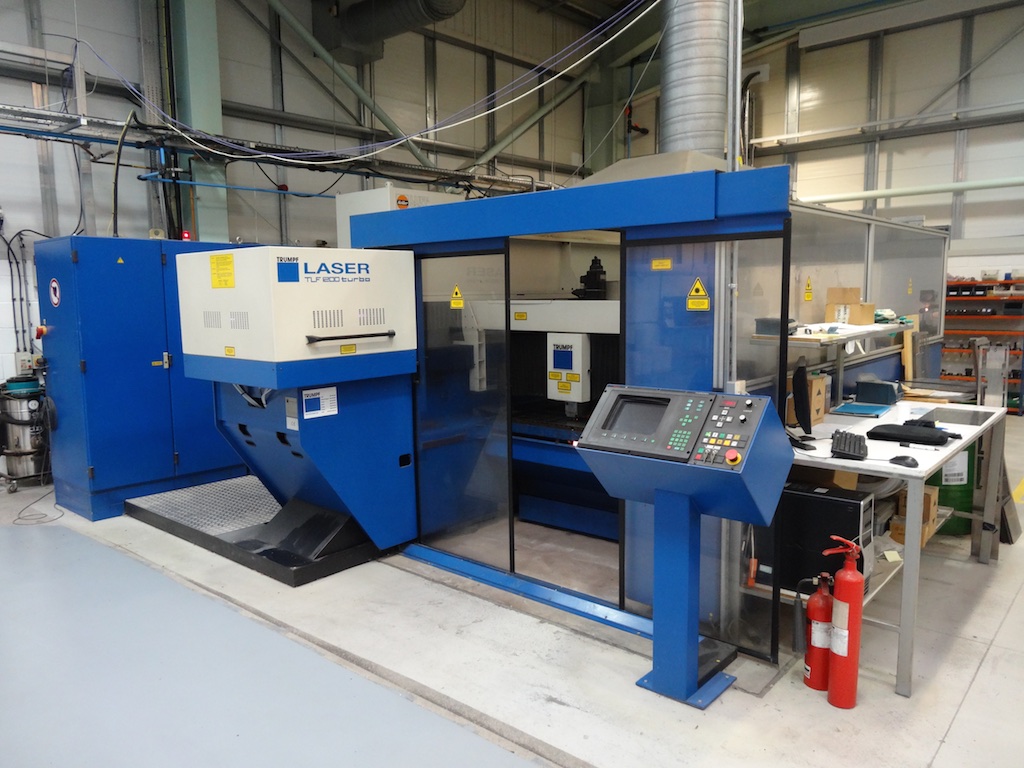

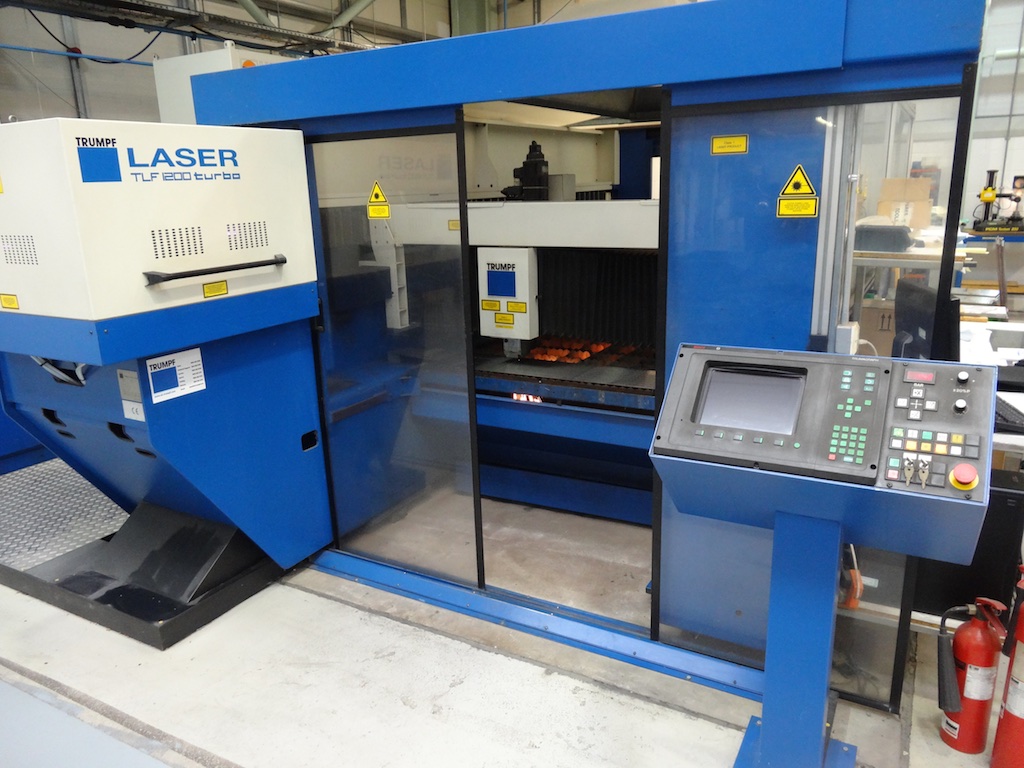

Lot 1 - Trumpf Laser TLF 1200 Turbo L2503E
Description:

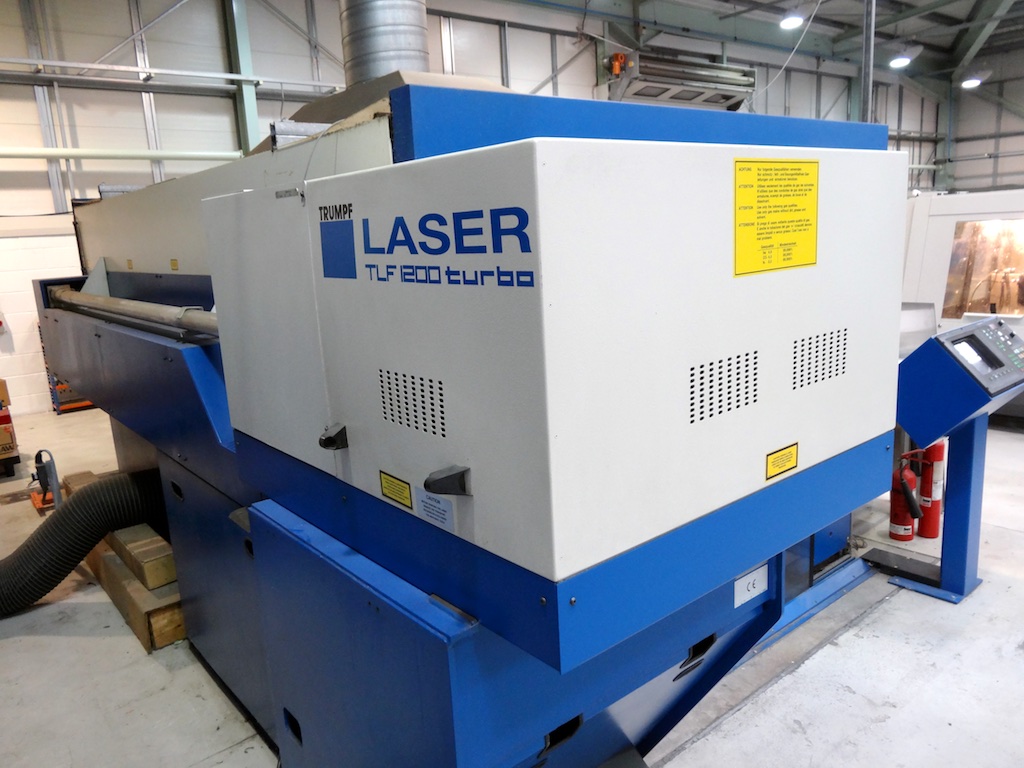

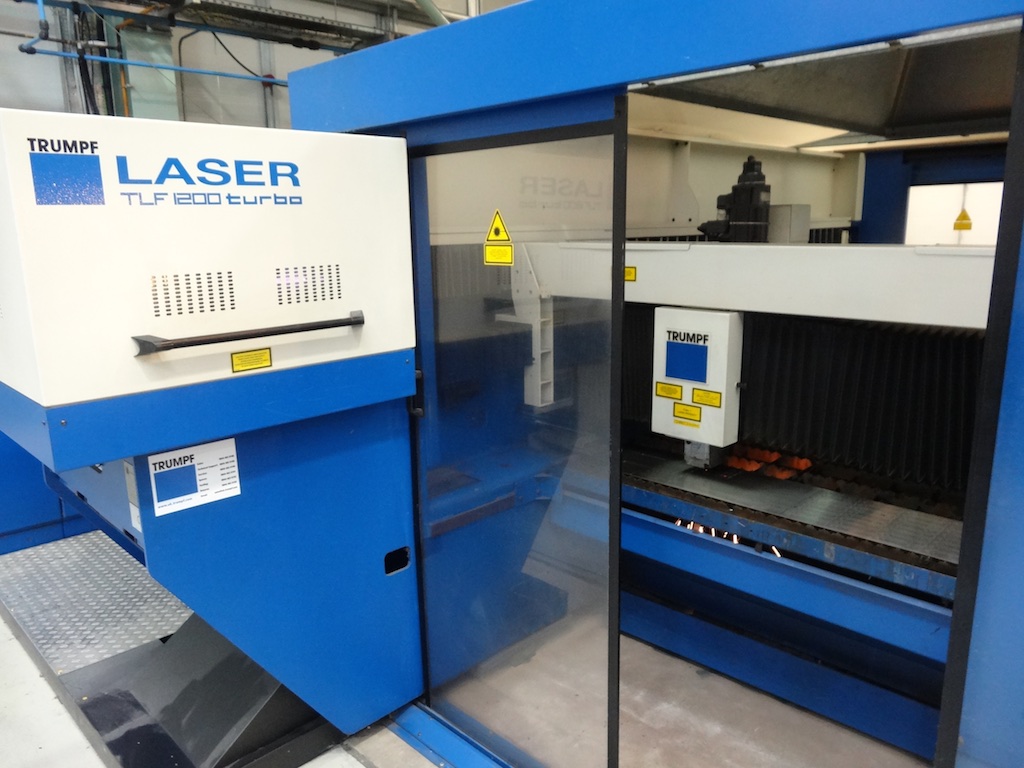

Trumpf Laser TLF 1200 Turbo L2503E
S/n: 902941
Date: 1995

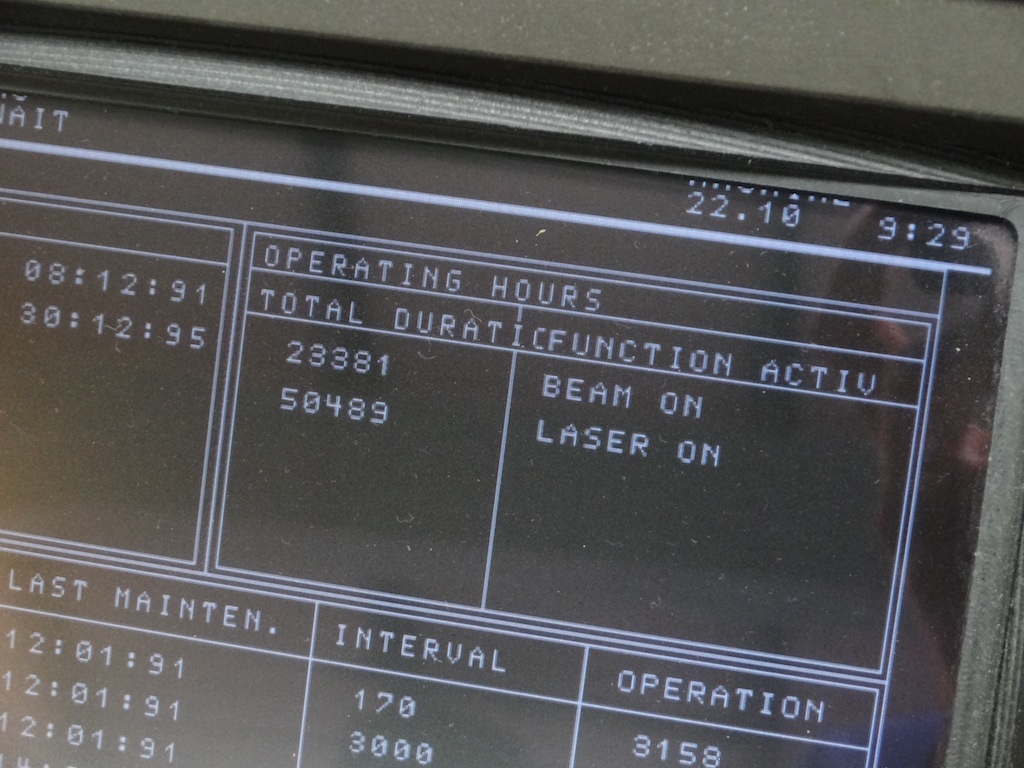

Beam On Hours: 23381
Laser On Hours: 50489
Purchased from New and has Trumpf Service History from the last 5 Years
Last Services in May 2015

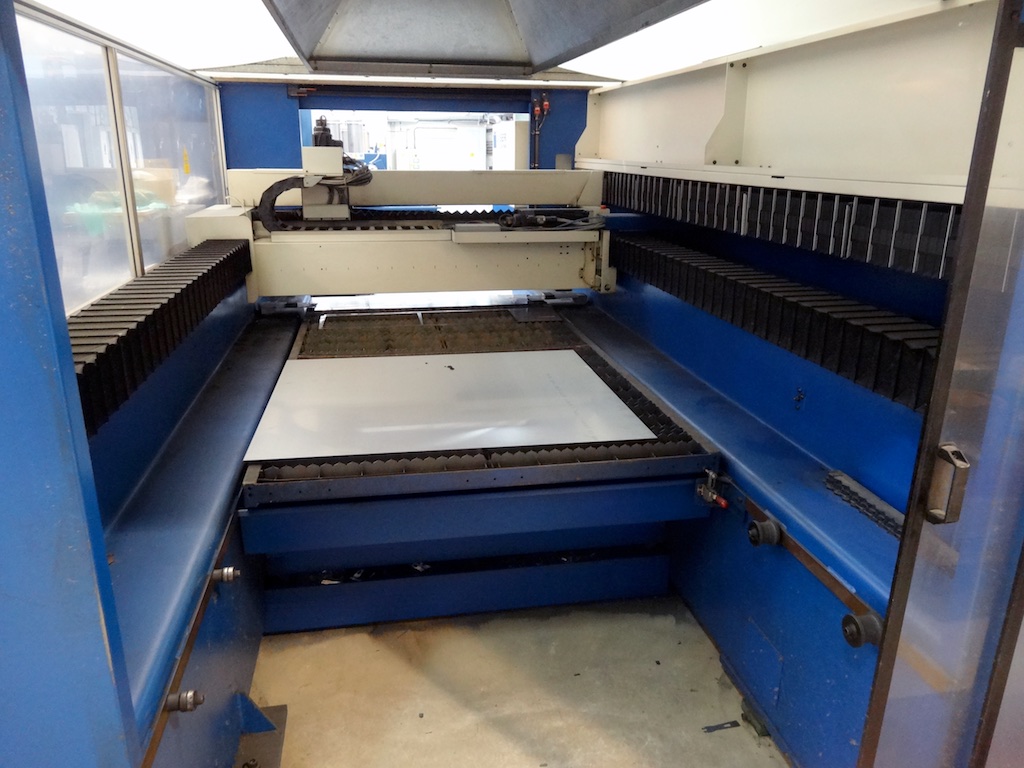

Working area X, Y: 2500 x 1500mm

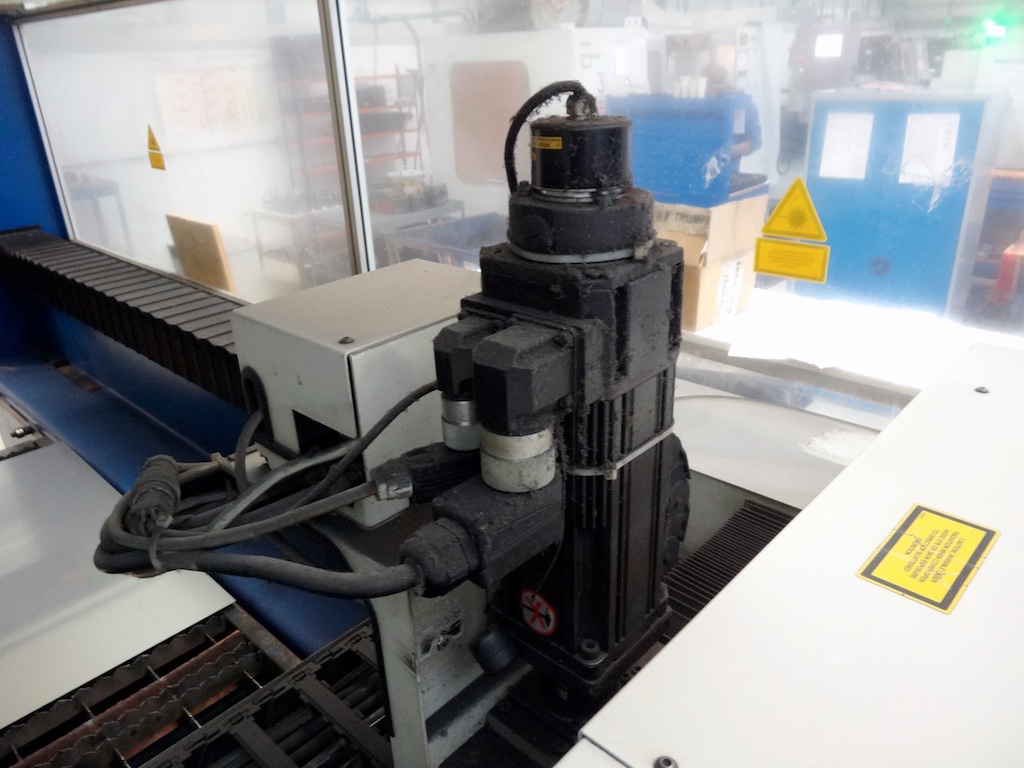

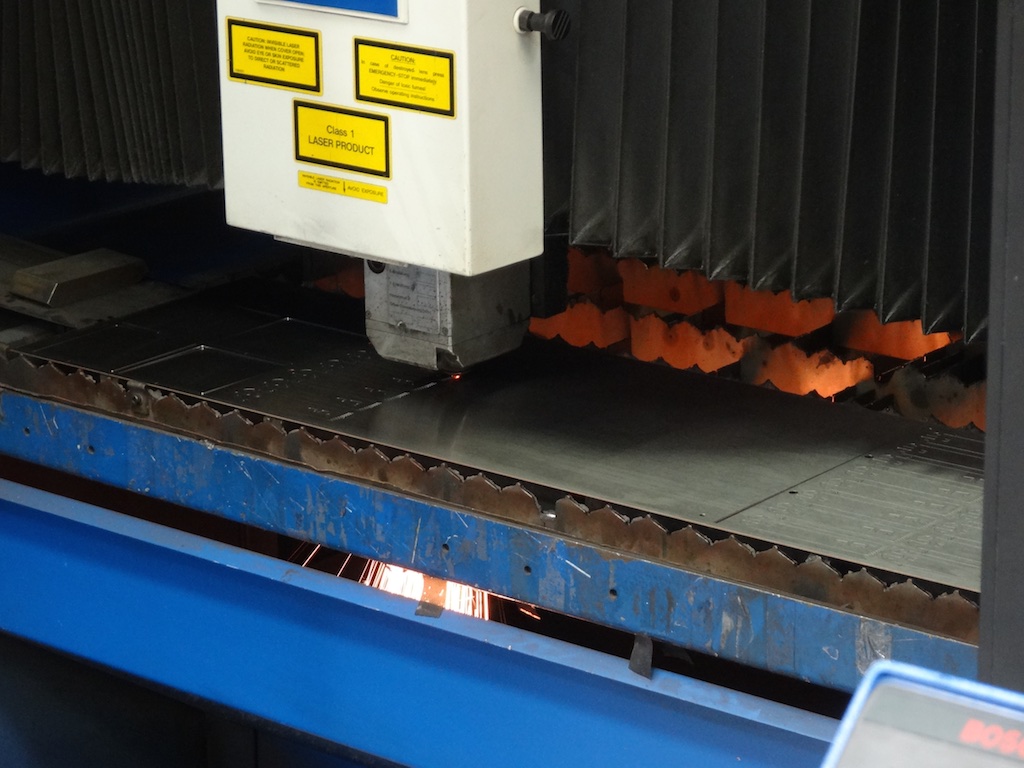

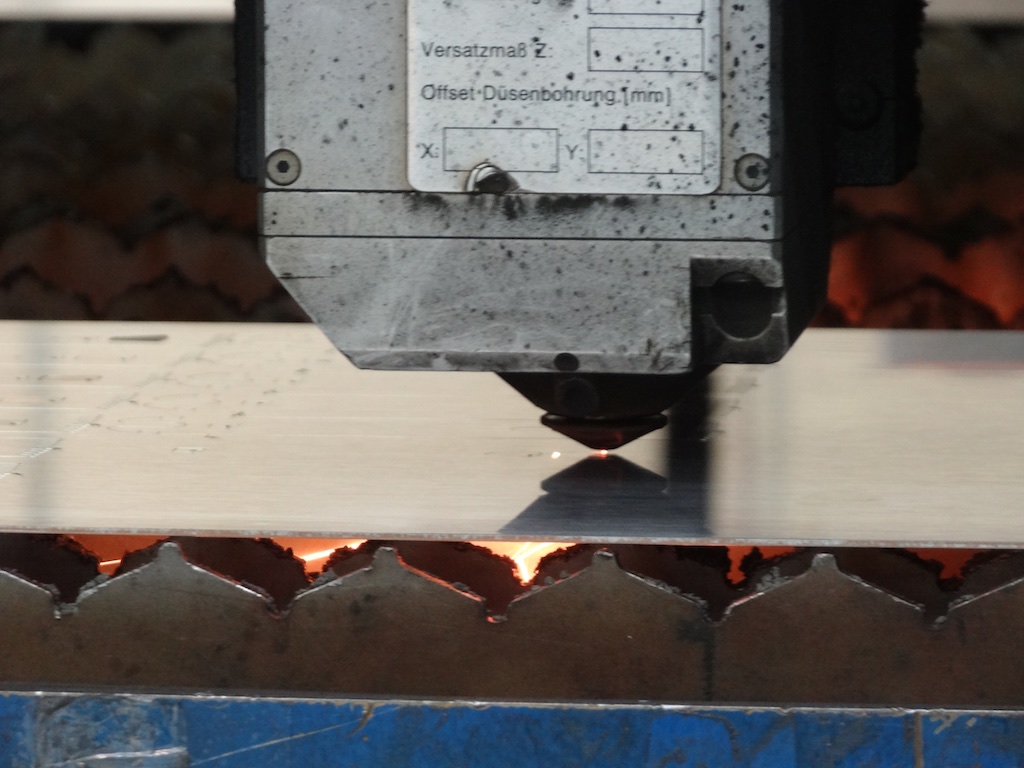

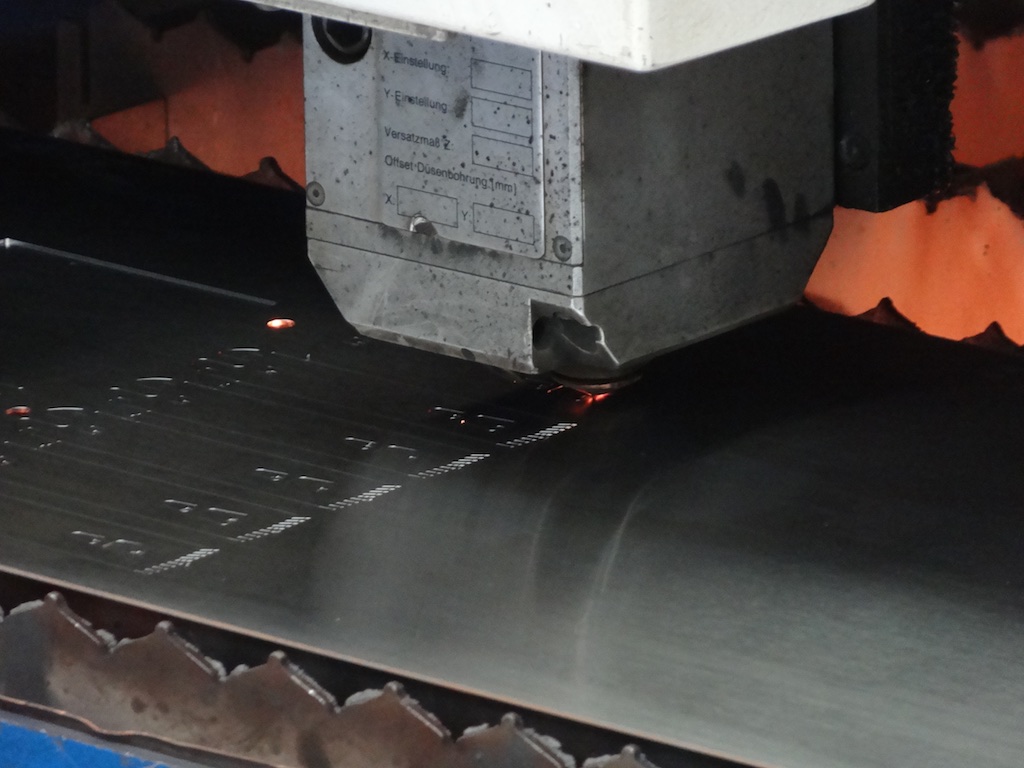

Programmable height adjustment of cutting head: 100mm
Max sheet thickness: 10mm
Max sheet weight: 590kg
Max positioning speed:
Parallel ti the axis: 60m/min
Simultaneous: 84m/min

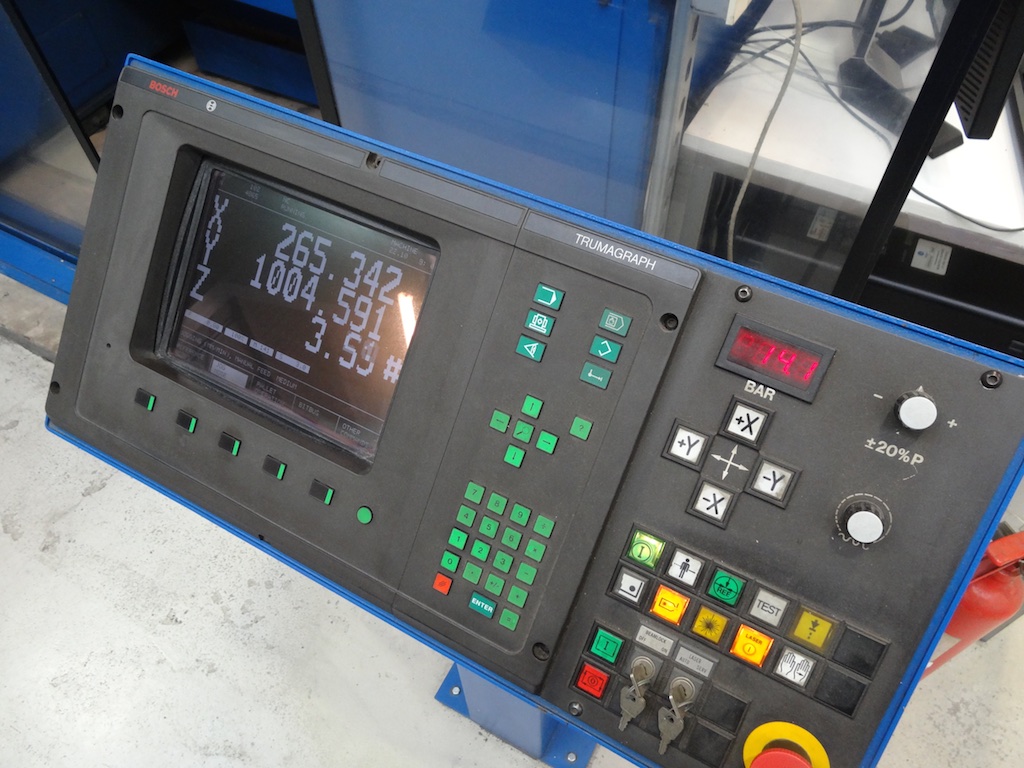

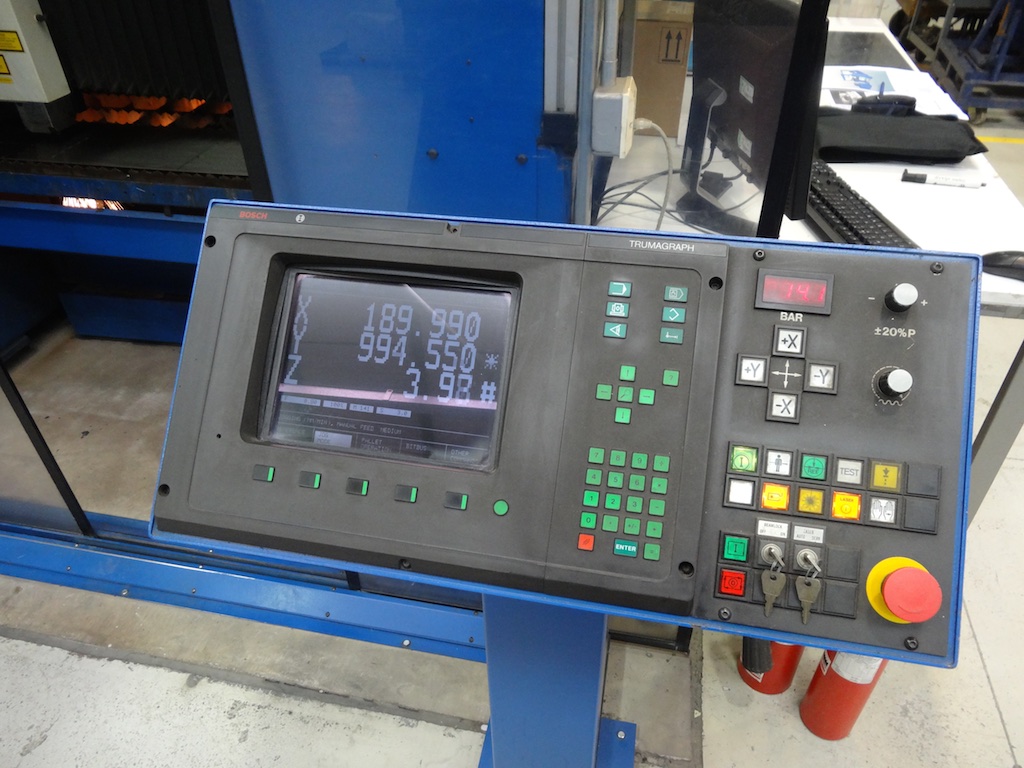

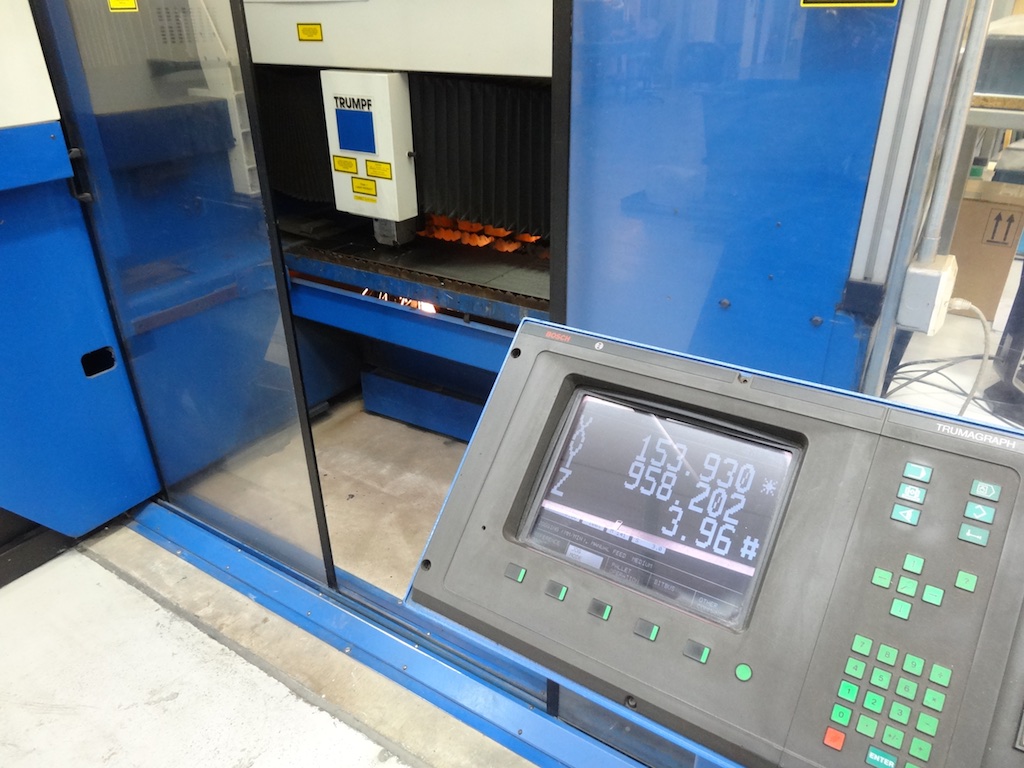

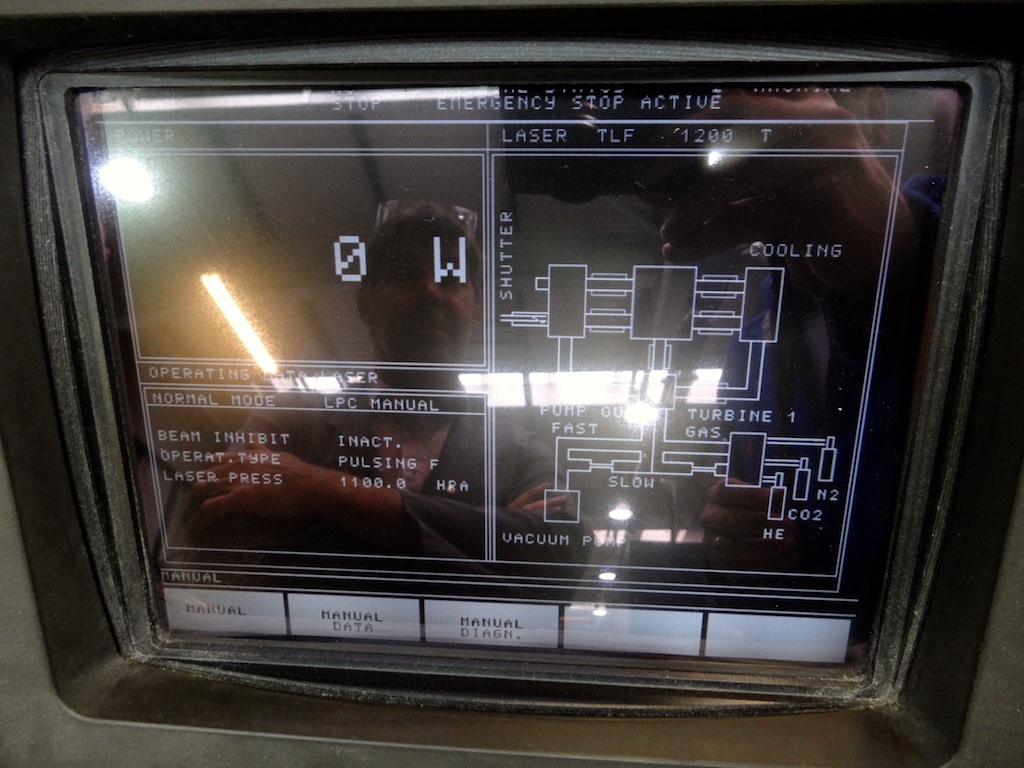

Control: Bosch Trumatic
Smallest programmable increment: 0.01mm
Repeatability Pa2: +0.1mm
Average positioning accuracy Ps-2 +0.03mm

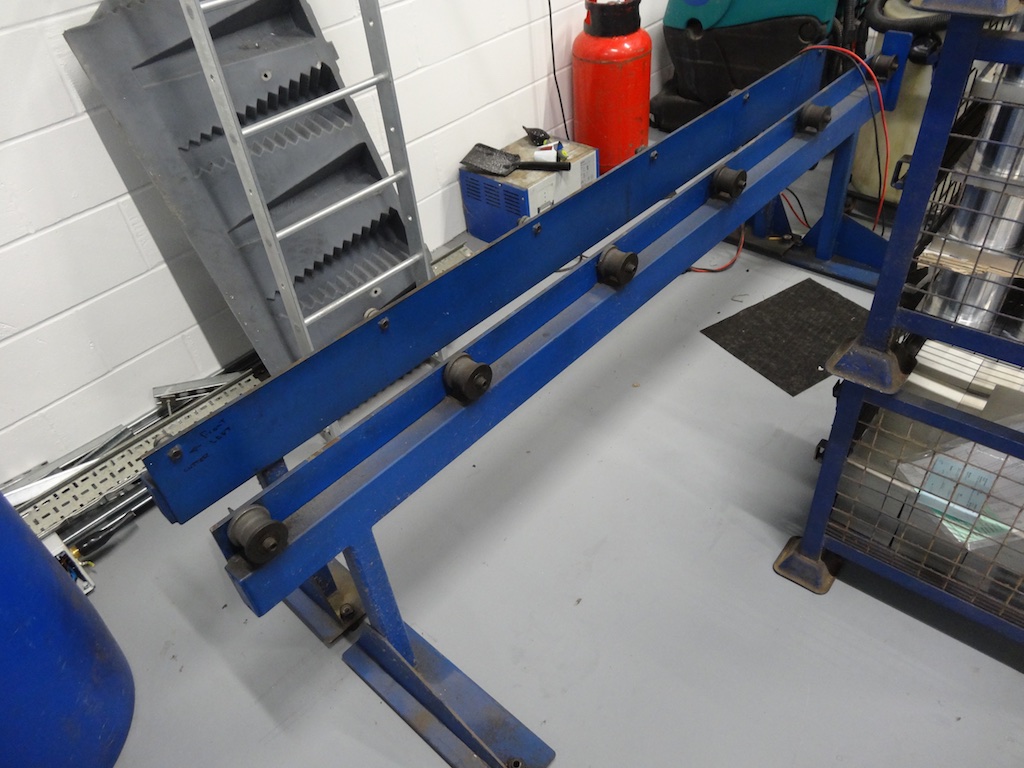

Runners for table
Floor plans and beam alignment levels

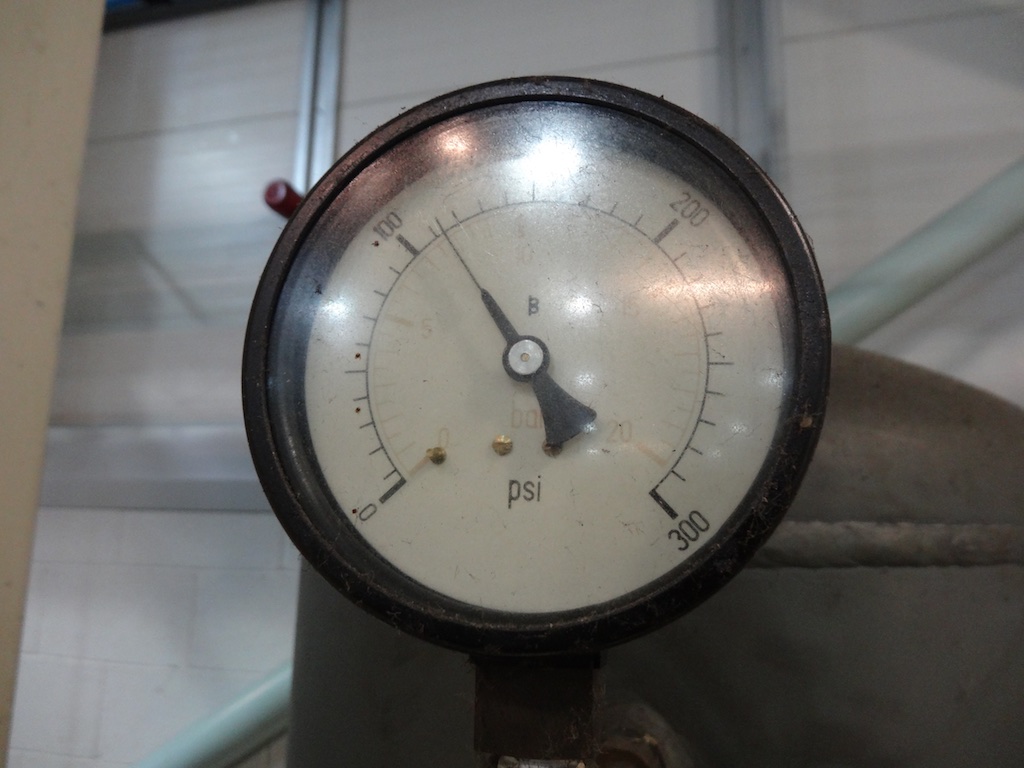

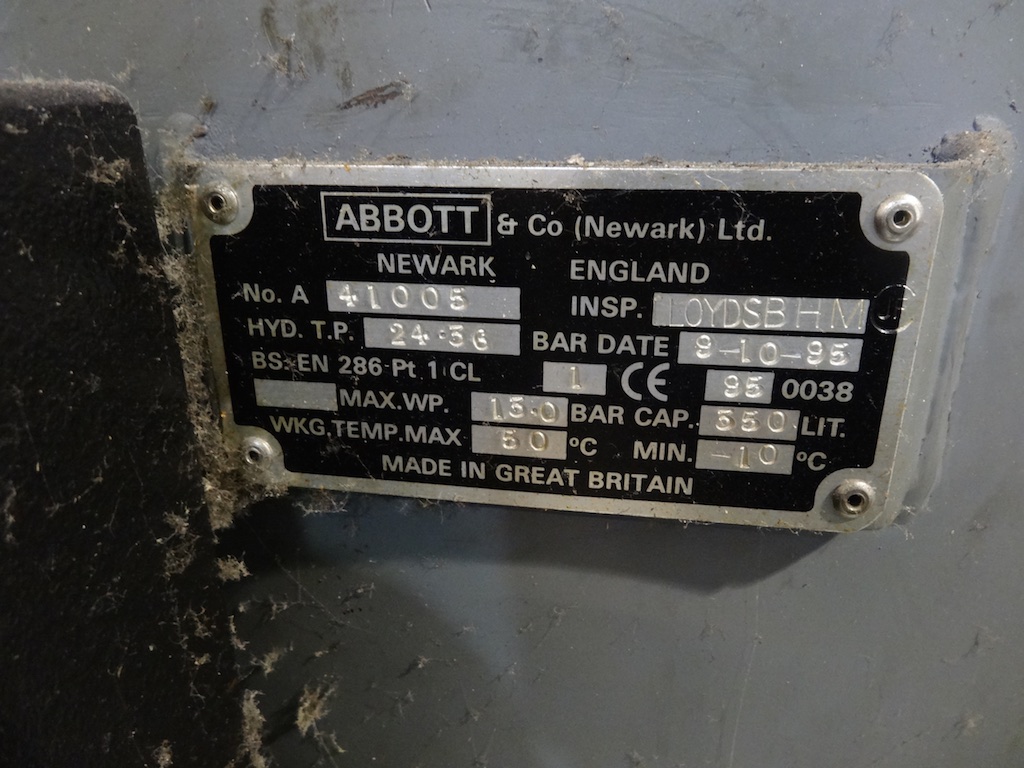

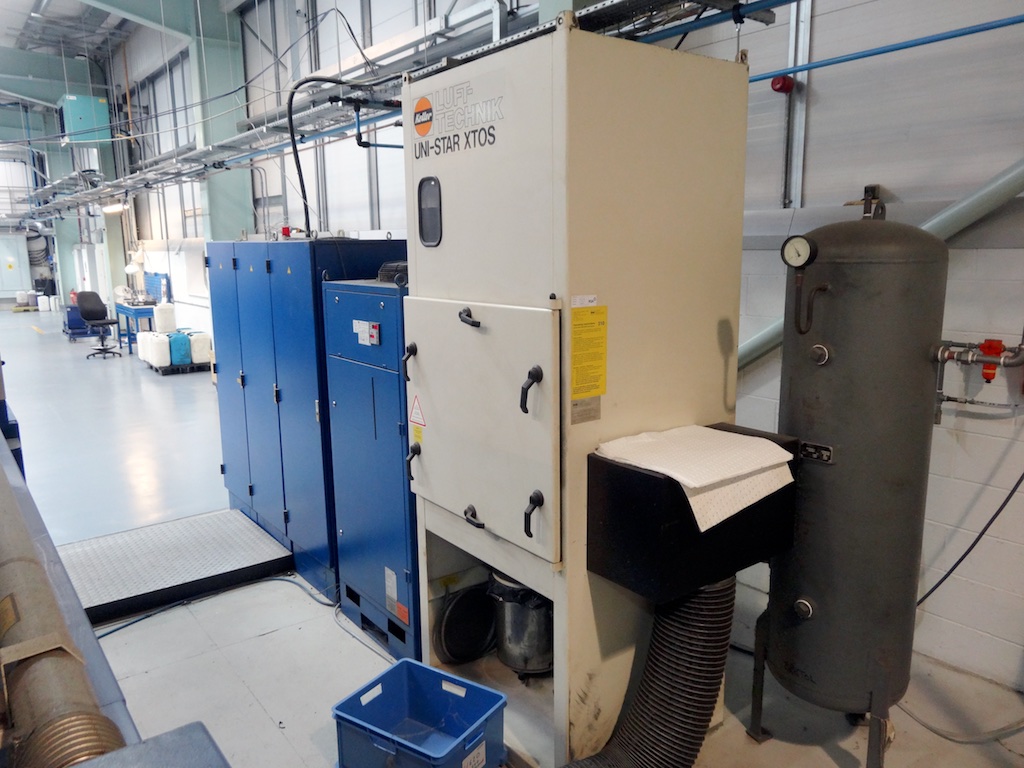

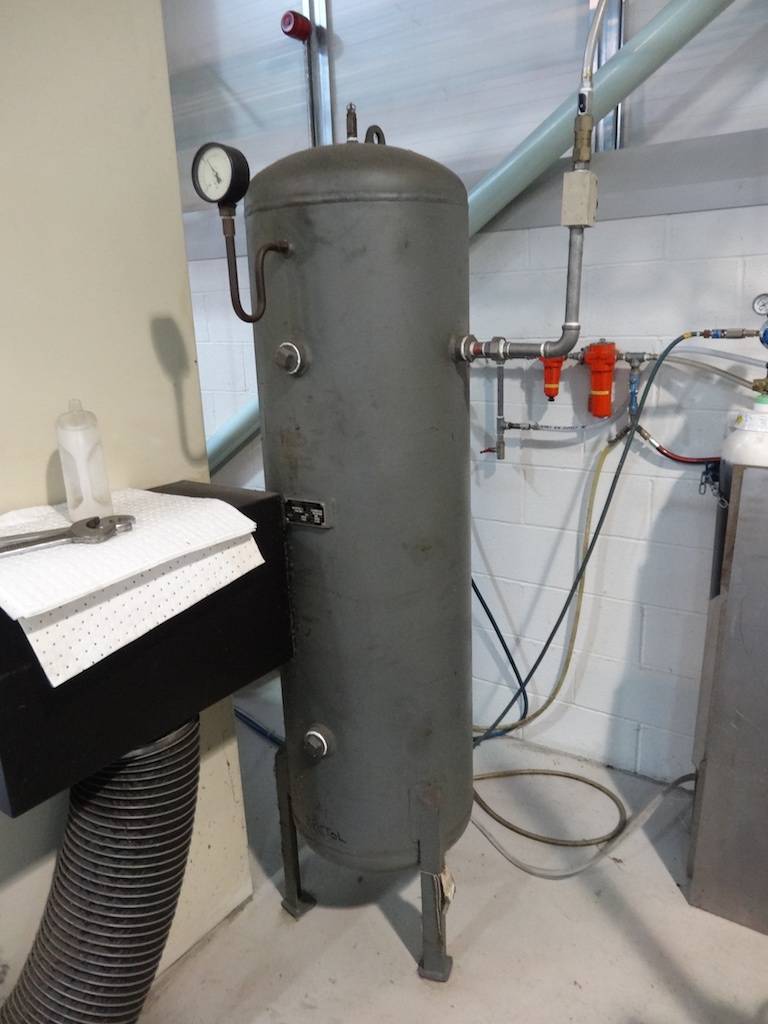

Air Reciever
Wave length: 10.6umMax output power: 1200W
Continuous adj power range: 60-1200W
Beam Dia at the out-coupler approx 12mm
Angle of divergence: <1.0mrad
Pulse frequency: 100Hz-100kHz
Pulse width: 10us- CW
Machine footprint 10800 x 6200mm approx.
Height: 2600m
Weight: 6600kg

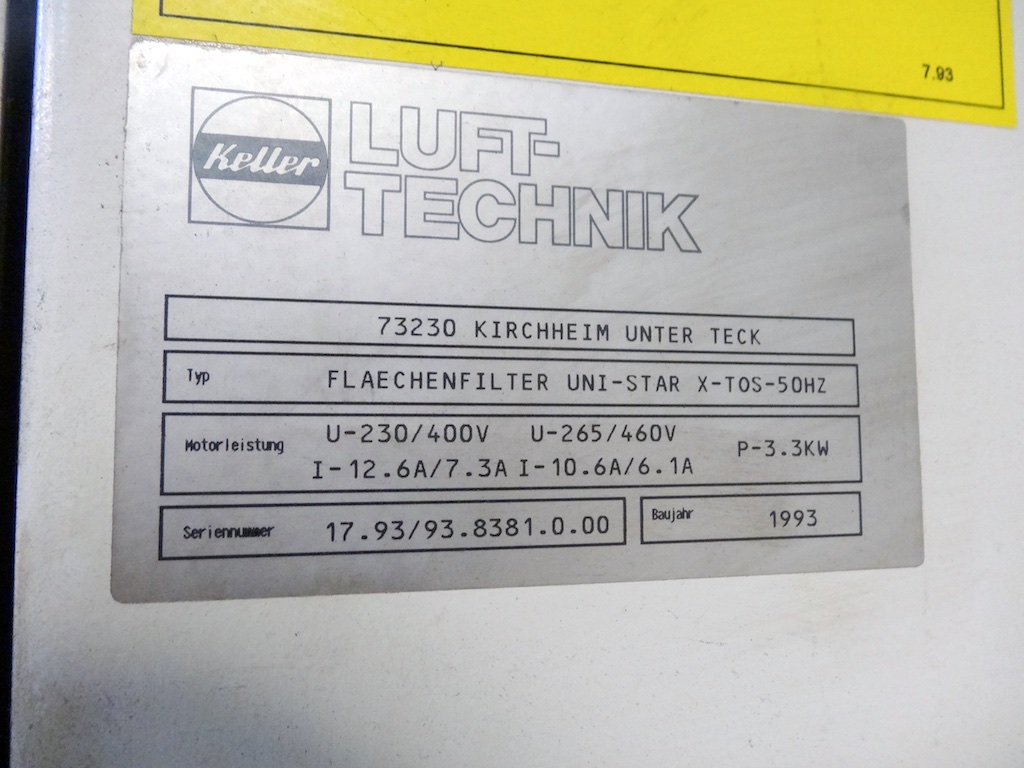

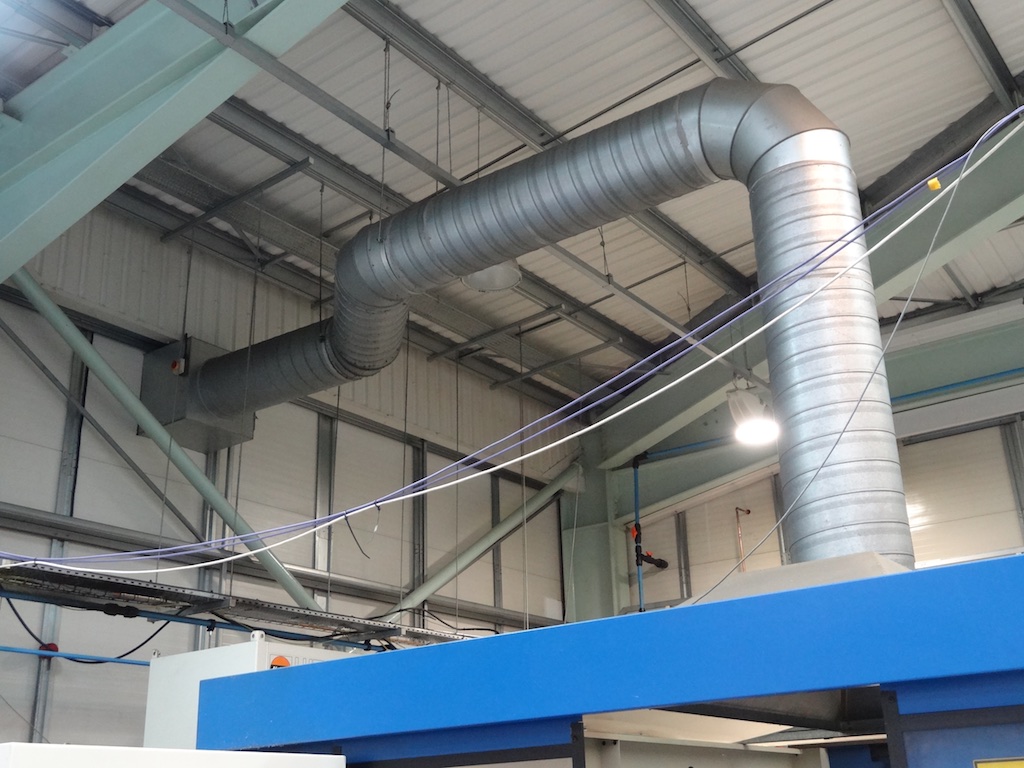

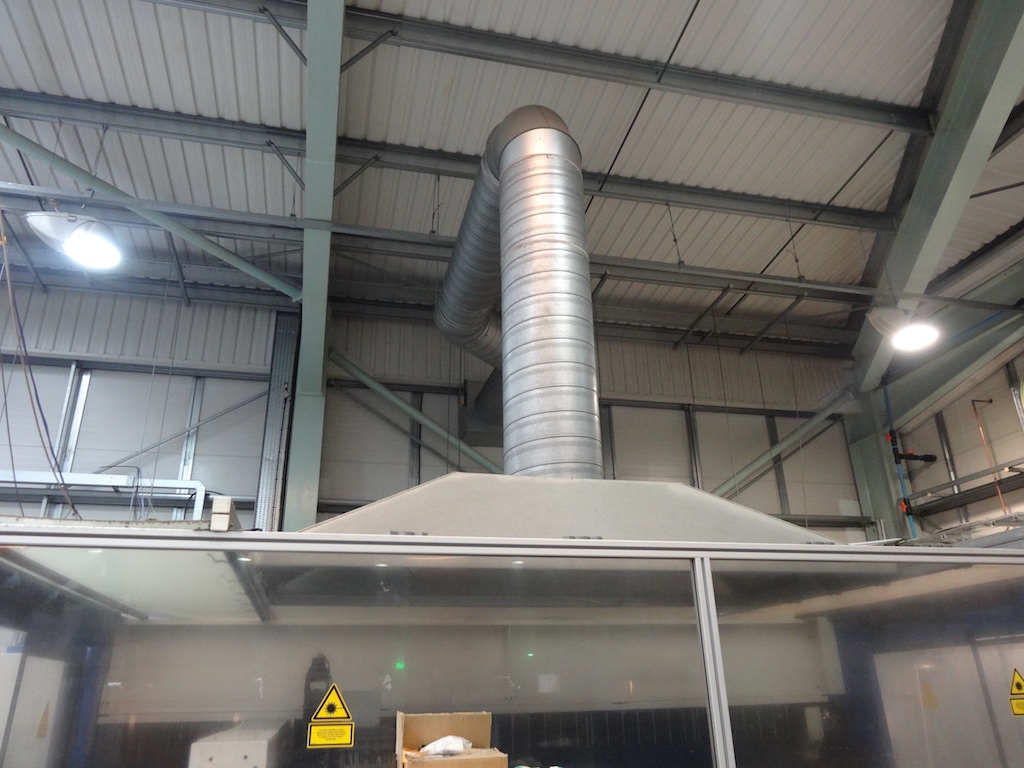

Please note that Extraction Pipe is included, but the Building Side Vent May Not be included.
Location: Tewkesbury, Gloucestershire
Export Information
Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.
All invoices are issued on an Incoterms FCA basis.
Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
