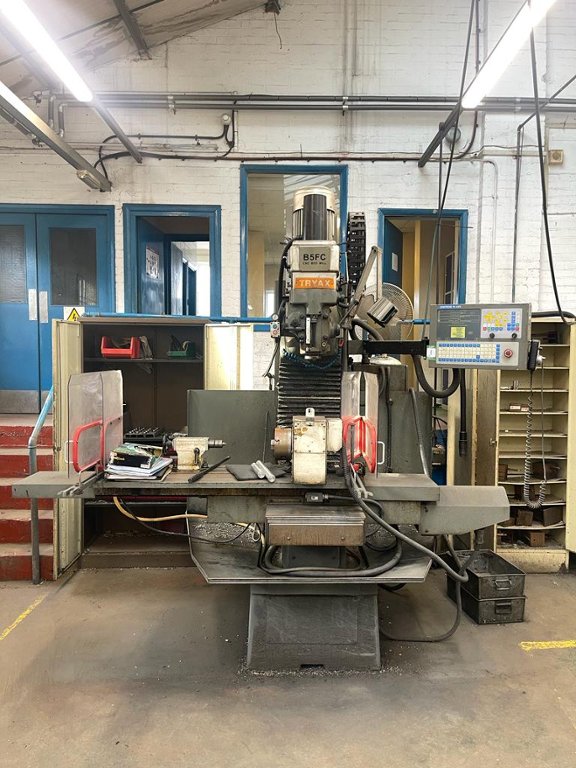

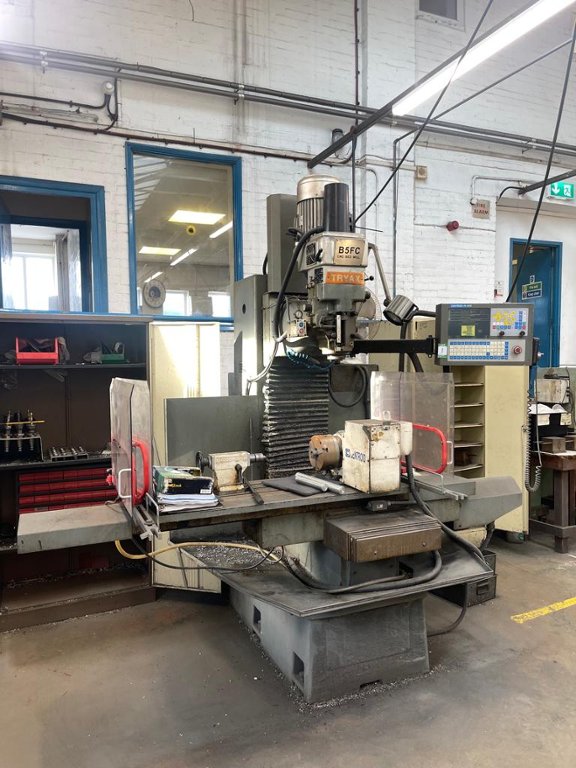

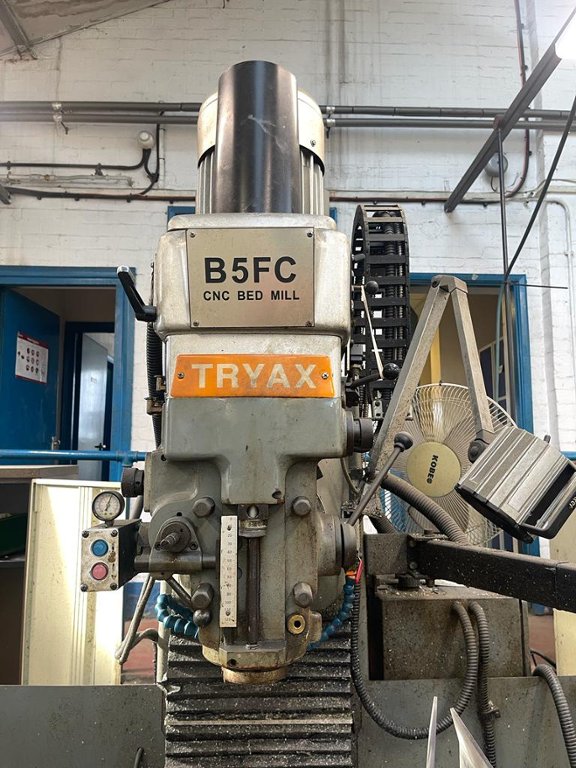

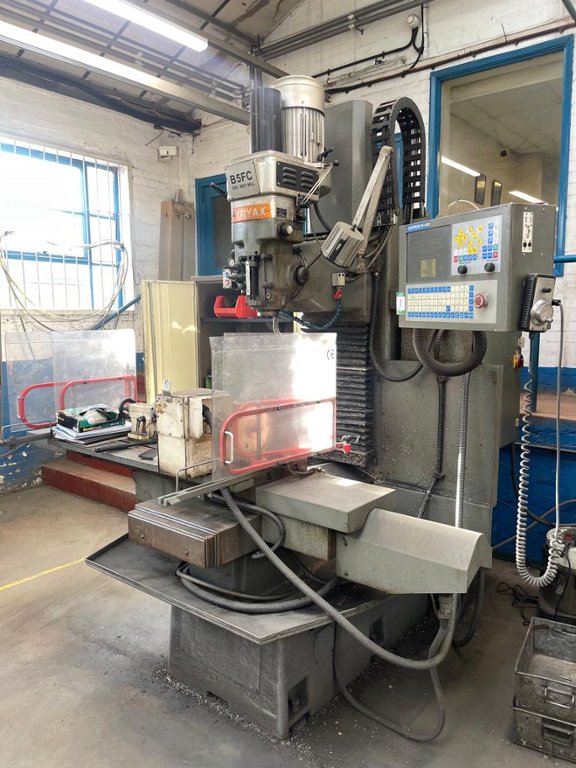

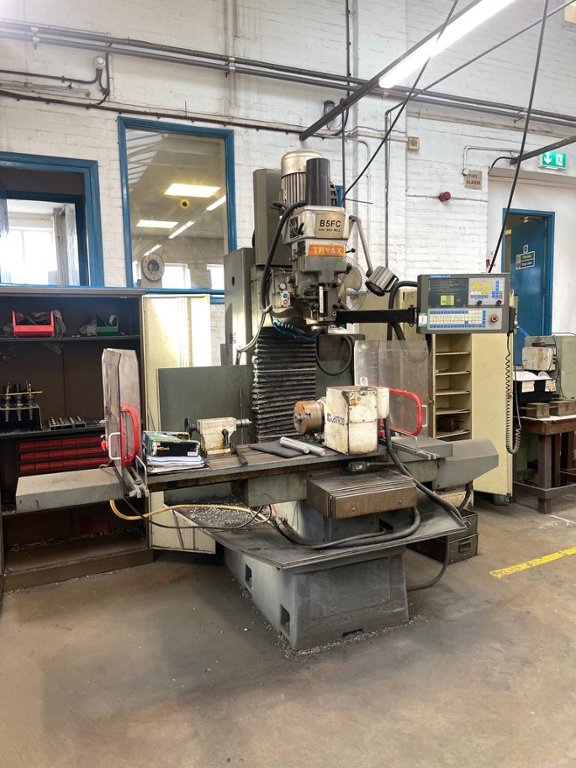

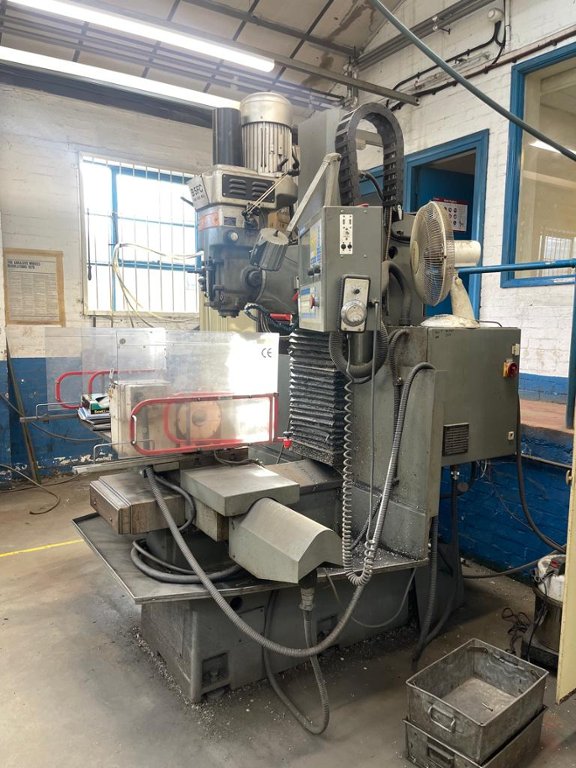

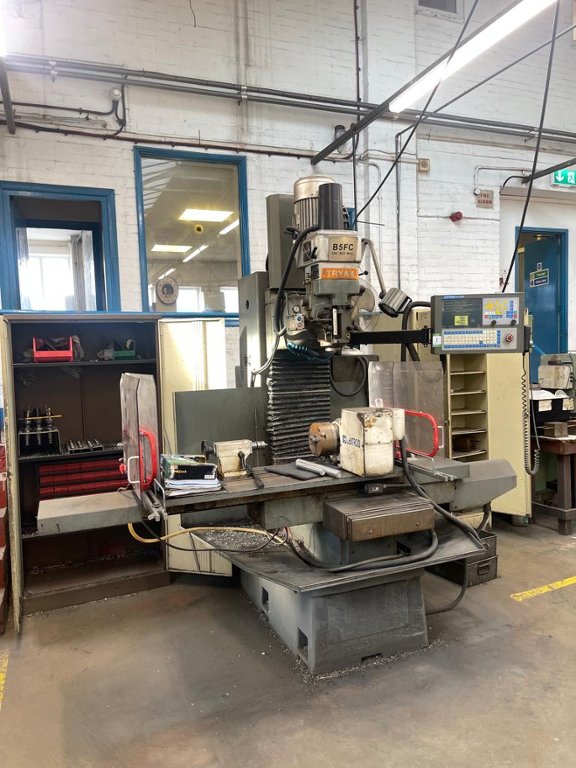

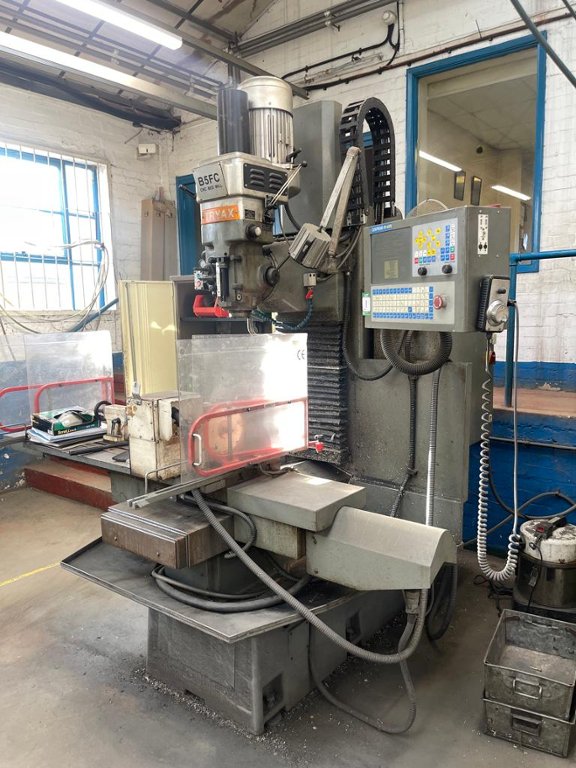

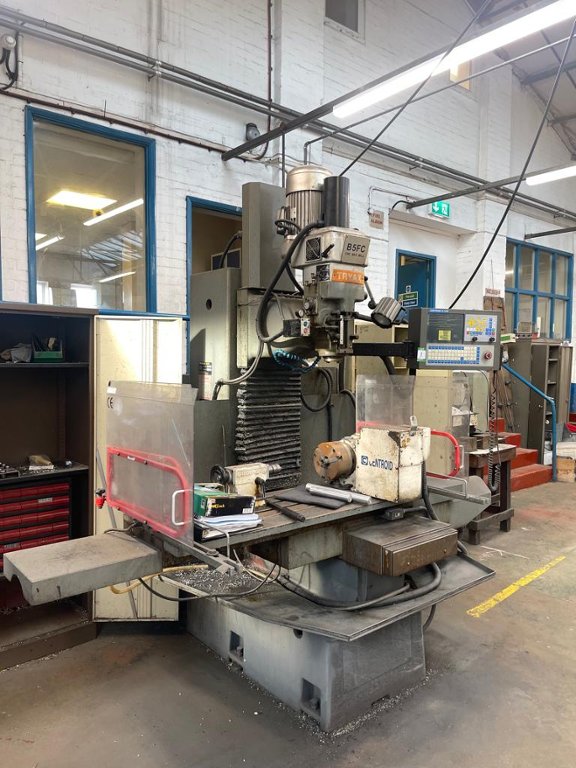

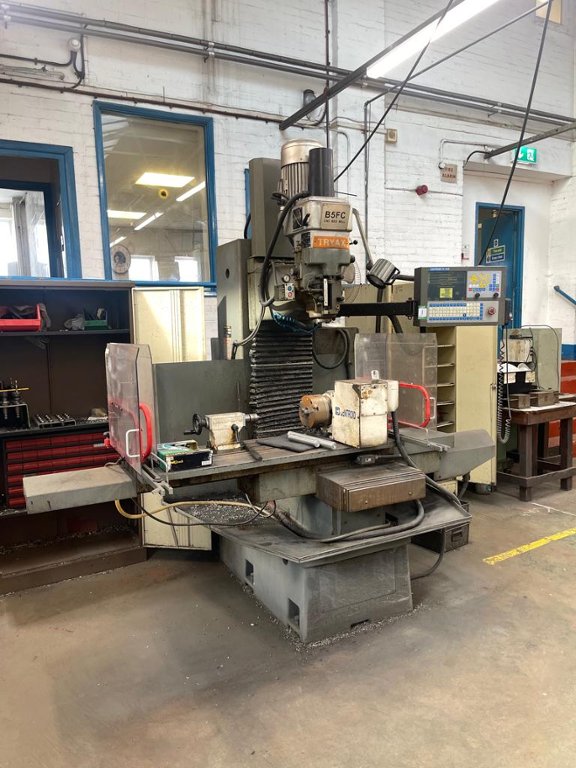

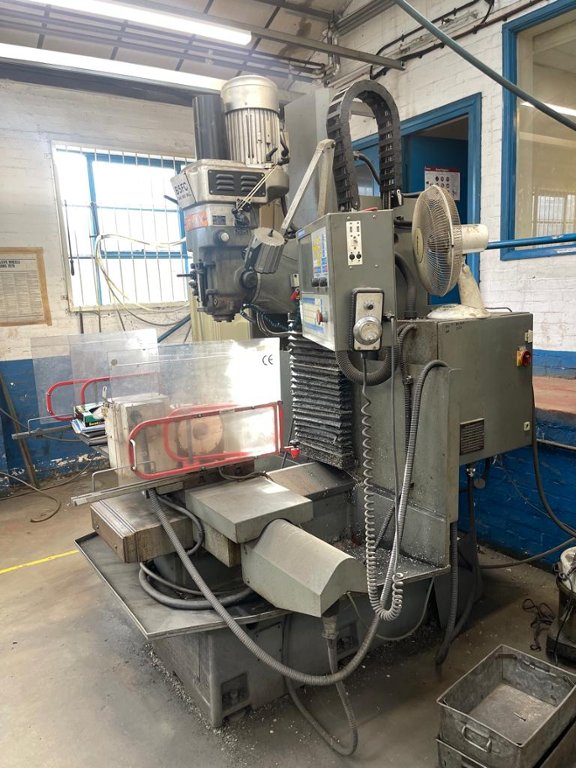

Tryax B5FC CNC Milling Machine with 4th Axis (2001)

Lot 1 - Tryax B5FC CNC Milling Machine with 4th Axis (2001)

Description:

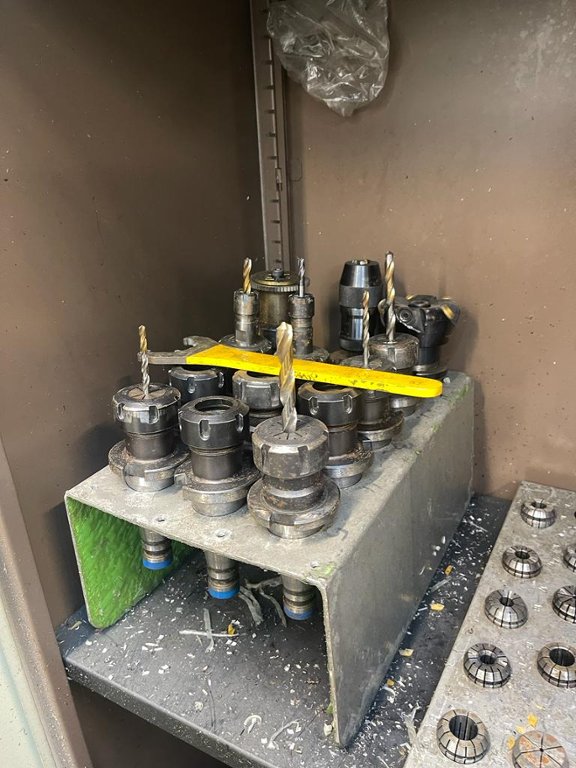

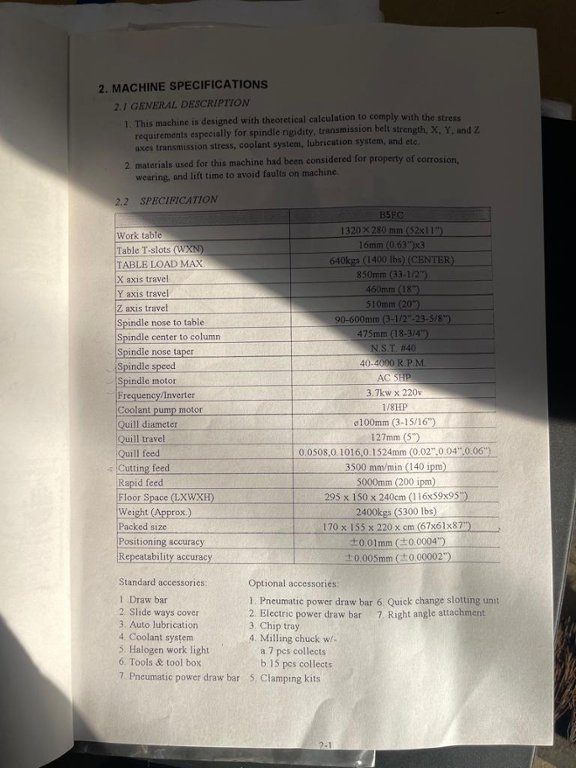

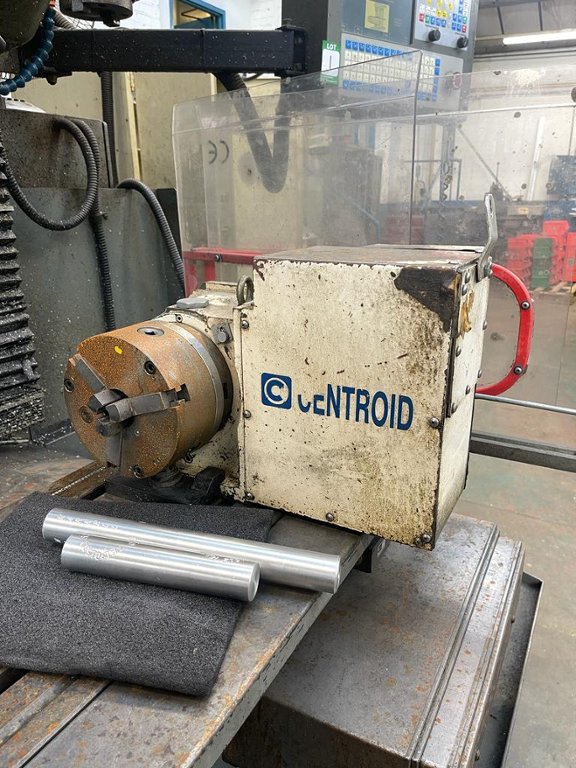

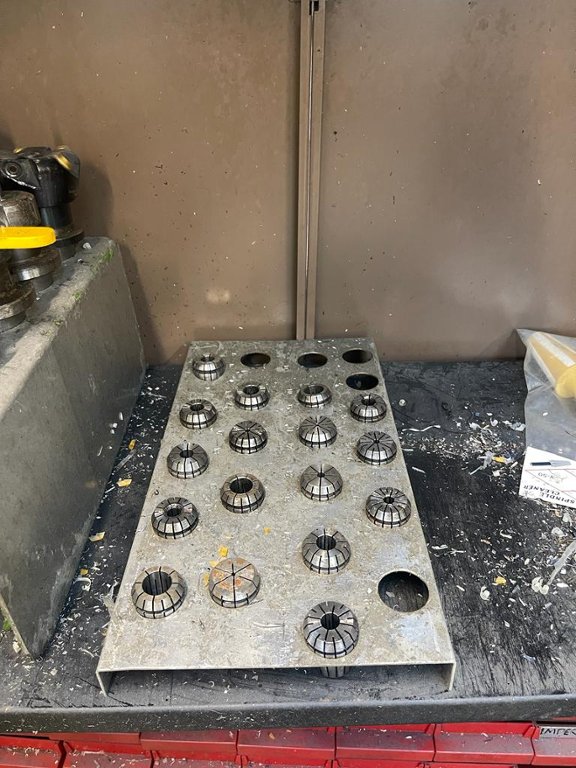

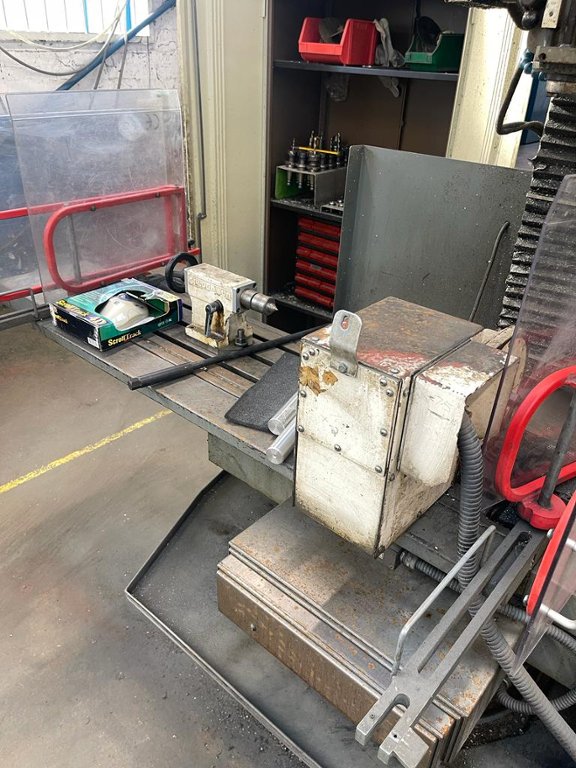

Comes with manuals, 4th axis, a selection of BT40 Toolholders and collets

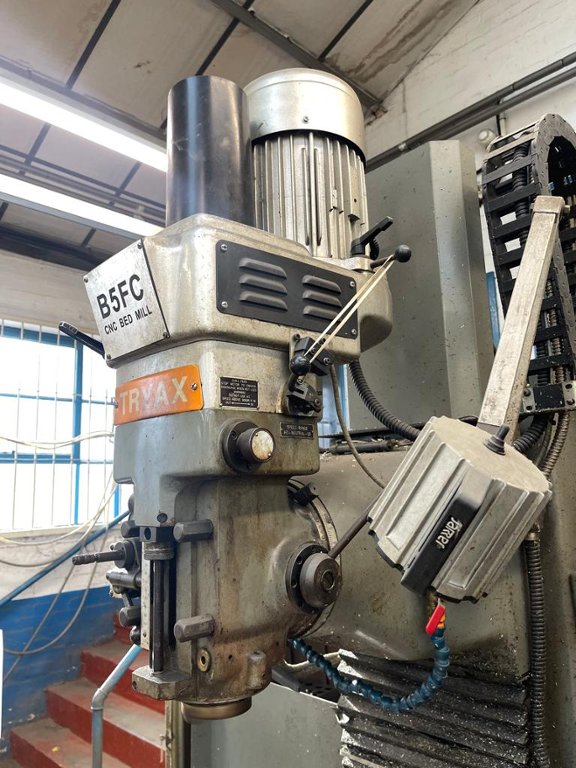

Work Table - 1320 x 280mm, Table T Slots (WXN) - 16mm, Table Load (max) - 640kgs, X Axis Travel - 850mm, Y Axis Travel - 460mm, Z Axis Travel - 510mm, Spindle nose to table - 90-600mm, Spindle center to column - 475mm, Spindle nose taper - N.S.T #40, Spindle speed - 40-4000 RPM, Spindle motor - AC 5HP, Frequency inverter - 3.7Kw x 220v, Coolant pump motor - 1/8HP, Quill diameter - 100mm, Quill travel - 127mm, Quill feed - 0.0508/0.1016/0.1524mm, Cutting feed - 3500mm/min, Rapid feed - 5000mm, Positioning accuracy - ±0.01mm, Repeatability accuracy - ±0.005mm

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
