Turbex SP-230 Front Loading Spray Washing Machine

Lot 9 - Turbex SP-230 Front Loading Spray Washing Machine

Description:

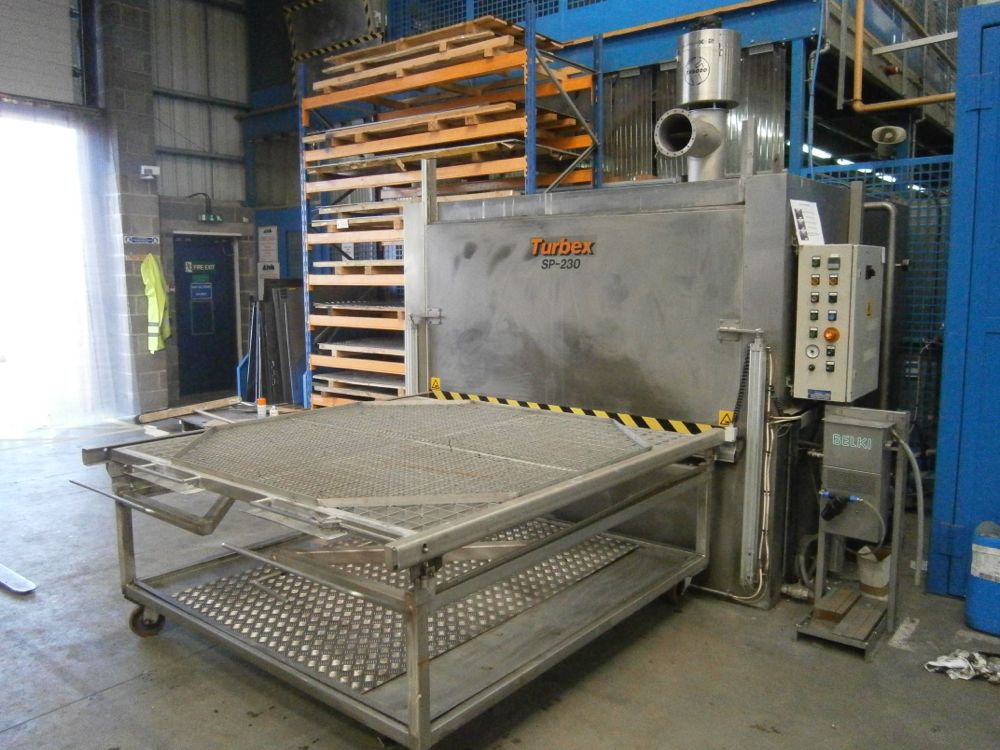

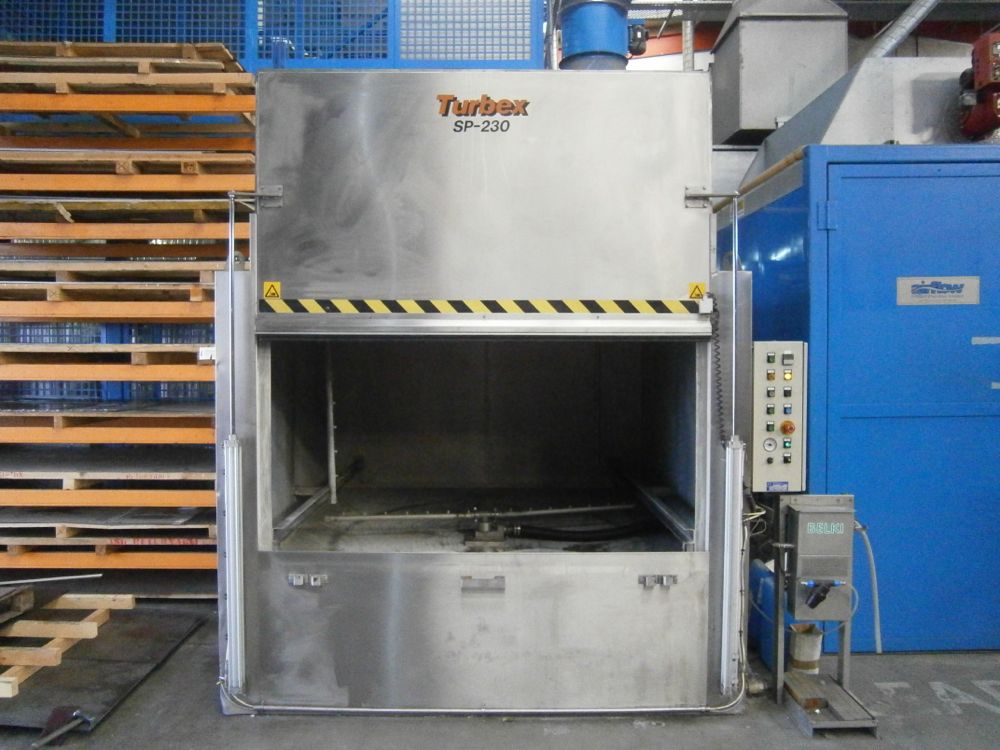

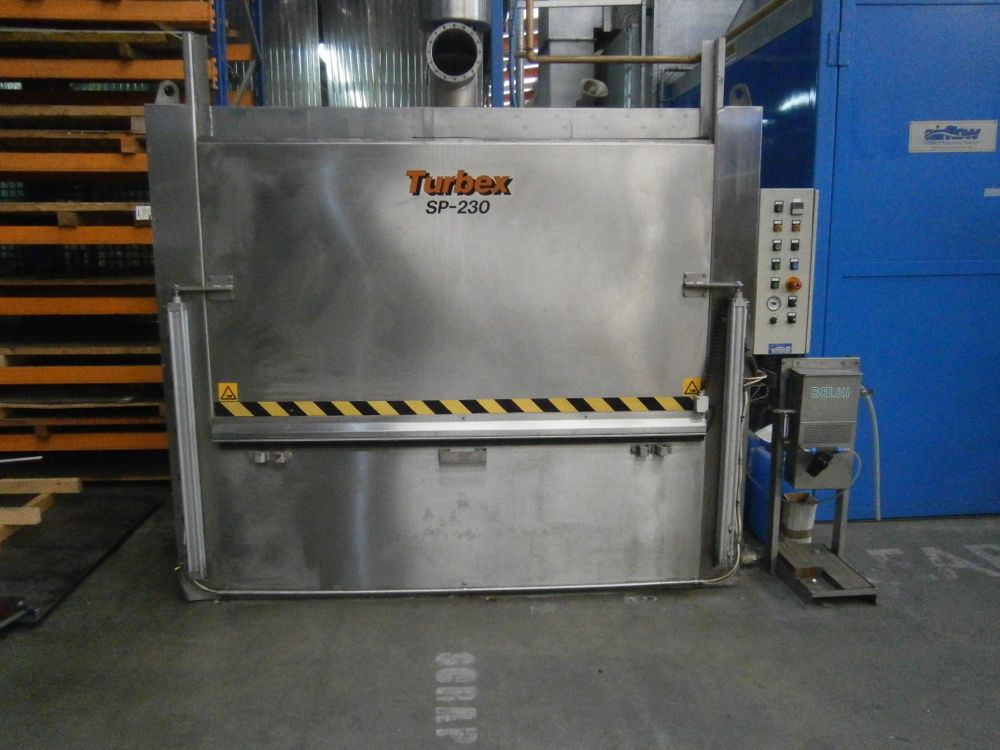

Turbex SP-230 Front Loading Spray Washing Machine

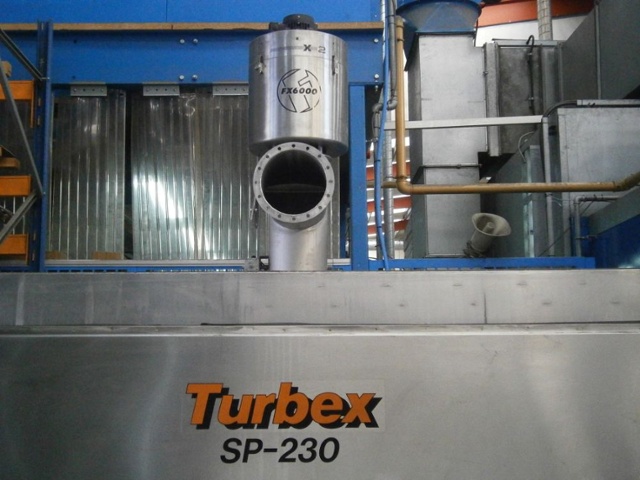

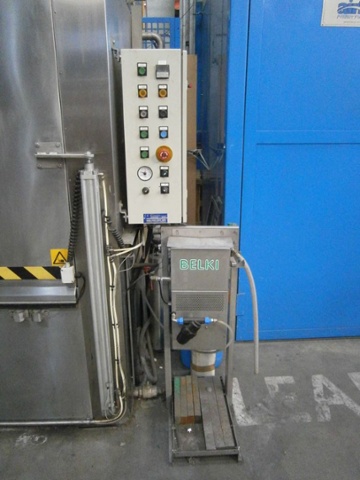

With Mini Oil Separator & Mist Filter Condenser Unit options included

Single-stage front loading spray washer made from stainless steel with rotating spry system complete with spray nozzles, pneumatically operated lifting door, thermal and acoustic insulation with stainless steel cover plates together with:

Operating wash height: 900mm
Maximum load: 500Kg
Stainless steel construction
Heating power: 3 x 12kW direct immersion electric elements
The liquid tank is located below the wash chamber complete with:
* Low liquid level alarm, with pump protection
* 2400 Lt tank capacity
* Safety thermostat with machine alarm & cut out
CF-340 closed loop (Bypass) Filter system complete with:
* Stainless steel recirculation pump with timer
* Stainless steel filter housing holding 3 filter cartridges
* 3 off 50um filter cartridges
* Pressure gauge for visual inspection of “filter status”
Double button operating at end of cycle
Automatic door opening at end of cycle
Door safety pressure strip
Motorised upper spray system
Coarse filtration on liquid return to tank
Load grating, stainless steel

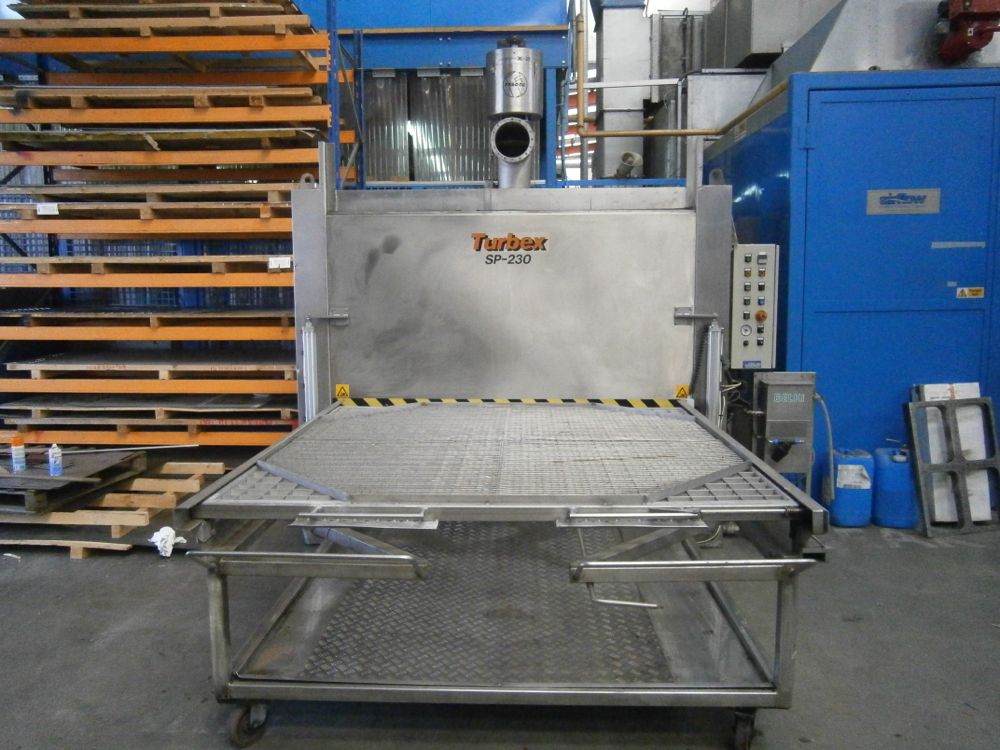

Load trolley, stainless steel
Extractor fan (door opens a small amount during extraction stage)
24 volt control circuit

Services Required:

Electrical supply: 3 phase + N + E; 42kW

Compressed air: dry, oil free at approximately 6 bar through half supply

Foul Drain

Steam extraction ducting

Floor area required: 2900mm wide x 4700mm front to back x 2900 height

Location: Poole, Dorset

Machine has 4 x lifting eyes on top for HIAB lift.
Weight Approx: 2000kg

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
