Used Gildermeister Twin 32 cnc lathe (Year 2002)

Lot 7 - Used Gildermeister Twin 32 cnc lathe (Year 2002)

Description:

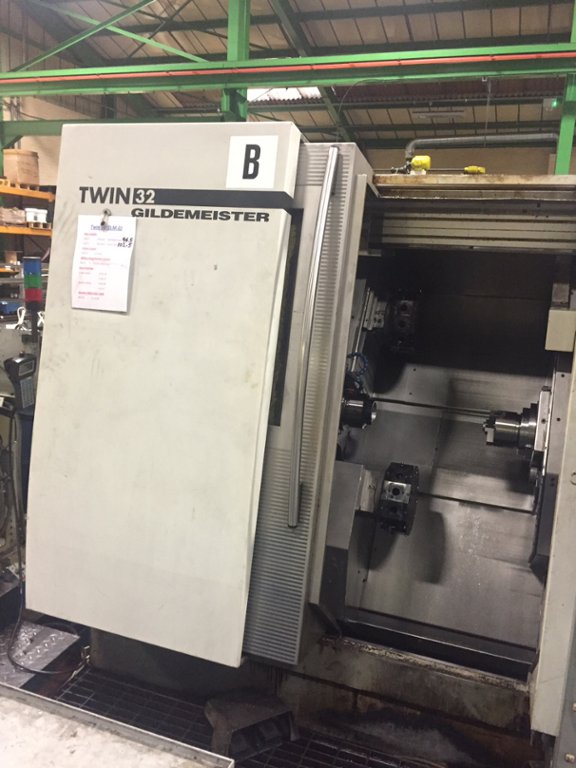

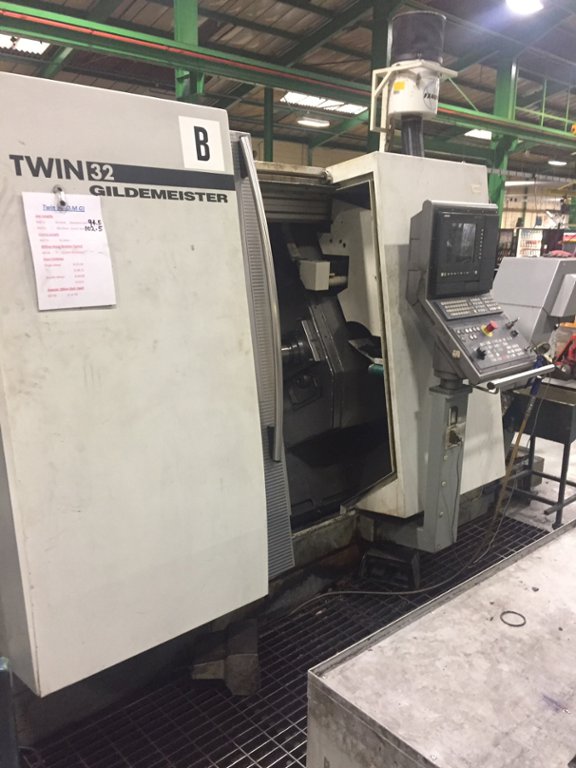

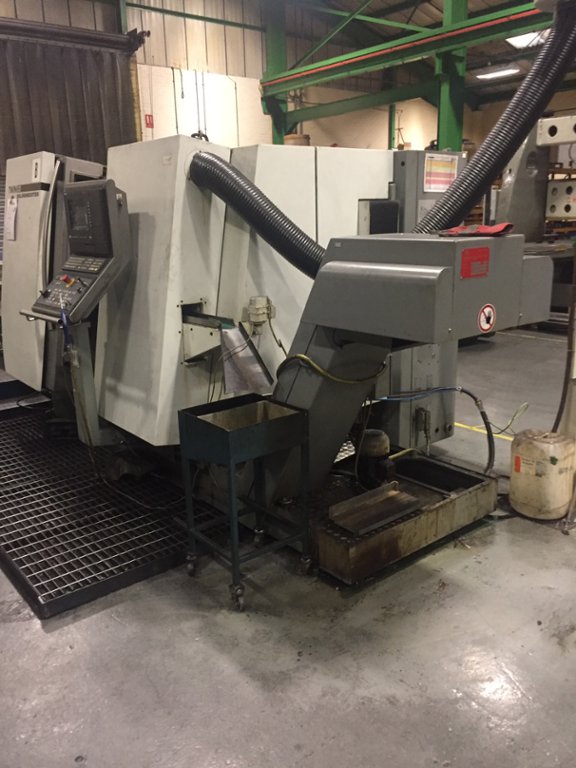

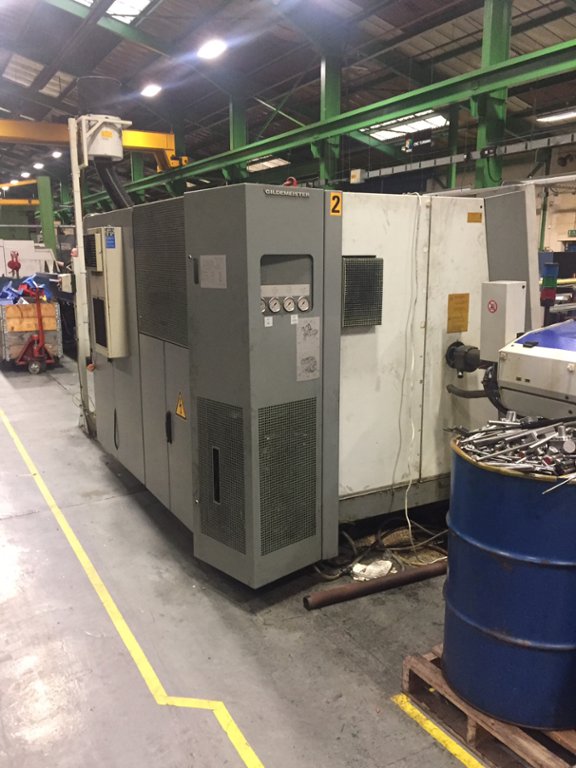

Used Gildermeister Twin 32 cnc lathe ( Year 2002)

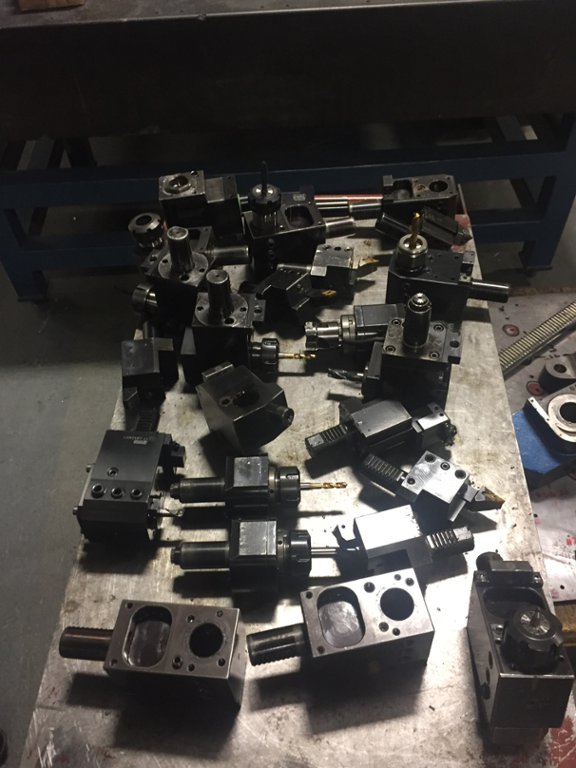

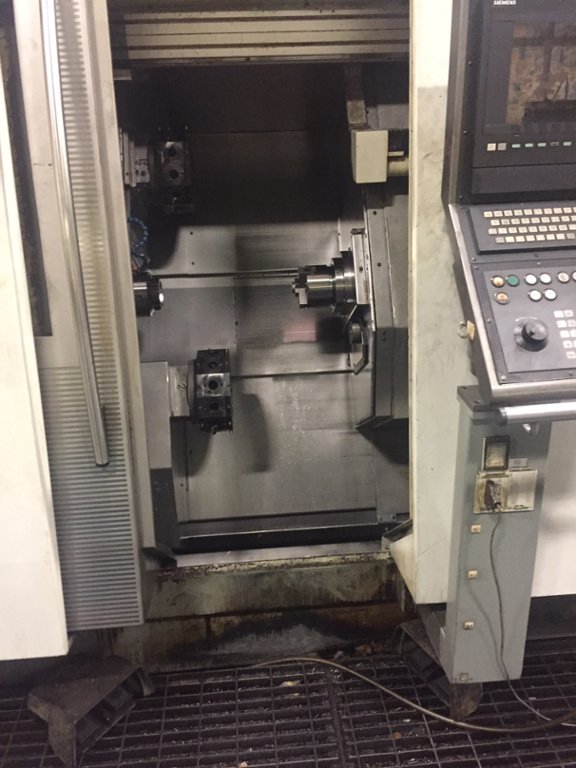

Static and driven tooling as per attached photo
turning diameter 100 mm
turning length 320 mm

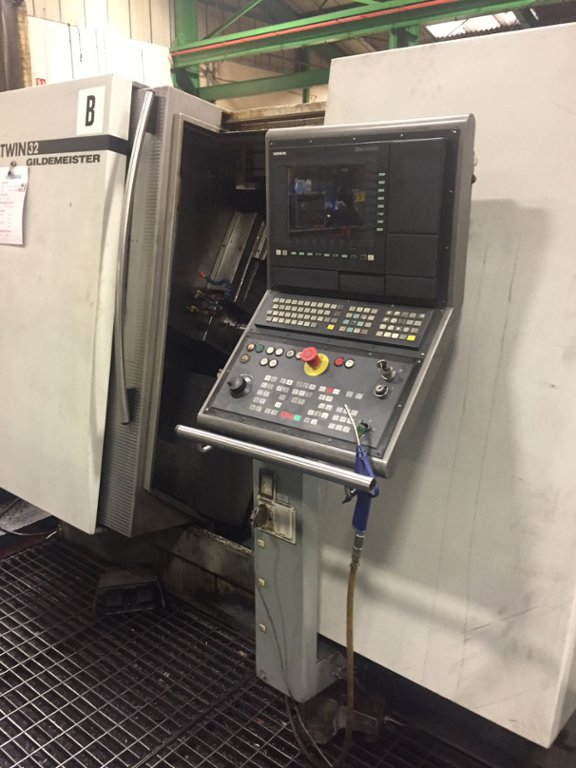

control SINUMERIK 840 D
spindle distance 580 mm
spindle bore Spindel 1: 50 mm
spindle bore Spindel 2: 50 mm
power capacity at 100 % load 21 kW
main spindle speeds: 40 - 8000 U/min
max. torque on the spindle 80 / 100 Nm
slide I - cross travel 220 mm
slide I - longitudial travel 320 mm
slide II - cross travel 120 mm
slide II - longitudial travel 340 mm
travel sub spindle 380 mm
tool turret 2 x 12 Pos.
number of driven tool stations 2 x 12
internal coolant system feed ja / yes
ø 25 mm
spindle speed of rotating tools 30 - 6000 U/min
total power requirement 28 kW
weight of the machine ca. 6 t

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
