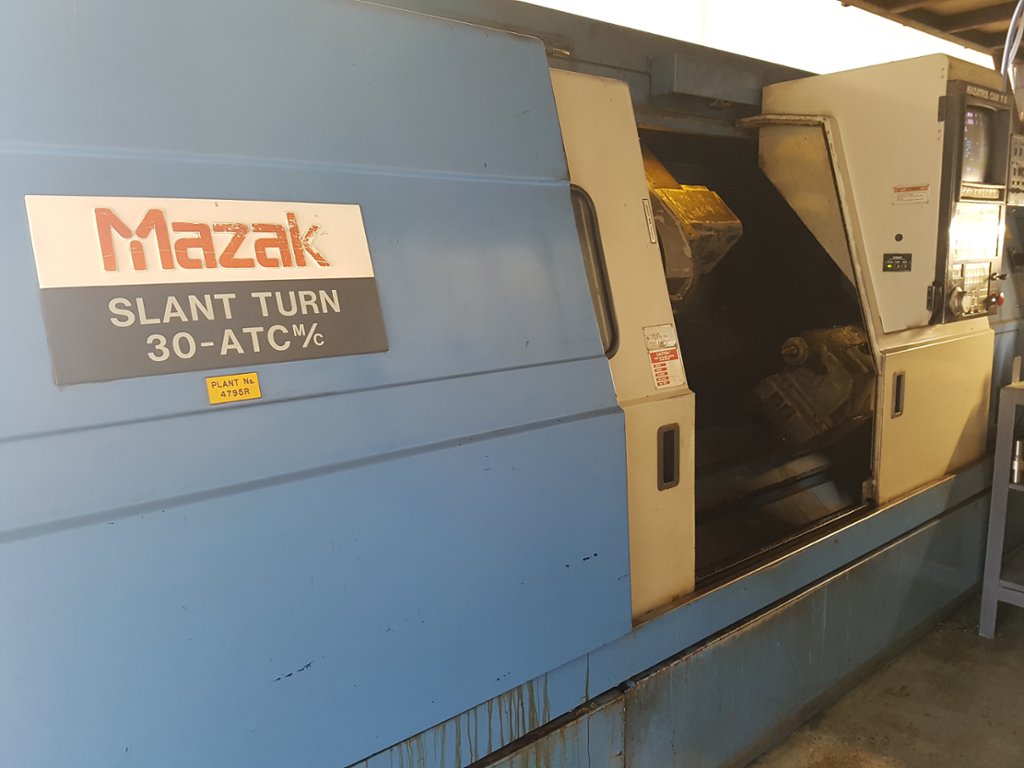

Used Mazak Slant Turn 30 ATC M/C CNC Lathe with C axis and driven tools

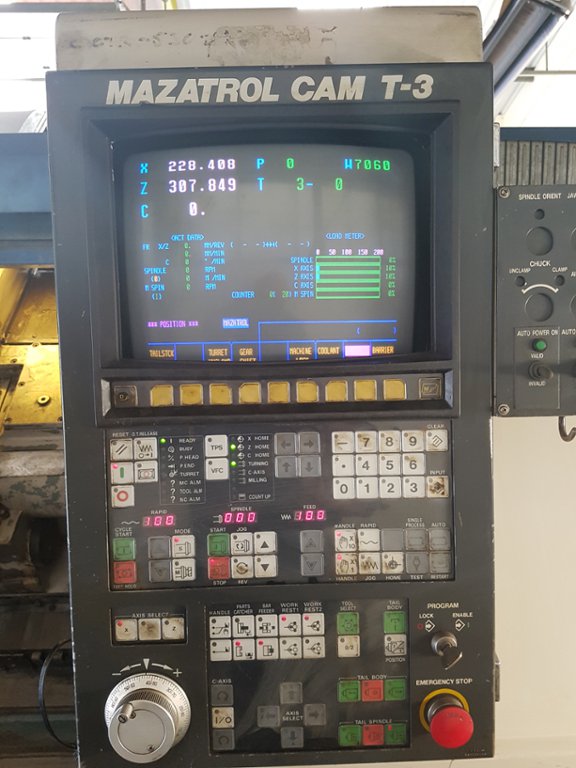

Mazatrol Cam T3 control
turning diameter 460 mm
turning length 1000 mm

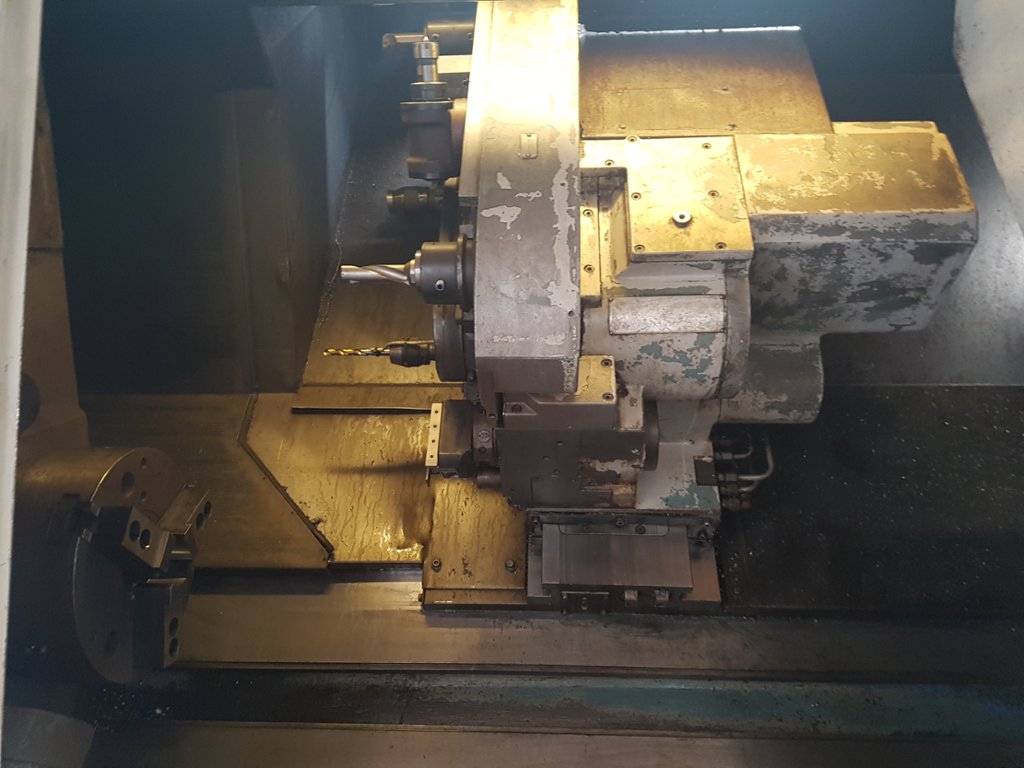

16 station Turret
spindle speeds 4-2200
spindle bore 80 mm

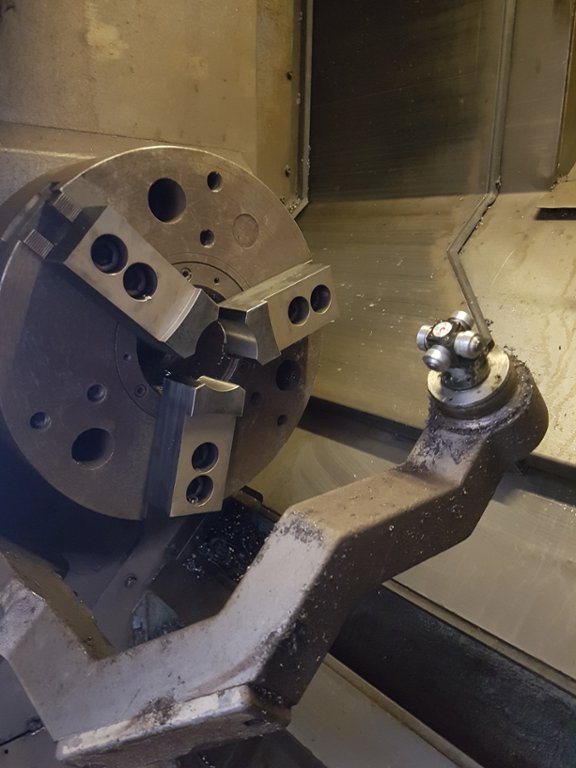

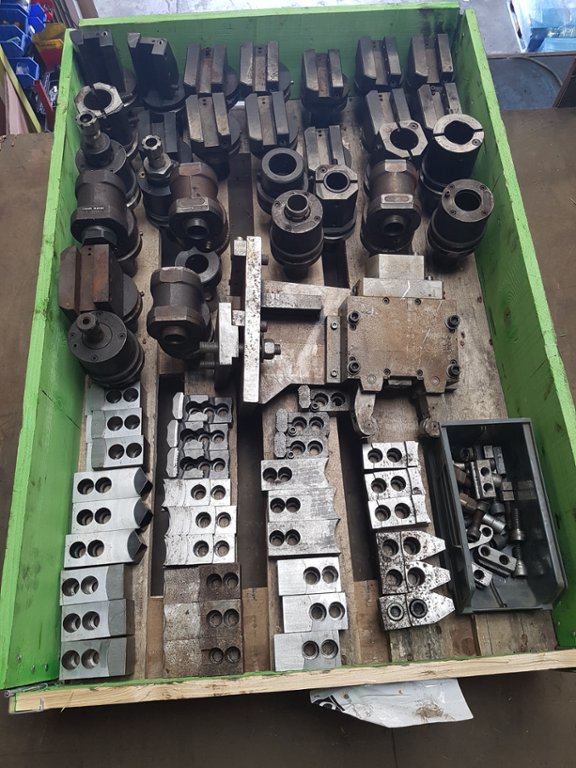

chuck size 300mm with 2 sets of hard jaws and 15 sets of soft jaws.
8 Vertical driven tools and 5 Horizontal driver tools all of ER32 collet size.
3 point roller steady
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
