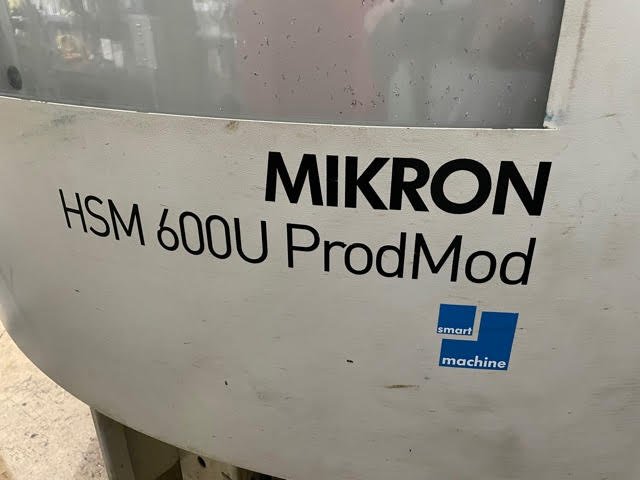

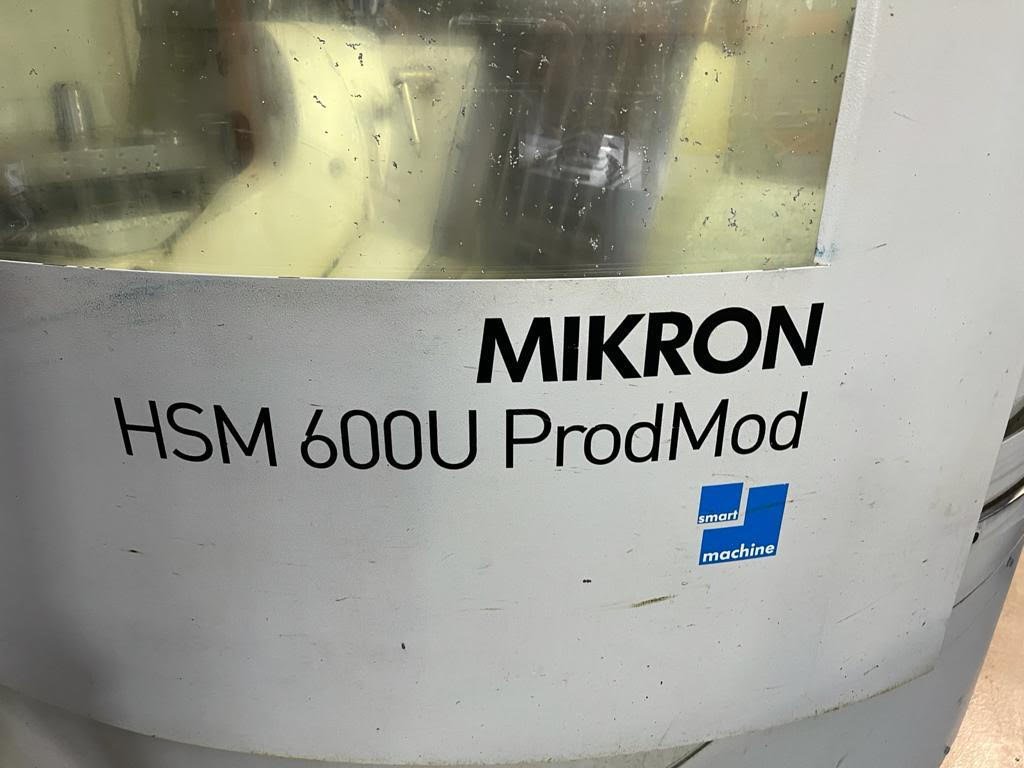

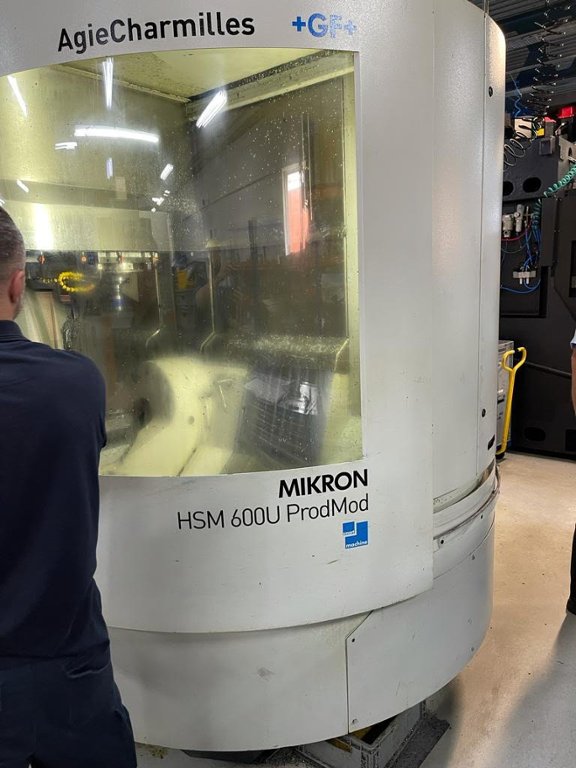

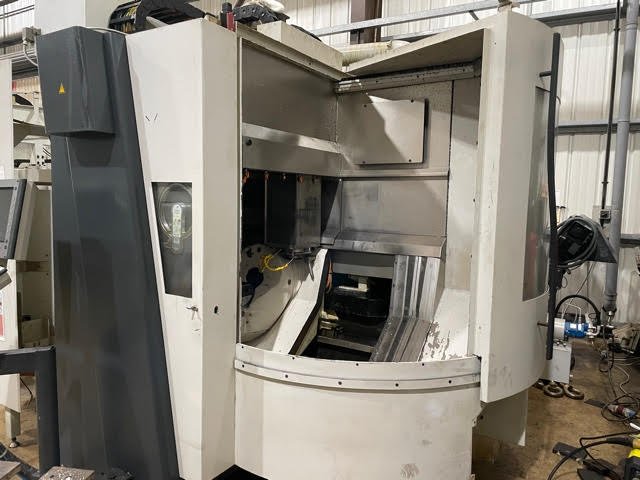

Lot 1 - Used Mikron HSM600U – 5 axis vertical Machining Centre (2007)
Description:

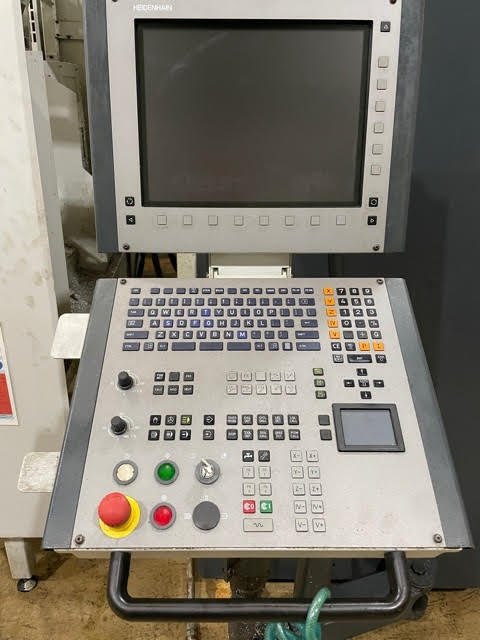

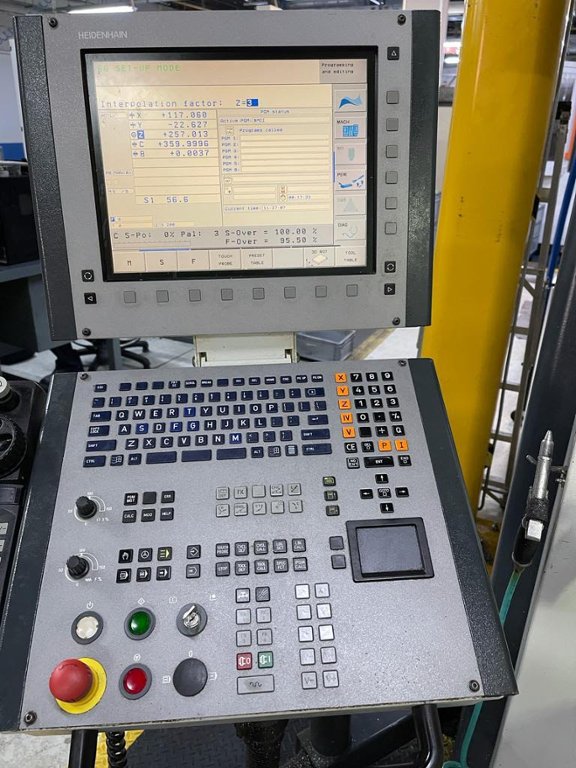

Heidenhain iTNC 530
WORKING RANGE
Longitudinal X-Axis 800 mm
Cross Y-Axis 600 mm
Vertical Z-Axis 500 mm

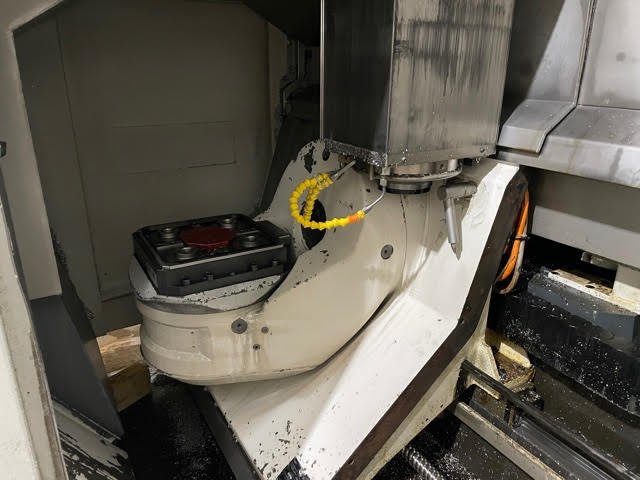

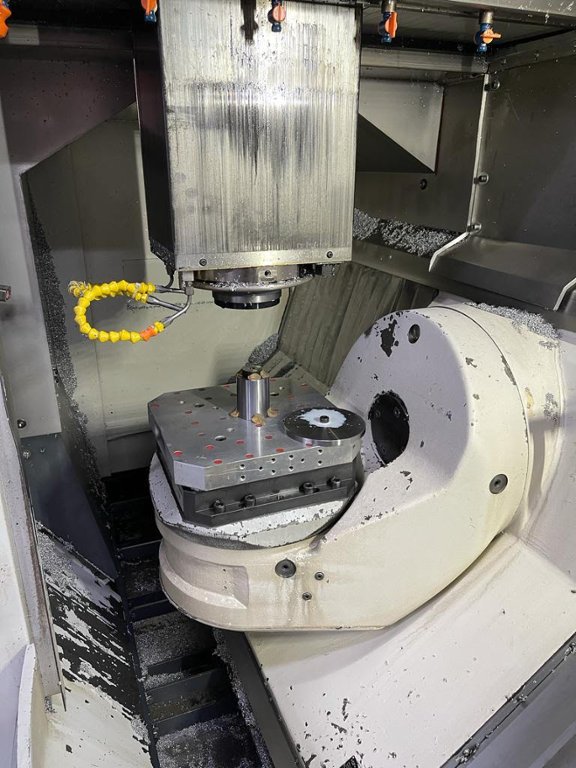

B-Axis (Swivel) +30/-110 degrees
C-Axis (Rotary) 360 degrees
Number of simultaneous axis 5/5 simultaneous

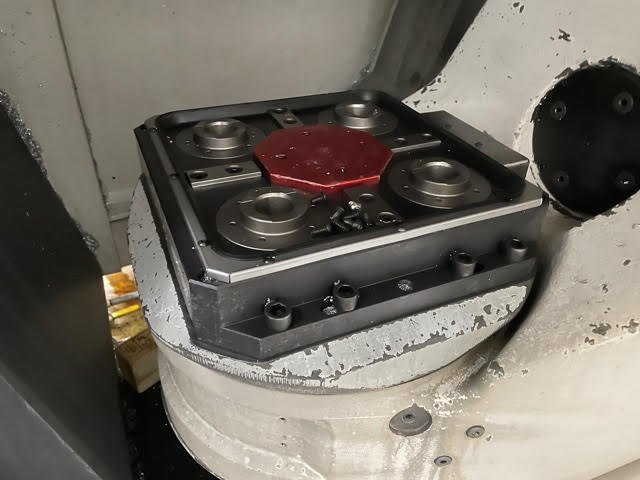

Max pallet size possible for this machine 350 x 350 mm

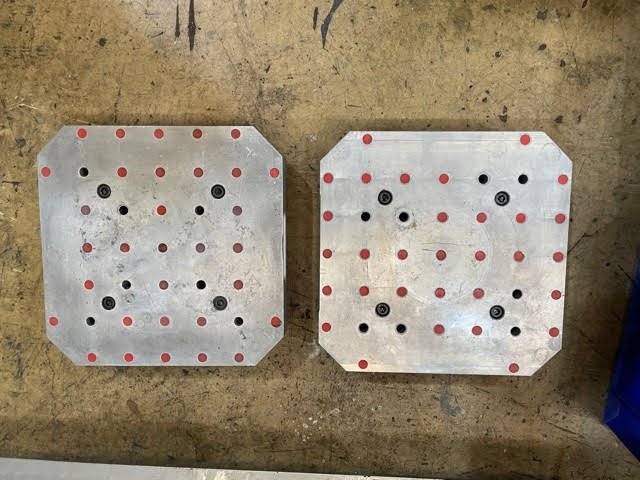

Number of pallets this machine is equipped with 2 pallets

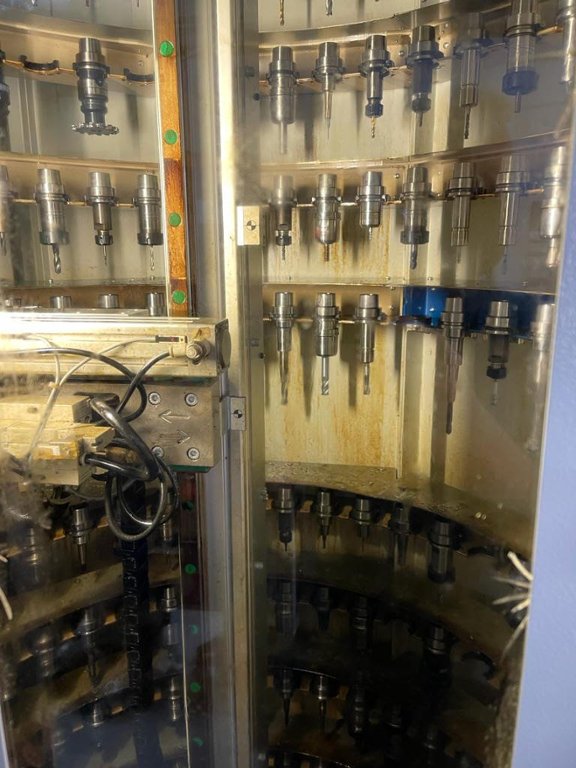

Tool Magazine automatic tool changer 120 positions

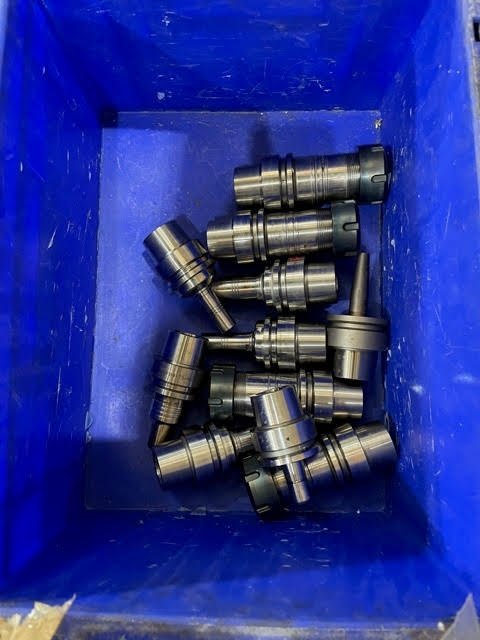

Spindle taper HSK A63 ( TOOLING AS PER PHOTOS in box, tooling in tool changer photo not included)

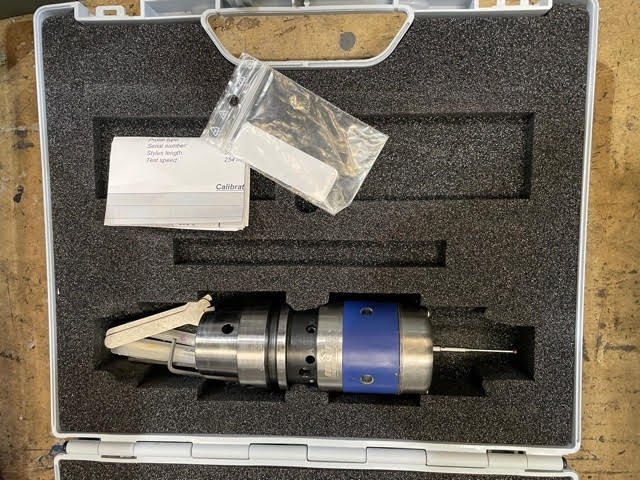

Spindle probe

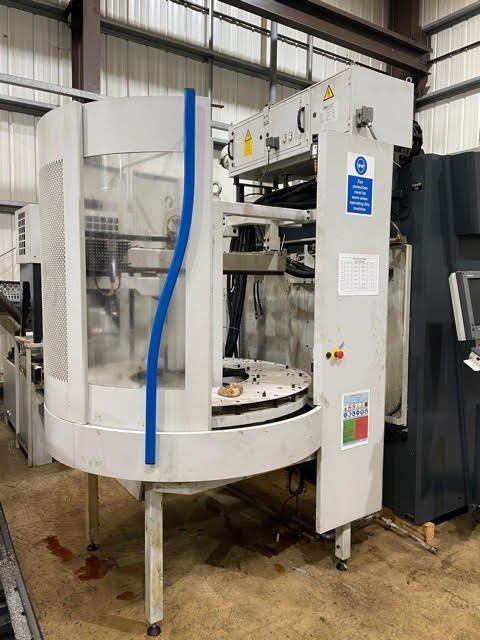

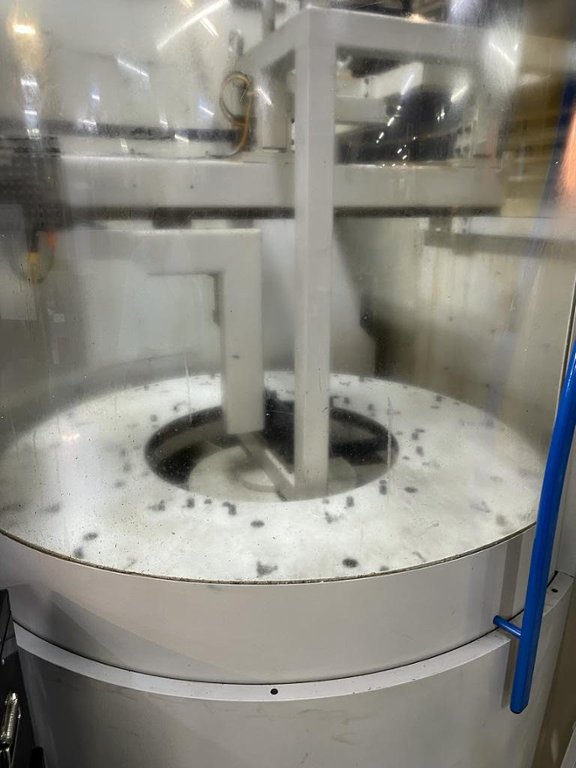

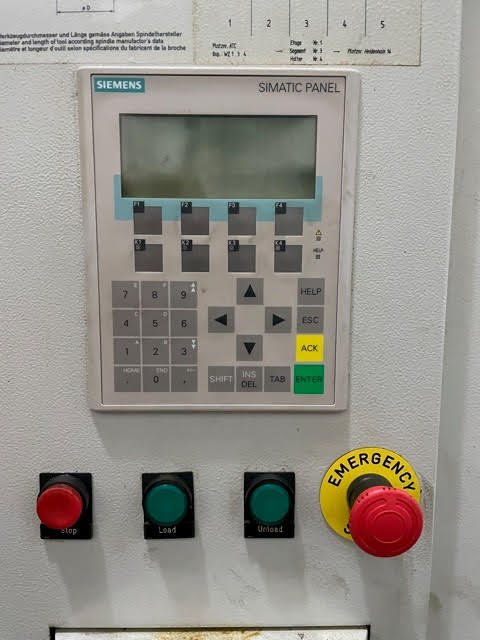

Automatic pallet changer 7 STATION
There is No fixturing or vice with this machine - the only tooling included is that specifically described
Export Information
Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.
All invoices are issued on an Incoterms FCA basis.
Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
Bid information
Time remaining
27 Apr 2022 15:10:00 BST
Location: Leicester
Transport information
- Width: 3.6 m
- Depth: 2.4 m
- Height: 2.8 m
- Weight: 8300 kg

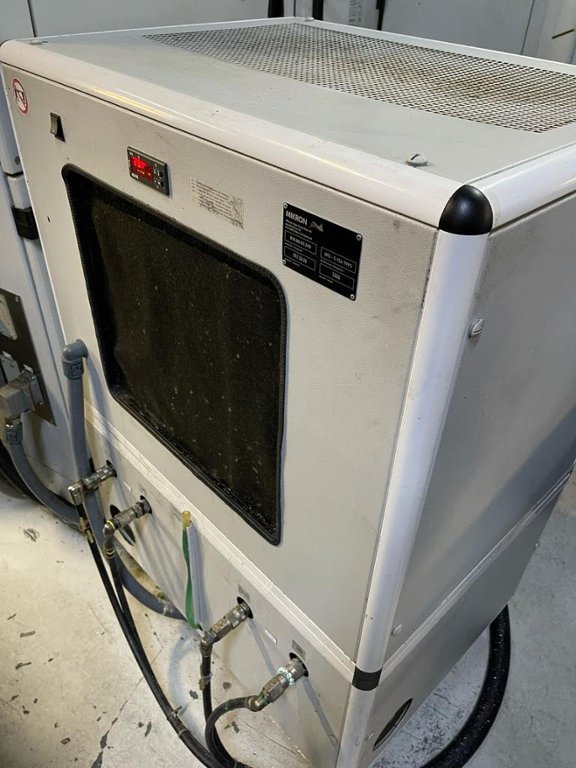

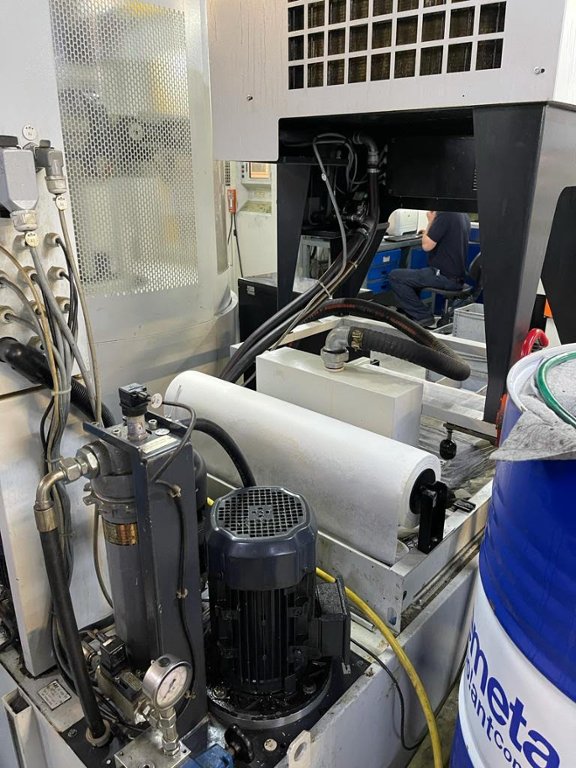

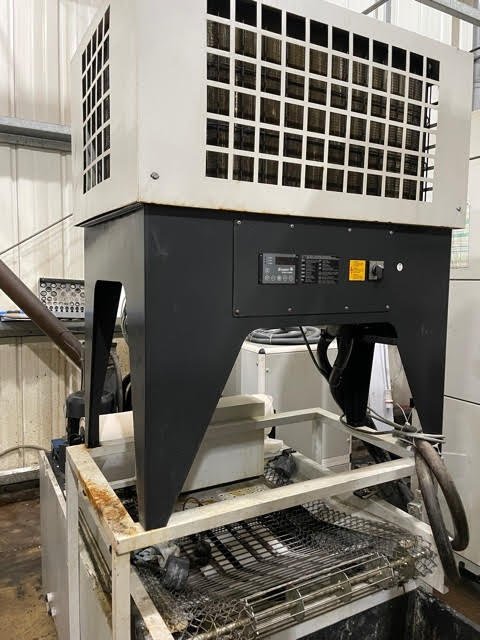

- Other Transport Details: Loaded to suitable tranport £150 Pallet changer 2.3 x 1.7 x 2.4m high 1500 kgs Coolant unit 1.8 x 1.0 x 2.2m high 1500kgs Swarf conveyor 2.5 x 0.9 x 1.5m high 300kgs Chiller unit 0.8 x 0.6 x 1.2m high 200 kgs Box of accessories 1.1 x 1.1 x 1.0m high 400 kgs
