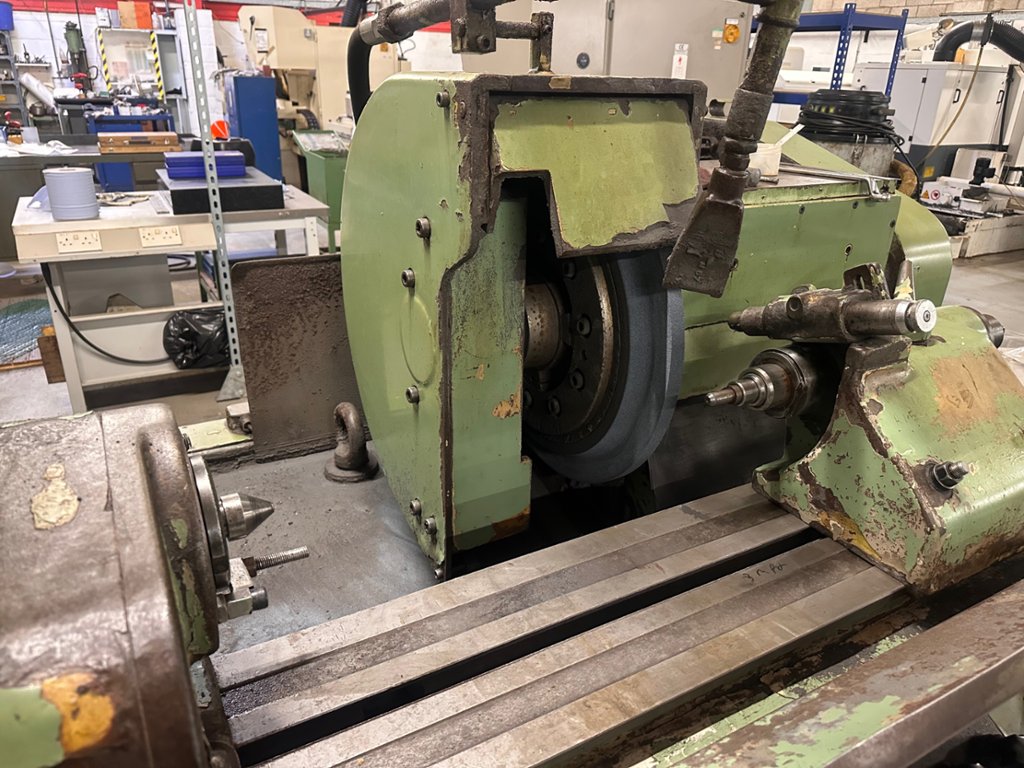

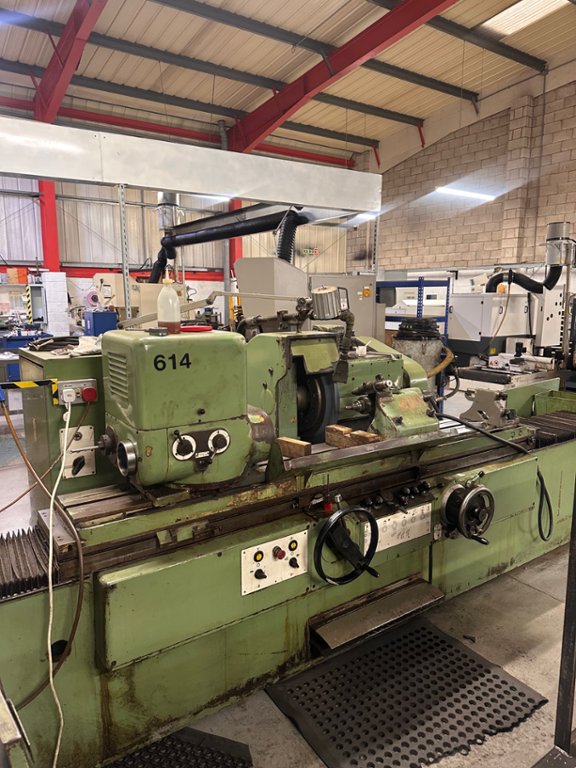

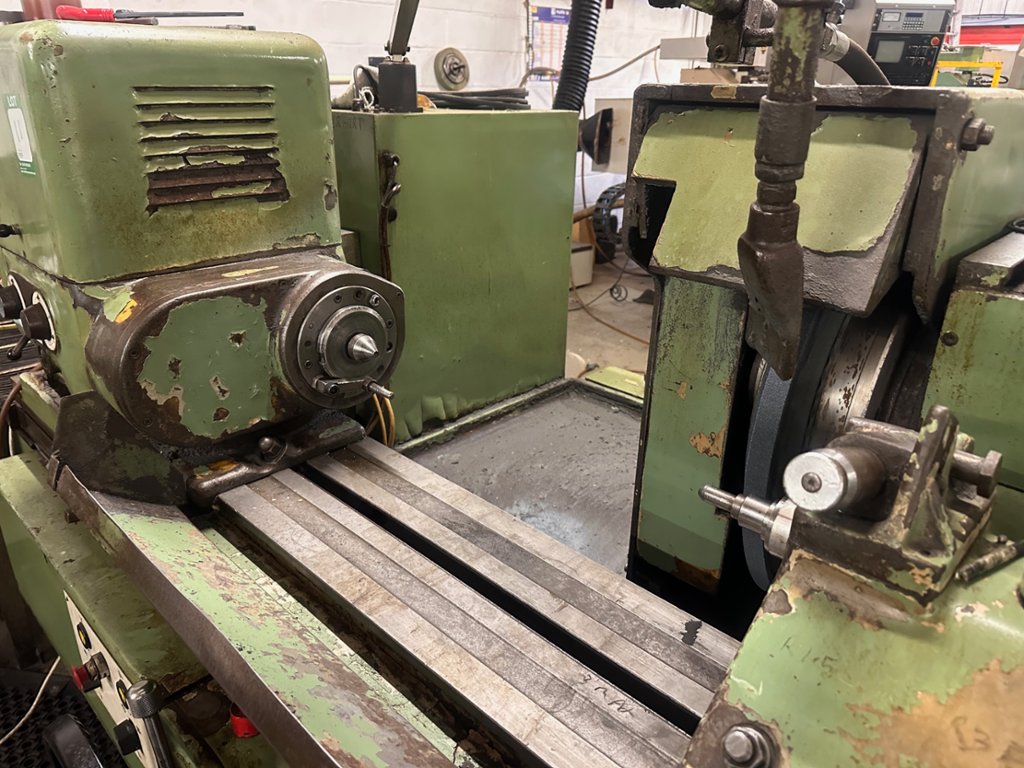

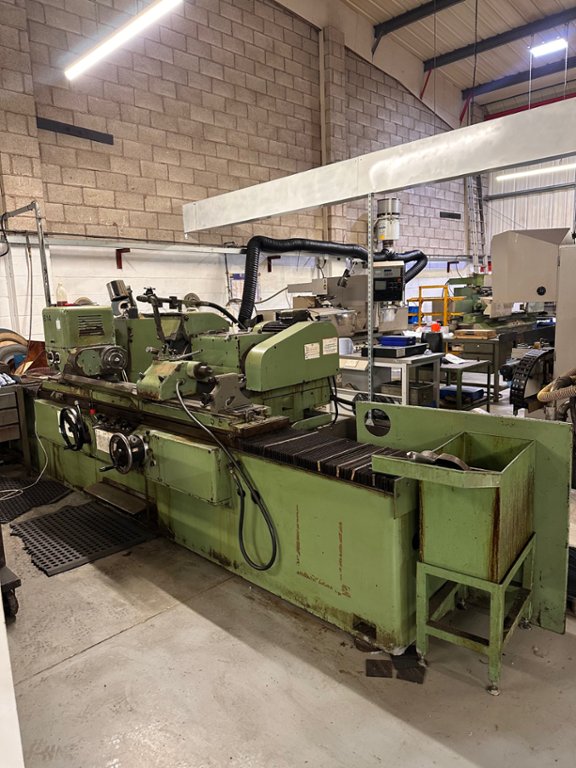

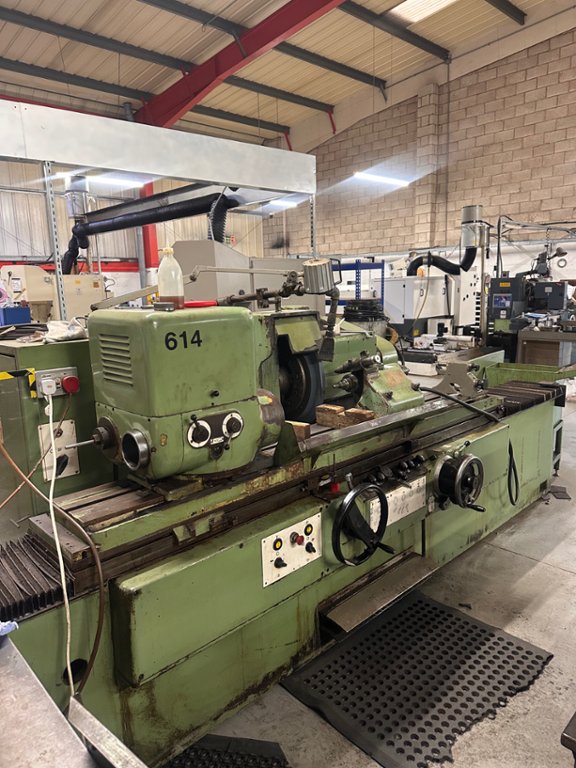

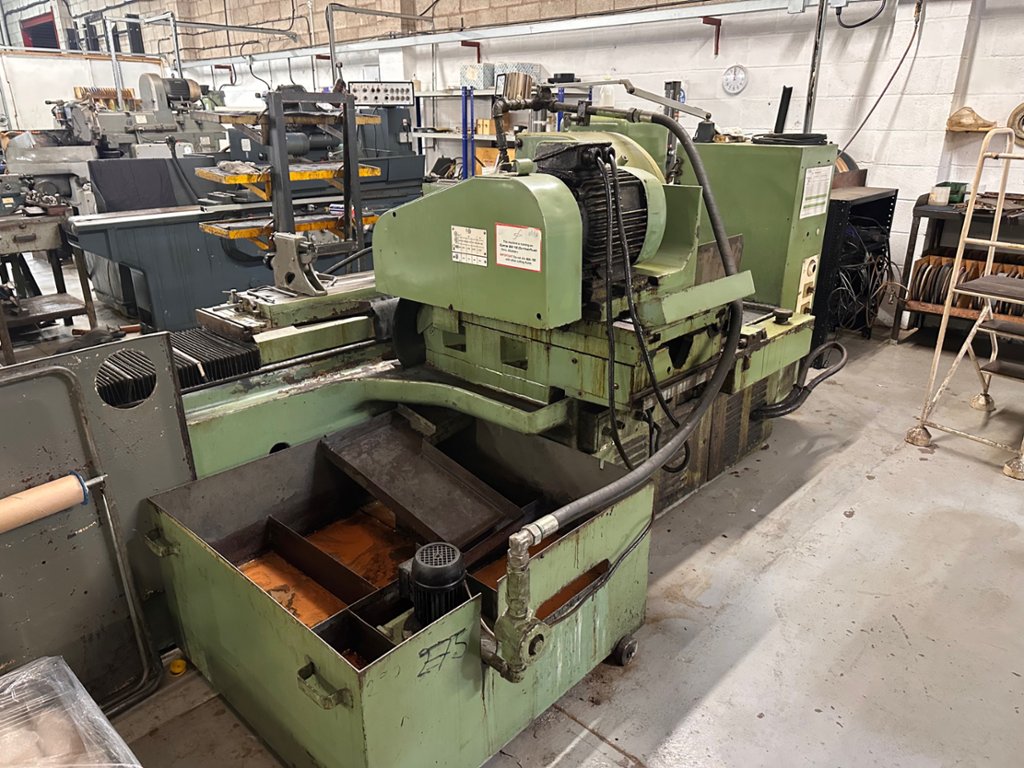

VEB Schleifmaschinenwerk Karl-Marx-Stadt SA 315 × 1500 universal cylindrical grinder (Approx 1978)

Lot 11 - VEB Schleifmaschinenwerk Karl-Marx-Stadt SA 315 × 1500 universal cylindrical grinder (Approx 1978)

Description:

Component Capacities & Working Area

Maximum Swing Diameter Over Table: 315 mm, Maximum Turning / Grinding Length: 1,500 mm (Distance between centres), Centre Height Above Table Slide: 165 mm, Maximum Workpiece Weight (Between Centres): 300 kg (unsupported) / up to 500 kg utilizing standard steady rests, Workhead & Tailstock Spindle Tapers: Morse Taper 4 (MT4), Workhead Spindle Bore: Ø 30 mm

Table & Kinematic Feeds

Maximum Automatic Longitudinal Stroke (X-axis): 1,680 mm, Longitudinal Table Feed Rate: Infinitely variable from 0.05 to 6.0 metres per minute via hydraulic control, Table Swiveling Range (for long taper grinding): Up to 6° towards the wheelhead; up to 3° away from the wheelhead, Infeed (Cross-Feed) Increments: Automatic plunge or intermittent feed adjustable from 0.001 mm to 0.05 mm per table reversal.

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
