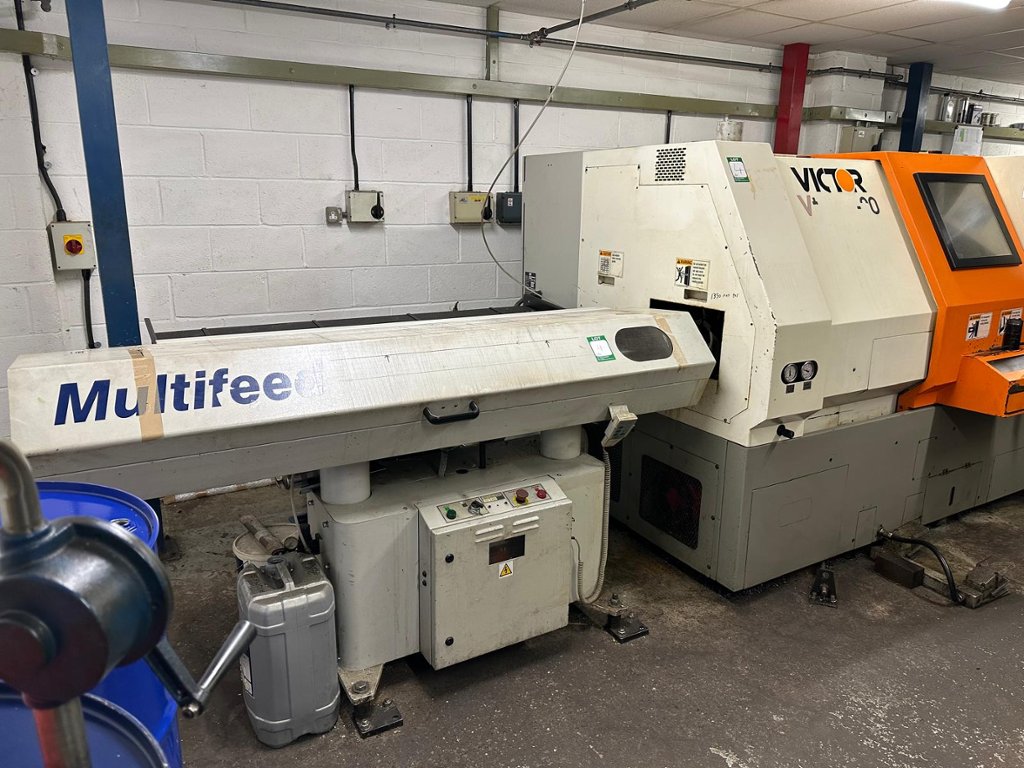

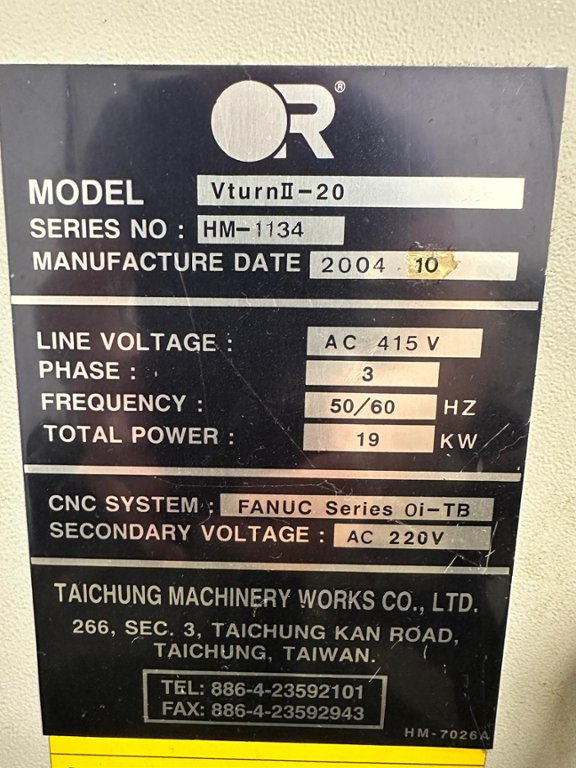

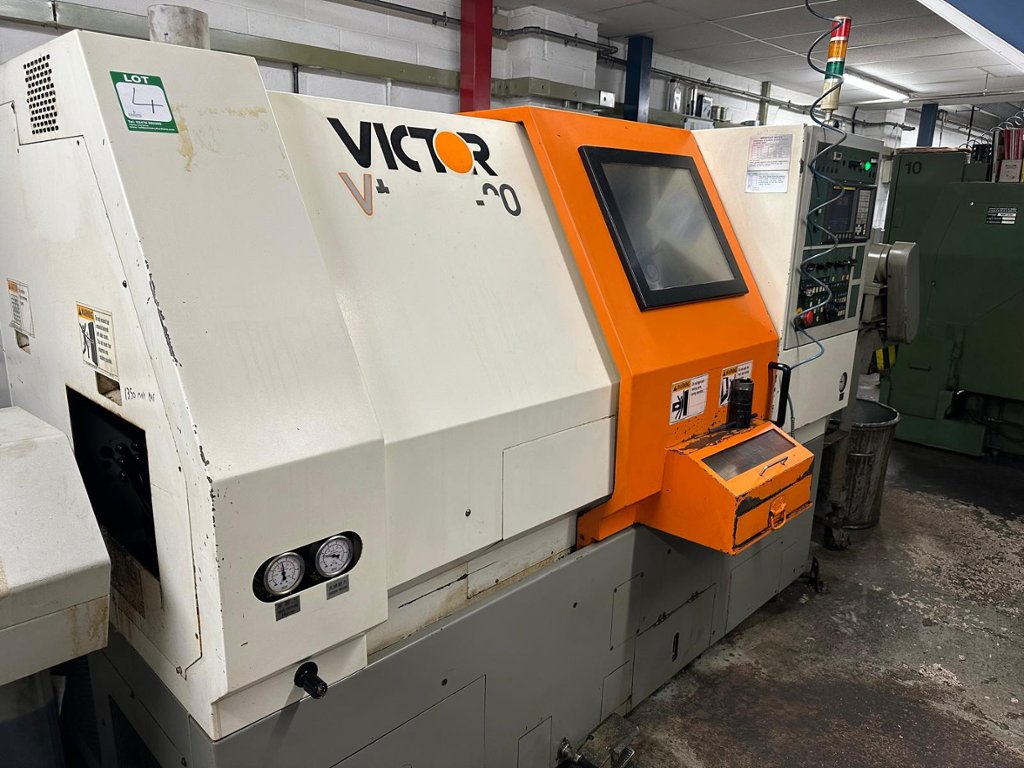

Victor V-Turn II-20 CNC Lathe (2004)

Width: 2700mm
Depth: 1780mm
Height: 1853mm
Weight: 5550kg

Lot 4 - Victor V-Turn II-20 CNC Lathe (2004)

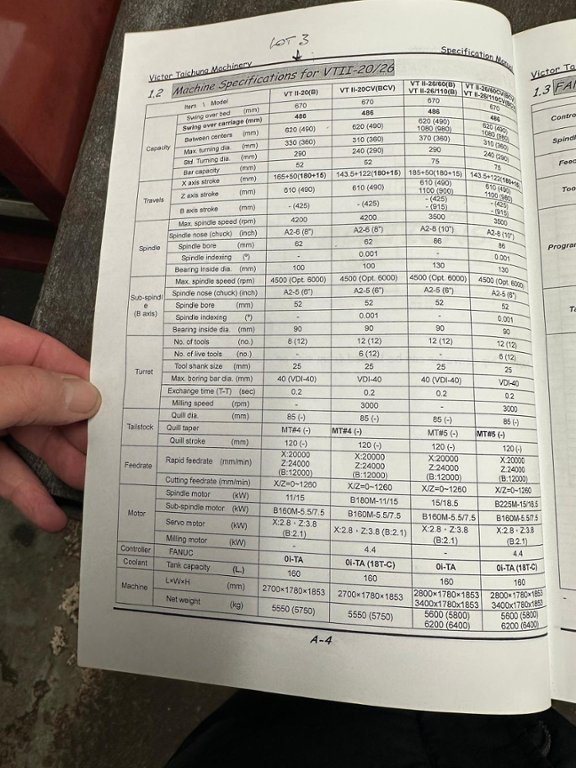

Description:

Swing over bed 670mm.
Swing over carriage 486mm.
Standard turning dia. 290mm.
Maximum turning dia. 330mm.
Distance between centres 620mm.
Maximum X travel 165mm + 50mm.
Maximum Z travel 610mm.
Rapids X/Z 20/24m/min.
Maximum spindle speed 4500 rpm.

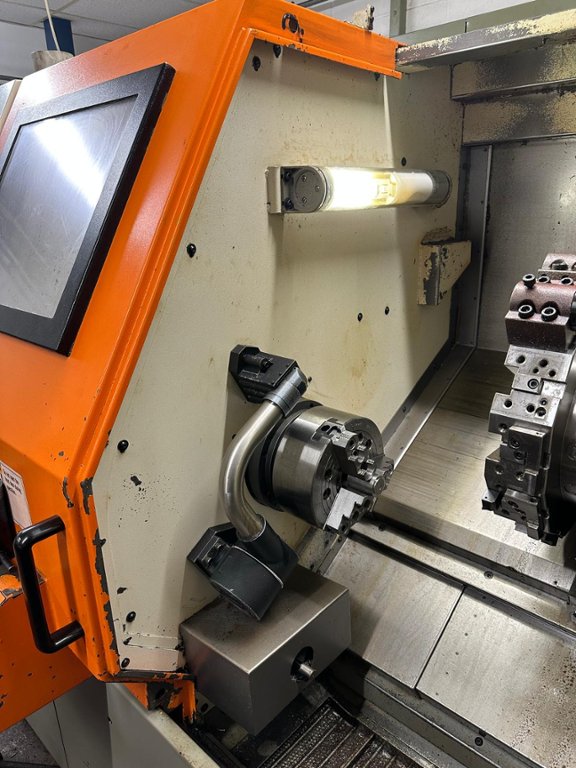

Spindle nose A2-5. Spindle bore 62mm.

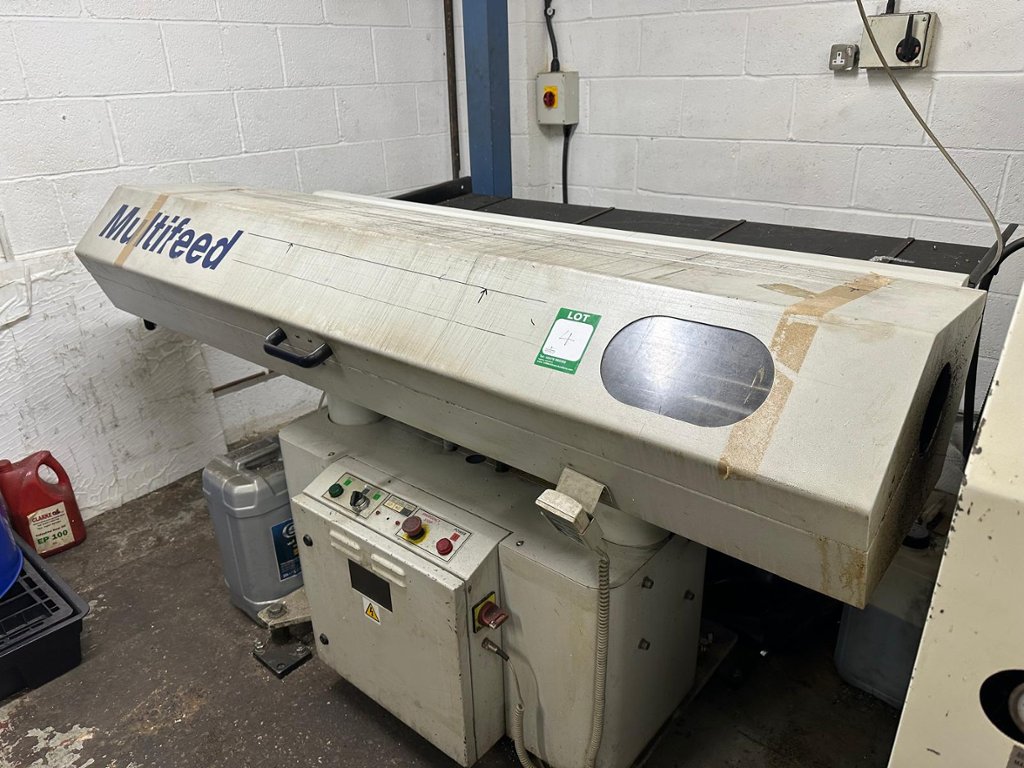

Bar capacity 52mm. Main motor 11/15 kW.

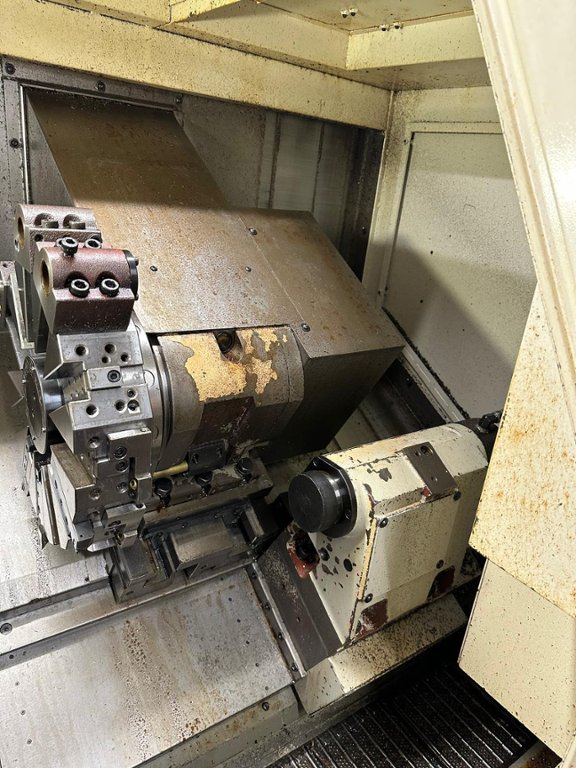

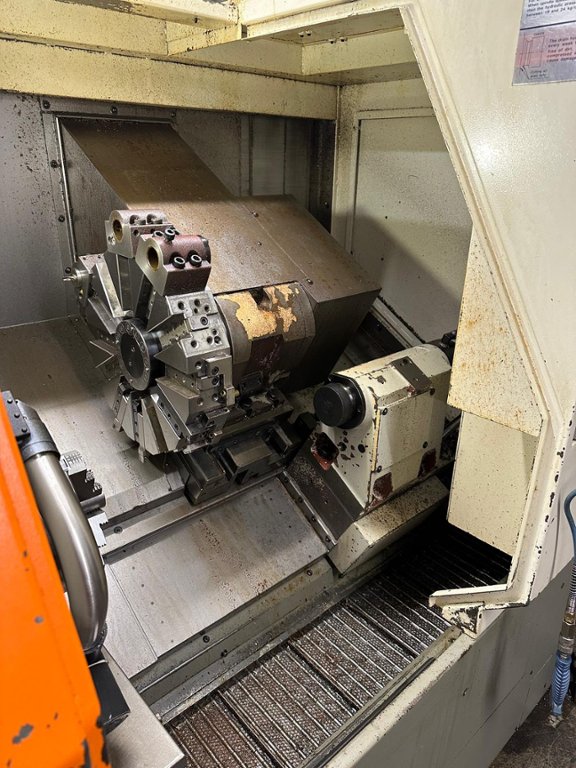

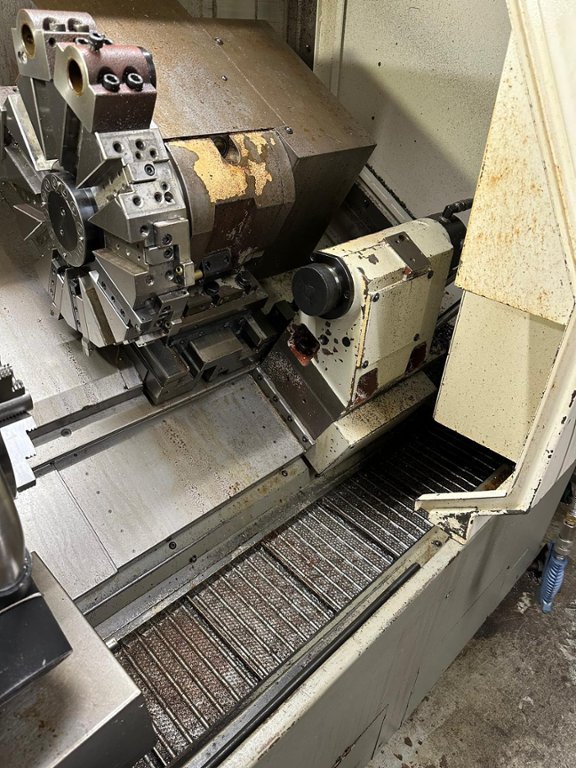

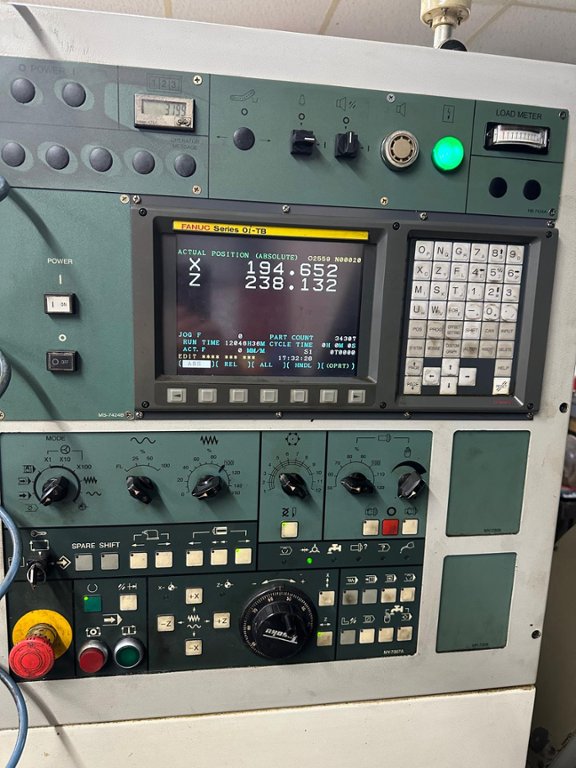

10 station turret. Tailstock quill dia. 85 mm. Quill stroke 120mm. Quill taper 4 MT. High Pressure Coolant. Coolant capacity 160 litres. . Fanuc Control.

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
