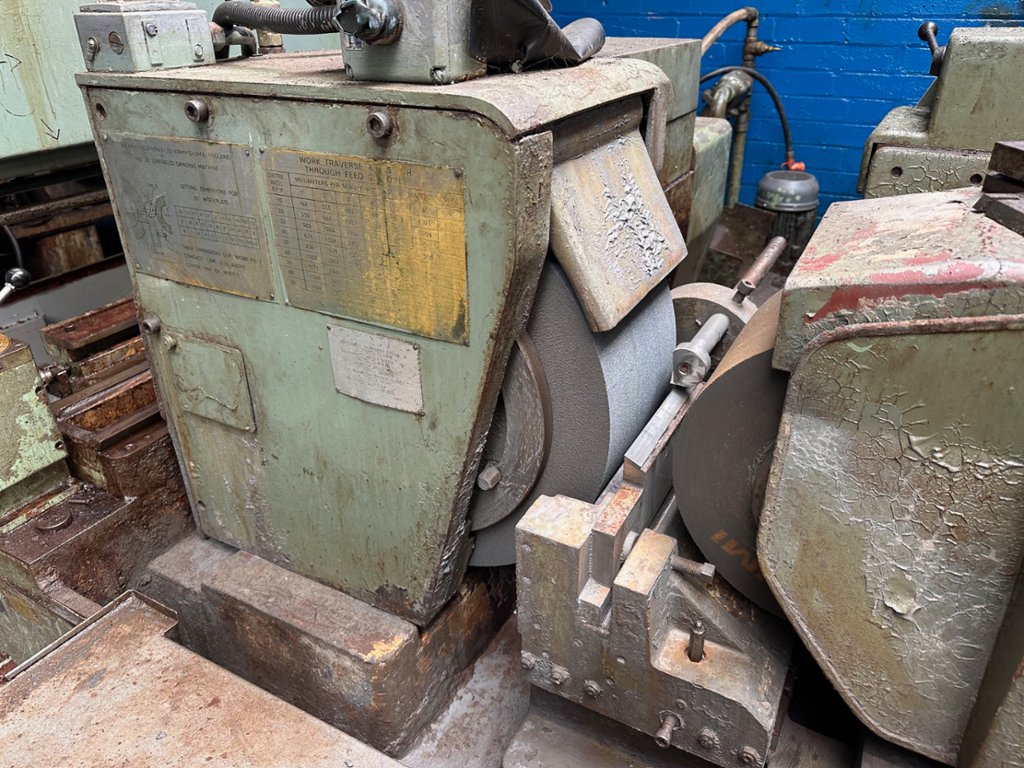

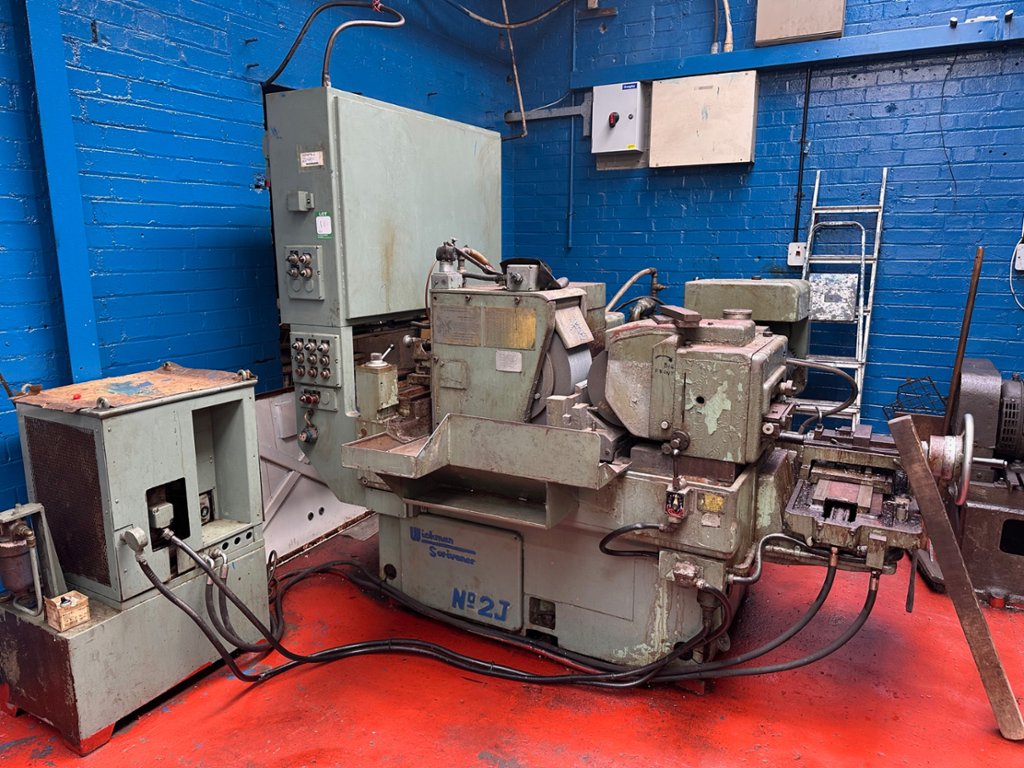

Wickman Scrivener No. 2J Centerless Grinder

Lot 11 - Wickman Scrivener No. 2J Centerless Grinder

Description:

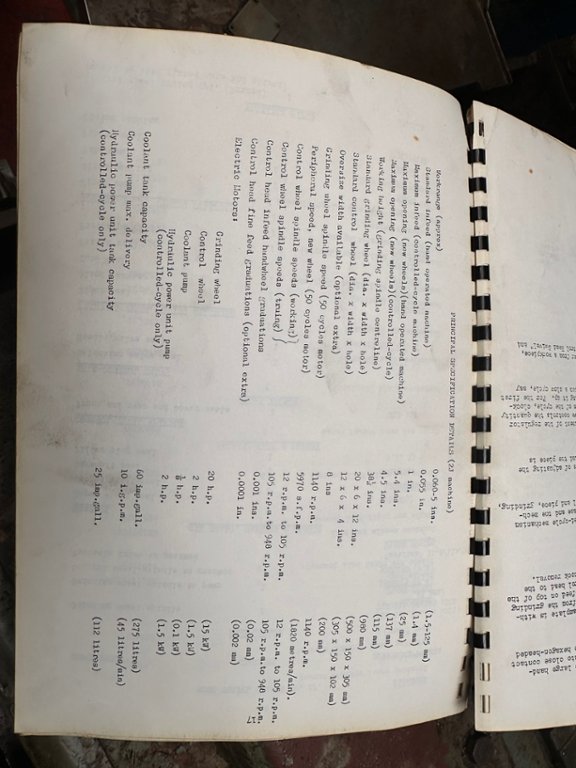

Workrange (Approximate)

Standard Infeed (Hand Operated Machine): 0.060 to 5 in. (1.5 to 125 mm), Maximum Infeed (Controlled-Cycle Machine): 0.055 in. (1.4 mm), Maximum Opening (New Wheels, Hand Operated): 1 in. (25 mm), Maximum Opening (New Wheels, Controlled-Cycle): 5.4 in. (137 mm), Working Height (Grinding Spindle Centerline): 38.5 in. (980 mm)

Grinding Wheel & Control Wheel Sizes

Standard Grinding Wheel (Dia. x Width x Hole): 20 x 6 x 12 in. (500 x 150 x 305 mm), Standard Control Wheel (Dia. x Width x Hole): 12 x 6 x 4 in. (305 x 150 x 102 mm), Oversize Width Available (Optional Extra): 8 in. (200 mm)

Speeds & Feeds

Grinding Wheel Spindle Speed (50 cycles motor): 1140 r.p.m., Peripheral Speed (New Wheel, 50 cycles motor): 5970 s.f.p.m. (1820 metres/min.), Control Wheel Spindle Speeds (Working): 12 r.p.m. to 105 r.p.m., Control Wheel Spindle Speeds (Truing): 105 r.p.m. to 948 r.p.m., Control Head Infeed Handwheel Graduations: 0.001 in. (0.02 mm), Control Head Fine Feed Graduations (Optional Extra): 0.0001 in. (0.002 mm)

Electric Motors & Capacities

Grinding Wheel Motor: 20 h.p. (15 kW), Control Wheel Motor: 2 h.p. (1.5 kW), Coolant Pump Motor: 1/8 h.p. (0.1 kW), Hydraulic Power Unit Pump Motor (Controlled-Cycle Only): 2 h.p. (1.5 kW), Coolant Tank Capacity: 60 Imp. gall. (275 litres), Coolant Pump Max. Delivery: 10 I.g.p.m. (45 litres/min), Hydraulic Power Unit Tank Capacity (Controlled-Cycle Only): 25 Imp. gall. (112 litres)

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
