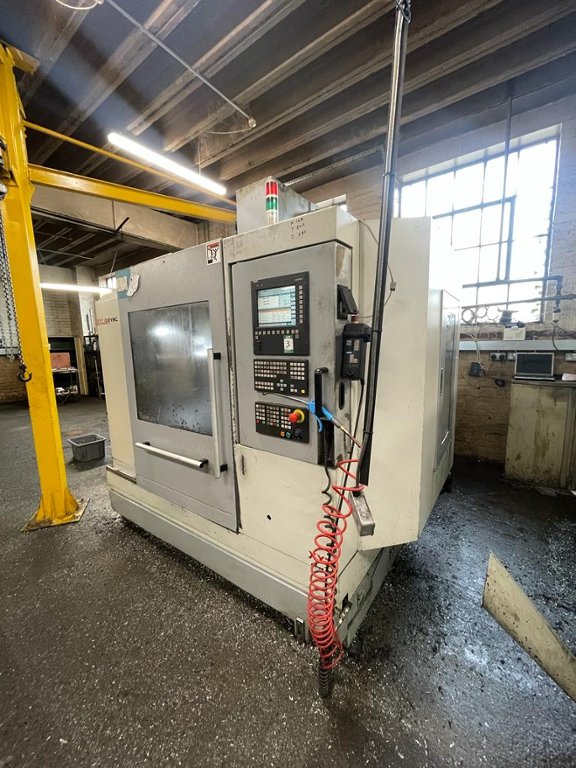

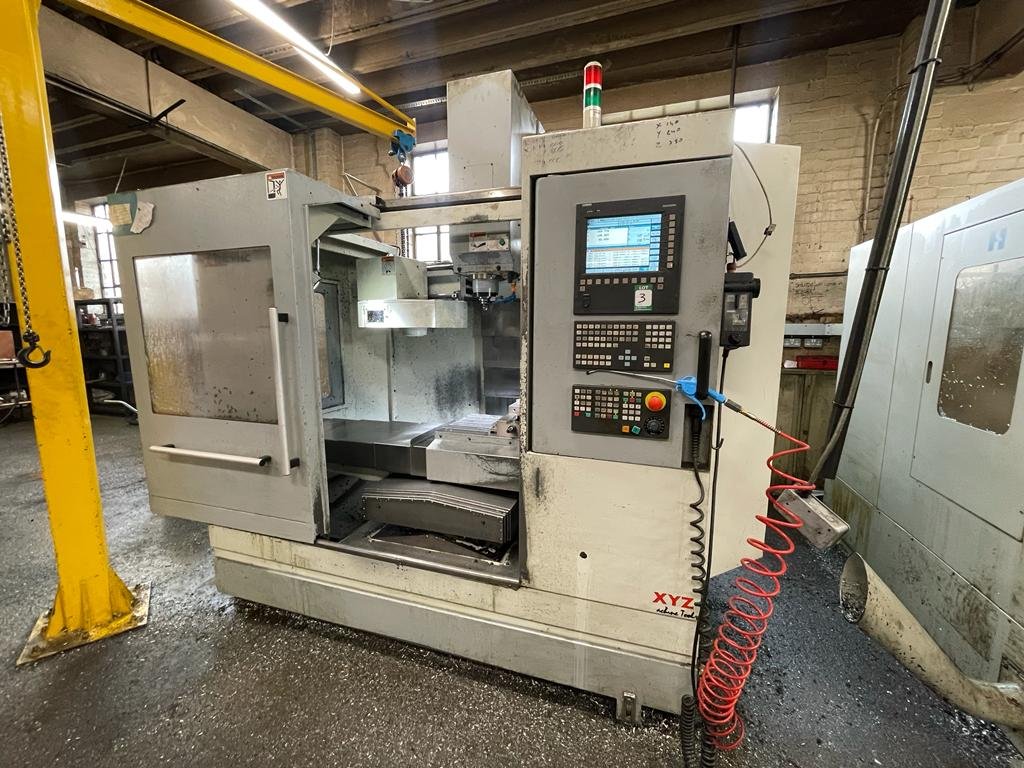

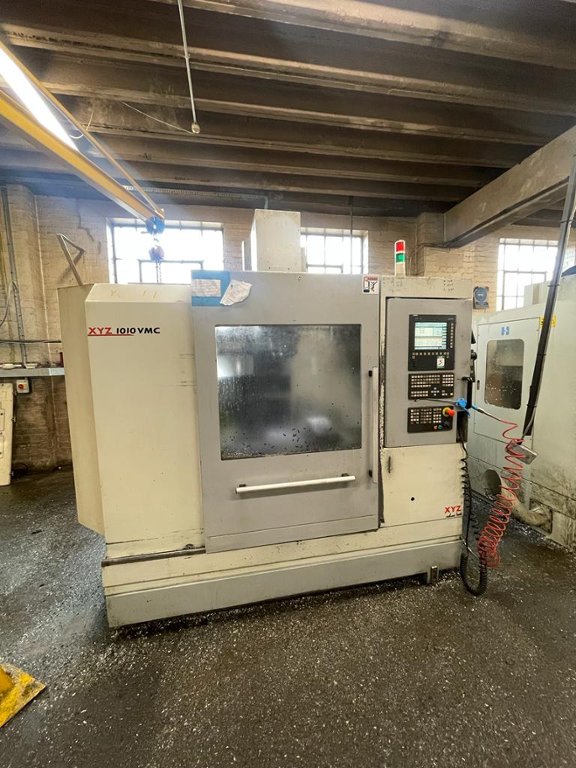

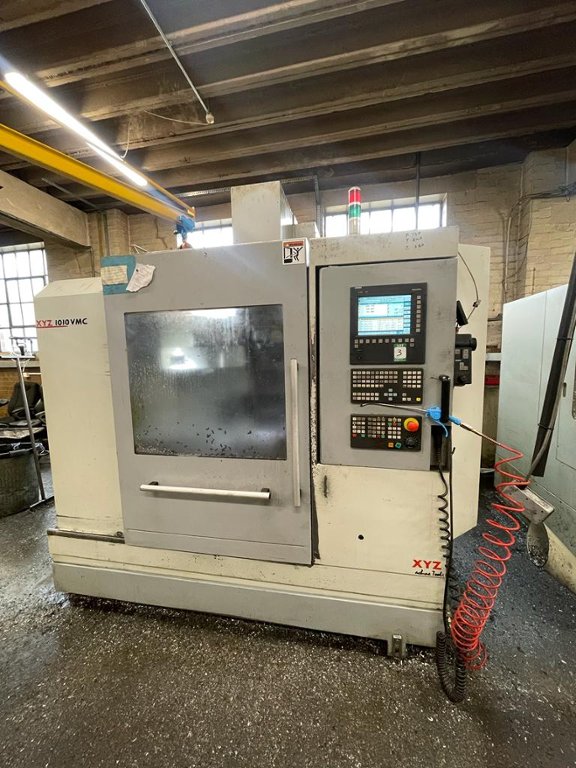

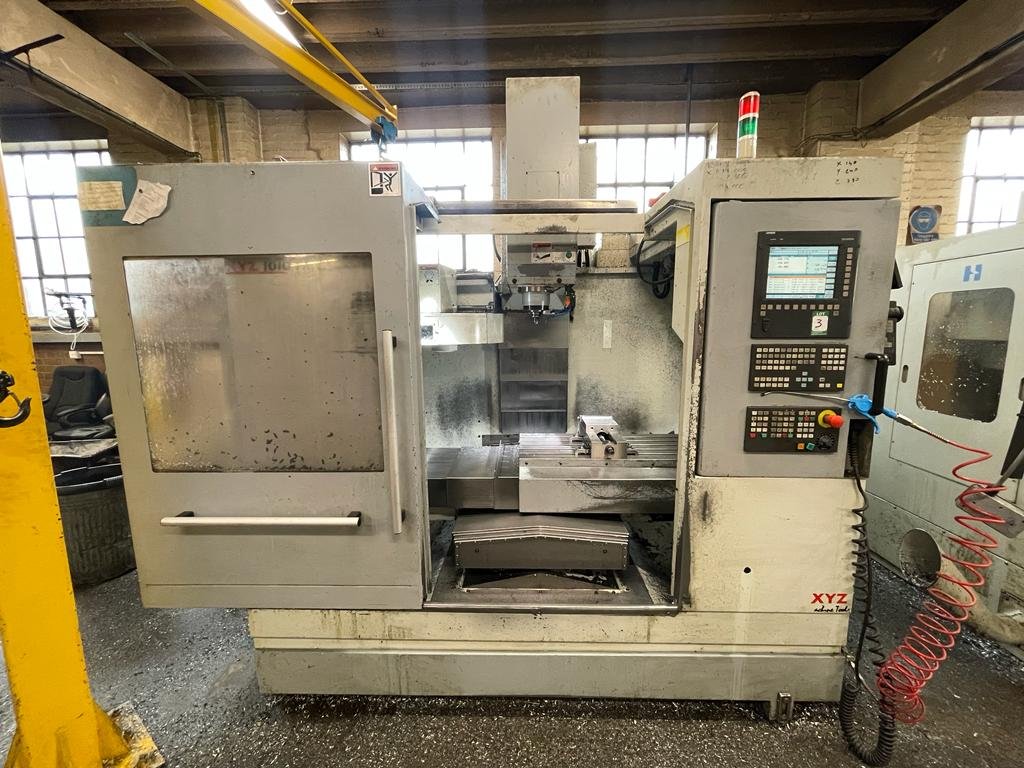

Lot 3 - XYZ 1010 Vertical Machining Centre (2005)
Description:

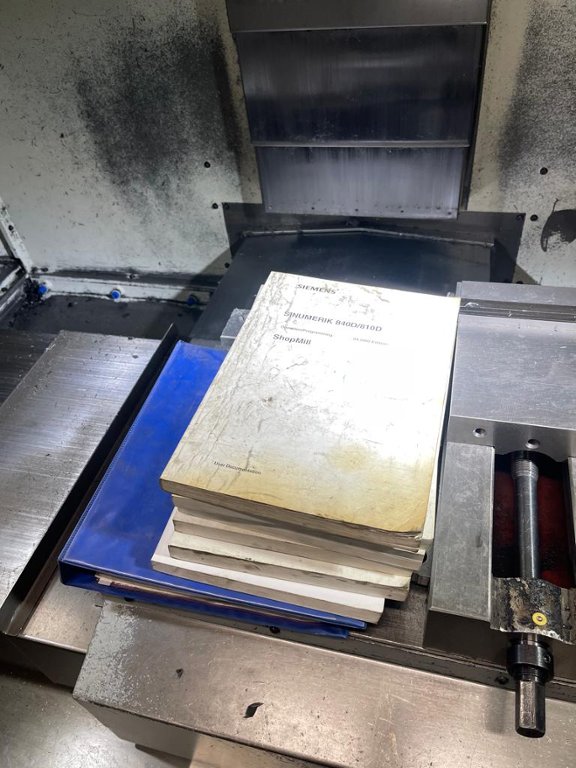

Comes with selection of tooling and the manuals

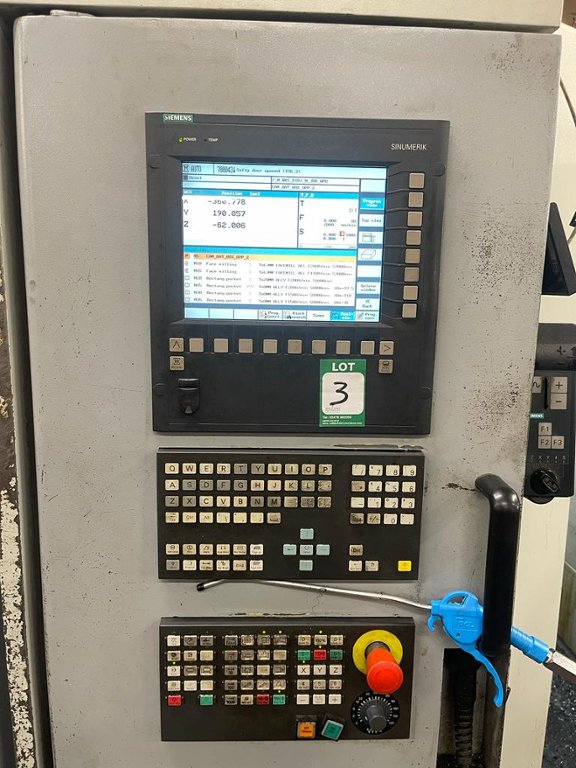

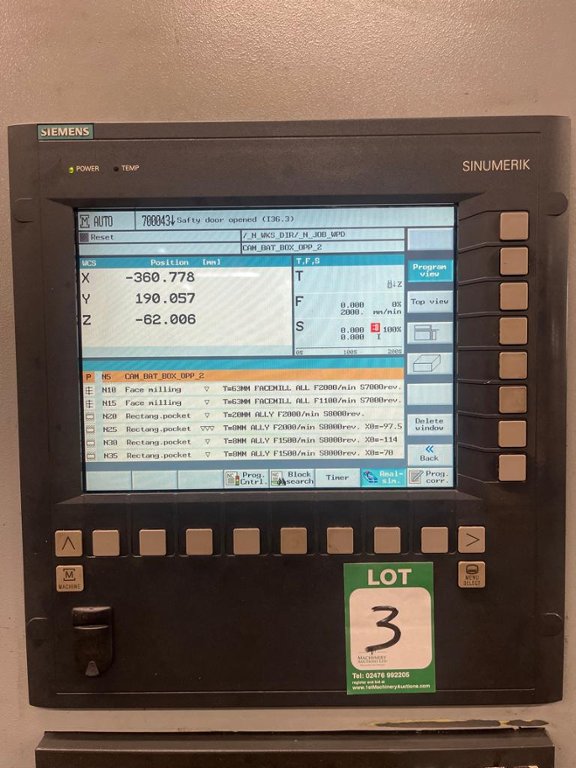

Siemens 810D Shopmill Control,
X Travel = 1010mm,
Y Travel = 500mm,
Z Travel = 520mm,

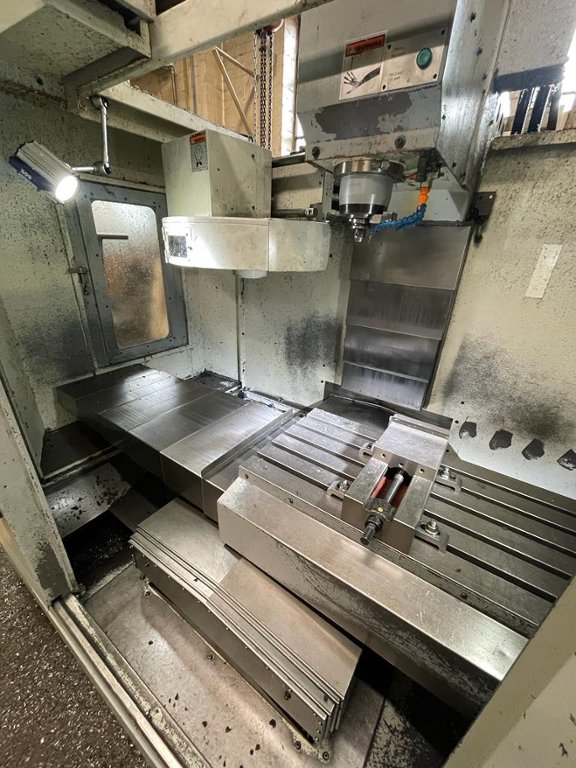

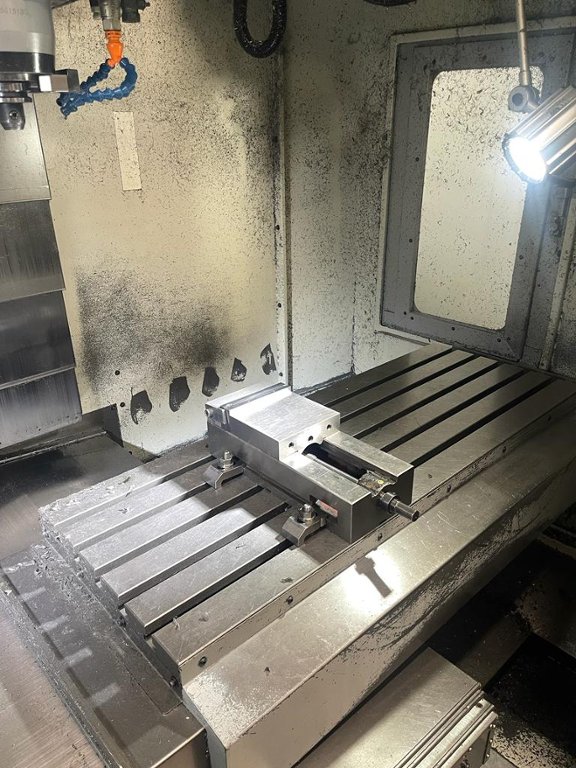

450mm x 1200mm Table Size,
625mm Spindle Centre to column,
200 – 700 Spindle to table,
345 – 905 Column front to table centre,
24m/Min Rapid Feed X Y Z axis,
24m/Min Cutting Feed,
850kgs Max Table load,
60 – 8000 Spindle Speed RPM,
15 HP Spindle Motor,
Table 1.2m x 450mm,

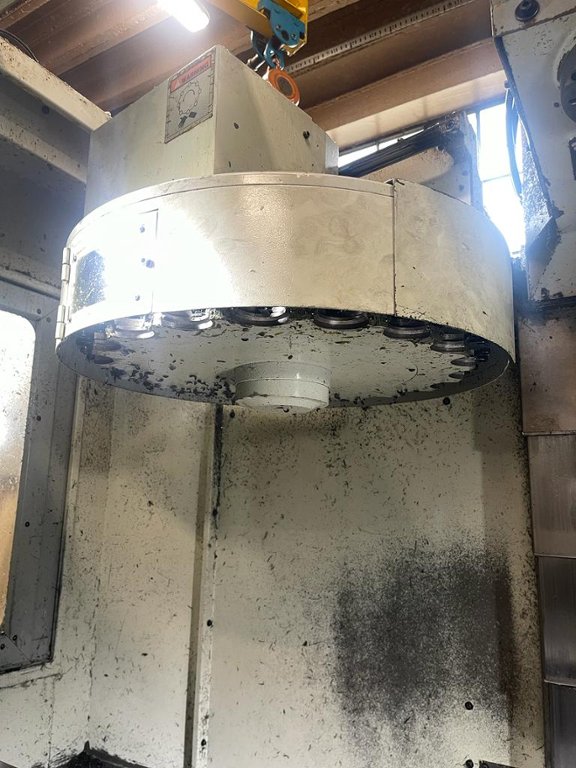

20 Station ATC,

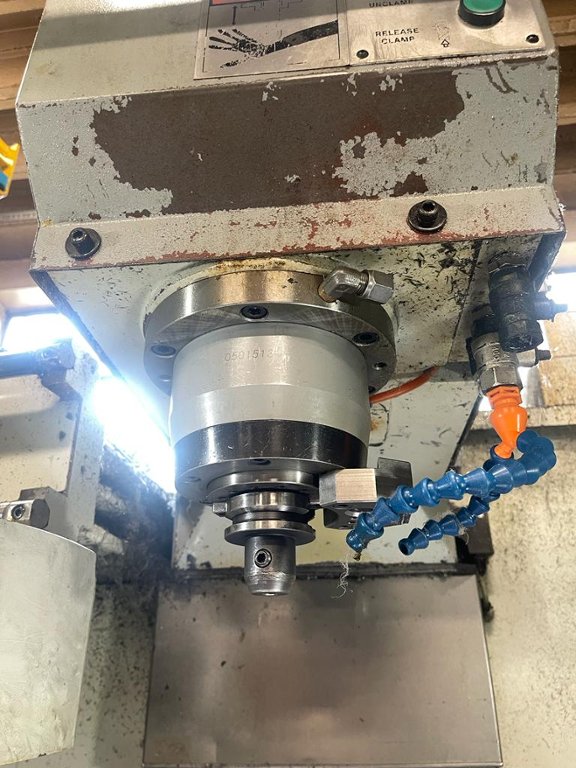

BT40 Tooling.
Export Information
Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.
All invoices are issued on an Incoterms FCA basis.
Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
Bid information
Time remaining
09 Mar 2023 16:00:00 GMT

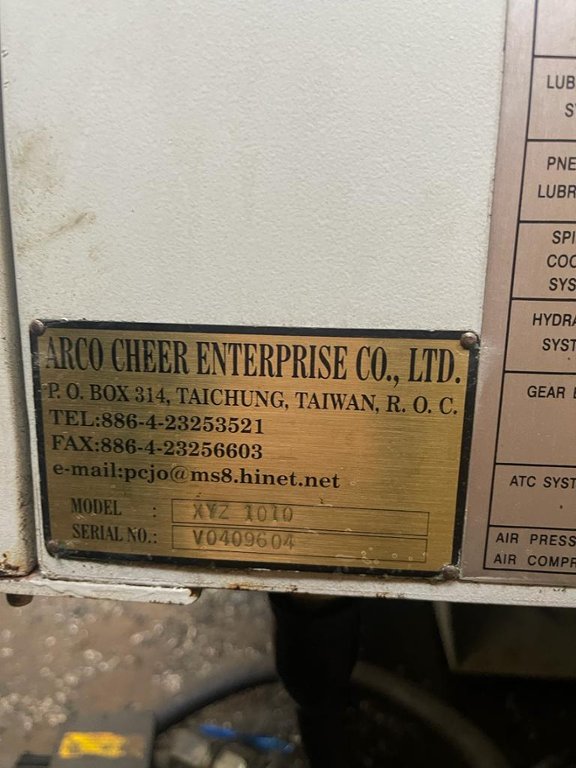

Serial Number: V0409604
Location: Warrington
Transport information
- Width: 3000mm
- Depth: 2440mm
- Height: 2600mm
- Weight: 6200kg
- Other Transport Details: £325 - Machines will be disconnected, drained and loaded to suitable transport. Please note the loading charge will be automatically added to purchasers invoice. *No other loading companies will be allowed on to site
