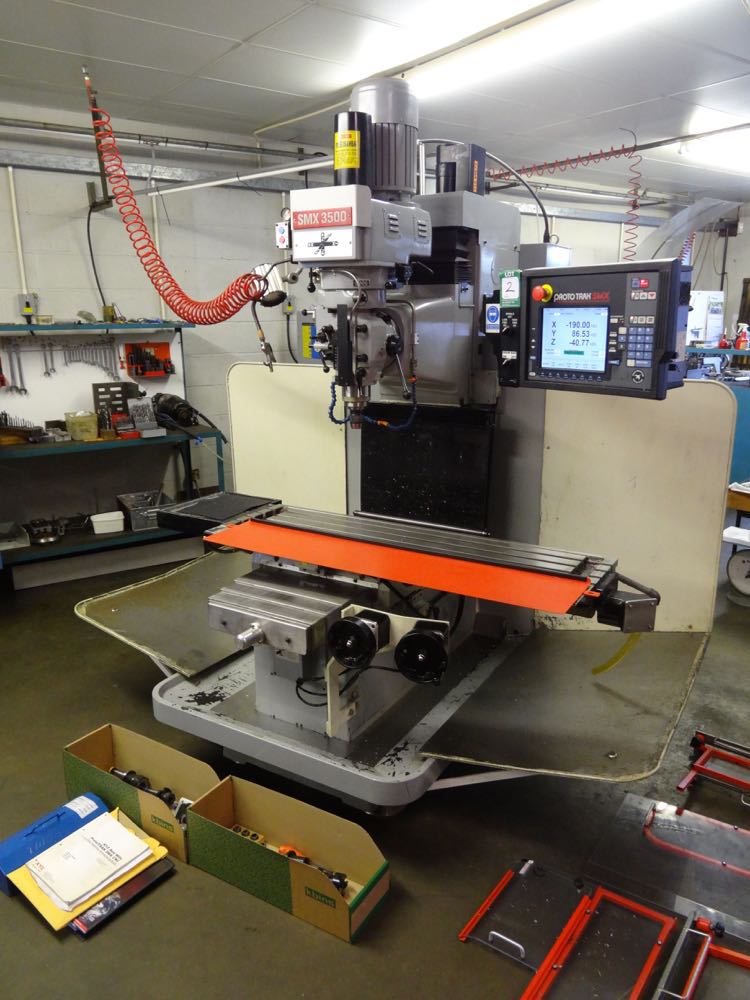

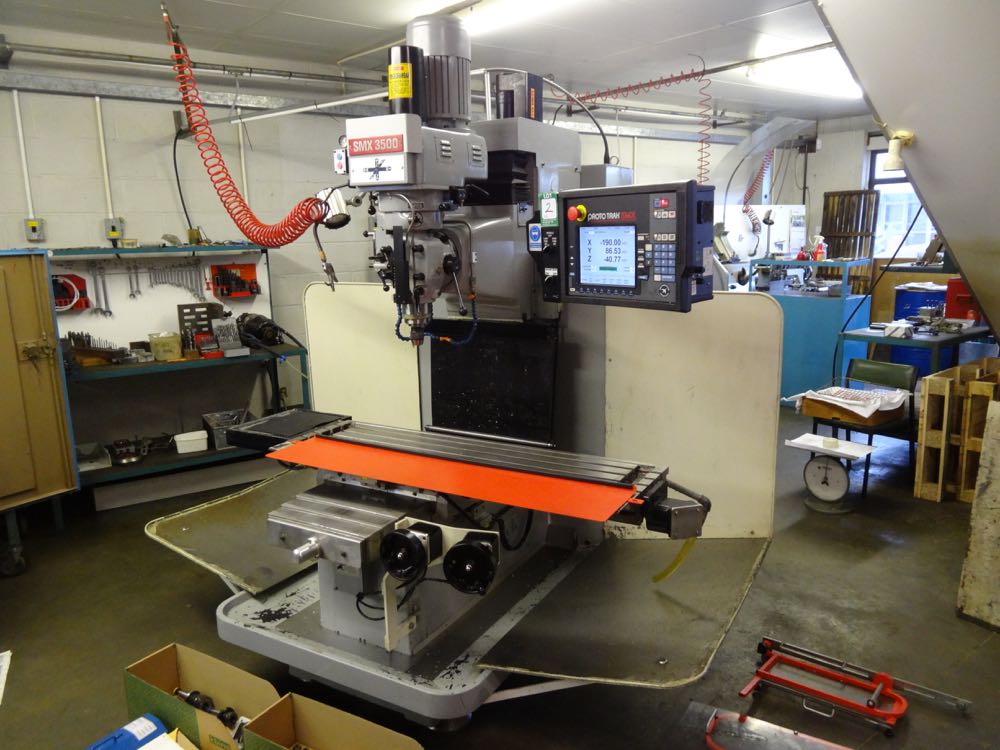

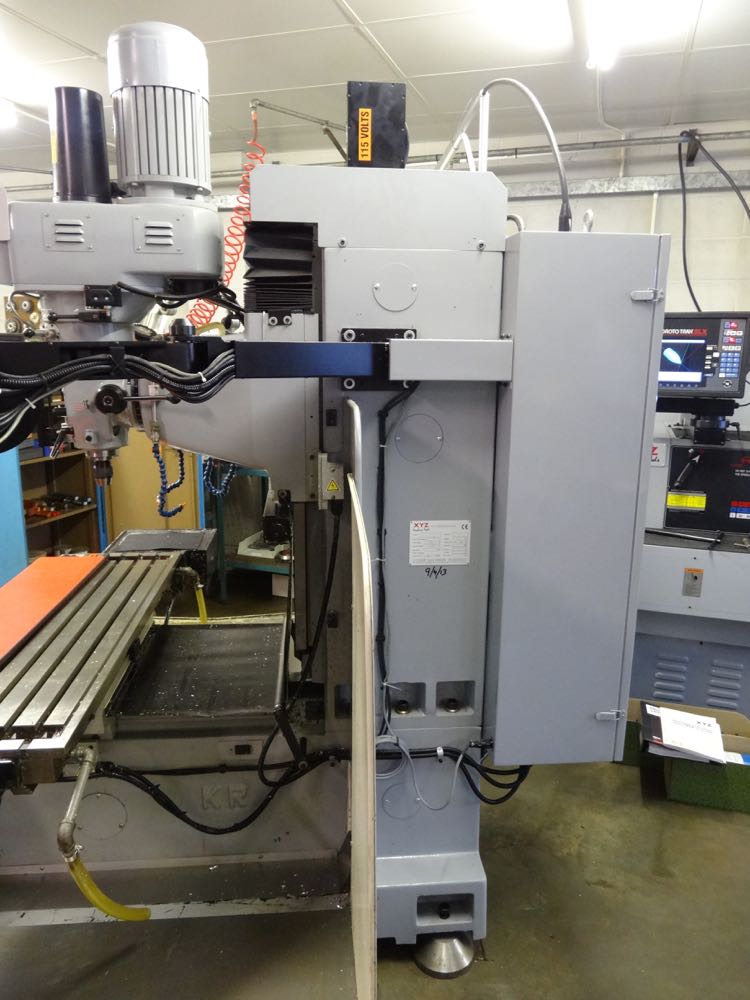

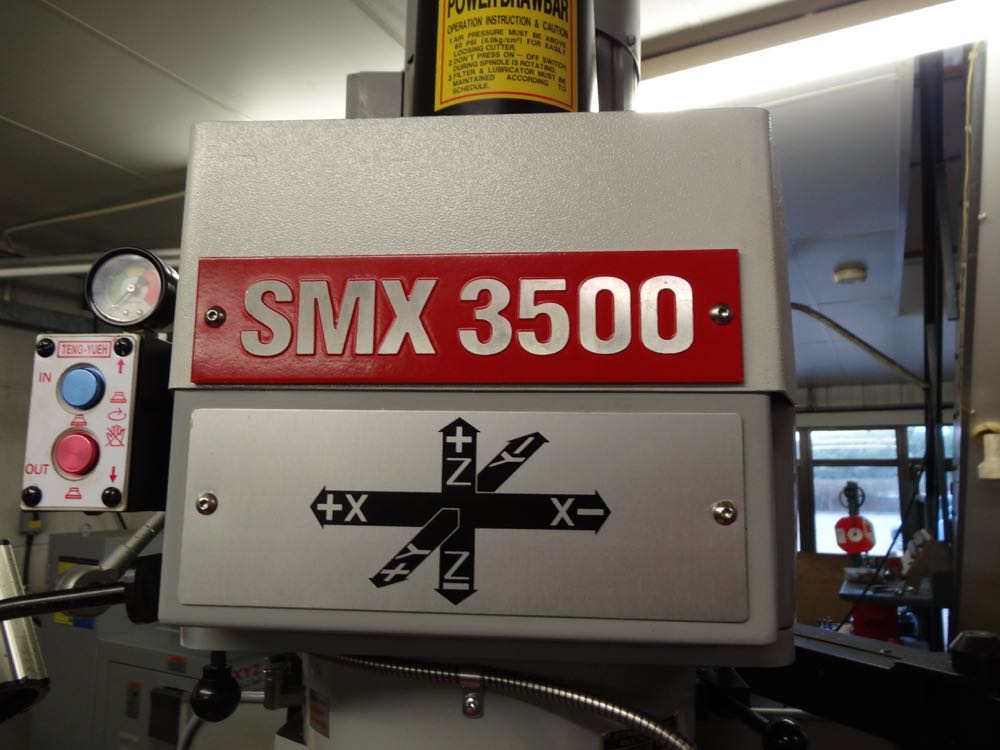

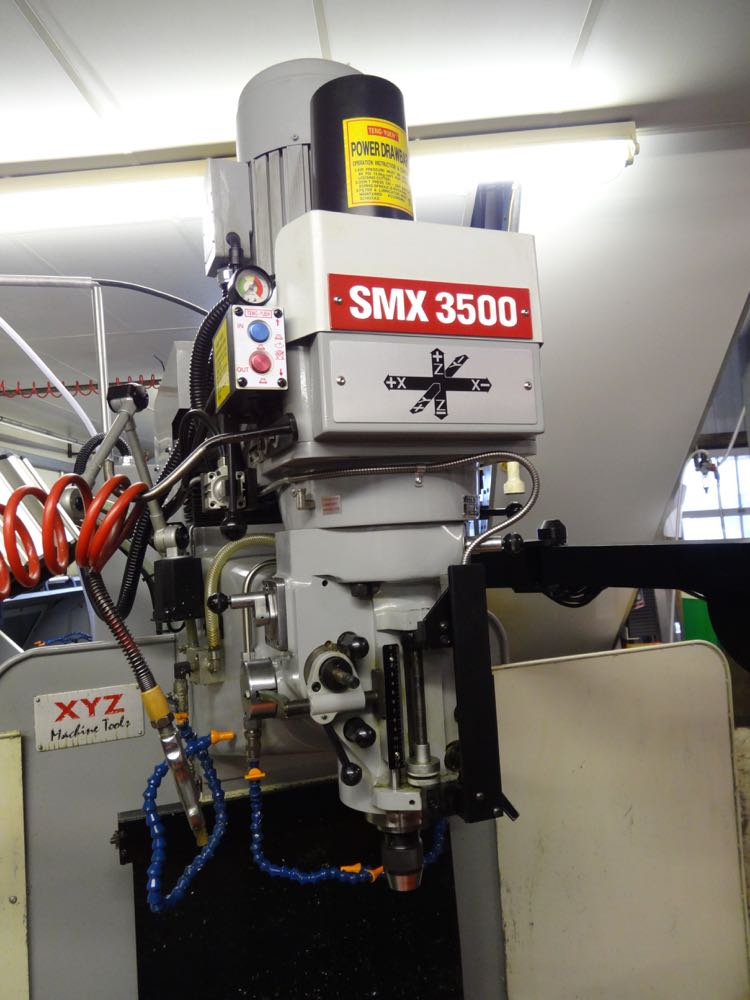

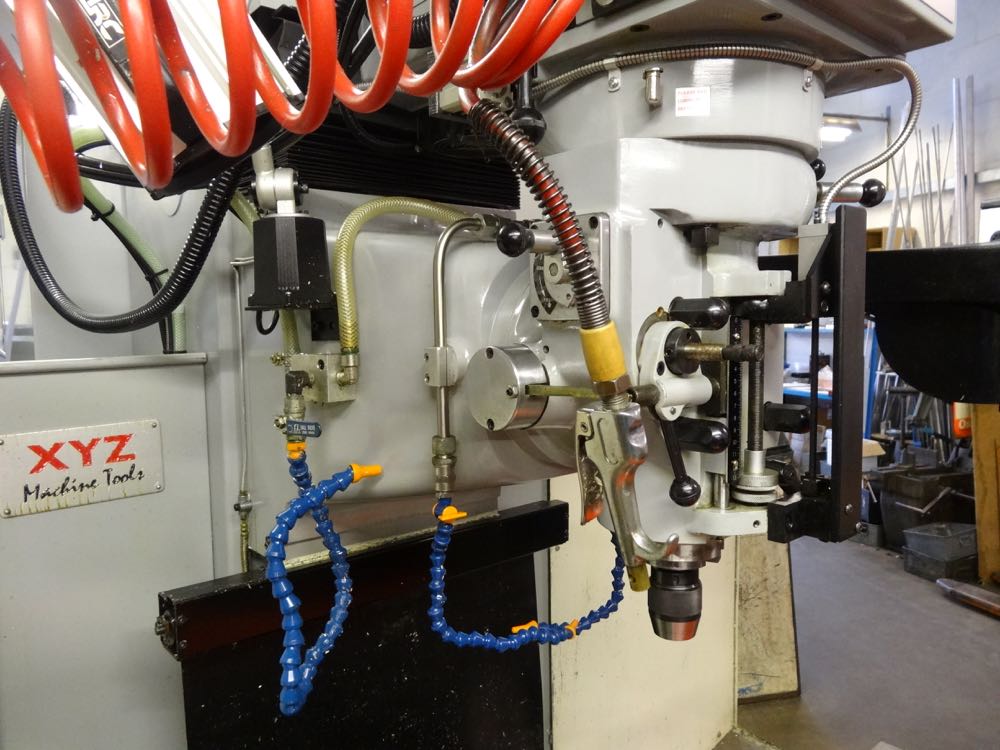

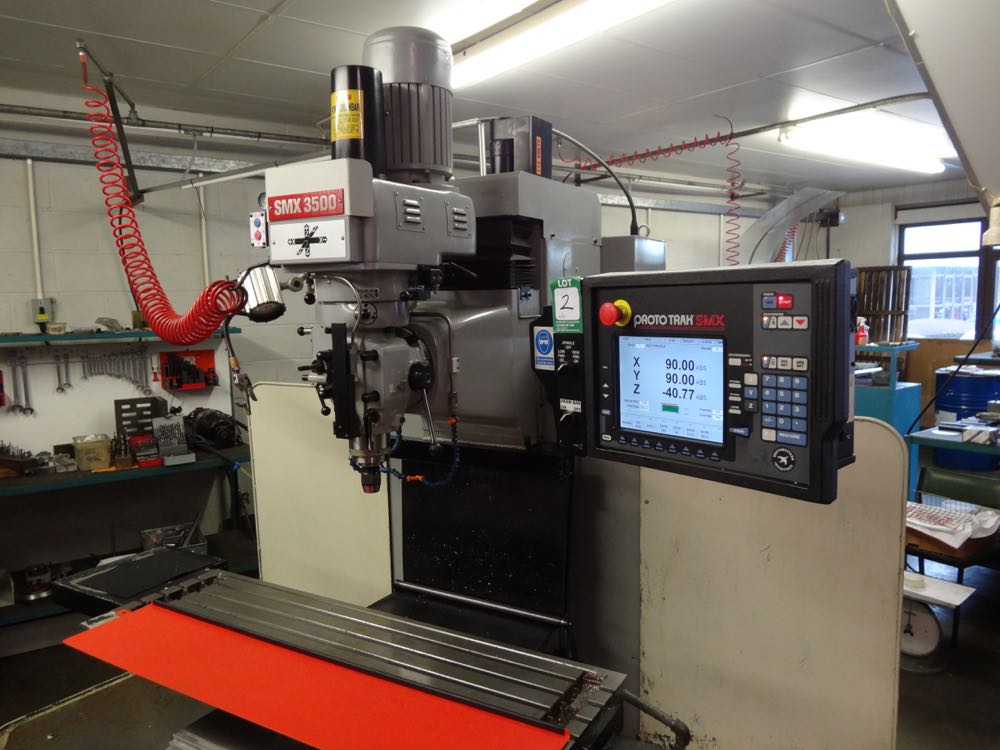

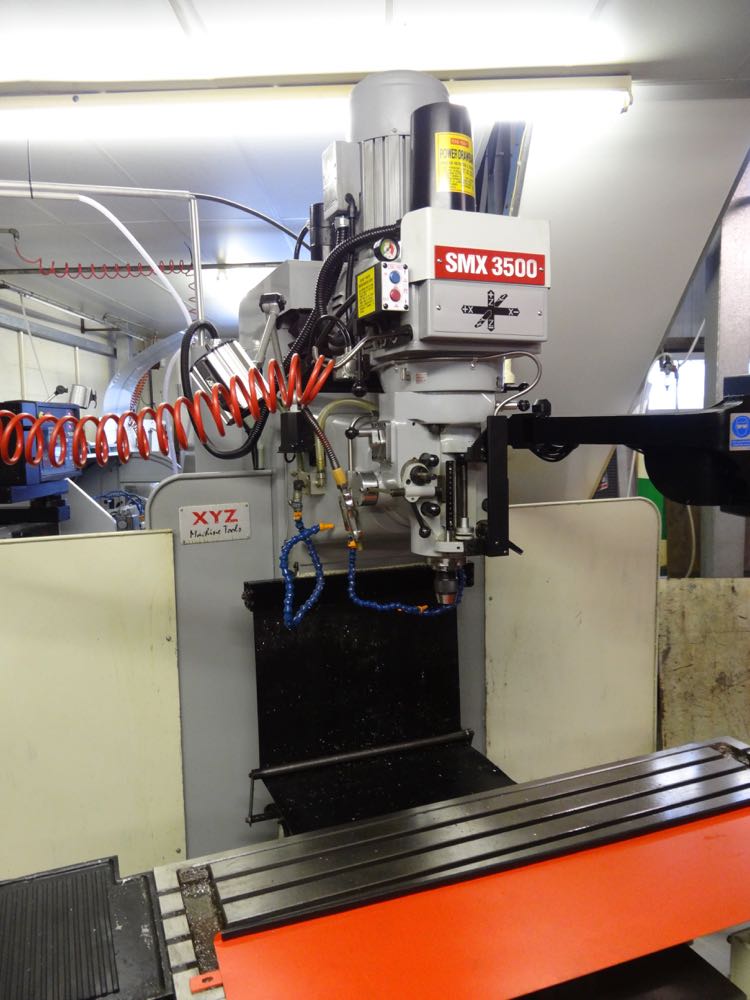

XYZ Bed Mill SMX 3500 (2013)

Lot 2 - XYZ Bed Mill SMX 3500 (2013)

Description:

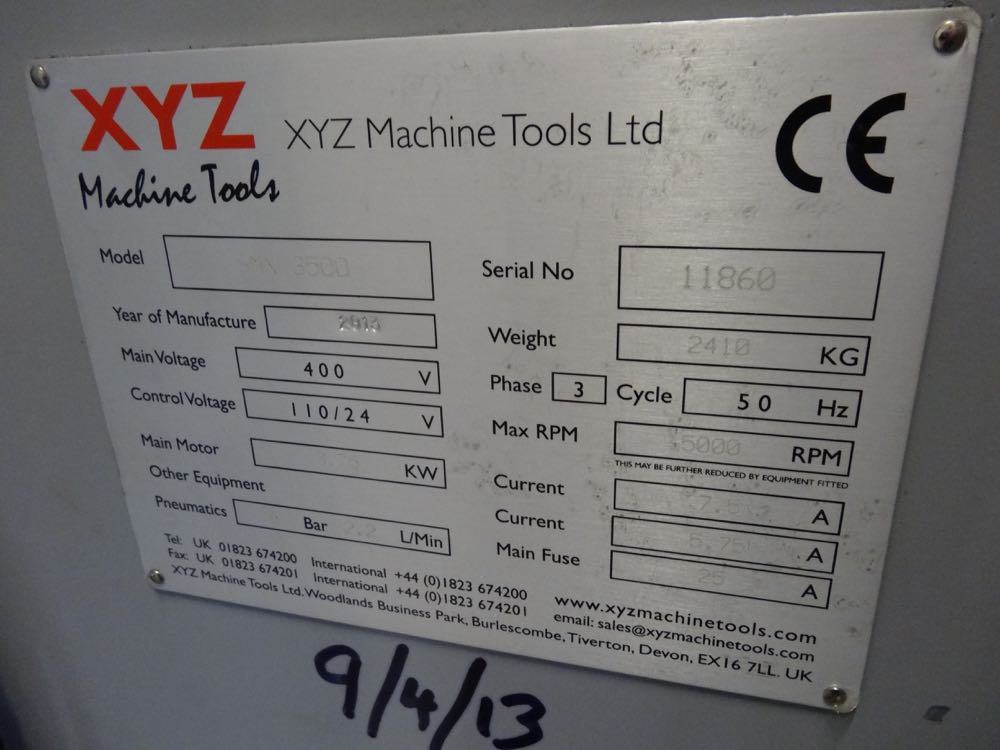

S/n: 11860
Year: 2013
Model: SMX 3500
Footprint: 3600 x 3143 x 2400mm
Weight: 2410kg

Specifications:

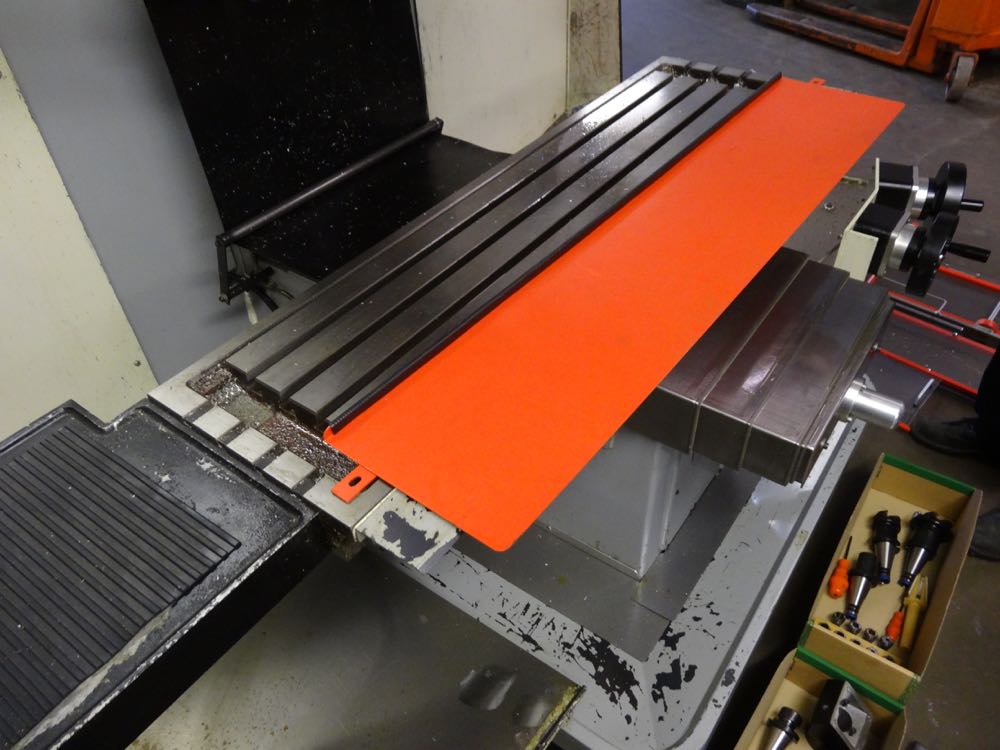

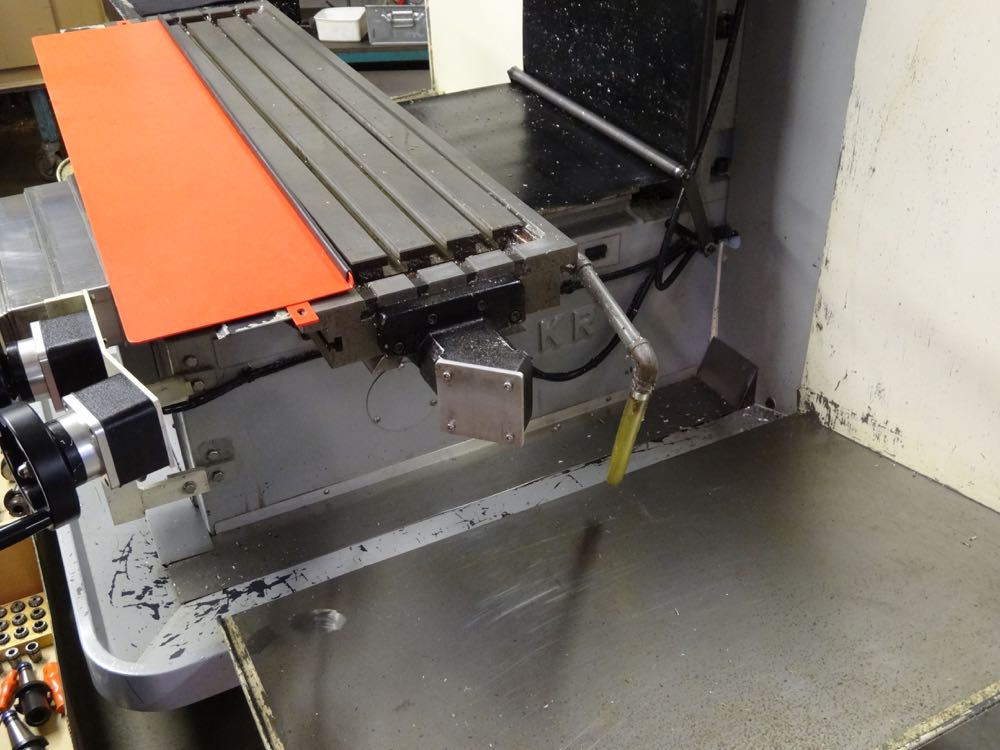

Table size: 1372 x 356
T slots: 4 x 15.9
Travel: X: 787 Y: 508 Z: 584
Quill Dia: 105 / Max quill travel: 127

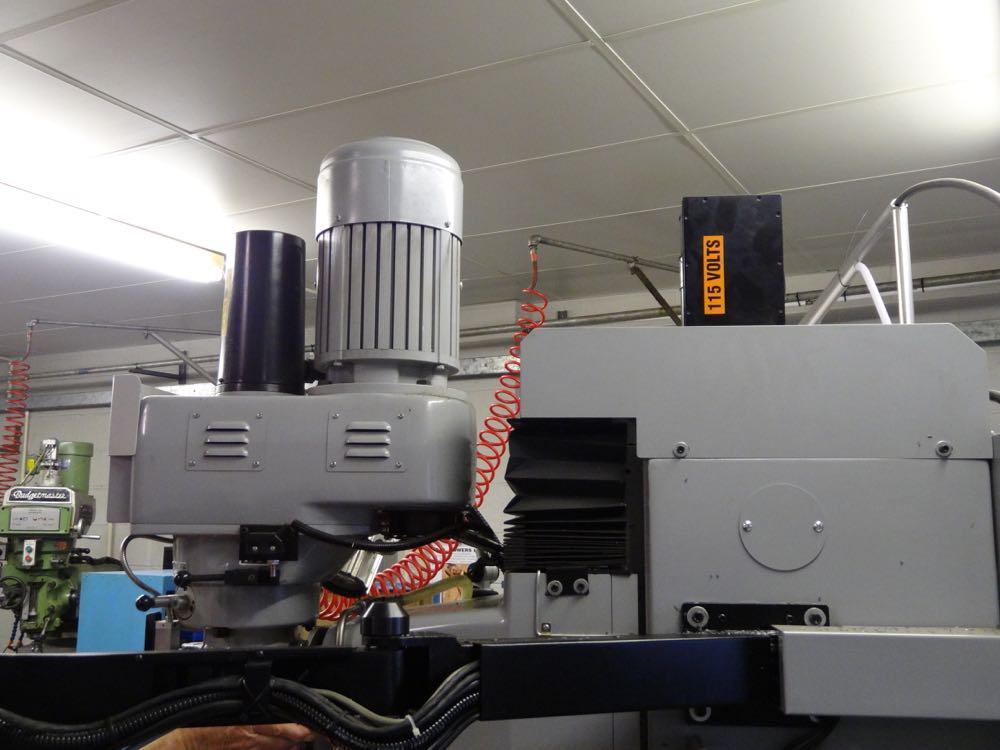

Spindle:
Taper: 40 ISO / Speed range: 70-3600
Center to column face: 520 / motor power: 5 HP
Power requirements: 25 Amp / Weight of work piece: 600kg
Rapid traverse X Y Z - standard handwheels: 3800
Rapid traverse X Y Z - electronic handwheels: 6350
Max work capacities in mild steel:
Drilling: 25mm / Milling: 80cm3/min / Tapping: M24

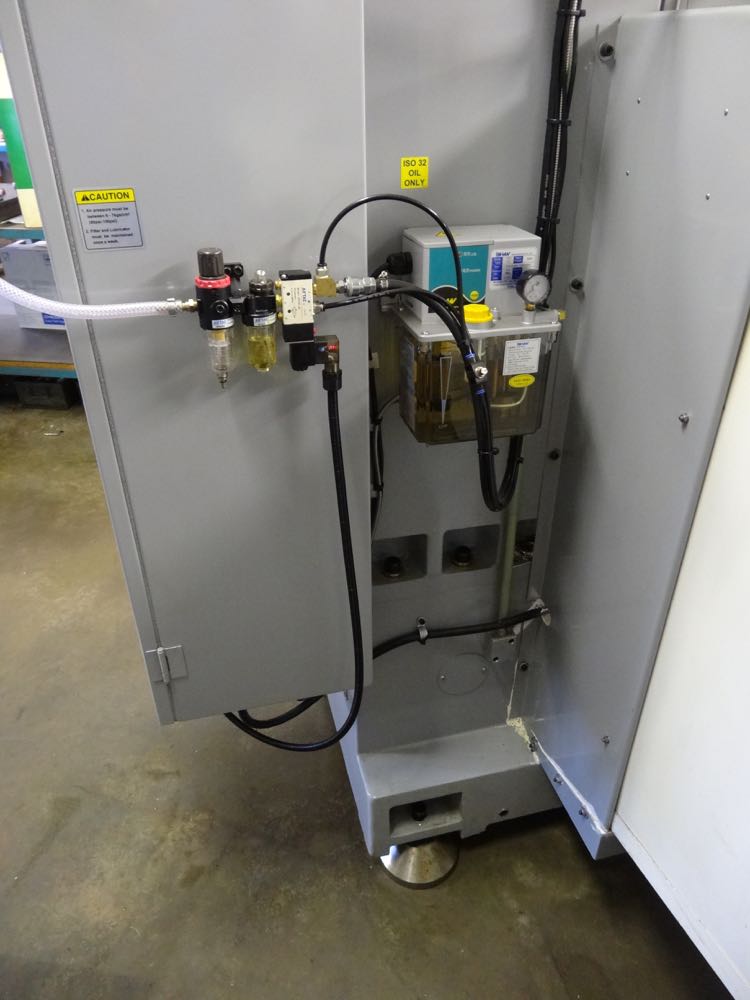

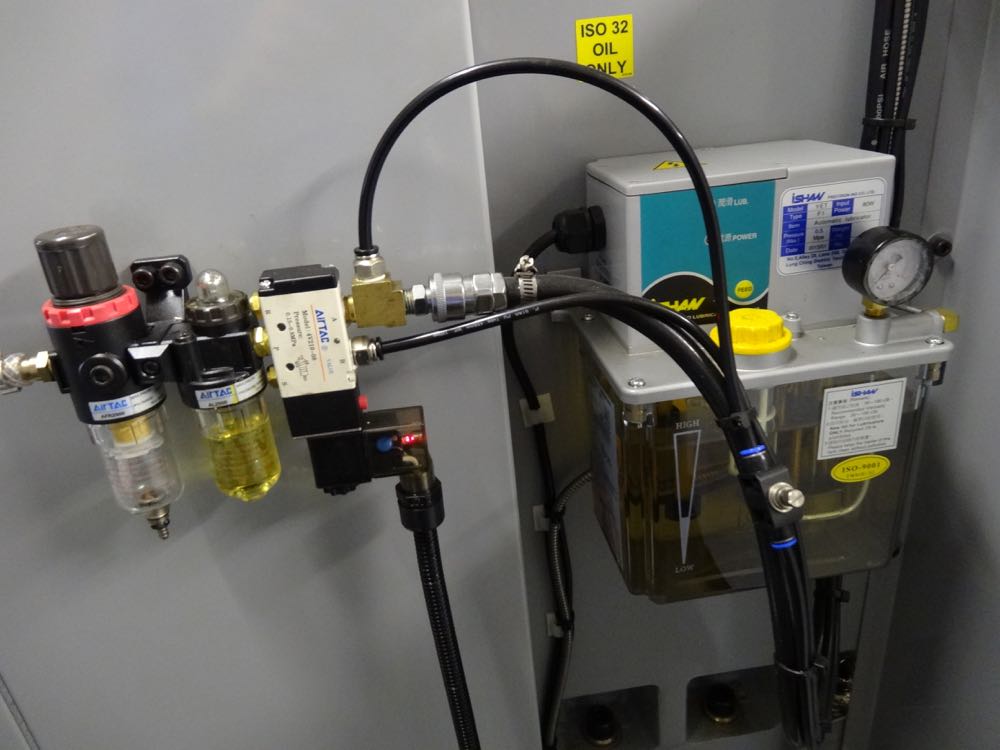

Auto lubrication system:
Interval time: 20min / Discharge time: 5 Sec
Discharge Pressure: 100 - 150 PSI approx.

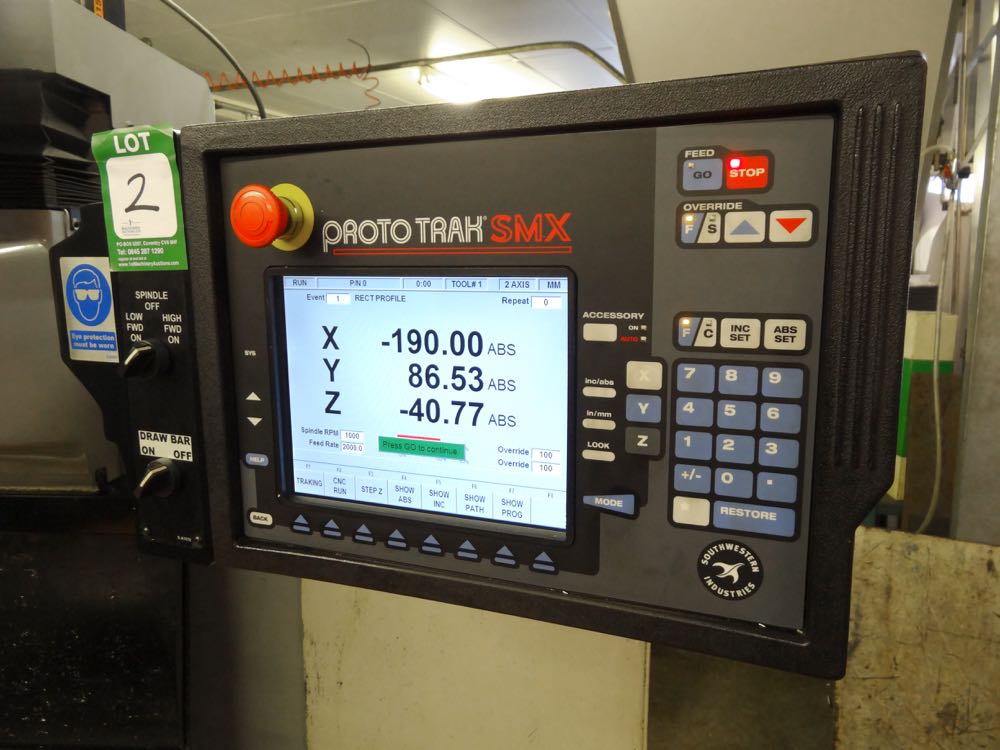

Control Specifications:
2 or 3 axis CNC, 3 axis DRO

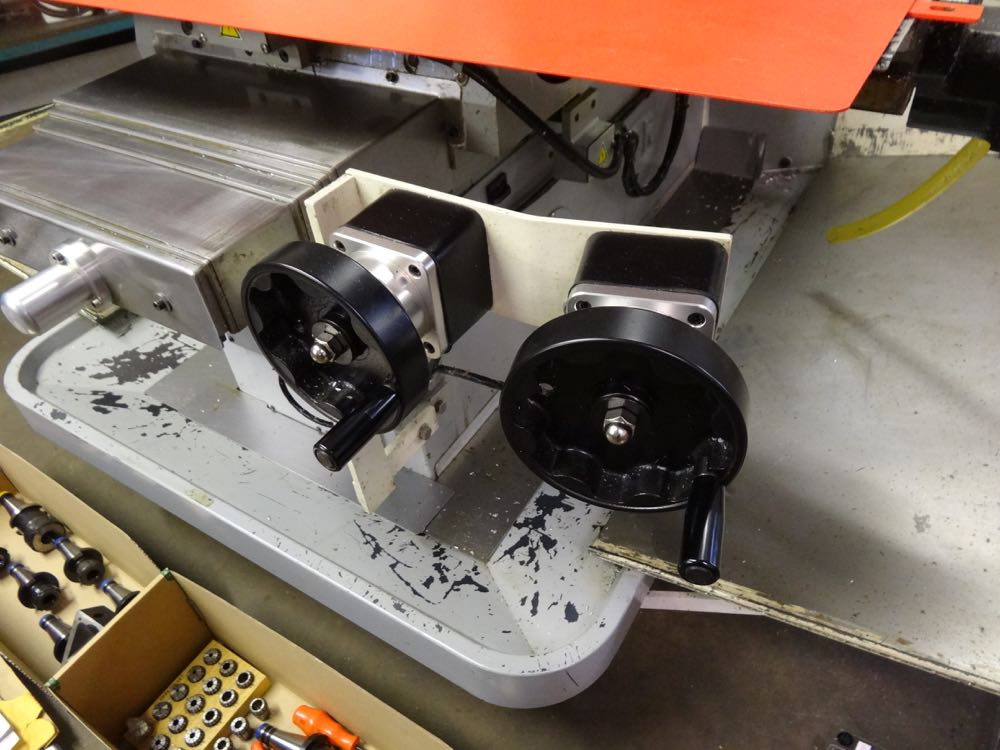

Real hand wheels for manual operation, 10.4” colour active matrix screen
industrial grade intel processor, 256Mb Ram

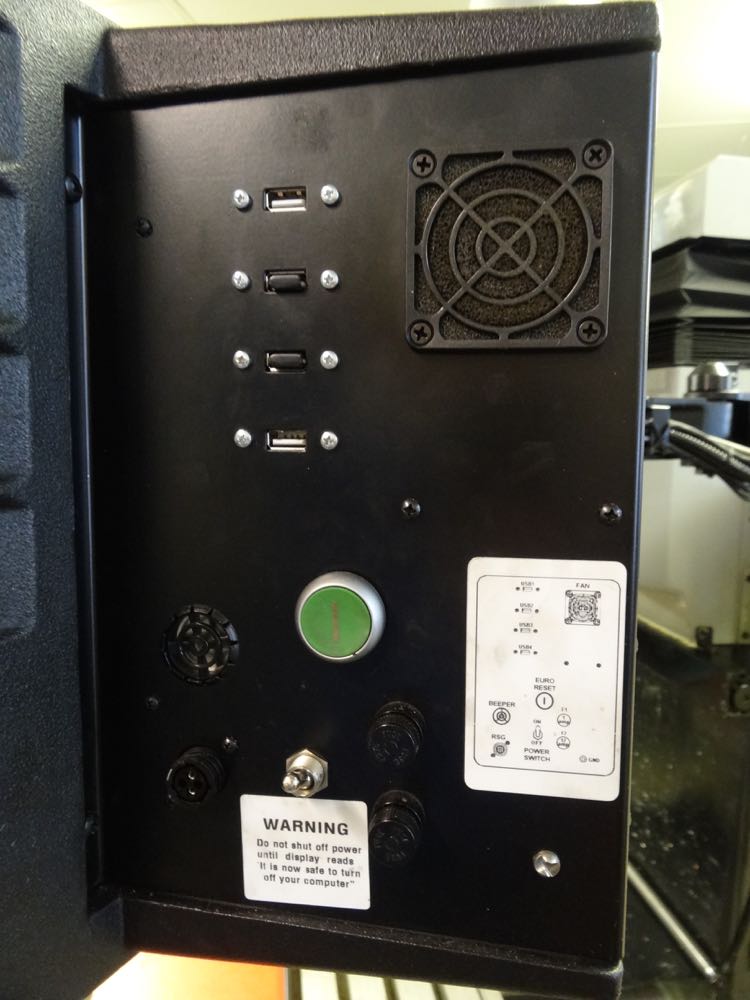

P/ 2 keyboard connector/ 2 USB connectors, override of programme feedrate
LED status lights built into display/ TEAC floppy drive.

Software Features- general operations
Clear, uncluttered screen display/ prompted data input
English language - no codes/ soft keys/ windows operating system
selectable 2 or 3 axis CNC/ colour graphics with adjustable views
Inch/mm selectable/ Convenient modes of operation

DRO Mode features for manual machining:
Incremental and absolute dimensions
Jog at rapid with override
Powerfeed X Y or Z/ Do one CNC canned cycle
Teach-in of manual moves/ servo return to 0 absolute
Tool offsets from library

Programme mode features:
Geometry based programming
Incremental and absolute dimensions
Automatic diameter cutter comp/ circular interpolation
Linear interpolation/ Look-graphics with a single button push
List step- graphics with programmed events displayed
Alphanumeric program names
Program data editing

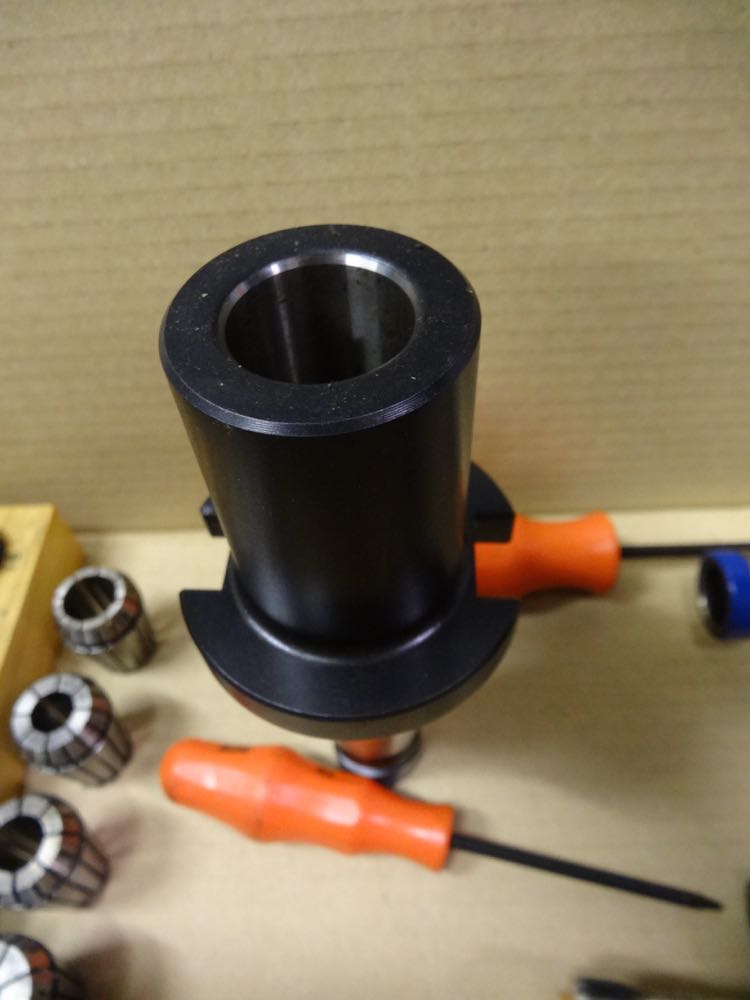

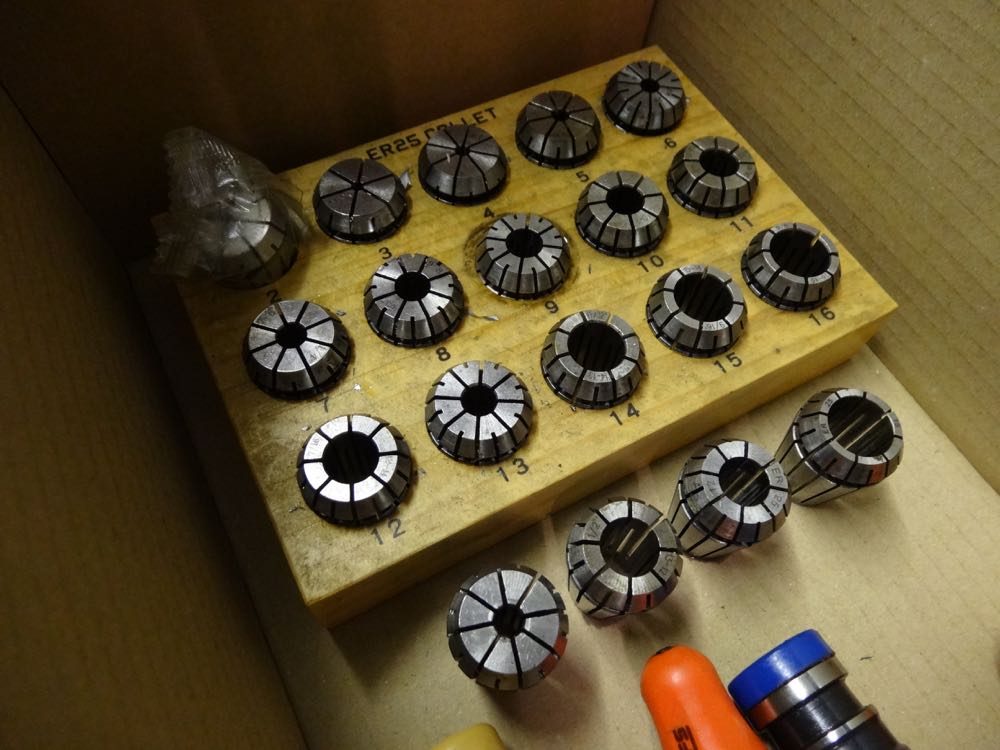

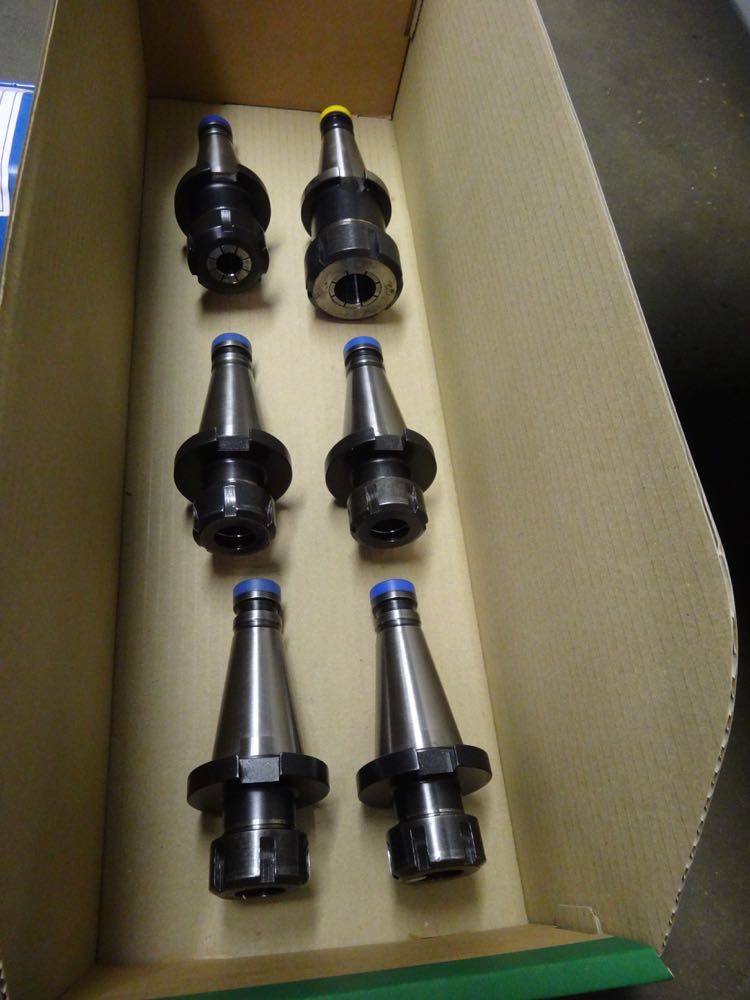

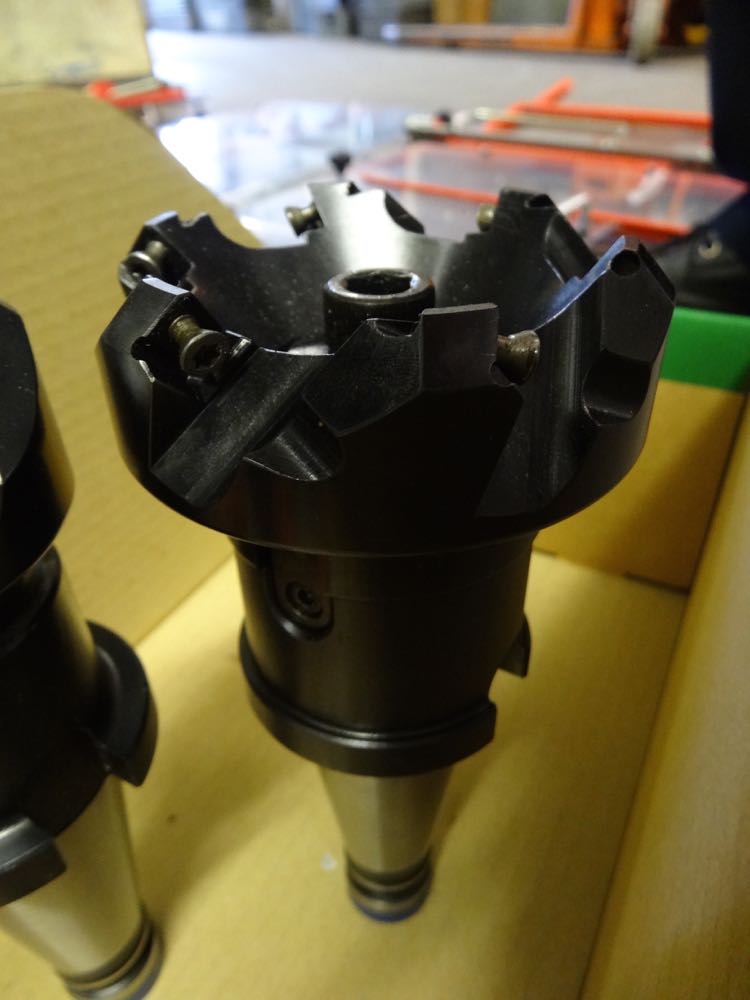

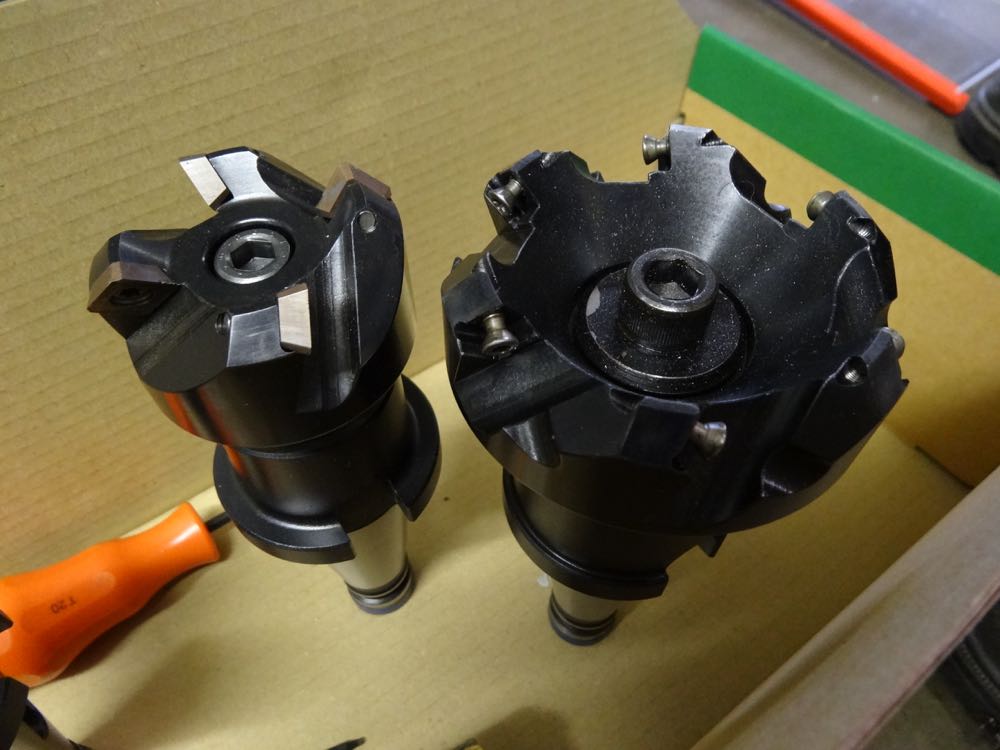

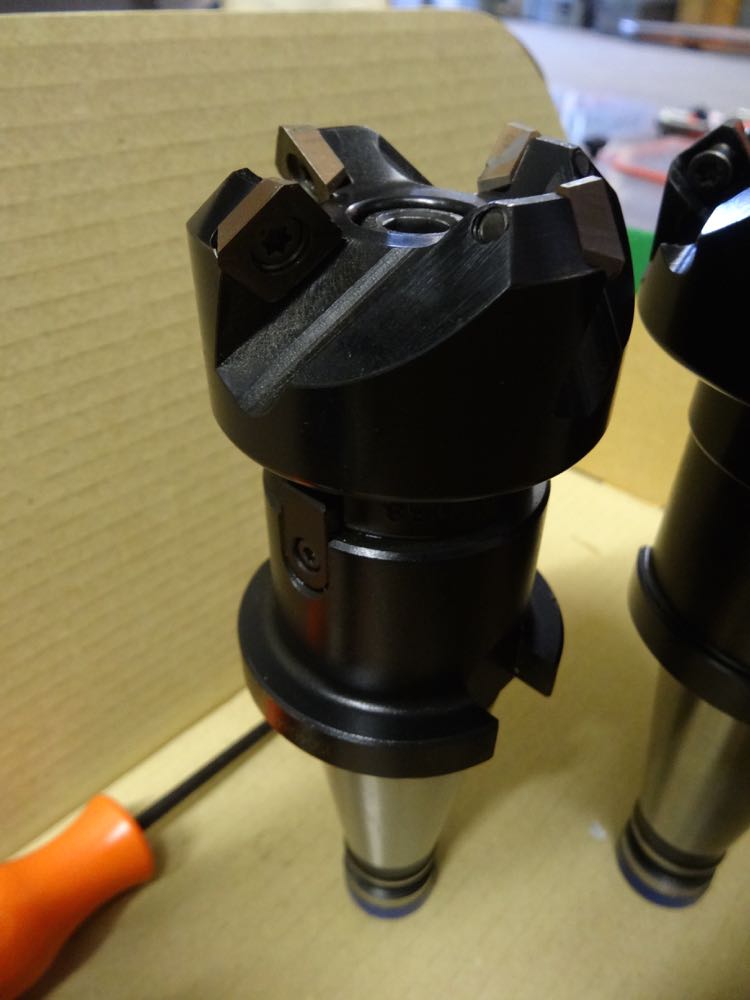

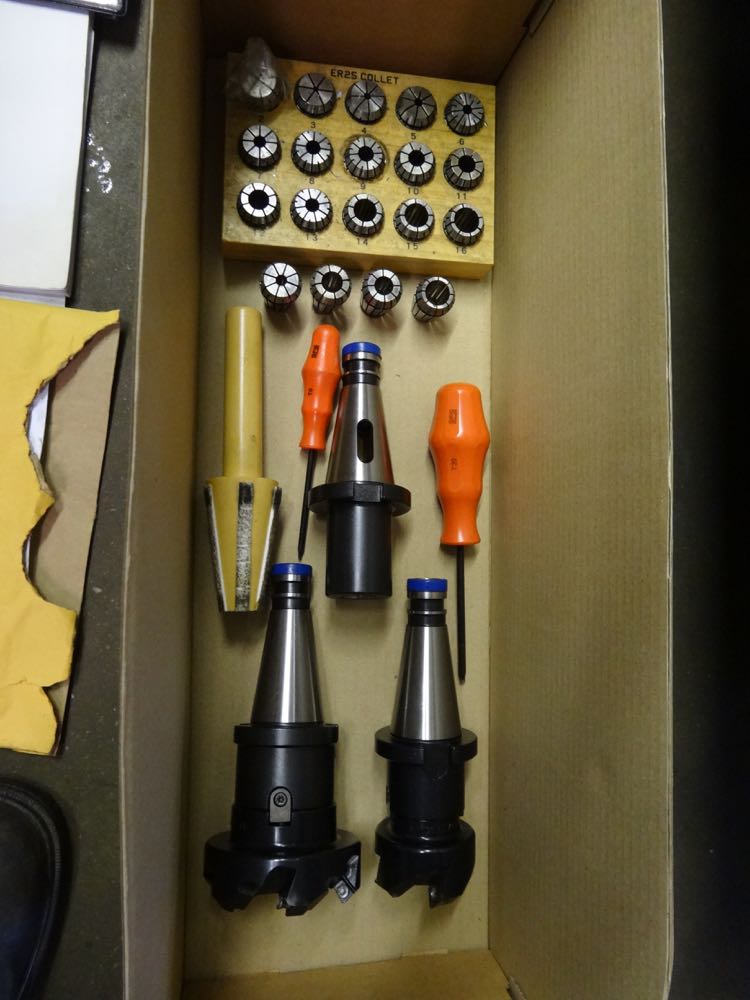

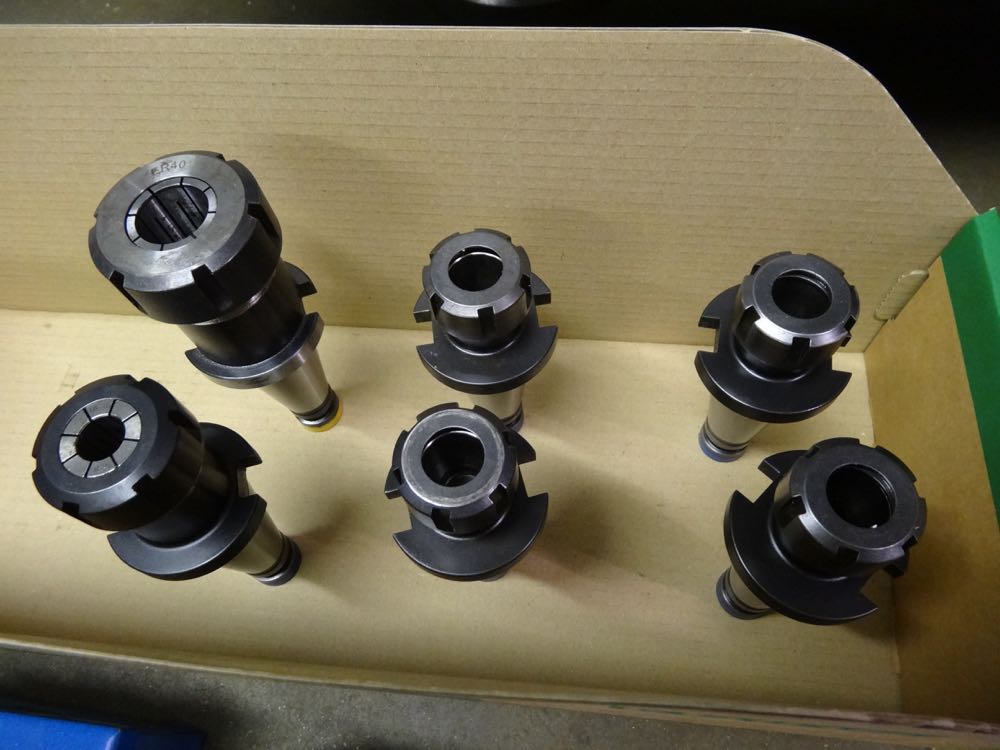

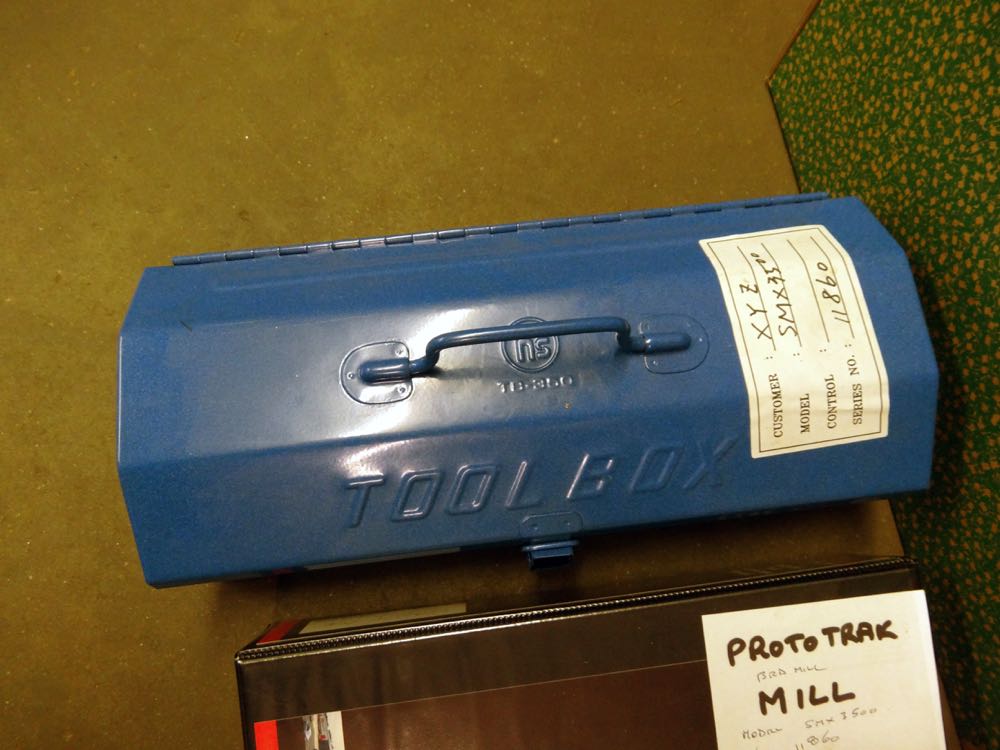

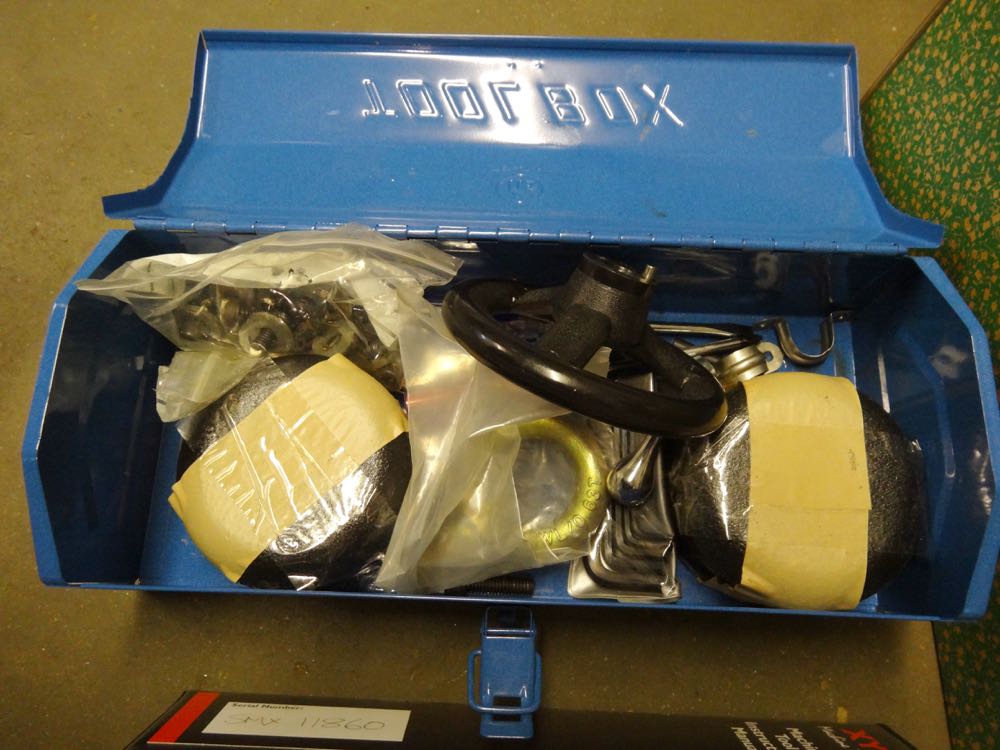

Original tool box provided with the machine

Location: Poole

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
