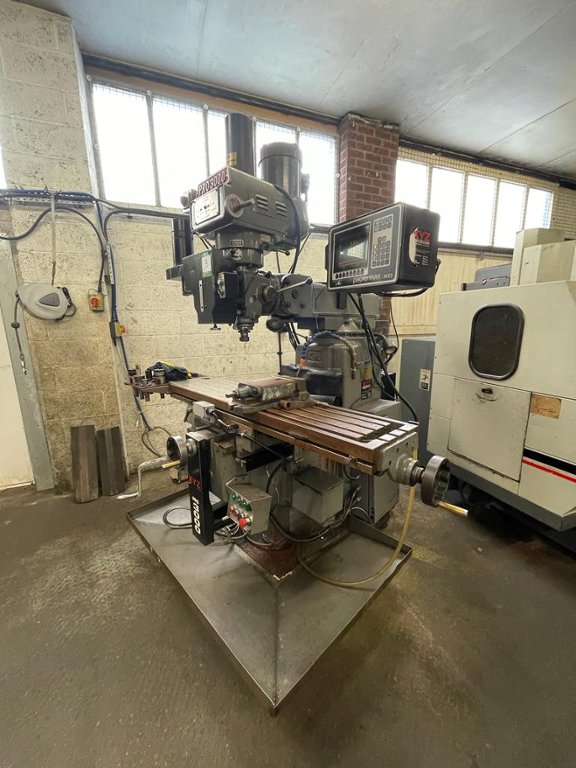

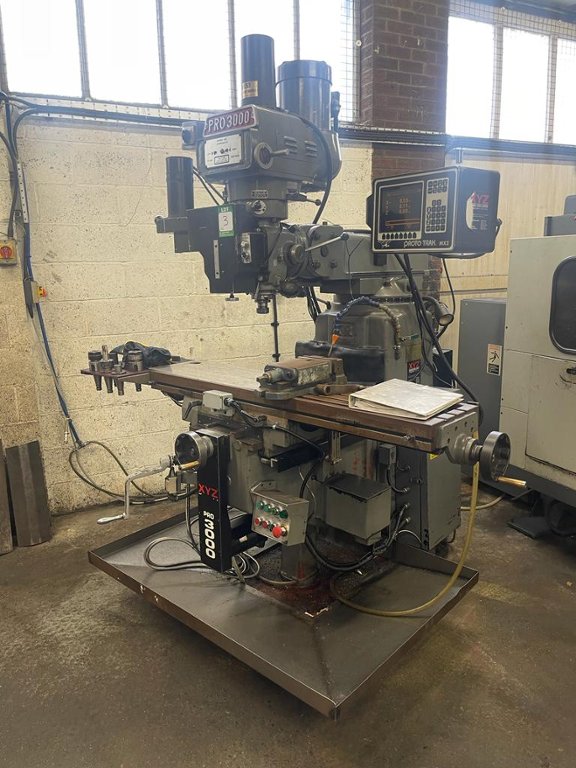

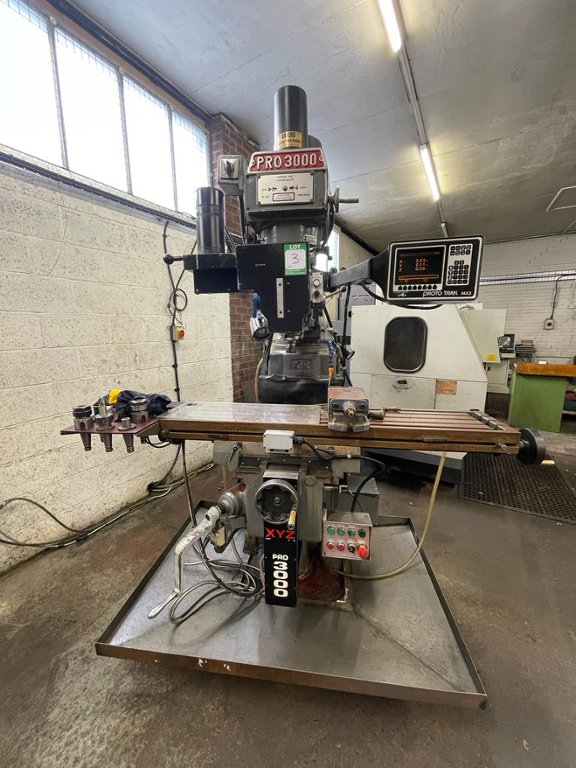

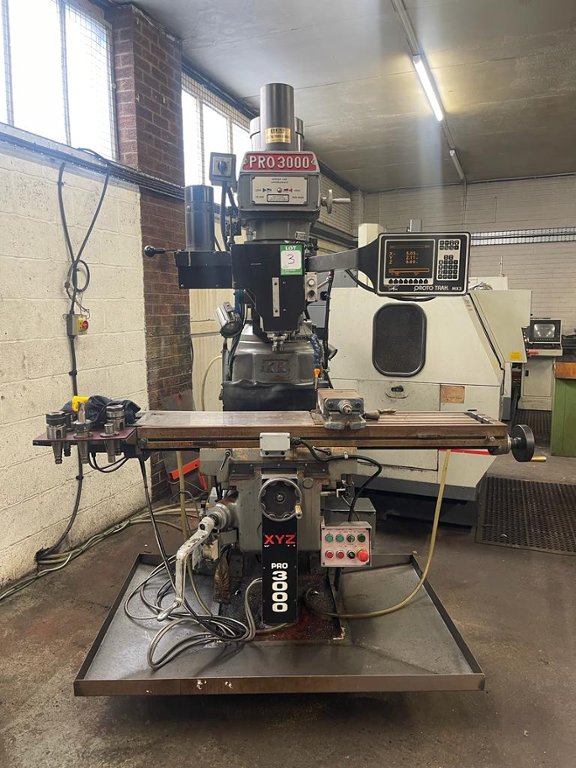

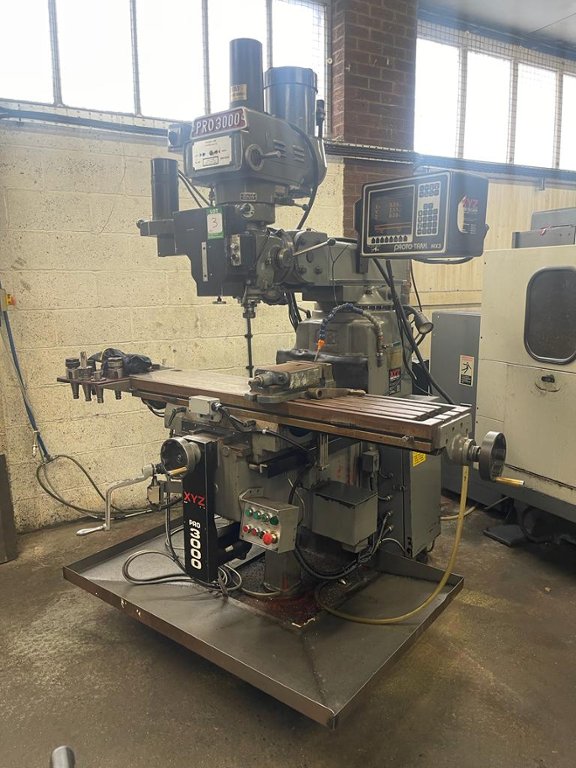

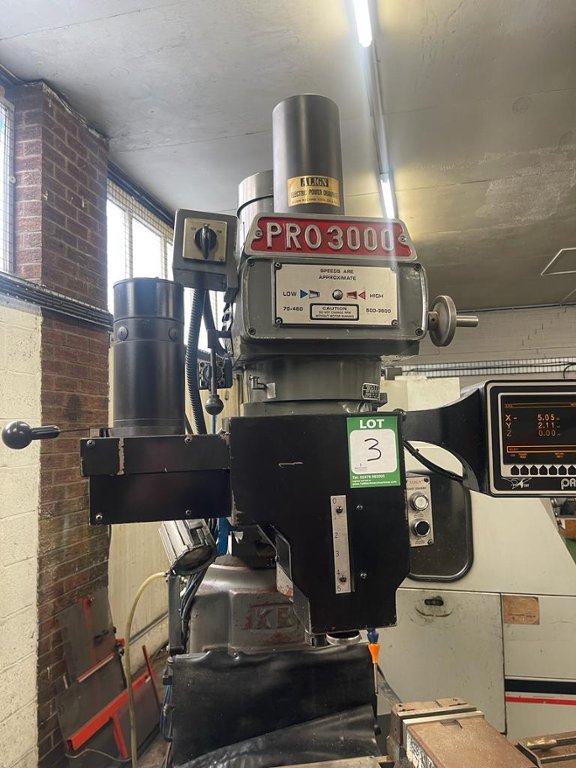

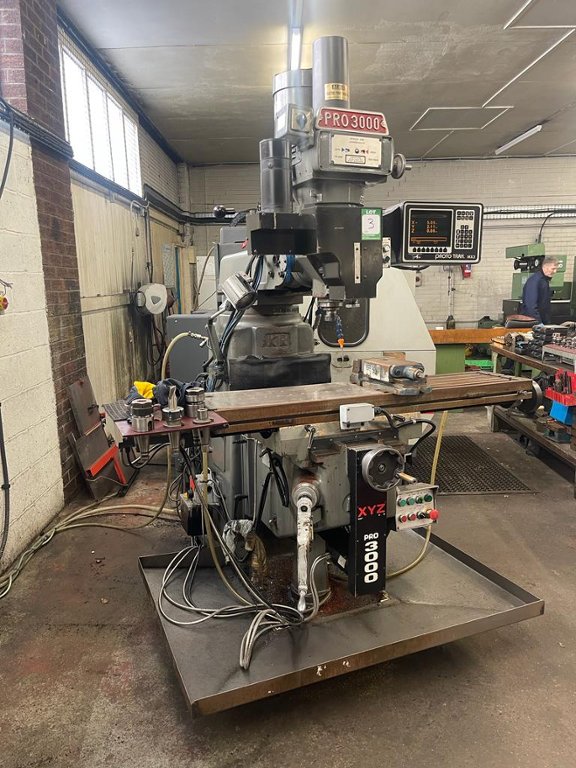

XYZ Pro 3000V Turret Milling Machine (1995)

Lot 3 - XYZ Pro 3000V Turret Milling Machine (1995)

Description:

Vice NOT included

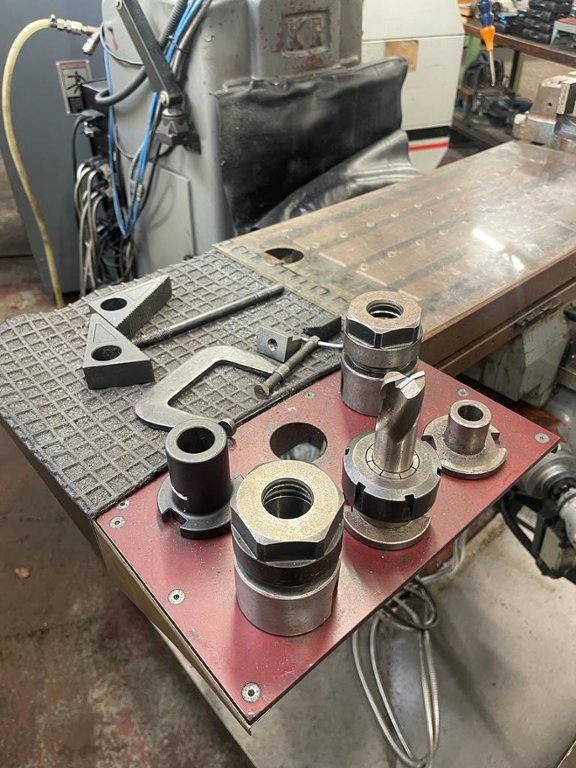

Selection of tooling included

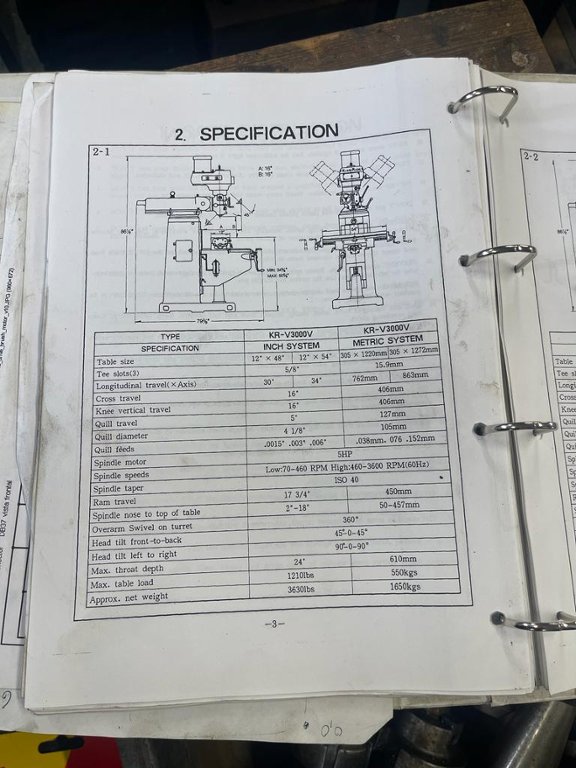

Table size - 305 x 1220mm/305 x 1272mm, T Slots (3) - 15.9mm, Longitudinal travel (X Axis) - 762mm/863mm, Cross travel - 406mm, Knee vertical travel - 406mm, Quill travel - 127mm, Quill diameter - 105mm, Quill feeds - .038mm. 0.76 .152mm, Spindle motor - 5HP, Spindle speeds - Low 70-460RPM High 460-3600RPM (60Hz), Spindle taper - ISO 40, Ram travel - 450mm, Spindle nose to top of table - 50-457mm, Overarm swivel on turret - 360deg, Head tilt front to back - 45deg-0-45deg, Head tilt left to right - 90deg-0-90deg, Max throat depth - 610mm, Max table load - 550kg

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
