Lot 3 - Yang Eagle SMV-1000 VMC (Year 2000)
Description:

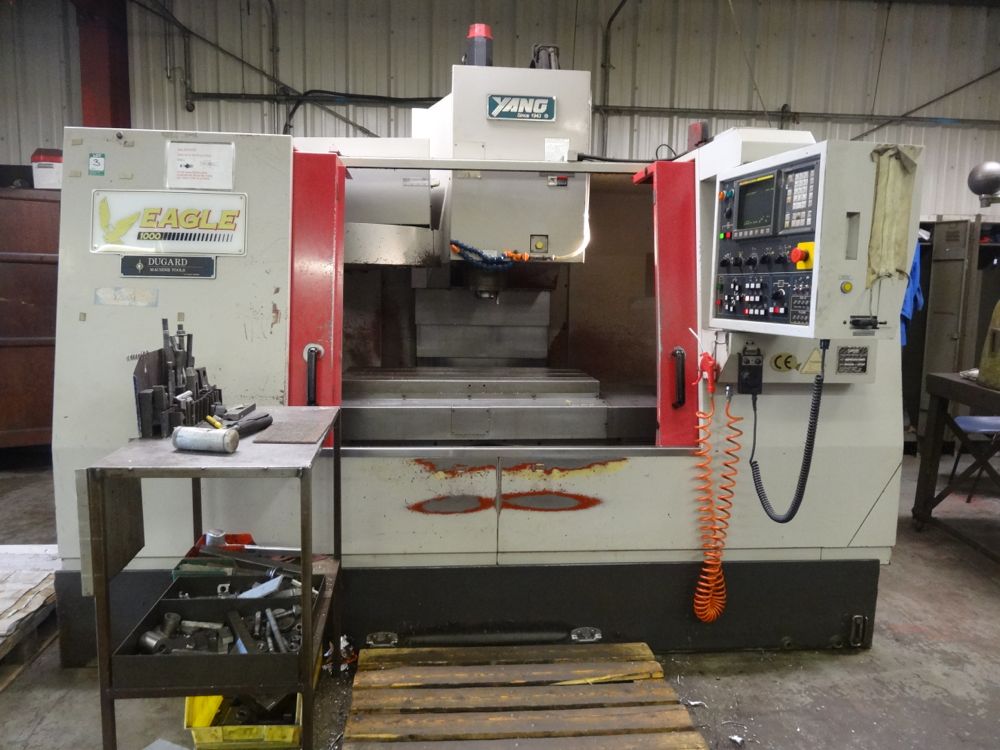

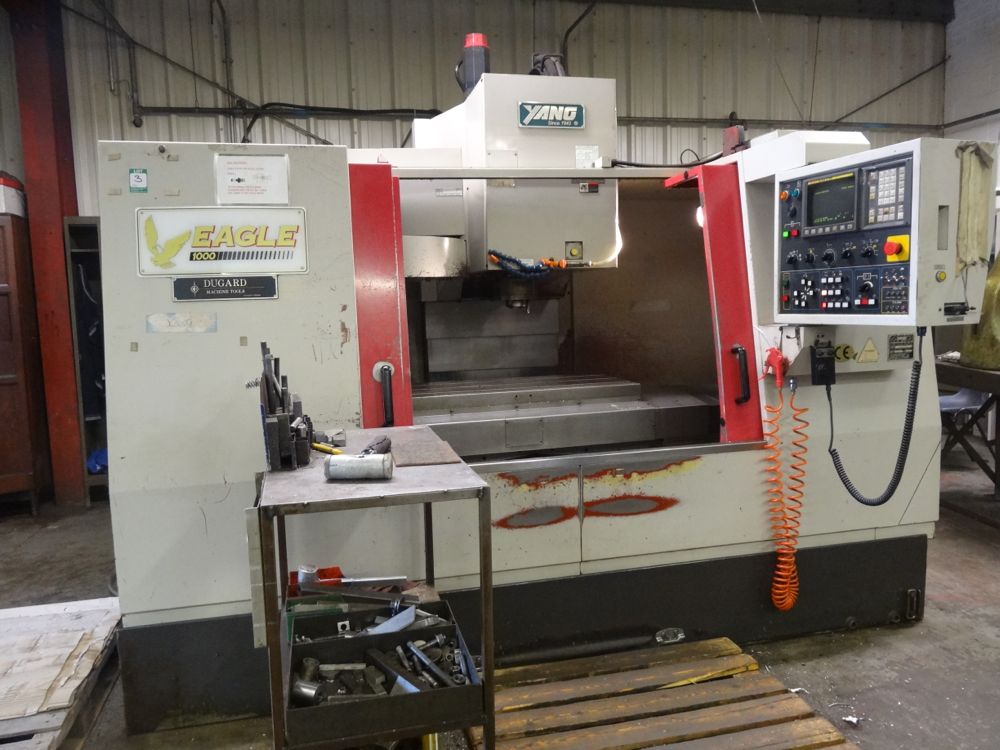

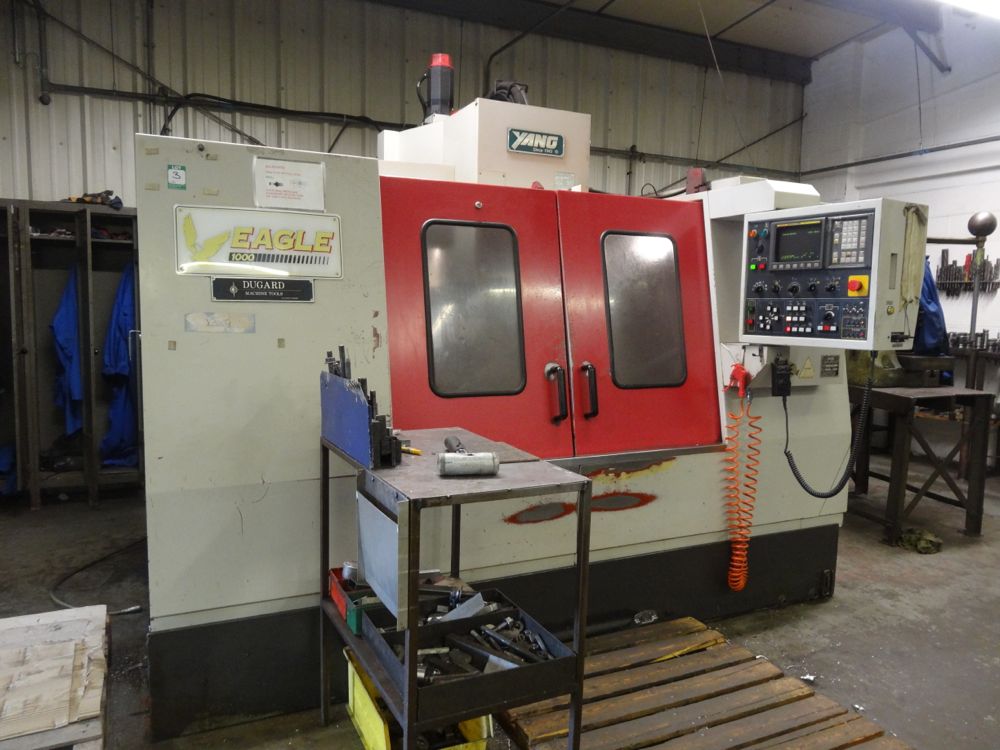

Yang Eagle SMV-1000 VMC
Specification

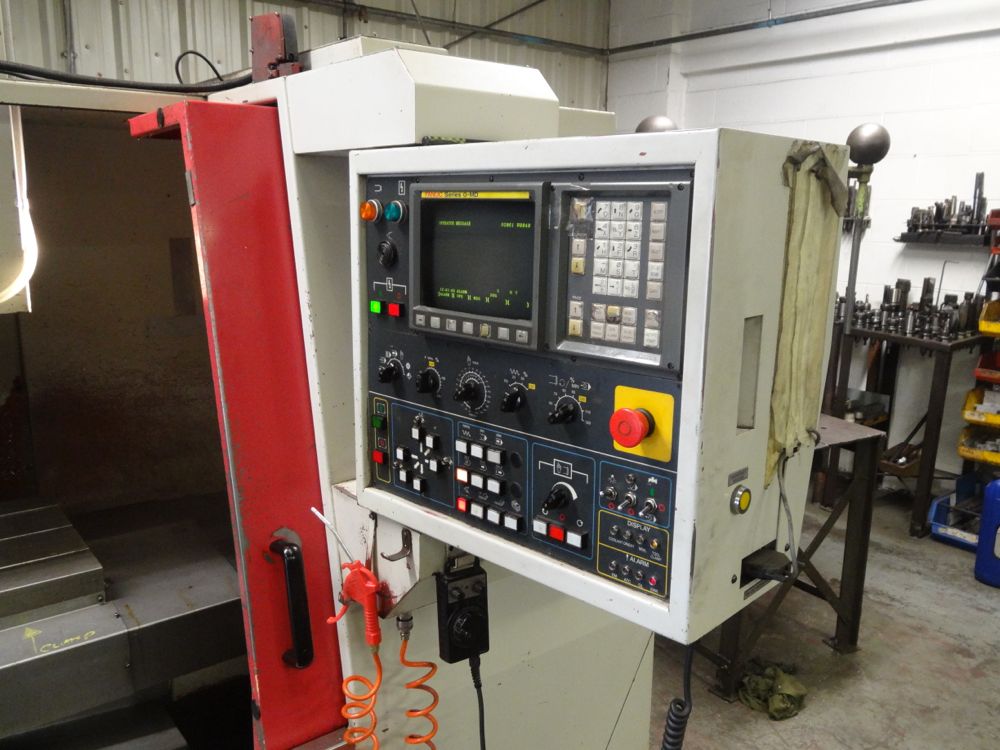

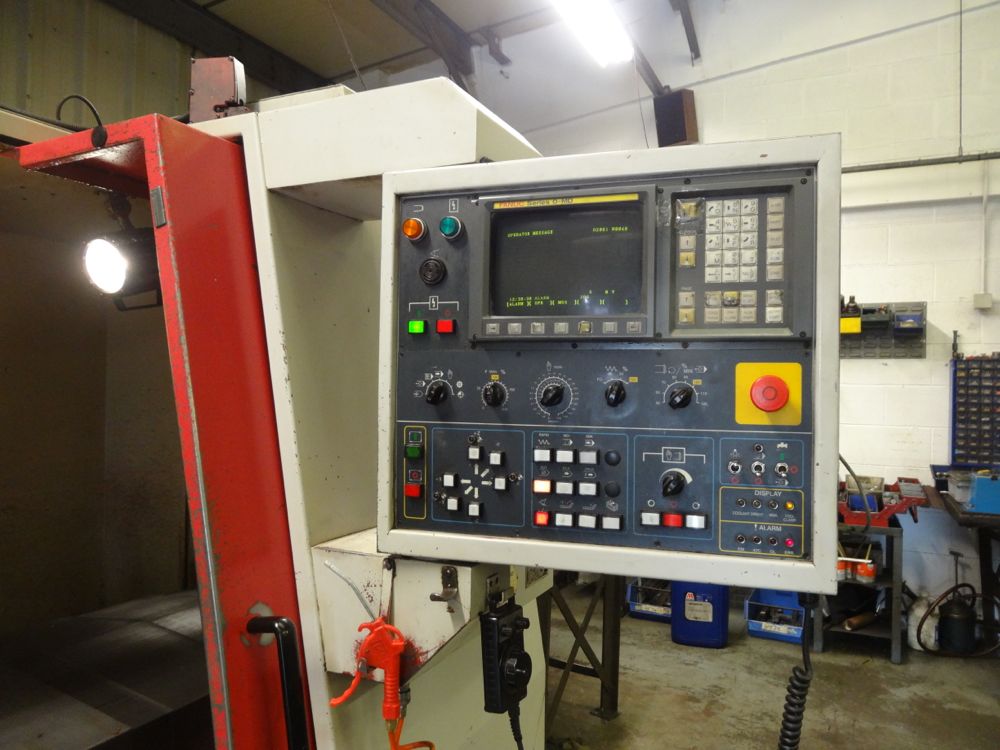

Fanuc 0-MD Control
X Axis travel: 1000mm
Y Axis travel: 510mm
Z Axis travel: 510mm
Max feed rate: 6m/min. X/Y/Z
Speed range:60 - 8000rpm
Spindle power: 11kW

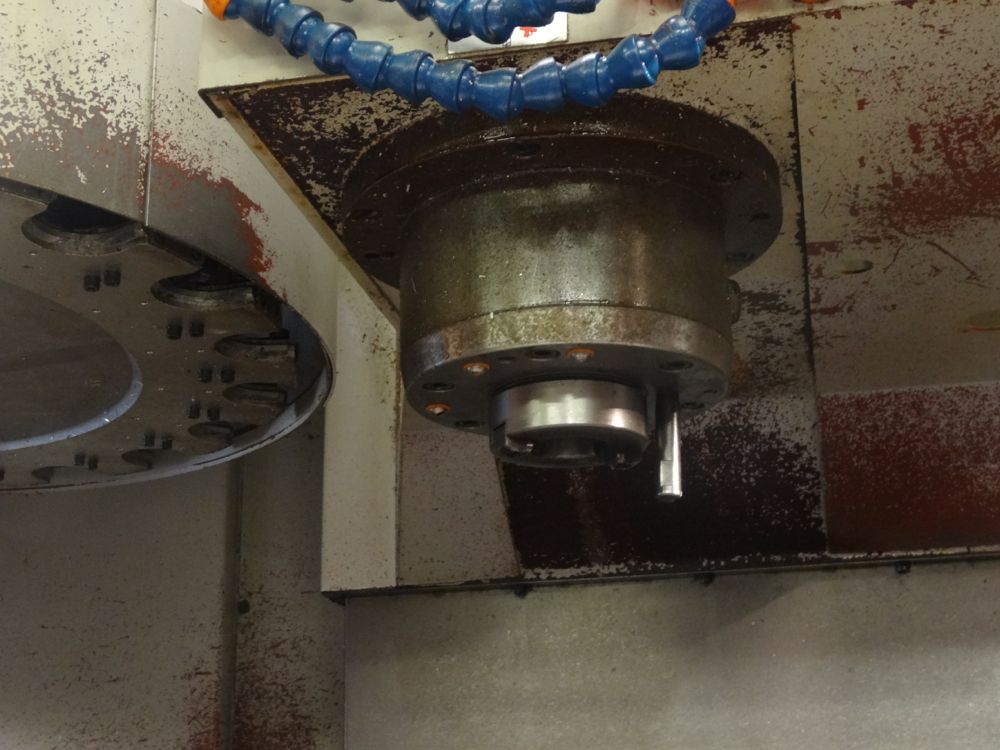

Spindle taper: BT40

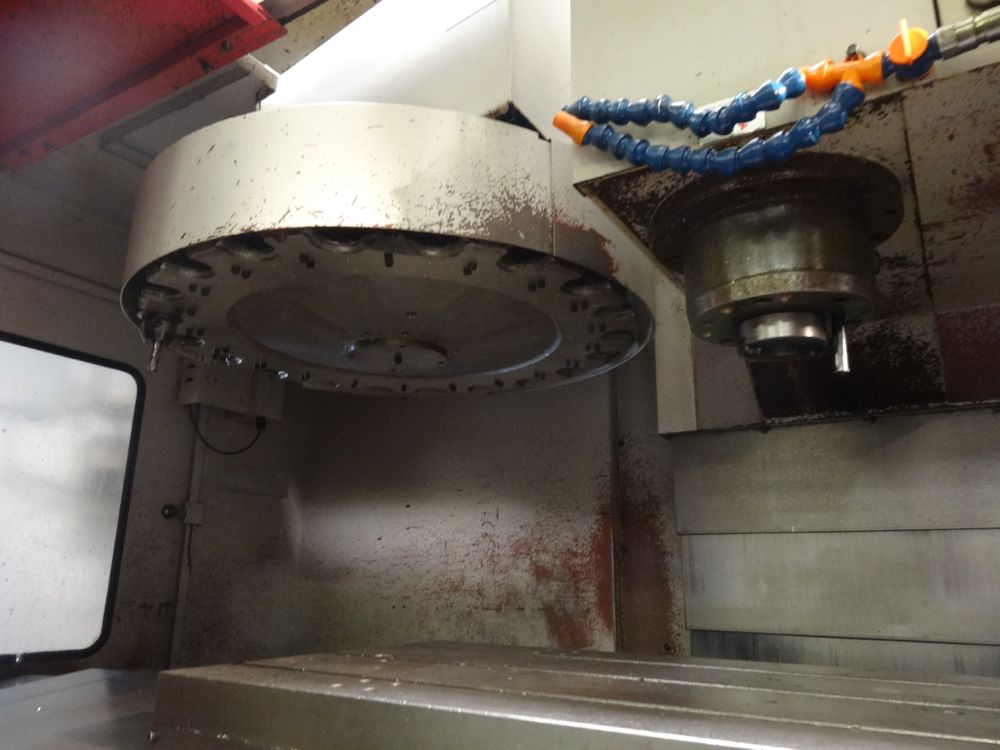

Bi-Directional auto tool changer: 20 station
Machine weight: 4200kgs
Heavy duty high quality cast iron frame
Counterbalanced head
Chip flushing system

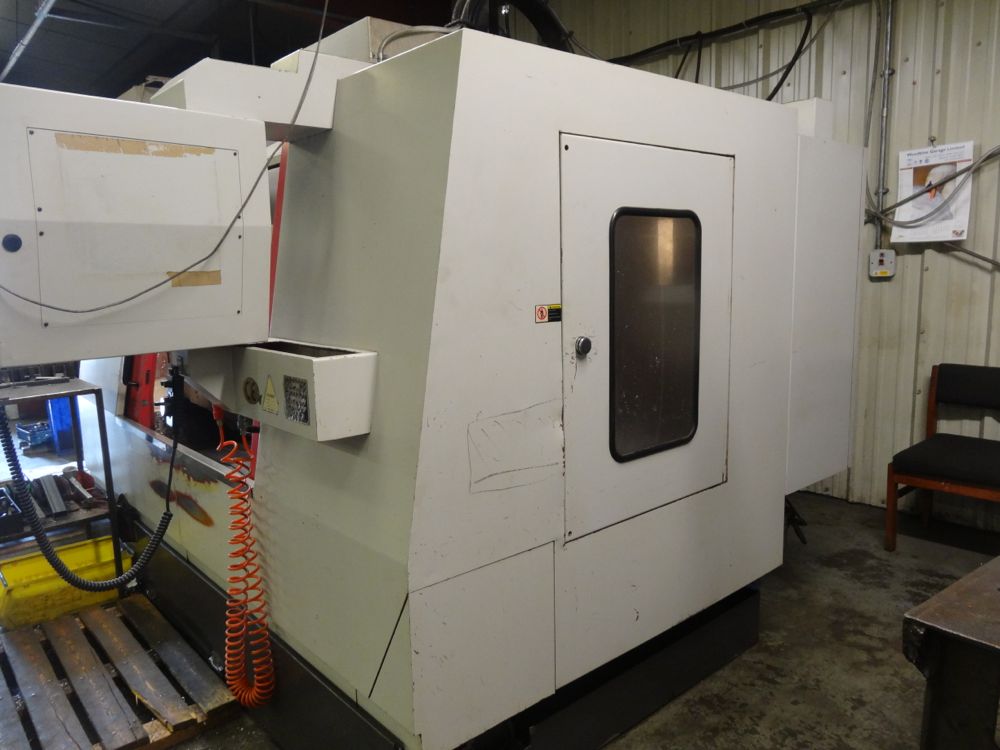

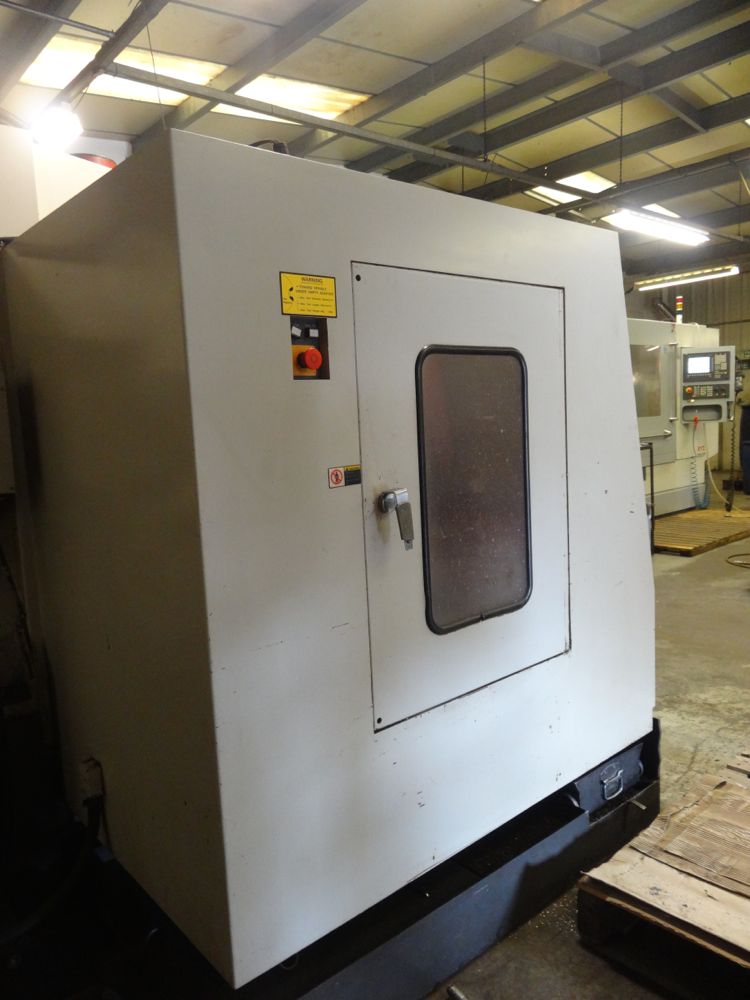

Fully enclosed guarding
9” monochrome screen, background edit
320m memory, rigid tapping, helical interpolation
Other Features

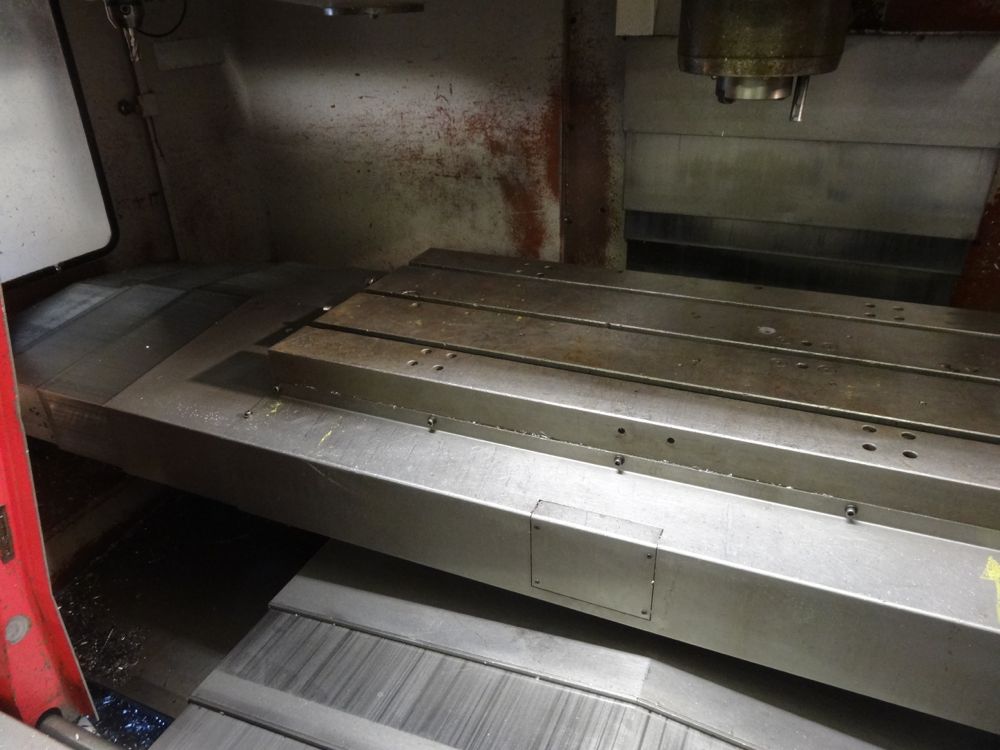

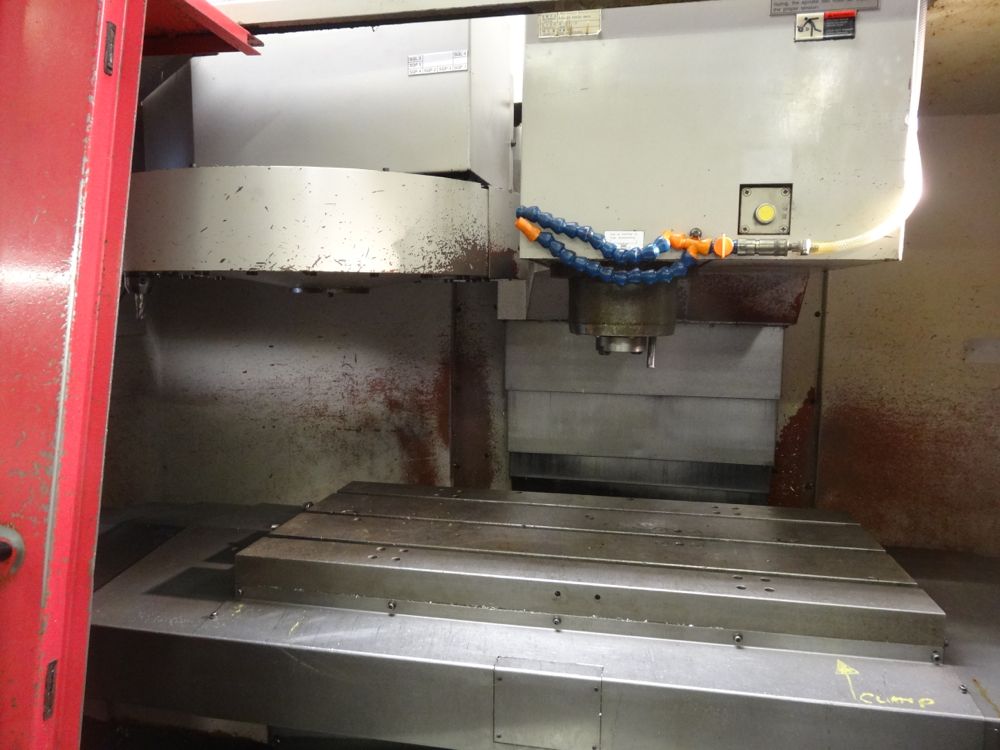

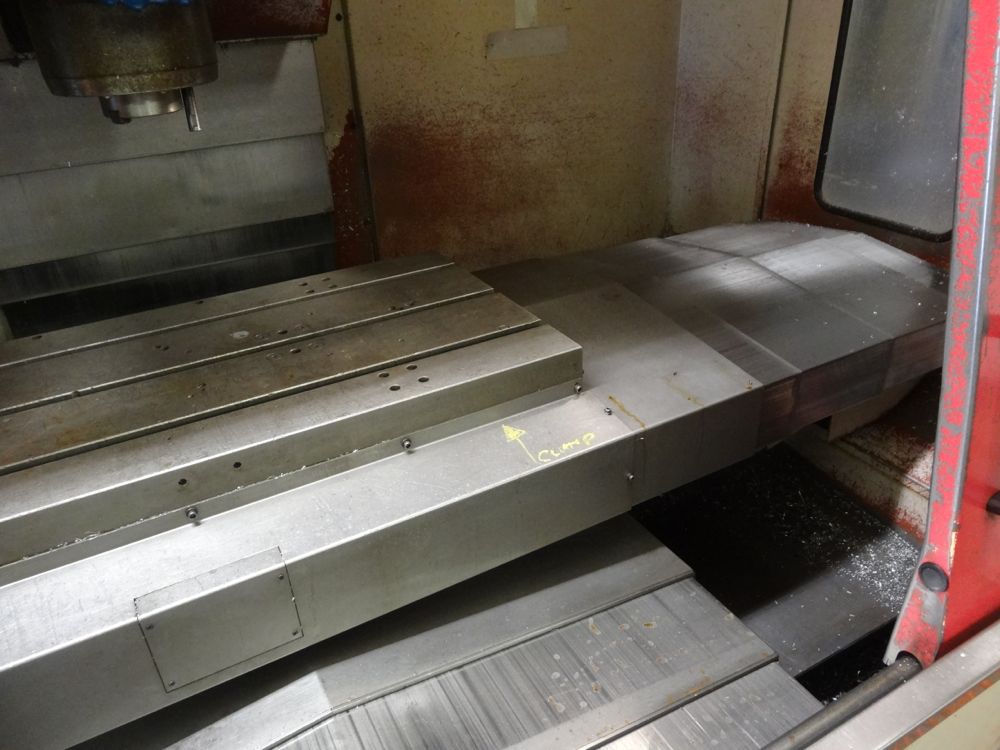

Table size: 1070 x 500mm
Max table load: 600kg
Spindle nose line to table surface: 100 - 610mm
Spindle C/line to column: 625mm
Max tool diameter: 89mm
Max tool length: 250mm
Max tool weight: 6kg
Tool change time chip to chip: 7.5 Seconds
Swarf Conveyor
LxWxH: 2900 x 2300 x 2500mm

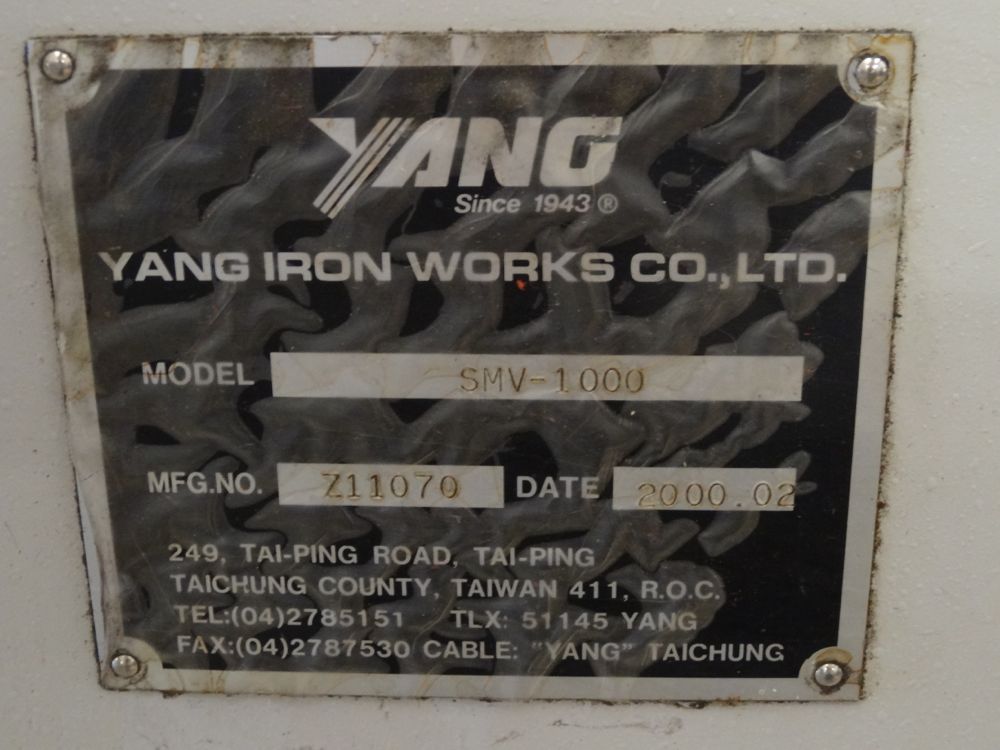

s/n THUZ6355 Z11070
(Year 2000)
Location: Engments Ltd, Derby
Export Information
Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.
All invoices are issued on an Incoterms FCA basis.
Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
