Lot 26 - Zund Plotter -WILD TA10BL
Description:

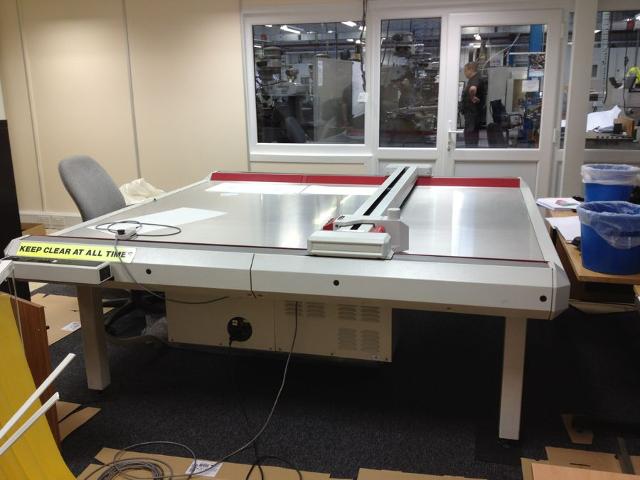

Zund Plotter - WILD TA10BL
1800 x 1670mm maximum working area
Plotting area double plotting head 1800 x 1670 mm
Plotting area quad plotting head 1800 x 1600 mm
MWK 1760 x 1600 mm
Dimensions (W x D x H)
2400 x 2380 x 780 mm
Weight 440 kg
Maximum speed 500 mm/s max
Acceleration 2 m/s²
Resolution 0.01 mm
Addressable resolution 0.02 mm
Static repeatability ± 0.02 mm
Software-interface ASCII / binary
Basis Plotter Software (Calcomp plotting routines)
Hardware-interface
RS 232C (110/150/300/600/1200/2400/4800/9600 baud)
serial asynchronous data transfer
Input-Buffer 512 Bytes
Mains connection 220V AC ± 10%
optinal (100,115,125,200,235,250 VAC ±10%)50/60 Hz
Power consumption 660 VA without optional equipment
Has Many uses and various options can be purchased for the machine.
Scribing, Plotting, Milling & Measuring
Manuals Included
User will need software to drive this!Can be loaded for Free to Transport apart from Container.
Location: Worcester
